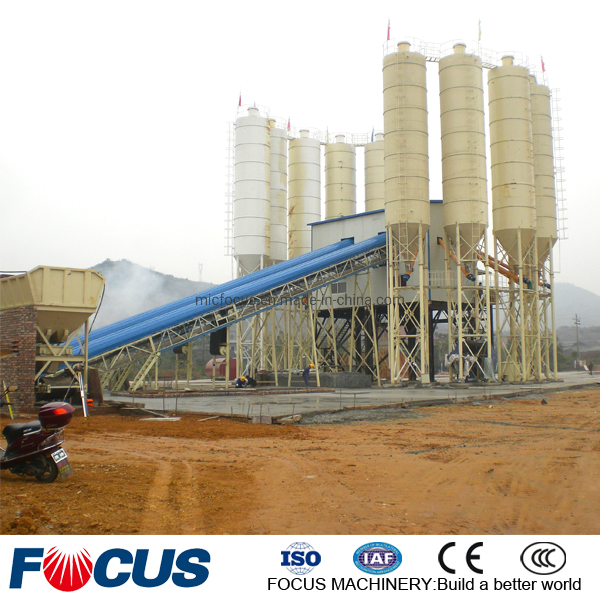

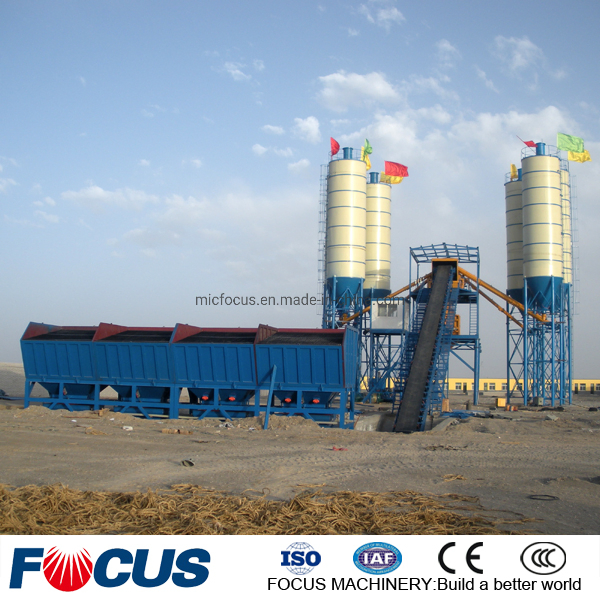

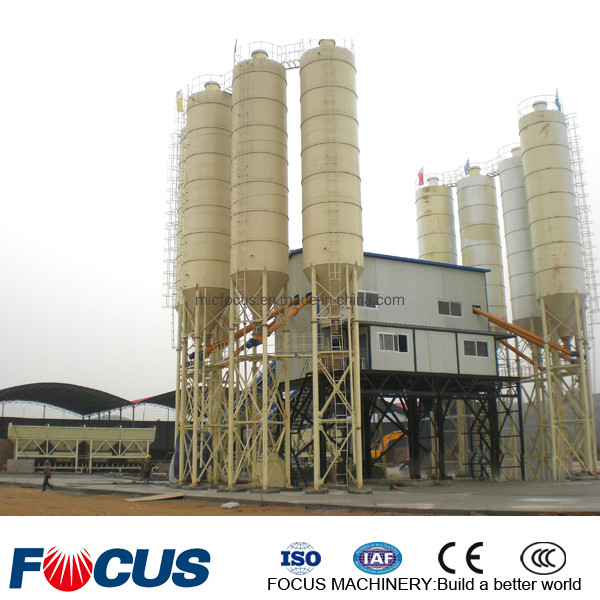

Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
1 / 5
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer
Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer

Ready Mixed Hzs120 120m3/H Belt Conveyor Concrete Batching Mixing Plant Container Type with Fully Automatic Computer Control 2000L Twin Shaft Mixer

Customization: Available
After-sales Service: Overseas Service Center with Sufficient Engineers
Warranty: 12 Months
Send Inquiry

Product Description

📊 Basic Info
Model NO.
HZS120
Type
Concrete Mixing Plant
Productivity
120m³/h
Mixer Model
JS2000
Machining Process
Hydraulic
Feeding Height
1370mm
Aggregate Batcher
PLD3200
Total Power
160KW
Discharge Height
3.8-4.2m
Total Weight
71 Ton
Certification
ISO9001: 2000, CE
Structure
Cylinder Type
🏗️ Product Description

HZS120 Ready Mixed Belt Conveyor Concrete Batching Plant

Combining the advantages of advanced mixing technology, the HZS ready mixed concrete batching plant adopts a modular structure design. This ensures convenient installation, removal, and safe, comfortable operation with superior mixing effects and high efficiency. The system utilizes PLC automatic logical program control and computer-based all-time tracking management for reliable operation and simplified maintenance.

⭐ Main Features
Twin-Shaft Compulsory Mixer: Ensures rapid and even mixing for dry, semi-dry, and plastic concrete.
Planetary Gear Transmission: Compact structure ensures smooth, speedy, and efficient power transfer.
Flexible Batcher Design: Underground or above-ground hoppers (3-6 units) with precise pneumatic computer control.
Advanced Belt Conveyor: Truss-framed for easy assembly, supporting inclination angles up to 45° with groovy belts.
High-Precision Weighing: Three-point suspension sensors for accurate powder and liquid measurement.
Eco-Friendly Dust Collection: Closed-state operation deals with dust during loading and pumping processes.
Intelligent Control: Siemens PLC and UPS stabilization for automatic measurement, transfer, and discharging.

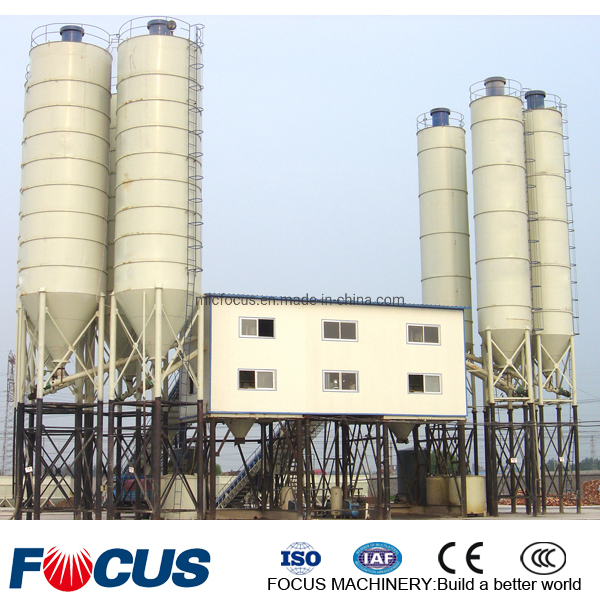

Concrete Batching Plant Overview

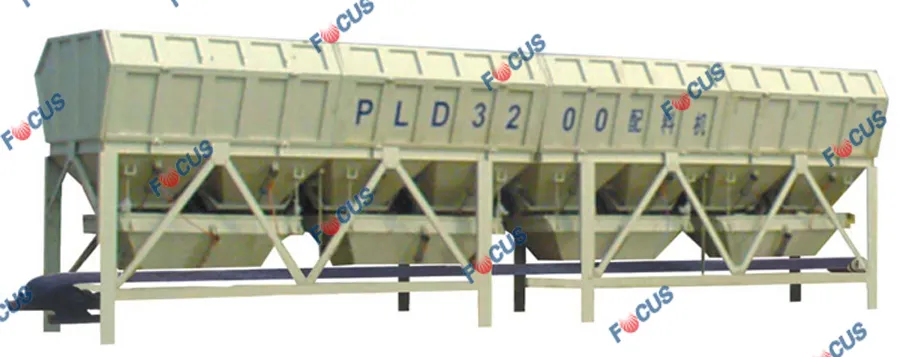

Conveyor System Detail

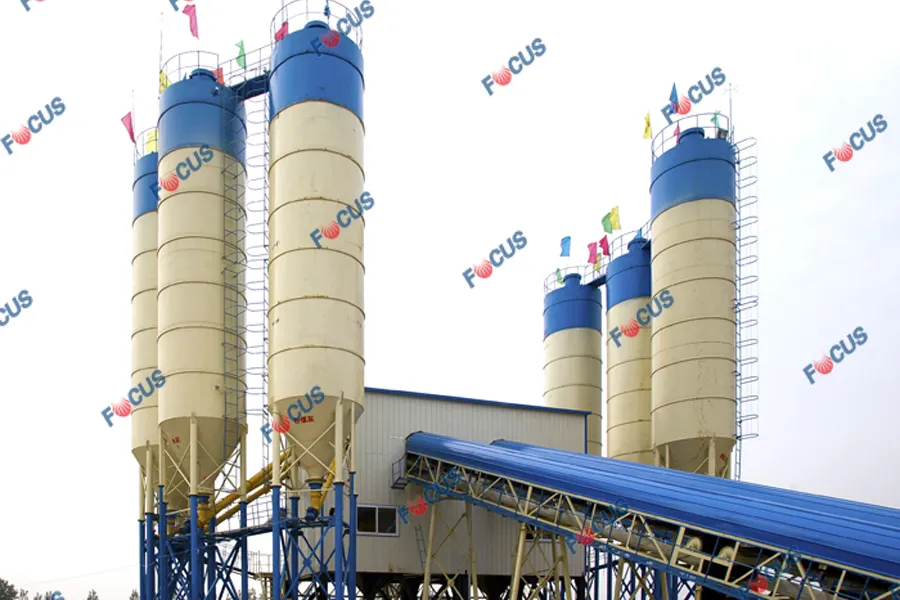

Cement Silo Structure
📋 Technical Parameters
Model HZS60 HZS90 HZS120 HZS180 HZS240
Theoretical output (m³/h) 60 90 120 180 240
Mixer Model JS1000 JS1500 JS2000 JS3000 JS4000
Output per batch (m³) 1 1.5 2 3 4
Aggregate batcher PLD2400 PLD2400 PLD3200 PLD4800 PLD6400
Total power (KW) 110 145 160 205 340
Cement weighing accuracy ±1% ±1% ±1% ±1% ±1%
Overall dimension (m) 33.8x14.8x19.4 38x16x19.4 44x18x19.4 58.5x23.5x22 60x25x22

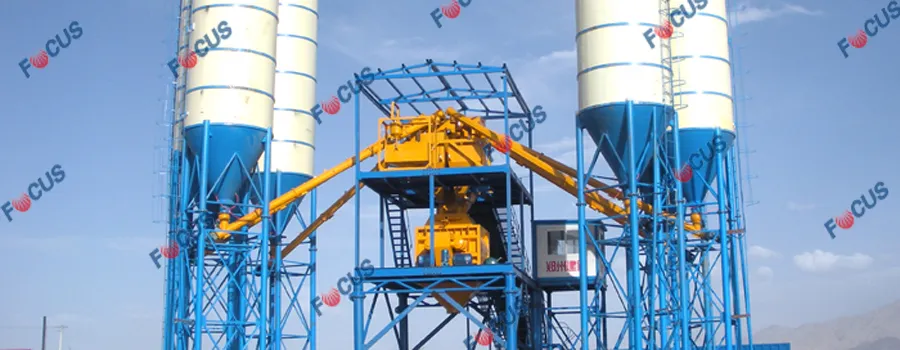

Screw Conveyor Detail

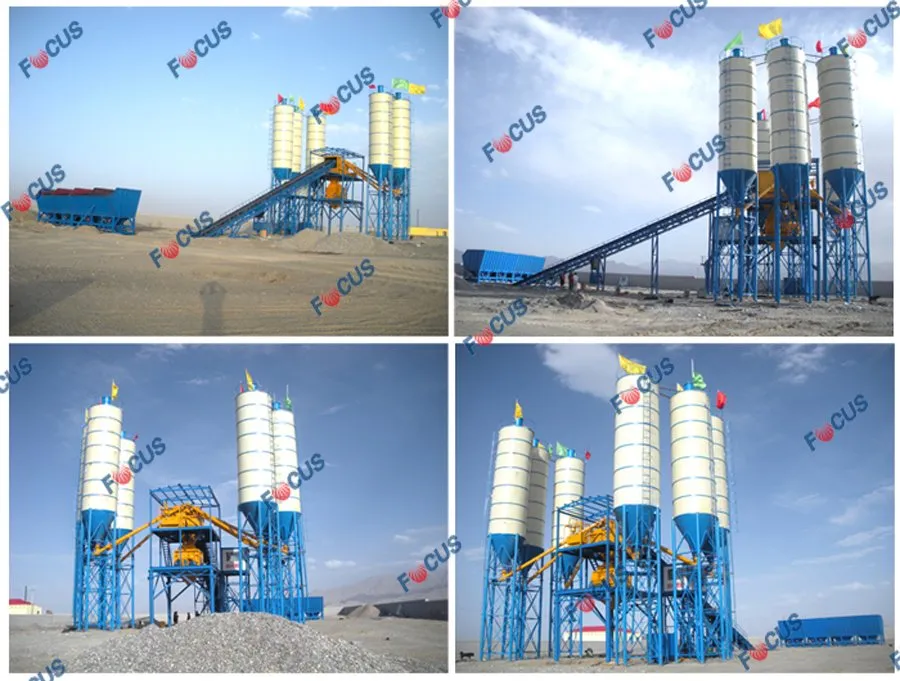

Global Installation
Certification and Quality
❓ Frequently Asked Questions
1. What is the theoretical productivity of the HZS120 plant?
The HZS120 concrete batching plant has a theoretical output of 120m³/h, making it suitable for large-scale ready-mixed concrete production.
2. Which type of mixer is integrated into the HZS120 model?
This plant uses the JS2000 twin-shaft compulsory concrete mixer, which provides rapid and uniform mixing for various types of concrete.
3. How does the plant ensure weighing accuracy?
It utilizes three-point suspension sensors and high-speed precision weighing modules controlled by a Siemens PLC system to guarantee ±1% accuracy for cement, water, and additives.
4. Can the plant operate in extreme weather conditions?
Yes, the plant can be equipped with optional heating systems or ice plants to maintain stable production in severely cold or hot environments.
5. What are the environmental features of this batching plant?
The entire plant operates in a closed state with a dedicated dust collection system to manage particles generated during material loading and pumping.
6. What certifications does the equipment hold?
The equipment is ISO9001:2000 and CE certified, ensuring compliance with international quality and safety standards.
