Type: Concrete Mixing Plant
Shotcrete Type: Wet
Machining Process: Brick Production Line
Send Inquiry

Product Description

Basic Specifications

Model NO.
HZS25
Productivity
25m³/h
Certification
ISO9001: 2000, CE
Condition
New
Color
Blue
Mixer
JS500
Charging Capacity
800L
Discharging Capacity
500L
Batcher
PLD1200
Weight
14t
Power
37kw
Control
Full Automatic
Floor Area
17mx9m
Origin
China
HS Code
84743100
⚙️ Engineering Construction Equipment

HZS25 Concrete Mixing Plant with twin shaft concrete mixer designed for high-efficiency concrete production and machinery reliability.

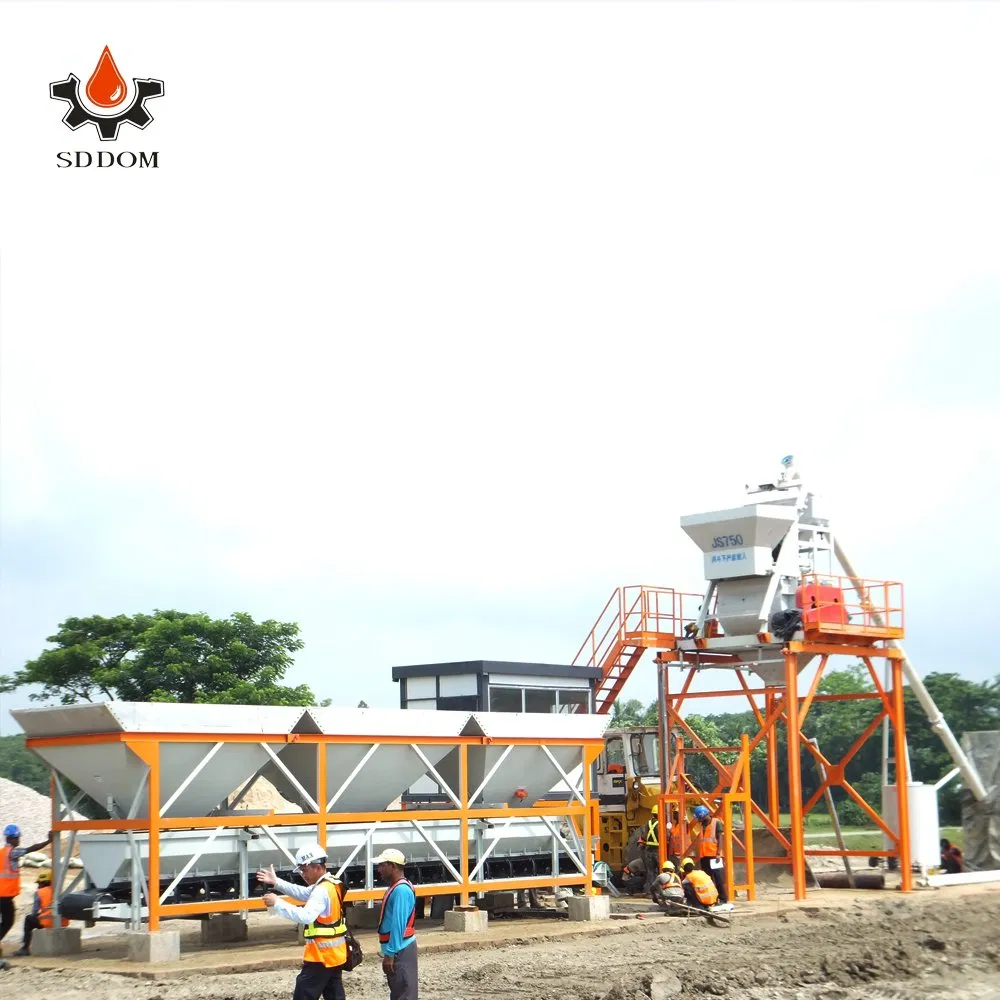

HZS25 Concrete Mixing Plant

Technical Configuration

No. Component Specification
1ModelHZS25 concrete batching plant
2Capacity25m3/h
3Total Power37KW
4Total weight14000kgs
5Mixer500L
6Batching MachinePLD1200 3 Bins
7Control SystemElectric Full Automatic
8Pneumatic System1 Set

Mixing System Options

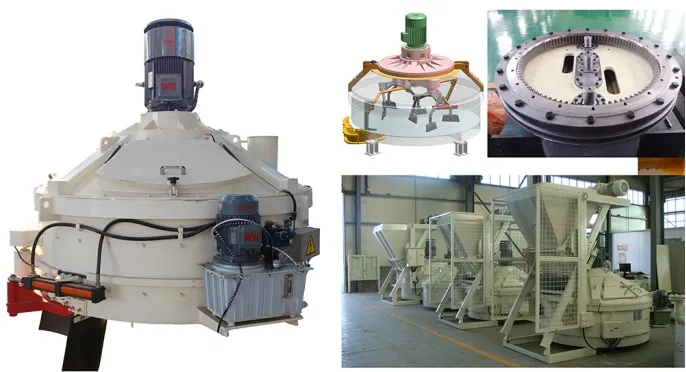

Planetary Mixer

A. Planetary Type Mixer

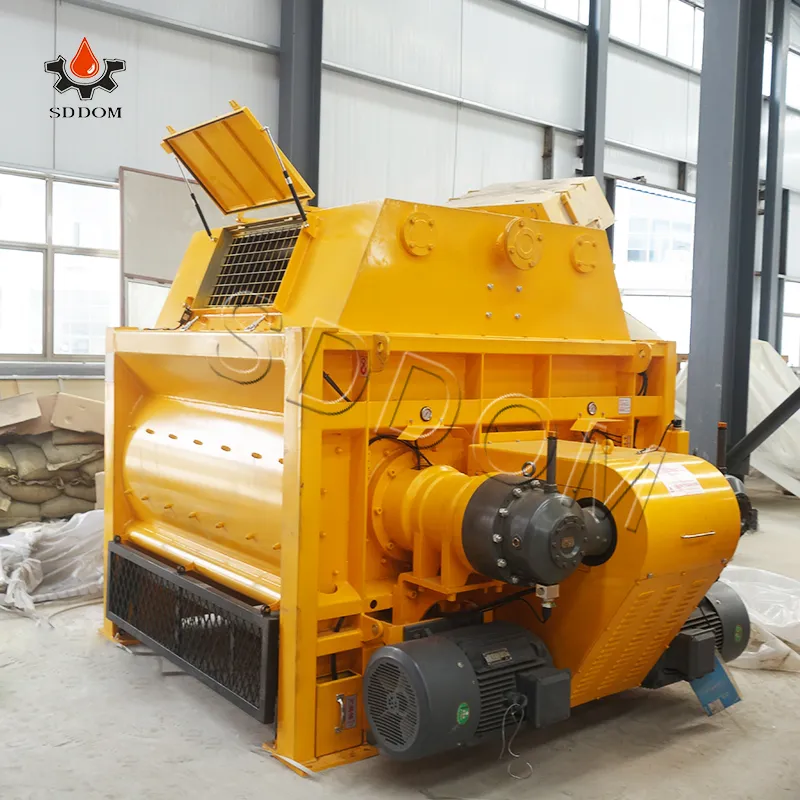

Twin-Shaft Mixer

B. Twin-Shaft Mixer

JS500 Twin-Shaft Mixer Specs
1LubricationAutomatic
2Power18.5KW
3Charging/Discharging750L / 500L
4Cycle Period30s
5Max Aggregate Size80/60mm

Aggregate Batching System

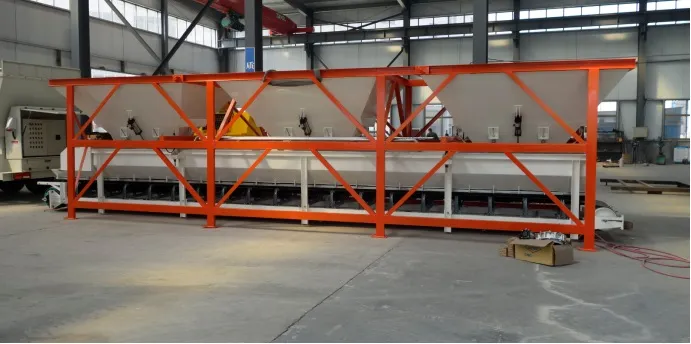

Aggregate Bins
PLD1200 Aggregate Batch Machine
1Aggregate Volume5m3 * 3 Bins
2Discharging Gate6 sets
3Measuring Precision±2%
4Belt Speed1.25 m/s

Weighing & Control System

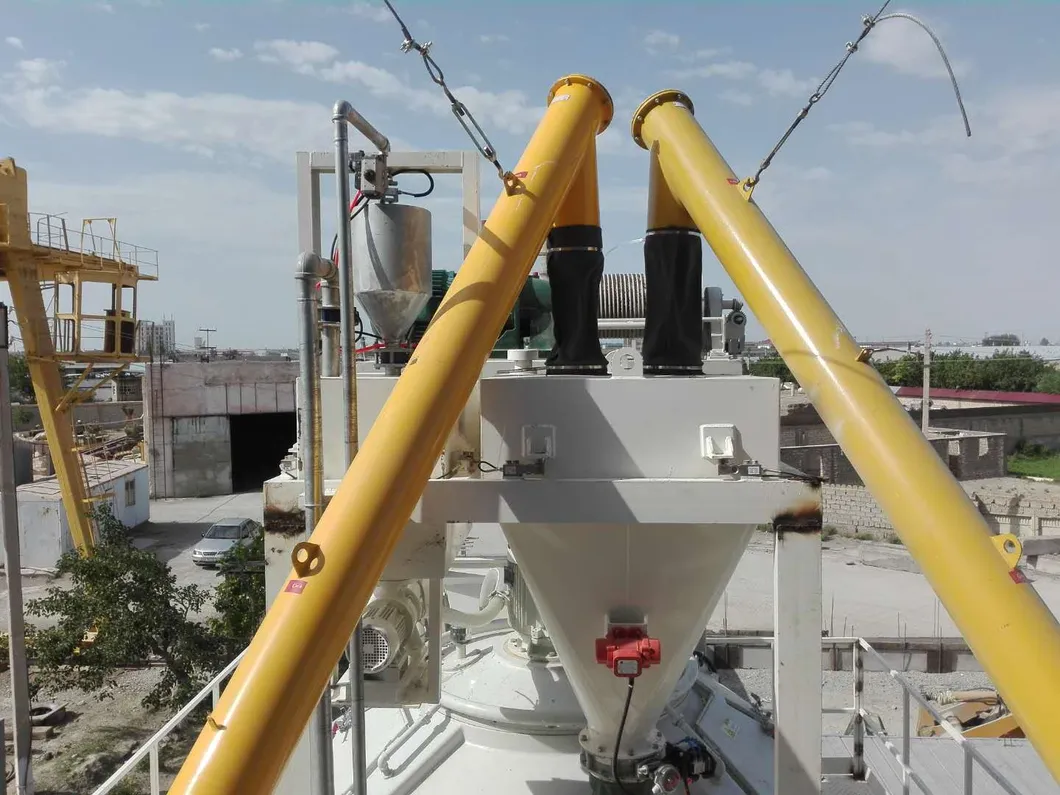

Weighing System

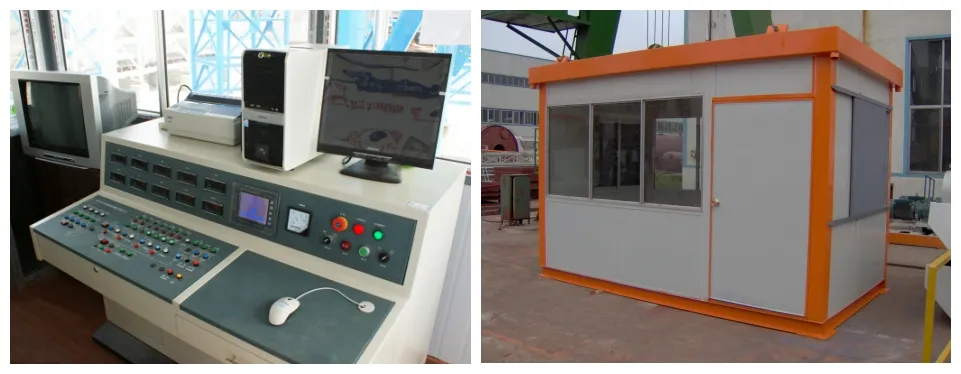

Control Room
Weighing Accuracy
Cement Weighing250L Volume±1% Accuracy
Water Weighing150L Volume±1% Accuracy
Additive Weighing40L Volume±1% Accuracy
Control System Interior

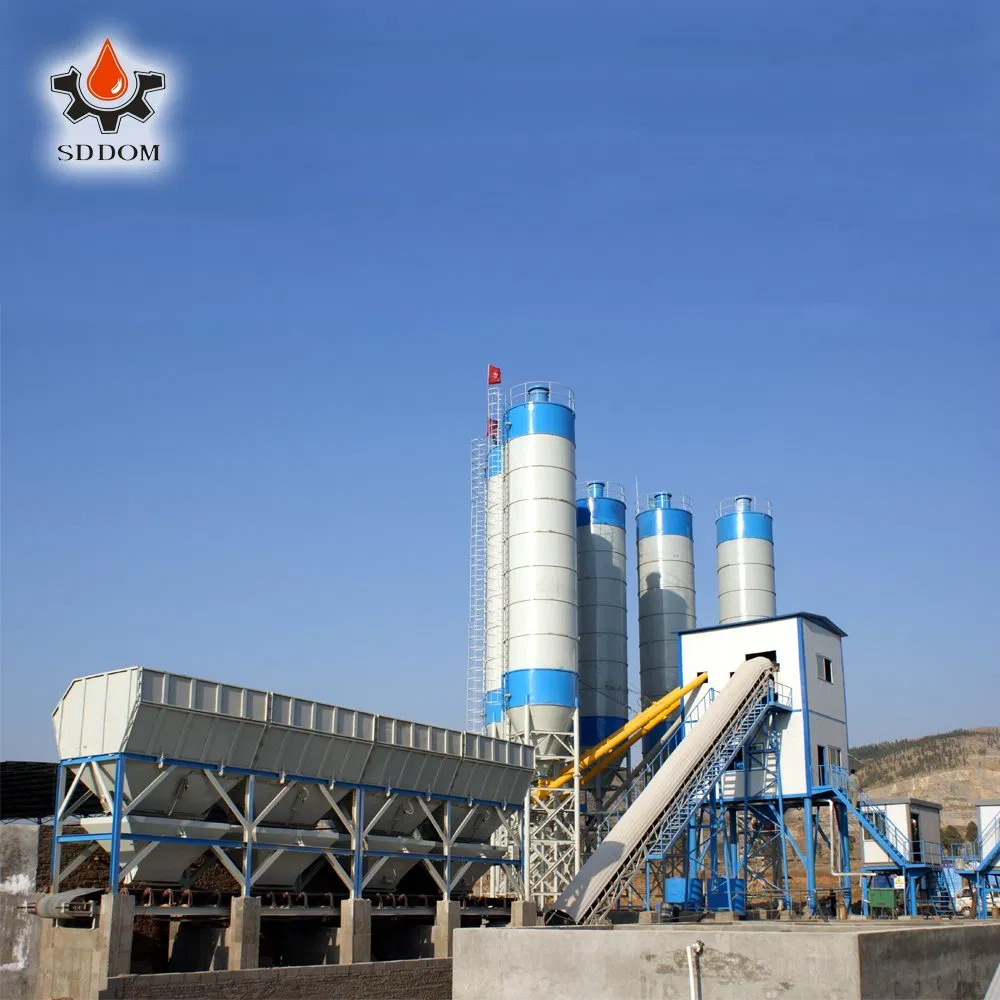

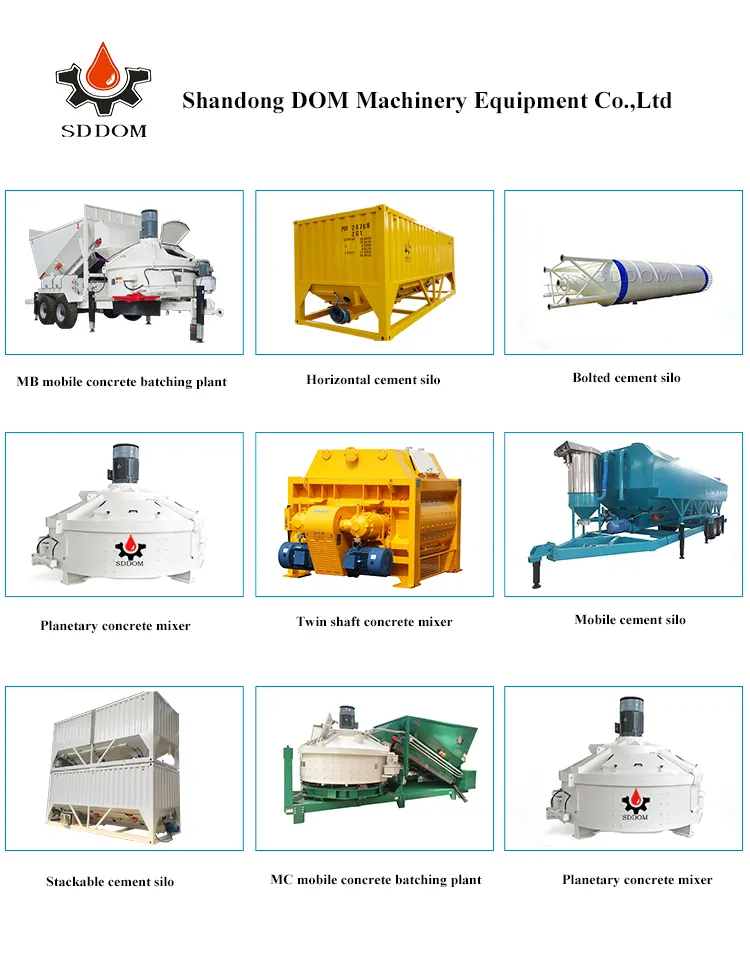

Main Product View
Concrete Mixer Machinery

Frequently Asked Questions

Q1: What is the production capacity of the HZS25 plant? A: The HZS25 concrete mixing plant has a productivity of 25 cubic meters per hour (25m³/h).
Q2: What type of mixers can be used with this batching plant? A: Depending on the concrete quality requirements, customers can choose between a Planetary type mixer (MP500) or a Twin-shaft type mixer (JS500).
Q3: Is the control system manual or automatic? A: The HZS25 plant is equipped with a full automatic electric control system for precise and easy operation.
Q4: What is the weighing accuracy for materials? A: The weighing systems for cement, water, and additives all maintain a high precision accuracy of ±1%.
Q5: What is the required floor area for installation? A: The standard installation requires a floor area of approximately 17 meters by 9 meters.
Q6: What is the maximum aggregate size the mixer can handle? A: The mixers are designed to handle maximum aggregate sizes of 80mm for crushed stone and 60mm for pebbles.
