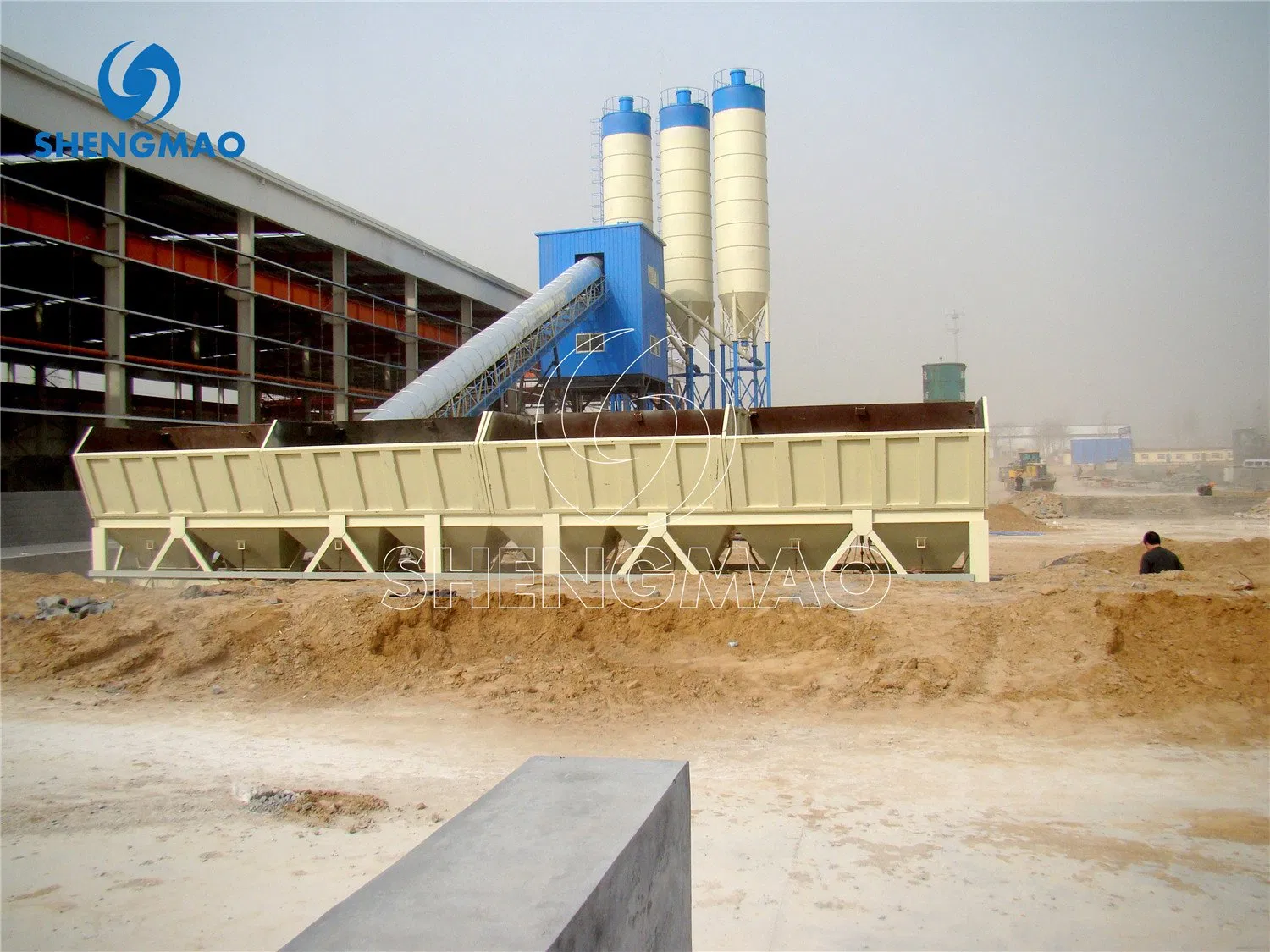

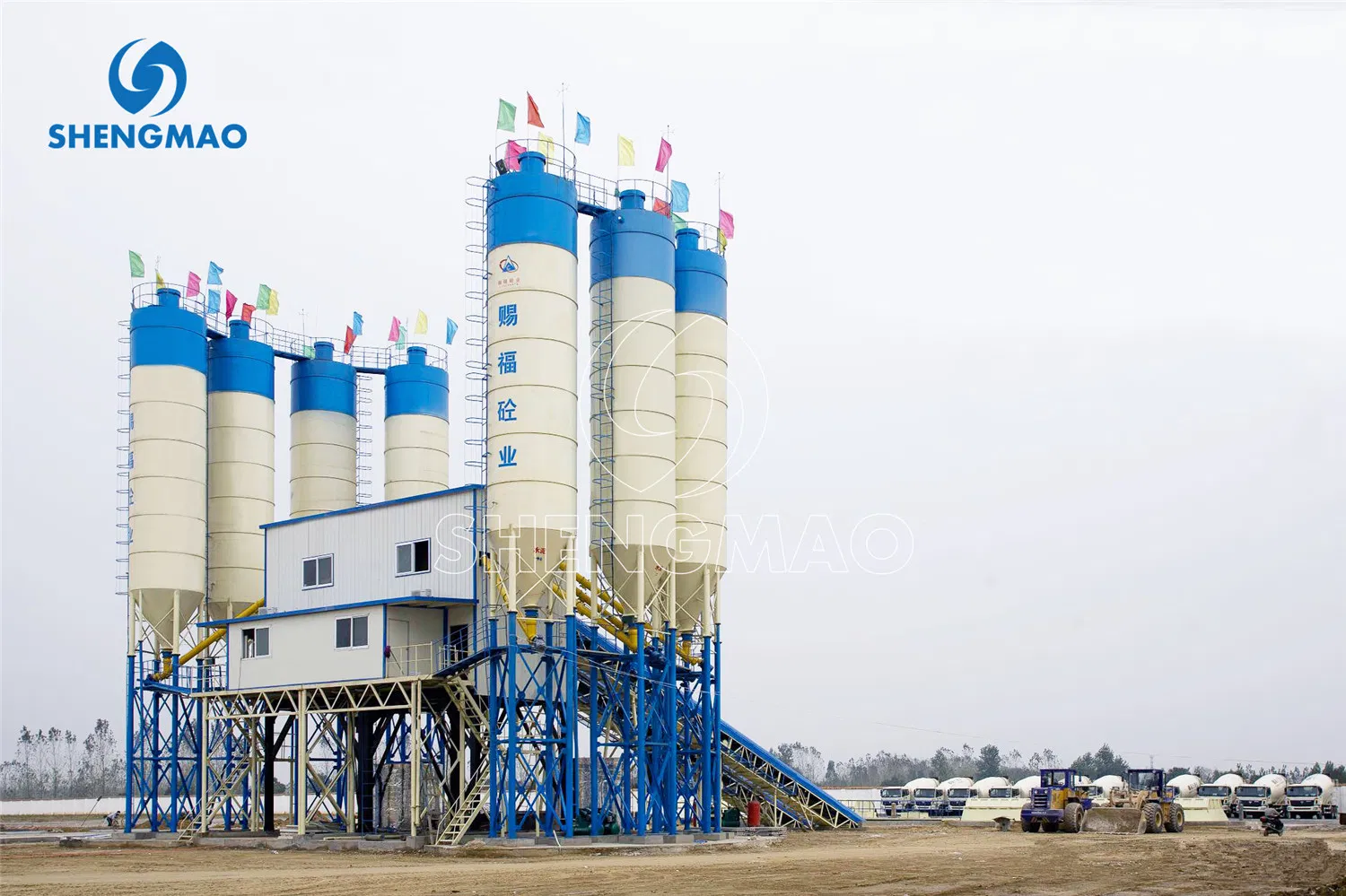

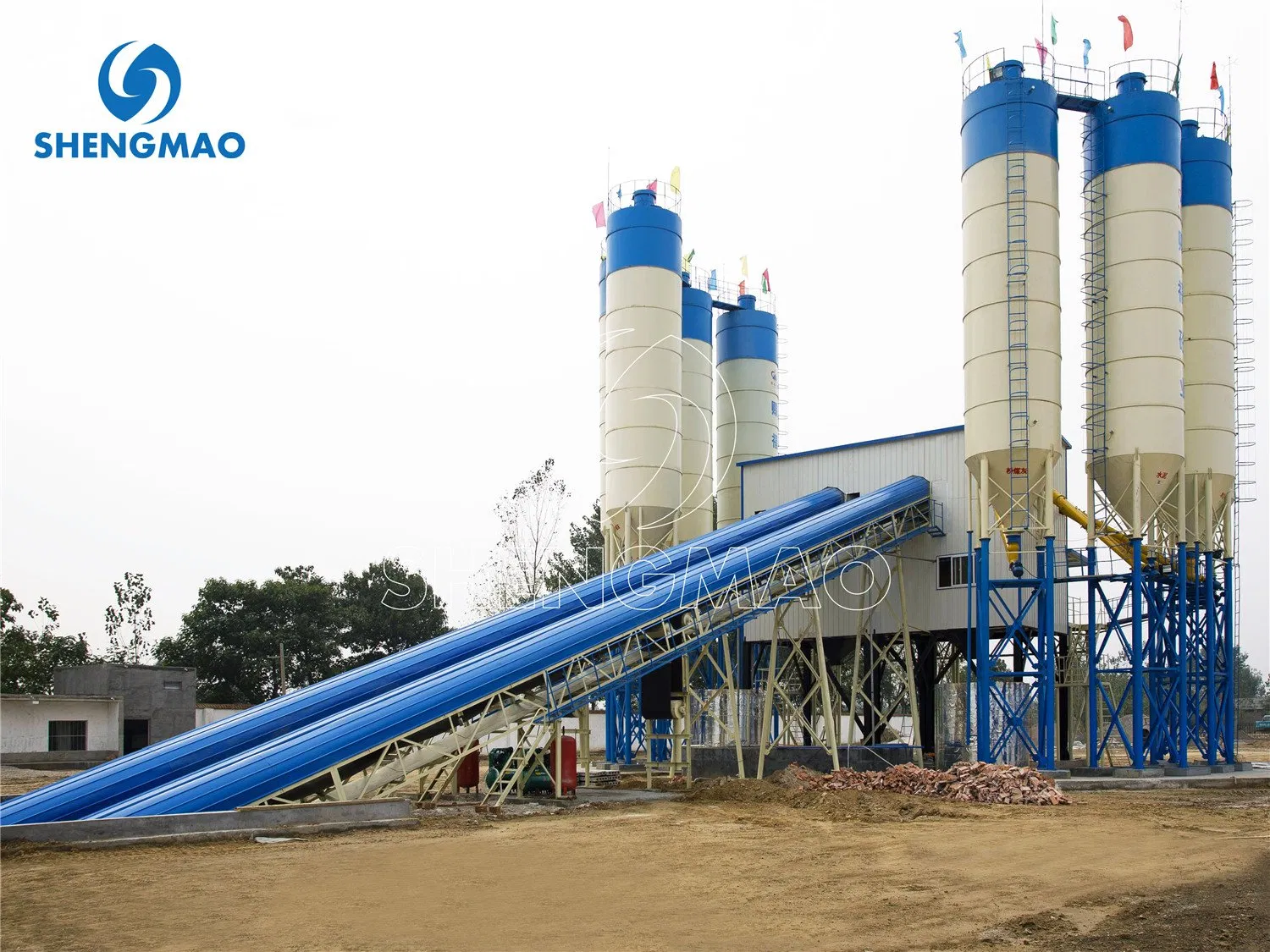

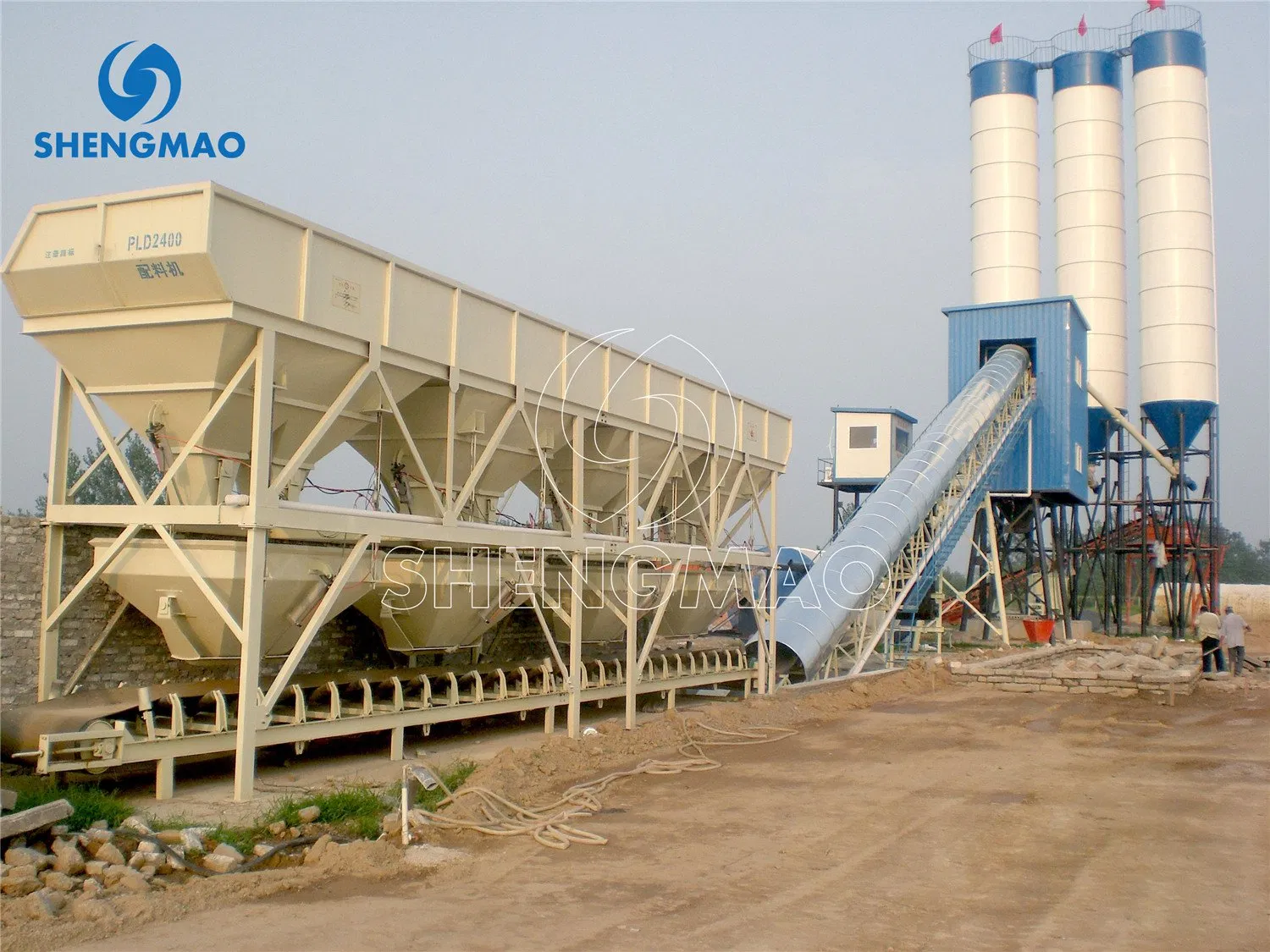

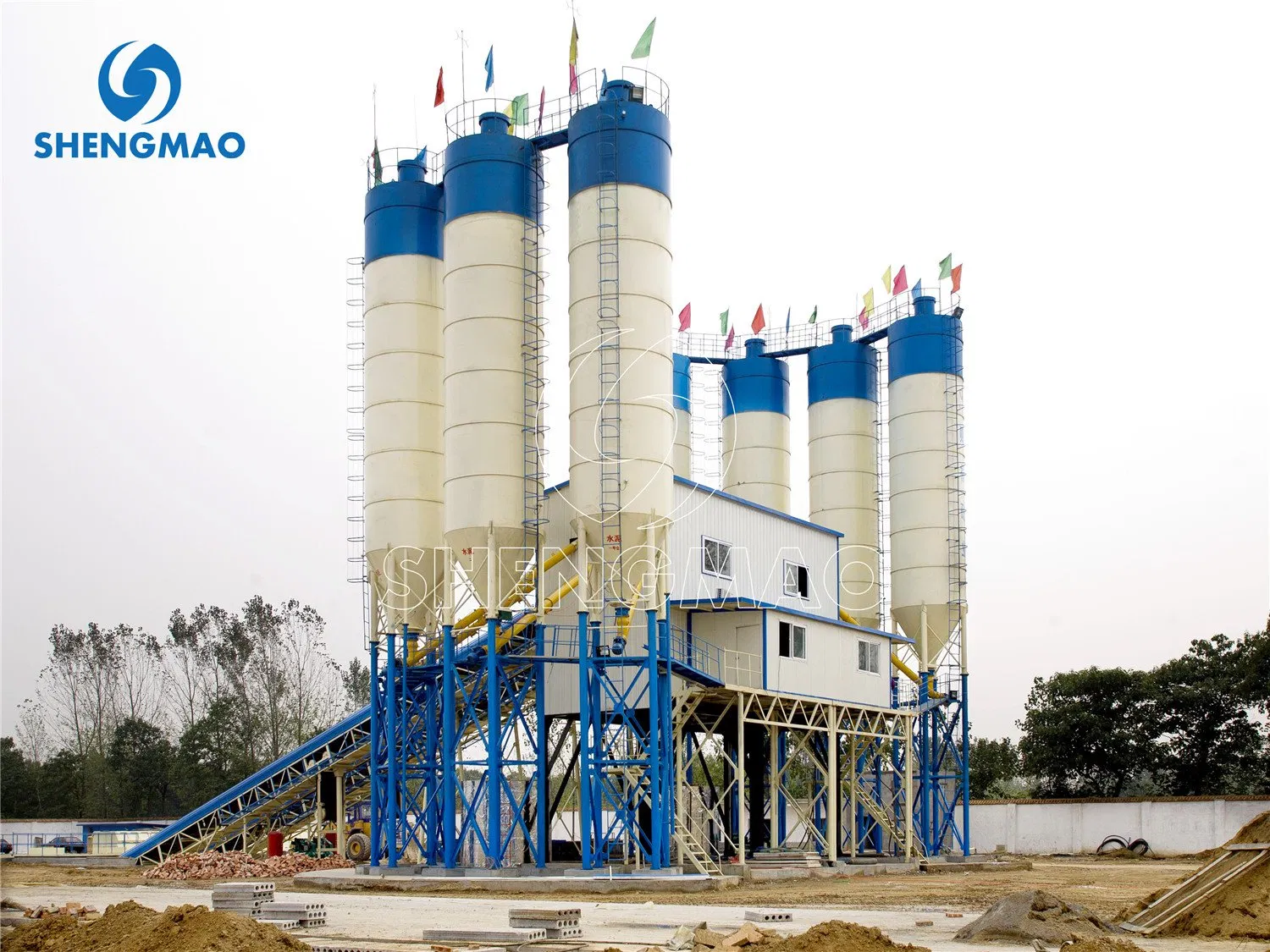

Large-Capacity High-Production Factory Provide Hzs120 Concrete Batching Plant 120m3/H

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Information

Model NO.
HZS120
Type
Concrete Mixing Plant
Shotcrete Type
Wet
Productivity
120m³/h
Feeding Height
4.1m
Certification
ISO9001: 2000, CE
Power Type
Electric
Warranty
2 Years
Mixer
Mao2000 Concrete Mixer
Origin
China

Product Description

HZS Series Stationary Concrete Batching Plant

Production Capacity:
Skip Hoist type: 25, 35, 50, 75 m³/h
Belt conveyor type: 60, 90, 120, 180 m³/h

Concrete Batching Plant 1

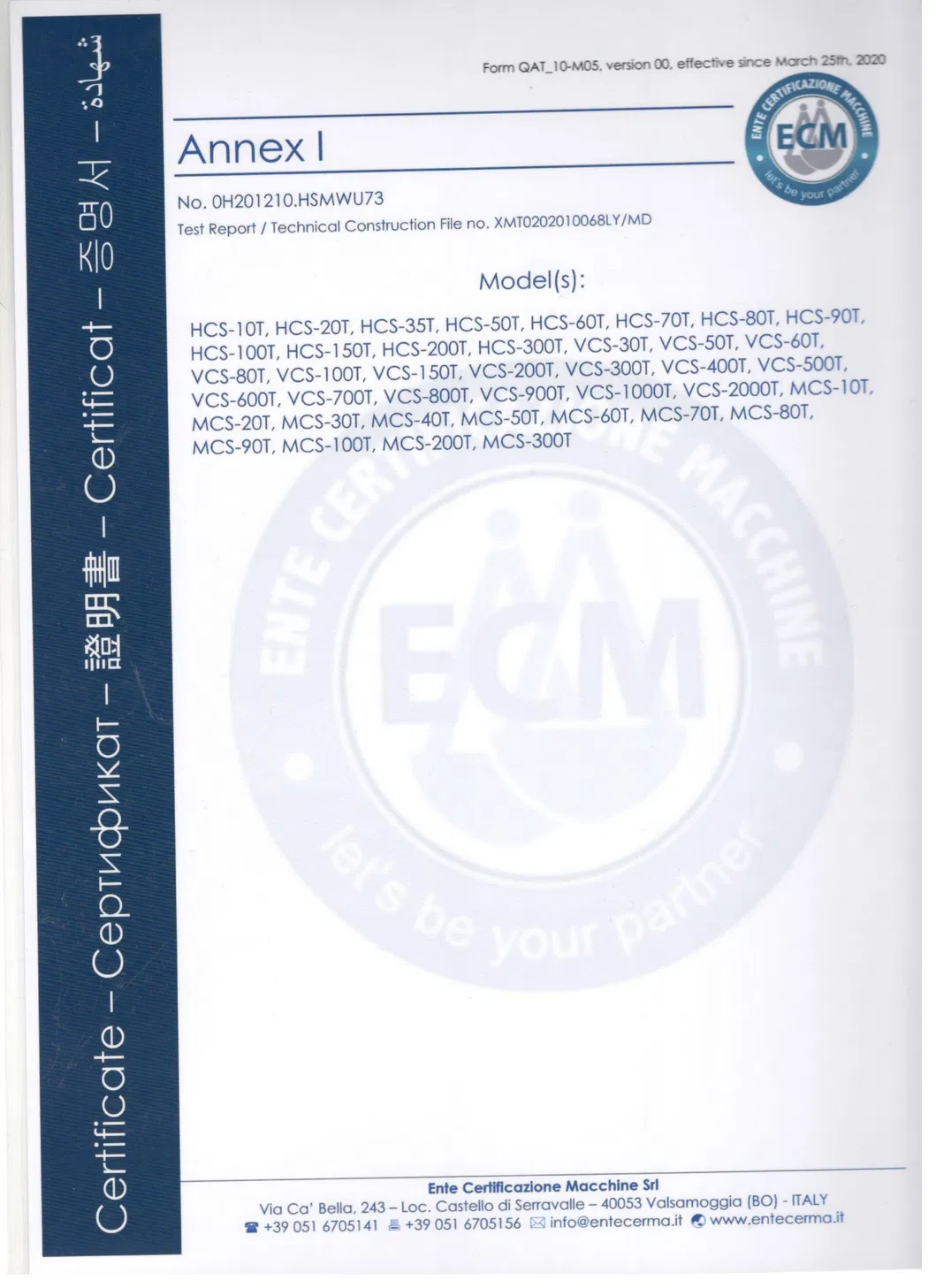

Concrete Batching Plant 2

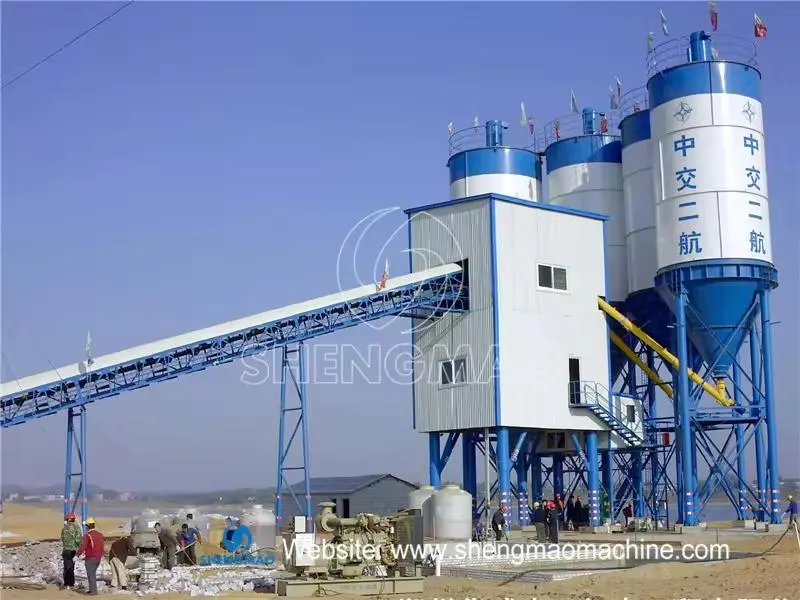

Stationary Concrete Batching Plant Overview

Stationary concrete batching plant is suitable for industrial, civil construction, roads, railways, bridges, electric power, water conservancy, port terminals, airports and other projects. It can be used as a mixing equipment for commercial concrete production, and combined various forms different specifications concrete batching plant price according to the needs of different users.

Product Parameters

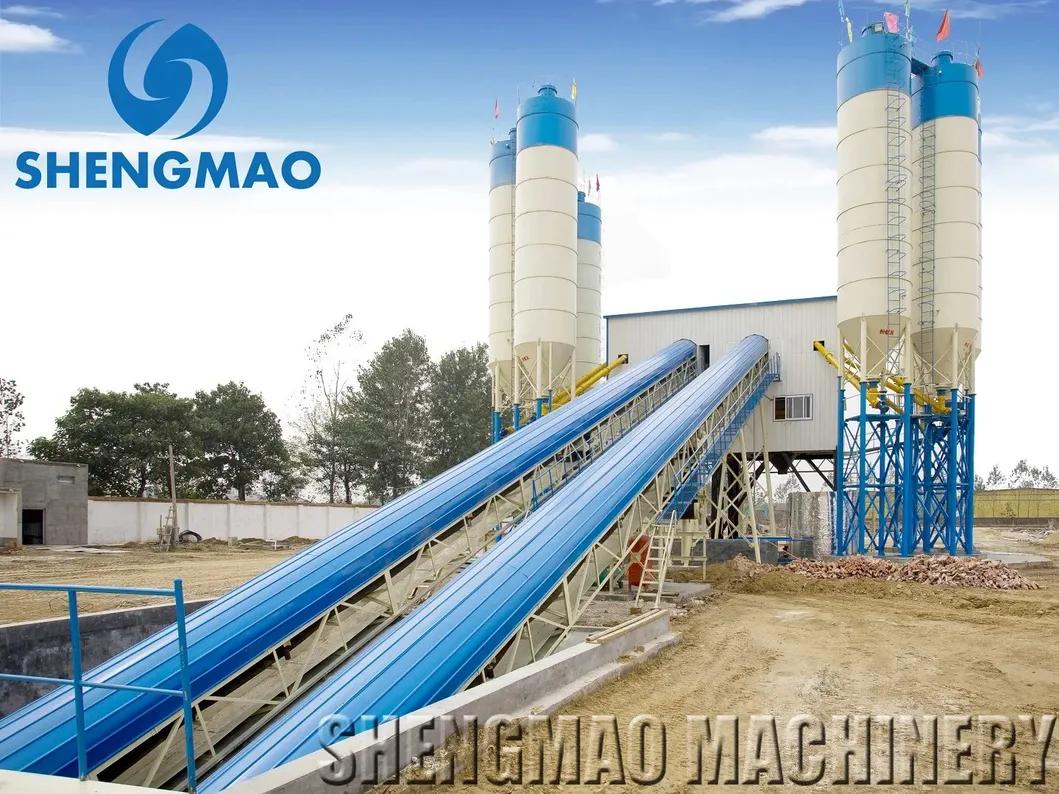

Belt Type Stationary Concrete Batching Plant

Belt Type Batching Plant
Model HZS60 HZS90 HZS120 HZS180
Production capacity (m³/h)6090120180
Concrete mixerJS1000JS1500JS2000JS3000
Feeding modeBeltBeltBeltBelt
Discharging height(m)4.14.14.14.1
Total power(kw)110156200260

Belt Type Features:
1. Higher production efficiency;
2. More environment-friendly;
3. Higher quality of concrete.

Skip Hoist Type Stationary Concrete Batching Plant

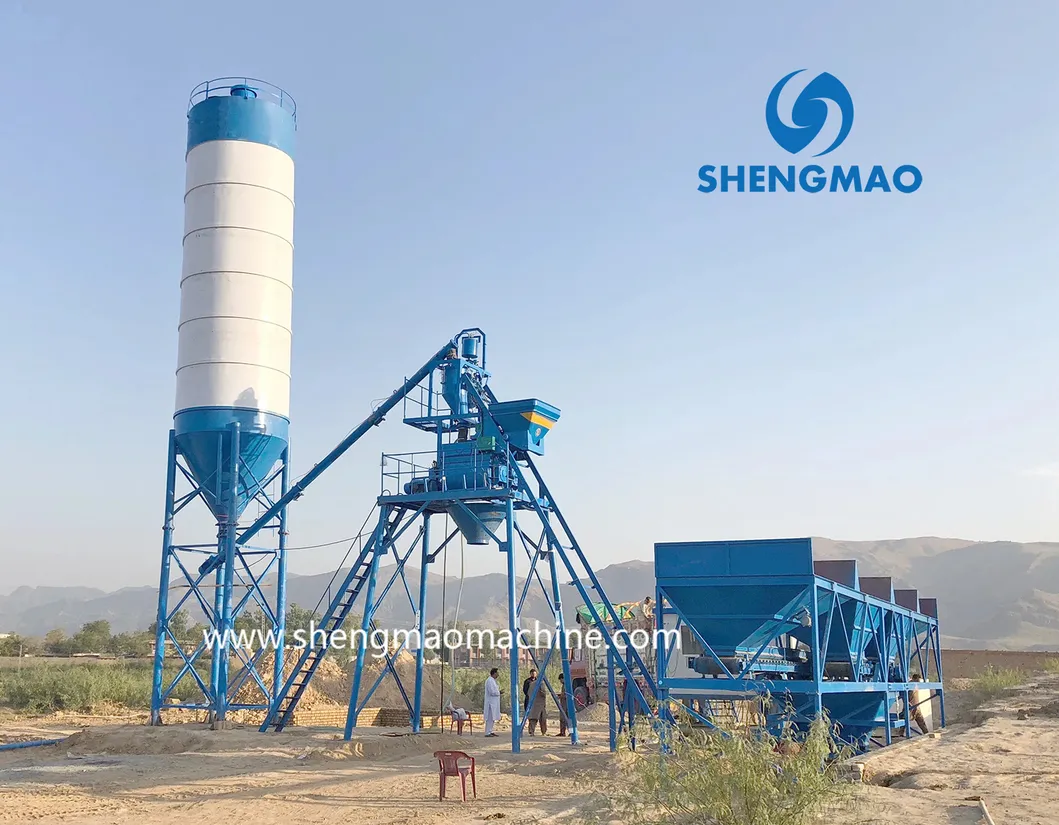

Skip Hoist Type Plant
Model HZS25 HZS35 HZS50 HZS75
Production capacity (m³/h)25355075
Concrete mixerJS500JS750JS1000JS1500
Feeding modeSkip HoistSkip HoistSkip HoistSkip Hoist
Total weight (T)1013.518.525

Skip Hoist Features:
1. Cost-saving; 2. Easy to install; 3. Easy to move; 4. Labor-saving.

Foundation-free Concrete Batching Plant

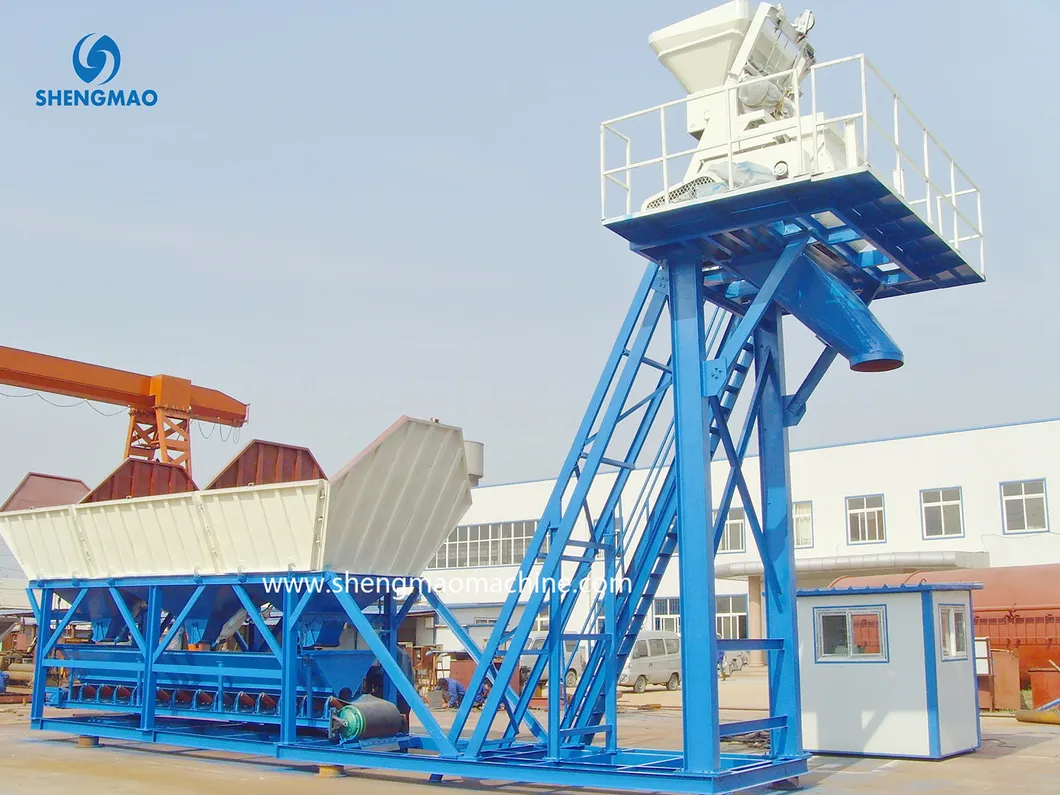

Foundation-free Plant

For traditional concrete batching plant, big reinforced concrete foundations are required. Our foundation-free design uses a steel base, allowing for direct placement on hard, dry ground. This saves significant time and cost and facilitates easy disassembly and relocation.

Available Models: 25, 35, 50, 60, 75, 90, 120, 180 m³/h.

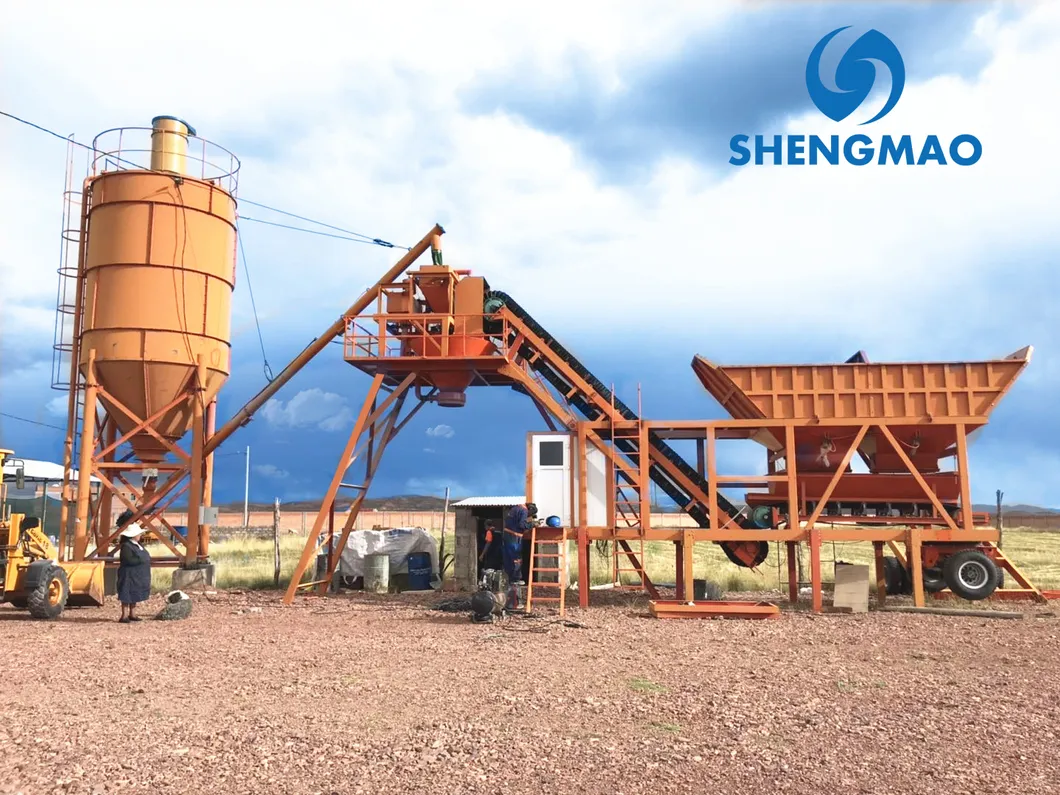

Dry Mix Concrete Batching Plant

Dry Mix Plant
Model DHZS25 DHZS60 DHZS120
Capacity (m³/h)2560120
Mixer Truck Vol (m³)61012
Feeding ModeBeltBeltBelt

Detailed Images

Detail 1

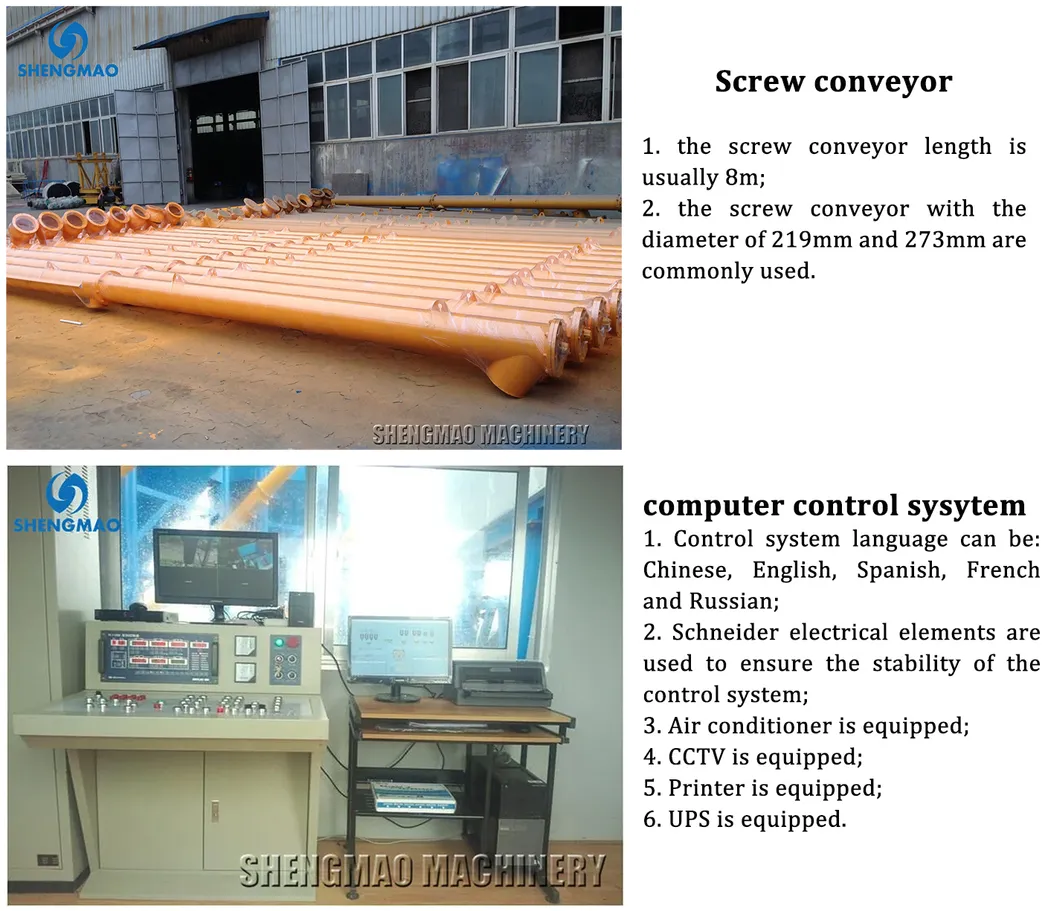

Detail 2

Packaging & Shipping

Machines are loaded into containers and secured with steel wire. Small components are packed in protective wooden boxes to ensure safety during transit.

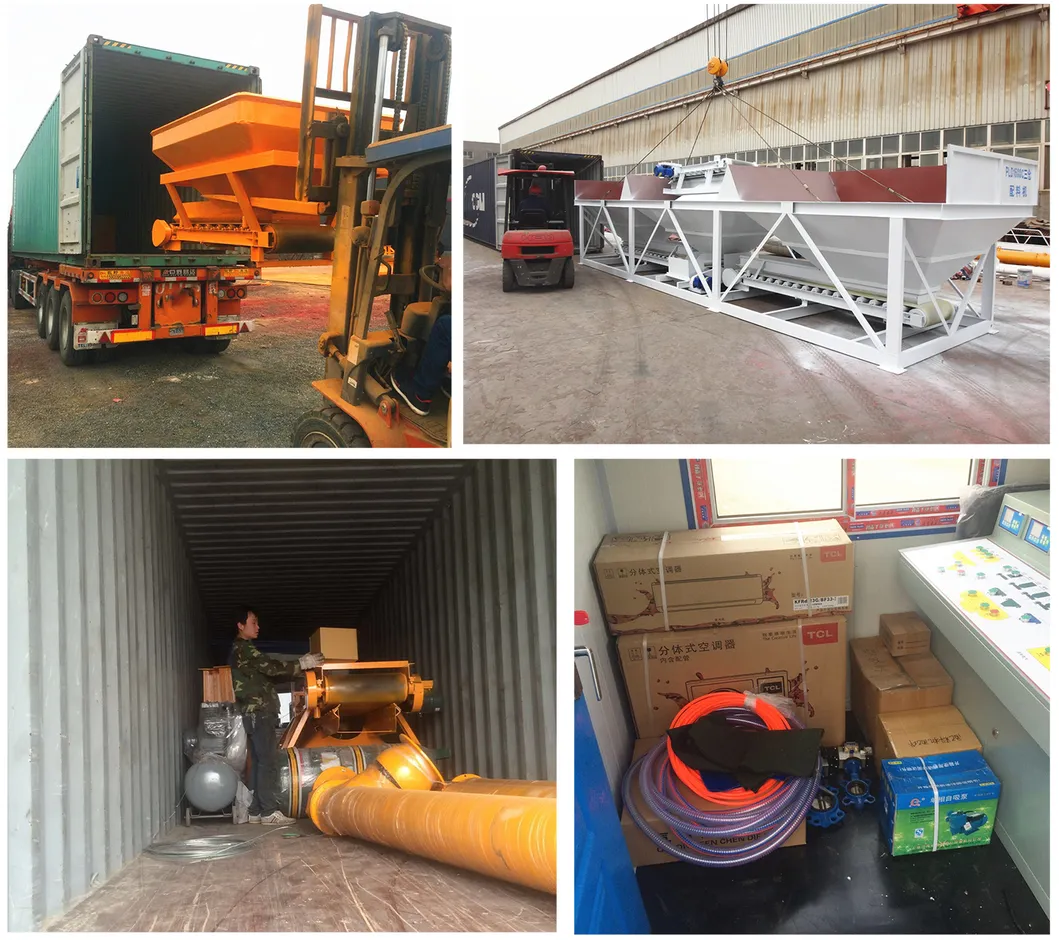

Shipping

Service & Support

Pre-sale Service

Helping customers choose suitable machines.
Design drawings as per requirements.

In-sale Service

Strict quality control and progress updates.
Pre-assembly and test running.

After-sale Service

7*24h online support and engineer site visits.
Installation, training, and spare parts supply.

Project Gallery

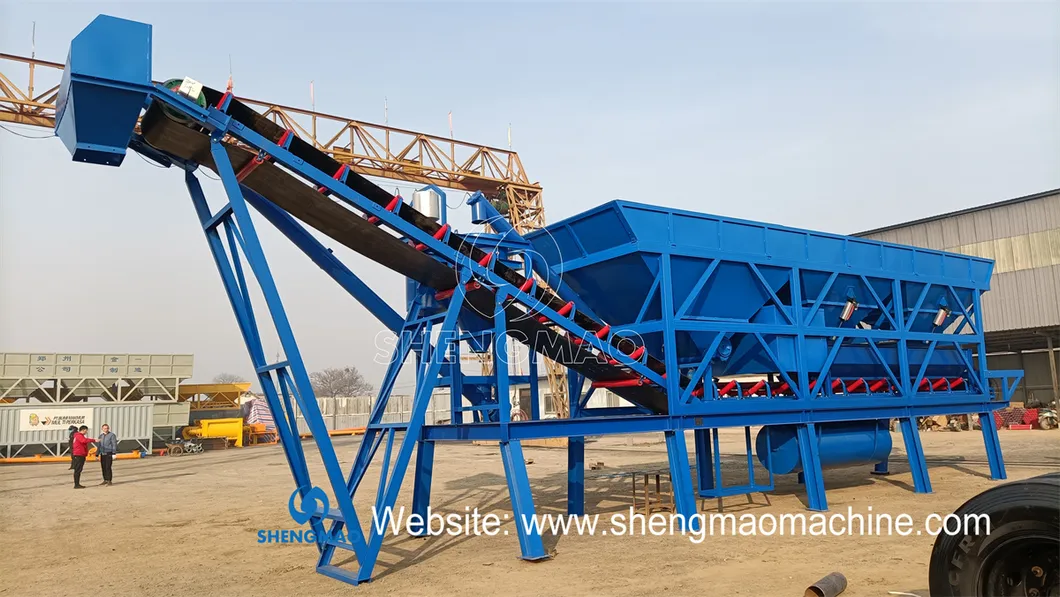

Gallery 1

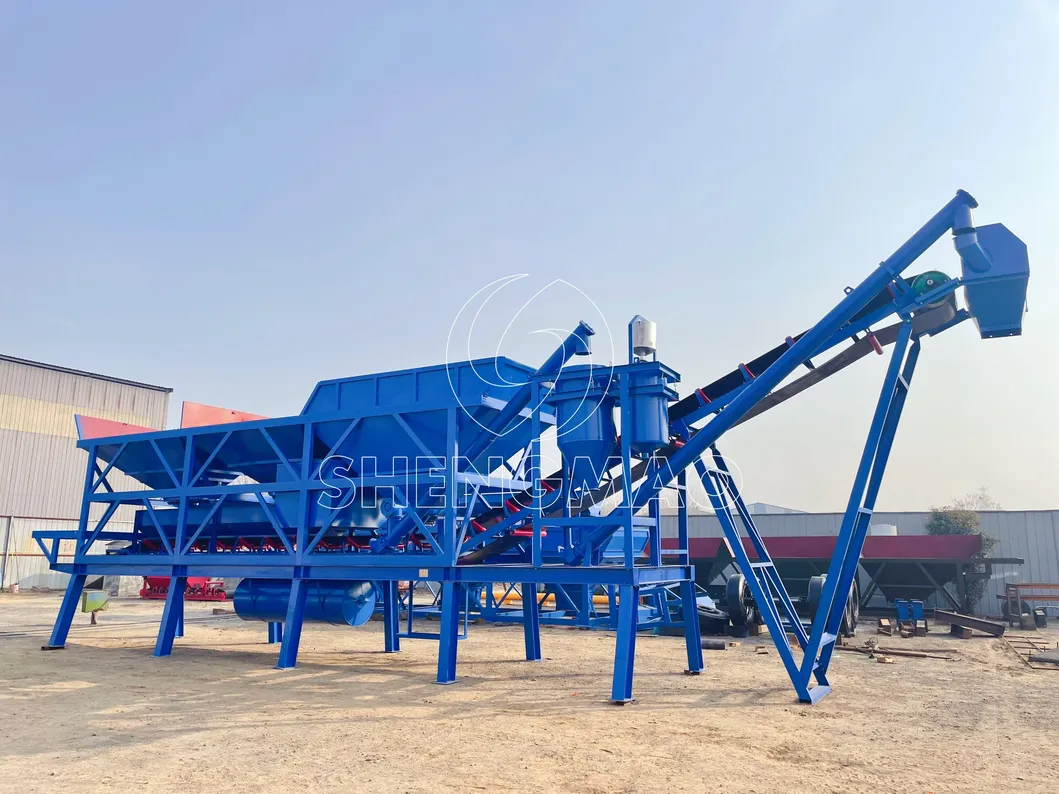

Gallery 2

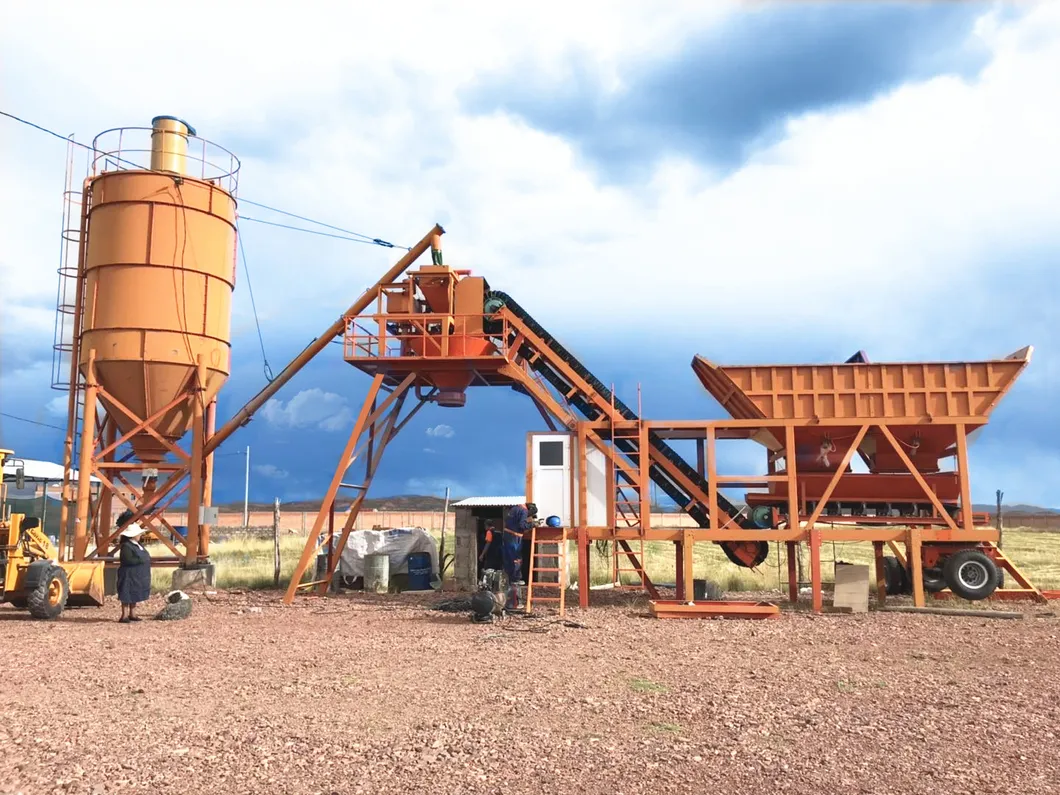

Gallery 3

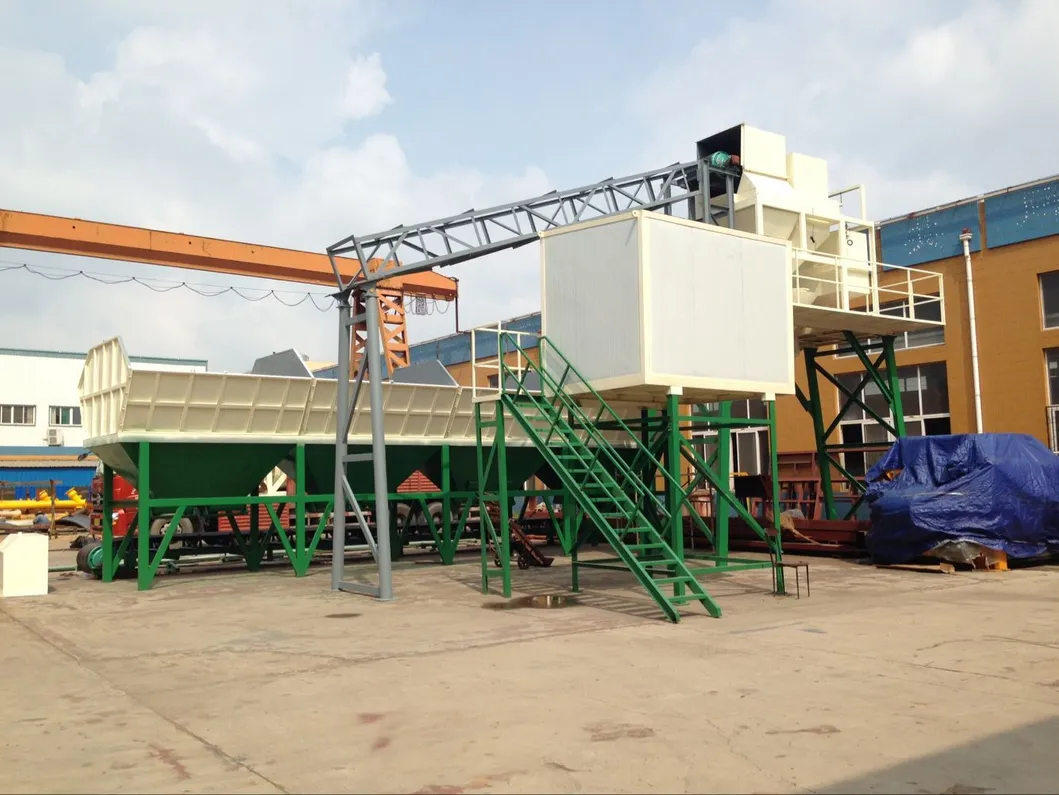

Gallery 4

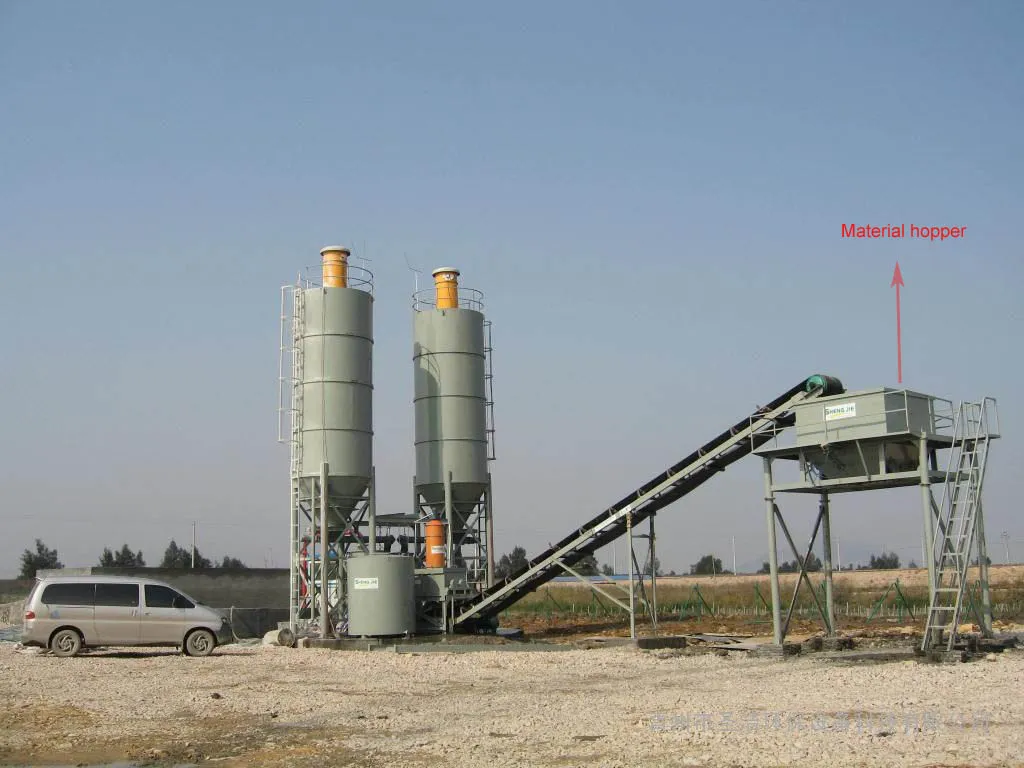

Gallery 5

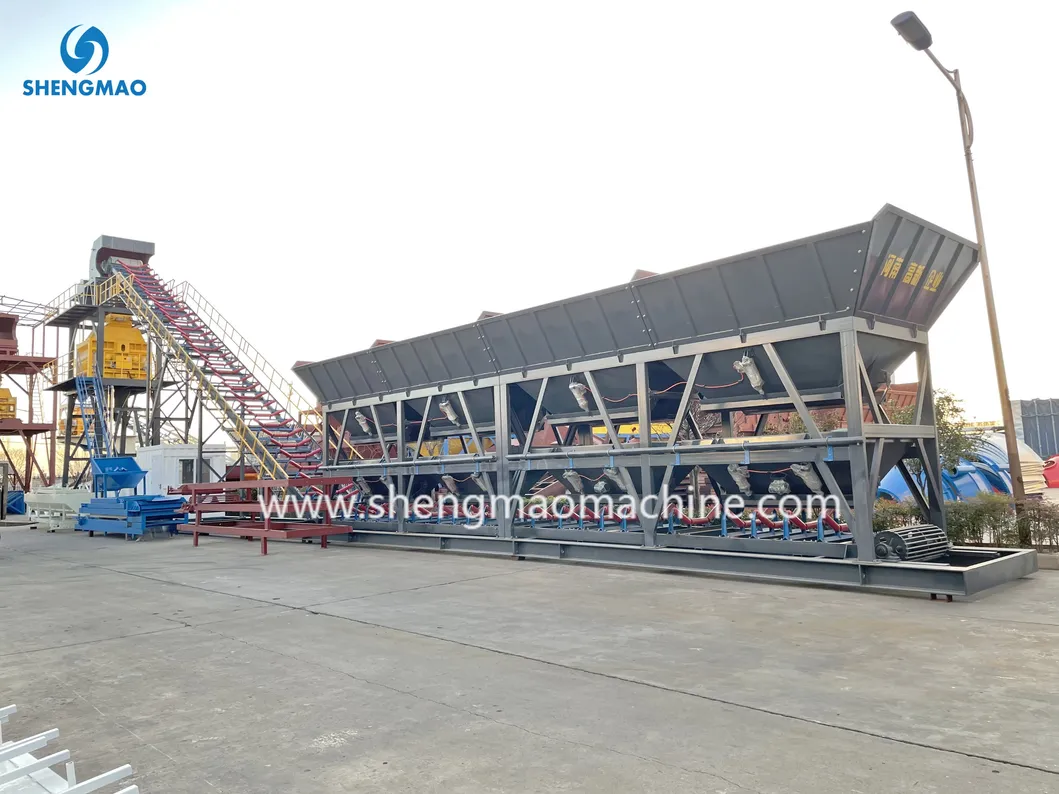

Gallery 6

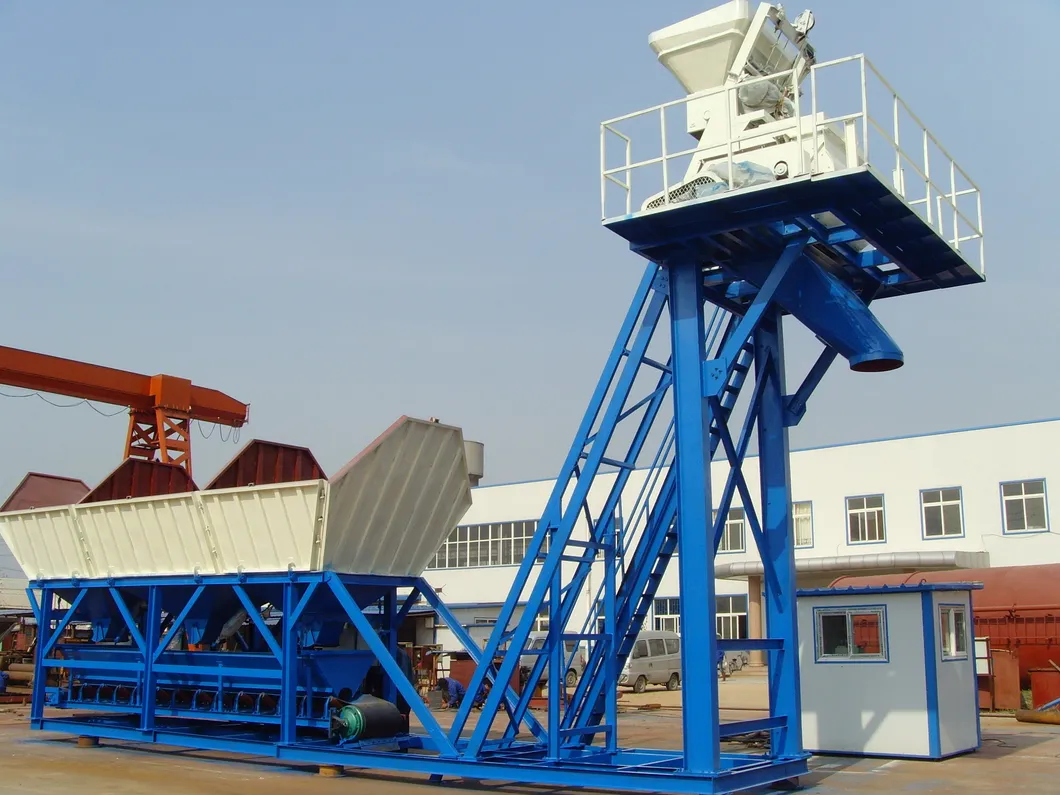

Gallery 7
Gallery 8

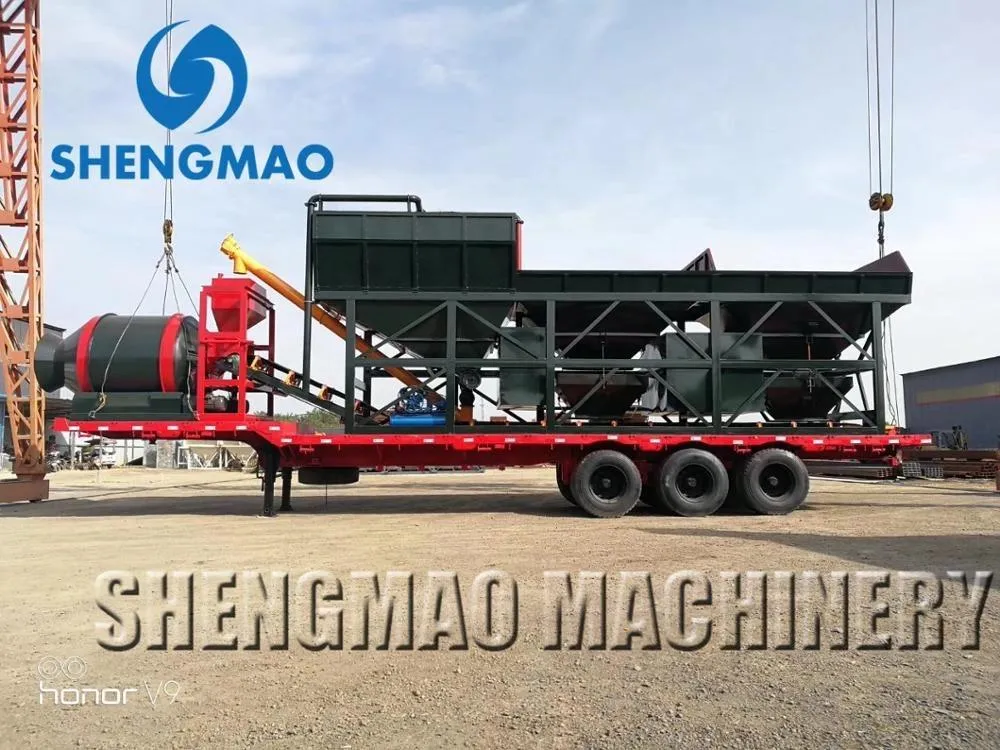

Gallery 9

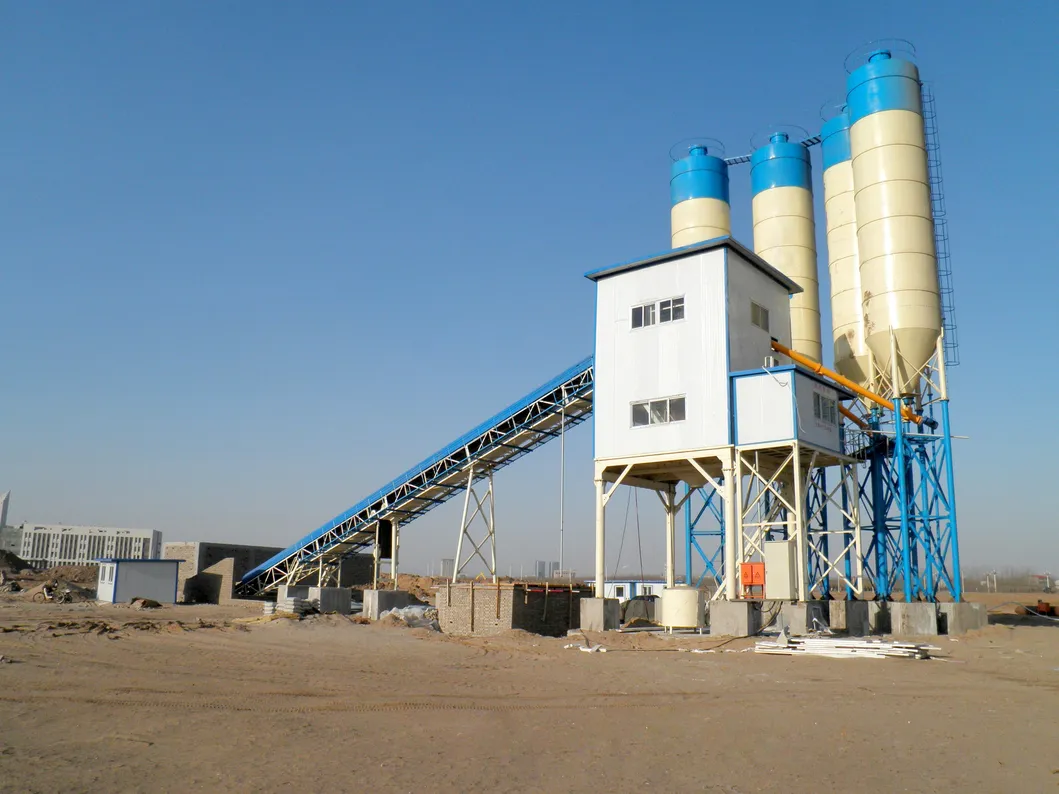

Gallery 10

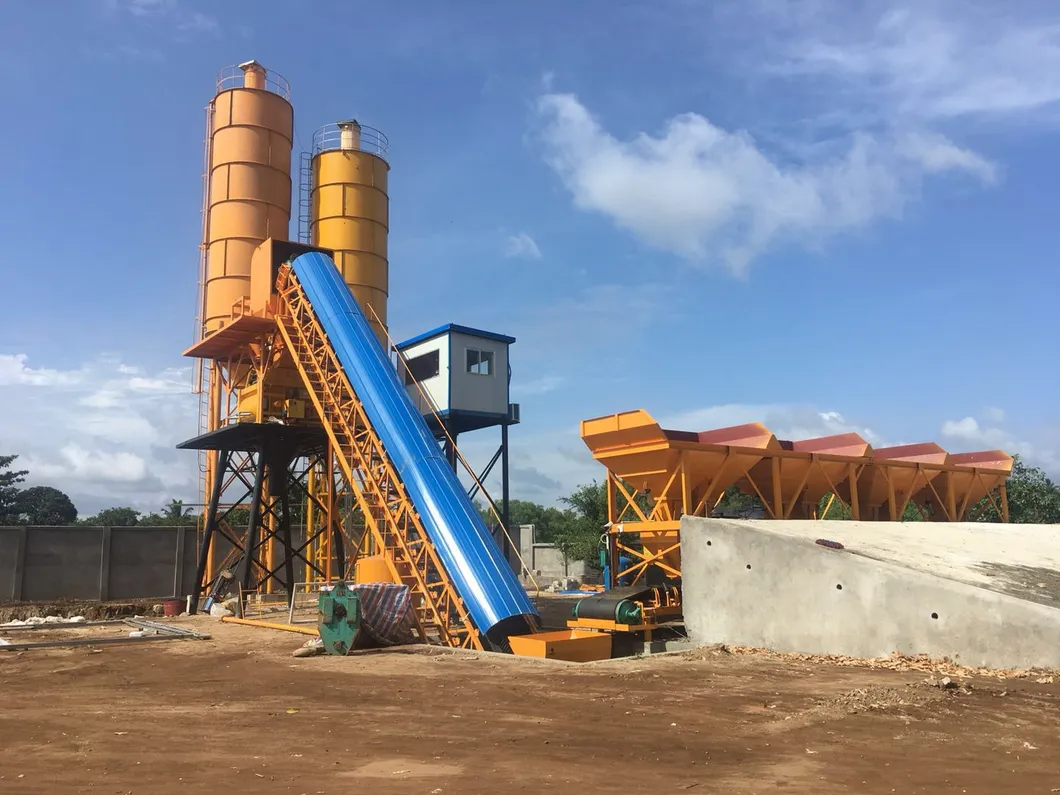

Gallery 11

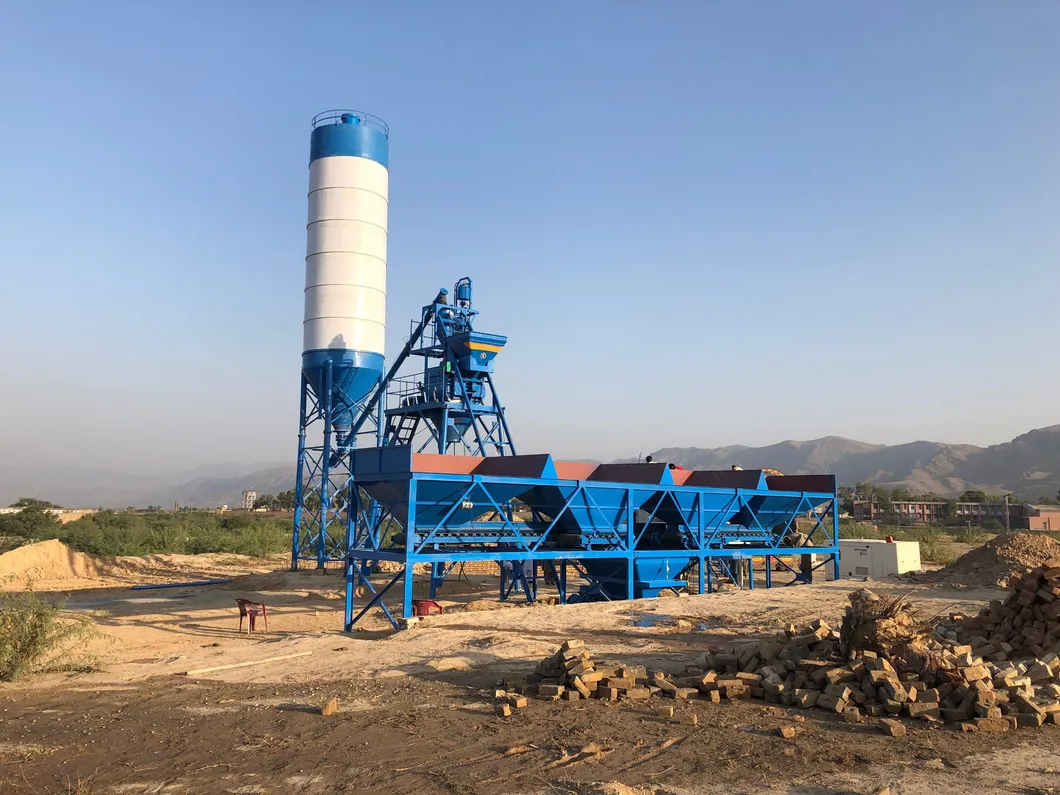

Gallery 12

Frequently Asked Questions

What is the production capacity of the HZS120 concrete batching plant?
The HZS120 model has a production capacity of 120m³/h, making it ideal for large-scale industrial and civil construction projects.
What are the main differences between skip hoist and belt conveyor types?
Belt conveyor types offer higher production efficiency and are more environment-friendly, while skip hoist types are more cost-saving, easier to install, and require less space.
Does the foundation-free concrete batching plant require reinforced concrete?
No, it is designed with a steel base. As long as the ground is hard and dry, the machine can be placed and operated directly without a traditional concrete foundation.
What is the warranty period for core components?
The core components, such as the PLC and Motor, come with a 2-year warranty.
What after-sales services are provided for international clients?
We provide 7*24 hours online support, arrange engineers for on-site installation and training, provide all necessary customs documents, and supply spare parts.
How is the equipment protected during shipping?
The main machinery is loaded into containers and fixed with steel wire, while smaller items are packed in wooden boxes to minimize the risk of damage.
