High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
1 / 5
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity
High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity

High-Efficiency Stationary Concrete Batching Plant Strong Production Capacity

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

TypeConcrete Mixing Plant
Shotcrete TypeWet
Machining ProcessHydraulic
StructureSpiral Type
Productivity90m²/h
CertificationCE
ConditionNew
ColorCustomized
HS Code8474320000
Capacity Range10-20 Units

Belt Type Concrete Batching Plant

Overview: The plant integrates advanced batching, weighing, mixing, electrical control, and pneumatic systems. It is designed to automatically scale and mix aggregates, powders, liquid additives, and water with high precision. Aggregates are efficiently loaded into bins via front loaders, while powders are transported from silos through high-performance screw conveyors.

⚙️

Key Features & Performance

  • Modular Design: Engineered for convenient assembly, disassembly, fast transfer, and flexible site layout.
  • Stable Performance: Belt conveyor loading system paired with aggregate storage hoppers ensures continuous high productivity.
  • High Accuracy: Powder weighing system utilizes a pull rod balance structure for superior measurement precision and anti-interference.
  • Reliable Components: Equipped with high-end electrical and gas systems for maximum operational reliability.
  • Intelligent Control: Fully automatic computer control with integrated production management and data printing software.
  • Versatile Application: Ideal for medium-sized construction sites, power stations, highways, bridges, and prefabrication factories.

Technical Parameters

Model CMP60B CMP90B CMP120B CMP180B CMP240B CMP270B
Productivity (m³/h) 60 90 120 180 240 270
Mixer Model JS1000 JS1500 JS2000 JS3000 JS4000 JS4500
Driving Power (Kw) 2X18.5 2X30 2X37 2X55 2X75 2X75
Discharging Cap. (L) 1000 1500 2000 3000 4000 4500
Max Aggregate (mm) ≤60/80 (Gravel/Pebble)
Batching Bin (m³) 3X12 3X12 4X20 4X20 4X30 4X30
Cement Accuracy ±1%
Total Power (KW) 100 150 200 250 300 300

Product Gallery

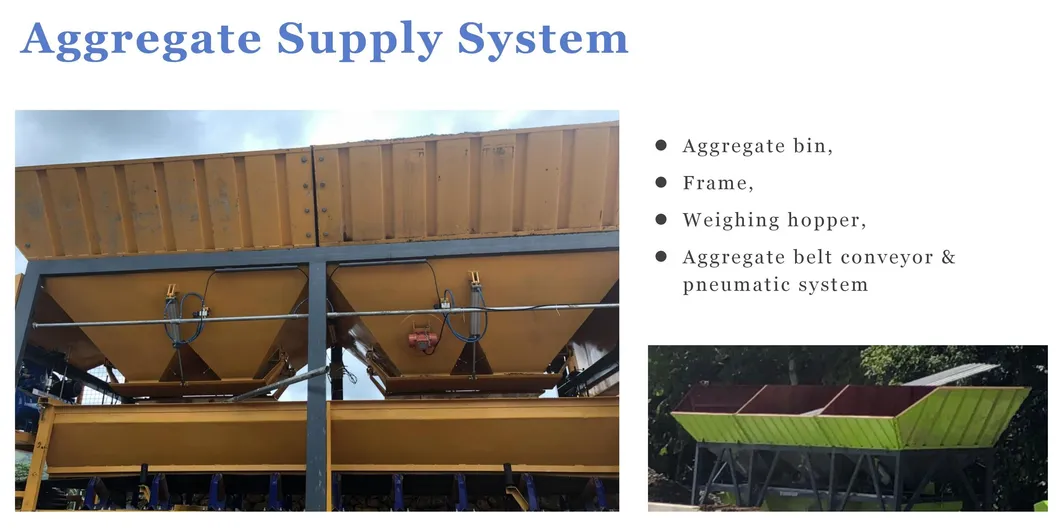

Stationary Concrete Batching Plant 1

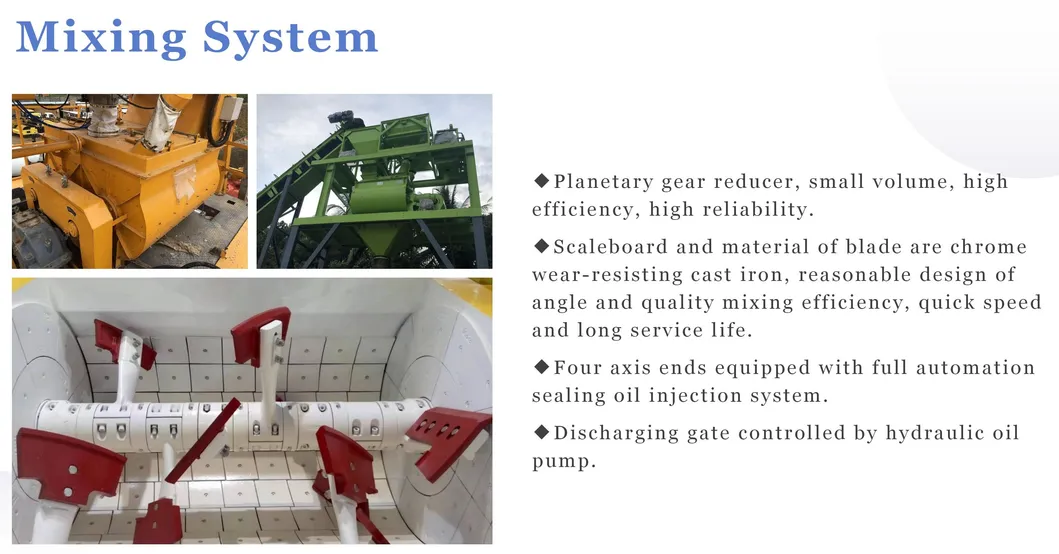

Stationary Concrete Batching Plant 2

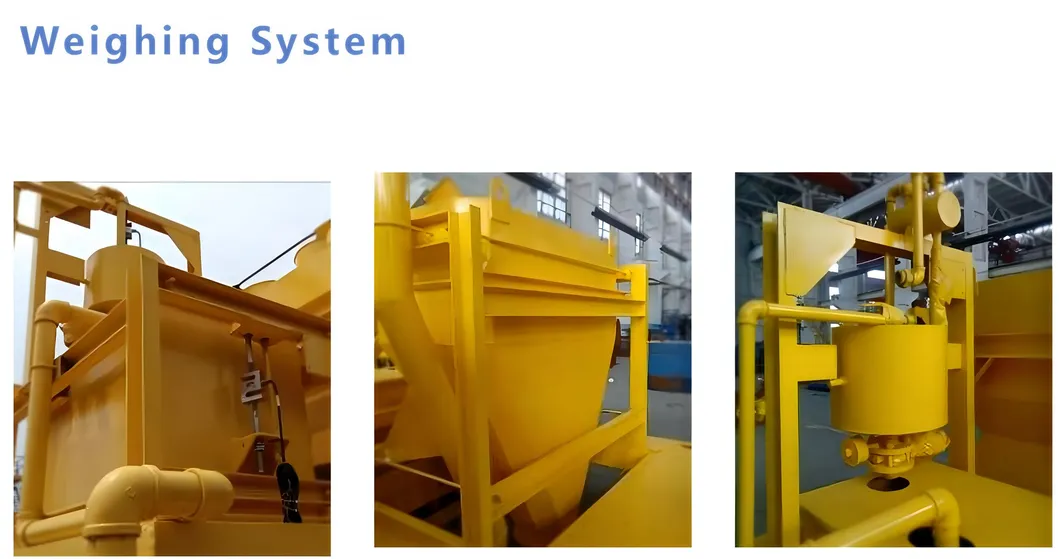

Stationary Concrete Batching Plant 3

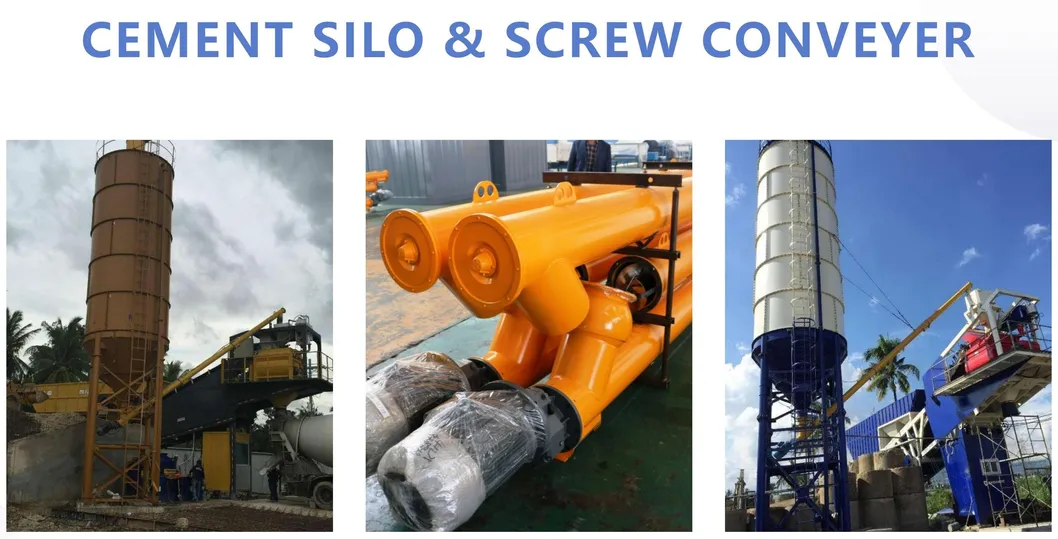

Stationary Concrete Batching Plant 4

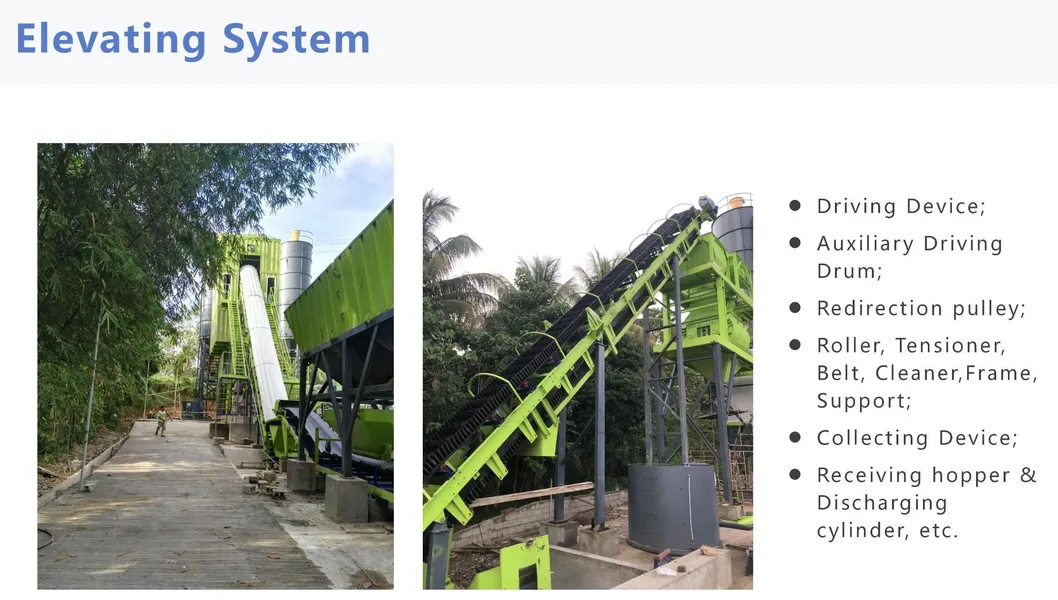

Stationary Concrete Batching Plant 5

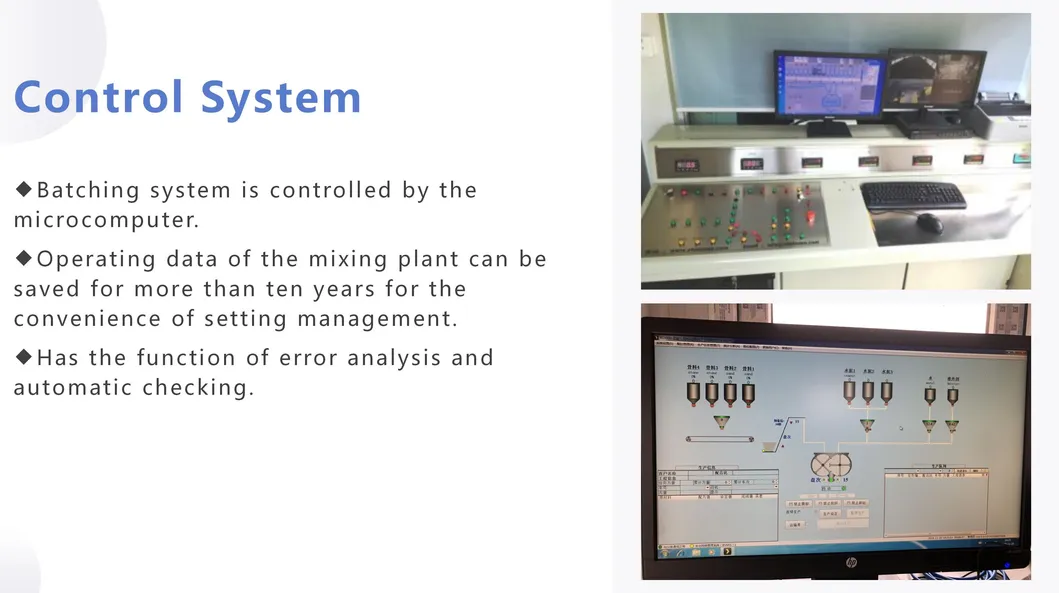

Stationary Concrete Batching Plant 6

Frequently Asked Questions

What are the main systems of this concrete batching plant?
The plant consists of five major systems: batching, weighing, mixing, electrical control, and pneumatic control systems.
Is the plant suitable for rapid relocation?
Yes, it features a modular design which allows for convenient assembly, disassembly, and fast transfer between construction sites.
How does the weighing system ensure accuracy?
The powder weighing system uses a specialized pull rod balance structure, providing high measurement accuracy and strong anti-interference capabilities.
What level of automation does the plant offer?
The plant is fully automatic and computer-controlled, featuring advanced production management and data printing software.
Can this plant handle different concrete types?
Absolutely. It is designed to mix various kinds of concrete, making it suitable for bridges, highways, airports, and power stations.
What is the maximum production capacity available?
The theoretical productivity ranges from 60m³/h up to 270m³/h, depending on the specific model chosen (CMP60B to CMP270B).
