High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
1 / 5
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant
High Capacity 50m3/H Ready Mixed Concrete Batching Plant

High Capacity 50m3/H Ready Mixed Concrete Batching Plant

Customization: Available
After-sales Service: Oversea
Warranty: One Year
Send Inquiry

Product Description

Basic Information

Model NO.
HZS50
Type
Concrete Mixing Plant
Productivity
50m³/h
Certification
ISO9001: 2000, CE, EAC
Condition
New
Color
Orange
Transport Package
Container
Origin
China
HS Code
8474310000
Production Capacity
1000 Pieces a Year

Product Description

Designed for minimum space requirement and large quantities of concrete production performance, durable container modules enable economical transportation, minimum time and operations of erection and disassembling, robust structure reduces the requirement of foundation, leading to economical plant relocations, plant fully enclosed and protected from harsh environment, also low noise and dust emission.

Main Features

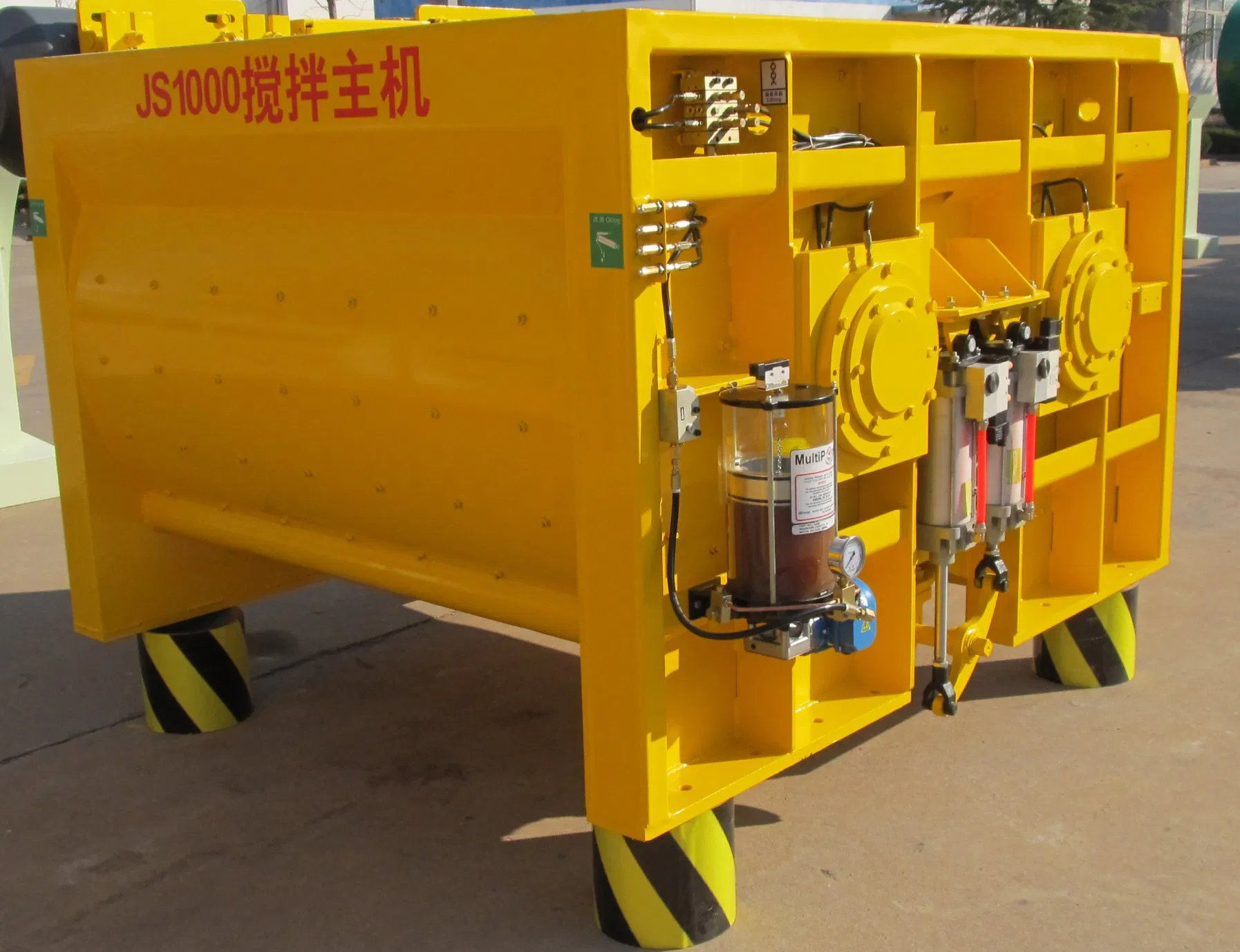

  • Reliable shaft end seal technology + high wear-resisting lining plate and blade.
  • Mixer prevents aggregate sticking on shaft, reducing cleaning workload.
  • Special lifting mechanism, starts and stops smoothly with long-life steel wire rope.
  • Lifting system equipped with loose rope, exceed limit position, and fall protection measures.
  • Feeding and mixing complete sealing; powder material silo adopts pulse negative pressure dust catcher, no pollution.

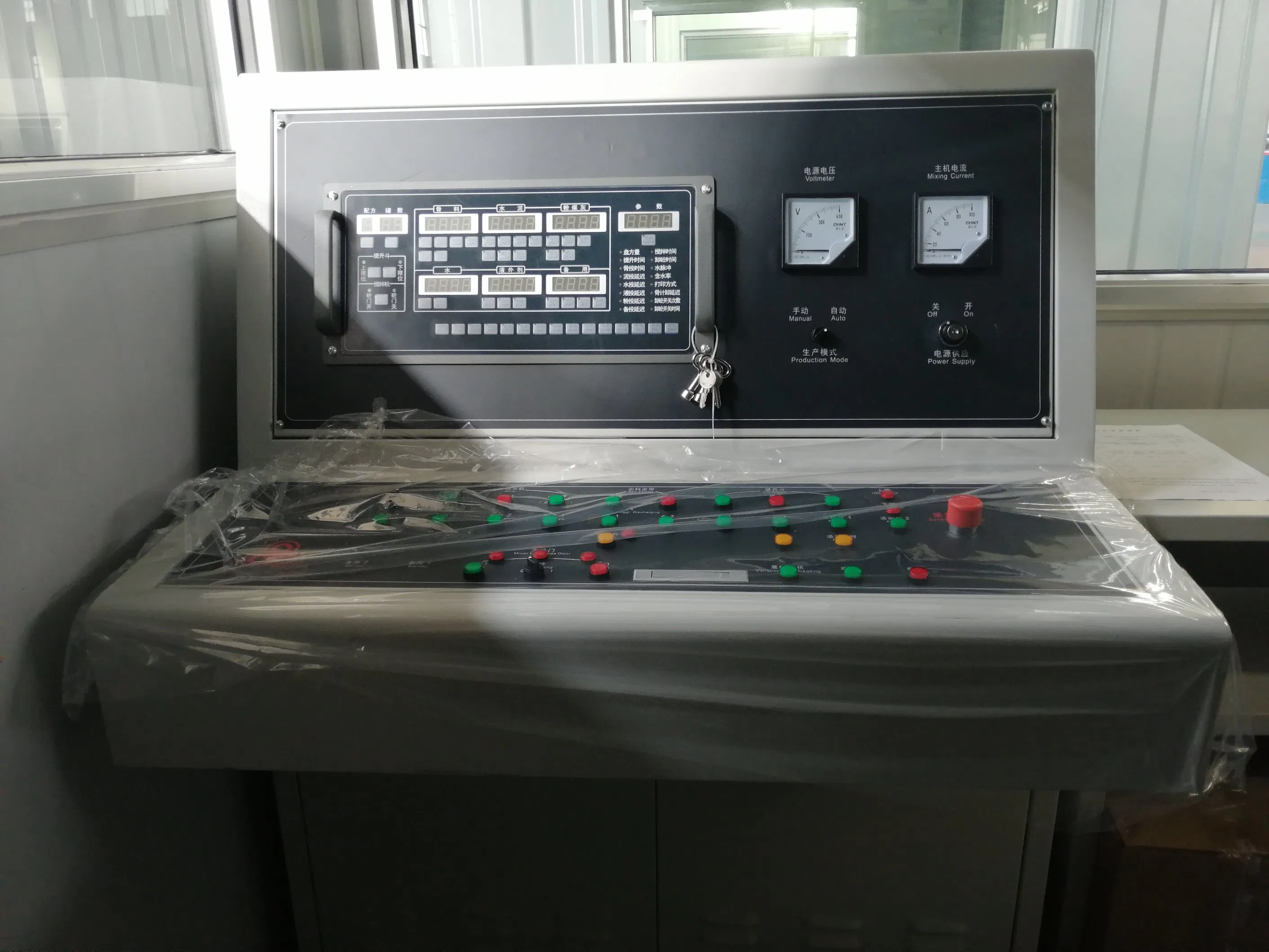

  • Accurate weighing with humanized and intelligent control systems.
  • Complete failure prevention and alarm mechanism to ensure operational safety.
  • Increased aggregate bin volume with assisted feeding mechanism for optimized loading.

Technical Specifications

Item Unit HZS50D
Nominal output/hm³/h50
Mixer chargingm³1
Batching machine-PLD1600-III
Aggregate storage bins chargingm³7
Aggregate storage bins qtypc3
Aggregate weighing capacitykg2000
Cement weighing capacitykg600
Water weighing capacitykg250
Additive weighing capacitykg40
Mixer powerkw37
Belt conveyor powerkw15
Total powerkw80
Mixer discharge heightm3.8
Total weightt24
Outline dimension (L*W*H)m17.7*10.4*19.4
Loading type-skip hoist
Weighing accuracy (Aggregate)%±2
Weighing accuracy (Powder/Water/Additive)%±1

Product Gallery

Concrete Batching Plant View 1

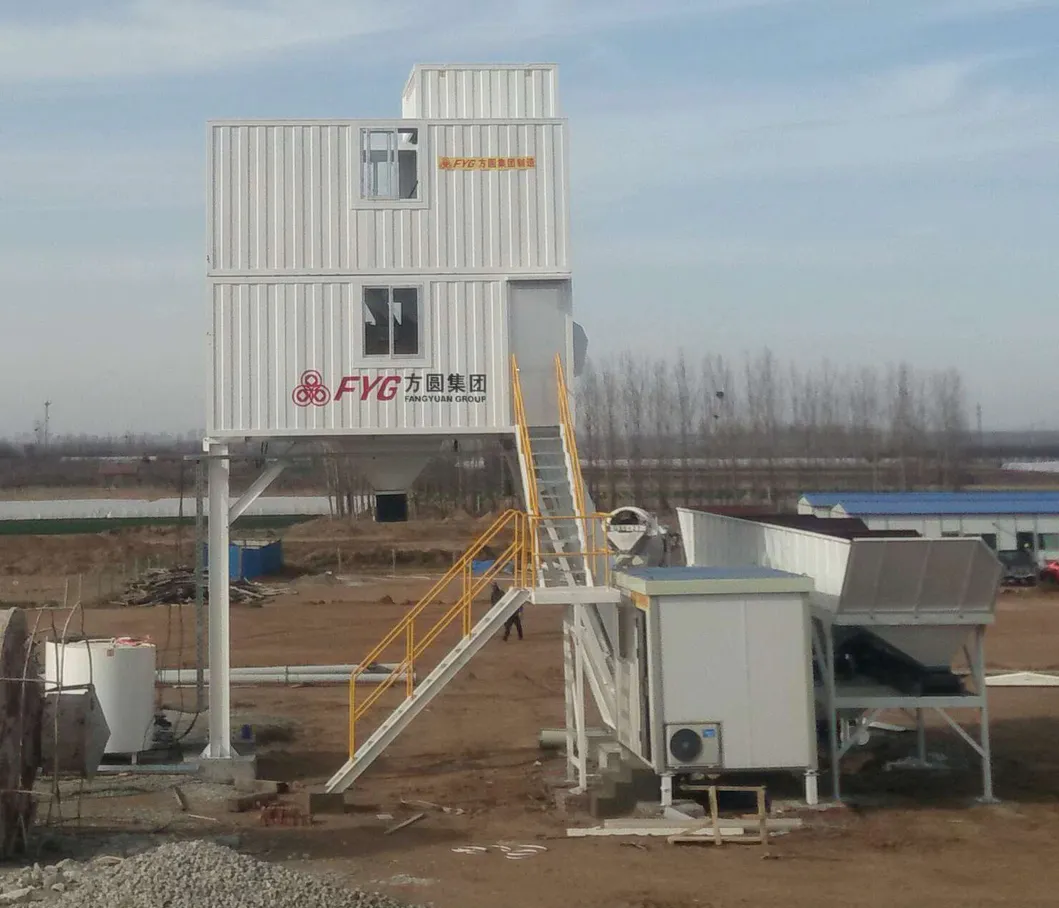

Concrete Batching Plant View 2

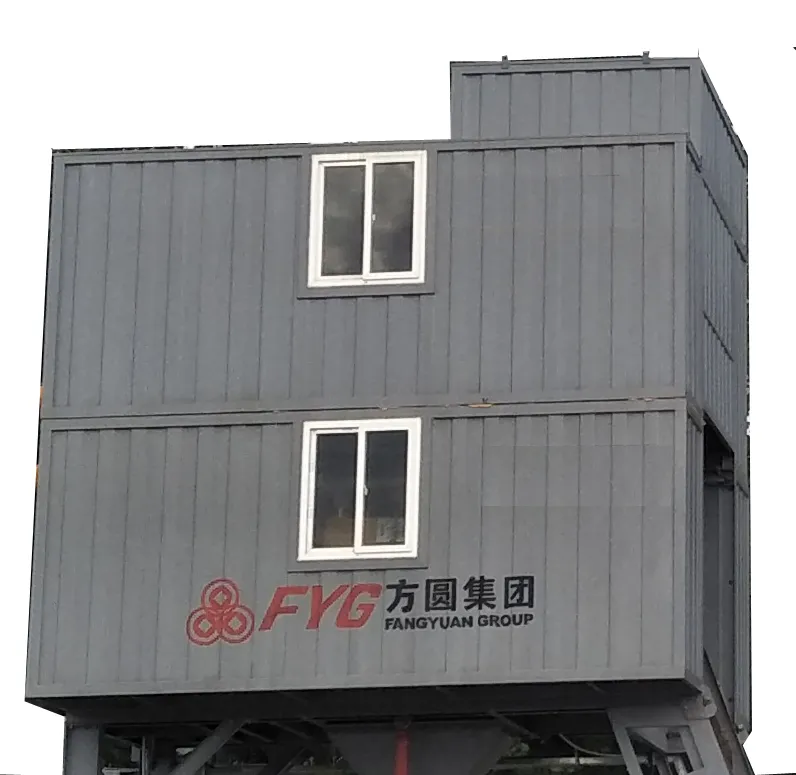

Concrete Batching Plant View 3

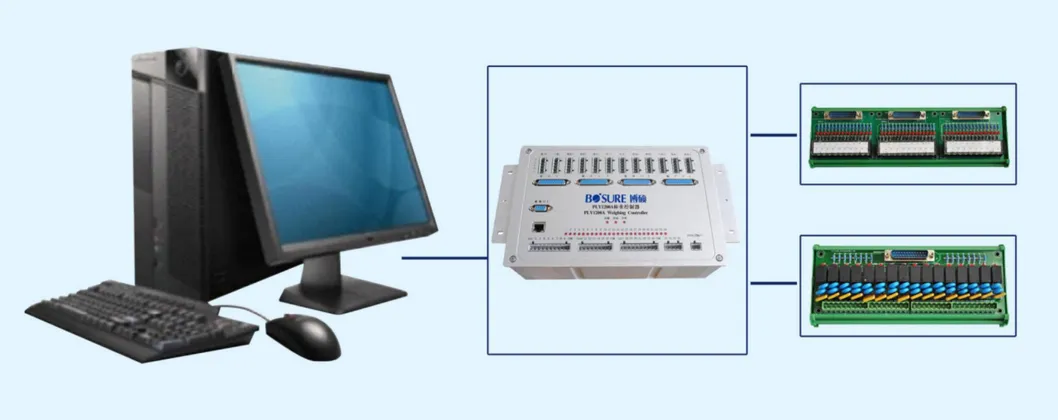

Concrete Batching Plant View 4

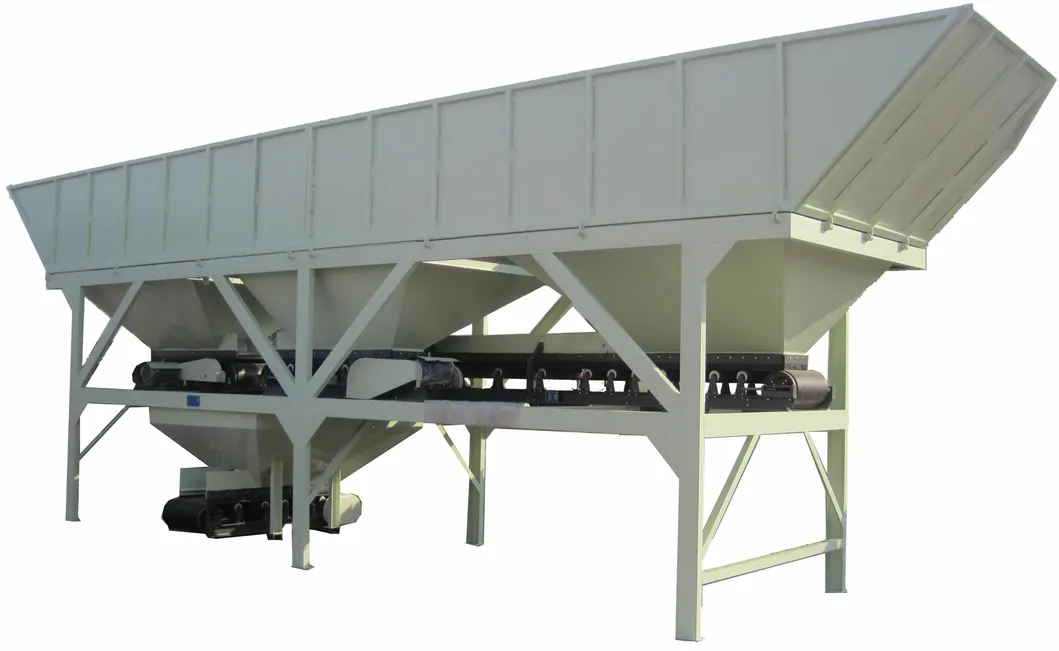

Concrete Batching Plant View 5

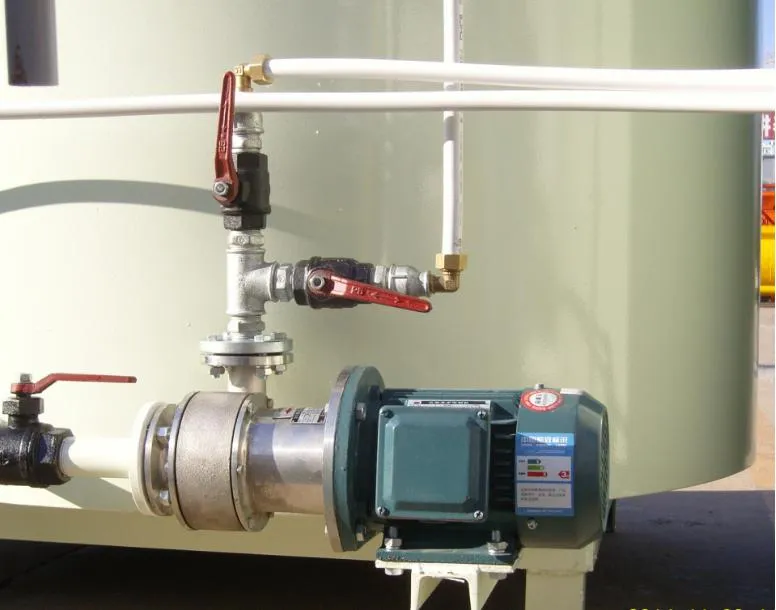

Concrete Batching Plant View 6

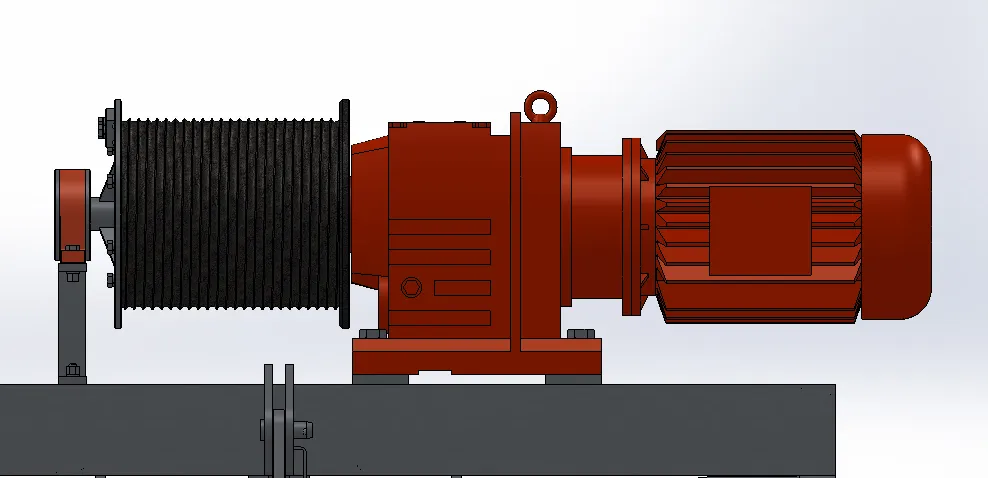

Concrete Batching Plant View 7

Frequently Asked Questions

What is the production capacity of the HZS50 plant?
The HZS50 concrete mixing plant has a nominal productivity of 50 cubic meters per hour (50m³/h).
What are the environmental features of this plant?
The plant is fully enclosed to protect it from harsh environments and features pulse negative pressure dust catchers for zero pollution, along with low noise emission technology.
How accurate is the weighing system?
The plant offers high precision with ±2% accuracy for aggregates and ±1% accuracy for powder, water, and additives, controlled by an intelligent system.
Is the plant easy to transport and install?
Yes, the plant uses durable container modules designed for economical transportation and minimum time for erection and disassembly.
What is the discharge height for the mixer?
The standard mixer discharge height for the HZS50 model is 3.8 meters.
What safety measures are included in the lifting system?
The lifting system includes loose rope detection, exceed-limit position sensors, and comprehensive fall protection measures.
