Product Description

Basic Information
Model NO. HZS300
Type Concrete Mixing Plant
Productivity 300m³/H
Certification ISO9001: 2000, CE, EAC
Condition New
Color Orange
Origin China
HS Code 8474310000
Packaging & Delivery
Package Size 435.00cm * 240.00cm * 200.00cm
Package Gross Weight 78000.000kg
Transport Package Container
Product Description

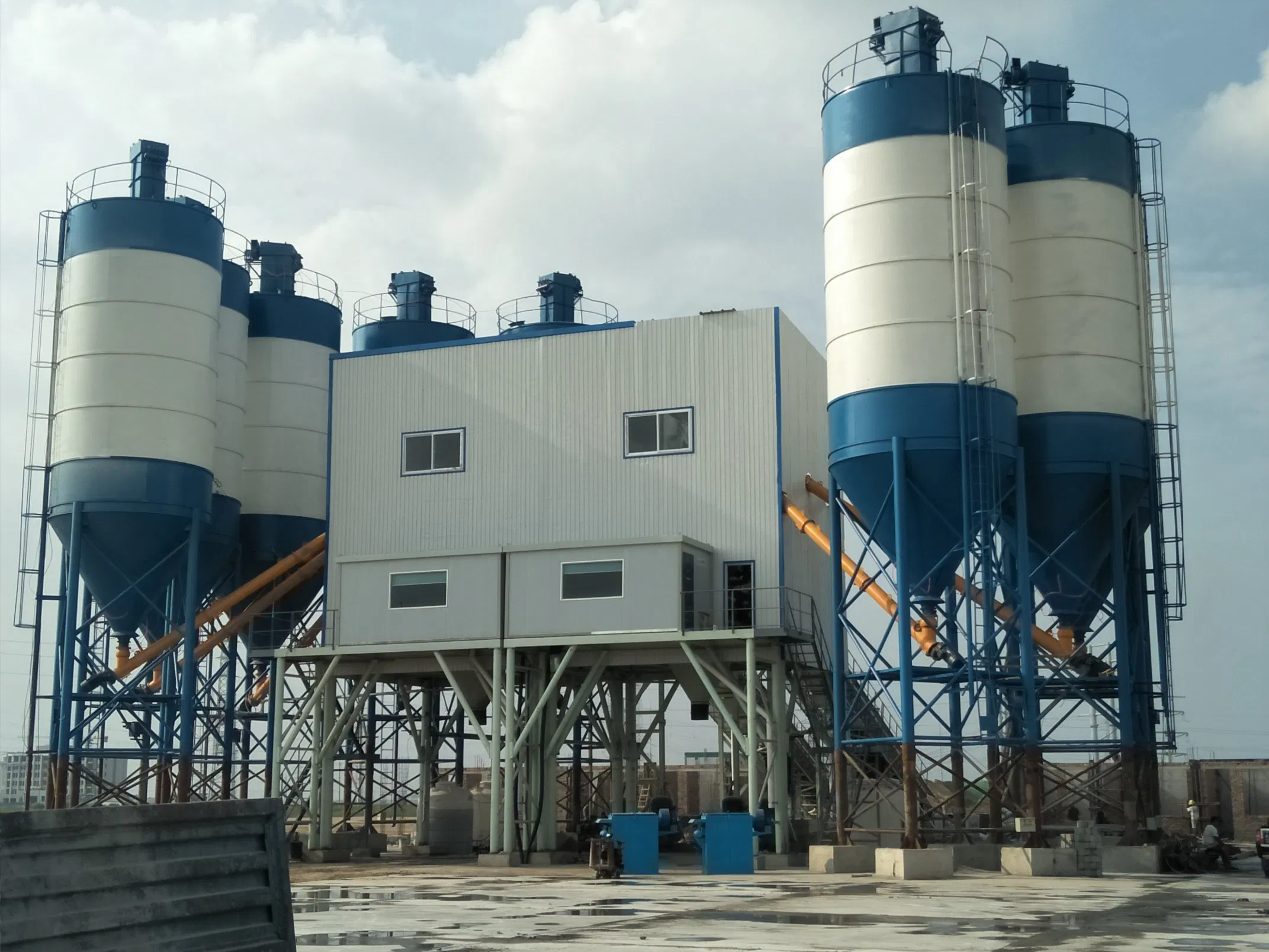

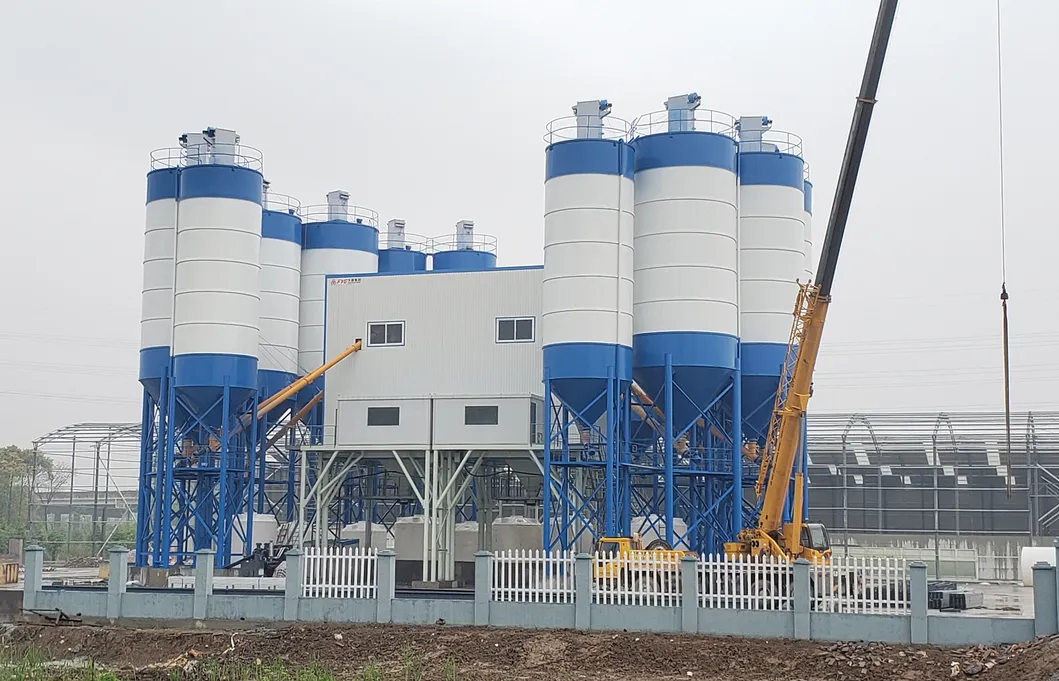

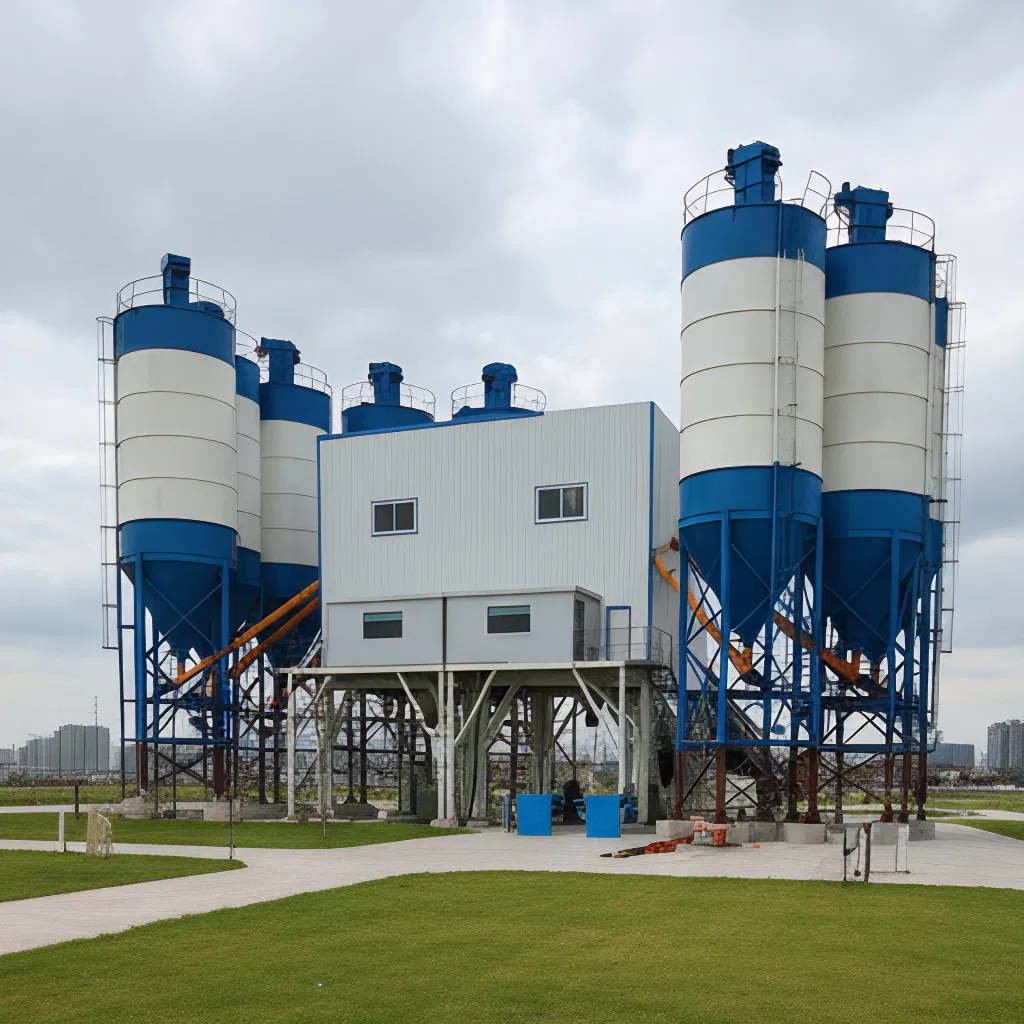

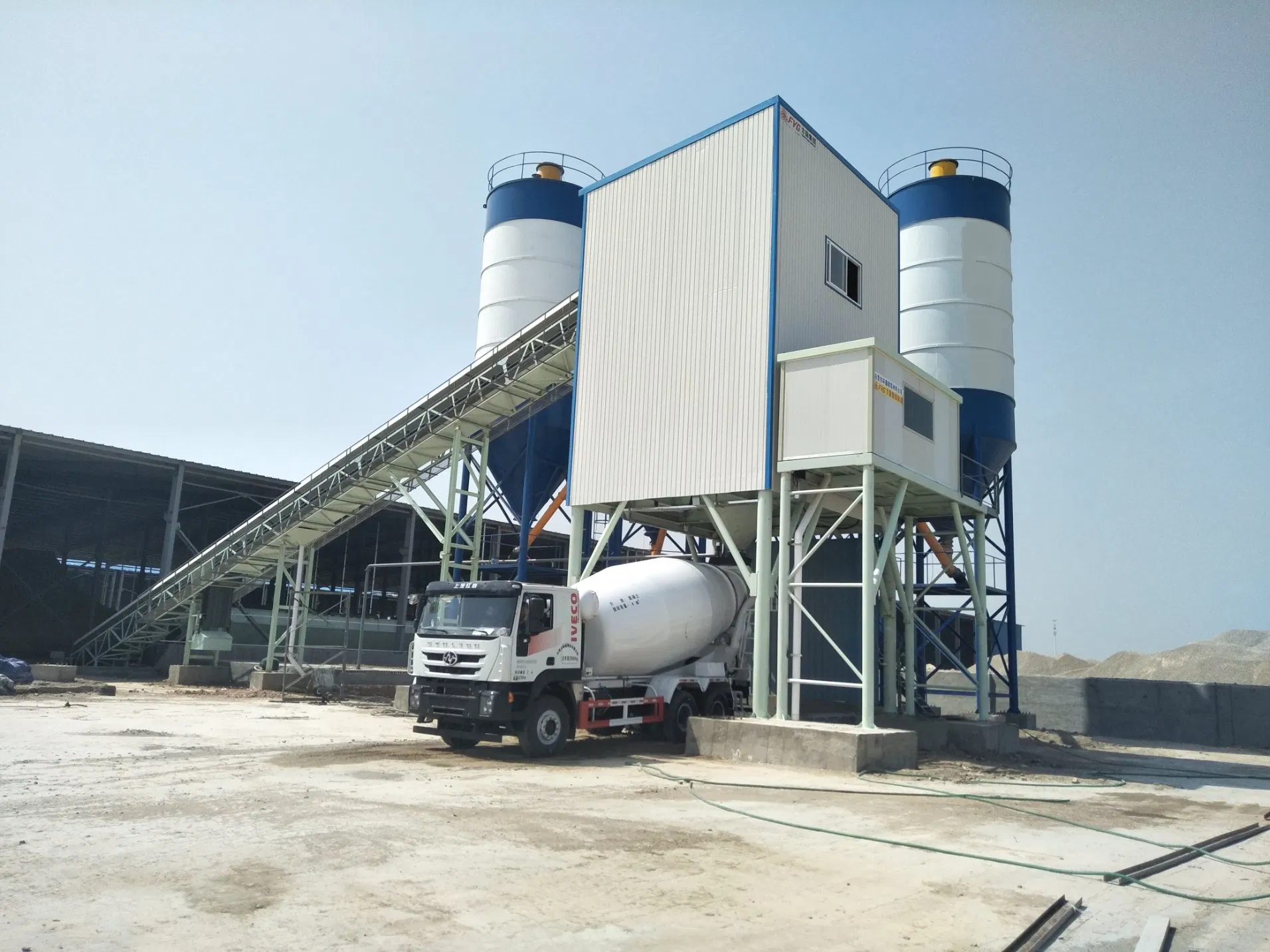

High Capacity Hzs300 Concrete Batching Plant
⚡

High Efficiency

Theoretical productivity reaches 300m³/h, suitable for large-scale production requirements.

🏗️

Modular Design

Modular container-design allows quick and easy installation with minimal land area usage.

🔇

Eco-Friendly

Fully enclosed structure reduces dust and noise emissions, protecting the environment.

Main Technical Parameters:

  • Theoretical Productivity: 300m³/h (normal concrete)
  • Mixer Nominal Capacity: 5m³
  • Power: 320kw

The durable container modules offer speedy setup and commission times, while the robust structure of the plant itself requires a minimal foundation - elements that contribute to economical plant relocations.

Technical Parameters Detail
Item Unit Parameter
Batching Machine Model - PLD8000QD-iv
Batching Machine Storage Hopper Volume m³ 4×25
Aggregate Scale Maximum Weighing Value kg 4×6000
Cement Scale Maximum Weighing Value kg 3000
Fly Ash Scale Maximum Weighing Value kg 1000
Water Scale Maximum Weighing Value kg 1400
Liquid Additive Scale Maximum Weighing Value kg 150
Main Machine Unloading Height m 4.1
Machine Mass t 90
Contour Size (L×W×H) m 50.8×20×21.3
Loading Mode - Belt Type
Metering Accuracy
Aggregate / Cement / Fly Ash % ±2 / ±1 / ±1
Water / Liquid Admixtures % ±1 / ±1

Note: Cement Silo and screw conveyor are optional parts. Shape, size, and weight are for reference only.

Frequently Asked Questions
What is the production capacity of the HZS300 model?
The HZS300 Concrete Batching Plant has a theoretical productivity of 300m³/h for normal concrete.
What are the advantages of the modular container design?
The modular design allows for quick and easy installation and relocation, requires minimal land area, and provides a robust structure that minimizes foundation costs.
How does this plant handle environmental concerns like noise and dust?
This type of plant is fully enclosed, which significantly reduces dust and noise emissions while protecting the internal components from harsh environmental factors.
What is the weighing accuracy for the materials?
The metering accuracy is ±2% for aggregates and ±1% for cement, fly ash, water, and liquid admixtures, ensuring high-quality concrete production.
What certifications does the HZS300 mixing plant hold?
The product is certified with ISO9001: 2000, CE, and EAC, meeting international standards for quality and safety.
What is the unloading height and loading mode of the machine?
The main machine features an unloading height of 4.1 meters and utilizes a belt-type loading mode for efficient material transport.
