High Capacity Hzs180 Concrete Batching Plant for Industrial Applications

Customization:	Available
After-sales Service:	Provided
Warranty:	1year

Send Inquiry

Product Description

🏗️ Model
HZS180

⚡ Productivity
180m³/h

📜 Certification
ISO9001, CE

📦 Condition
New

Basic Specifications

Model NO.:HZS180

Type:Concrete Mixing Plant

Machining Process:Welded Molding Machine

Productivity:180m³/h

Feeding Height:1400mm

Vibrating Amplitude:1.2mm

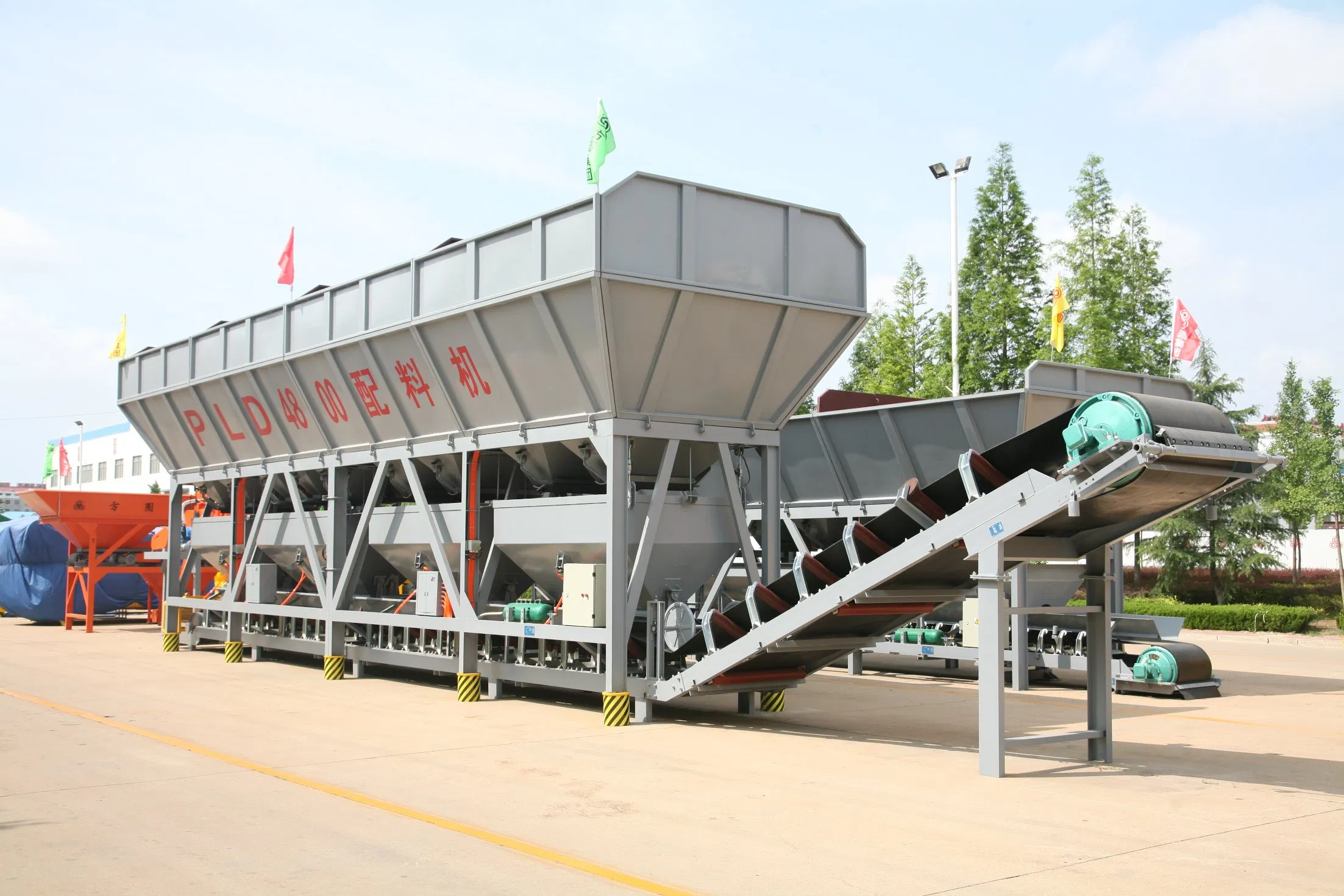

Batching Machine:PLD4800qd-IV

Aggregate Bins:4

Discharge Height:3.8m

Hopper Capacity:20m³

Overall Quality:65t

Specification:44.3*21*18.6m

Trademark:FYG

Origin:China

HS Code:8474310000

Packaging & Delivery

Package Size:3080.00cm * 1500.00cm * 1940.00cm

Gross Weight:78000.000kg

Transport:Container Delivery

Product Description

Item	Unit	HZS60	HZS90	HZS120	HZS180	HZS240	HZS300
Nominal output/h	m³/h	60	90	120	180	240	300
Mixer charging	m³	1	1.5	2	3	4	5
Batching machine	-	PLD1600Q	PLD2400Q	PLD3200QD	PLD4800QD	PLD6400QD	PLD8000QD
Aggregate bins qty	pc	3	4	4	4	4	4
Mixer power	kw	37	2*30	2*37	2*55	2*75	2*90
Total power	kw	80	110	150	200	260	320
Total weight	t	32	39	60	72	78	90

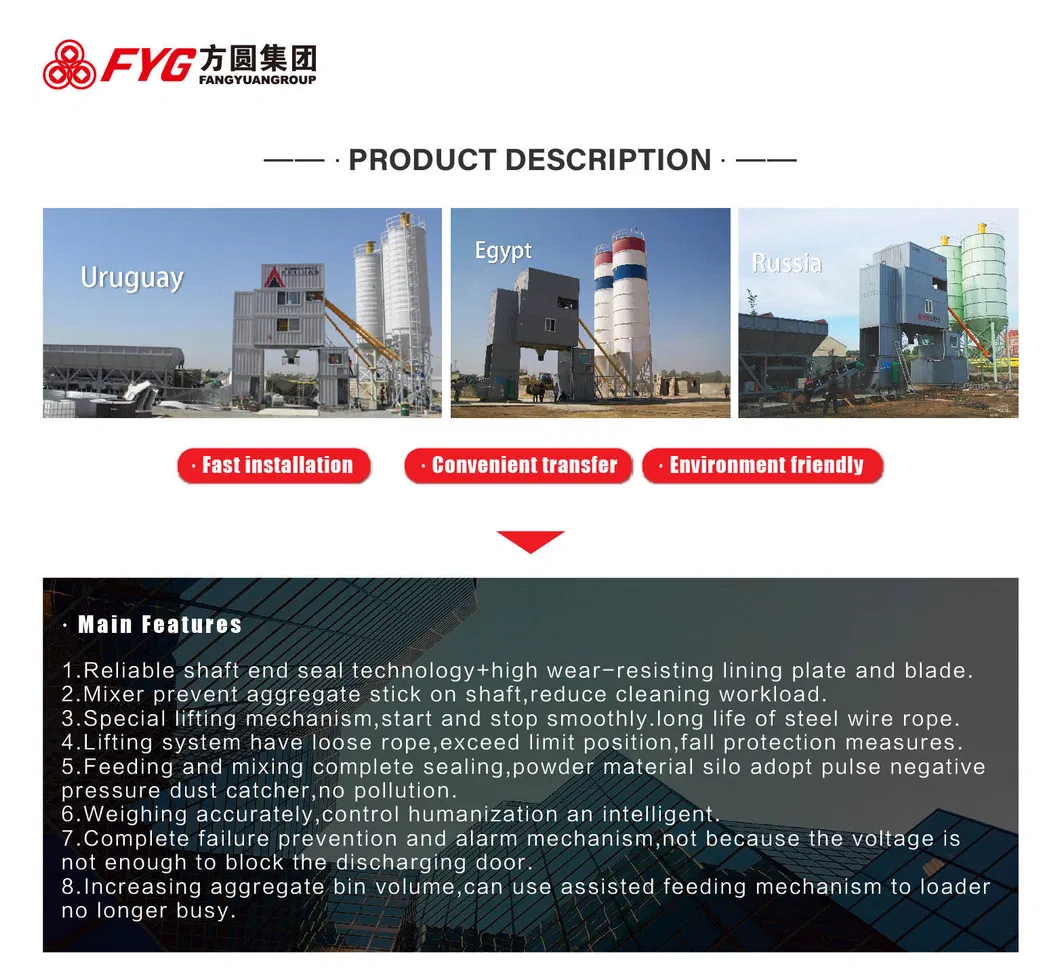

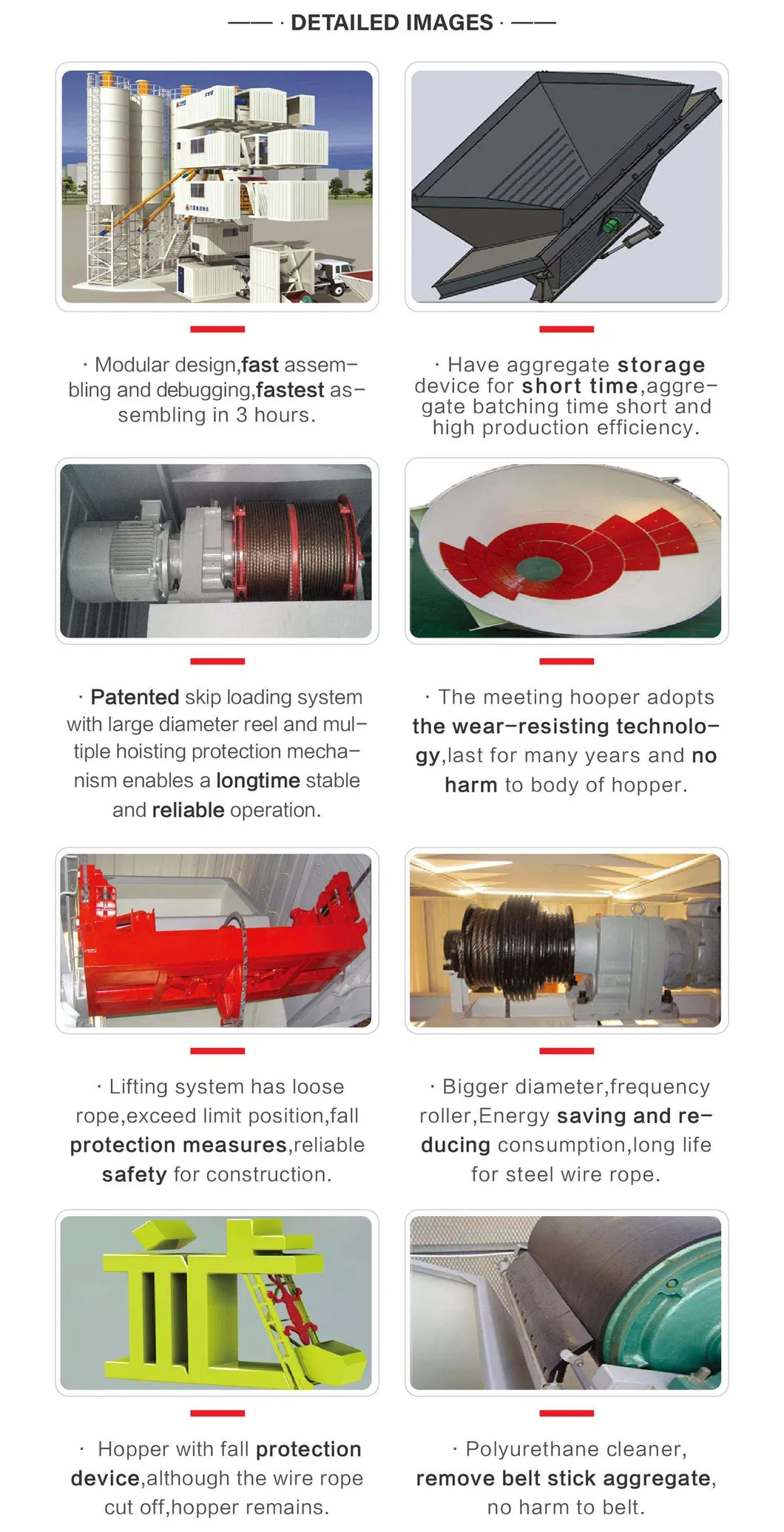

Key Features

Designed for minimum space requirement with large concrete production capacity.

Durable container modules for economical transportation and rapid erection/disassembling.

Robust structure reduces foundation requirements, leading to economical relocations.

Fully enclosed plant design protected from harsh environments with low noise and dust emission.

Frequently Asked Questions

Q1: What is the maximum productivity of the HZS180 plant?

The HZS180 concrete mixing plant has a nominal output of 180 cubic meters per hour (m³/h), making it ideal for high-capacity industrial applications.

Q2: What type of batching machine is used in this model?

This model is equipped with the PLD4800qd-IV batching machine, featuring 4 aggregate storage bins with a capacity of 20m³ each.

Q3: Is the plant suitable for environmentally sensitive areas?

Yes, the plant is designed to be fully enclosed. This protection not only guards the machinery from harsh environments but also ensures low noise and dust emissions.

Q4: What certifications does the HZS180 concrete plant hold?

The plant is manufactured under strict quality standards and holds ISO9001: 2000 and CE certifications, ensuring international quality and safety compliance.

Q5: How is the equipment transported and assembled?

The plant uses durable container modules designed for economical transportation. The modular structure allows for minimum time and effort during erection and disassembling.

Q6: What are the weighing accuracy levels for materials?

The plant provides high precision with a weighing accuracy of ±2% for aggregates and ±1% for powder, water, and additives.
