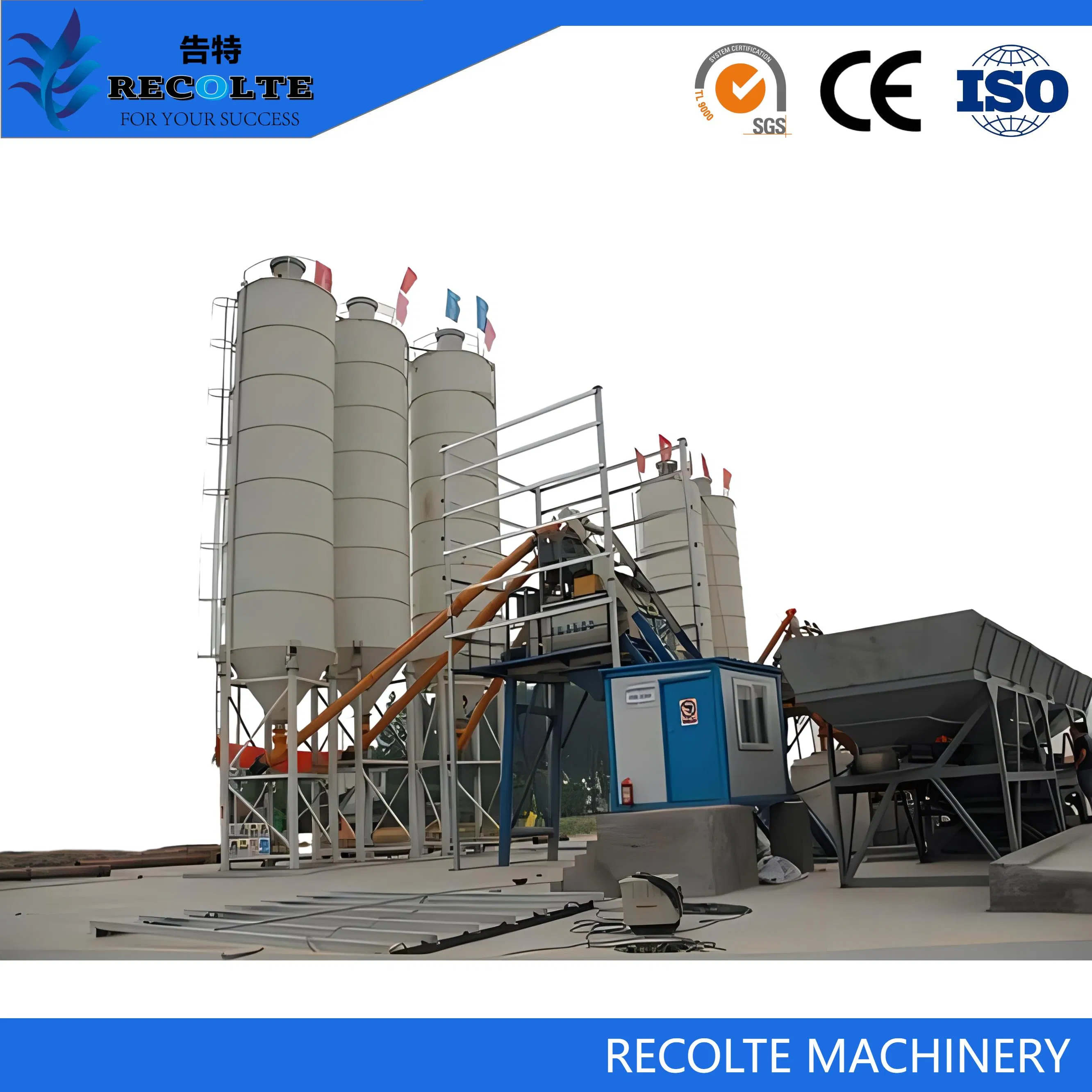

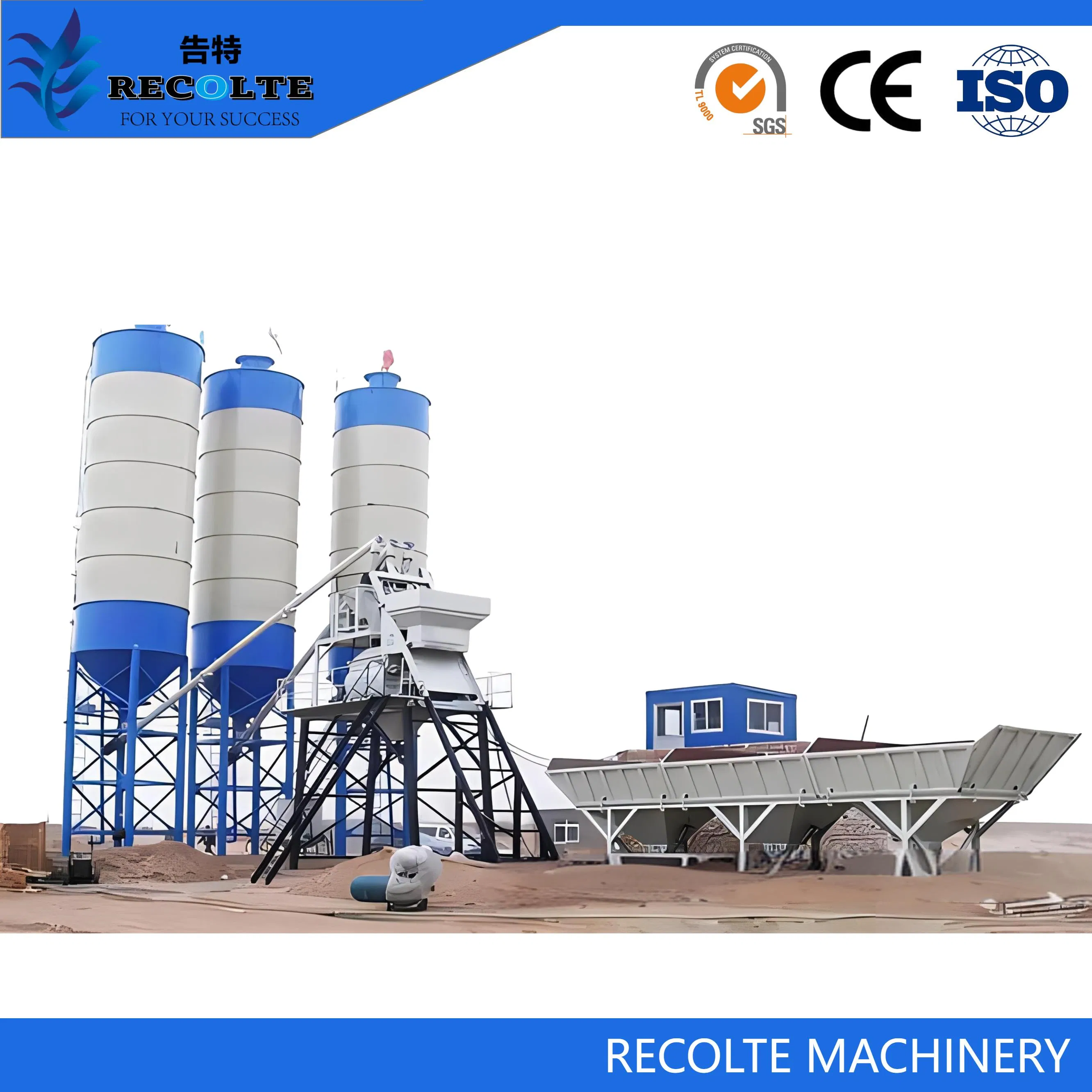

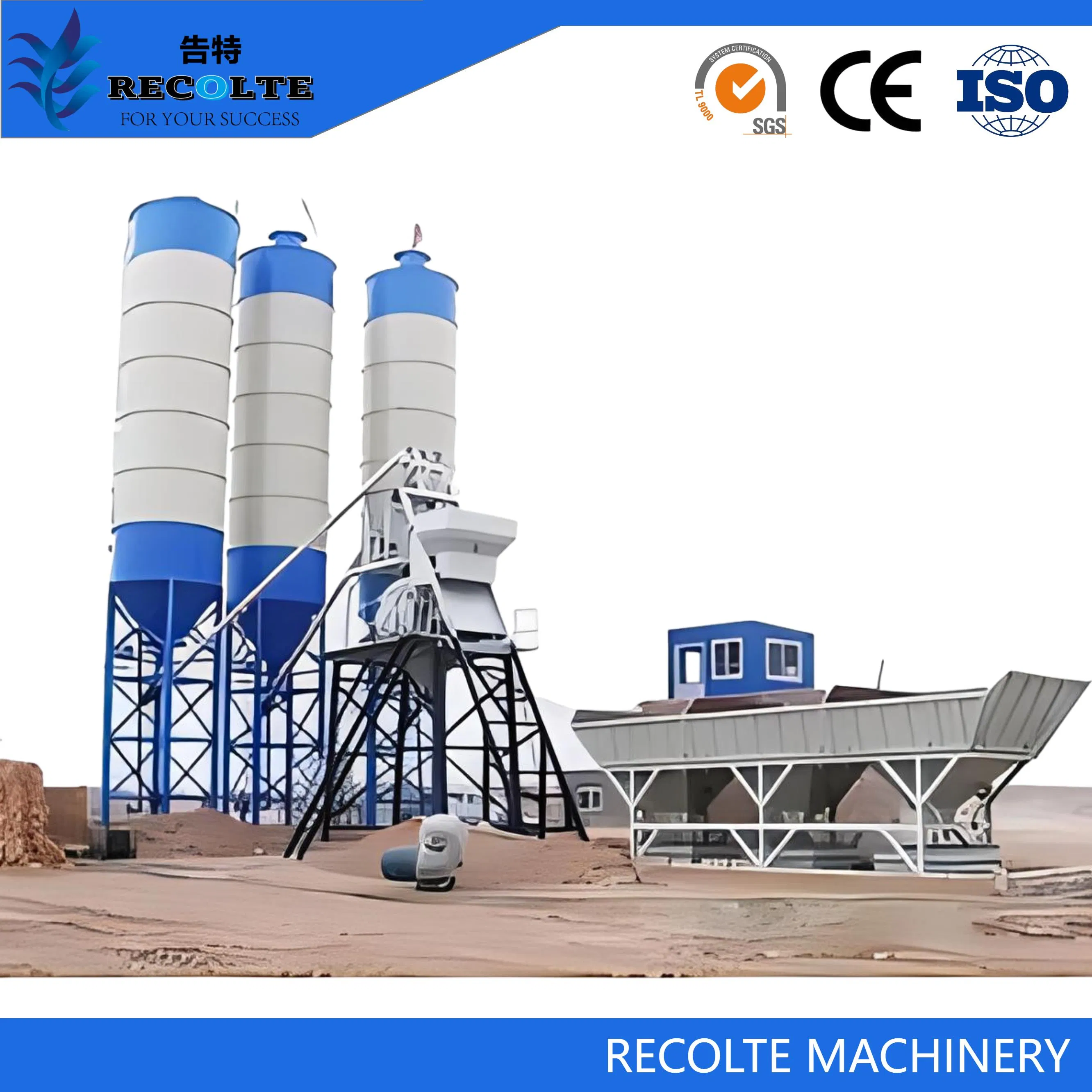

High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
1 / 5
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant
High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant

High-Capacity/Hzs 100 M3/H Experience Superior Performance with Our Concrete Mixing Plant Concrete Batching Plant

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.
HZS100
Type
Concrete Mixing Plant
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
100 M3/H
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Loading
Hopper Loading
Origin
China

Product Description

Concrete Mixing Plant Performance
Model Specification HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS100 HZS120 HZS150 HZS180
Discharging Capacity (L) 50075010001000150015002000200025003000
Charging Capacity(L) 800120016001600240024003200320040004800
Max Productivity(m³/h) 253550607590100120150180
Charging Model Skip HopperSkip HopperSkip HopperBeltSkip HopperBeltBeltBeltSkip HopperBelt
Discharging Height(m) 1.5-3.82-4.24.24.24.24.23.8-4.53.8-4.54.54.5
Max Aggregate Size(mm) ≤60≤80≤80≤80≤80≤80≤120≤120≤150≤180
Mixing Cycle Time(s) 72606060606060603030
Trend Of Future Concrete Mixing Plants

Leveraging decades of profound understanding of concrete mixing technology, the new R series electric concrete mixing stations are specifically designed for high-efficiency concrete production. Through comprehensive studies of advanced global mixing technologies, key features have been identified to optimize performance in industrial environments, forming the foundational principles of our product design.

Industrial Overview

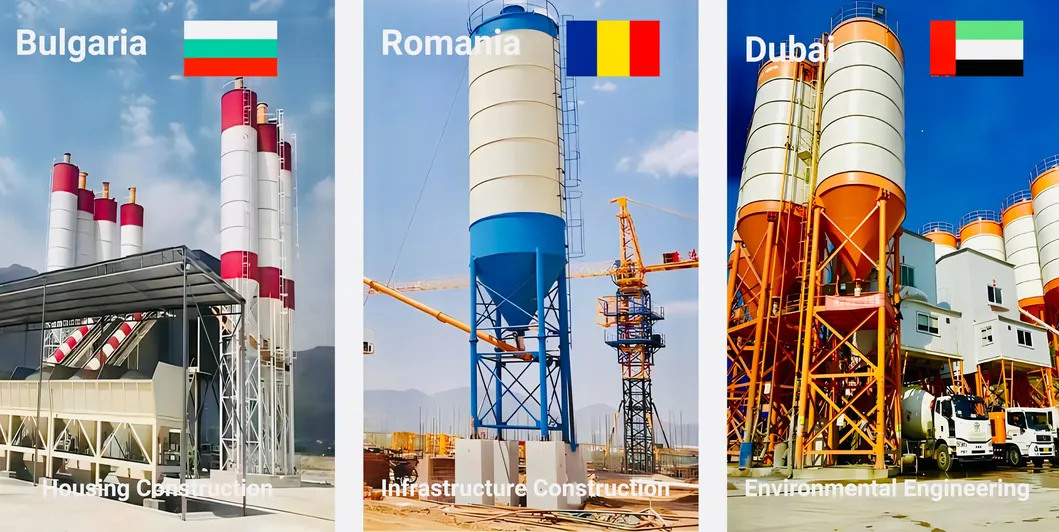

Production Facility Equipment Overview Technical Standards

Detailed Photos

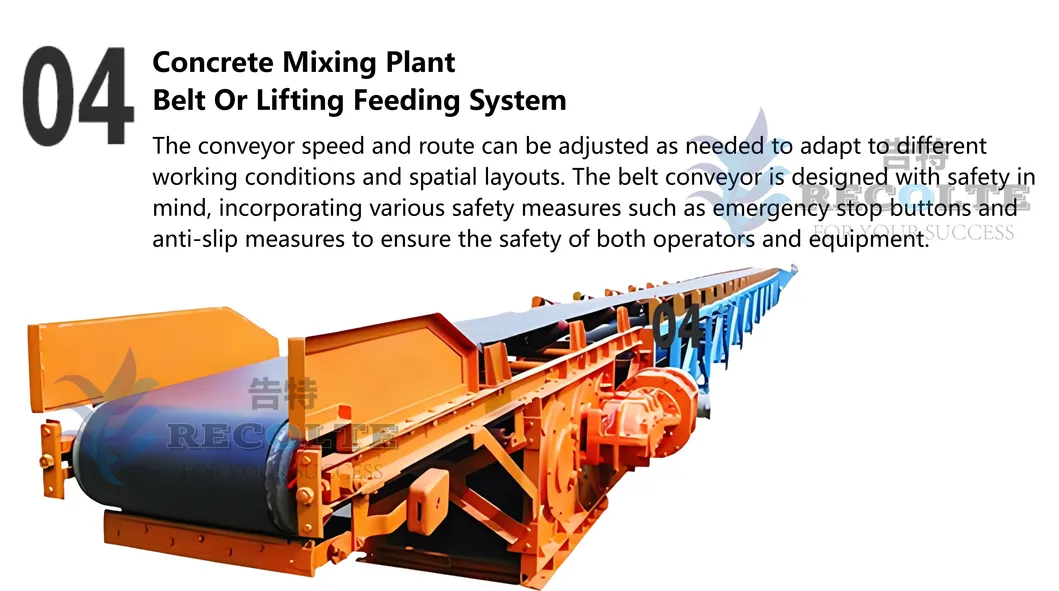

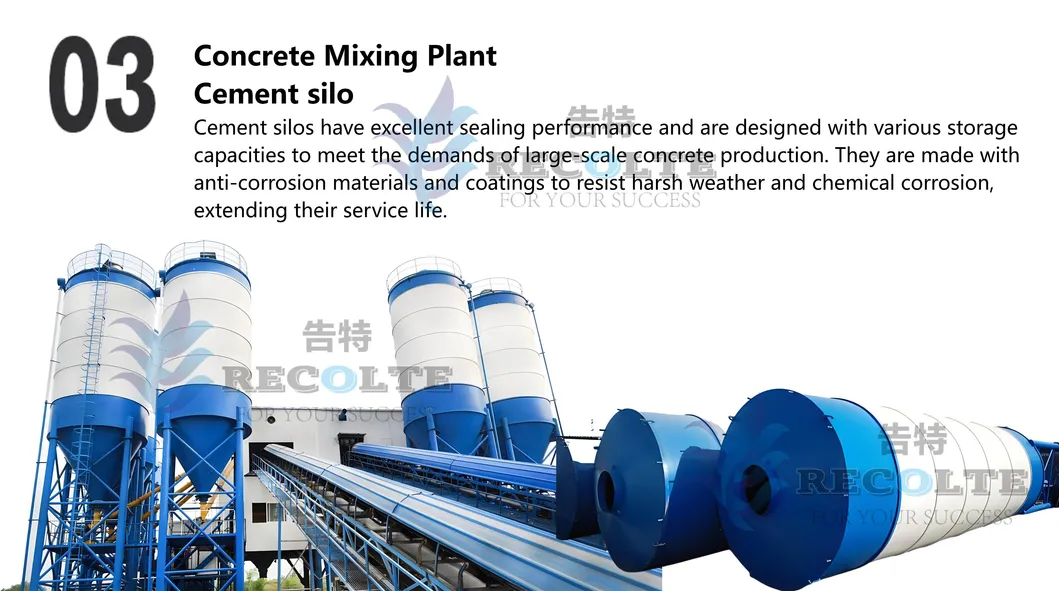

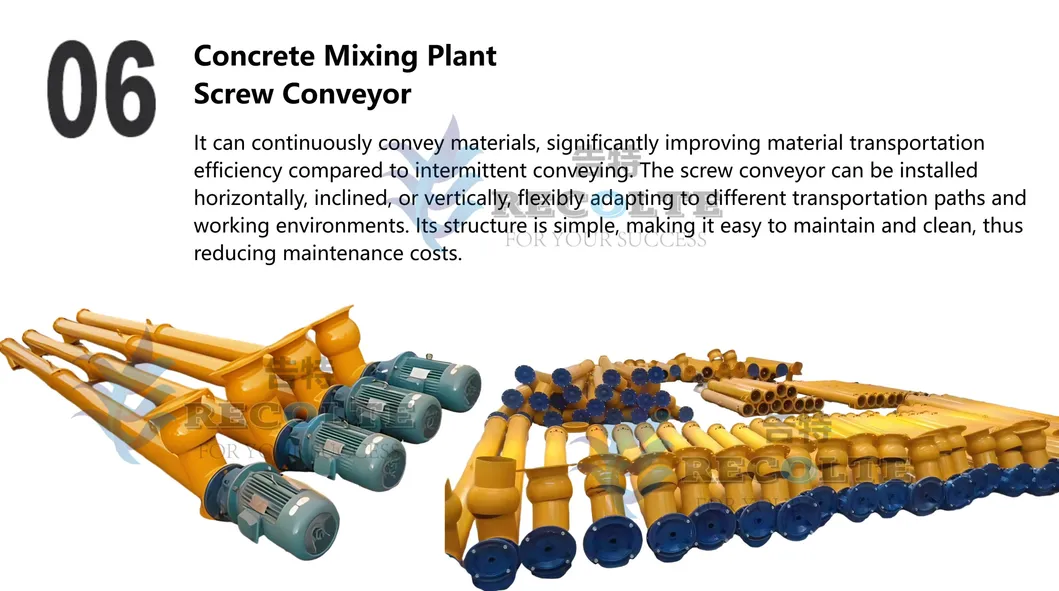

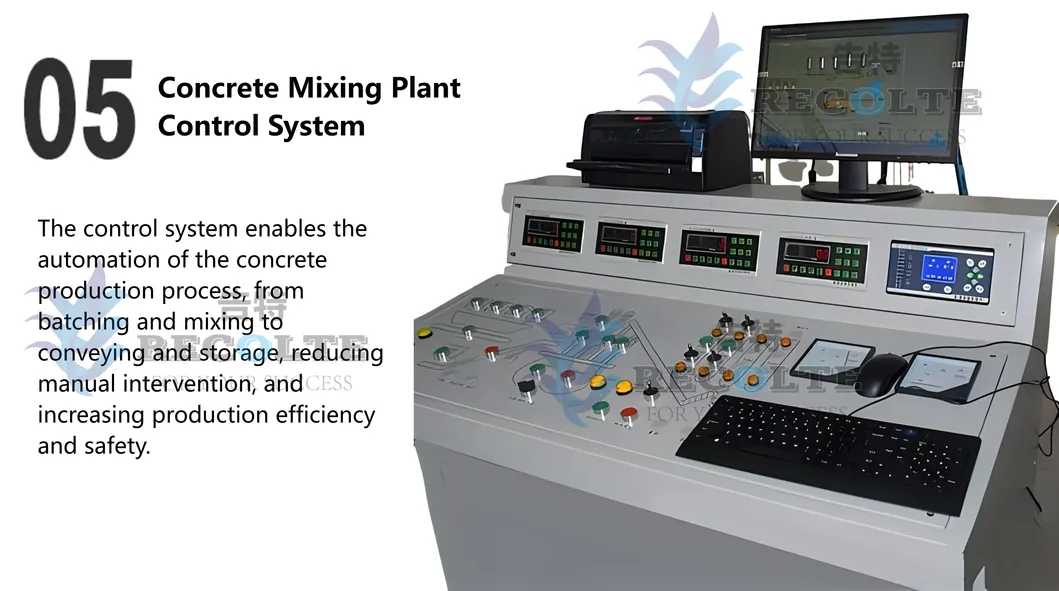

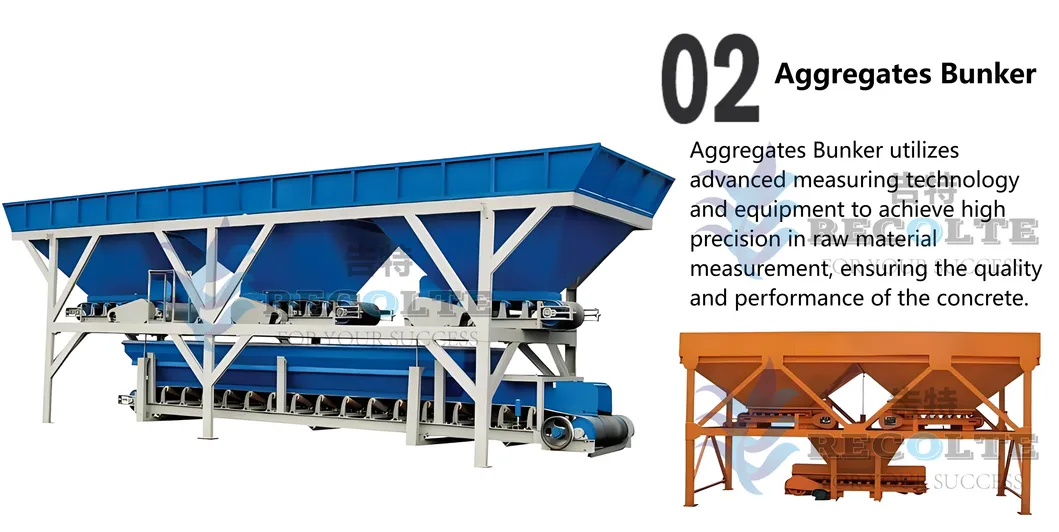

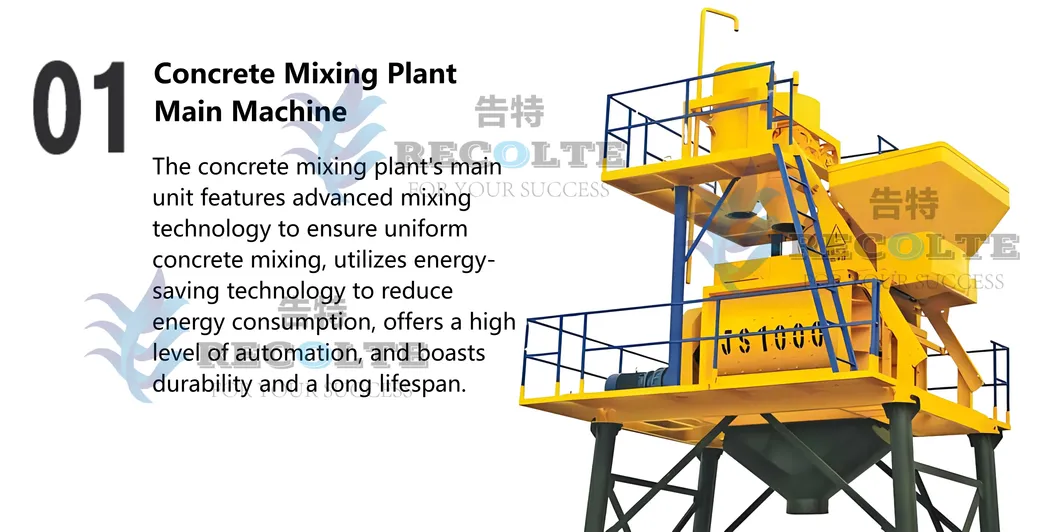

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6

Certifications

ISO Certification CE Certification

Frequently Asked Questions

What is the maximum productivity of the HZS100 model?
The HZS100 model features a maximum productivity of 100 cubic meters per hour (m³/h).
What certifications do these concrete mixing plants hold?
Our plants are fully certified with ISO9001: 2000 and CE standards, ensuring international quality and safety compliance.
What is the difference between charging models?
We offer both Skip Hopper and Belt Conveyor charging models. Smaller plants typically use Skip Hoppers for space efficiency, while larger capacity plants like the HZS100 utilize Belt Conveyors for continuous, high-volume feeding.
What is the standard discharging height for the HZS series?
The discharging height varies by model, ranging from 1.5 meters for smaller units up to 4.5 meters for high-capacity models like the HZS150 and HZS180.
What is the maximum aggregate size allowed?
For the HZS100 model, the maximum aggregate size is ≤120mm. For larger models like the HZS180, it can handle aggregates up to ≤180mm.
How long is the mixing cycle time?
Most of our standard models, including the HZS100, have a mixing cycle time of 60 seconds, while our high-efficiency R series can reduce this to 30 seconds.
