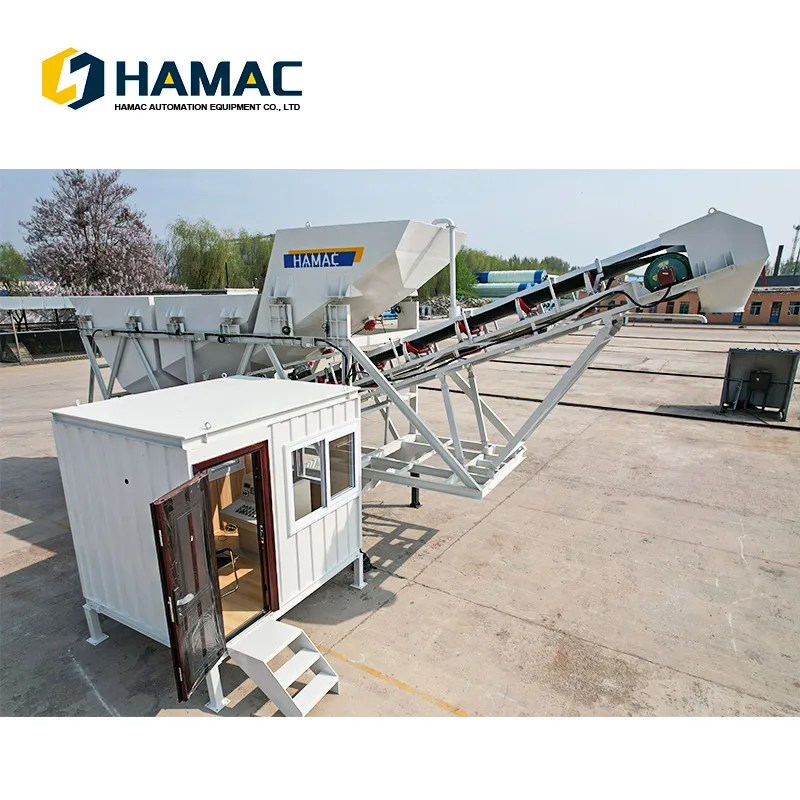

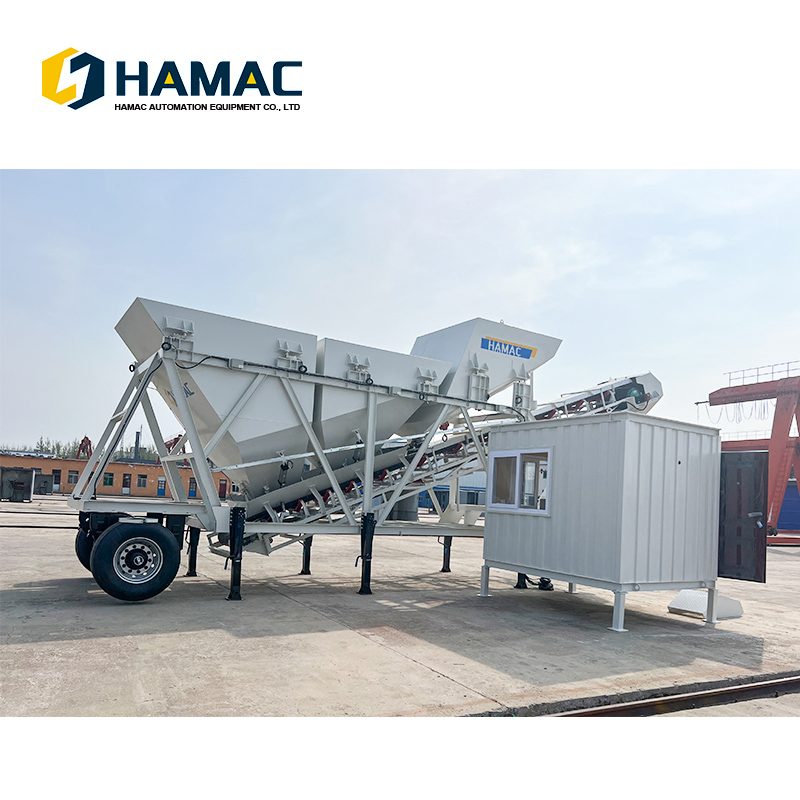

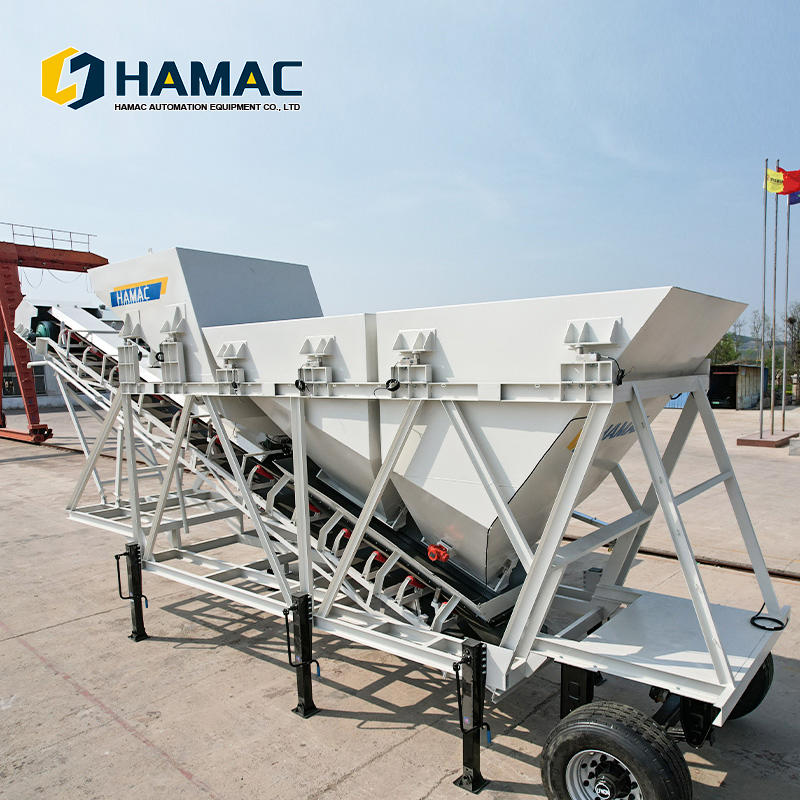

Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
1 / 5
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant
Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant

Hamac Hzm35 Customized Twin Shaft Mixer Mobile Dry Concrete Batching Plant

Customization: Available
Warranty: 1 Year
Type: Concrete Mixing Plant
Send Inquiry

Product Description

Basic Specifications

Model NO.
HZM35
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
50-240m³/H
Feeding Height
4100mm
Certification
ISO9001: 2000, CE
Condition
New
Theoretical Capacity
25 M³/H
Batching System
PLD1200
Discharging Height
3800mm
Max Aggregates Size
60(80)mm
Origin
China
HS Code
84743100

Packaging & Delivery

Package Size
760.00cm * 210.00cm * 418.00cm
Gross Weight
6200.000kg
Transport Package
Nude Packed in Container

Product Description

Dry Concrete Batching Plant 1

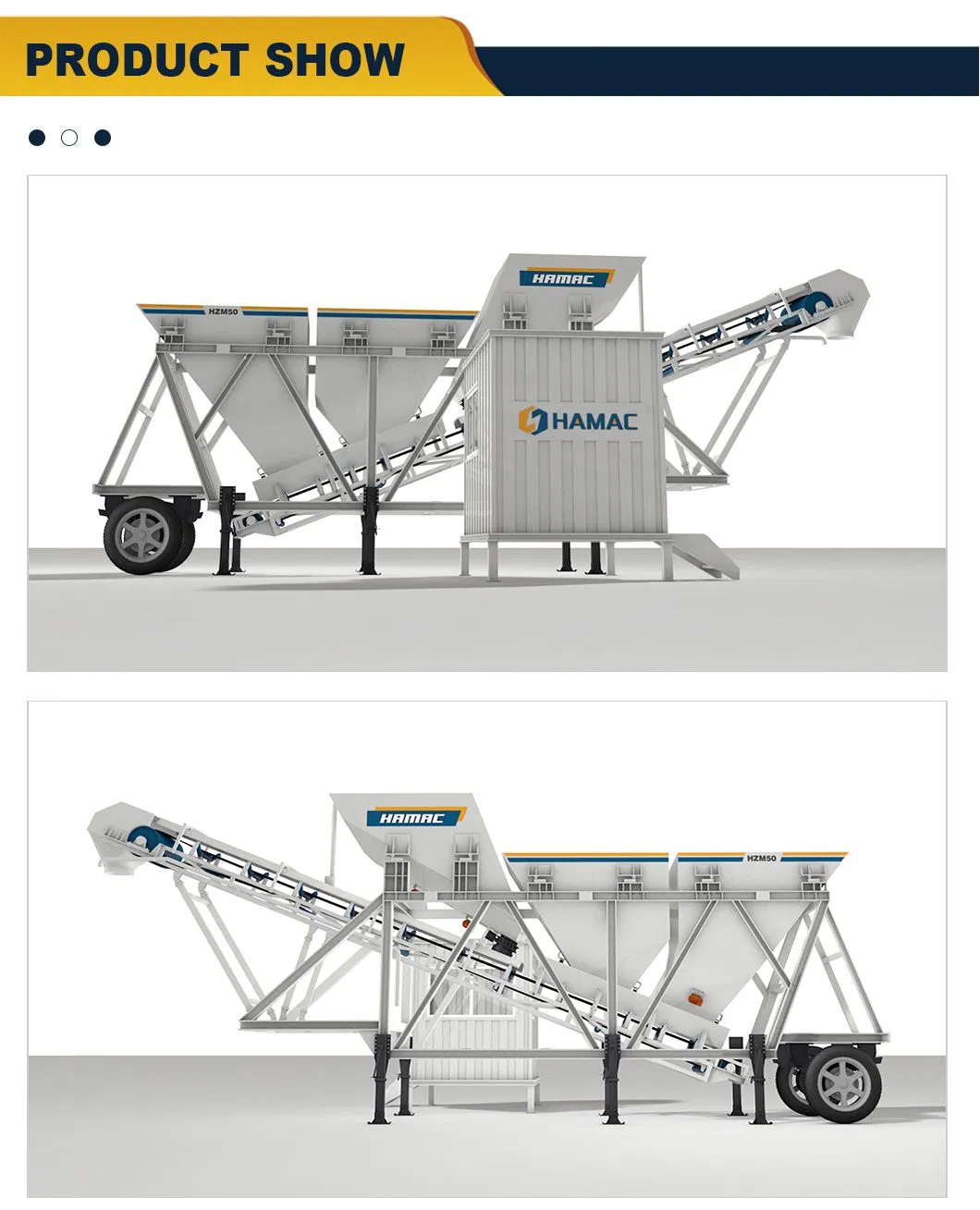

Dry Concrete Batching Plant 2

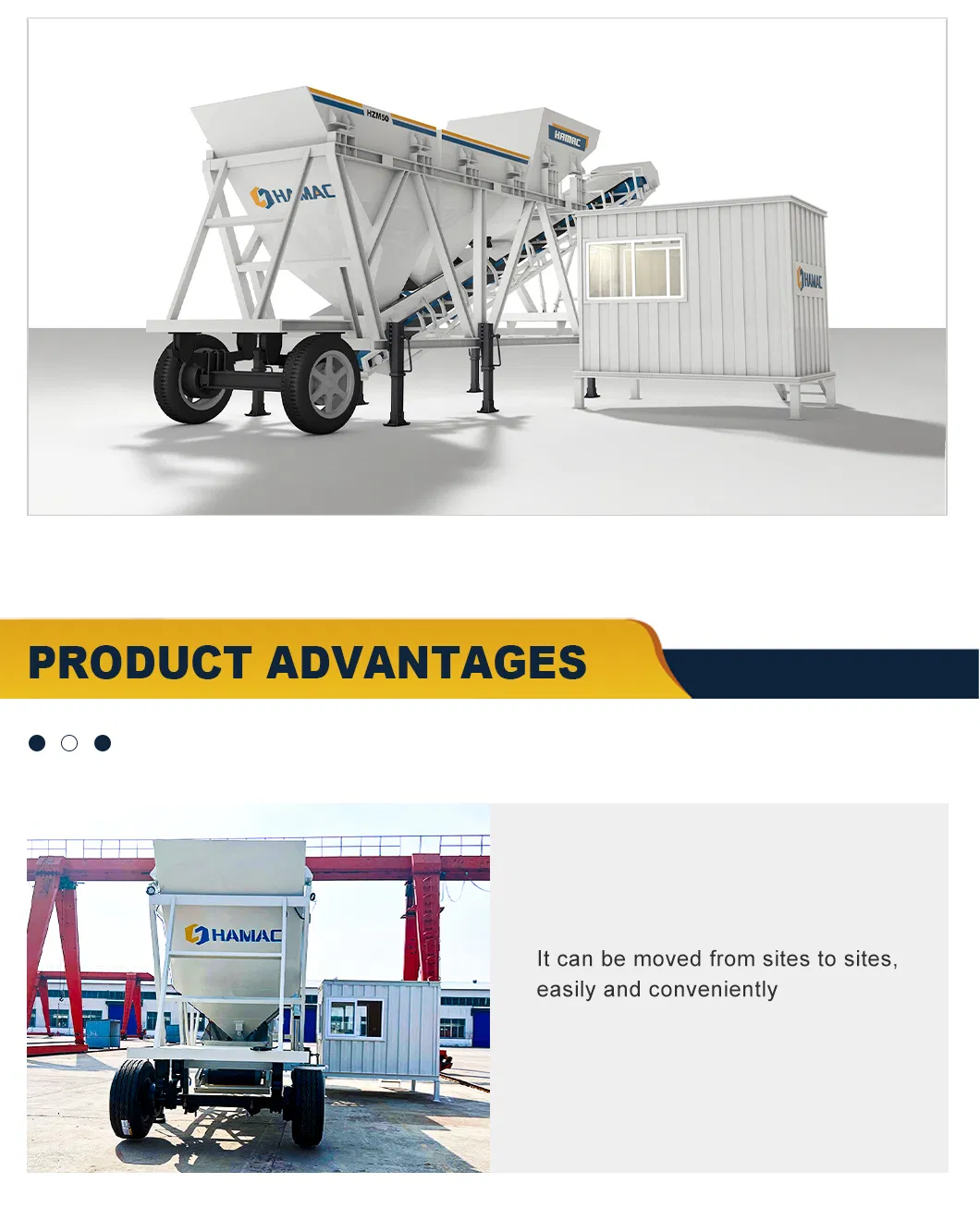

Dry Concrete Batching Plant 3
⚙️
Belt conveyor: Used to transport the aggregate and sand into the truck concrete mixer.
⚖️
Weighing system: Equipped with load cells for aggregate, sand, and cement. Materials are weighed accurately before being fed into the mixer truck.
💧
Water supplying system: Water is supplied via a pump controlled by a time relay, ensuring precise water quantity by managing working time.
🏗️
Aggregate pre-feeding systems: Alternative solutions to loading ramps. Removes the requirement for loading ramps when charging hoppers by wheel loaders.
💻
Control system: High-tech automation system including top-class electronic components and PLC. Controlled through advanced software with a user-friendly interface.
🔋
Cement silo: Used to stock cement with storage capacities from 50 to 500 tons. Can be integrated with big bag opening and silo charging systems.

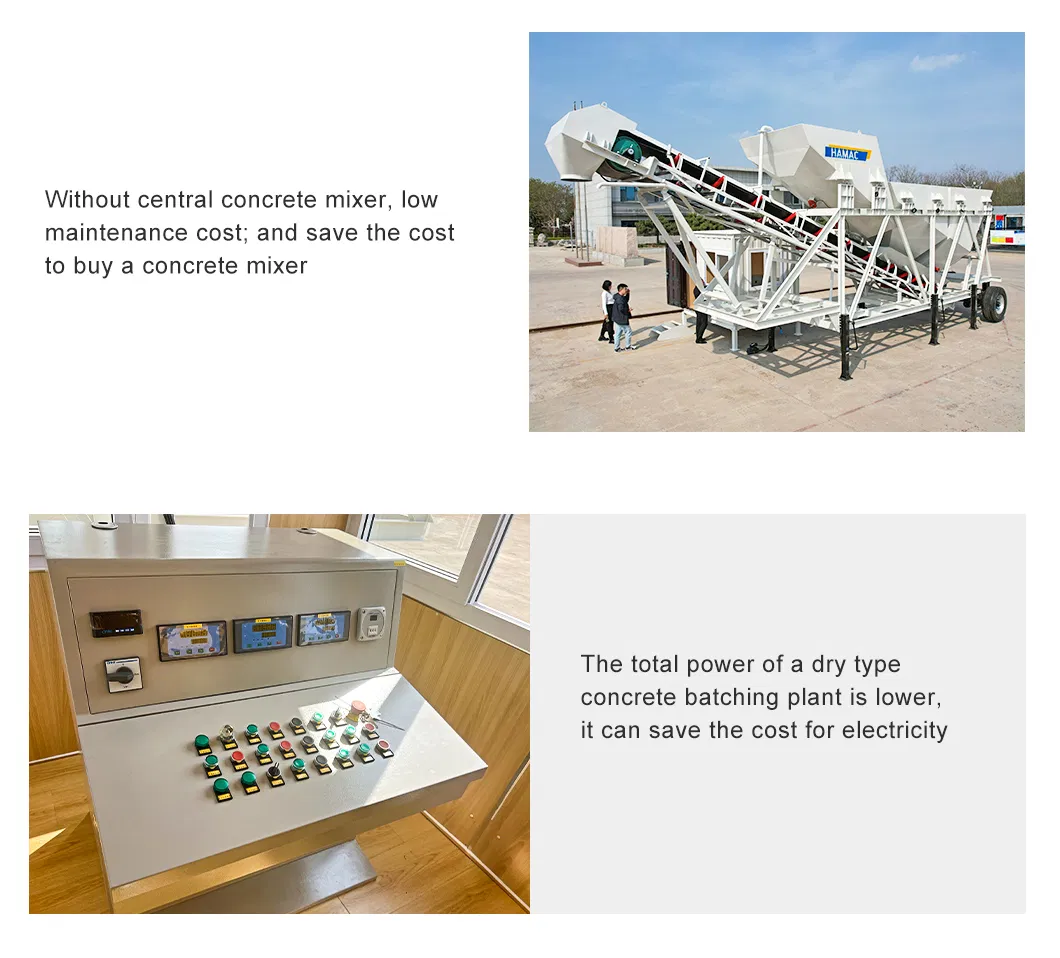

Batching Plant Detail 1
Batching Plant Detail 2

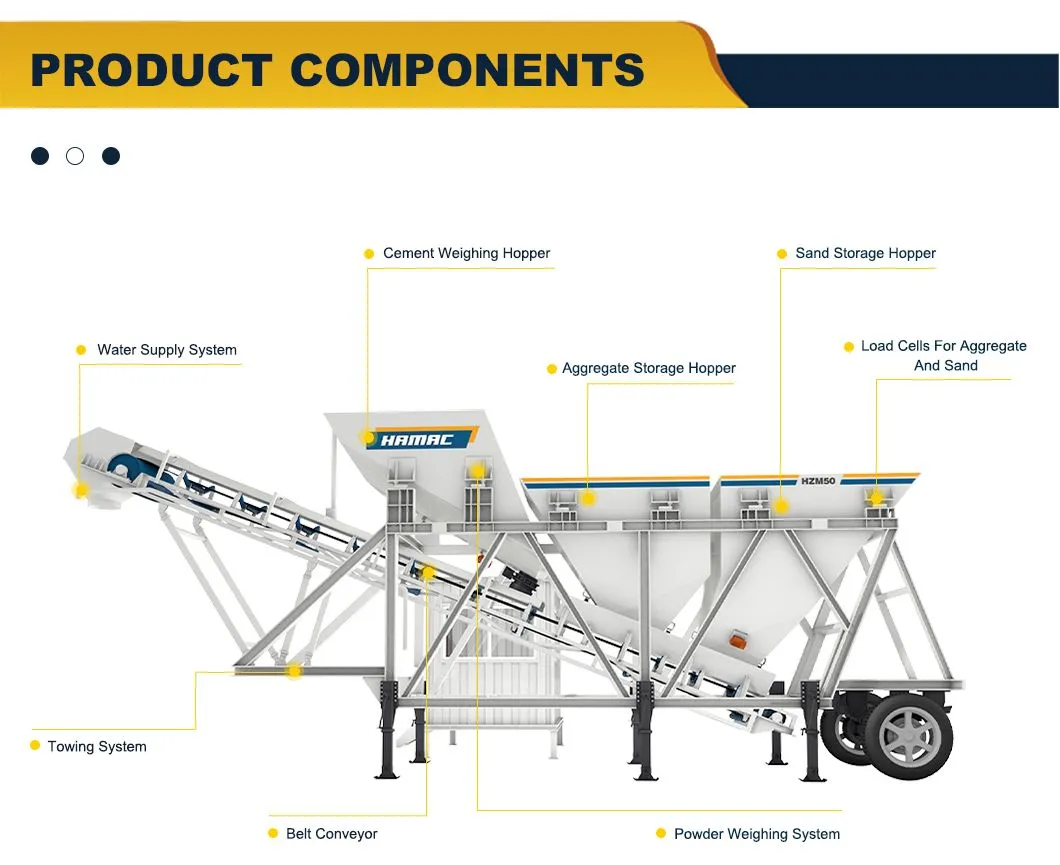

Batching Plant Detail 3
Technical Data HZM25 HZM35 HZM50
Theoretical capacity (m³/h) 25 35 50
Batching system PLD1200 PLD1200 PLD1600
Discharging height (mm) 3800 3800 3800
Max aggregates size (mm) 60(80) 60(80) 60(80)
Automatic Cycle time (s) 72 72 72

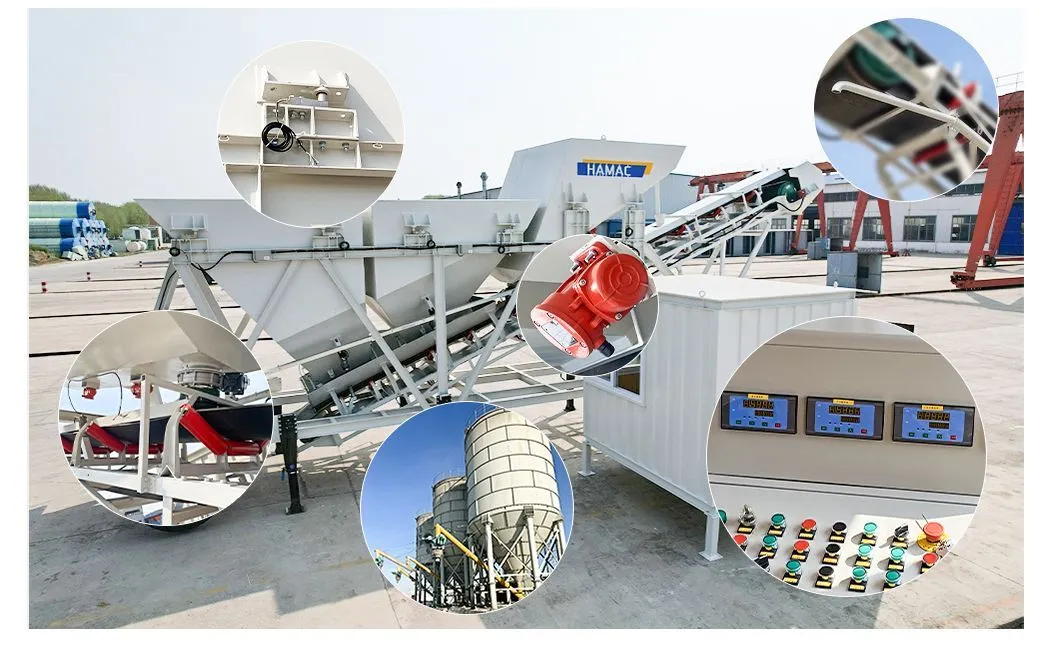

Plant Layout

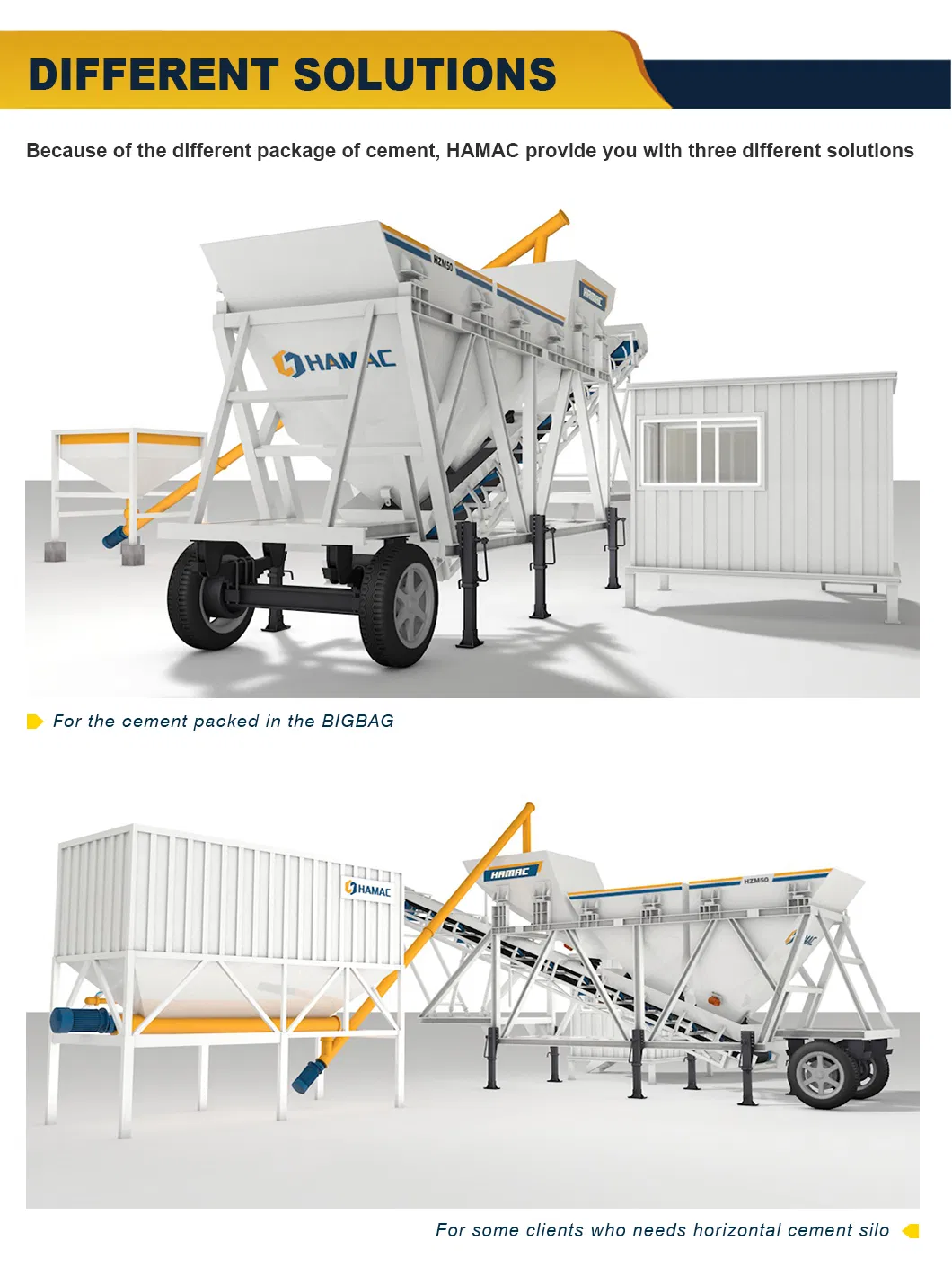

Plant Components

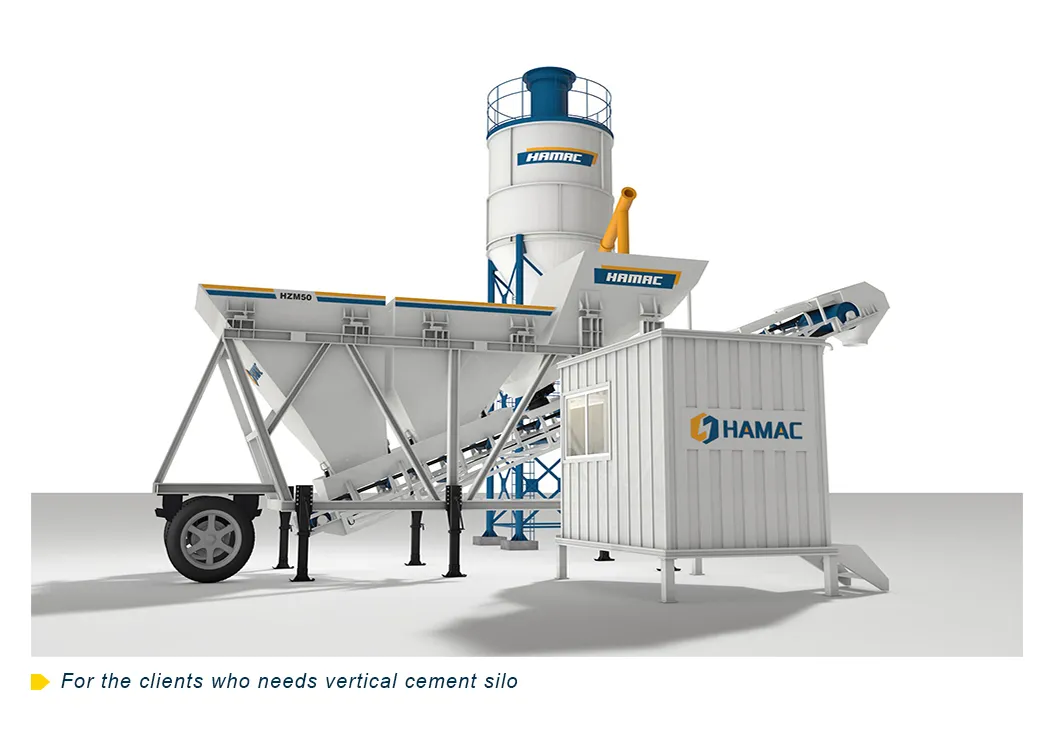

Mobile Unit
Control Panel
Silo System
Site Operation 1

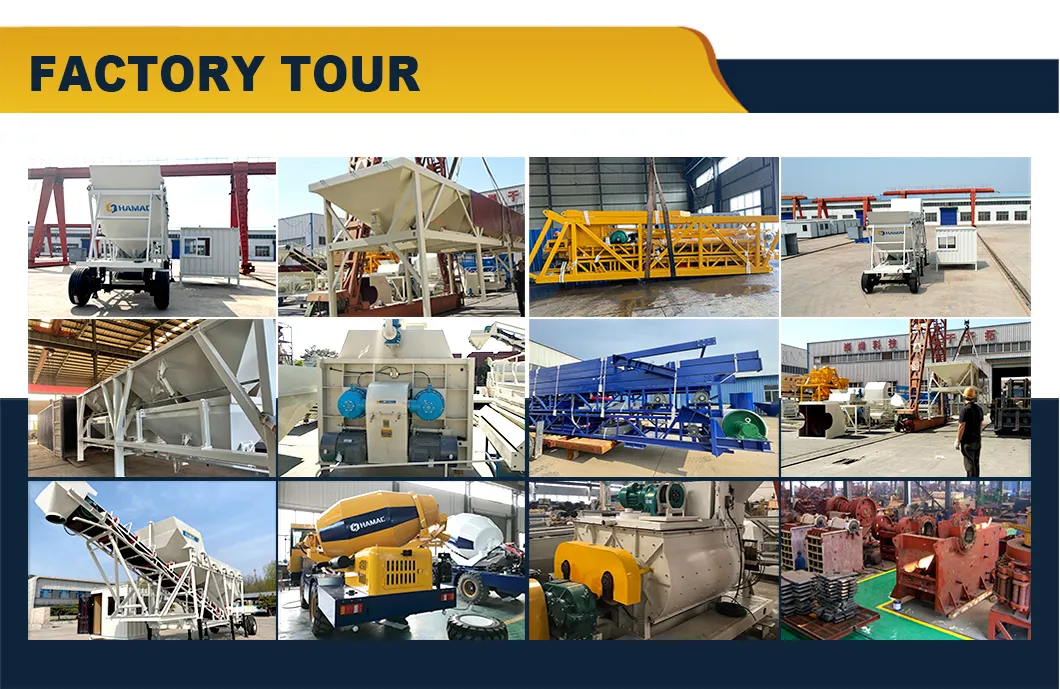

Site Operation 2

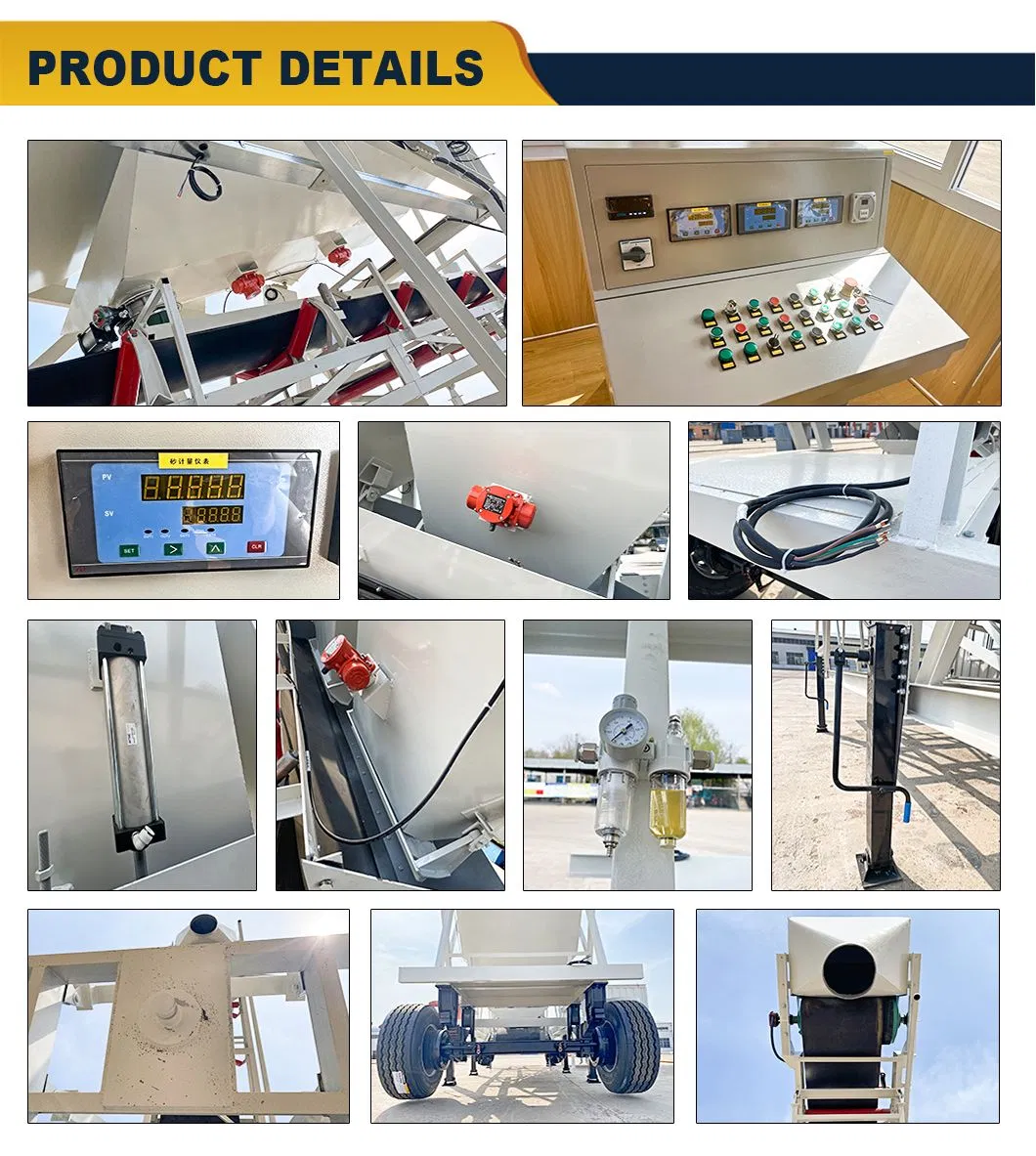

Site Operation 3

Frequently Asked Questions

Q1: What is the productivity range of the HZM series? The HZM series offers a productivity range from 50 to 240m³/H depending on the specific model and configuration.
Q2: What type of concrete batching does this plant perform? This is a dry type concrete batching plant, where materials are weighed and then fed directly into a concrete mixer truck.
Q3: What brands of electronic components are used in the control system? The system is equipped with top-class electronic components from SIEMENS and SCHNEIDER, integrated with a high-tech PLC.
Q4: What is the maximum aggregate size the plant can handle?
The plant can handle a maximum aggregate size of 60mm, with an allowable upper limit of 80mm.
Q5: How is the water quantity controlled during the batching process?
Water is supplied by a water pump controlled by a time relay, which regulates the volume by managing the pump's operation time.
Q6: Are loading ramps required for the aggregate hoppers?
While loading ramps are common, we offer aggregate pre-feeding systems as an alternative solution to eliminate the need for ramps.
