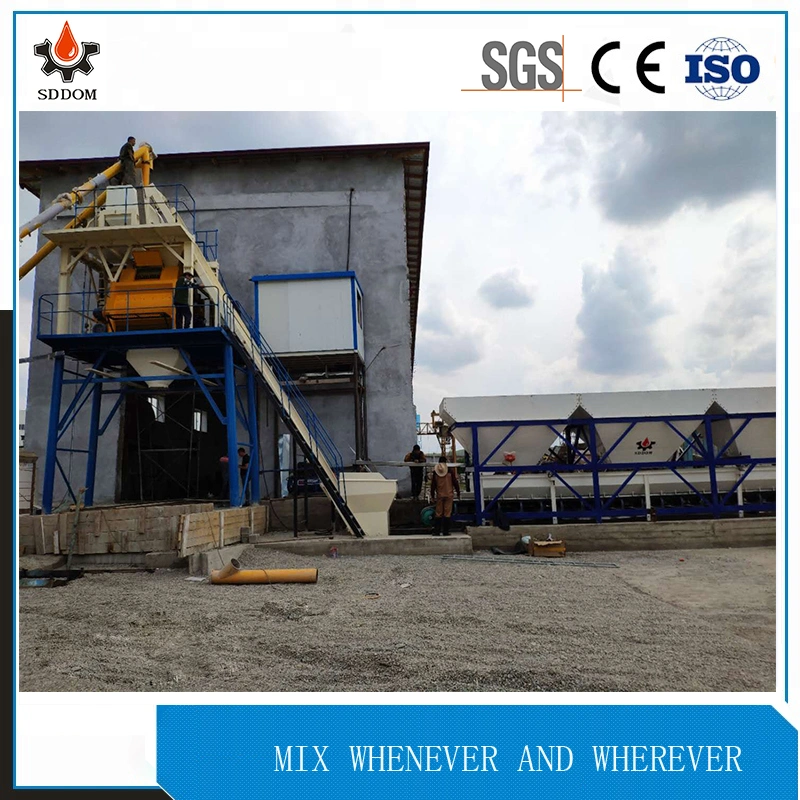

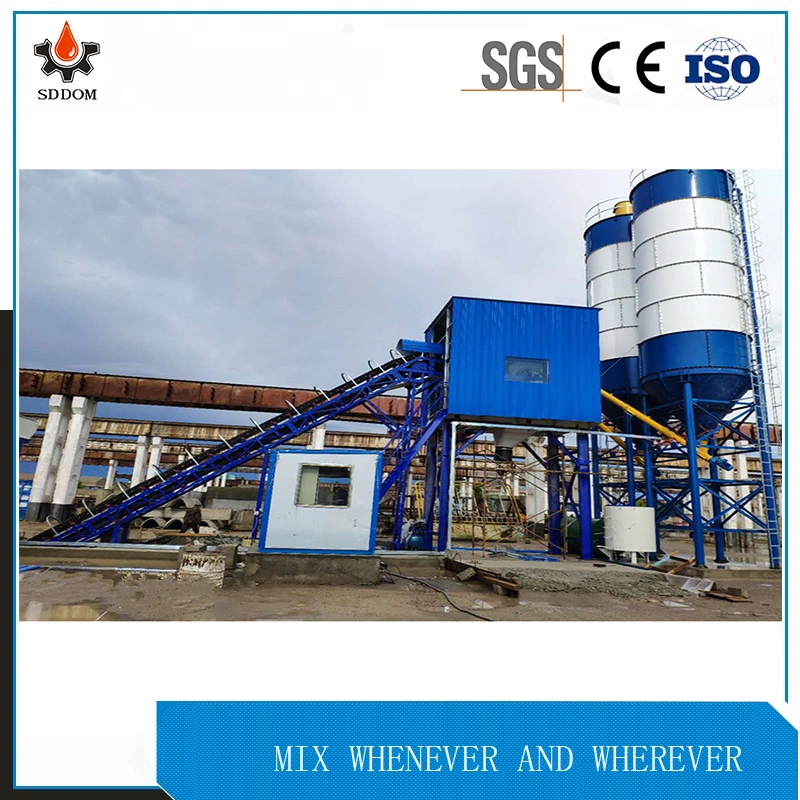

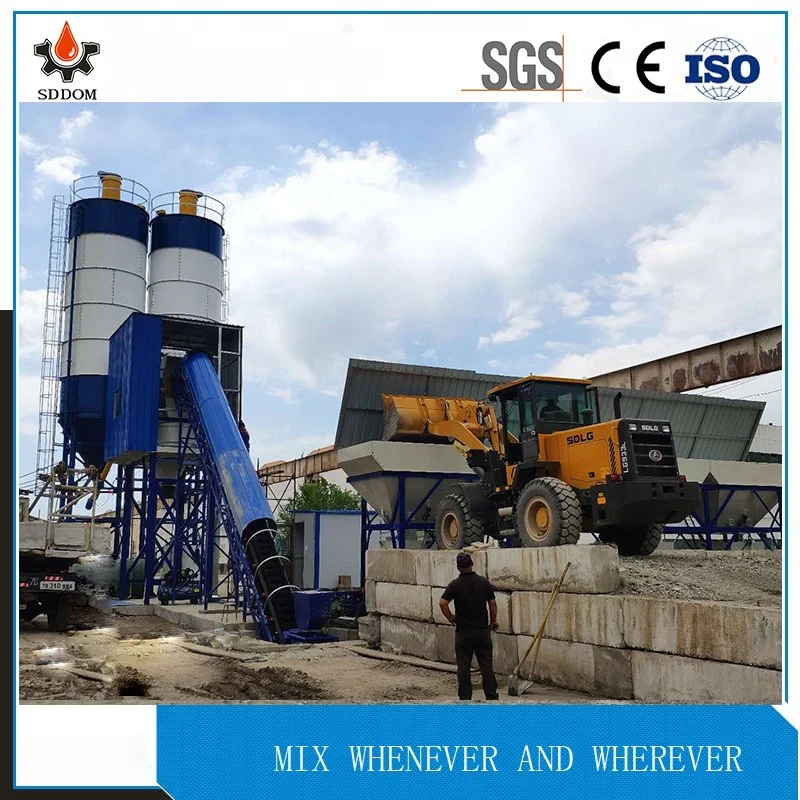

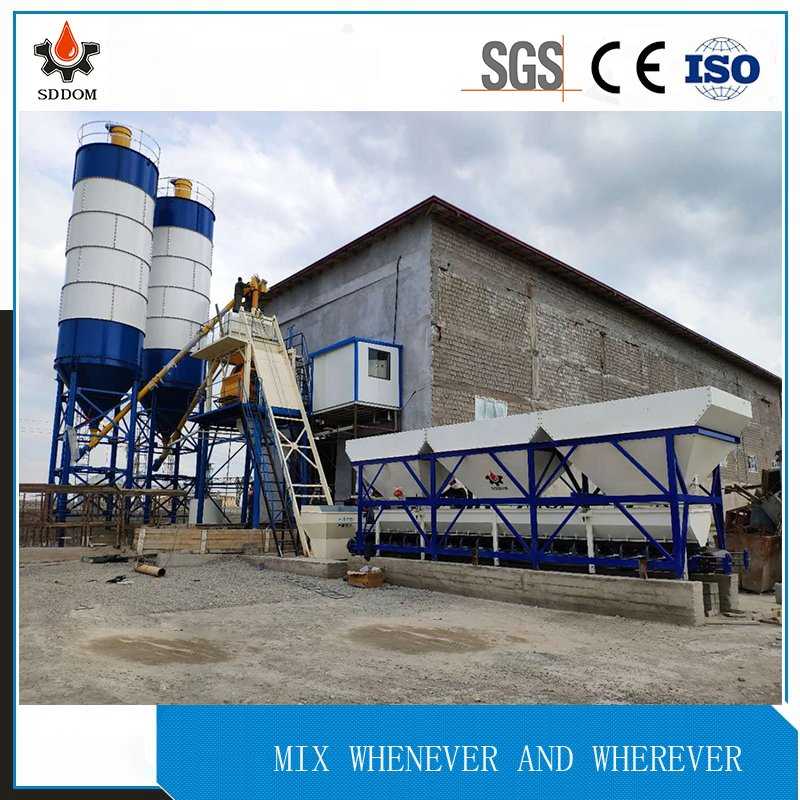

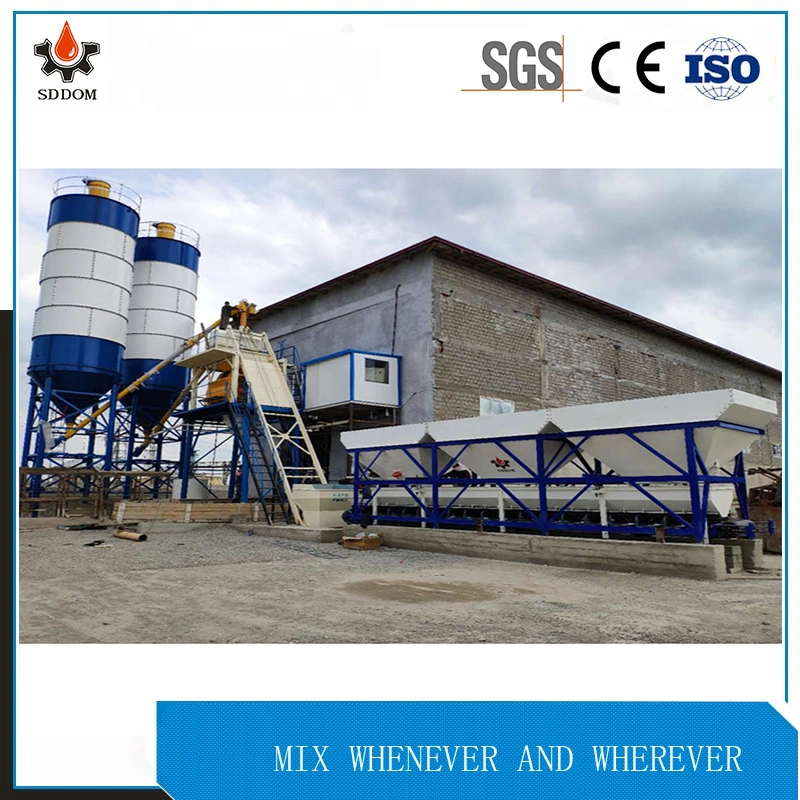

35m3/h Twin Shaft Concrete Mixer Batching Plant
| HZS35 Concrete Batching Plant | ||
|---|---|---|
| 1 | Model | HZS35 |
| 2 | Capacity | 35m3/h |
| 3 | Total Power | 50KW |
| 4 | Total Weight | 16000kgs |
| Configuration Details | ||
| 1 | Mixer | JS750 |
| 2 | Batching Machine | PLD1200 3 Bins |
| 3 | Cement Weighing | 1 set |
| 4 | Water Weighing | 1 set |
| 5 | Additive Weighing | 1 set |
| 6 | Electric Control System | 1 set |

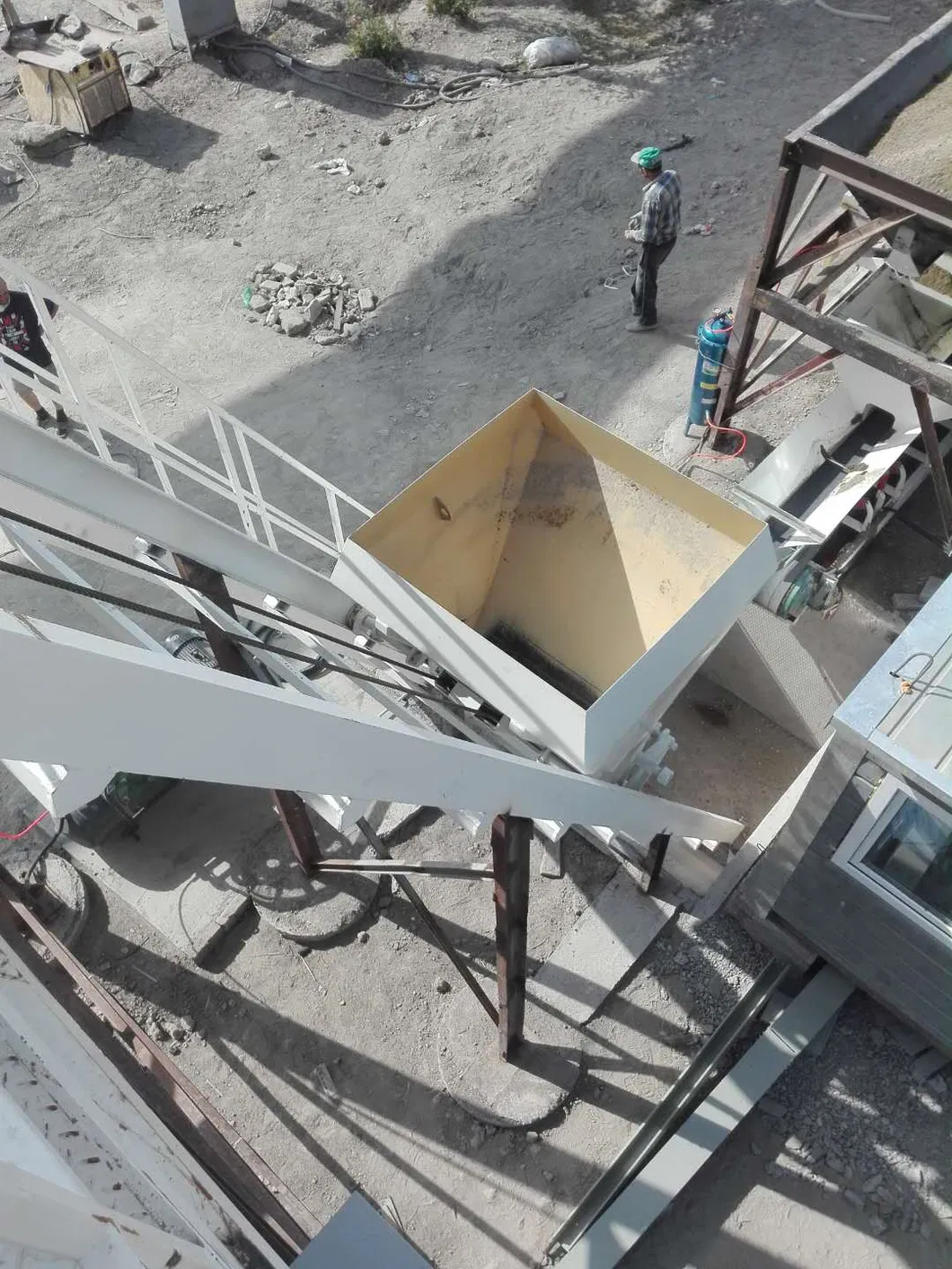

| 7 | Skip hopper Elevating | 1 set |

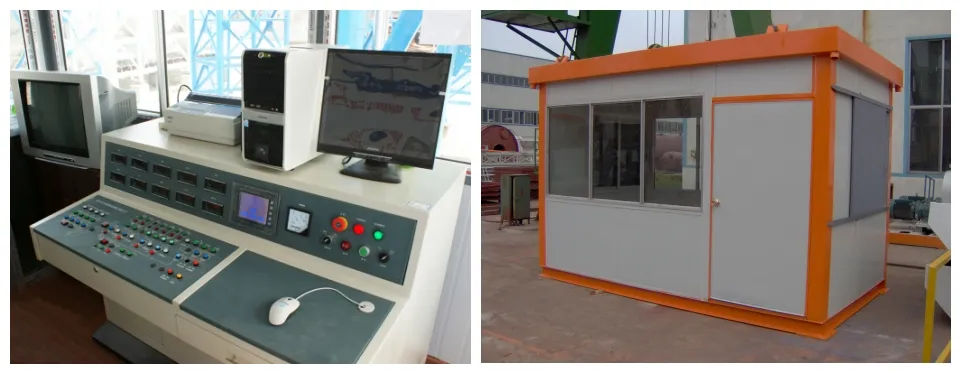

| 8 | Control room | 1 set |
| 9 | Cement silo / Screw conveyor | Optional |
Depending on concrete quality requirements, clients can choose between Planetary or Twin-shaft type mixers.

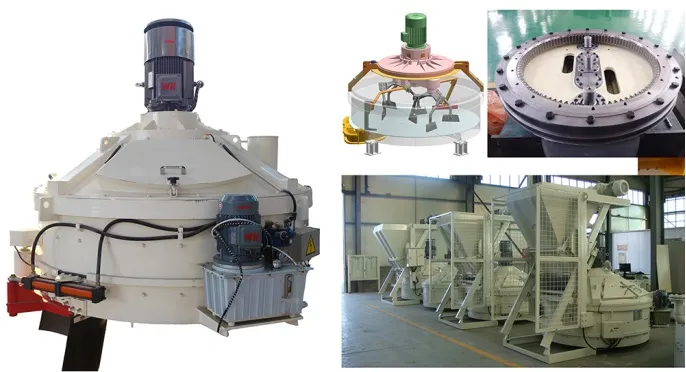

| MP500 Mixer Specifications | |
|---|---|
| Type | Planetary Mixer |
| Power | 30KW |
| Volume (Charging/Discharging) | 1150L / 750L |
| Lubrication | Automatic |
| Working Cycle | 60s |
| Max Aggregate Size | 80/60mm |

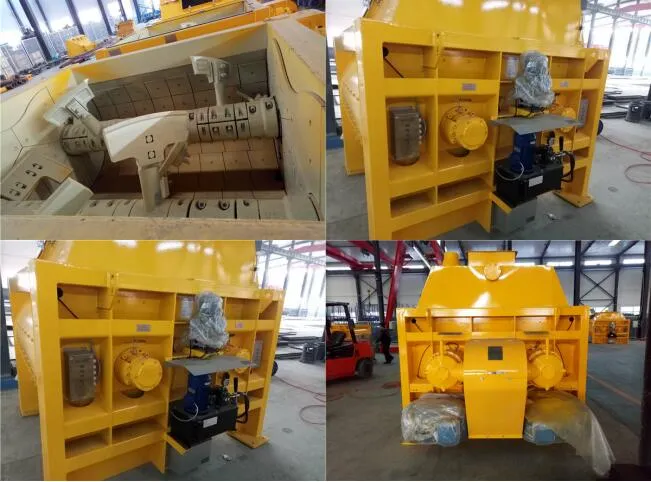

| JS750 Mixer Specifications | |
|---|---|
| Type | Twin-shaft |
| Power | 30KW |
| Volume (Charging/Discharging) | 1125L / 750L |
| Discharge Way | Auto / Hydraulic |
| Working Cycle | 30s |
| Material | High chrome, wear resistant |

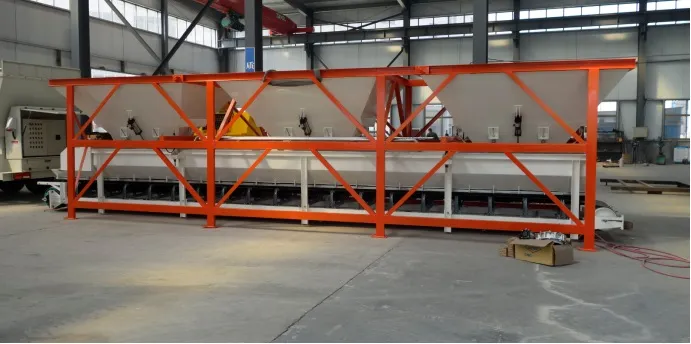

| Aggregate Volume | 5m3 * 3 Bins |
| Measuring Precision | ±2% |
| Belt Width / Speed | 650mm / 1.25 m/s |

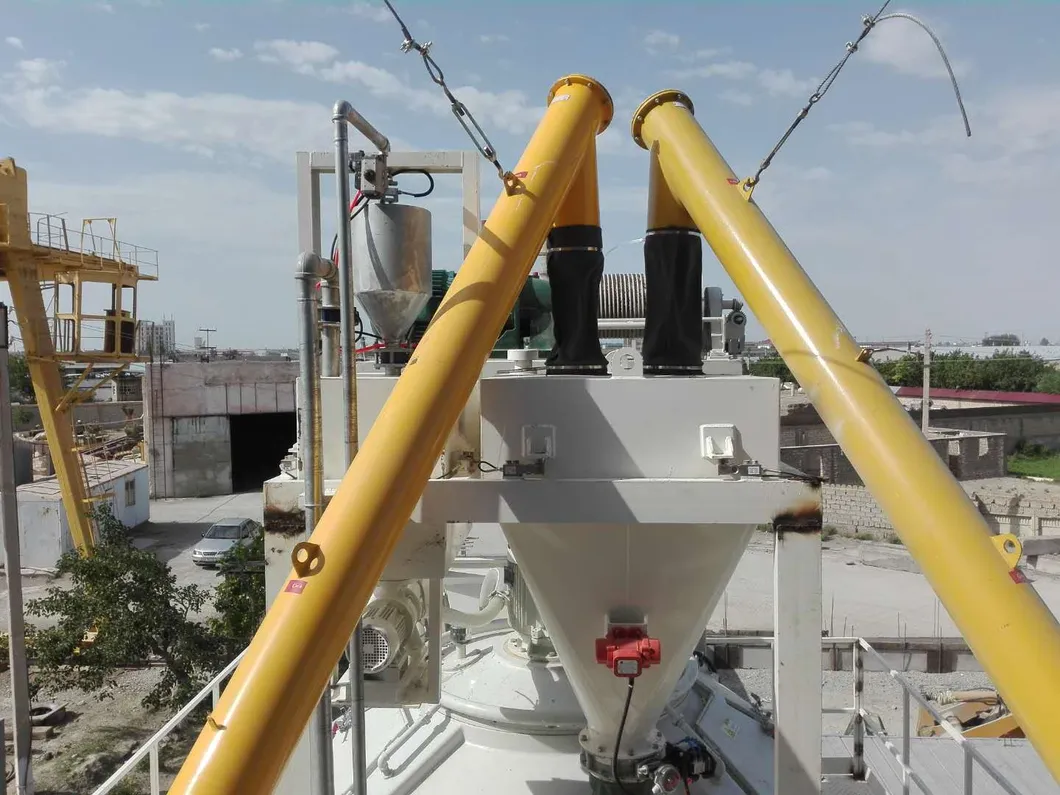

| System | Component | Specification |
|---|---|---|
| Cement Weighing | Volume / Range | 450L / 0-450kg |
| Accuracy | ≤±1% | |
| Water Weighing | Pump Power | 5.5 kW |
| Accuracy | ±2% | |
| Additive Weighing | Scale Volume | 15L |
| Accuracy | ±2% |
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 |
|---|---|---|---|---|---|---|---|
| Output (m3/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 |
| Mixer Capacity | 0.5 | 0.75 | 1.0 | 1.0 | 1.5 | 1.5 | 2.0 |
| Mixer Type | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 |
| Batcher | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 |
