Basic Information
Type:Concrete Mixing Plant
Shotcrete Type:Dry
Machining Process:Welded Molding Machine
Structure:Rotor Type
Productivity:30-120m3/H
Feeding Height:1400mm
Certification:ISO9001: 2000, CE
Condition:New
Name:Dry Mixing Station
Volume:3*20m3
Weighing Way:Accumulation Weighing
Belt Width:650mm
Dimension:8500*1700*3370mm
Weight:3.2 T
Product Description

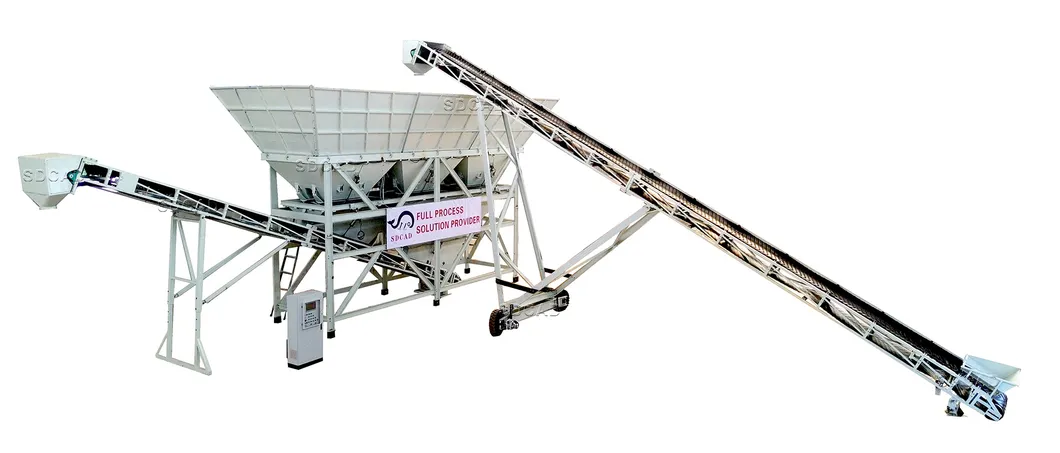

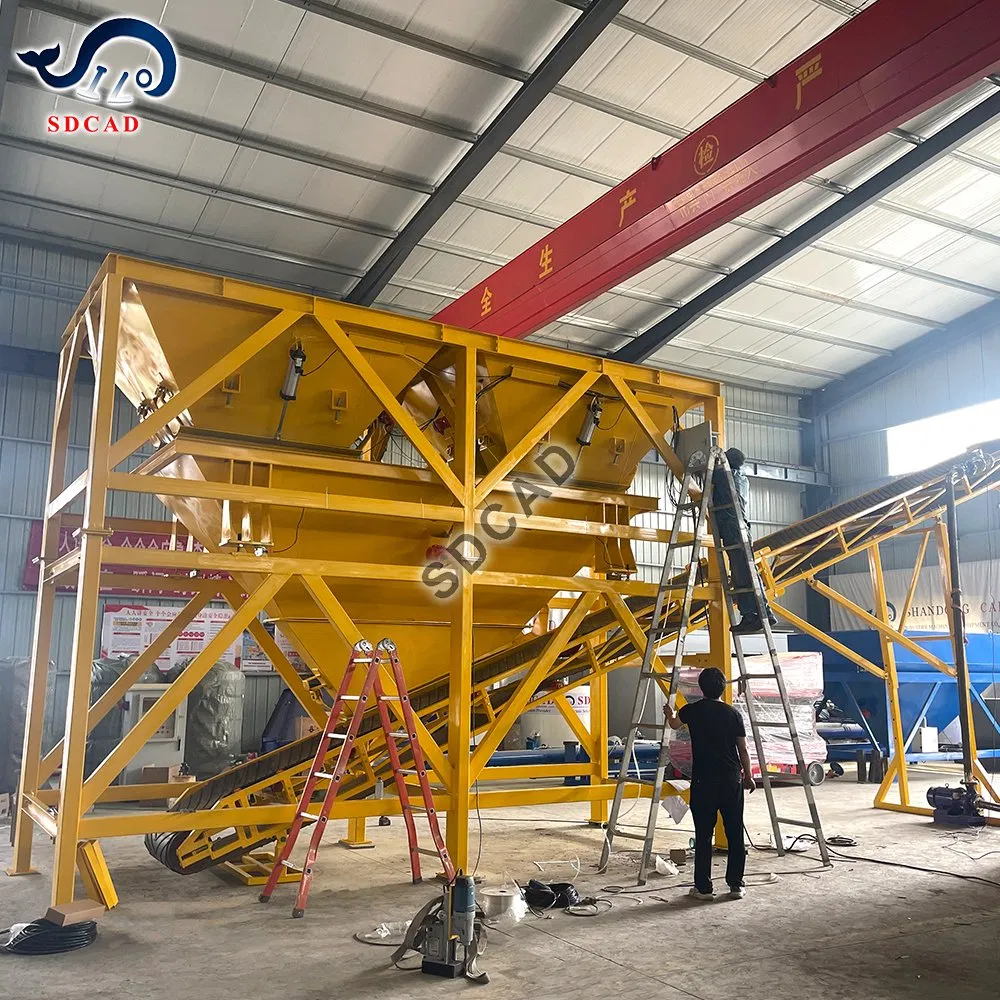

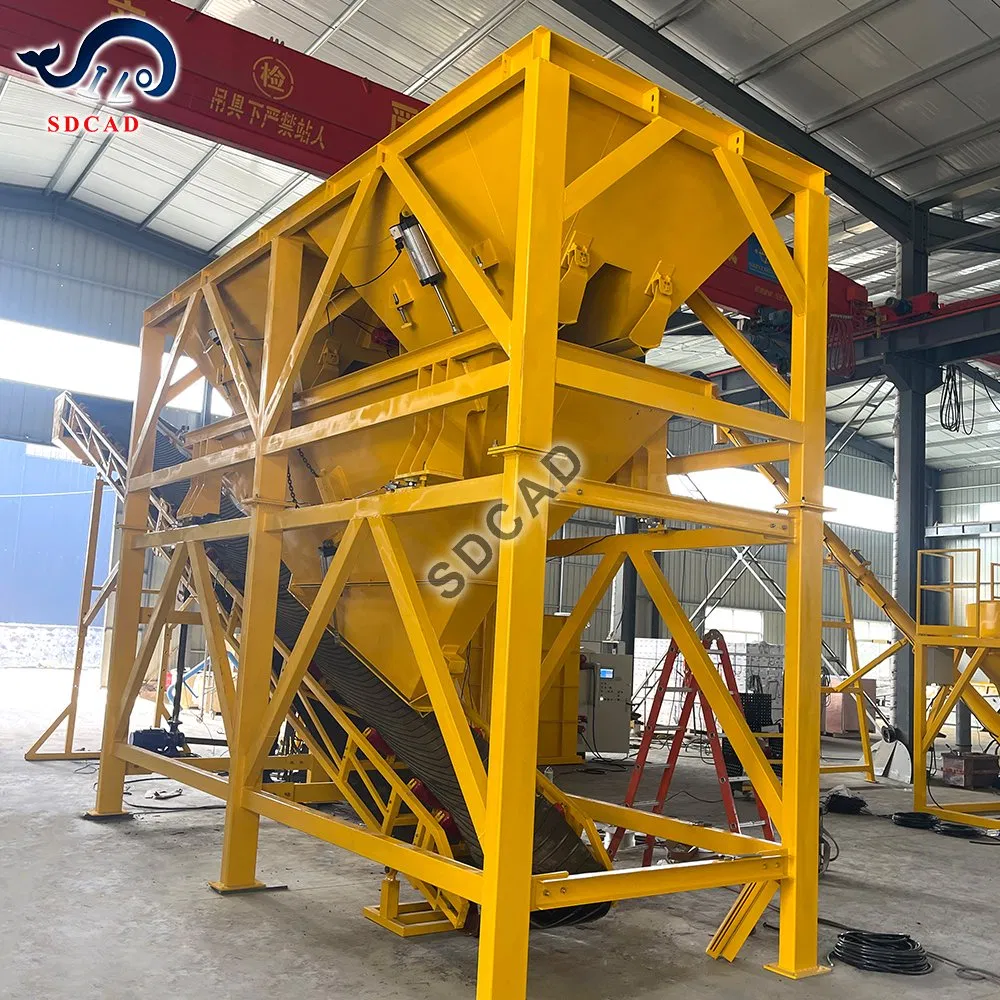

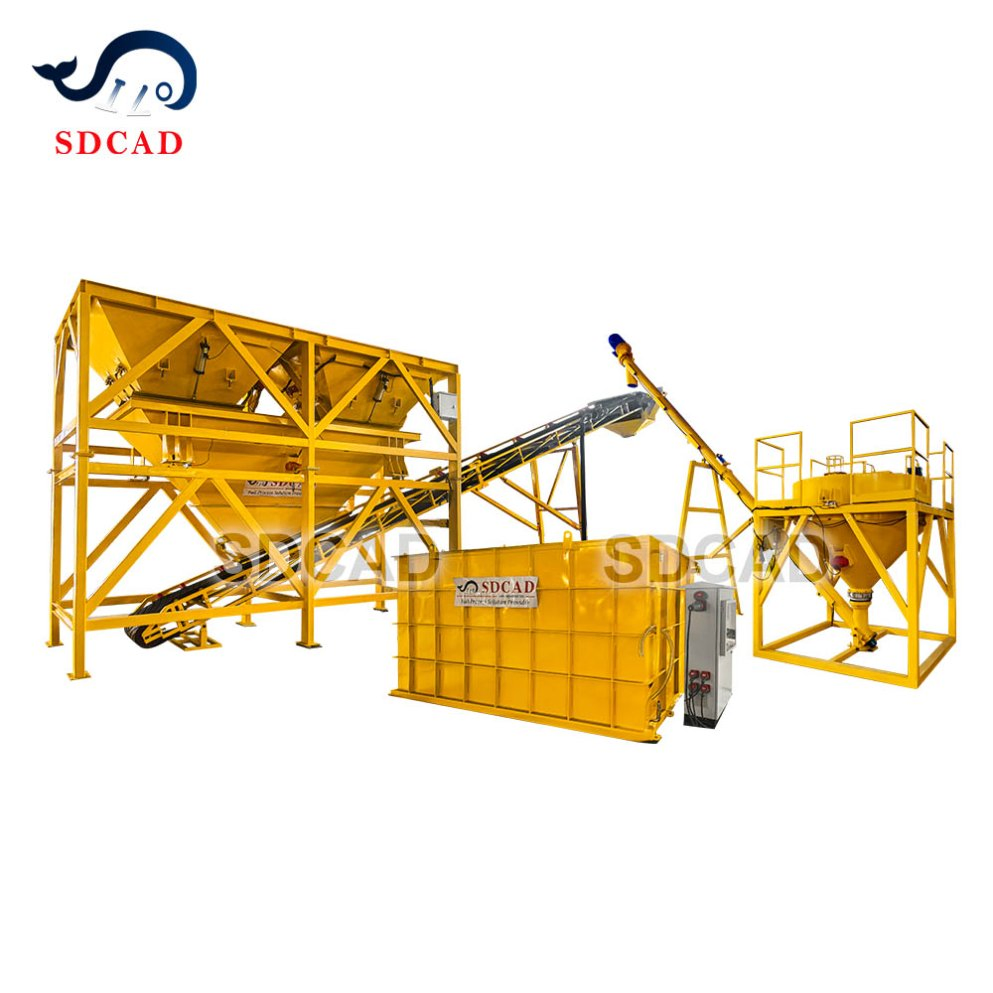

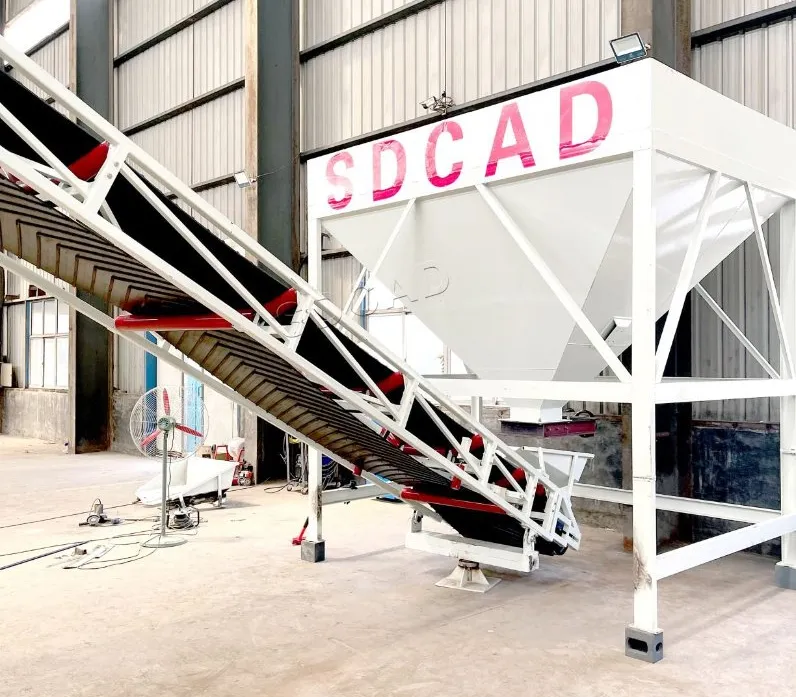

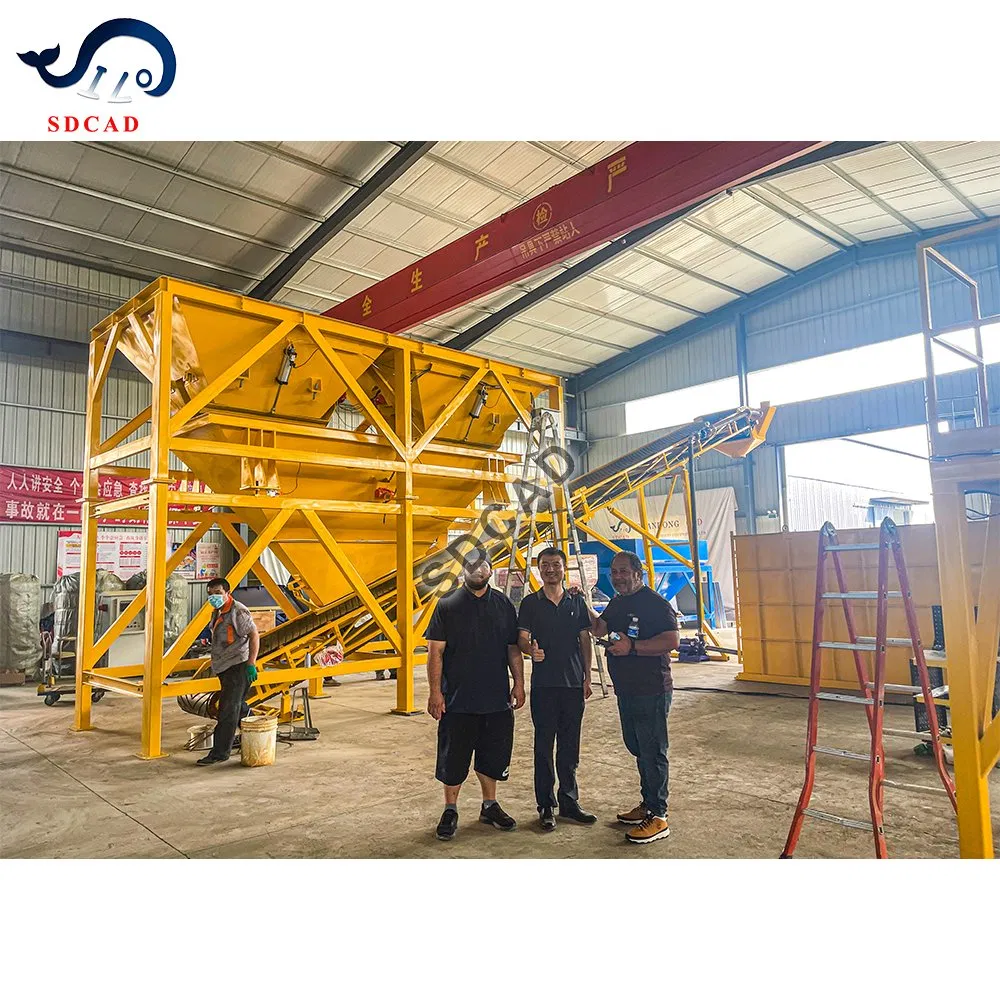

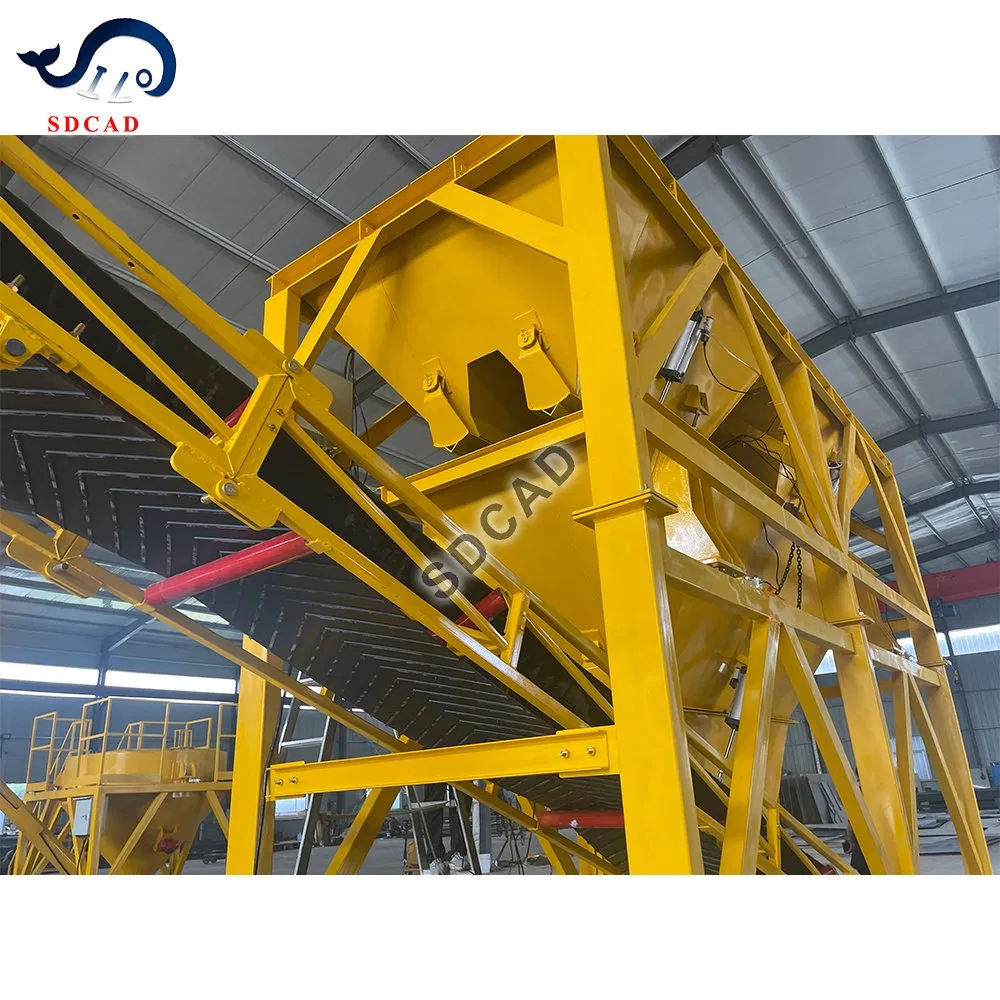

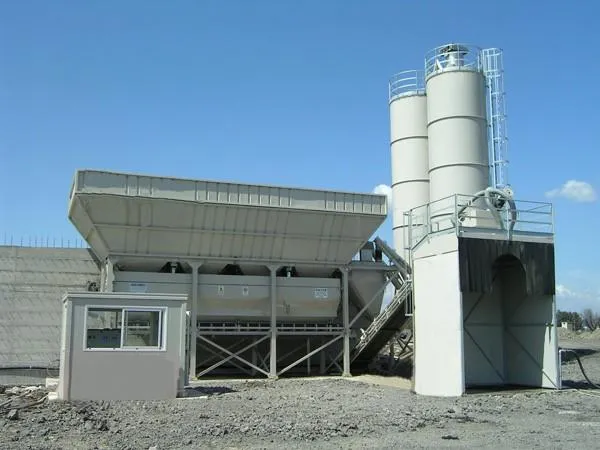

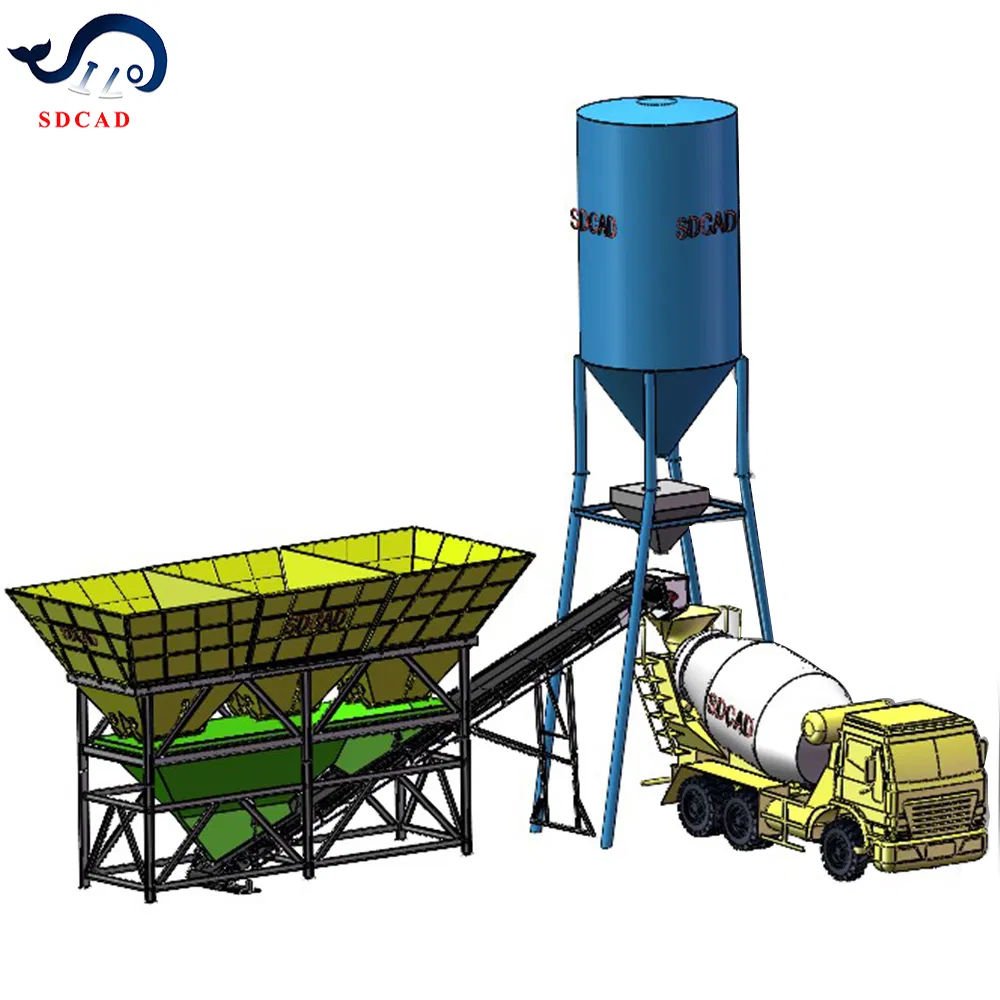

Dry Mixing Station
It is equipment that combines various ingredients to form concrete. Some of these inputs include water, air, admixtures, sand, aggregate, fly ash, silica fume, slag, and cement.

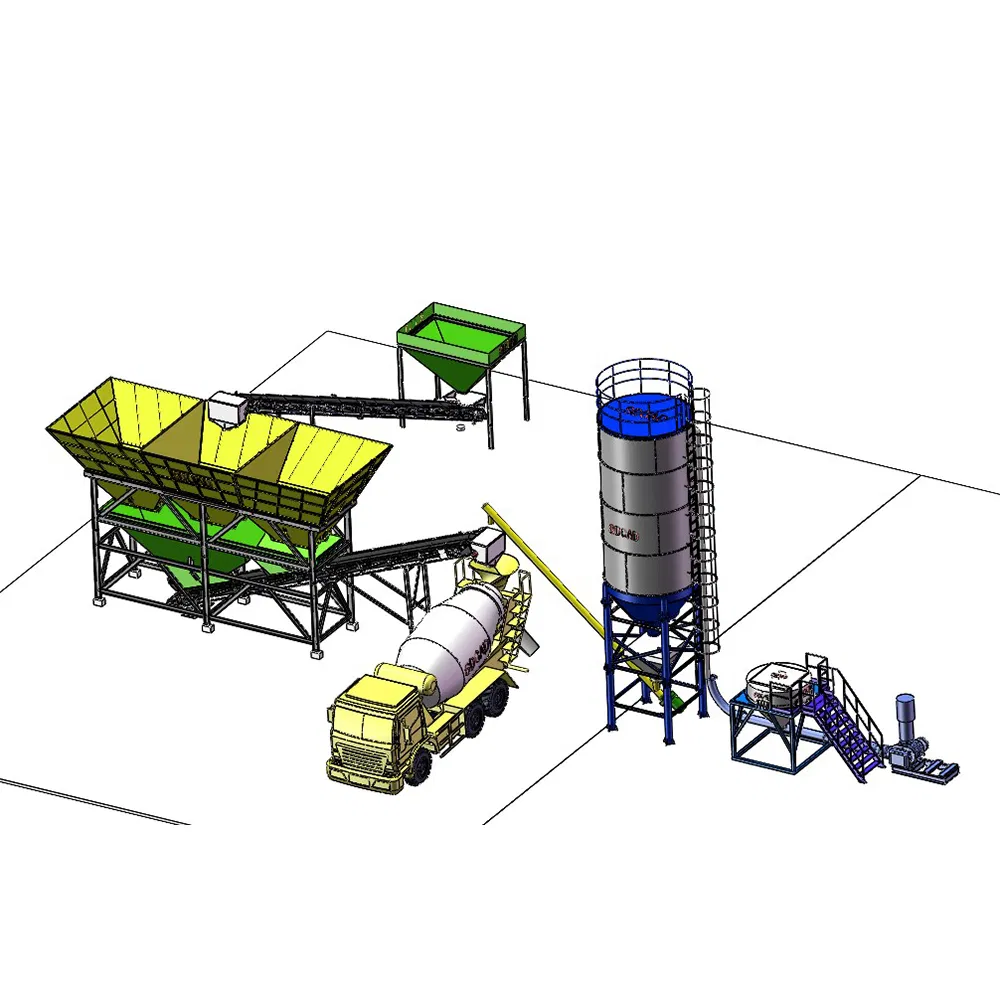

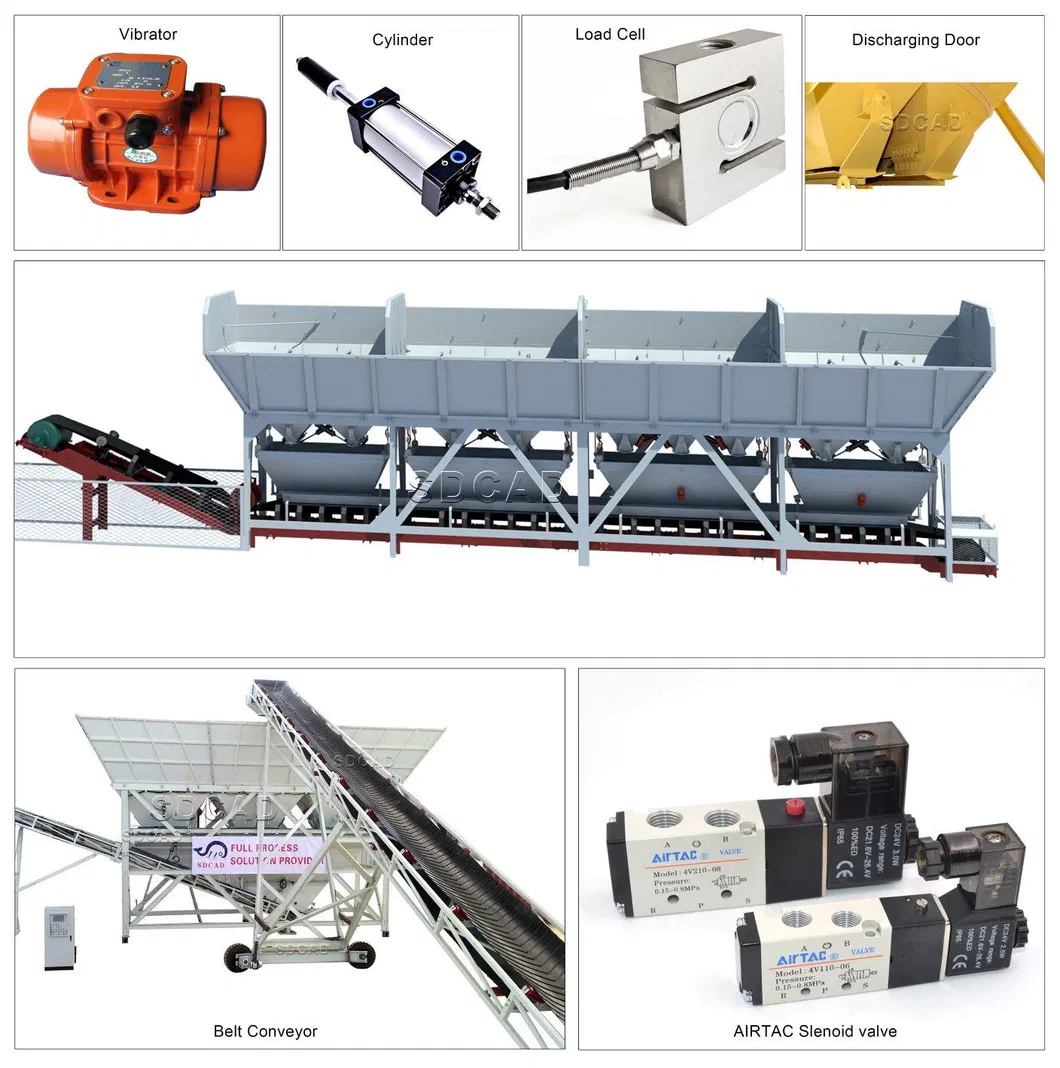

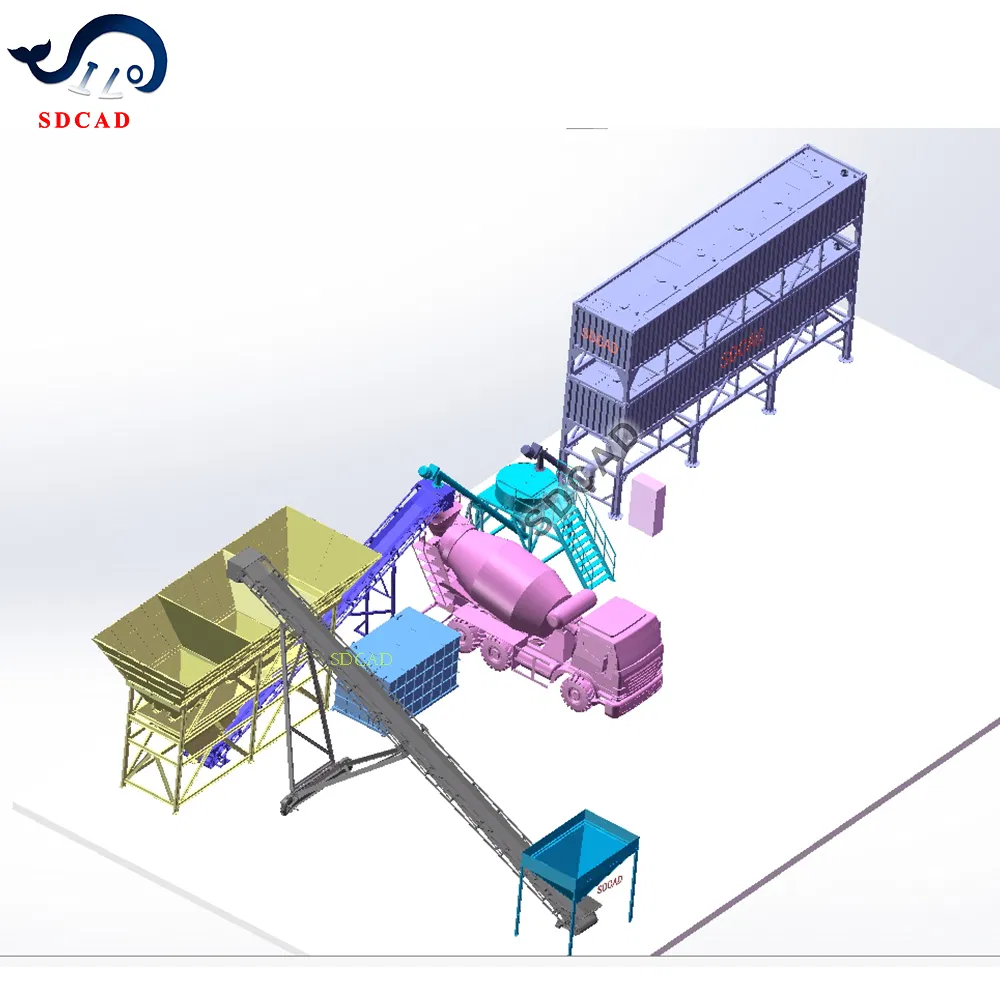

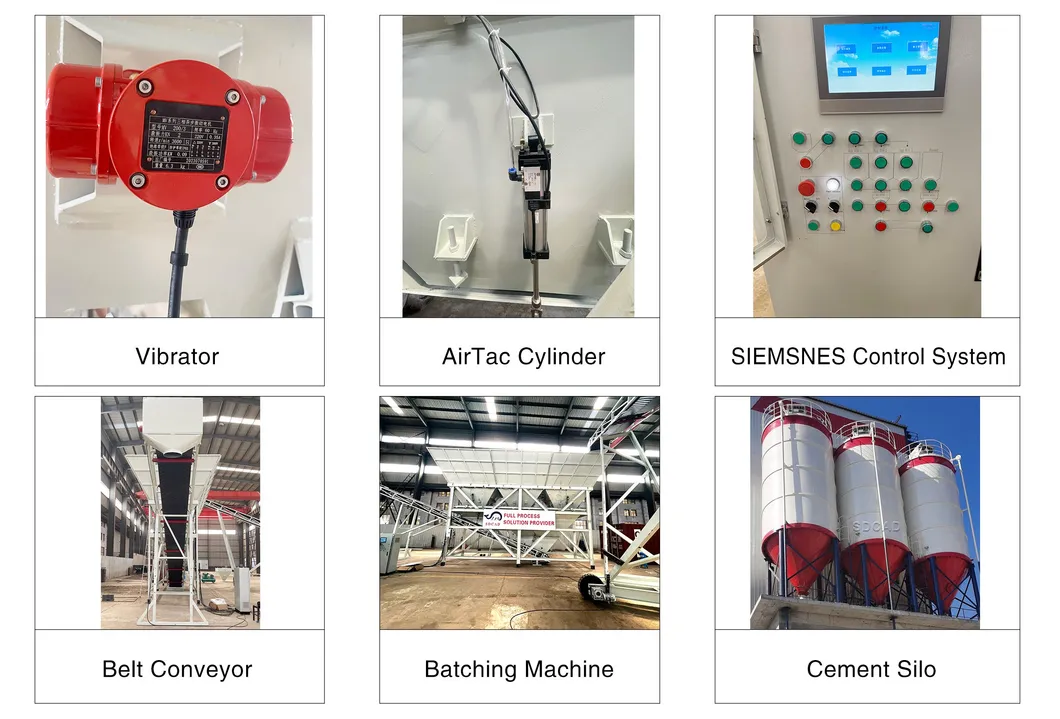

It consists of batching machine, cement silo, auger, weighing system and SIEMENS Auto control system, which is professional equipment for ready mix concrete production. This dry mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.
FEATURES AT A GLANCE
| Model | Aggregate Batching machine |
| Delivery capacity | 100m3/h |
| Volume | 3*20m3 |
| Weighing way | Accumulation weighing |
| Weighing hopper | 15m3 (With around ±2% accuracy) |
| Vibrator motor | 0.09KW 200/3 |
| Level sensor | LC-C-3t 4 sets |
| Air compressor | 5.5KW |
| Belt conveyor | Model: Herringbone belt; Length: 12m; Width: 800mm; Power: 5.5kw |
| Cement weighing hopper | Volume: 1m3; Scale: 1t *3 sets; Pneumatic valve: DN300 |
| Control system | With PLC and touch screen |
Main Technical Data - Belt Conveyor
| Model | CS-800 Herringbone belt conveyor with wheels |
| Width | 800mm |
| Length | 16.5m |
| Discharging Height | 6.7m |
| Belt | 4 layers |
| Hopper volume | Around 5m3 |
| Angle | 27 degree |
| Roller motor power | 7.5 KW |
Frequently Asked Questions
Are you a manufacturer or Trader?
We are a professional manufacture, we have our own R&D team and sales team, providing one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month. The price will be adjusted appropriately according to raw material fluctuations and market changes.
What is your delivery time?
If products are in stock, delivery takes 5-10 days. For custom production, it usually takes 10-30 days depending on the order quantity.
How can we ensure quality?
A final inspection is always carried out before shipment to guarantee the highest quality standards.
How to install the equipment after purchasing?
We provide professional installation videos and a manual to illustrate the process clearly.
