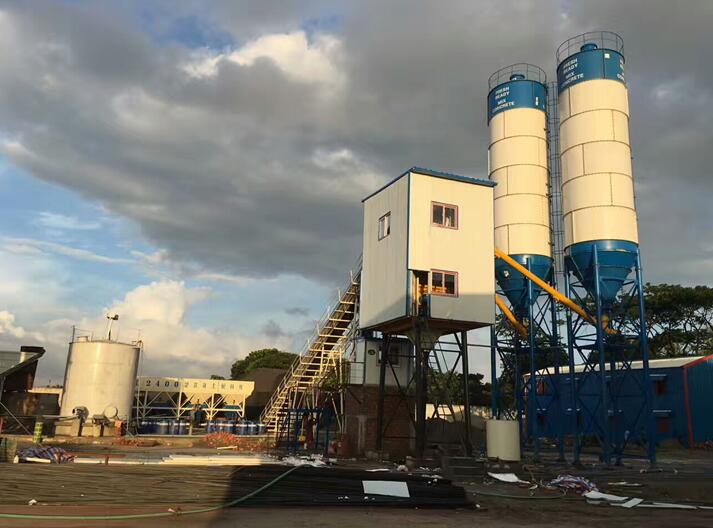

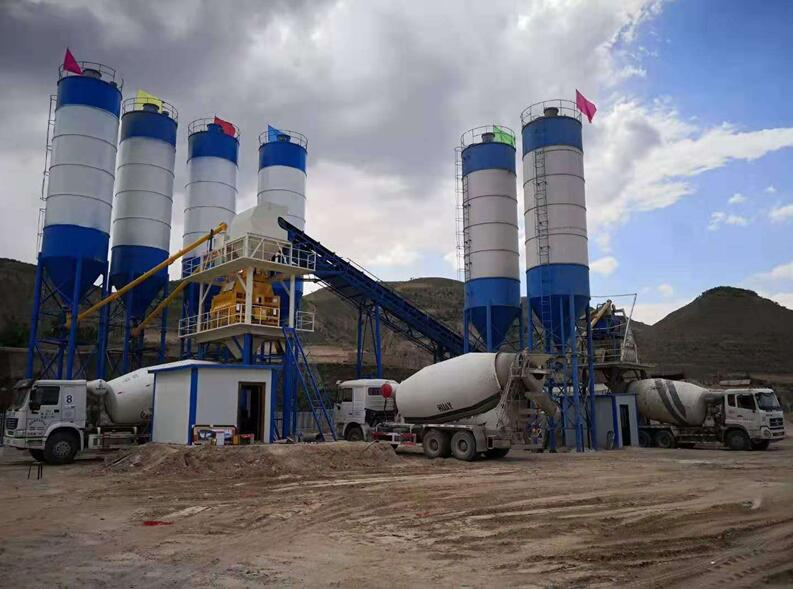

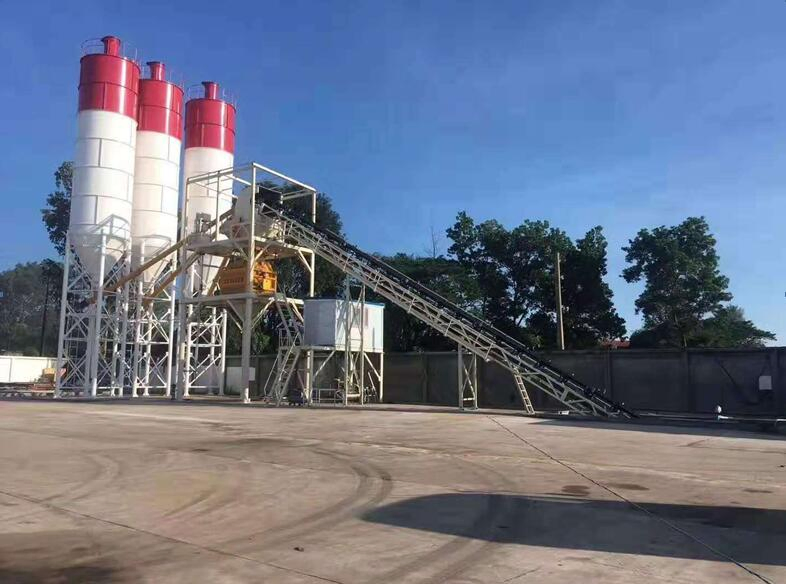

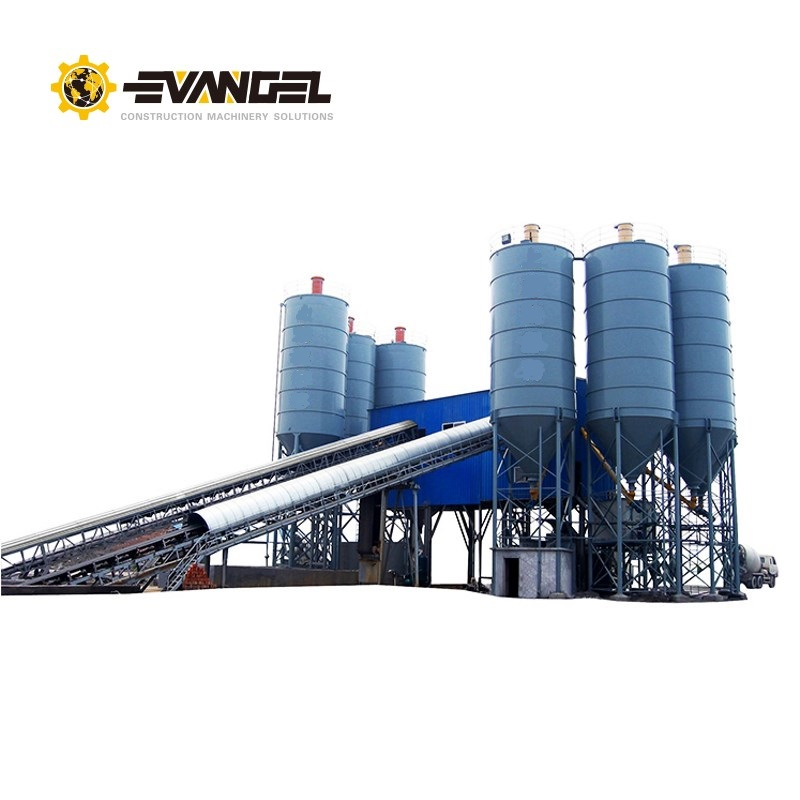

180m3/H 3cbm Twin Shaft Mixer Concrete Batching Plant for Sale

Send Inquiry

Product Description

Model NO.HZS180

Machining ProcessHydraulic

StructureSpiral Type

Productivity180m³/h

Vibrating Amplitude2.6mm

CertificationISO9001: 2000, CE

ConditionNew

ColorWhite

Mixer Capacity3m³

Total Power260kw

Total Weight90ton

OriginChina

Theoretical Capacity	180m³/h
Twin Shaft Mixer Model	Zhuhai Sicoma MAO4500/3000
Mixer Capacity	3m³
Aggregate Storage Hopper Volume	25m³ x 4
Max. Aggregate Size	60/80mm
Loading Type of Aggregate	Belt conveyor
Aggregate Weighing	3000kg ±2%
Cement Weighing	2000kg ±1%
Water Weighing	1000kg ±1%
Additive Weighing	200kg ±1%
Control System	Automatic control system (IPC Control system)
Discharging Height (Customized)	4100mm (for customer choice)
Total Power	260KW
Total Weight (Approximate)	90Tons
Overall Dimension (L×W×H)	702525(m)
Power Supply	380V/50Hz/3 Phase
Documents Provided	English operation manual, layout and foundation drawing, Electric circuit diagram, Qualification Certificate, Spare parts list.

What is the theoretical production capacity of the HZS180 plant?

The HZS180 concrete batching plant has a theoretical productivity of 180m³/h under standard conditions.

What type of mixer is used in this batching plant?

It utilizes a high-efficiency Zhuhai Sicoma MAO4500/3000 Twin Shaft Mixer with a 3m³ capacity per batch.

How are the aggregates transported to the mixer?

Aggregates are loaded and transported from the storage hoppers to the mixer using a heavy-duty belt conveyor system.

Does the system support automatic operation?

Yes, the plant is equipped with an advanced IPC (Industrial Personal Computer) automatic control system for precise and efficient operation.

What certifications does this concrete batching plant hold?

The plant is fully certified with ISO9001:2000 and CE standards, ensuring international quality and safety compliance.

Can the discharging height be customized?

Yes, while the standard height is 4100mm, it can be customized according to specific customer requirements.
