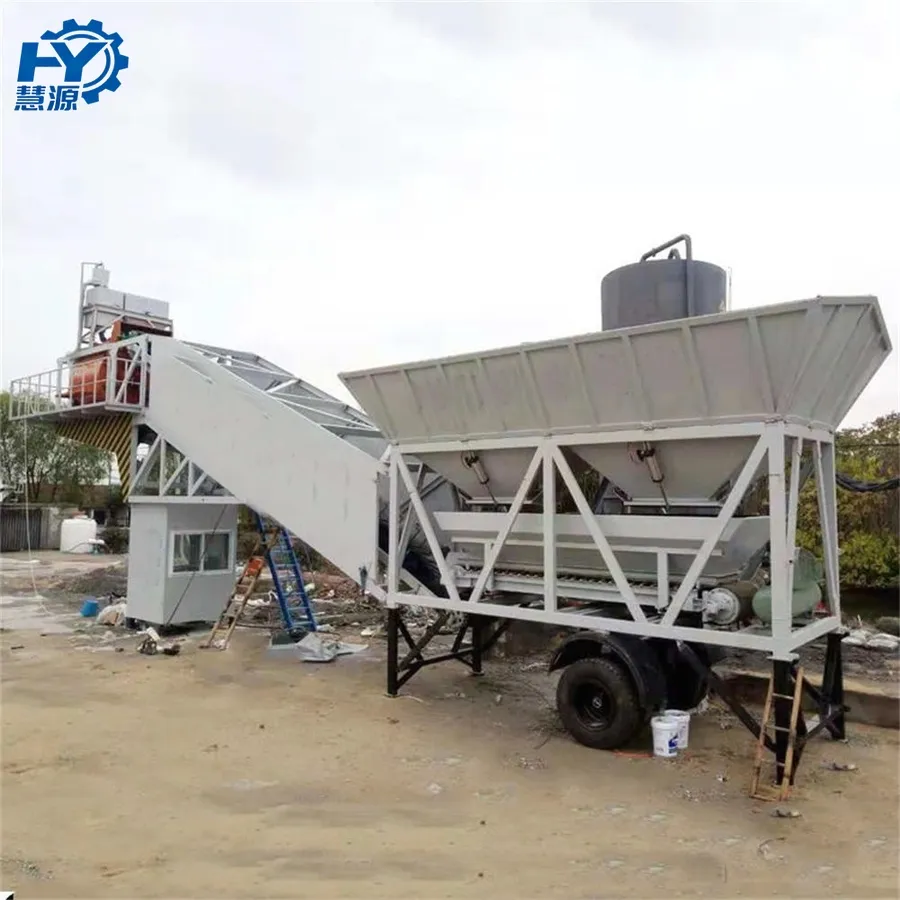

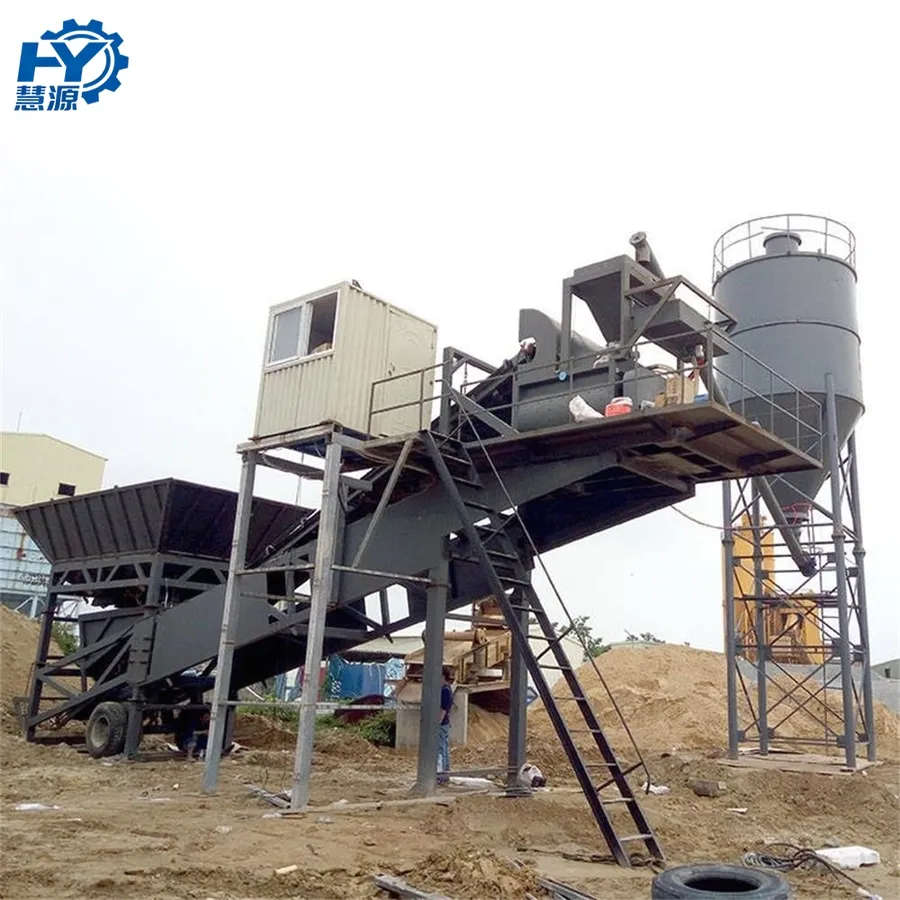

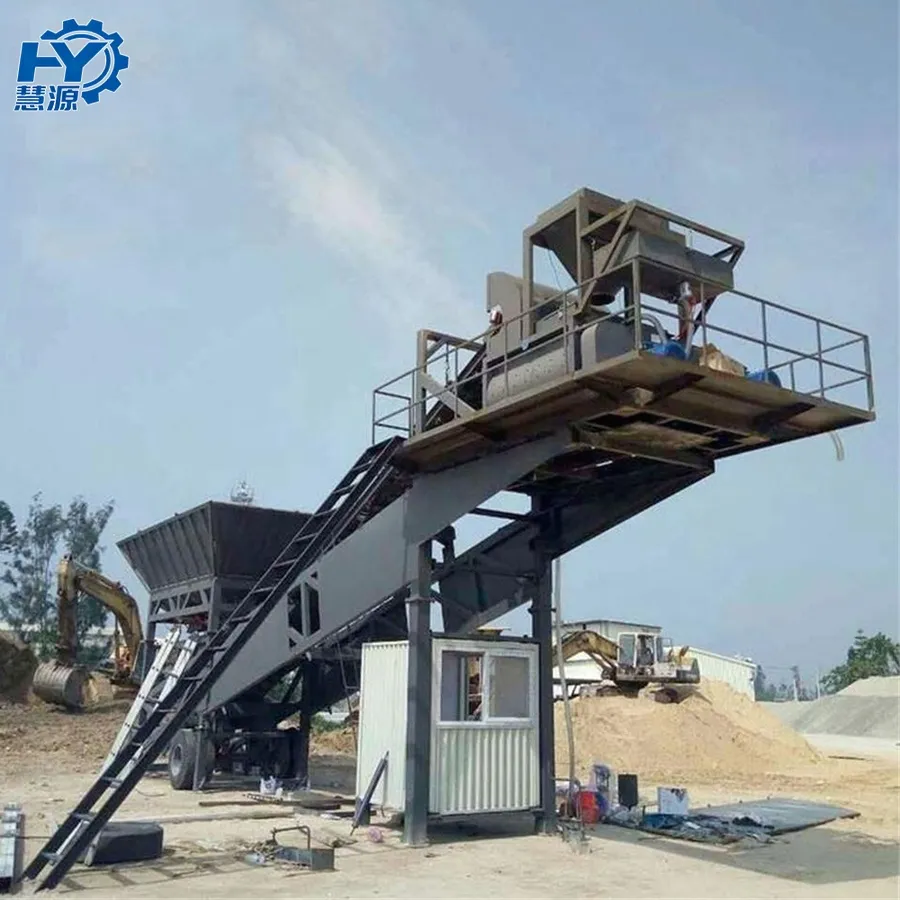

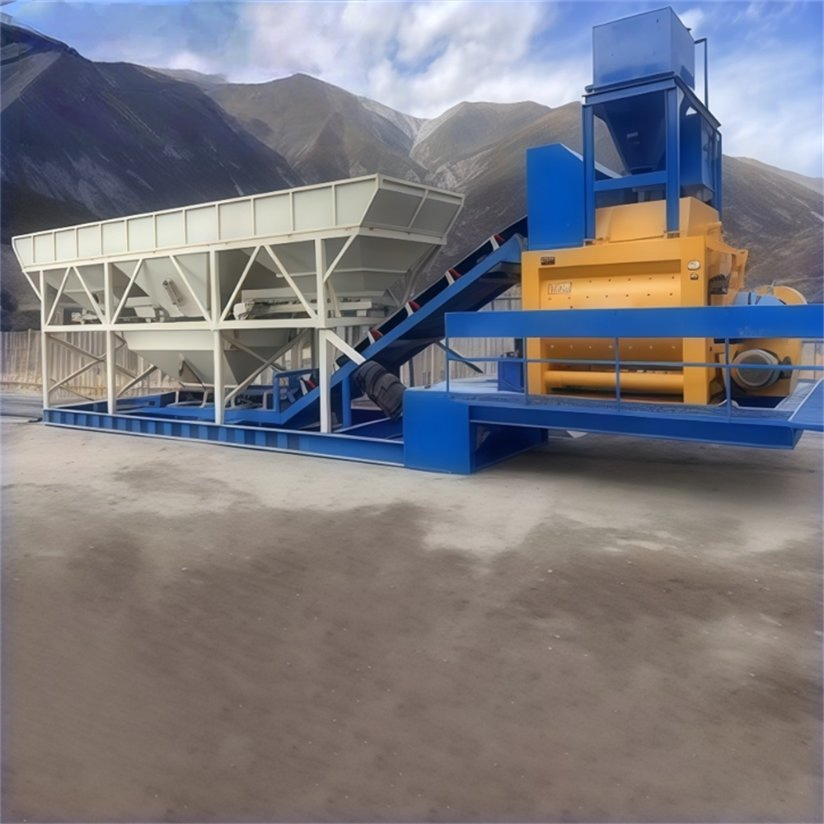

This integrated, trailer-mounted concrete mixing system eliminates the need for fixed infrastructure while delivering the same operational efficiency as stationary plants.
Perfect for contractors seeking flexible concrete production capabilities, our mobile batching plant features rapid deployment, complete automated control systems, and seamless relocation between job sites.
Quick setup and breakdown capabilities for maximum operational efficiency and minimal downtime between projects.

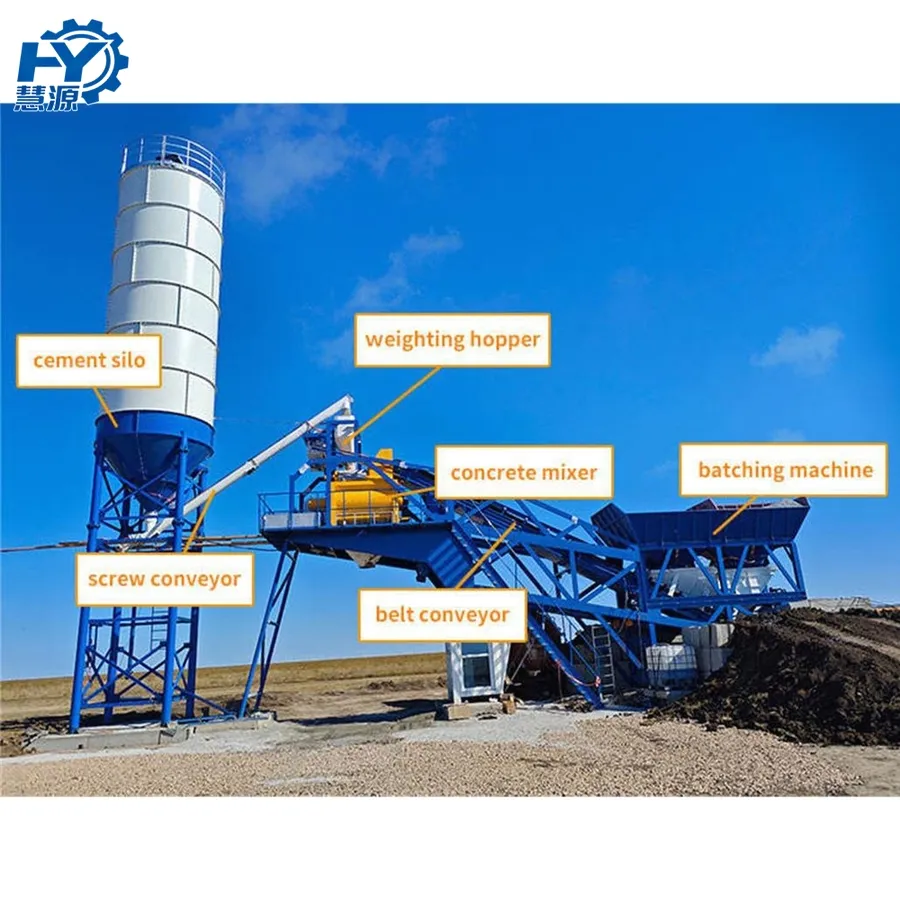

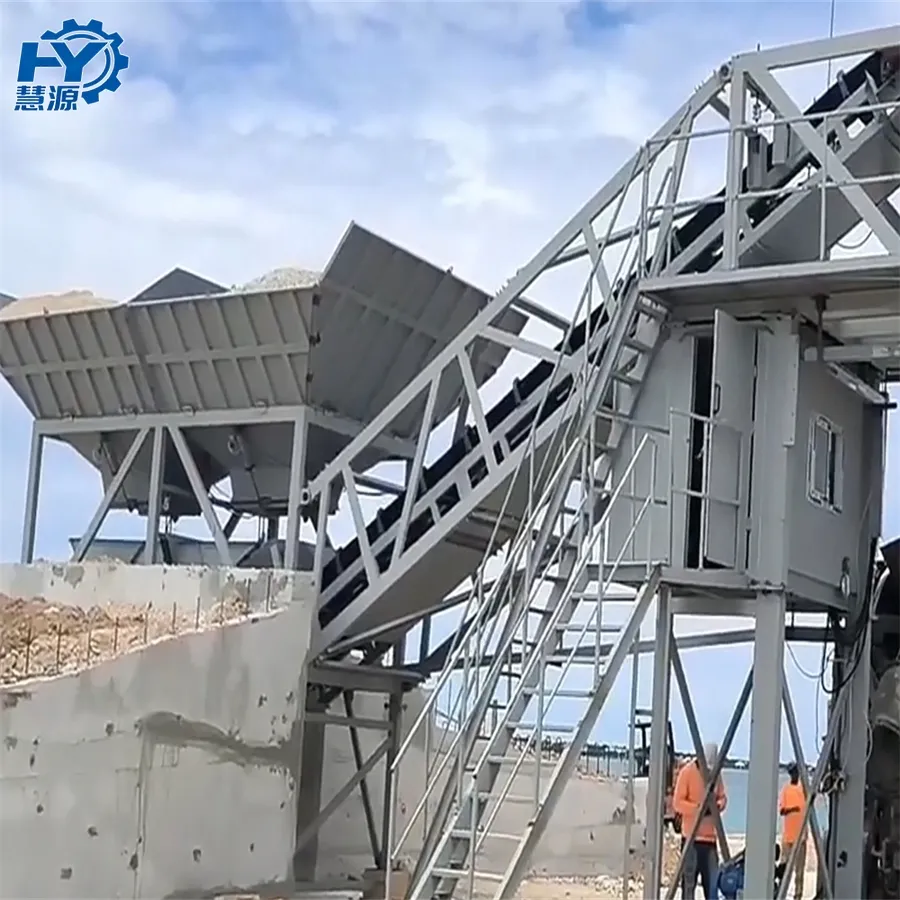

Complete concrete production solution incorporating material storage, precision weighing, automated conveying, and high-performance mixing.
Advanced control systems ensure consistent concrete quality and streamlined operations with minimal manual intervention.
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS60 | YHZS75 | YHZS90 | YHZS120 |
|---|---|---|---|---|---|---|---|
| Production Rate (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 |

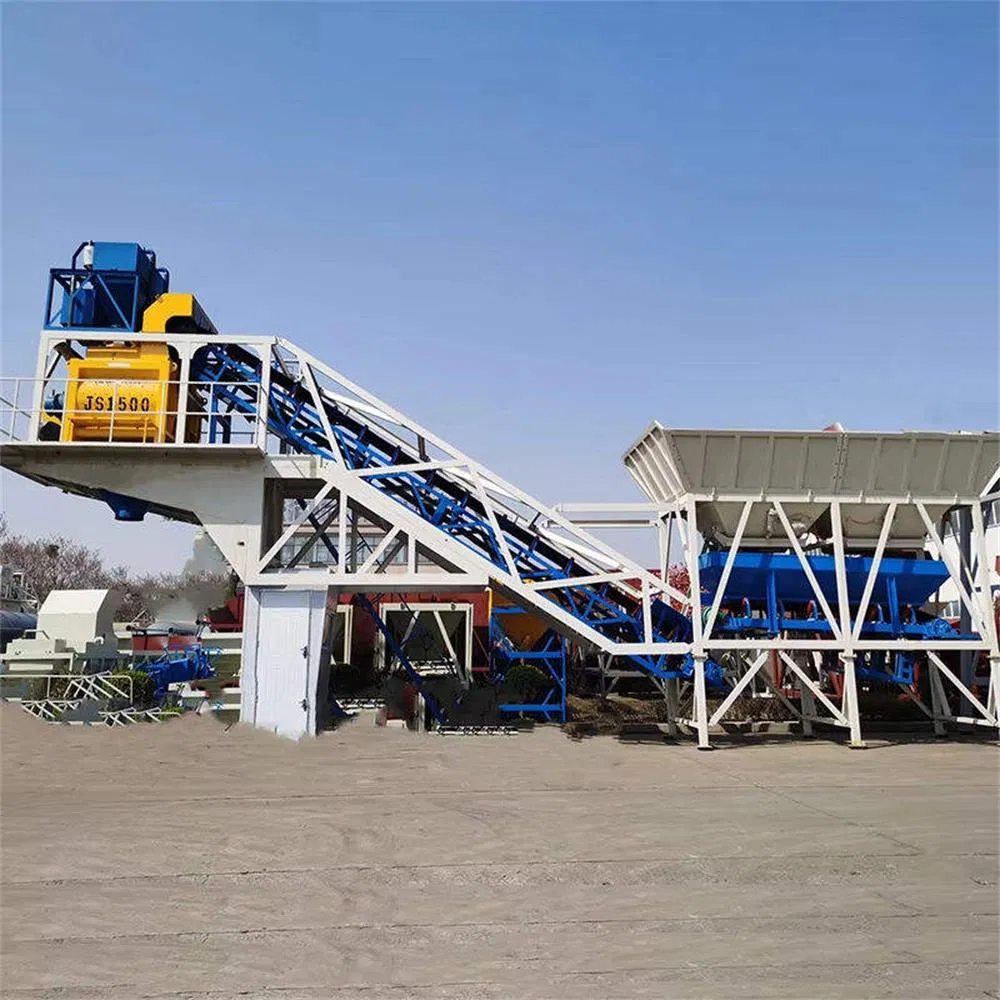

| Mixer | JS750/500 | JS1250/750 | JS1500/1000 | JS1500/1000 | JS2250/1500 | JS2250/1500 | JS3000/2000 |
| Batch System | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 |
| Discharge Height (m) | 4 | 4 | 4 | 4 | 4 | 4 | 4.2 |

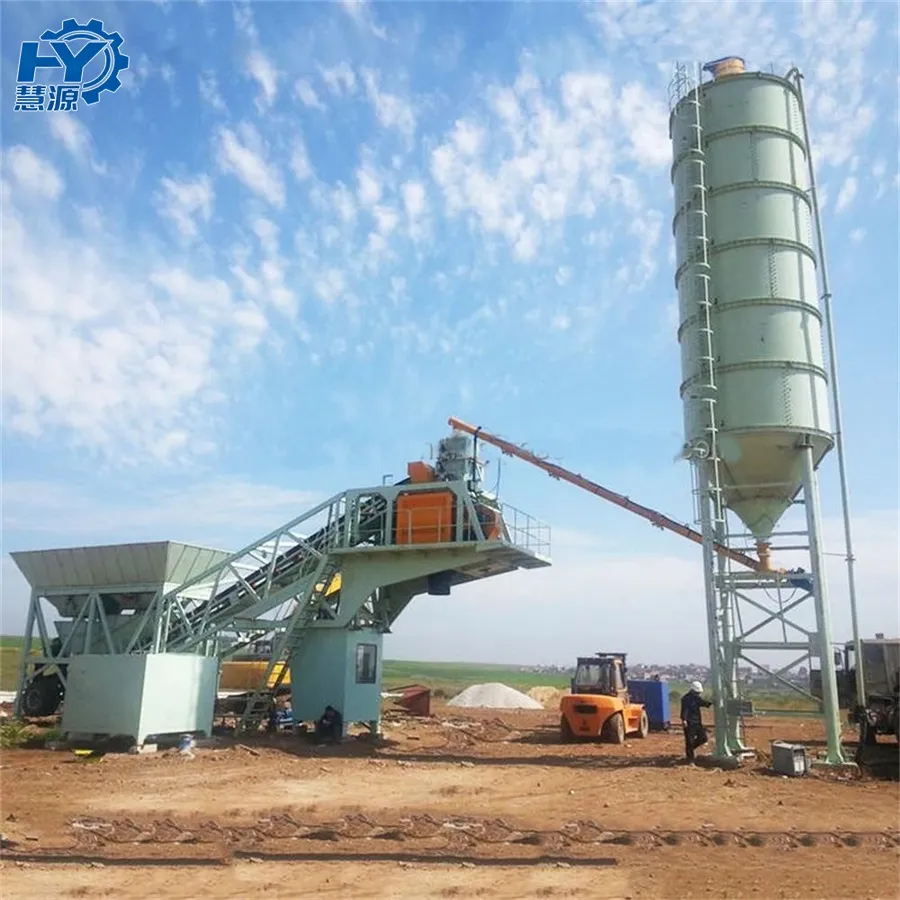

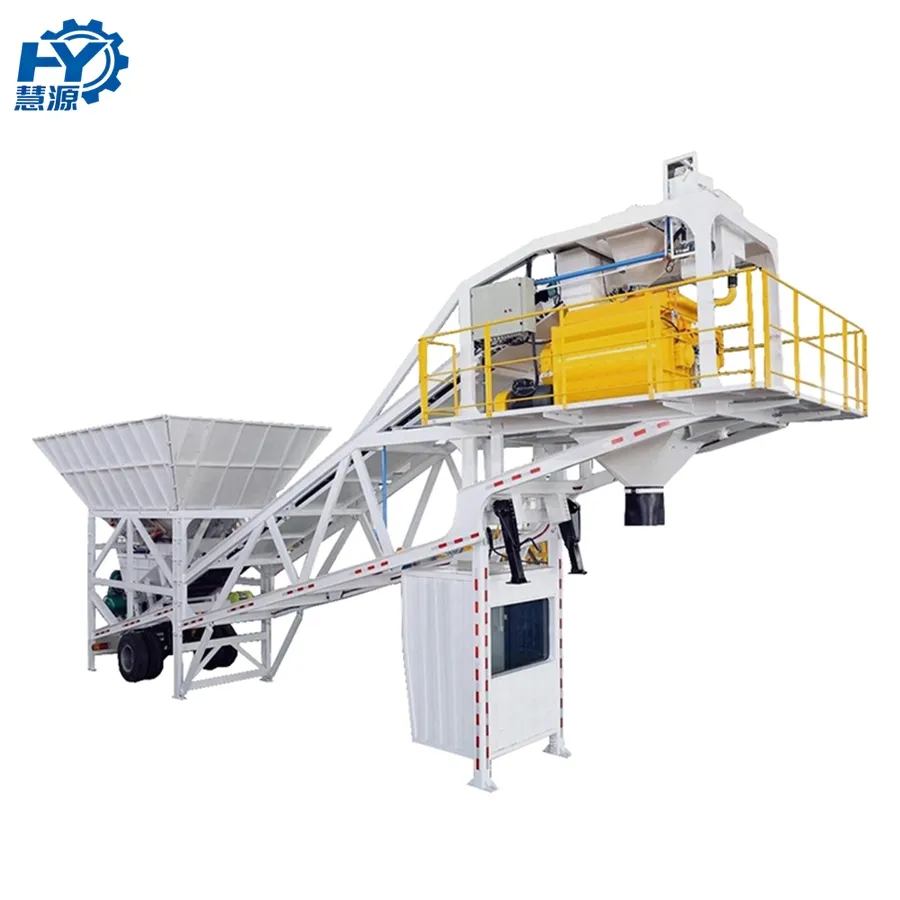

Available in both tractor-type (complete front and rear axle) and trailer-type (rear axle with fifth-wheel connection) configurations.

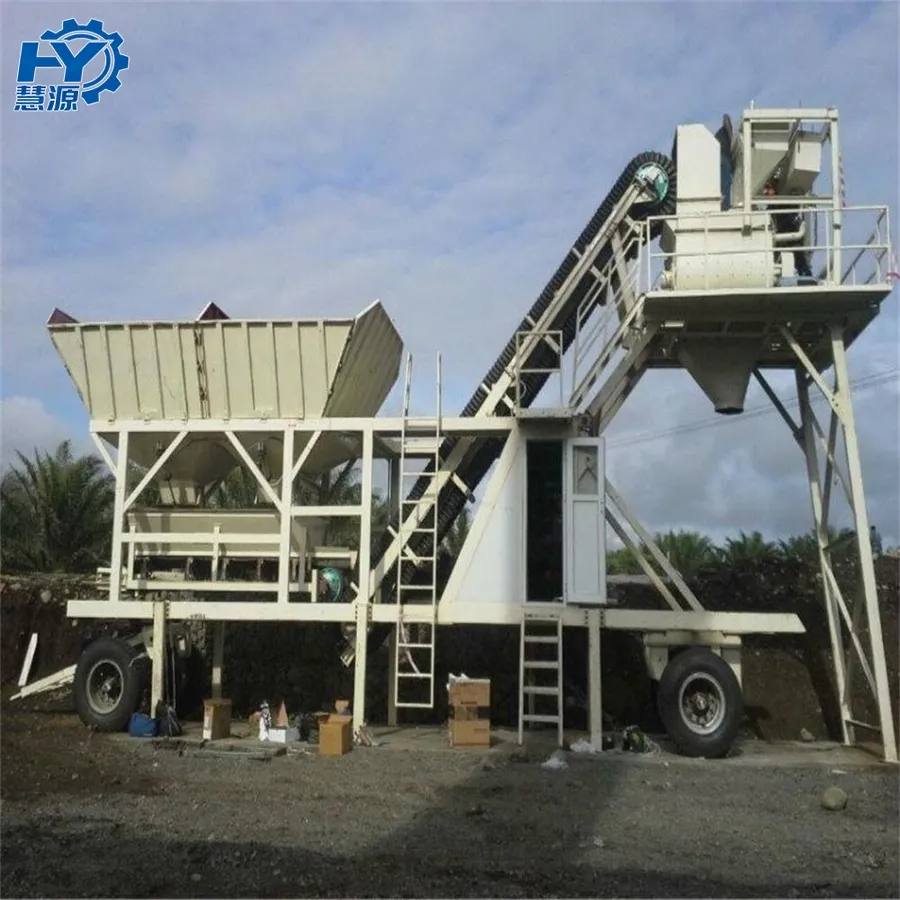

Requires only flat, hardened ground for installation, eliminating costly site preparation and foundation work.
Maintains transportation-ready state during storage periods, reducing maintenance requirements and storage costs.
Engineered for easy maintenance, component accessibility, and operational flexibility across diverse project requirements.
