Yhzs75 Precast Dry Portable Ready Mobile Concrete Batching Plant for Sale

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Product Description

Detailed Photos

Product Parameters

Install and Run

Basic Information

Model NO.

YHZS75 Portable Concrete Batching Plant

Type

Concrete Mixing Plant

Shotcrete Type

Wet

Machining Process

Automatic Controlled Production Line

Productivity

35m³/h

Mixer Volume

750L

Certification

CE, ISO9001: 2008

Controlled Method

Full Automatic Computer Control

PLC

Omron or Siemens Make

Power Source

380V, 50Hz, 3 Phase

Total Weight

28t

Dragging Way

360 Degree Bayonet

Product Description

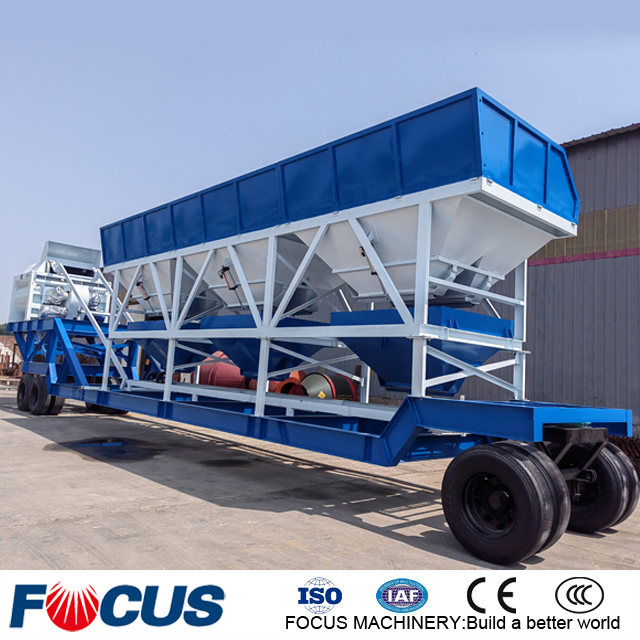

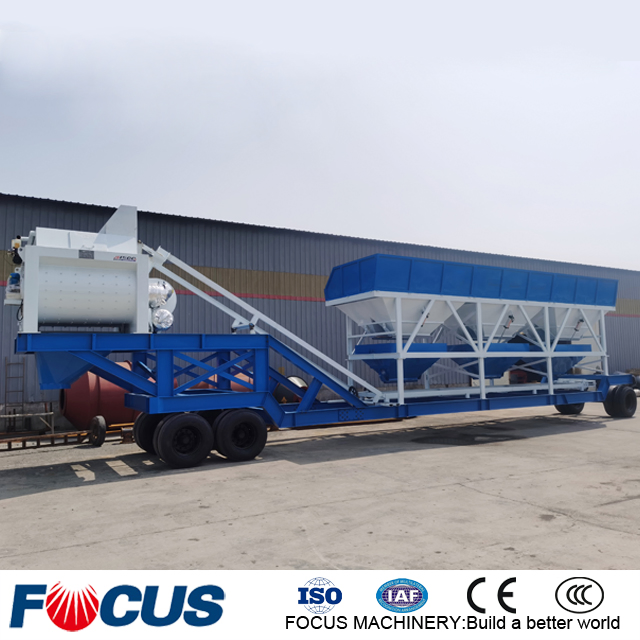

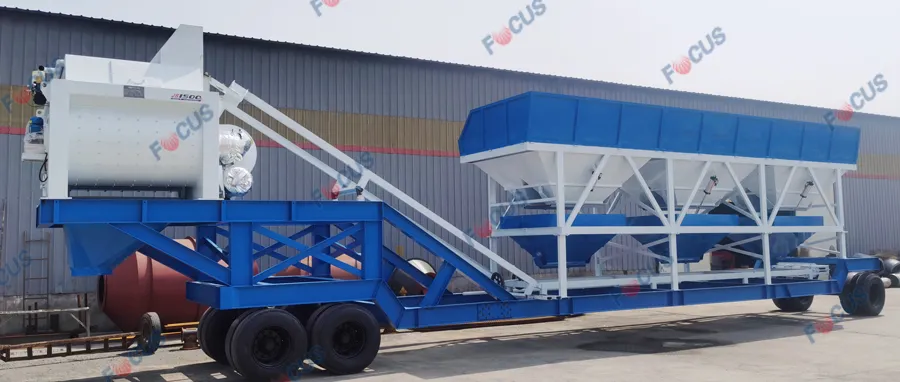

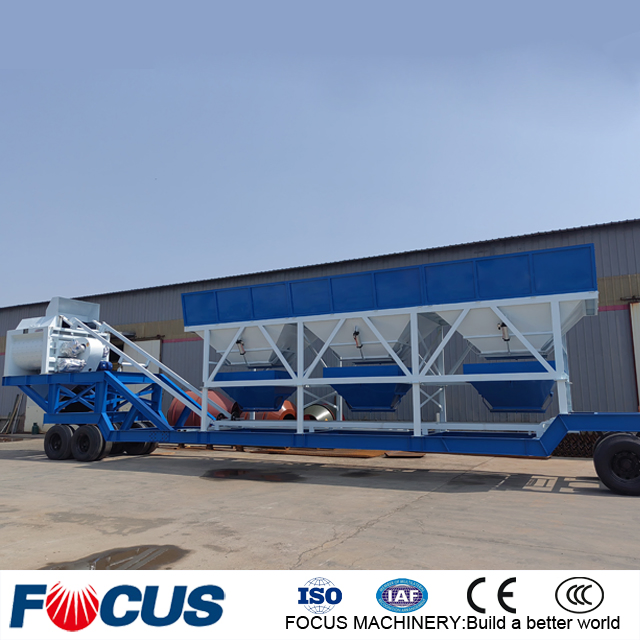

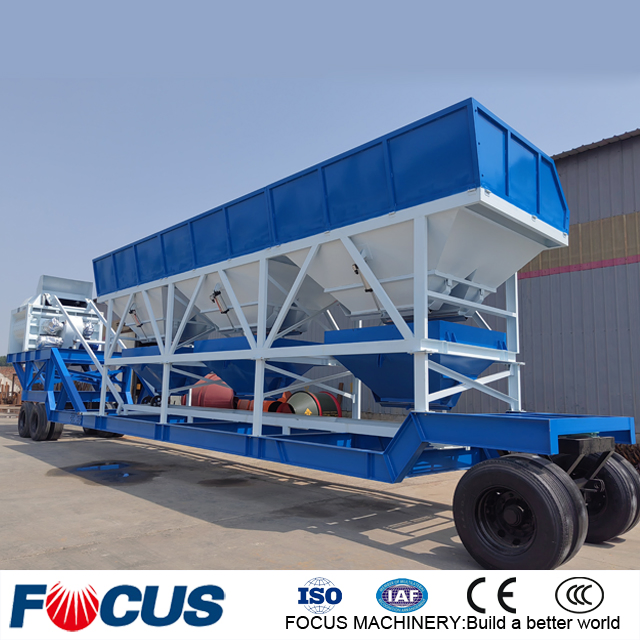

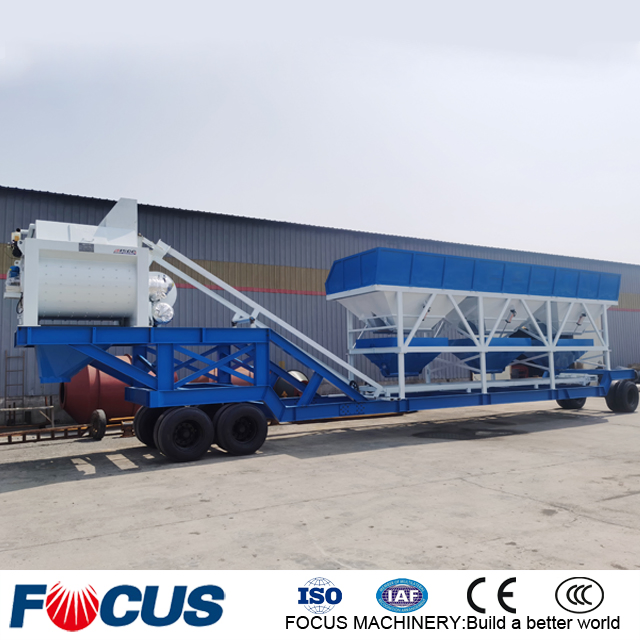

YHZS75 Precast Dry Portable Ready Mobile Concrete Batching Plant

Portable Concrete Batching Plant is suitable for production and supply of ready-mixed concrete, construction of engineering projects or large and medium-sized concrete precast factory. Special for the construction projects and easy to transfer job site.

Detailed Photos & Features

⚙️

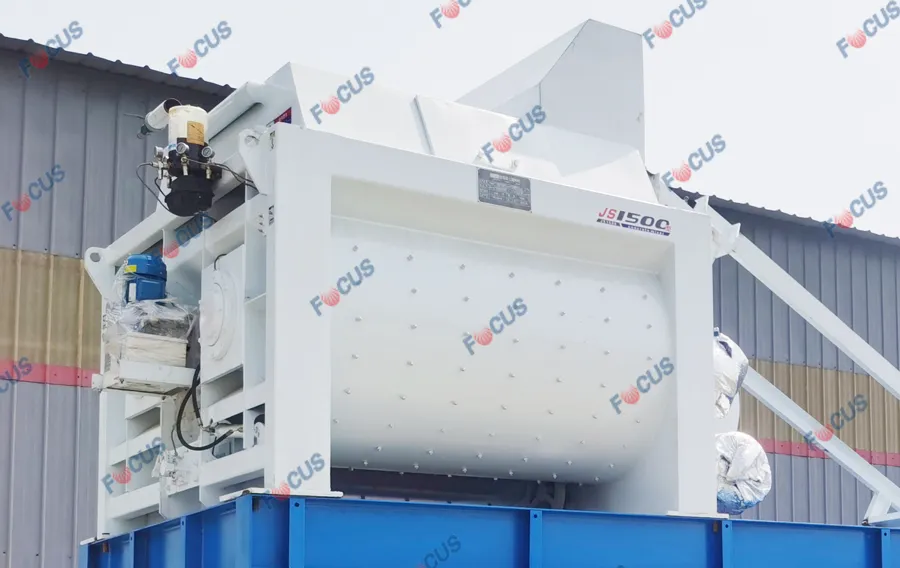

Advanced Mixing Technology: Adopt double shaft concrete mixer, the mixing arm has high wear resistance and strong impact resistance. The mixer saves time and energy and mixes evenly.

📊

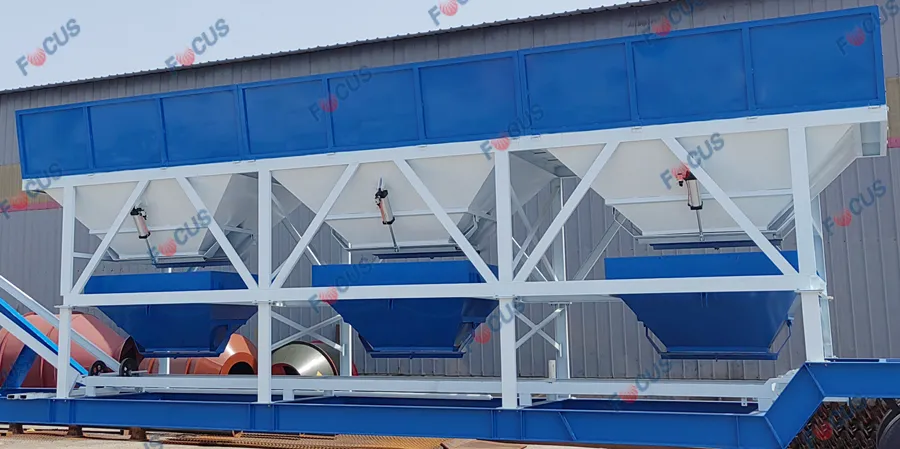

Precision Dosing: Adopt PLD series dosing machine, 2-4 bins are optional, and automatic unloading. Electronic weighing with an accuracy of 2%.

🚚

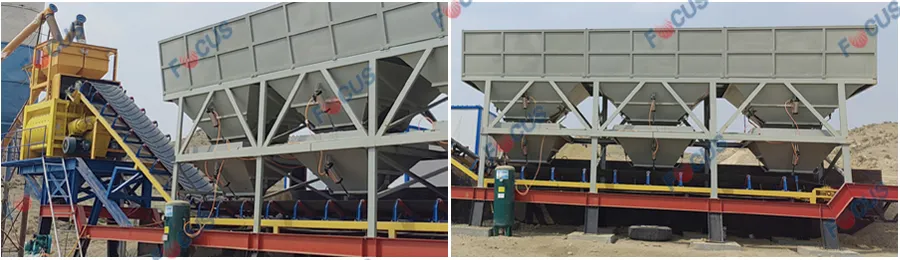

Continuous Transportation: Smooth operation, automation, centralized control, continuous transportation. Excellent material selection, using double-layer structure bucket belt and herringbone belt.

🛡️

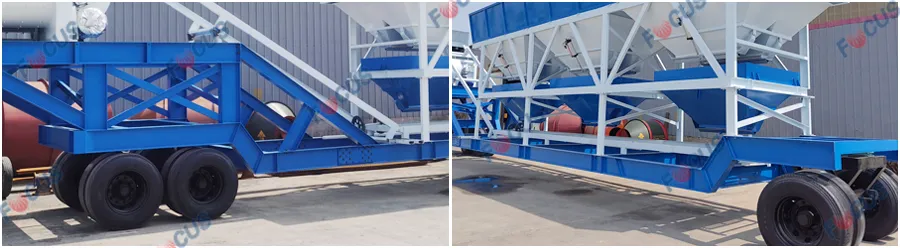

Robust Structure: The main structure is made of Q235 high-quality carbon steel, which has good toughness, strong bearing capacity, and corrosion resistance.

Product Parameters

Model	YHZS25	YHZS35	YHZS50	YHZS75
Capacity	25m³/h	35m³/h	50m³/h	75m³/h
Mixer Model	JS500	JS750	JS1000	JS1500
Mixer Power	18.5Kw	30Kw	37Kw	2*30Kw
Discharge Height	1500-3800mm
Discharge Volume	500L	750L	1000L	1500L
Mixing Cycle	60S
Max. Agg. Size	80/60mm
Control System	Fully automatic/Manual
Total Power	51KW	75KW	105KW	145KW
Total Weight	22t	28t	32t	35t

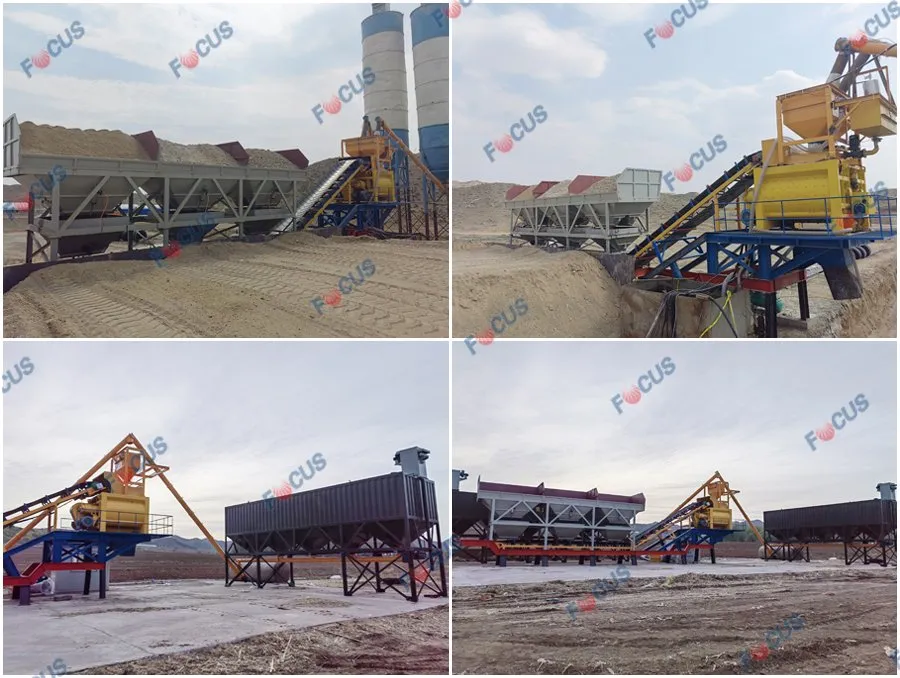

Install and Run

Frequently Asked Questions (FAQ)

Q1: What are the main applications for the YHZS75 portable plant?

It is ideal for ready-mixed concrete production, engineering projects, and precast factories, especially when frequent relocation between job sites is required.

Q2: What type of control system is included?

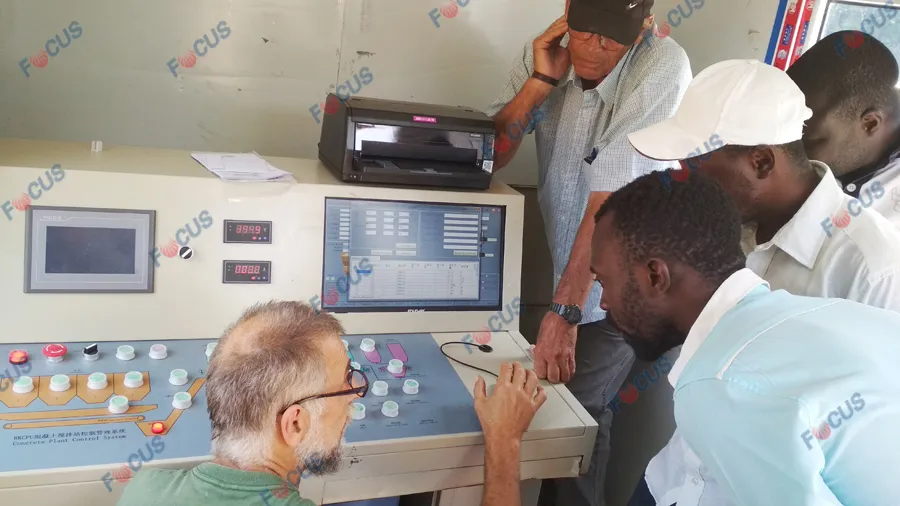

The plant features a full automatic computer control system, typically using Omron or Siemens PLC and Schneider electrical components for high reliability.

Q3: How accurate is the weighing system?

The aggregate weighing system has an accuracy of ±2%, while water, cement, and additives have a high precision weighing accuracy of ±1%.

Q4: Is the plant easy to move?

Yes, it is designed with a 360-degree bayonet dragging way and a wheel system, making it highly portable and efficient to transfer between construction sites.

Q5: What is the mixing cycle time for these plants?

All models in the YHZS series, from the 25 to the 75, feature a standard mixing cycle of 60 seconds.

Q6: What materials are used in the main structure?

The main structure is constructed from Q235 high-quality carbon steel, ensuring excellent toughness and strong bearing capacity.
