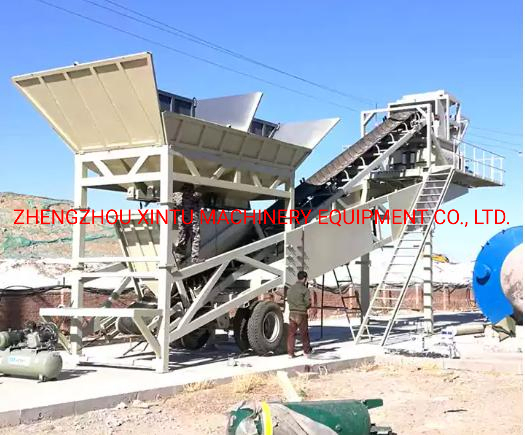

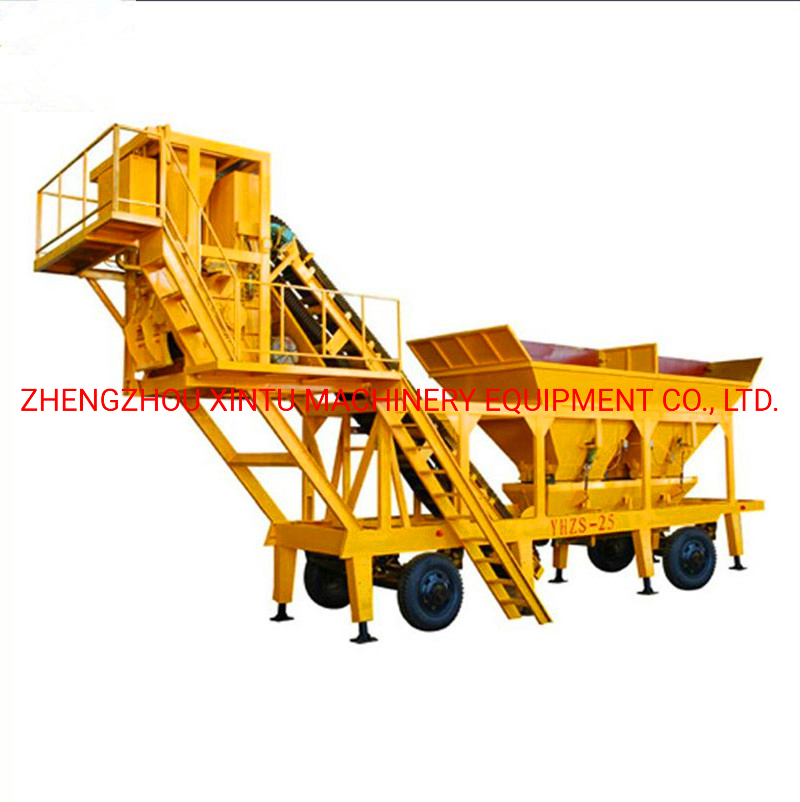

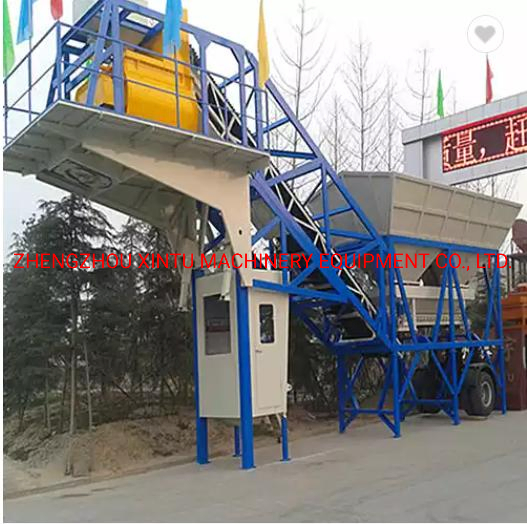

Mobile Yhzs Series High Efficiency Belt Type Continuous Concrete Mixing Plant

1 / 5

Mobile Yhzs Series High Efficiency Belt Type Continuous Concrete Mixing Plant

Customization:	Available
After-sales Service:	15 Months
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Mobile Concrete Batching Plant

Type

Concrete Mixer

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Cylinder Type

Productivity

60m²/h

Feeding Height

3800mm

Vibrating Amplitude

1.6mm

Certification

ISO9001: 2000, CE

Condition

New

Color

Orange

Package Size

100.00cm * 100.00cm * 100.00cm

Gross Weight

20000.000kg

Production Capacity

3000sets/Year

💡 Product Overview

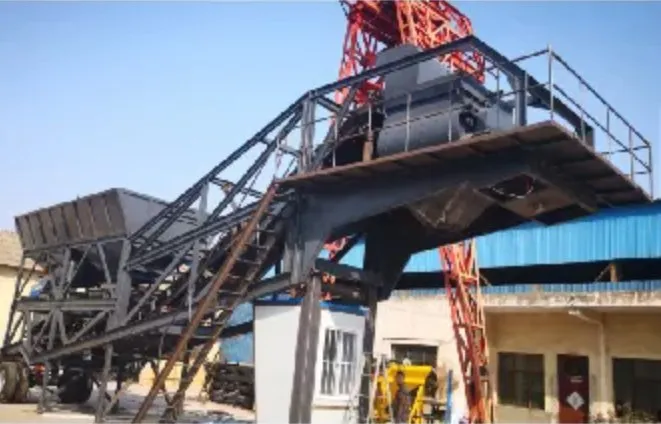

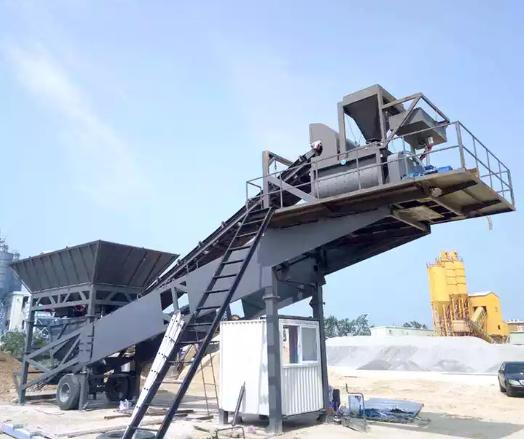

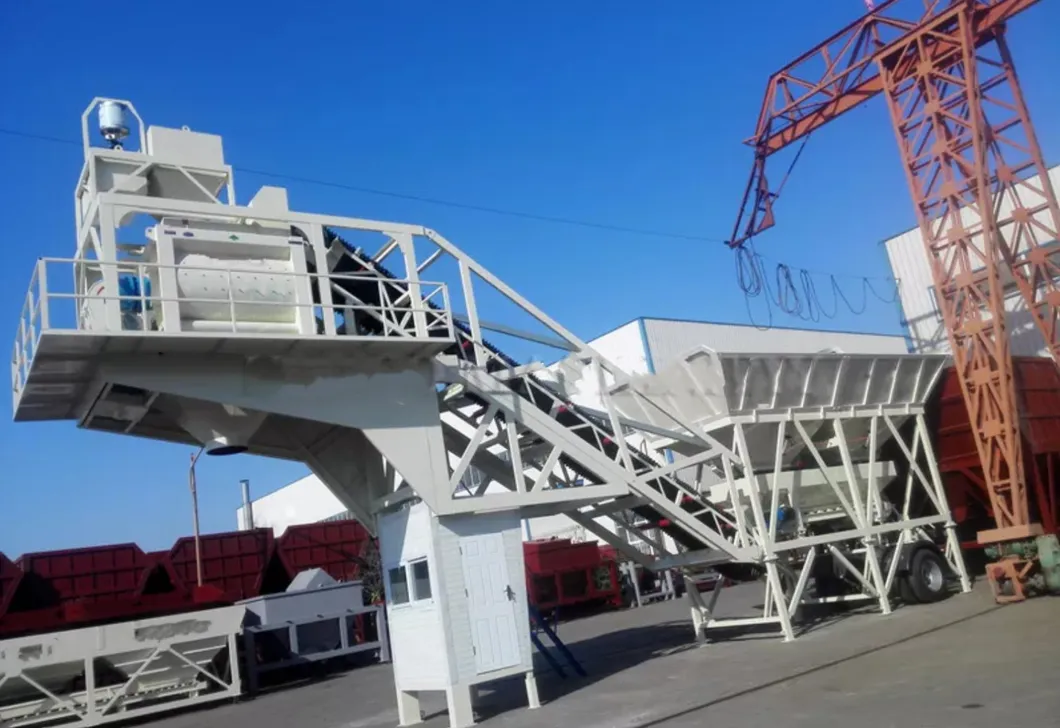

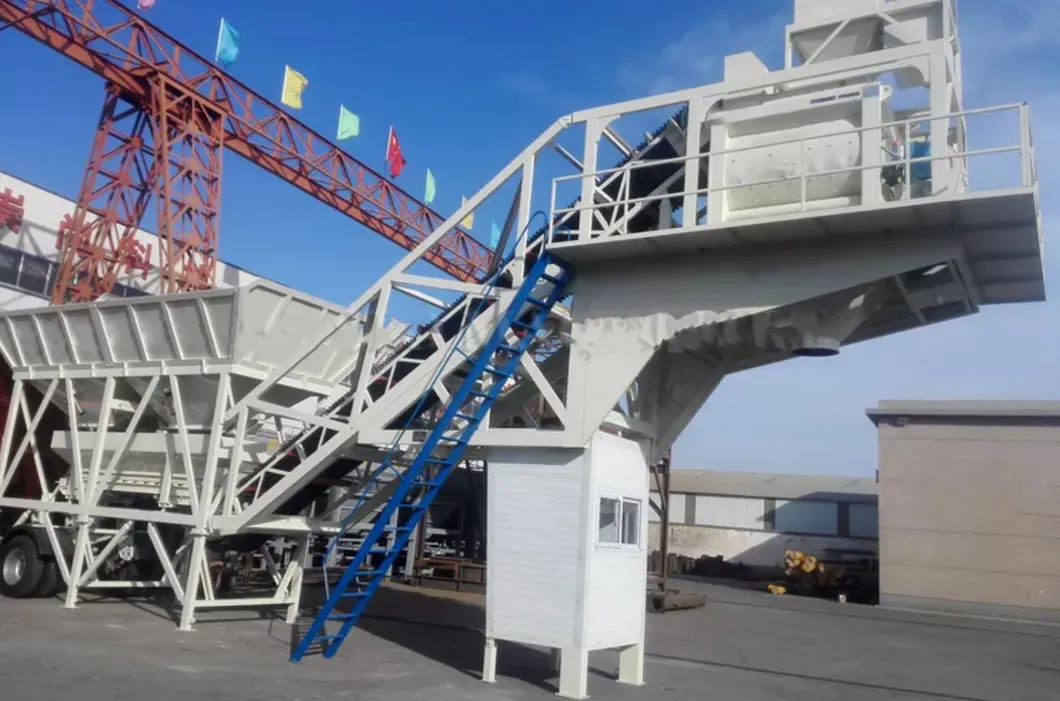

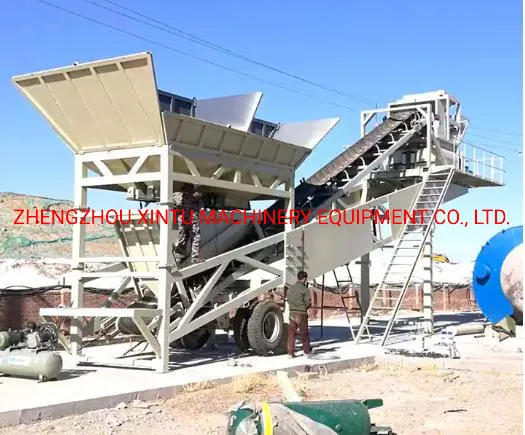

The mobile concrete batching plant is a highly efficient solution composed of a concrete mixer, aggregate storage, weighing system, batching system, and advanced control systems. It is specifically designed for projects requiring frequent relocation and rapid setup.

Semi-Pulling StructureDesigned with a coupling pin for easy towing by trailers, ensuring maximum mobility.

Low Foundation CostEliminates the need for specialized, permanent foundations, reducing overall project expenses.

Flexible TransportCan be easily moved from one project site to another with minimal downtime.

Modular DesignDivided into standard modules for quick installation, disassembly, and containerized shipping.

⚙ Technical Parameters

Model	YHZS25	YHZS35	YHZS50	YHZS75	YHZS90
Capacity	25m³/h	35m³/h	50m³/h	75m³/h	90m³/h
Concrete Mixer	JS500	JS750	JS1000	JS1500	JS2000
Discharging Volume	500L	750L	1000L	1500L	2000L

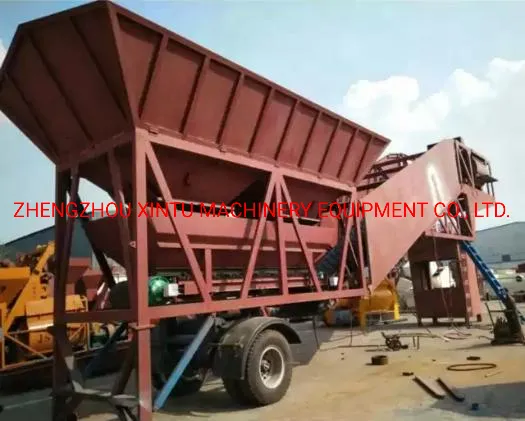

Aggregate Bins	4x4m³	4x5m³	4x6m³	4x7m³	4x8m³
Mixing System	Twin shaft concrete mixer
Aggregate Feeder	Belt conveyor
Control System	SIEMENS PLC + PC (Auto-control module)
Weighing Precision	±1% (Water, Cement, Additive)
Warranty	1 year (12 months after test running)

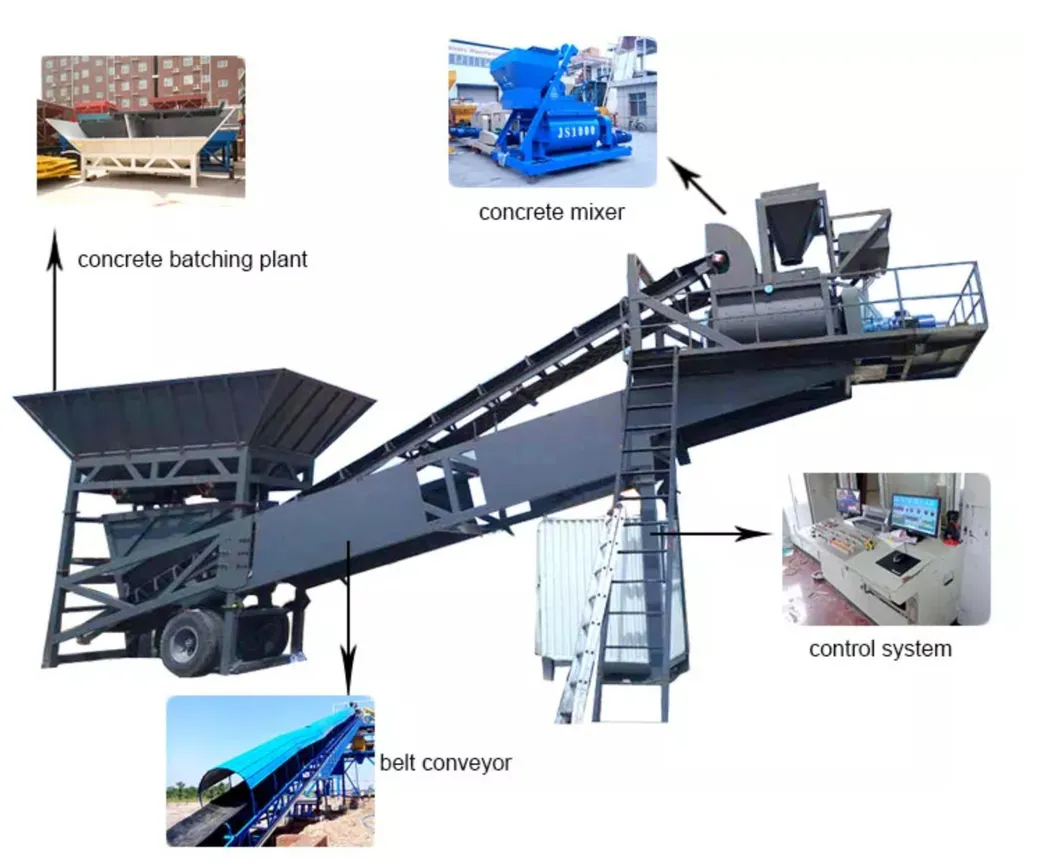

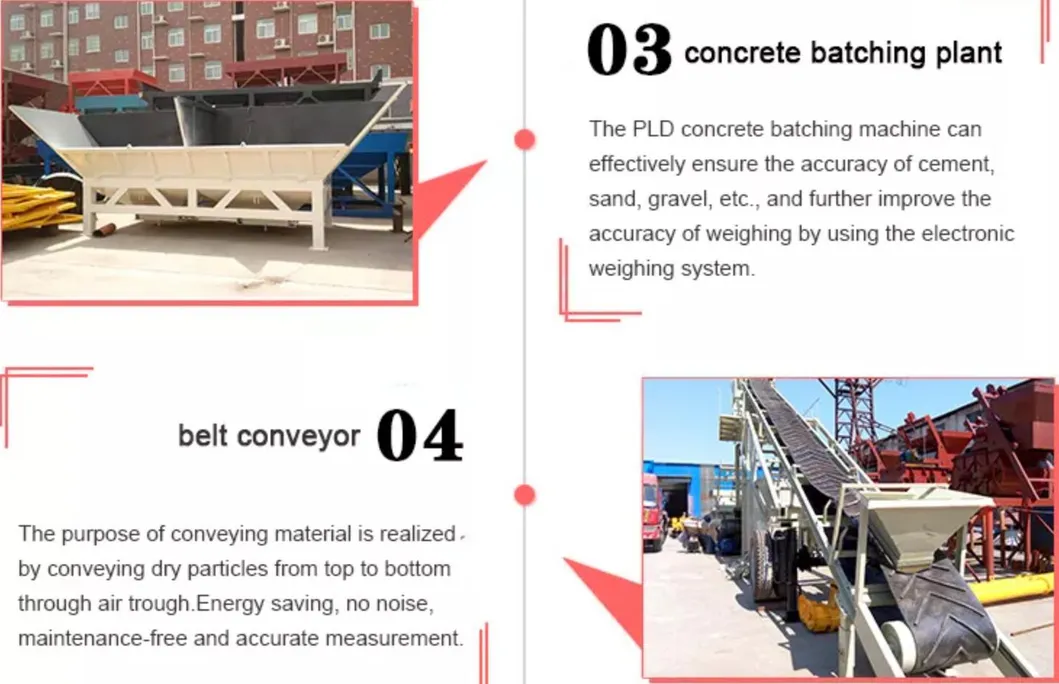

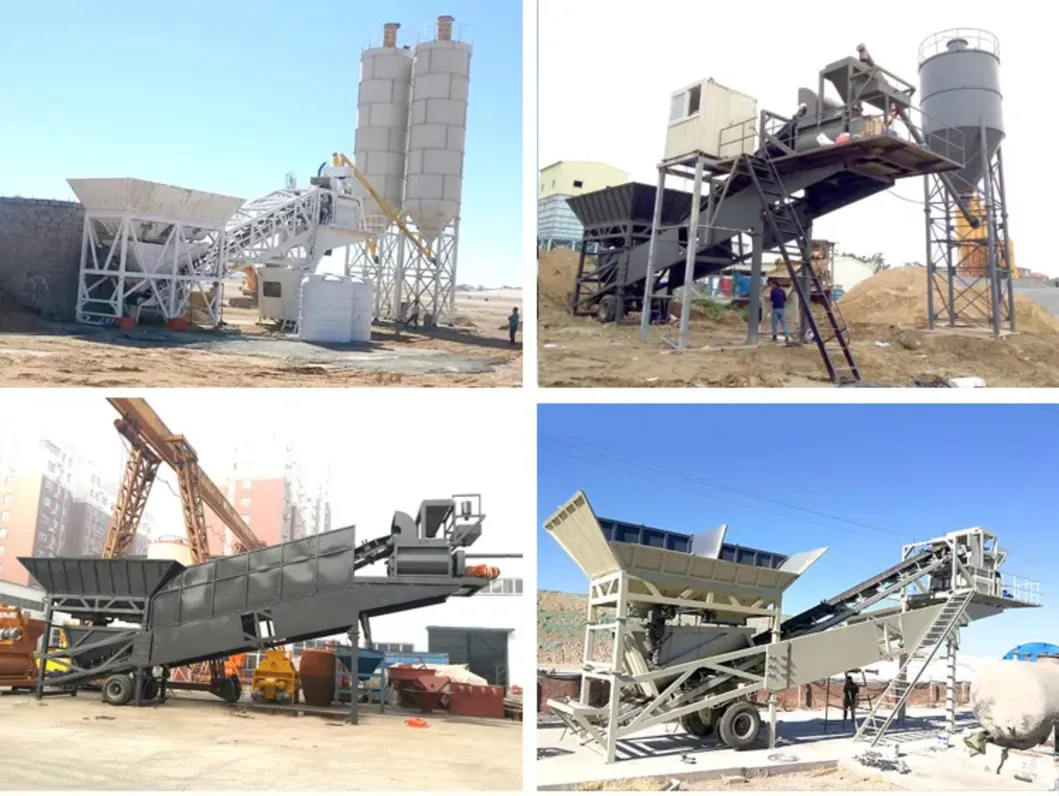

📷 Main Configuration & Visuals

❓ Frequently Asked Questions

What is the production capacity of the YHZS series?

The YHZS series offers a wide range of capacities to suit different project needs, ranging from 25m³/h (YHZS25) up to 90m³/h (YHZS90).

How is the mobile concrete plant transported?

The plant features a semi-pulling structure equipped with a coupling pin, allowing it to be easily towed by a standard trailer or truck between different construction sites.

Does this equipment require a special foundation?

No, one of the key advantages of this mobile plant is its low foundation requirement. It can be set up on flat, firm ground without the need for complex permanent concrete foundations.

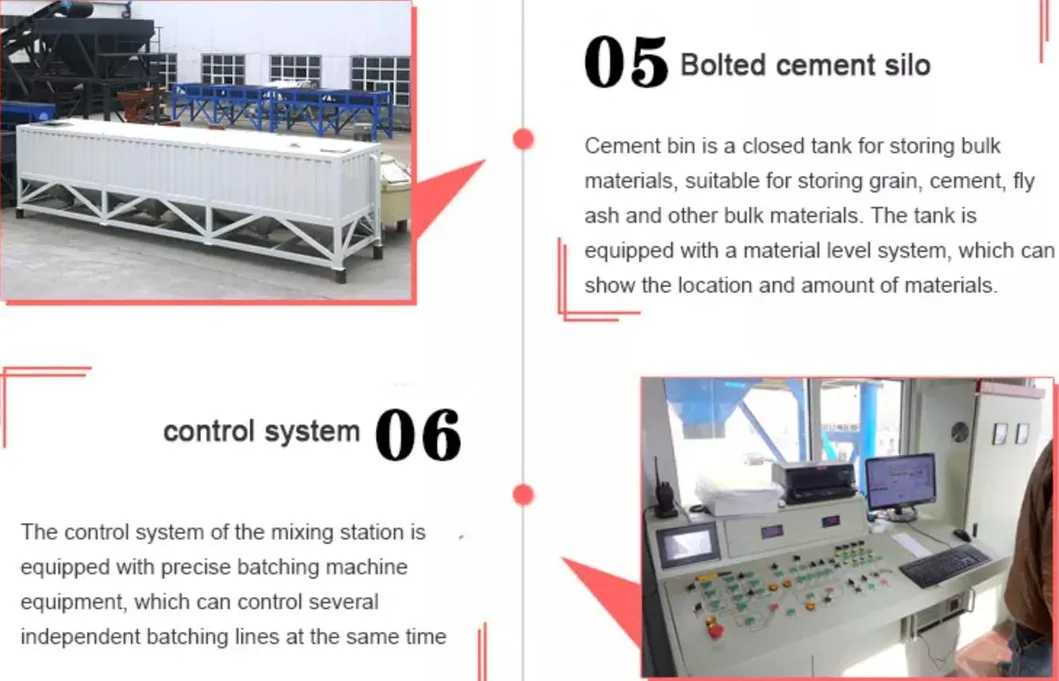

What kind of control system is integrated?

The plant is equipped with a high-precision SIEMENS PLC and PC-based automatic control module, ensuring accurate weighing and consistent mixing quality.

What is the warranty and after-sales support?

We provide a 1-year warranty (12 months after test running). After-sales services include installation, commissioning, operator training, and technical support with spare parts supply.

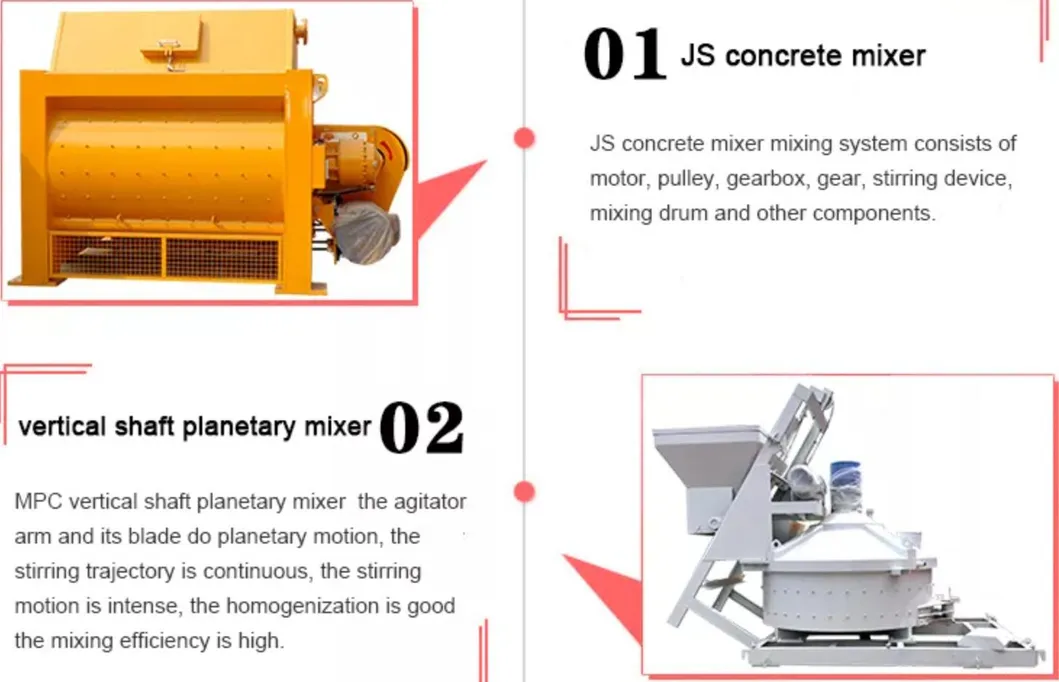

What type of mixer is used in these plants?

All models in the YHZS series utilize a high-performance twin-shaft concrete mixer, which provides a fast mixing cycle of approximately 72 seconds.
