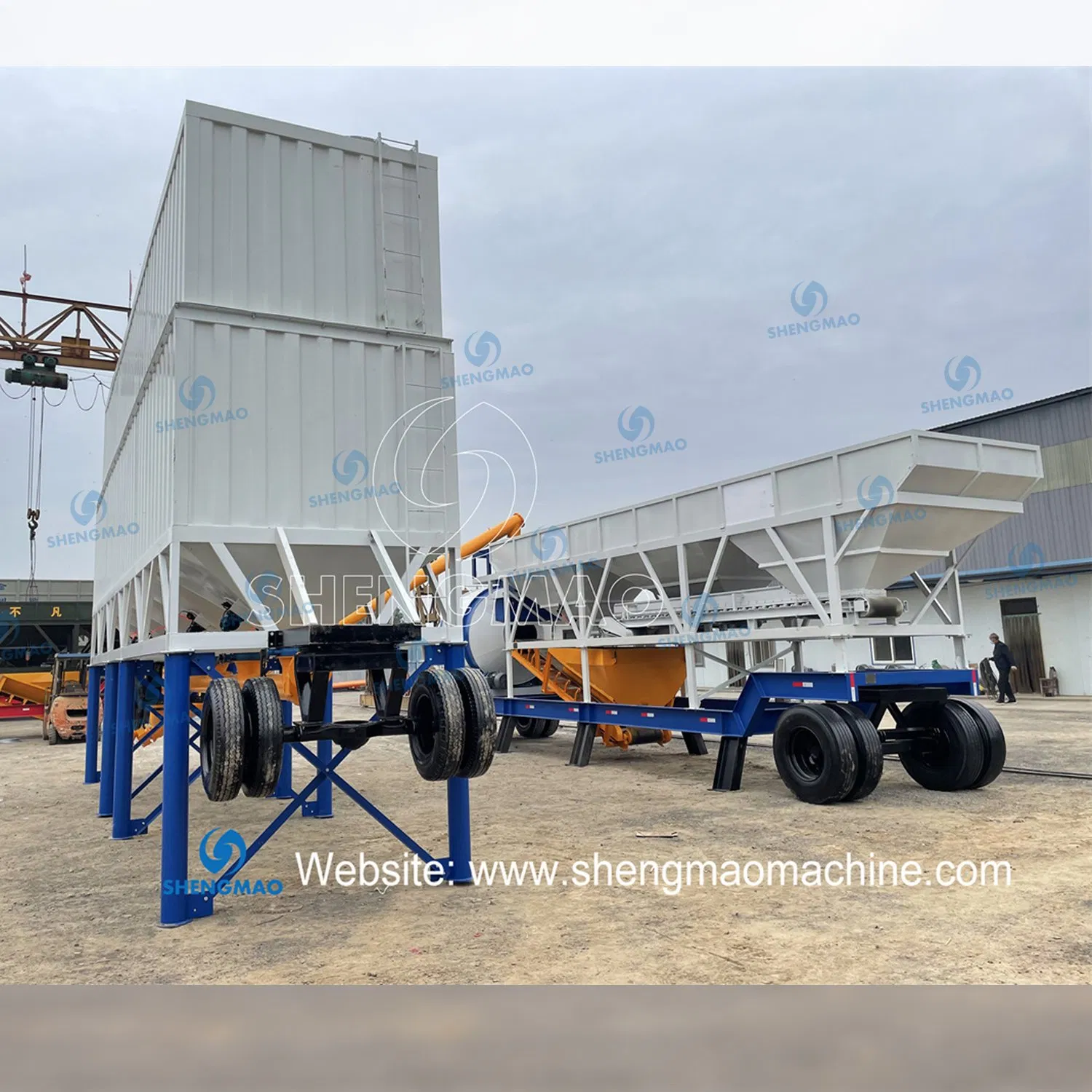

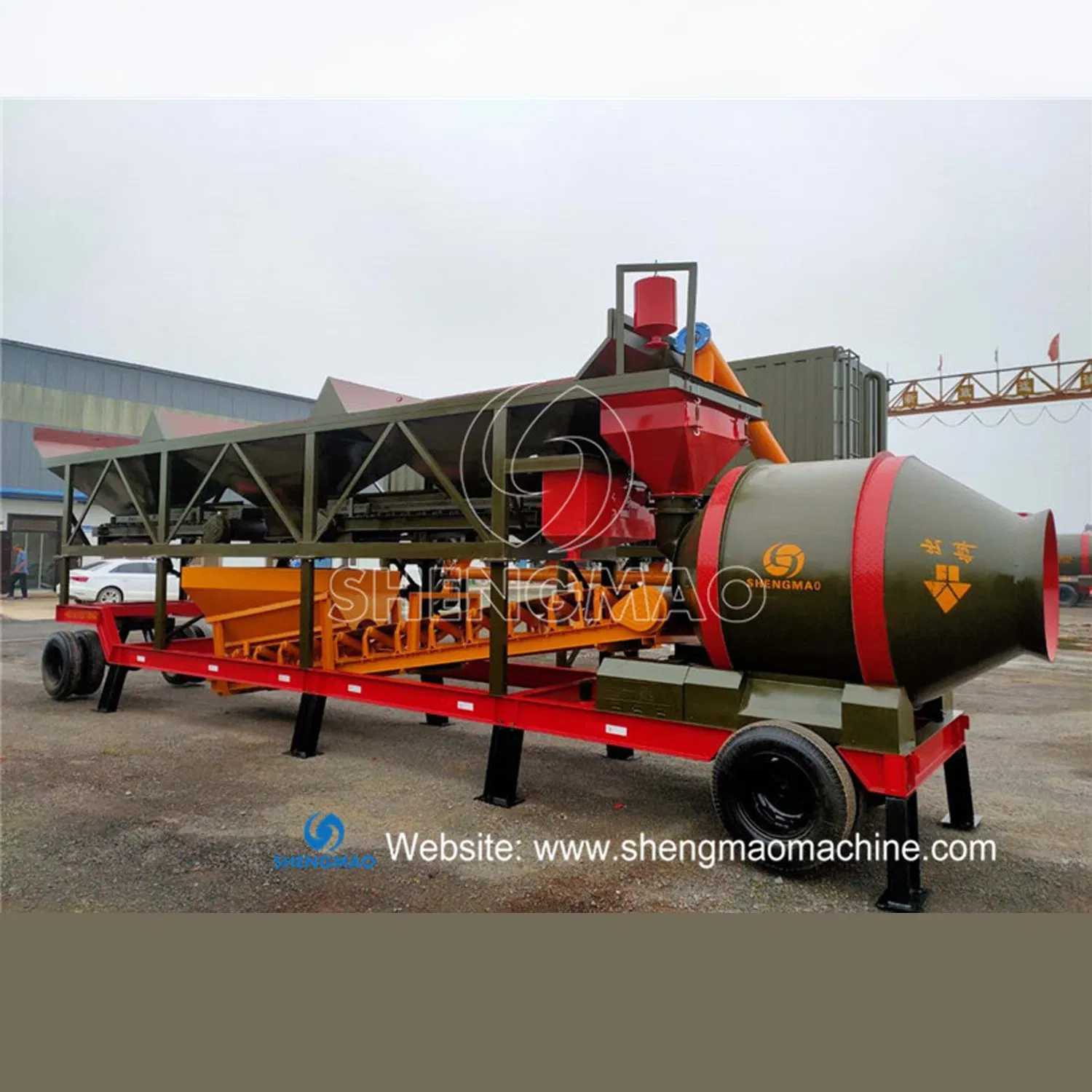

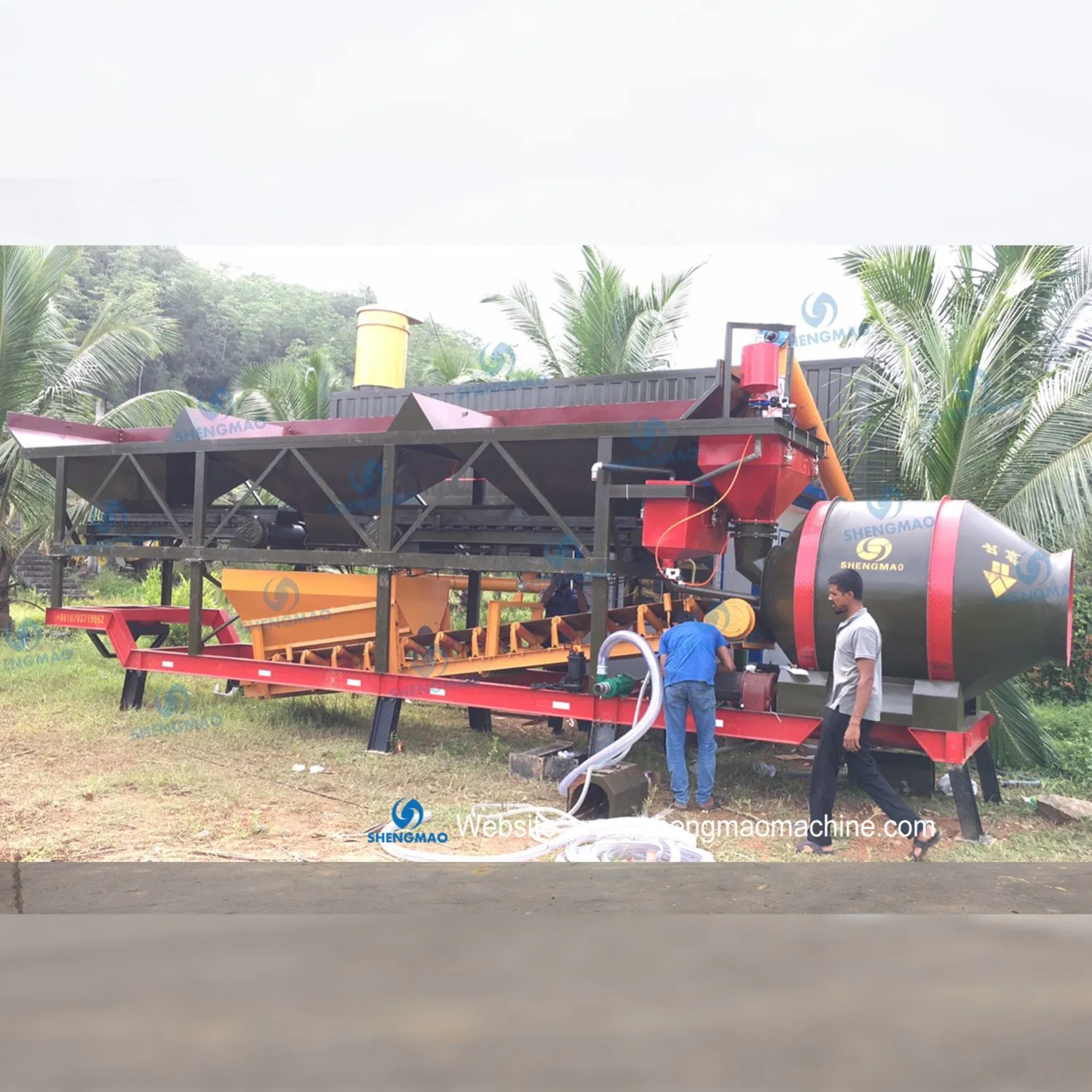

Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. We offer YHZM series, NYHZS series and YHZS series with capacities from 20m³/h to 100m³/h.

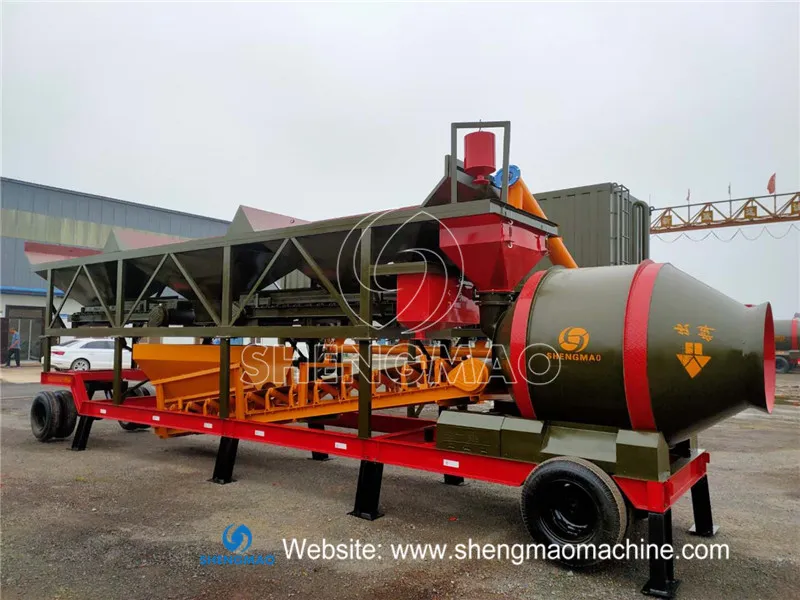

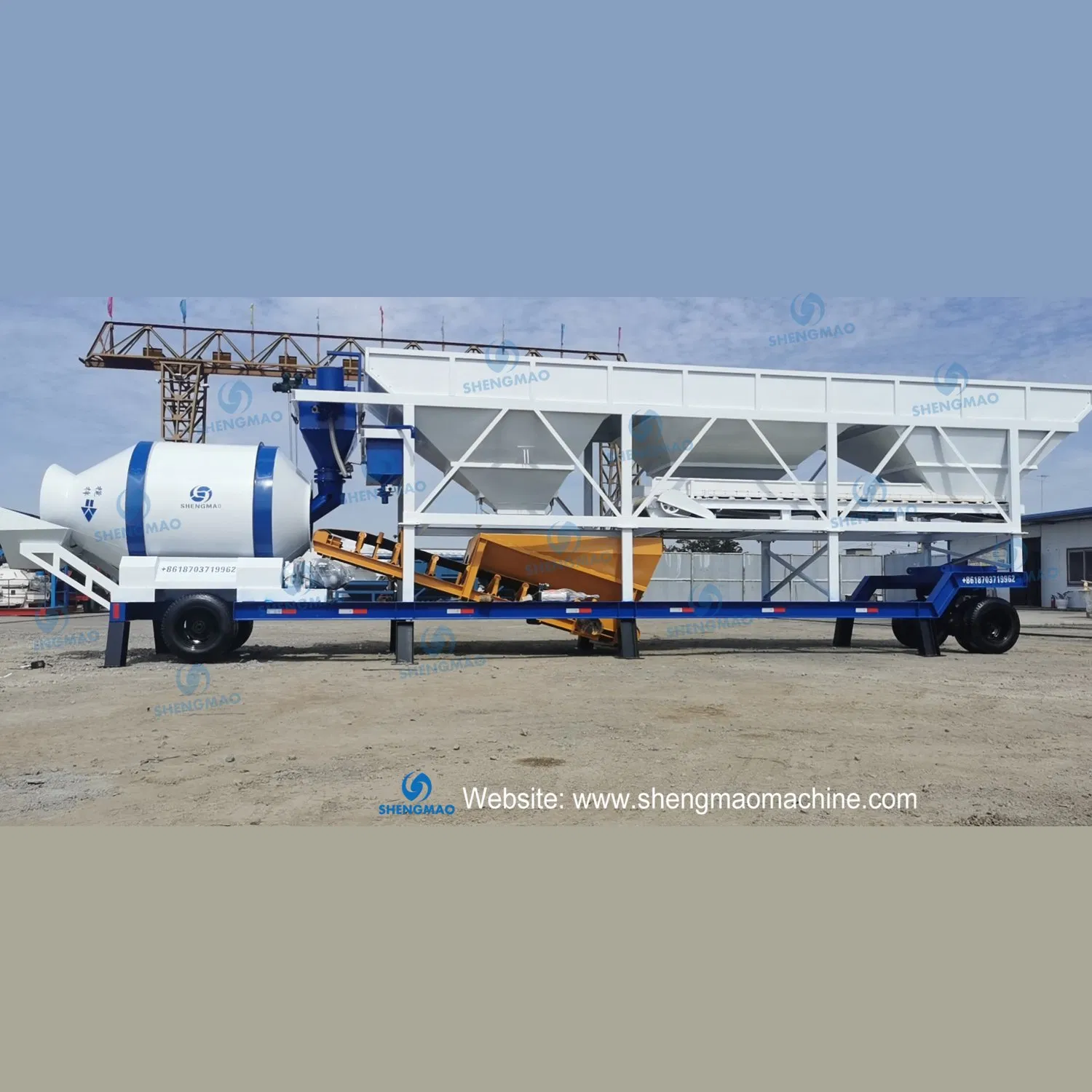

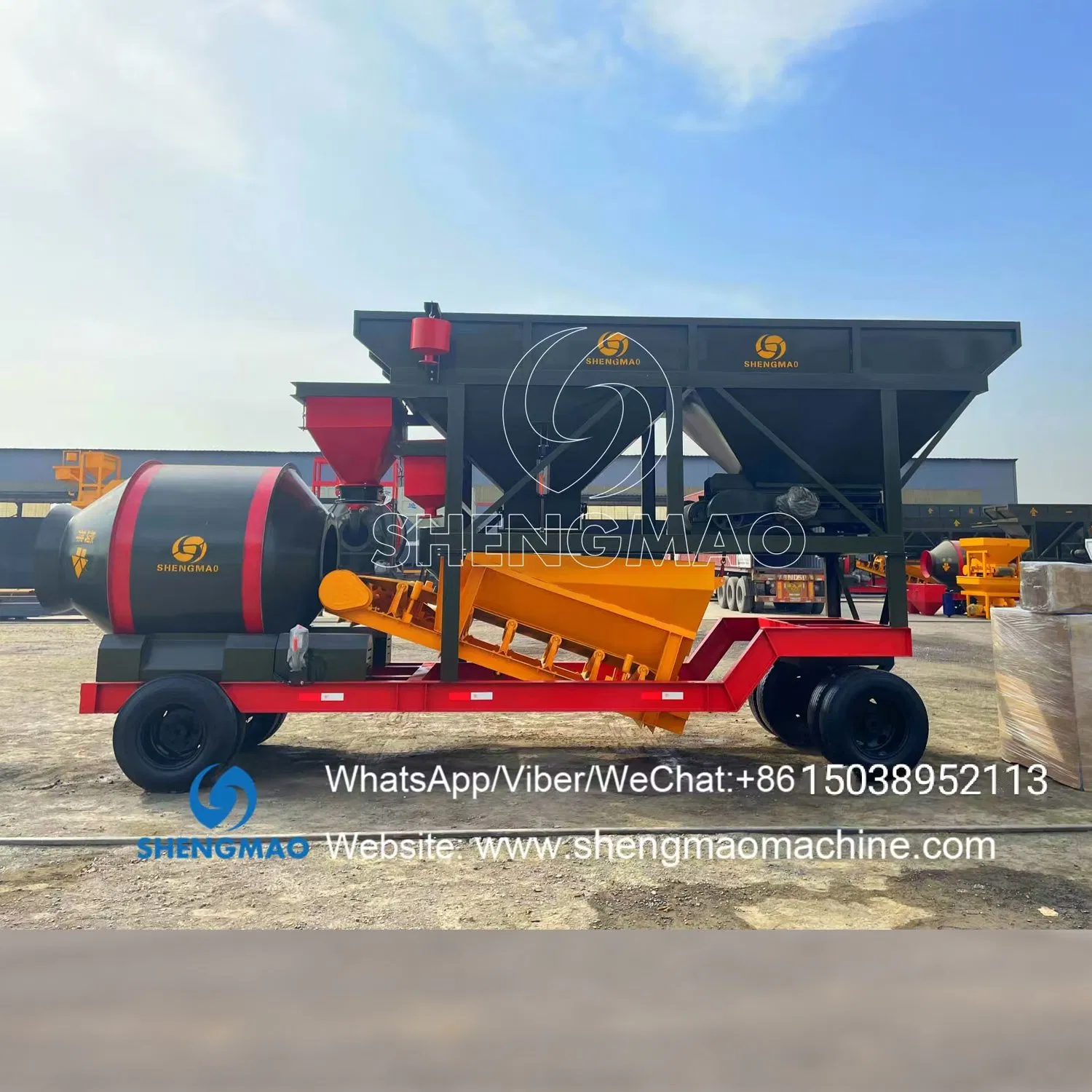

| Specifications of YHZM Series | ||||
| Model | YHZM20 | YHZM30 | YHZM60 | YHZM100 |
| Capacity (m³/h) | 20 | 30 | 60 | 100 |
| Mixer Type | JZM500 | JZM750 | JZM1500 | JZM2000 |
| Discharging Height | 1.5m | 1.5m | 1.5m | 1.5m |
| Total Power (kw) | 42 | 46 | 67 | 77.5 |

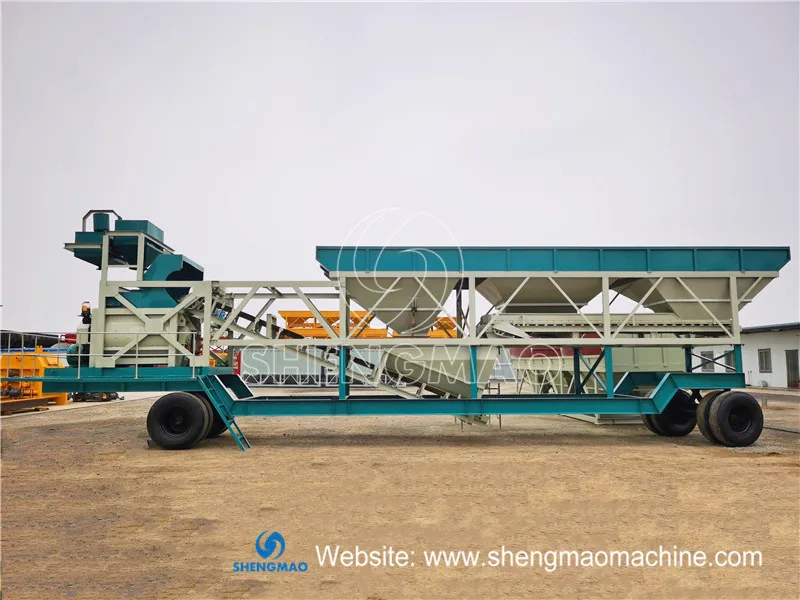

| Specifications of NYHZS Series | ||||
| Model | NYHZS25 | NYHZS35 | NYHZS50 | NYHZS75 |
| Capacity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Type | JS500 | JS750 | JS1000 | JS1500 |
| Total Power (kw) | 61 | 76 | 85 | 95 |

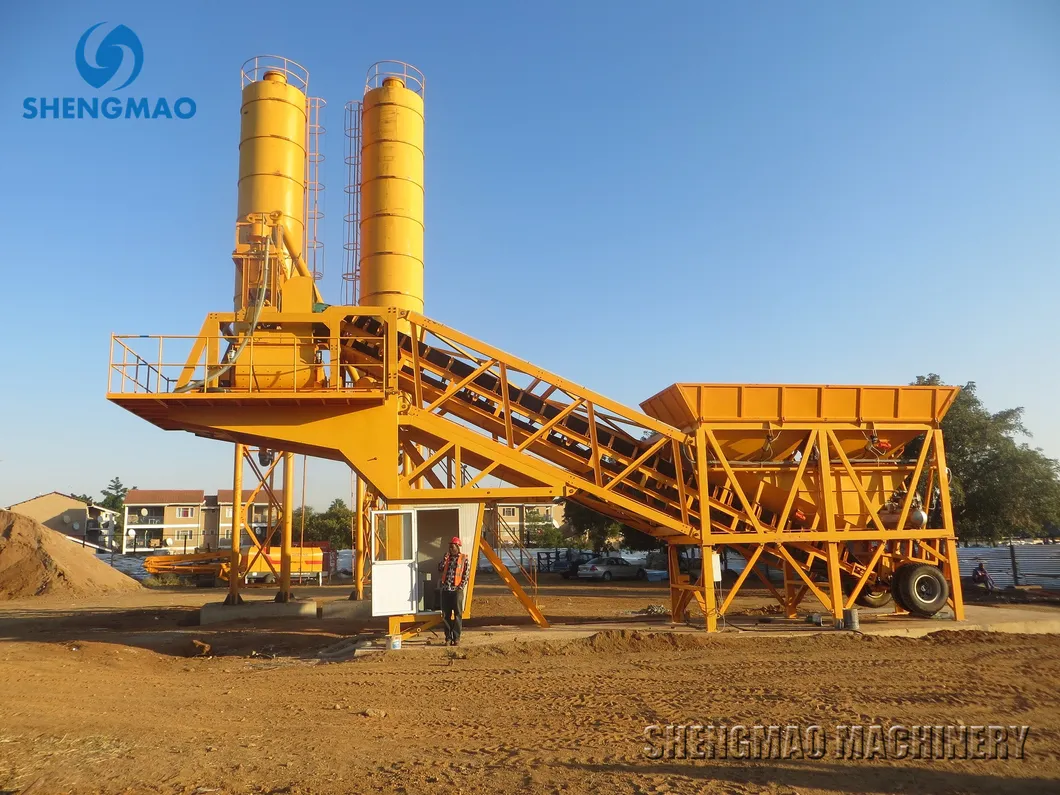

| Specifications of YHZS Series | ||||
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
| Capacity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Type | JS500 | JS750 | JS1000 | JS1500 |
| Total Weight (t) | 14 | 22 | 26 | 29 |

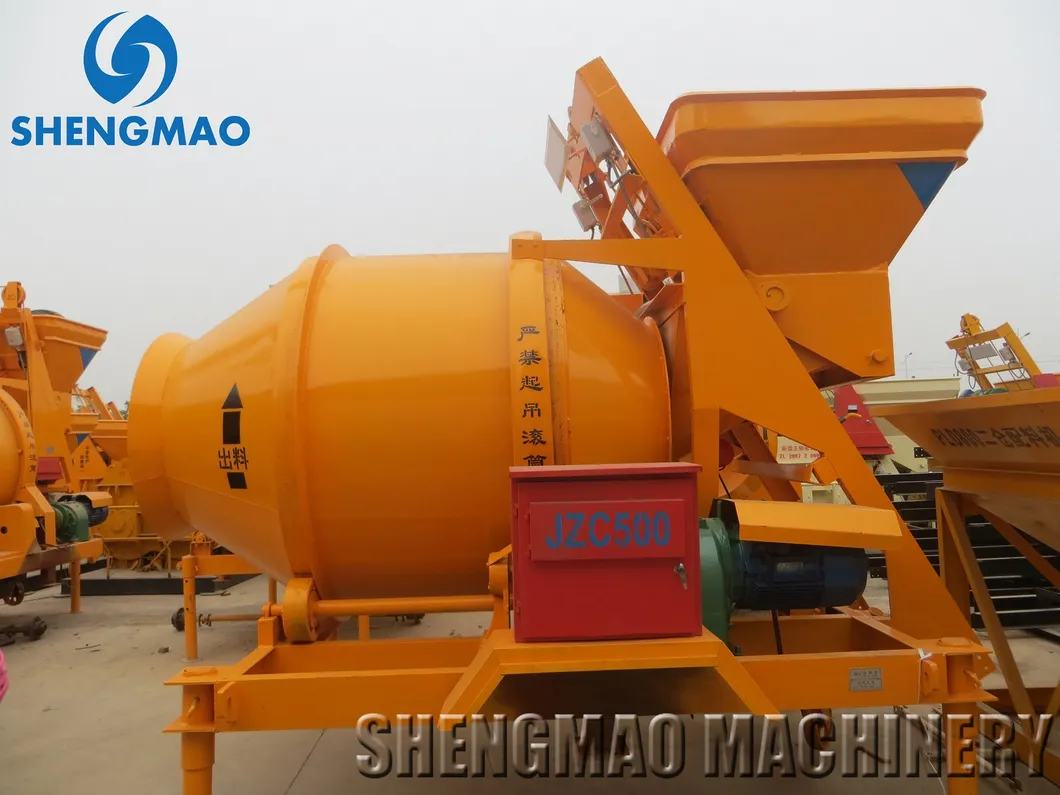

Drum Mixer

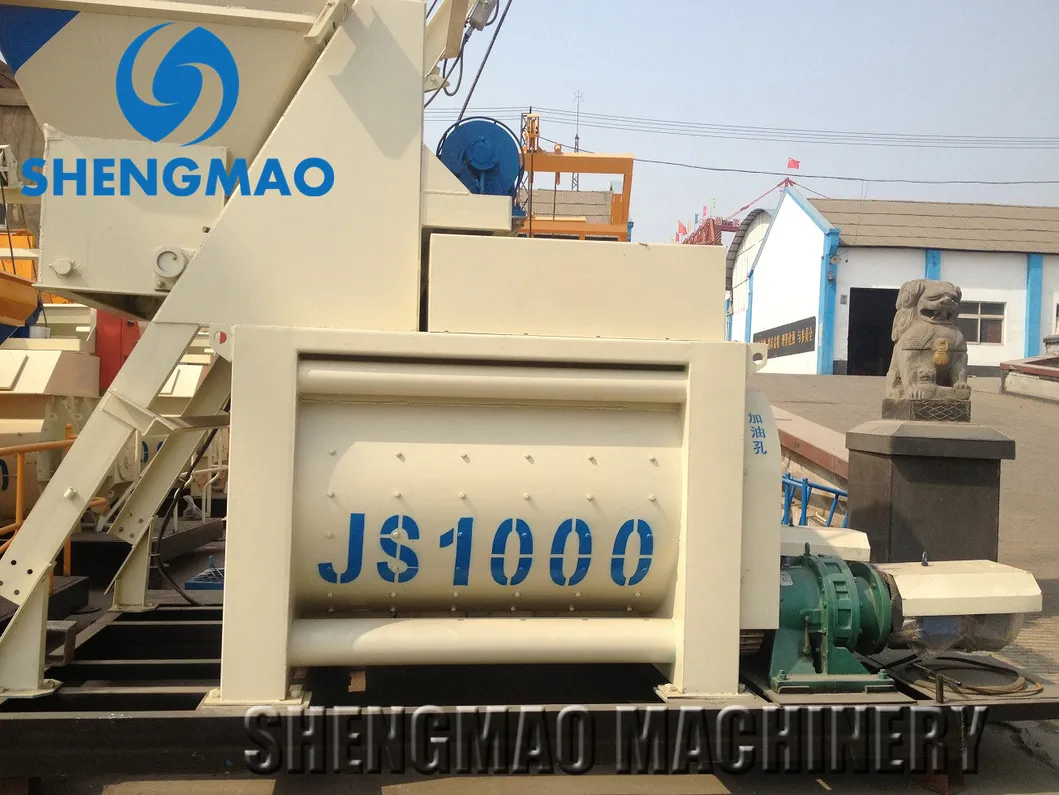

Twin-shaft Mixer

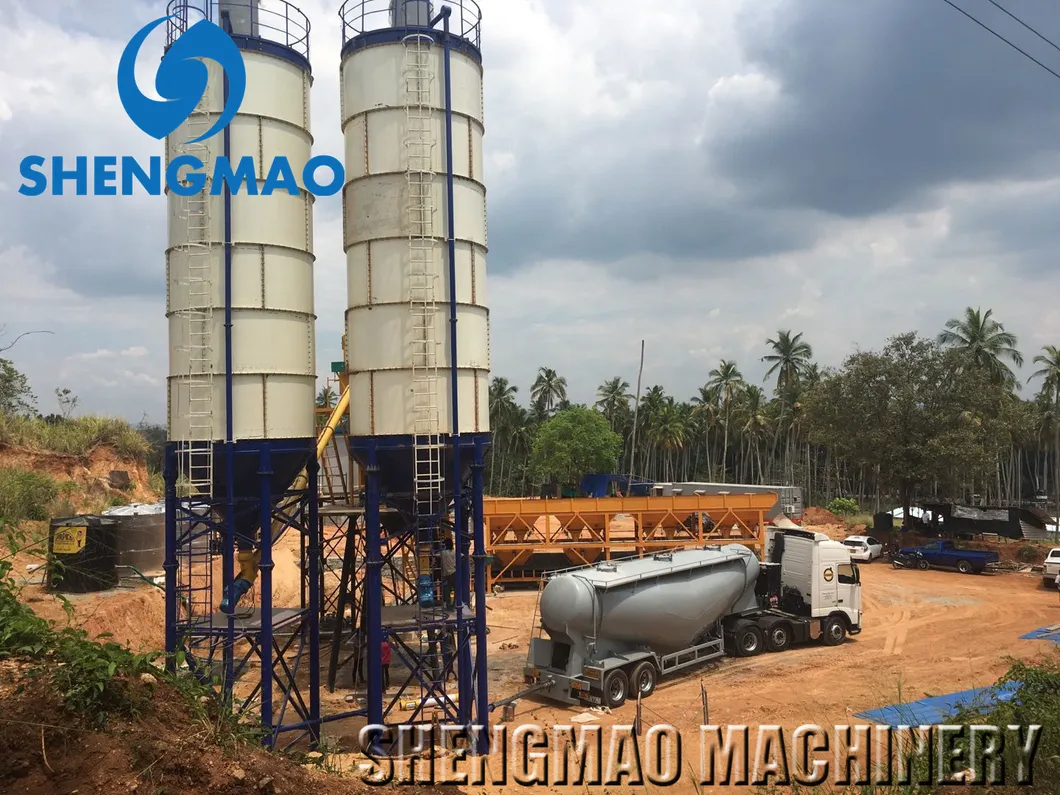

Vertical Cement Silo
Horizontal Cement Silo

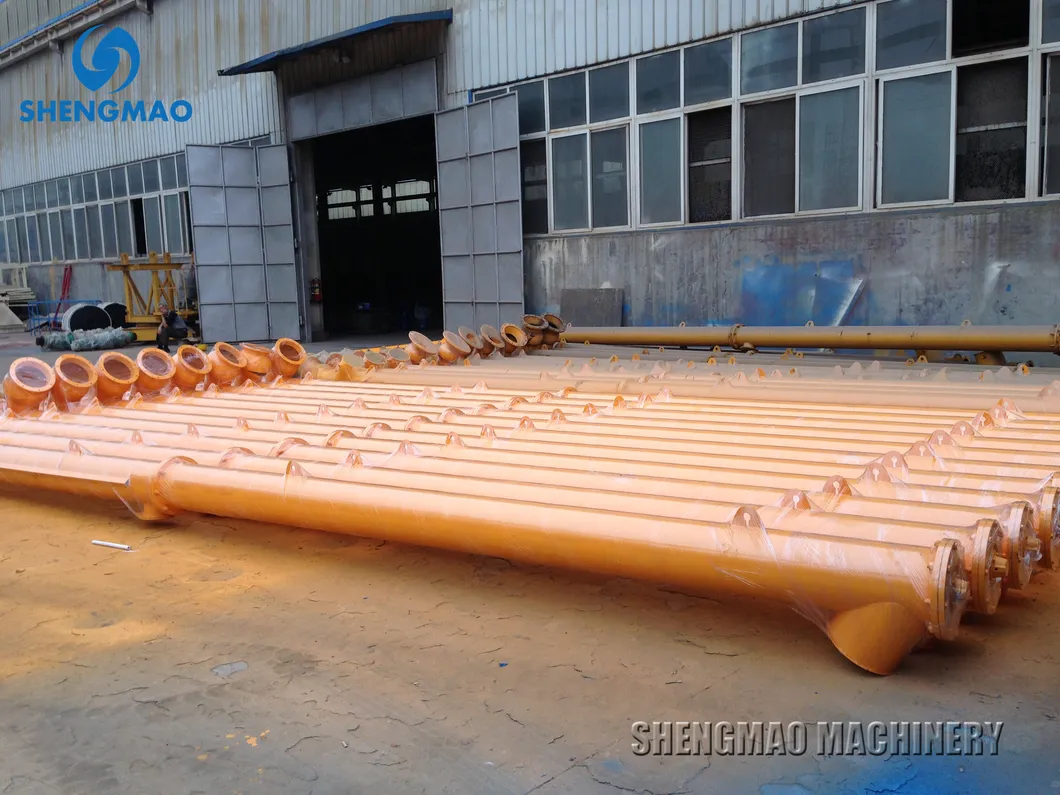

Screw Conveyor

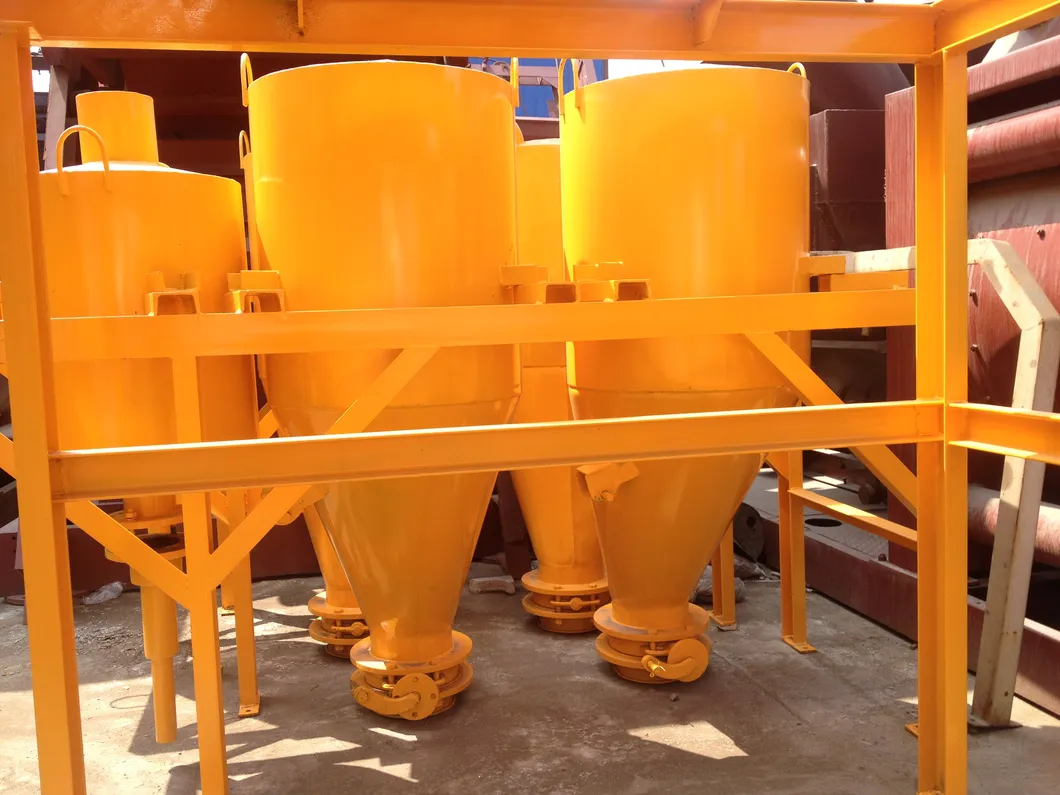

Precision Scales

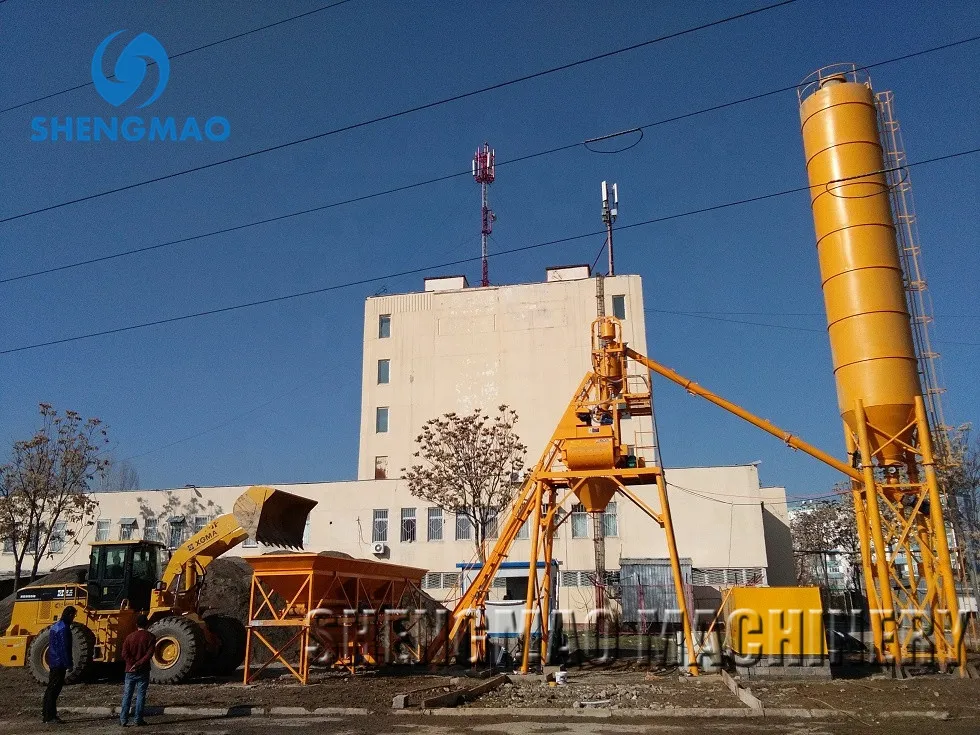

Skip Hoist Plant

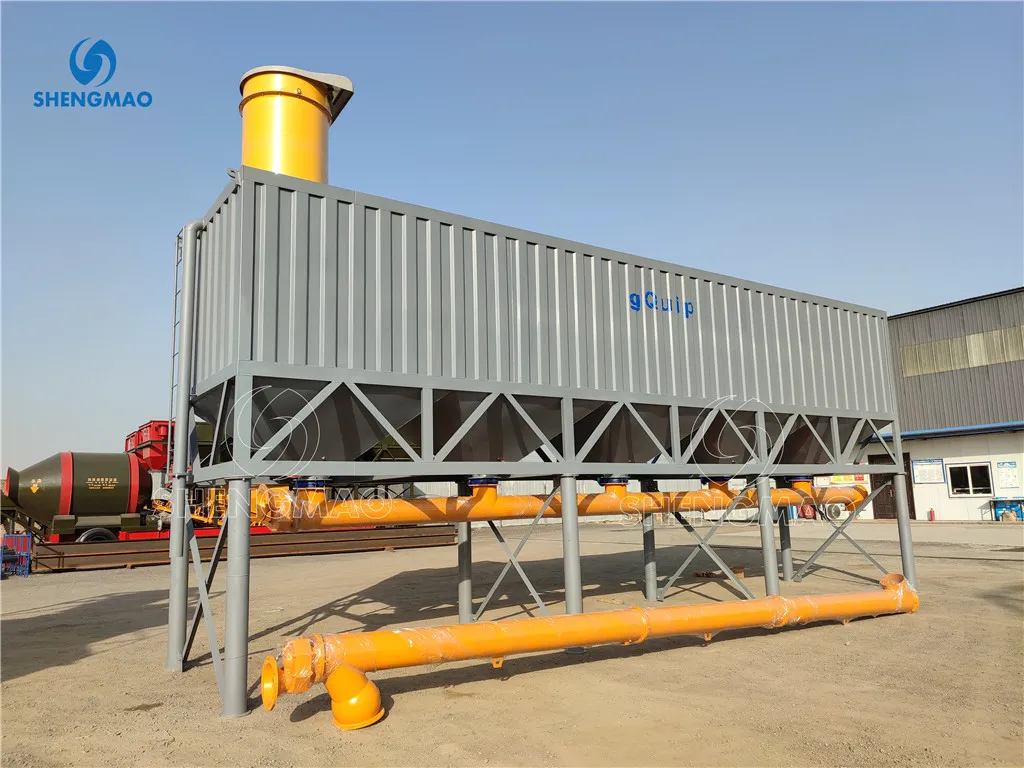

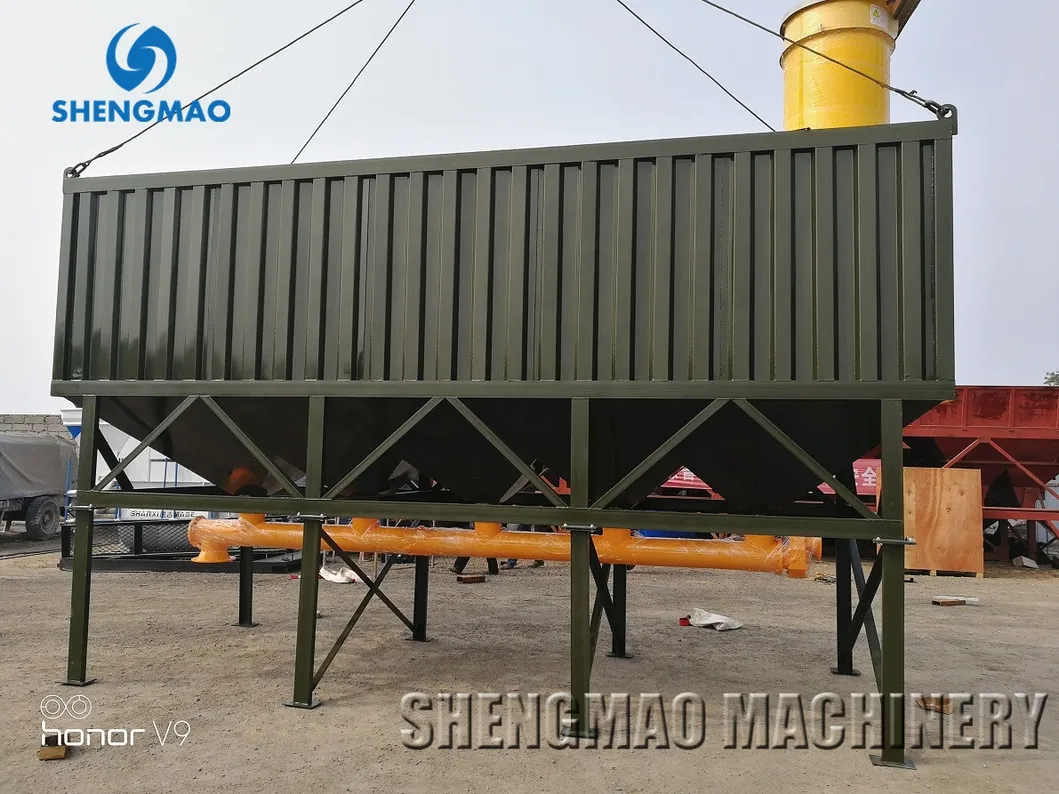

Horizontal Silo

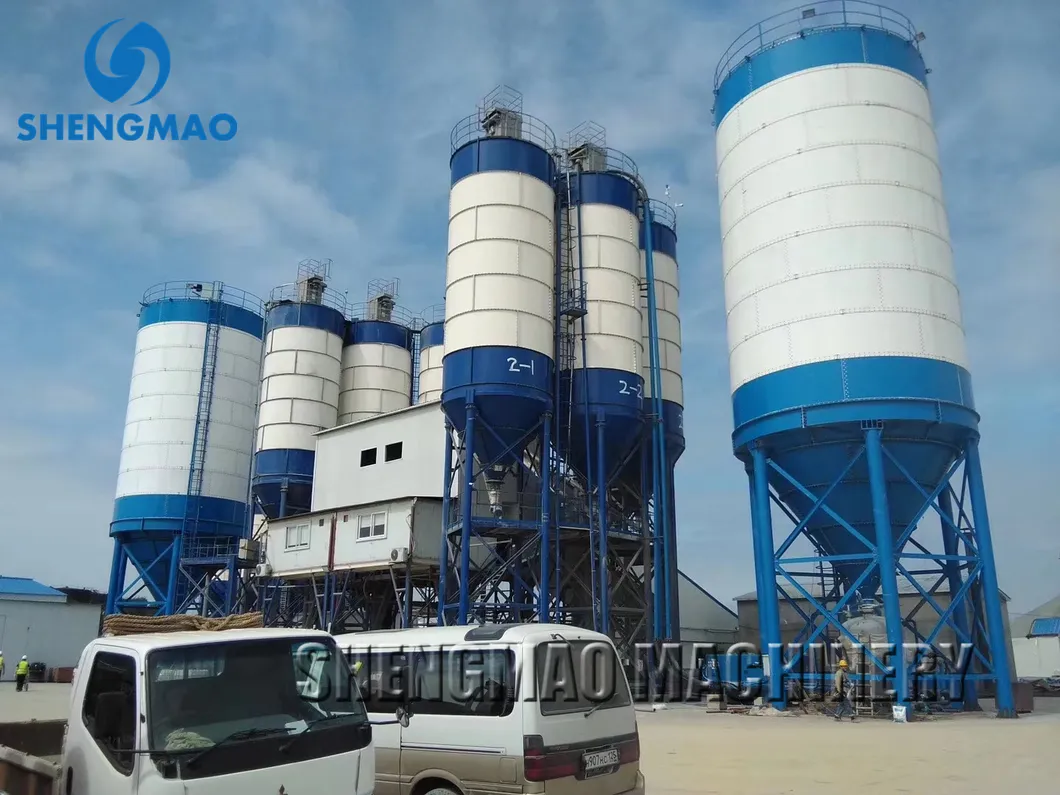

Cement Silo

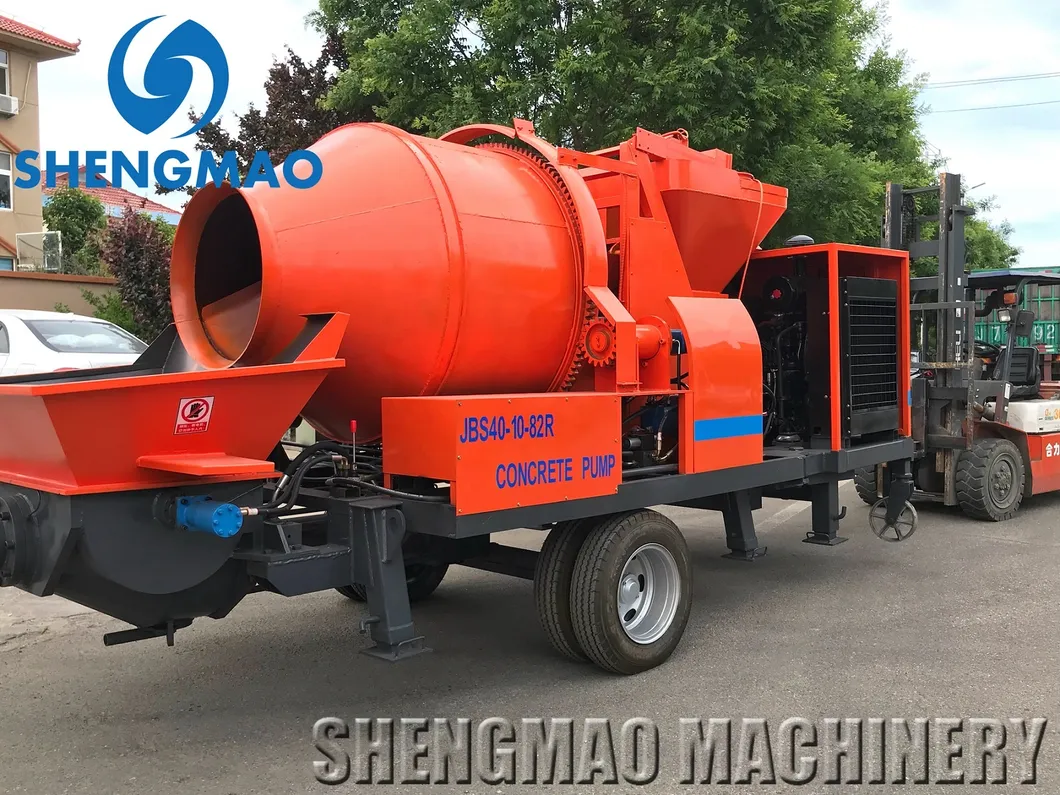

Concrete Pump with Mixer

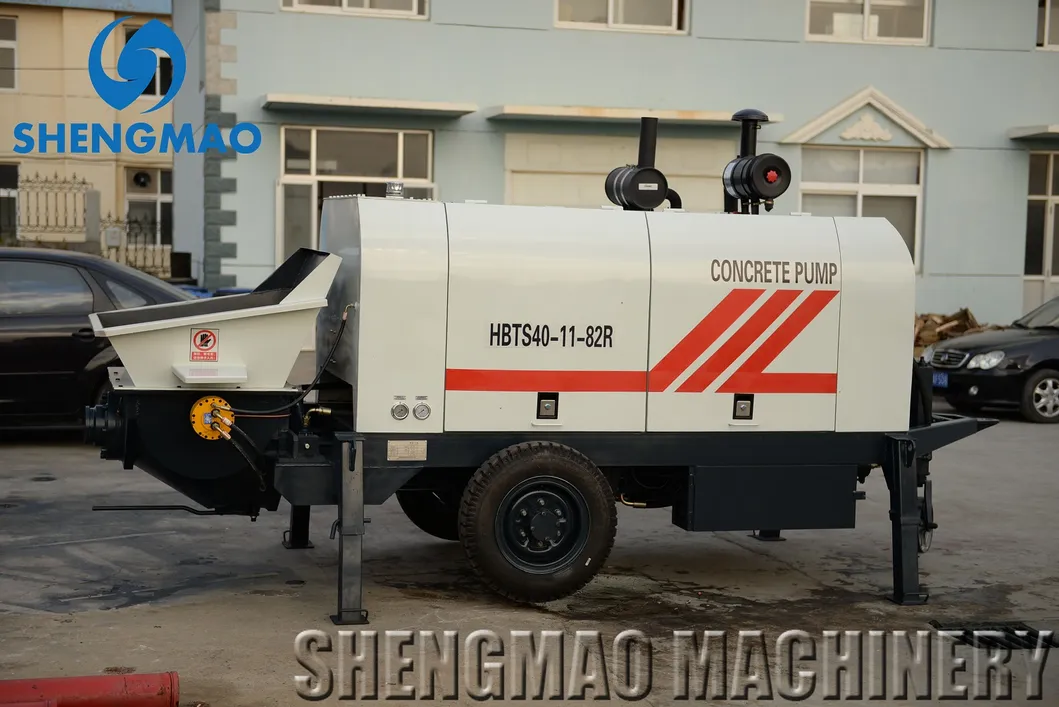

Concrete Pump

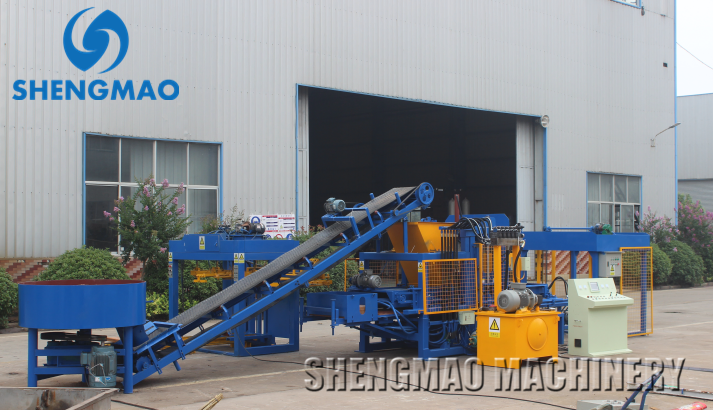

Brick Making Machine

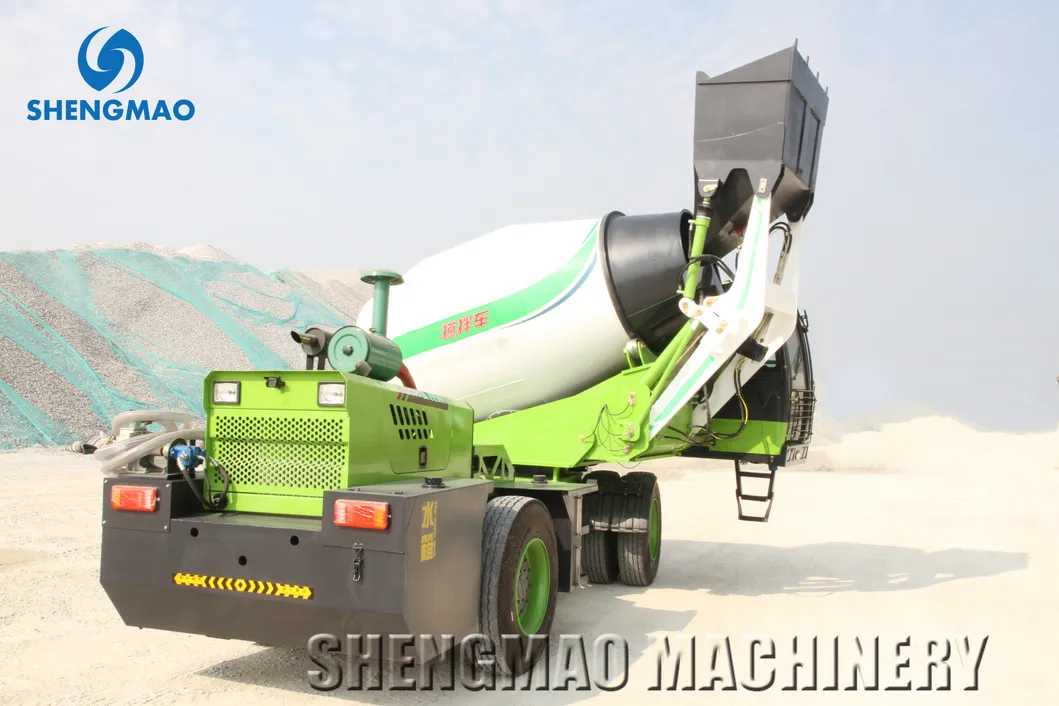

Self Loading Mixer

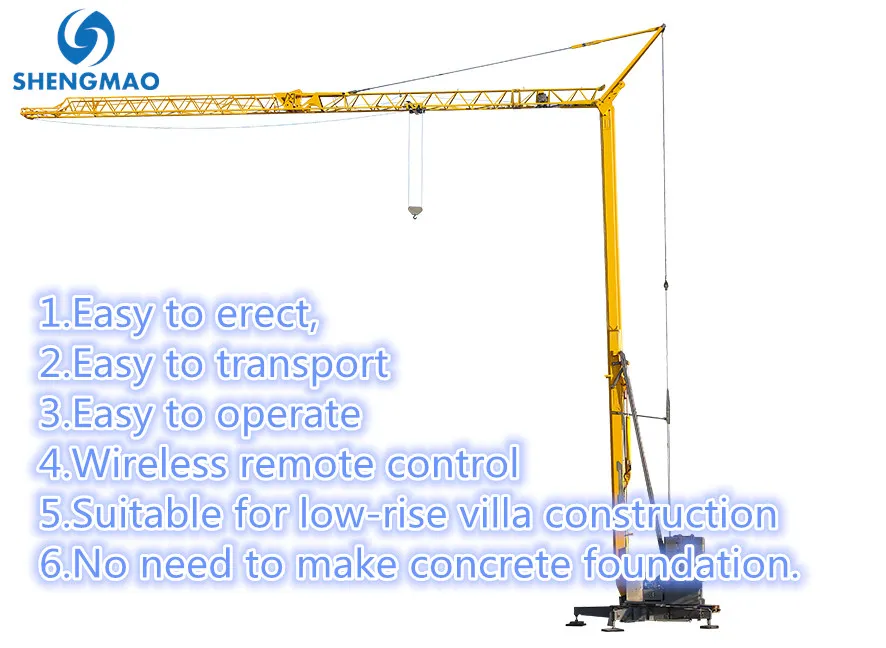

Mobile Tower Crane

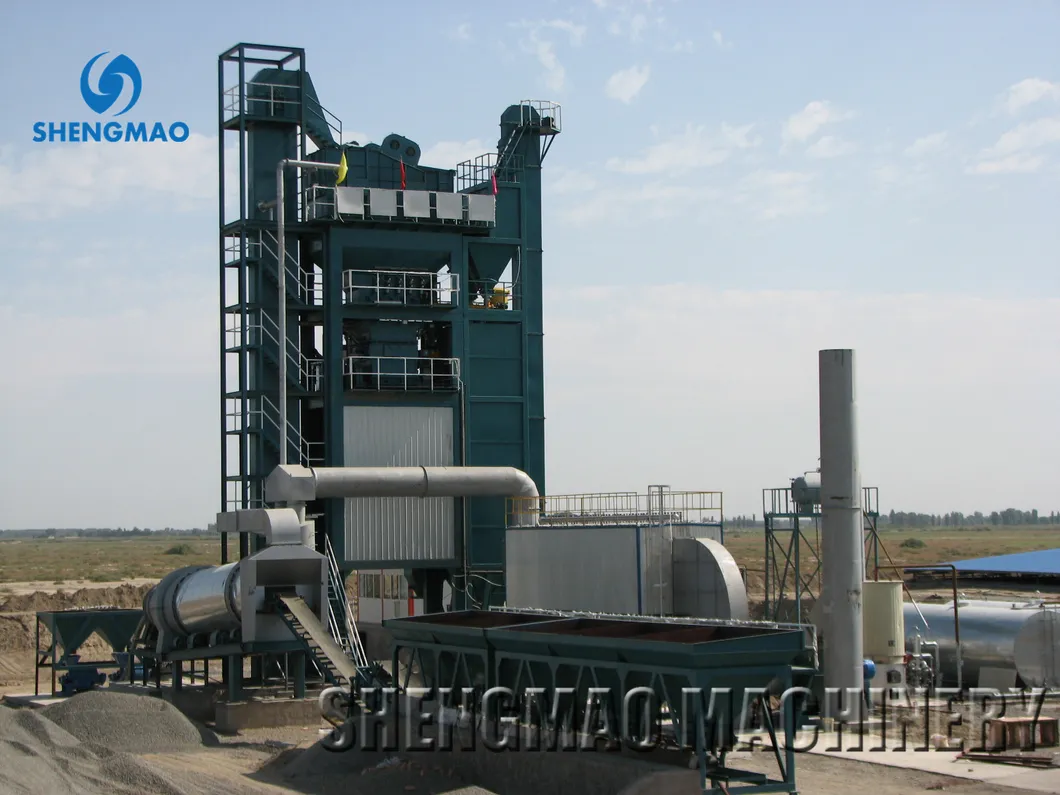

Asphalt Mixing Plant
