Product Description

📊

Basic Info

Model NO.

CH-SA

Material

Modified Bitumen

After-Sale Service

Online Technical Support

Thickness

2mm 3mm 4mm 5mm

Sales Mode

Professional Factory Since 1994

OEM

Available

Surface Material

PE/Aluminum Film/Sand/Granulars

Application

Construction Building Waterproofing

Package

With or Without Pallet Packing

Specification

1m x 10m /roll

HS Code

68071000

Capacity

10,000,000 PCS/Year

🏗️

Product Description

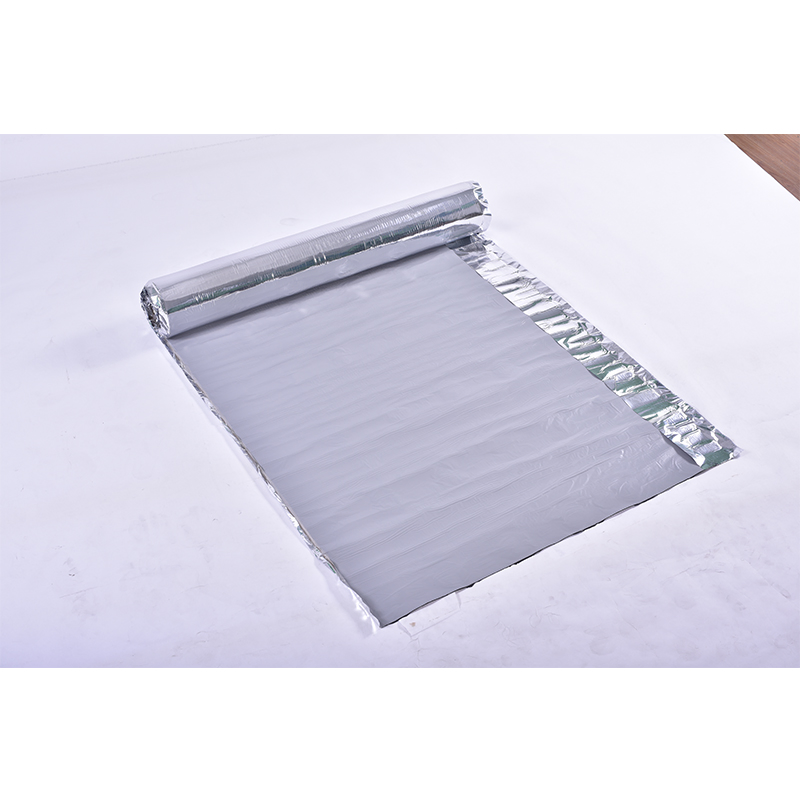

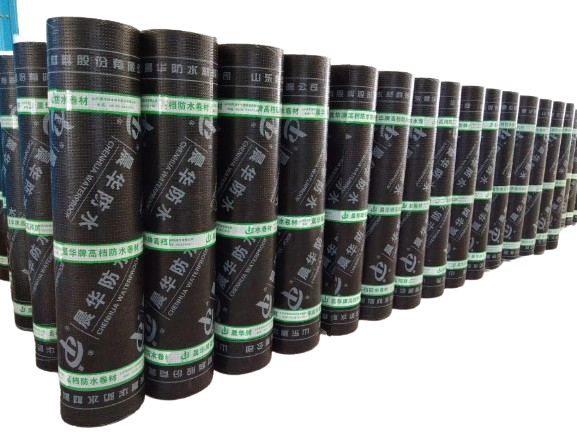

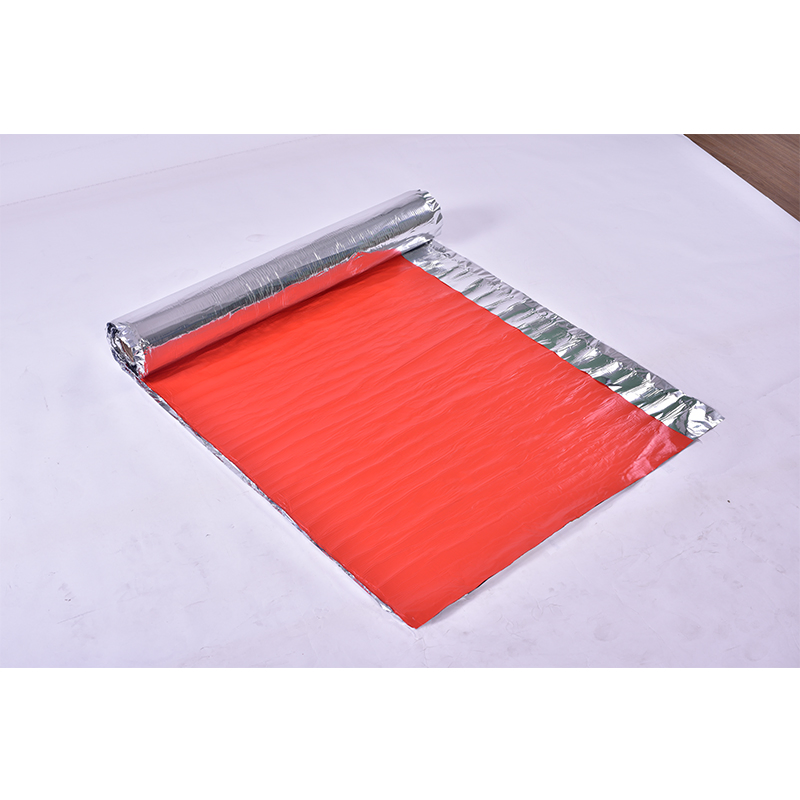

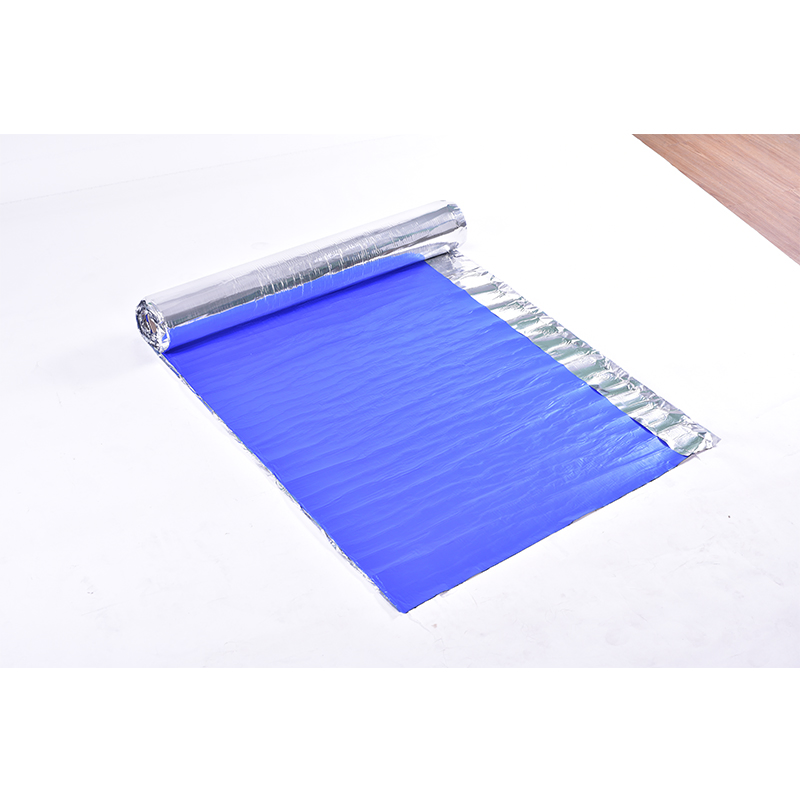

Torched-on Durable SBS Modified Bitumen Roofing Membrane

💎 Product Specification:

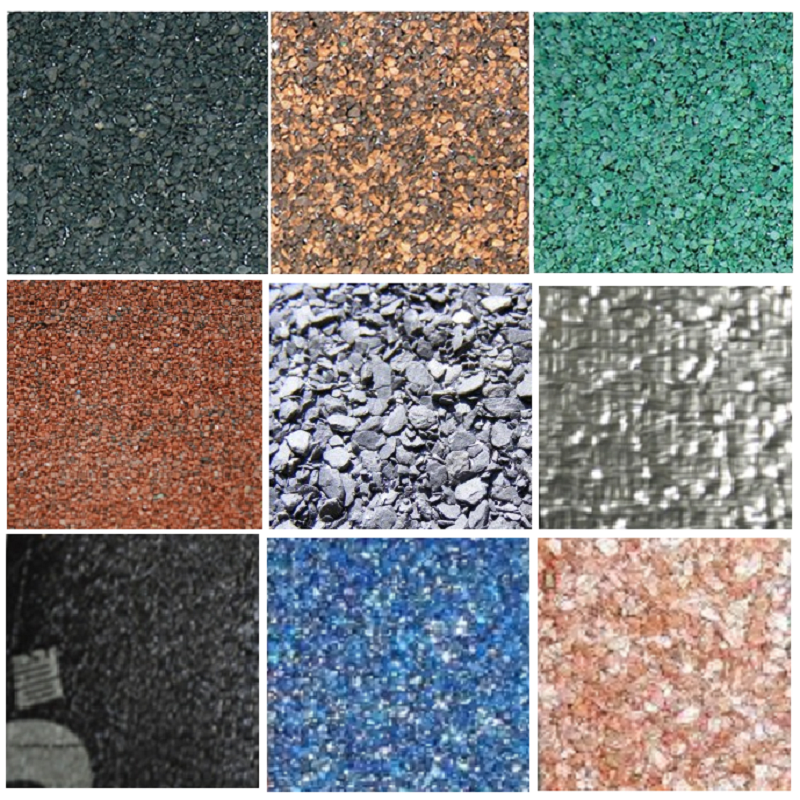

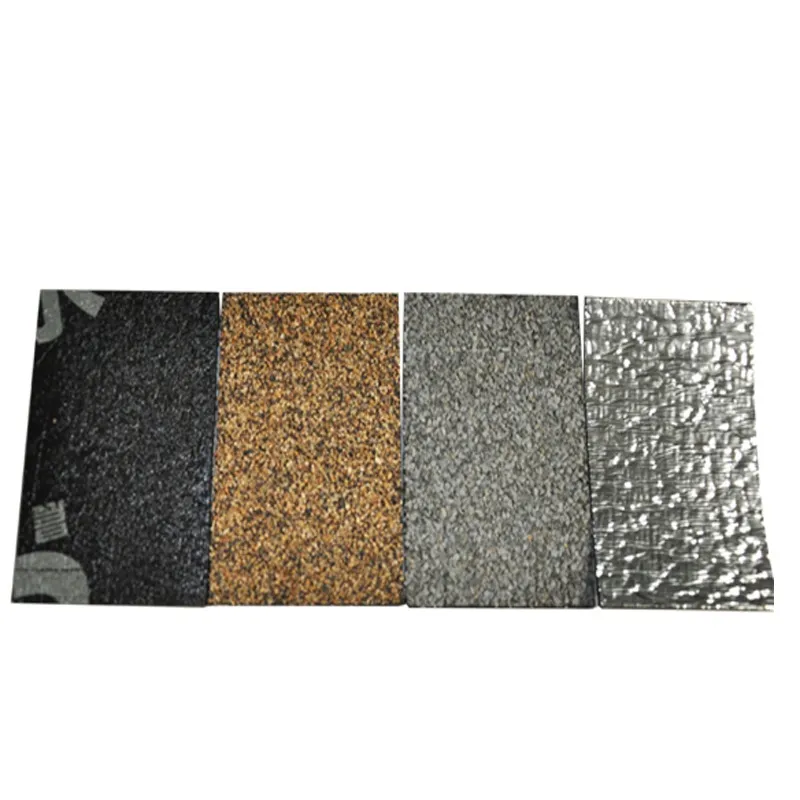

Top cover	Polyethylene film / Aluminum film or foil / Granulars (with different colors)
Thickness (mm)	1.5mm ~5mm
Width (cm)	100cm
Length (m)	10m or customized
Reinforcement	Polyester or Fiberglass Polyester: Tension & elongation Fiberglass: Tension only
Modifier	SBS (Cold resistance) or APP (Hot resistance)

🌍

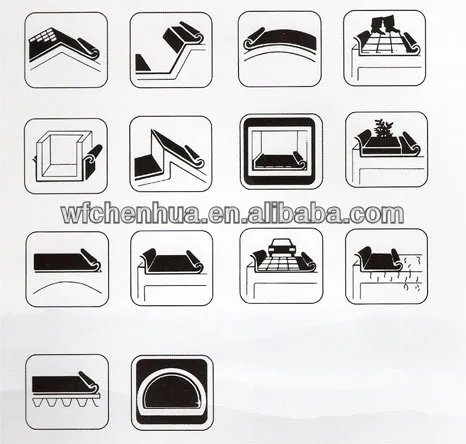

Application Scope

Exposed Places	Roof, Parking areas, Tunnels, Reservoirs, Bridges, Balcony...
Unexposed Places	Basement, Toilet, Underground, Wall...

🛠️

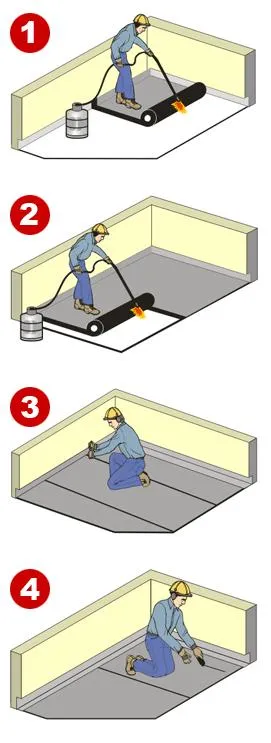

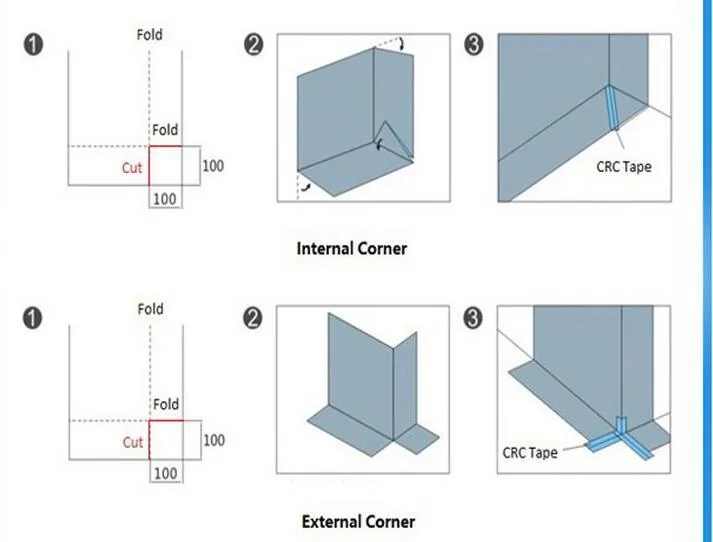

Application Method

1. Ensure the roof deck is smooth, clean, and dry (Moisture < 9%), then apply bitumen paint homogeneously.

2. Heating and Melting Method: Heat the membrane and roof surface until nearly melted, then install with 5-10cm overlaps.

3. Cold Adhesive Method: Pour cold adhesive homogeneously then roll the membrane to stick it fully.

4. Inspection: Post-application inspection is required to ensure no air bubbles or folds.

✅

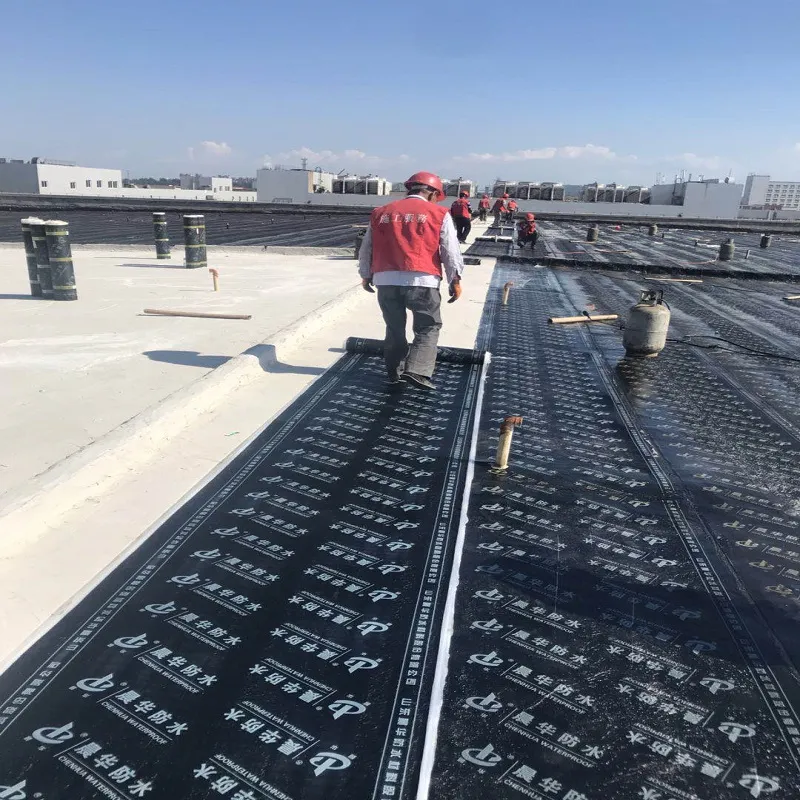

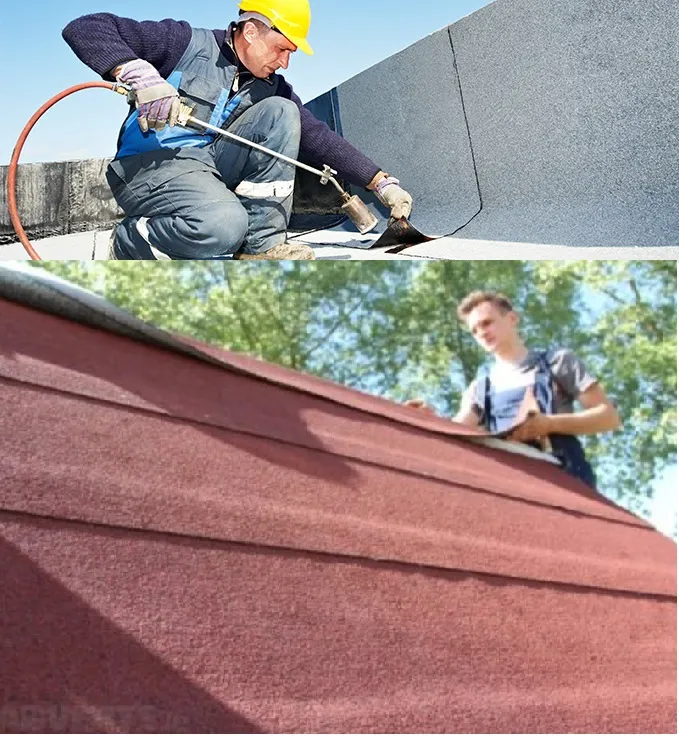

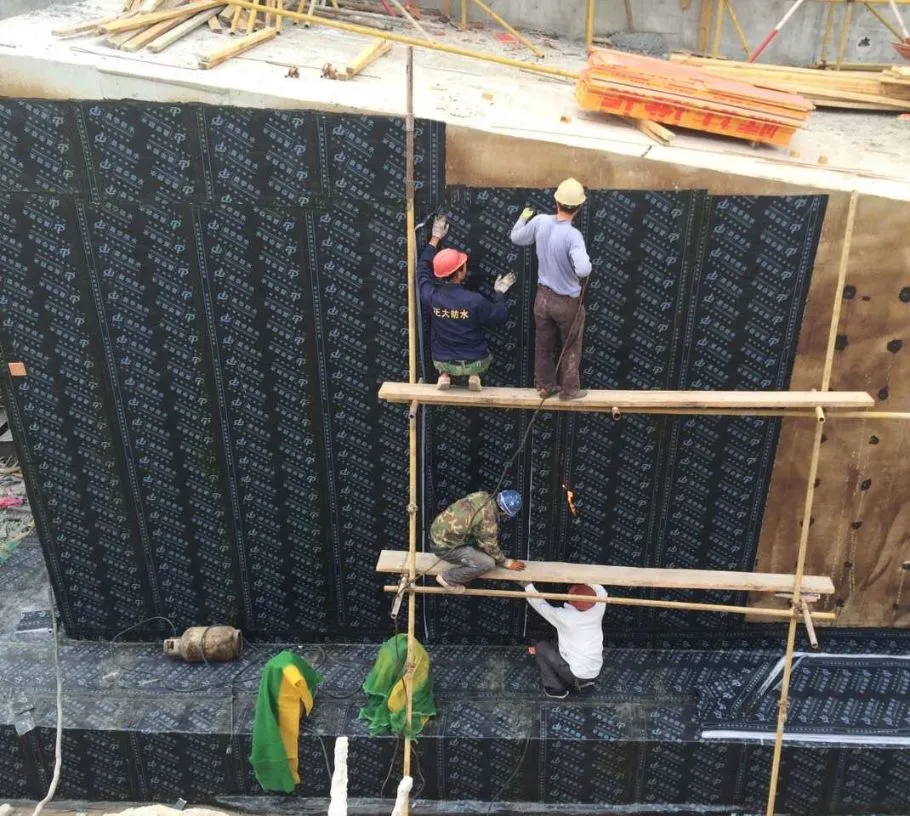

Application Cases

🚢

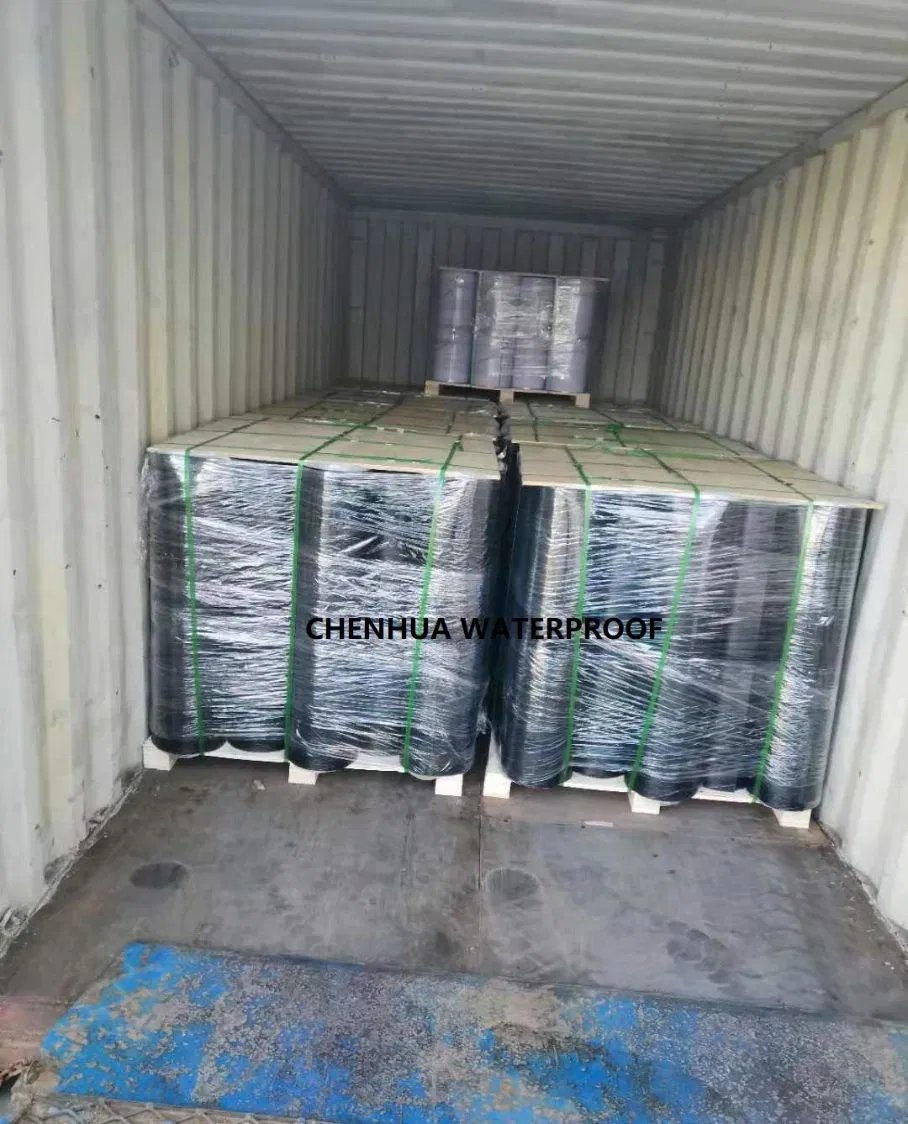

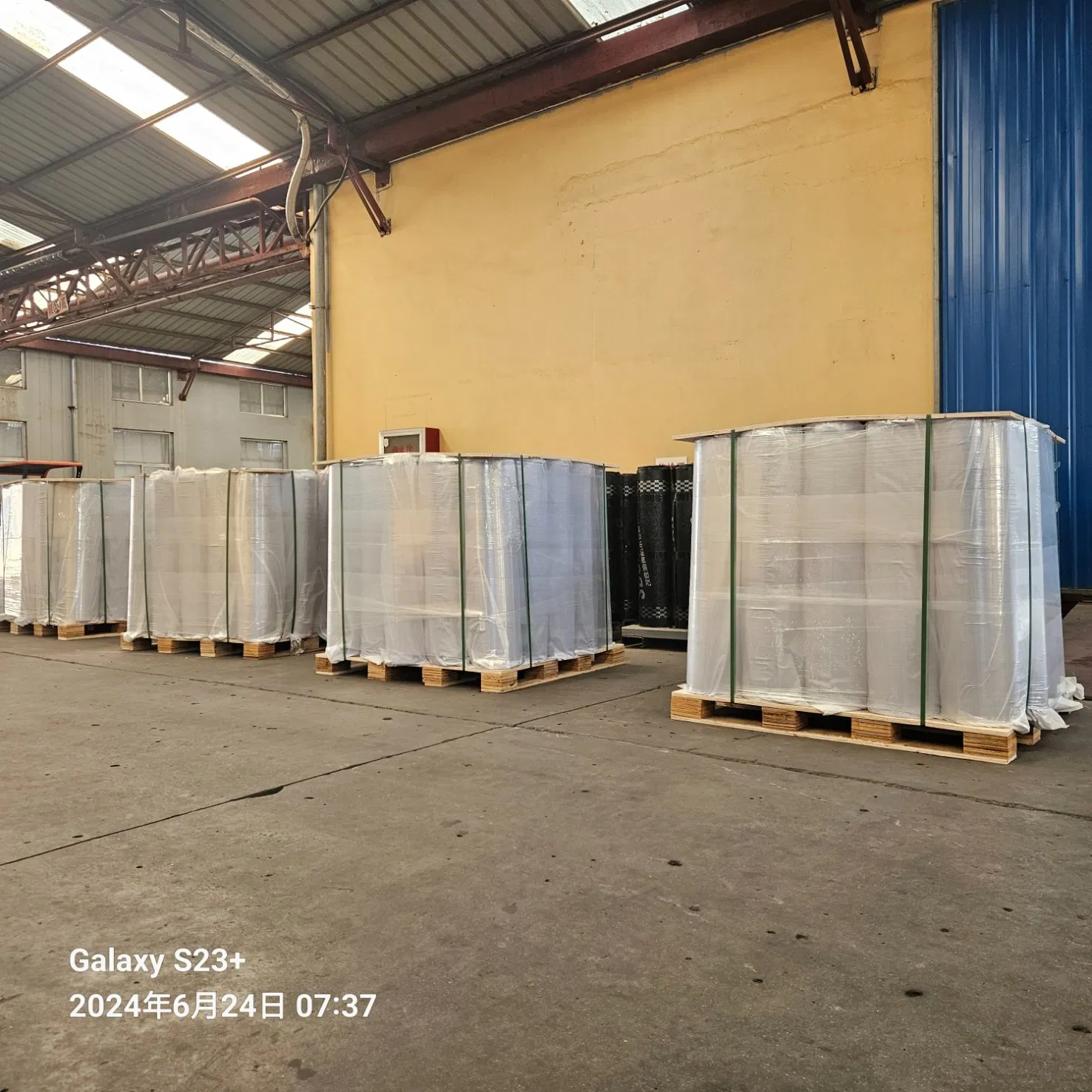

Packing & Transportation

LCL	With seaworthy plywood pallet packing
20FCL	Limited weight: 28 tons. With or without pallets
40GP	Limited weight: 28 tons. With or without pallets

🏢

About Our Factory

Established in 1994, our professional manufacturing facility is located in a major construction waterproofing hub. With three specialized factories covering 70,000 square meters and over 300 skilled employees, we provide state-of-the-art technology and superior quality service.

Main Product Lines:

Polyester & Compound bases for bitumen membranes
SBS/APP bitumen roofing materials
Self-adhesive bitumen membranes and tapes
Butyl waterproof sealing solutions
PVC & TPO waterproofing membranes
Waterproof production machinery

❓

Frequently Asked Questions

What is the difference between SBS and APP modified bitumen?

SBS (Styrene-Butadiene-Styrene) modifier increases the cold resistance, making it ideal for colder climates. APP (Atactic Polypropylene) modifier increases hot resistance, suitable for regions with higher temperatures.

Which reinforcement material should I choose?

If your local temperature changes significantly throughout the year, Polyester is recommended due to its superior elongation properties. Fiberglass is best for projects requiring high tension without the need for elongation.

What surface materials are available for the membrane?

We offer a variety of finishes including Polyethylene film, Aluminum film or foil, Sand, and Granulars in different colors to suit various aesthetic and functional needs.

What are the primary application methods?

The membrane can be installed using either the "Torch-on" (heating and melting) method for a fully bonded seal or the "Cold Adhesive" method depending on project requirements and safety constraints.

Can this membrane be used for underground waterproofing?

Yes, it is highly suitable for unexposed places such as basements, toilets, underground structures, and foundation walls.

What is the standard thickness and size of a roll?

The standard thickness ranges from 1.5mm to 5mm. A typical roll is 1 meter wide and 10 meters long, though lengths can be customized.
