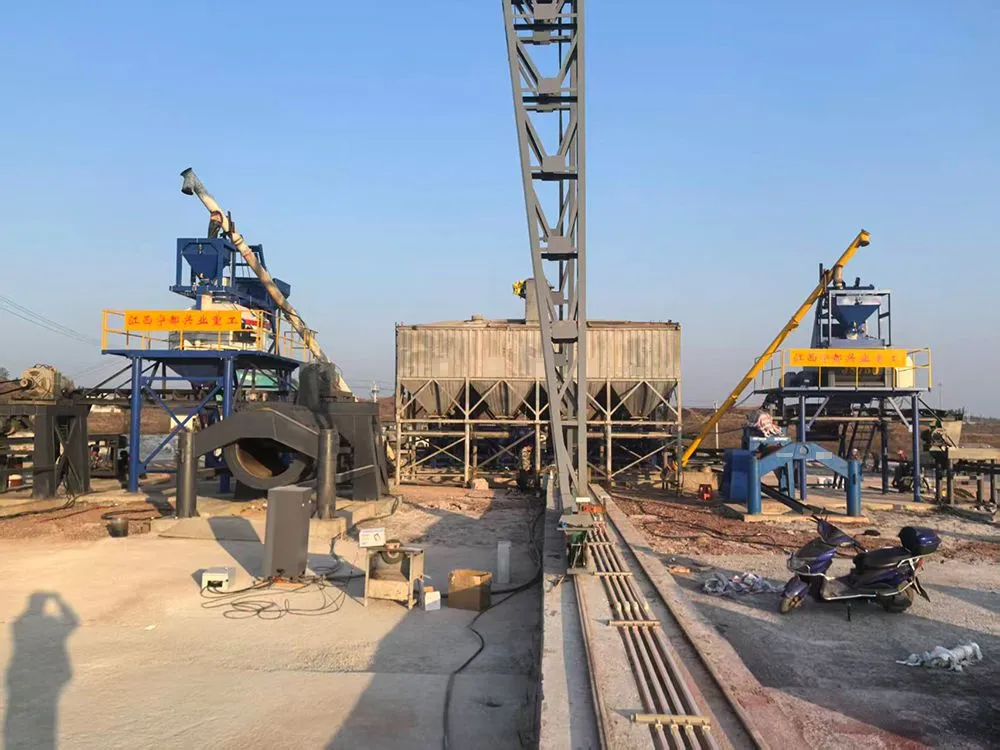

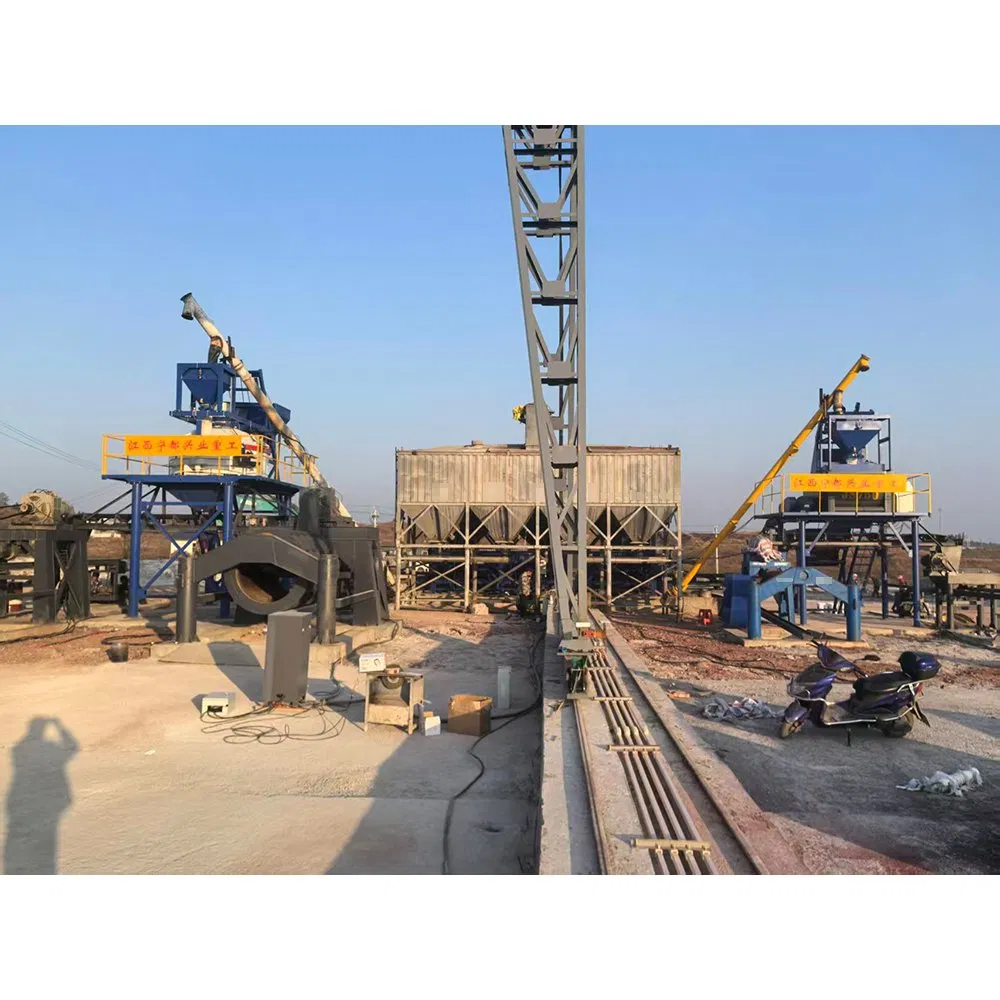

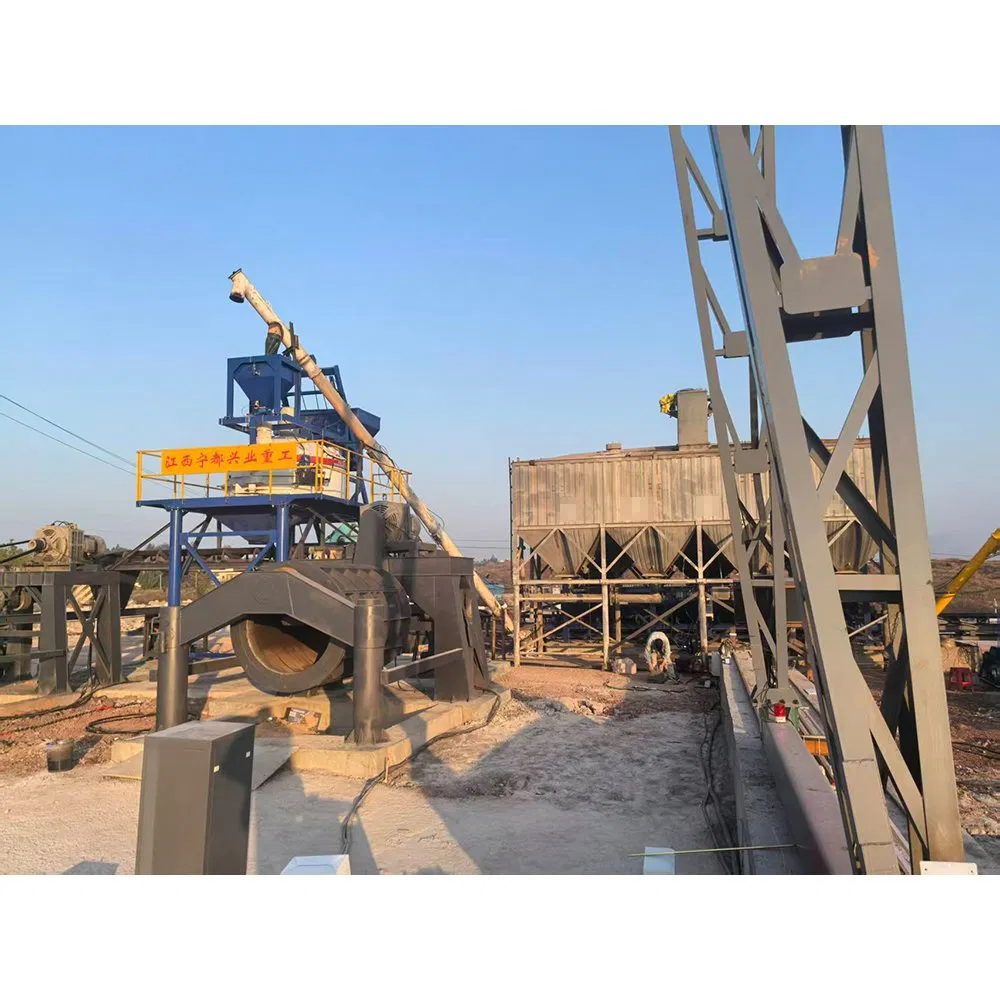

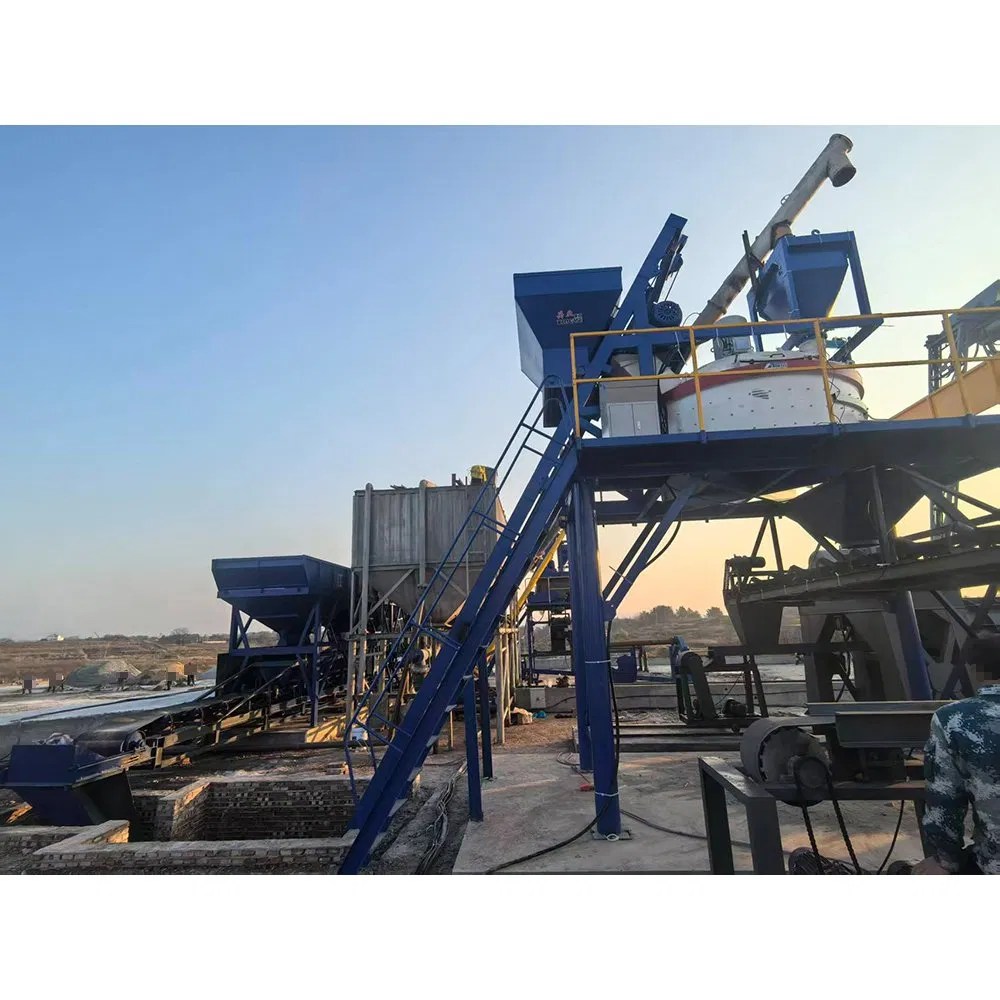

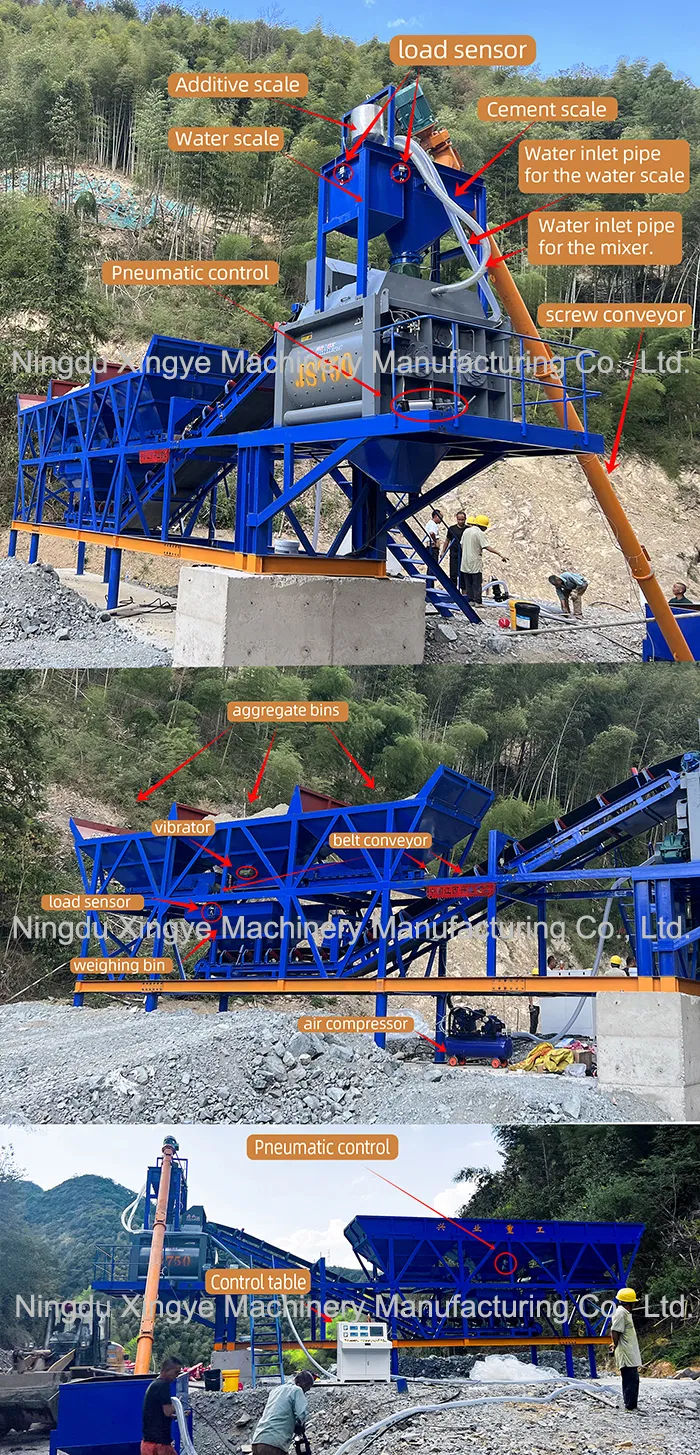

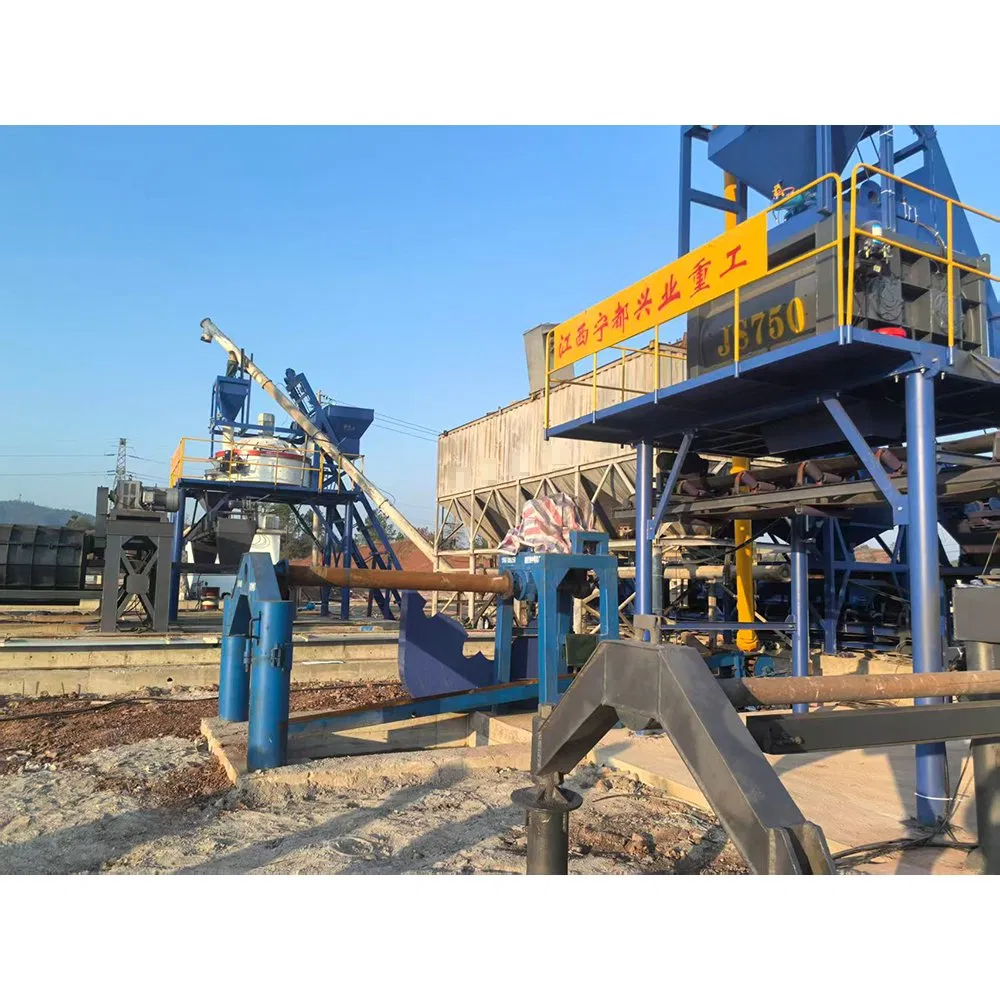

This is a high-efficiency automatic concrete mixing plant with two independent production lines, equipped with JS750 twin-shaft compulsory mixer and planetary vertical shaft mixer as main mixing hosts. Adopting three-bin centralized aggregate weighing and belt conveyor feeding mode, it realizes accurate batching, efficient conveying and uniform mixing, with double production capacity, stable performance and flexible application. It is a professional concrete production equipment for medium and large concrete construction projects.

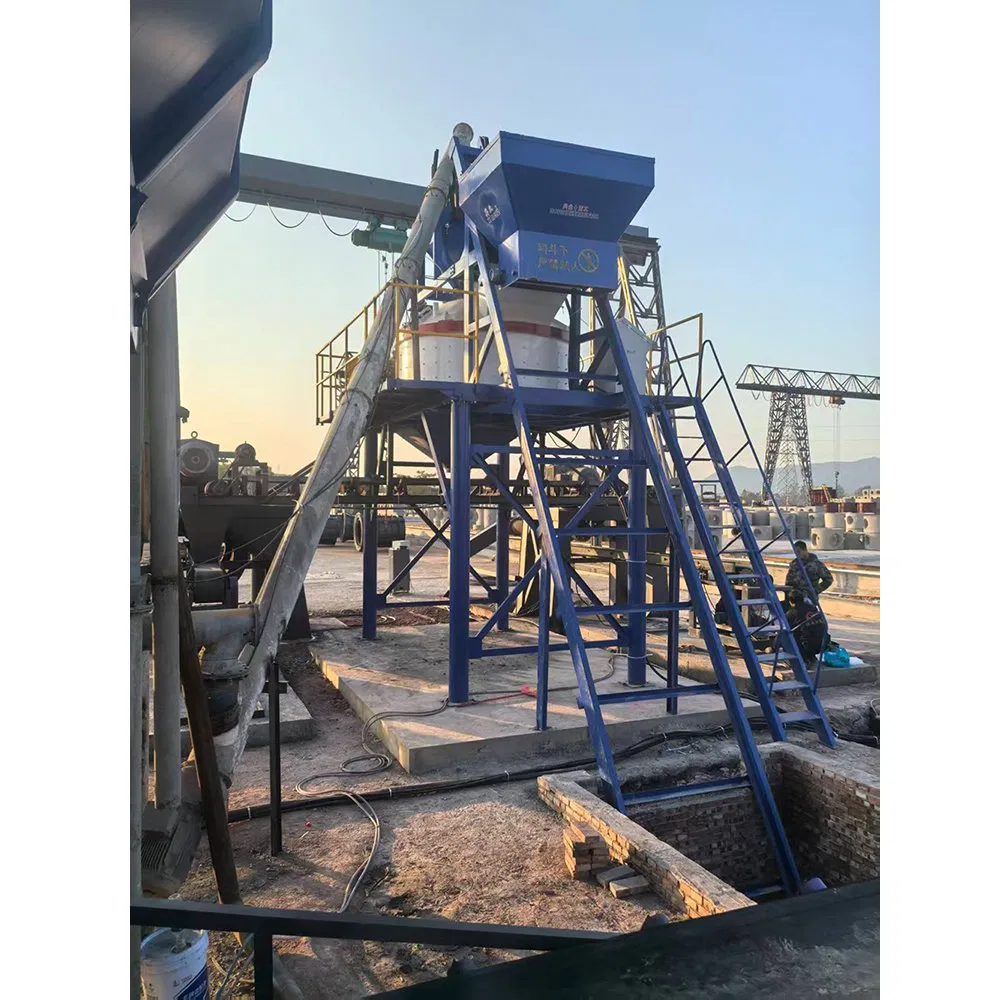

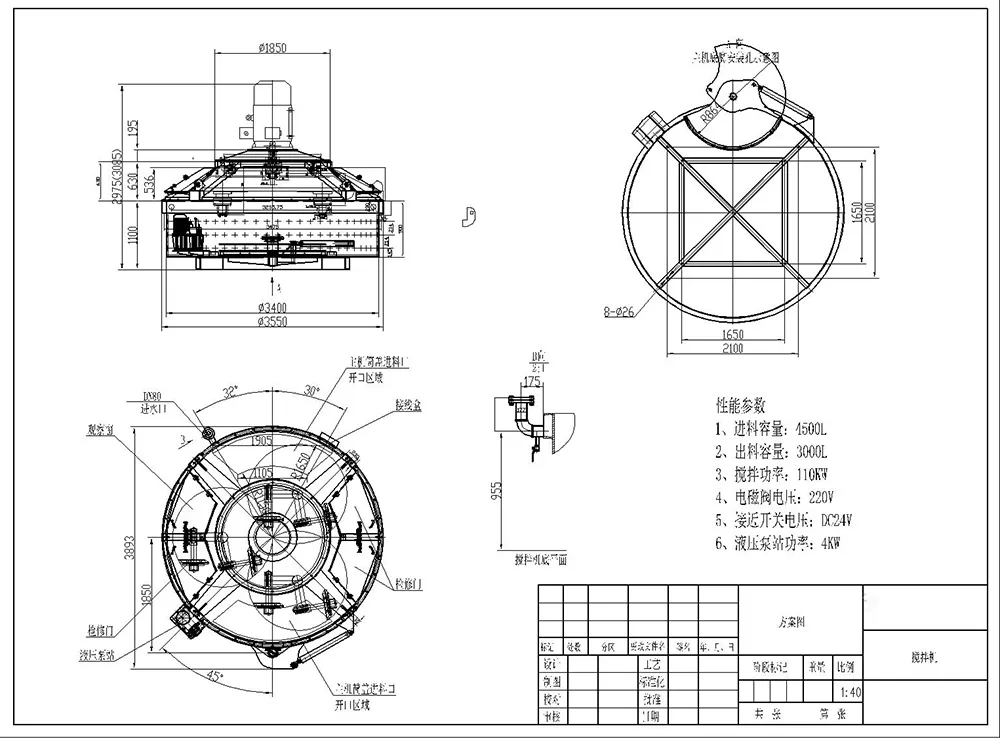

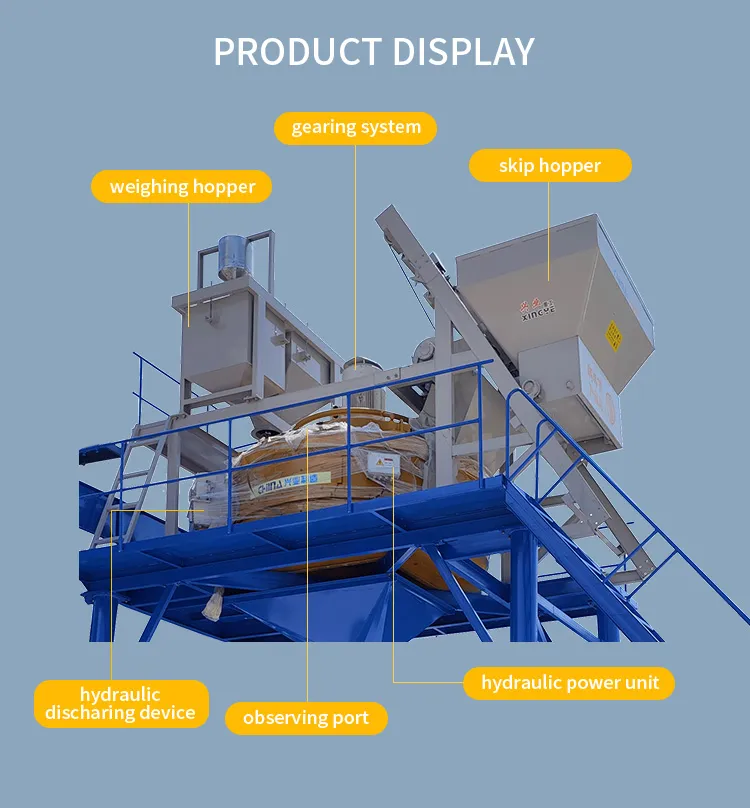

The vertical shaft planetary concrete mixer with hopper is a high-performance integrated equipment. Its unique planetary mixing structure enables the stirring blades to make dual movements of autorotation and revolution, realizing 360° three-dimensional and dead-angle-free mixing.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 | HZS120 |
|---|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 2000 |
| Max Productivity (m³/h) | 25 | 35 | 50 | 60 | 90 | 120 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | Belt Conveyor | Belt Conveyor | Belt Conveyor |
| Max Aggregate Size (mm) | ≤60 | ≤80 | ≤80 | ≤80 | ≤80 | ≤120 |
| Total Installed Power (kw) | 60 | 78.5 | 111 | 145 | 198.06 | 210 |

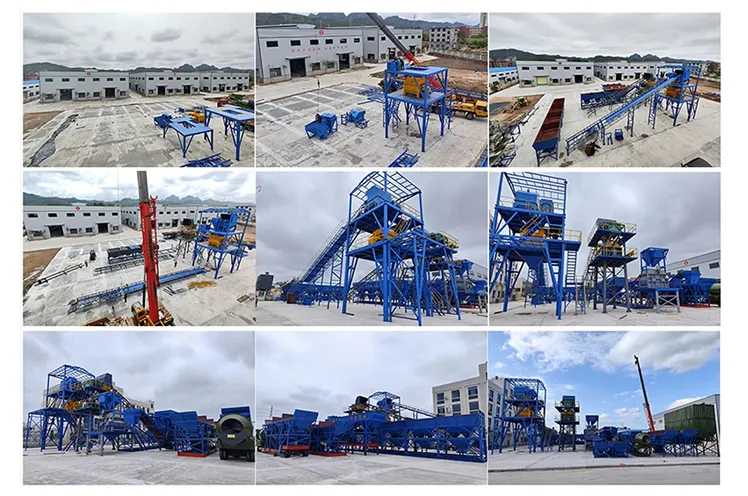

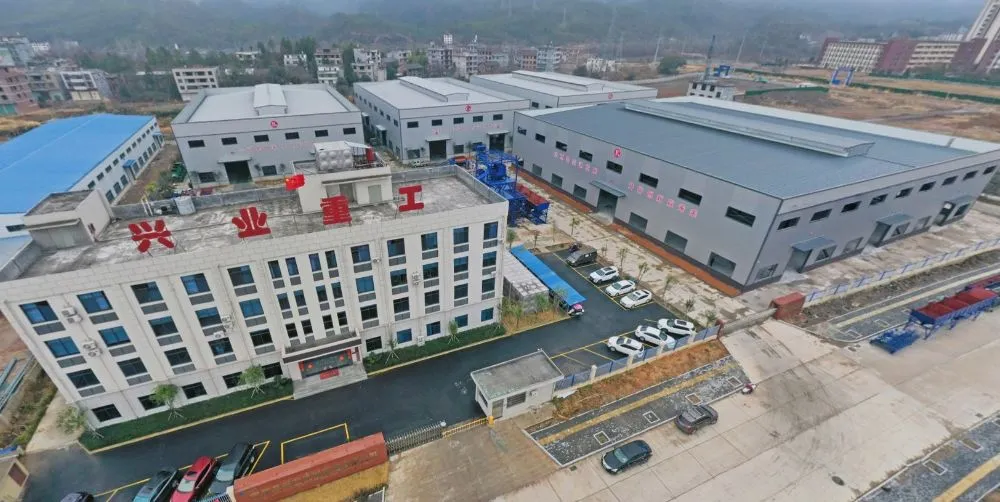

We are a professional concrete batching plant manufacturer with 15 years of production experience. As a leading manufacturer in the region, our facility spans a total area of 20,000 square meters.
Our professional design team creates customized concrete mixing equipment for diverse global requirements. Supported by a strict quality inspection team and an excellent after-sales installation group, our products are exported worldwide.
