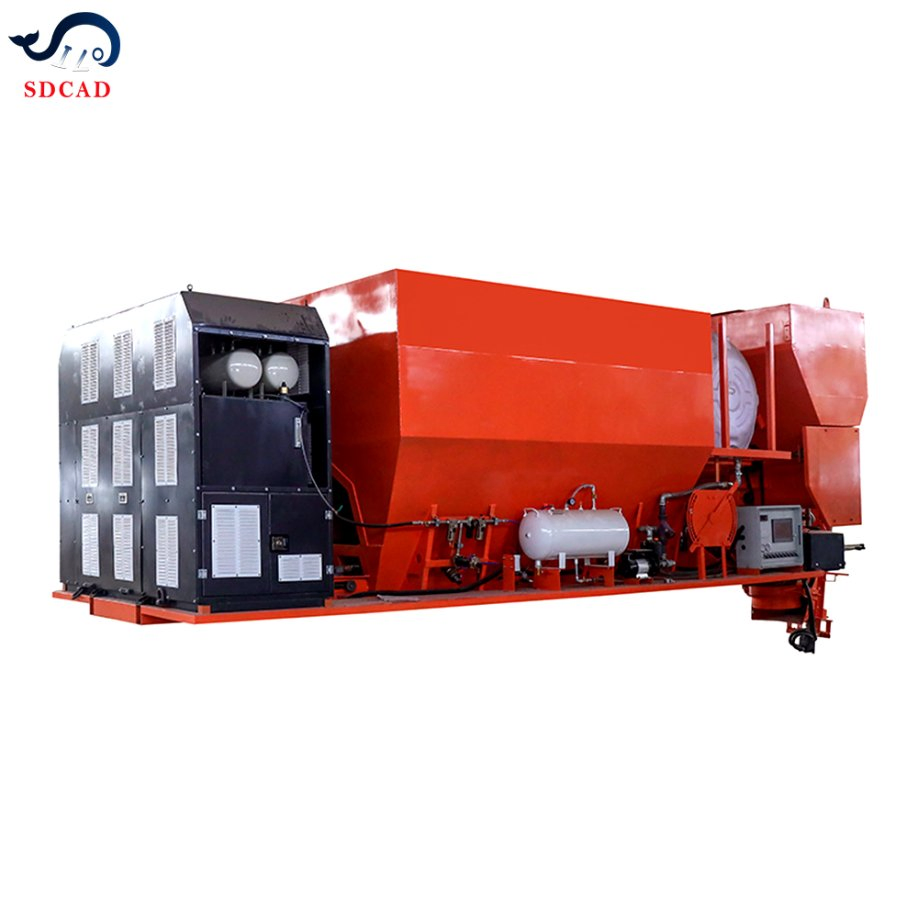

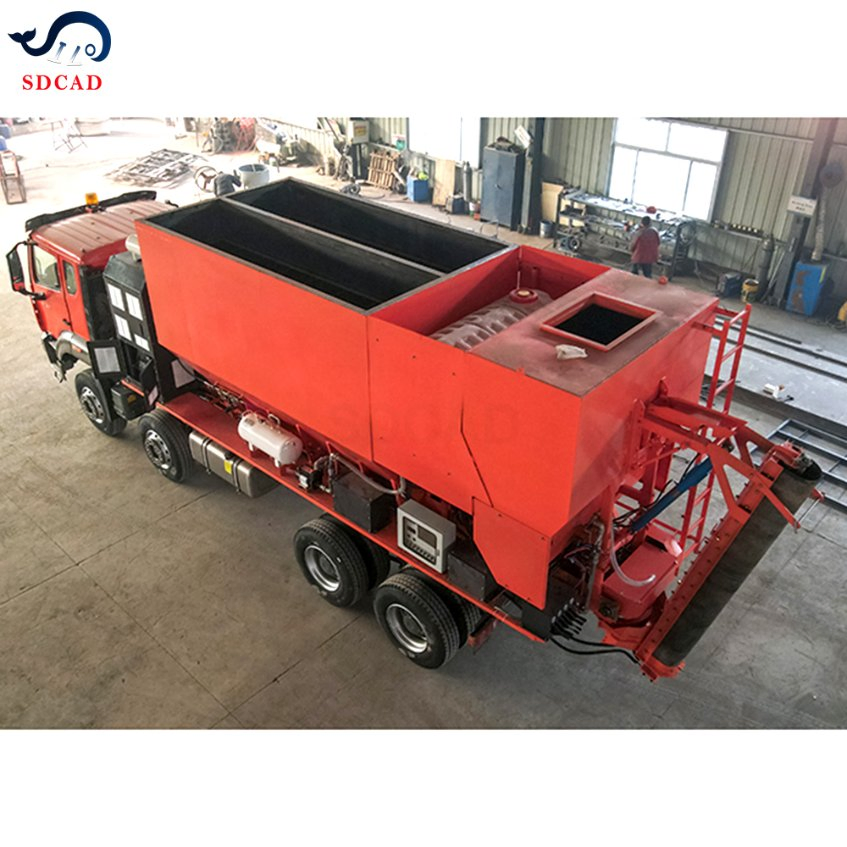

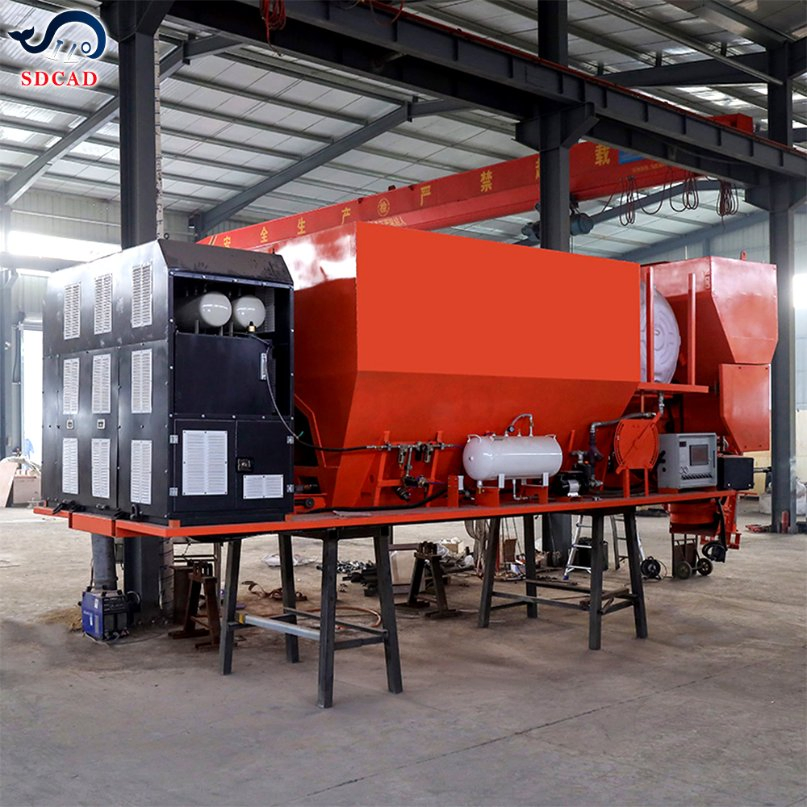

Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
1 / 5
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply
Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply

Truck Based Volumetric Concrete Mixing Plant for Continuous on Site Supply

Customization: Available
After-sales Service: Provide a Complete Installation and Operation Manu
Warranty: 1 Year
Send Inquiry

Product Description

📋
Basic Info
Model NO.
CAD 03~12
Type
Concrete Mixing Truck
Shotcrete Type
Wet
Machining Process
Customized
Productivity
1t/Min
Certification
ISO9001: 2000, CE
Condition
New
Diesel Engine
88kw
Advantage
Produce Fresh Concrete Within 5 Minutes
Feature
Vehicle Mounted Mobile Concrete Mixing Plant
Control
Computer Control
Production Capacity
5000 Sets/Month
📦
Packaging & Delivery
Package Size
605.80cm * 243.80cm * 259.10cm
Package Gross Weight
8000.000kg
Lead Time
30 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)
Truck Based Volumetric Concrete Mixing Plant
📊
Specification
Model CAD03 CAD08 CAD12
Max Capacity3 m³ & 15 m³/h8 m³ & 22 m³/h12 m³ & 22 m³/h
Sand bin2.5 m³4.5 m³6.5 m³
Stone bin3.0 m³5.5 m³8.5 m³
Cement bin2 tons3.5 tons5 tons
Additive tank120L160L160L
Weighing systemVolumetricVolumetricVolumetric
Control systemComputer and ManualComputer and ManualComputer and Manual
Engine (upper part)Diesel engine 66KWEngine for upper partEngine for upper part
💡
Product Description

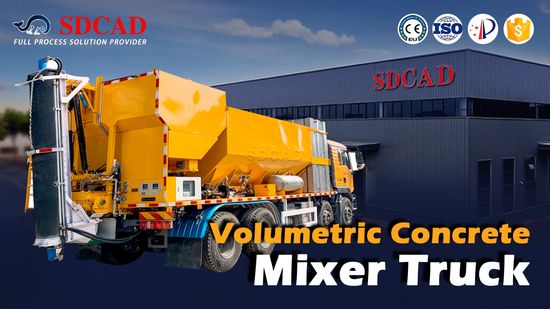

Video Cover
Volumetric concrete mixer is essentially a mobile truck mixer and batching plant rolled into one. All the raw materials are stored in separate compartments and these are then metered and mixed into fresh concrete when and where it is needed. This means there is no expensive waste of materials, as the unmixed product remains usable indefinitely.
Volumetric Concrete Mixing Plant

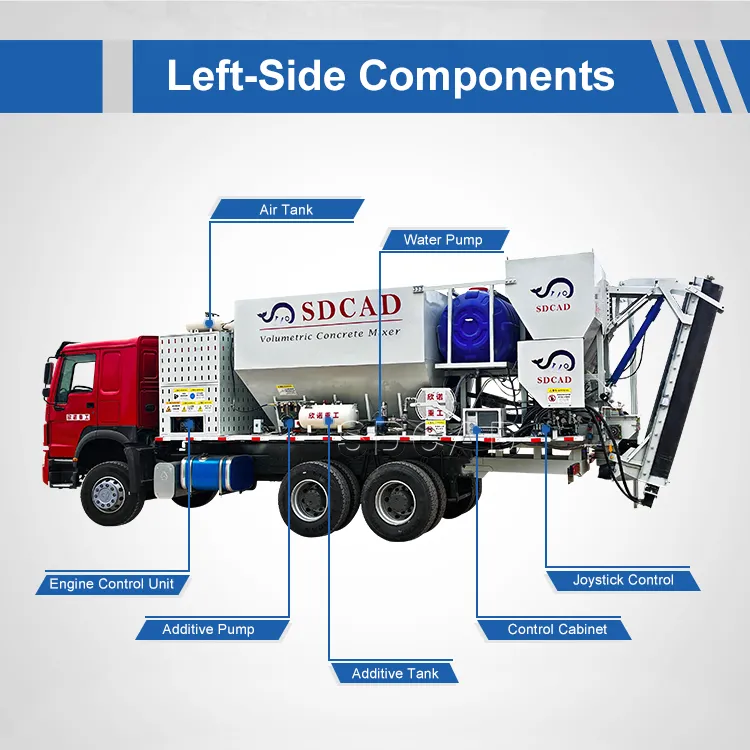

Mixing Process

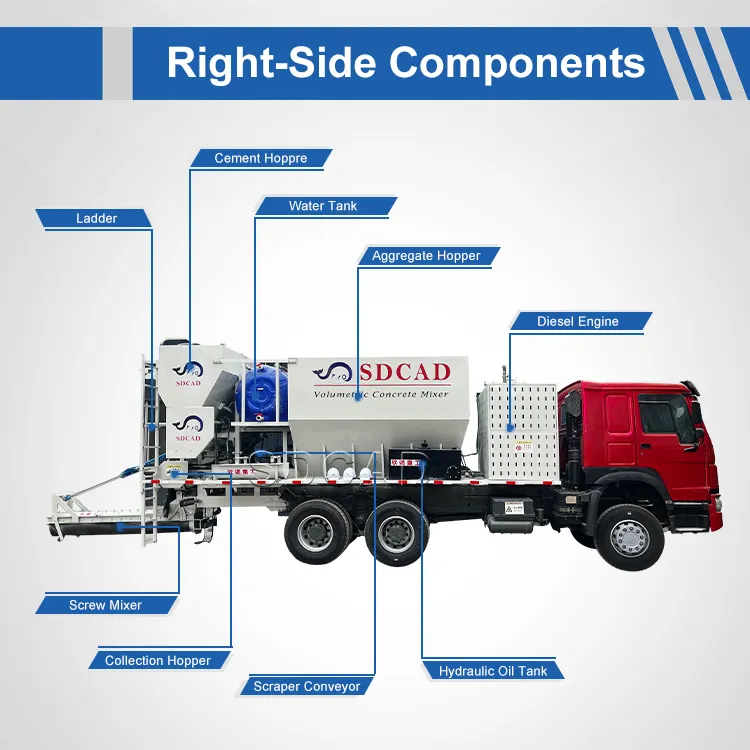

Control System

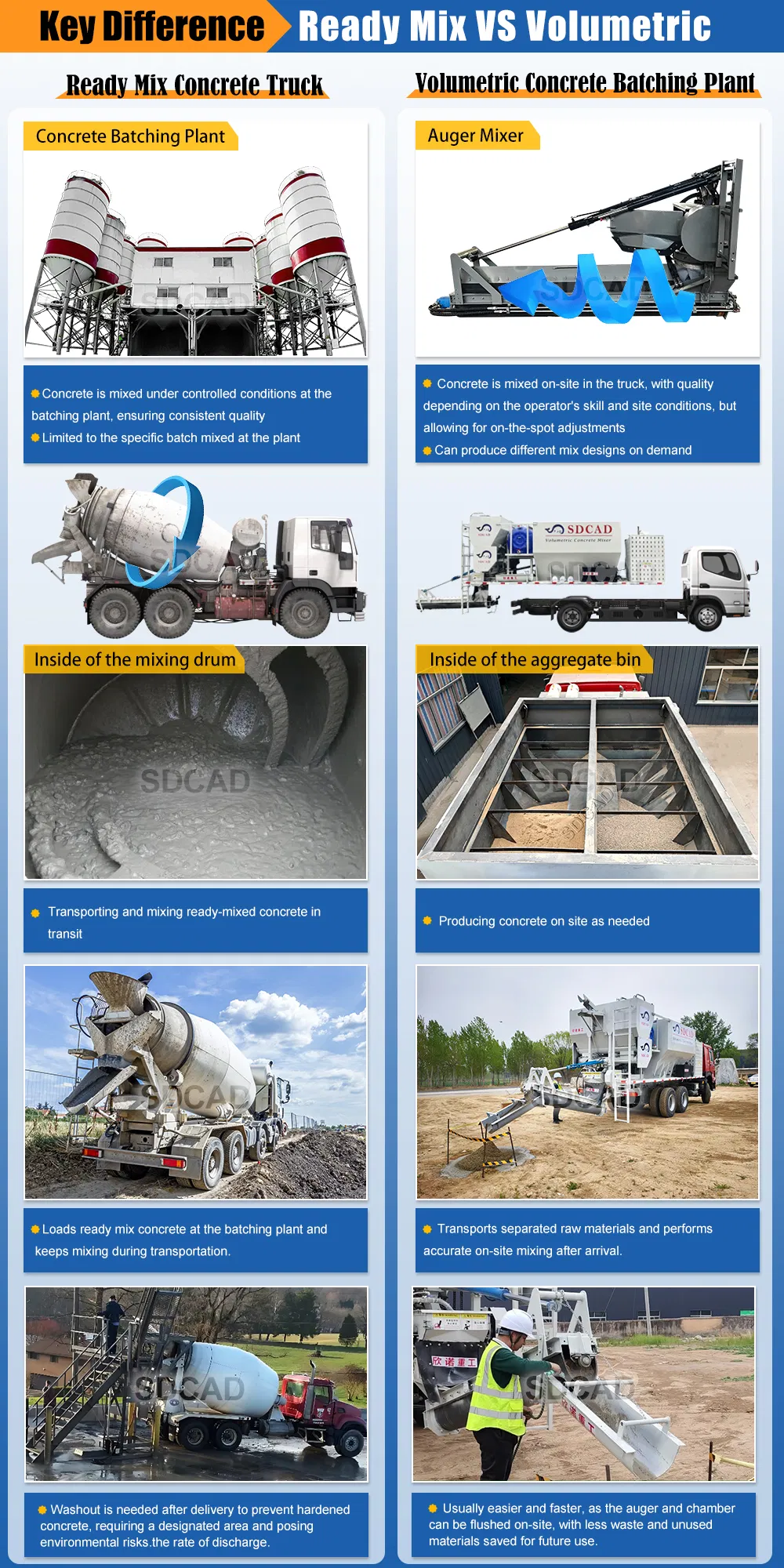

Supply Detail

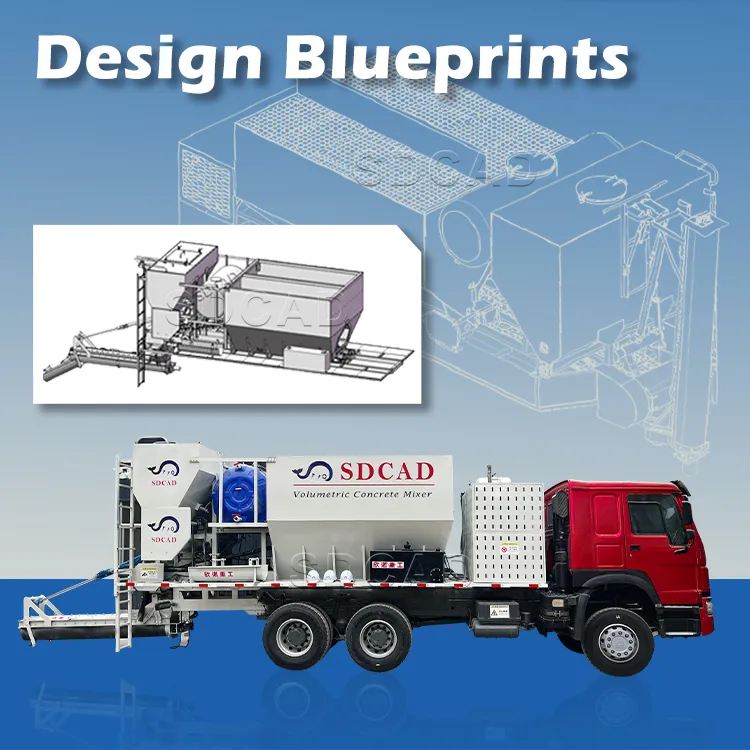

Mobile Plant

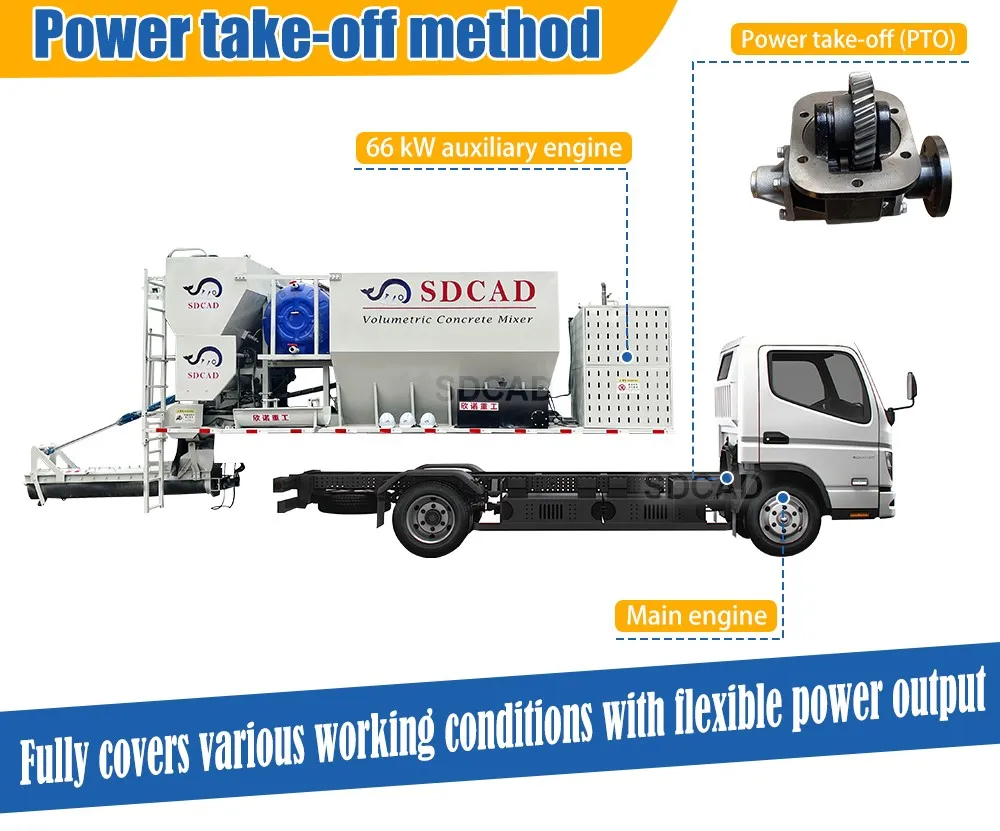

Continuous Supply

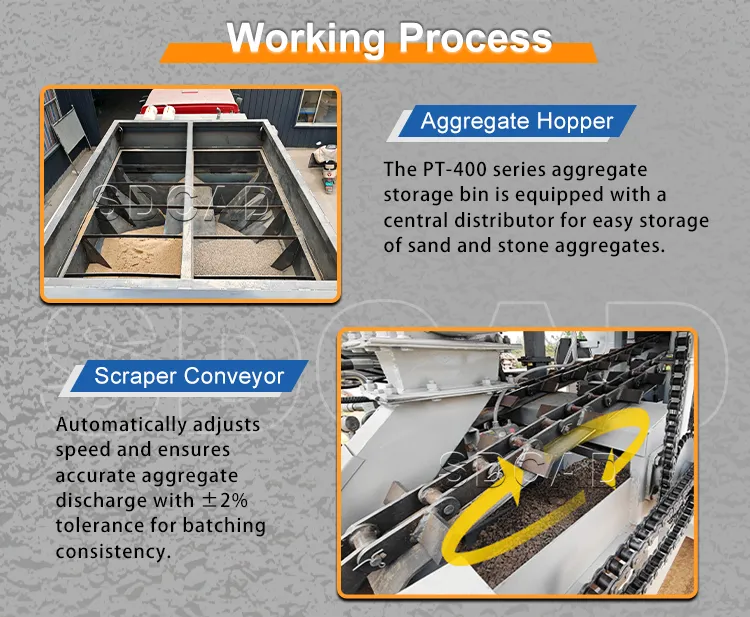

Truck Mounted

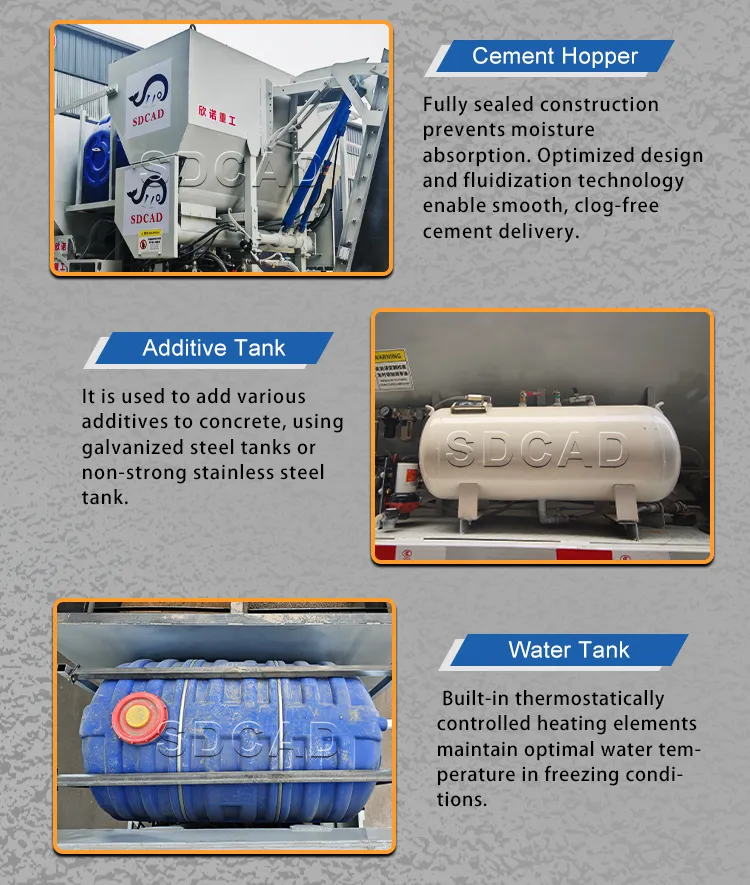

Operation View

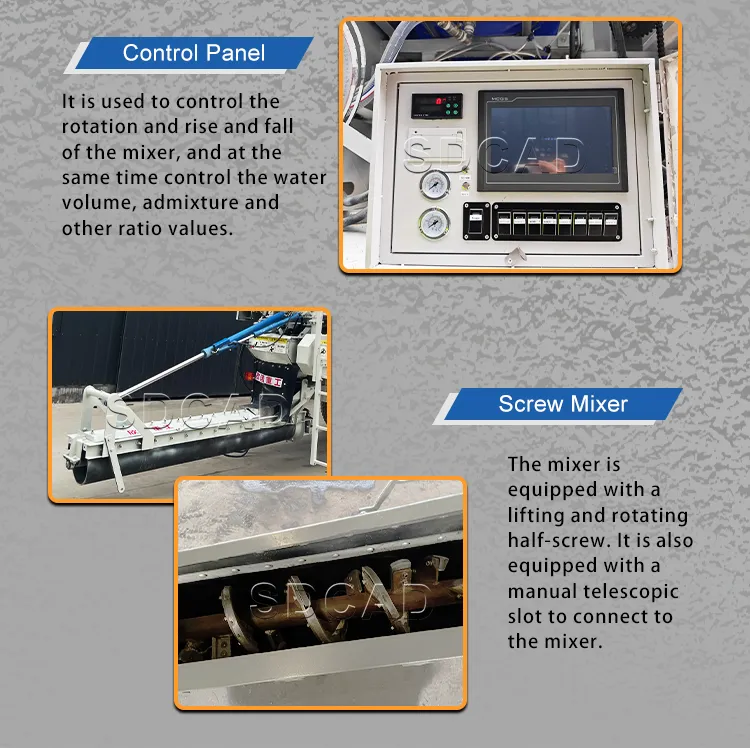

Output View
📸
Production Shot
Production Shot 1

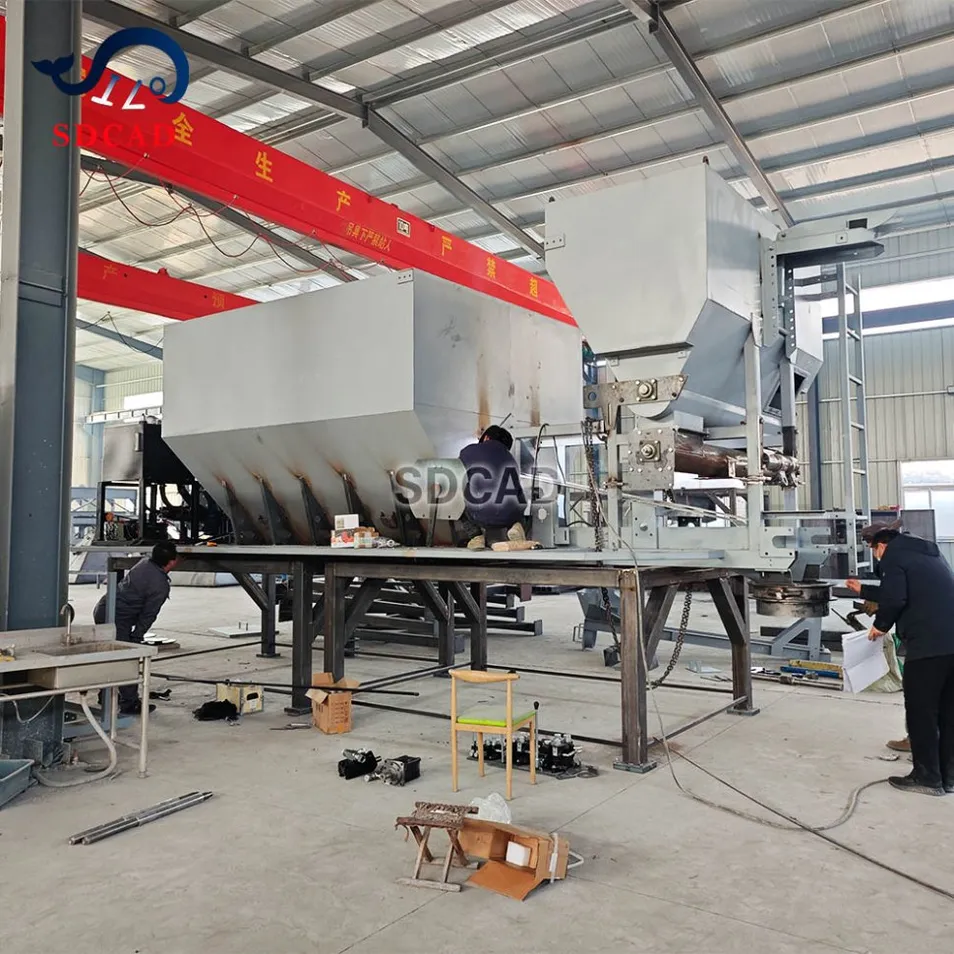

Production Shot 2

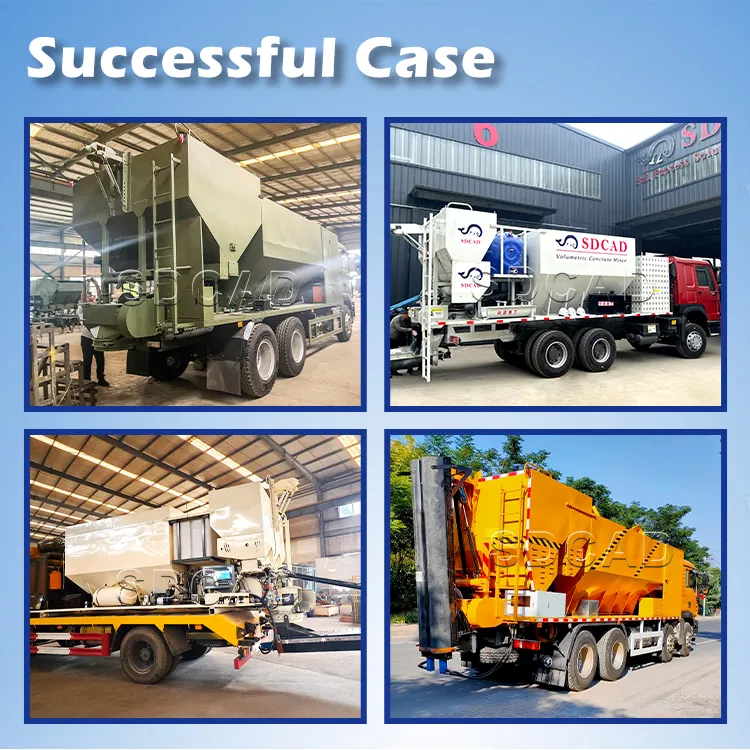

Production Shot 3
Production Shot 4

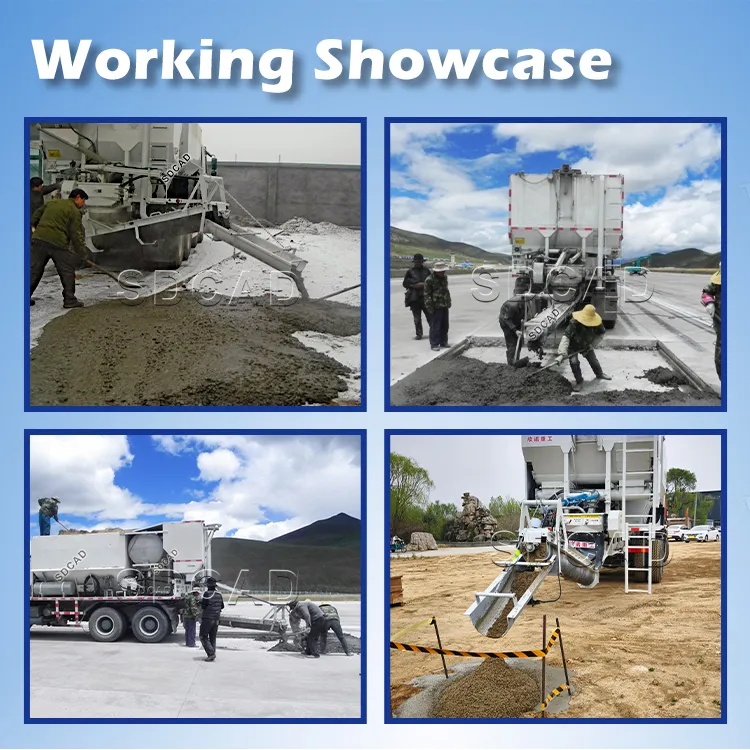

Production Shot 5
🛠️
Full Process Solution Provider

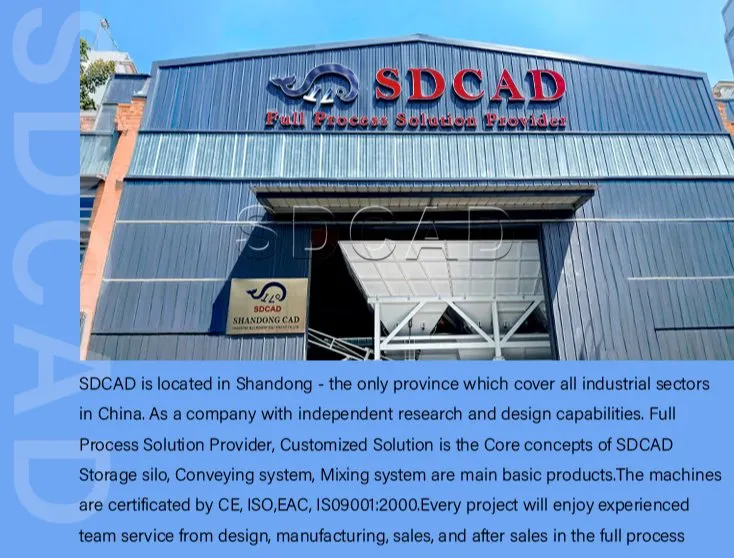

Solution Flow
Complete Solution
❓
Frequently Asked Questions
Are you an original manufacturer?
Yes. We are a factory specializing in construction machinery in China with complete concrete mixing, silo storage, and conveying products to meet your needs.
What kind of payment terms can be accepted?
Normally, we can work on T/T terms or L/C terms.
Which Incoterms 2010 can we work with?
Normally we work on EXW, FOB, CFR, CIF, and DAP terms.
What about the delivery time?
The delivery time is typically 7-30 days after receiving the deposit.
What about the warranty period?
The warranty period is generally 12 months after delivery.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 unit.
