| Model NO. | YHZS25/YHZS35/YHZS50/YHZS75/YHZS100 | Type | Concrete Mixing Plant |
|---|---|---|---|
| Shotcrete Type | Wet | Process | Welded Molding Machine |
| Condition | New | Product Name | Mobile Concrete Plant |

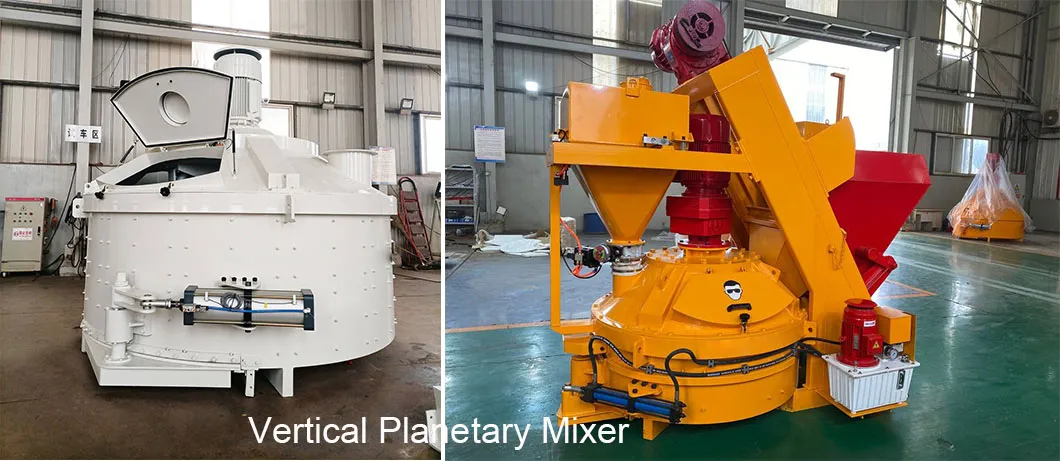

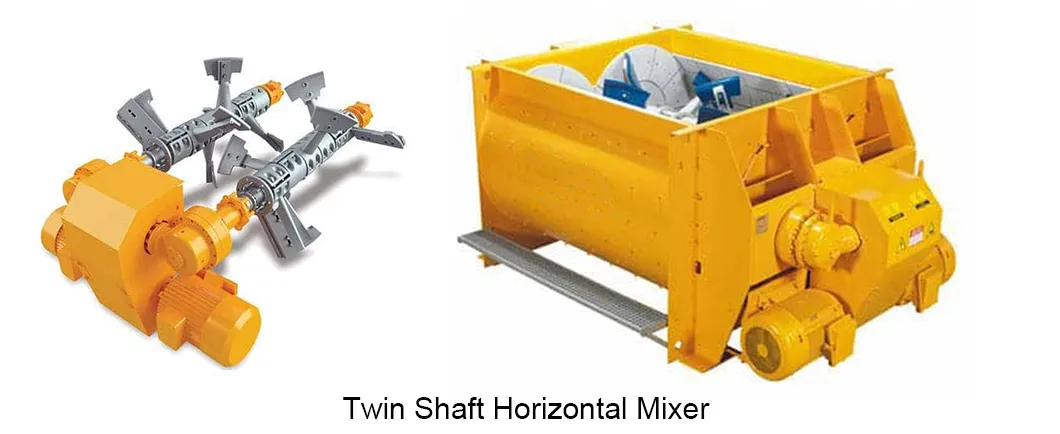

| Concrete Mixer | Twin Shaft Horizontal/Vertical Planetary | Control | Automatic Computer Control |
| Application | Small-Scale Construction Sites | Power Type | Electric |
| Max Aggregate Size | 60/80 mm | Feeding Mode | Belt Conveyor |
| Weight | 10t | Discharge Height | 3.8m or Customized |

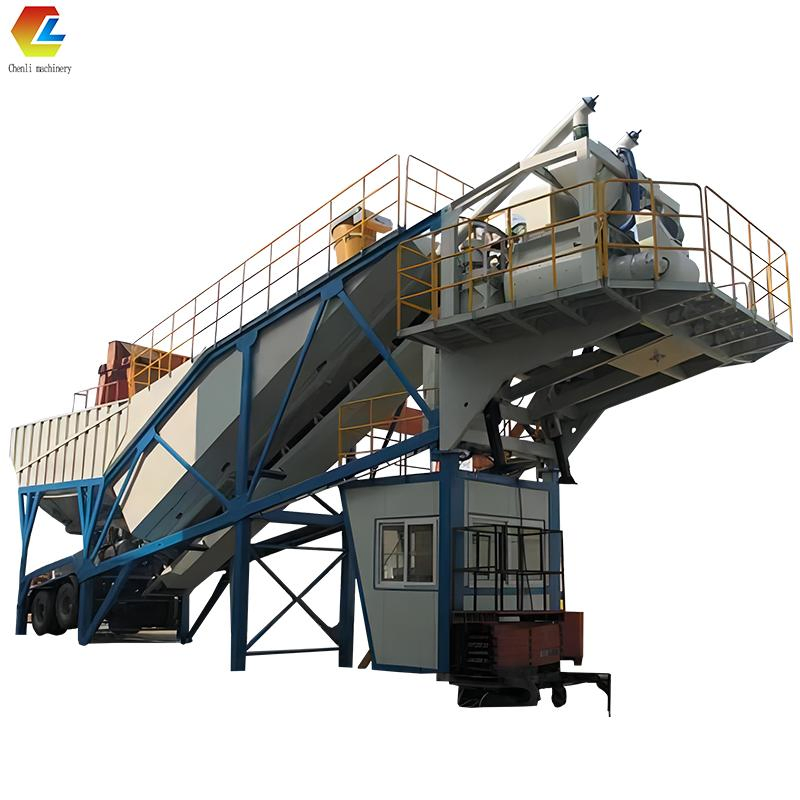

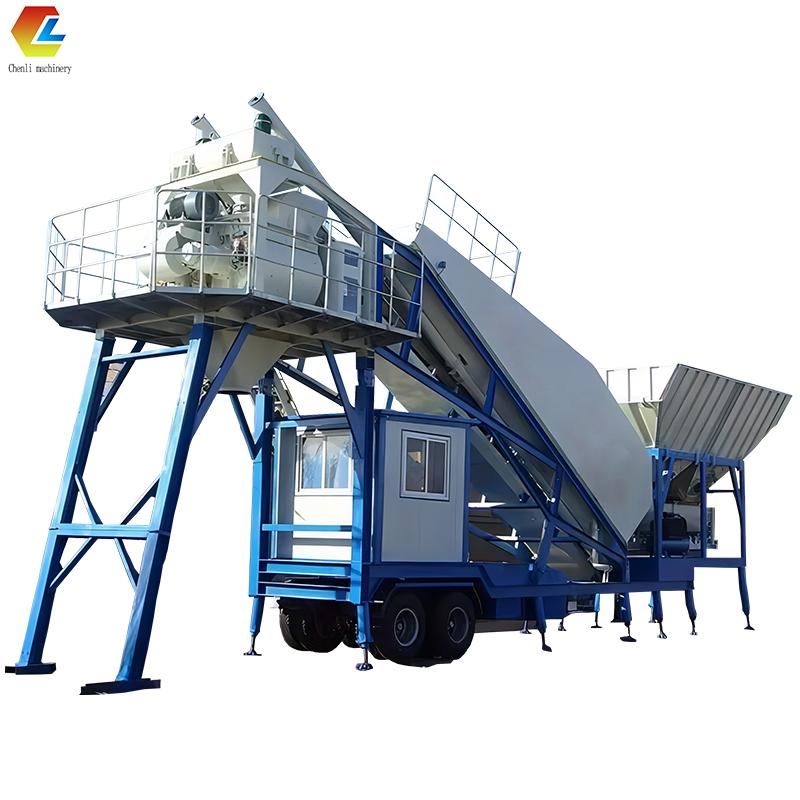

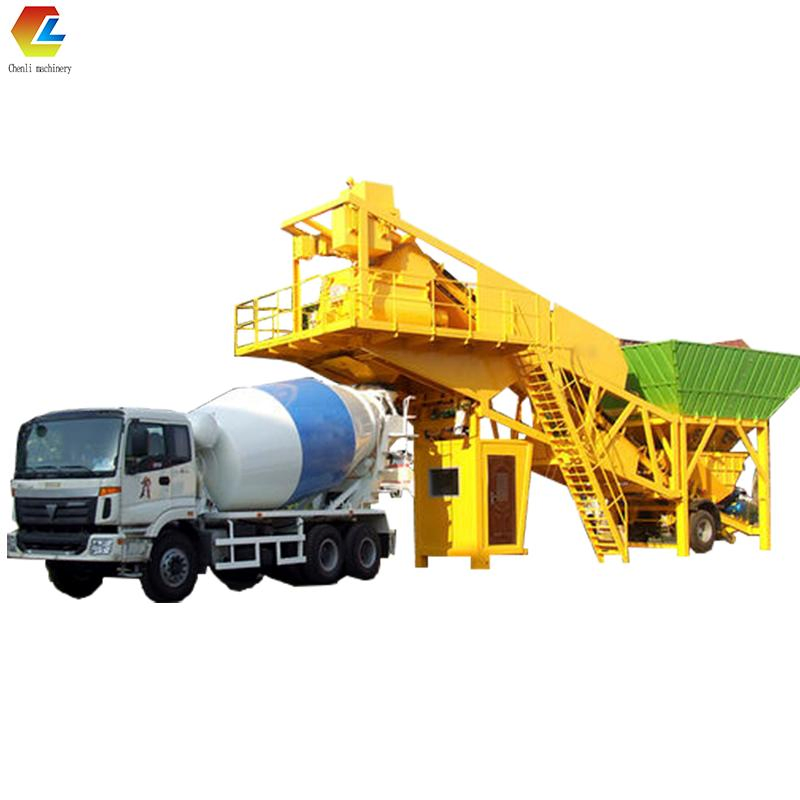

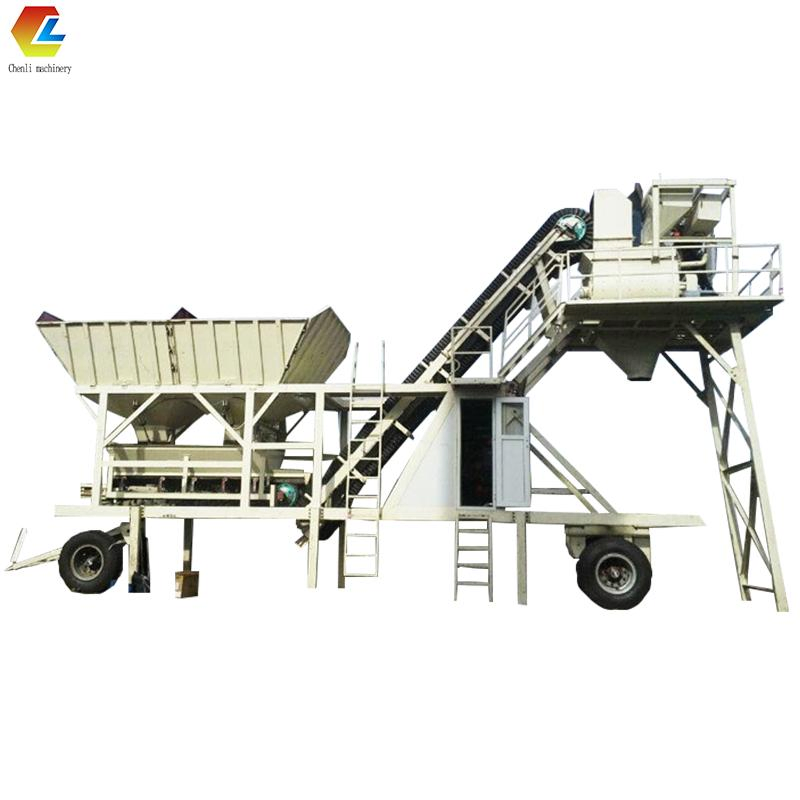

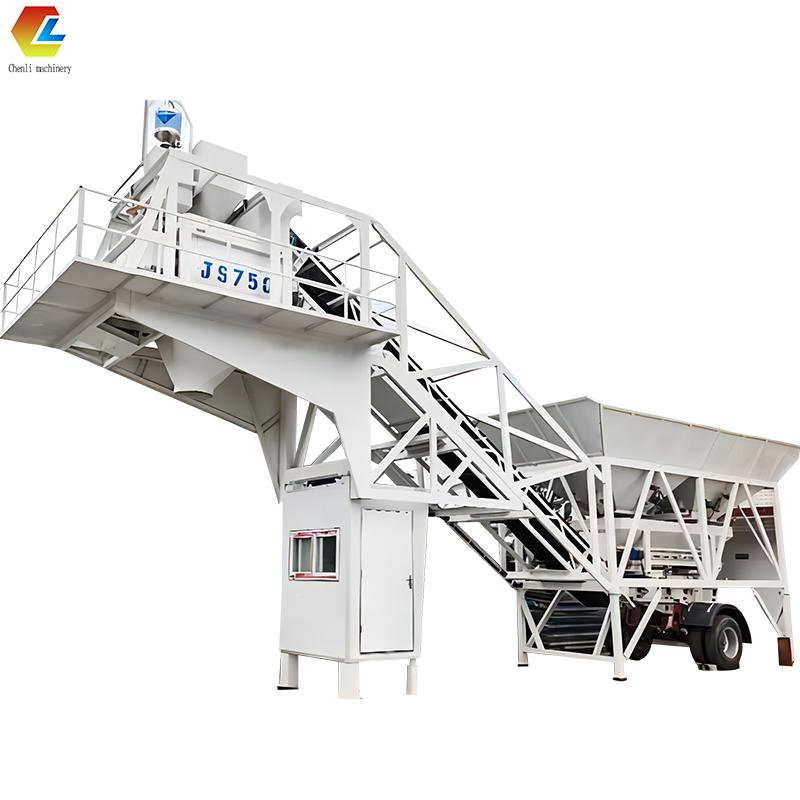

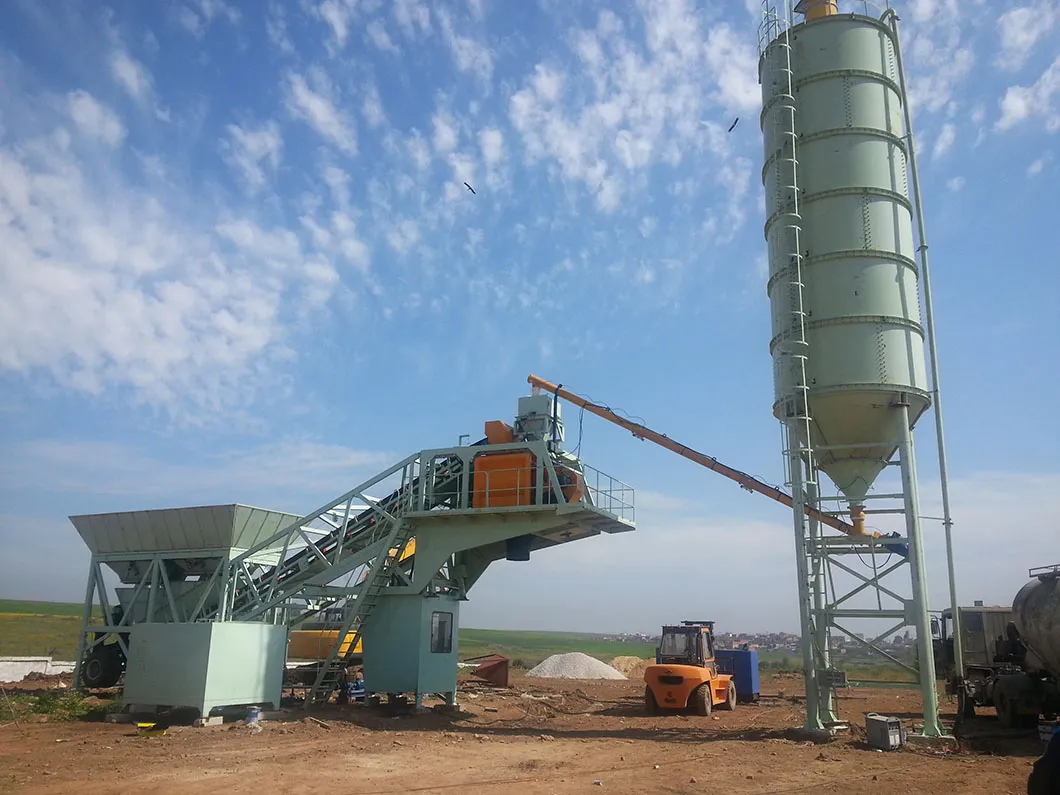

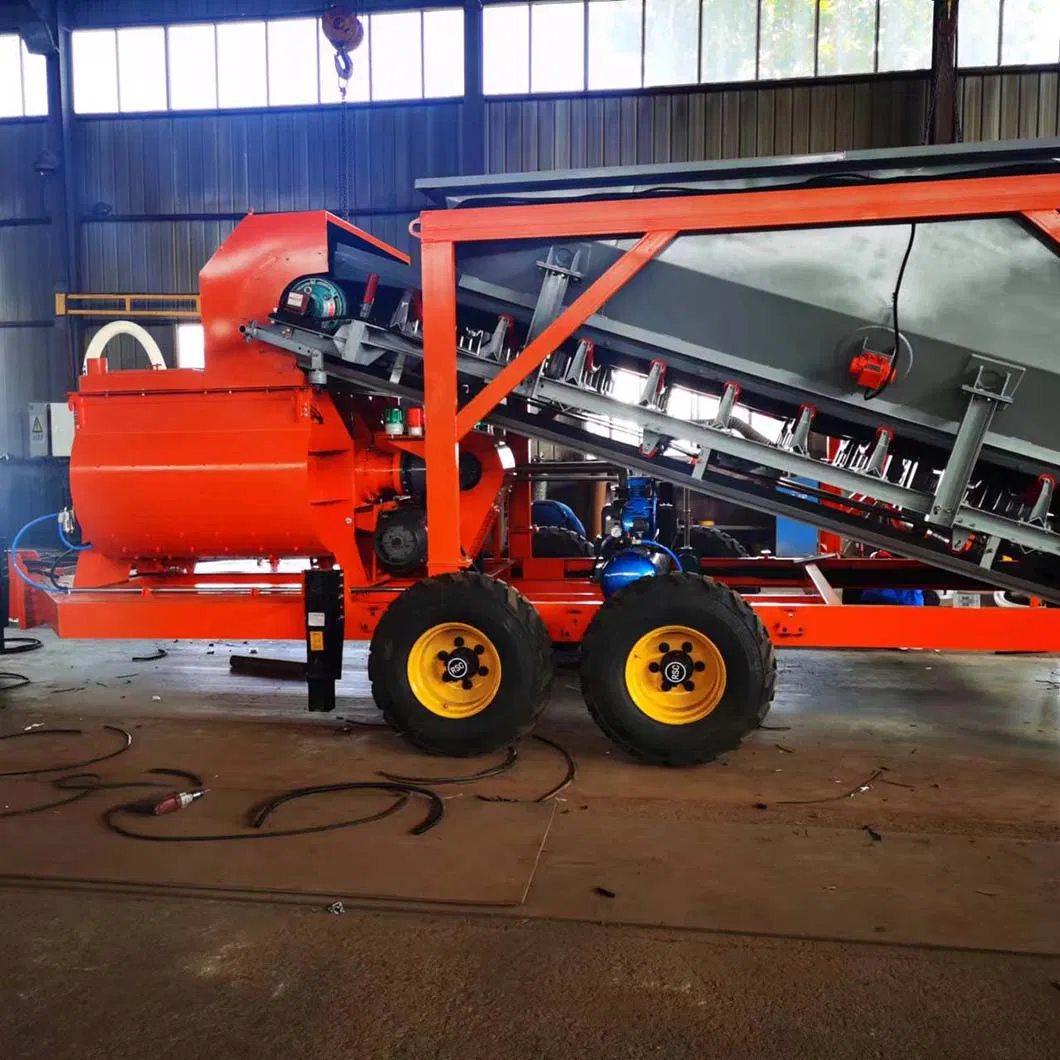

Concrete batching plant mounting on truck is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and fully automatic control system into a trailer unit. It is exactly the same as the stationary concrete batch plant in all its action processes, operation methods and maintenance.
At the same time, it has unique characteristics such as flexible movement, quick and easy disassembly and assembly, and simple storage and management. Currently, these are mainly divided into two types: tractor type (complete front and rear axles) and trailer type (rear axle only, front end on tractor saddle).
| Model | YHZS35 | YHZS50 | YHZS75 | YHZS100 |
|---|---|---|---|---|
| Theoretical Productivity (m³/h) | 35 | 50 | 75 | 100 |
| Mixer | JS1250/750 | JS1500/1000 | JS2250/1500 | JS3000/2000 |
| Batching System | PLD1200 | PLD1600 | PLD2400 | PLD3200 |
| Discharge Height | 3.8m | 3.8m | 3.8m | 3.8m |

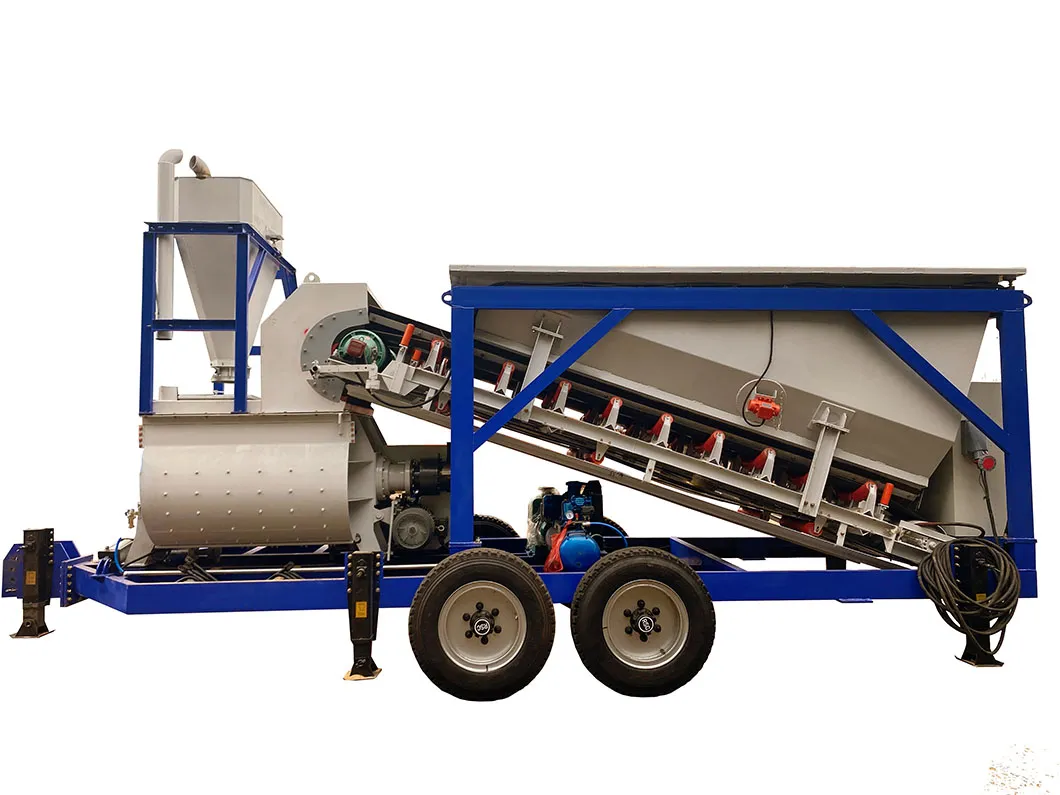

| Simple Model | JYHZS25 | JYHZS35 | JYHZS50 |
|---|---|---|---|

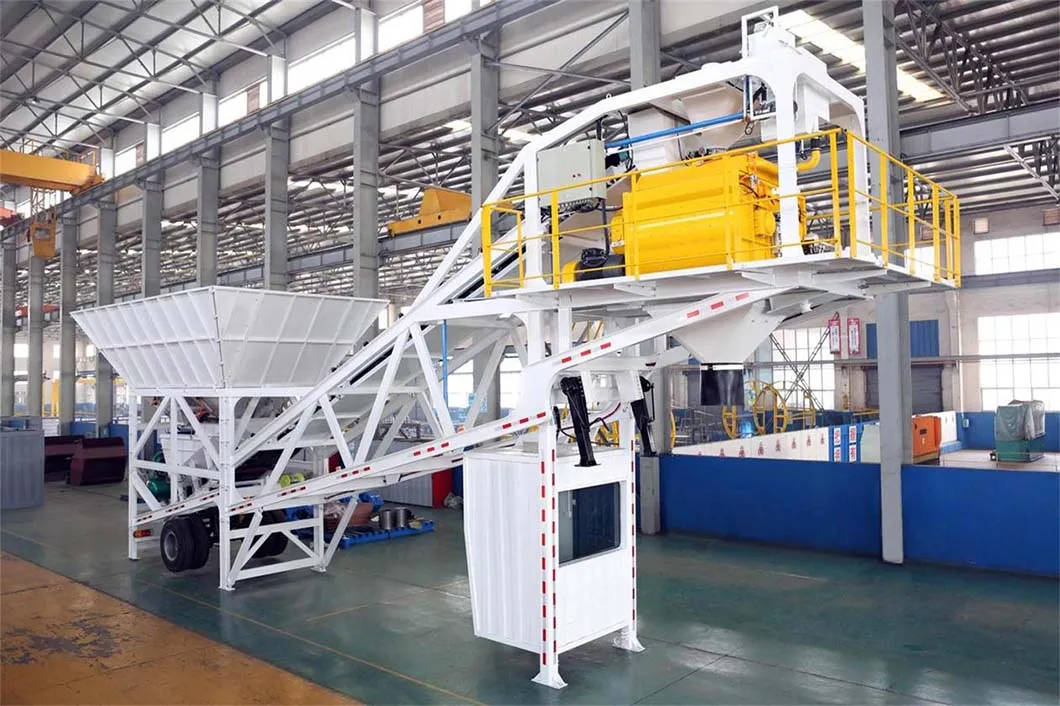

| Configuration Detail | PL800-1, JS500, Pneumatic discharge, Cumulative measurement | PL1200-2, JS750, Pneumatic discharge, Cumulative measurement | PL1600-3, JS1000, 3.8m height, Manual discharge, Cumulative measurement |

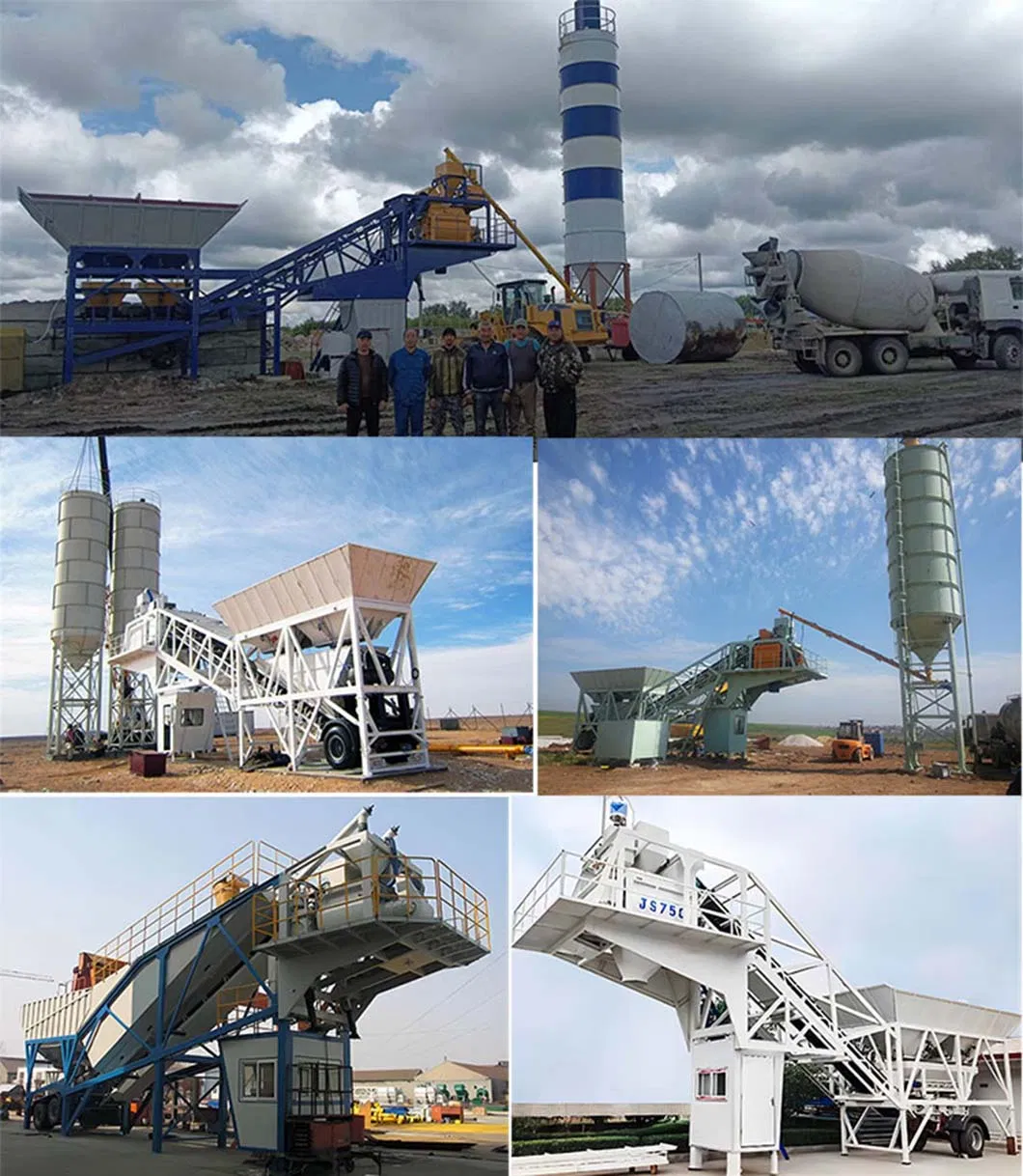

The truck-mounted concrete batching plant is suitable for construction projects that require frequent movement, such as:
The overall modular design and compact structure make it highly suitable for standard container transportation.
Focusing on "practical, efficient, low-carbon, and intelligent" equipment, the production lines ensure high standards and reliability for mortar production, sand making, and environmental protection.
A: The primary advantage is its mobility. It integrates storage, weighing, and mixing into a single trailer unit, allowing for quick disassembly, easy transport, and rapid setup at different construction sites.
A: There are two main types: the tractor type, which includes complete front and rear axles, and the trailer type, which only has the rear axle and relies on a tractor saddle bridge for the front end.
A: The YHZS series offers various models with theoretical productivities ranging from 25m³/h to 100m³/h to suit different project scales.
A: Yes, while the standard discharge height is 3.8 meters, it can be customized according to specific project requirements.
A: Yes, the plants are equipped with an automatic computer control system for precise batching and efficient operation.

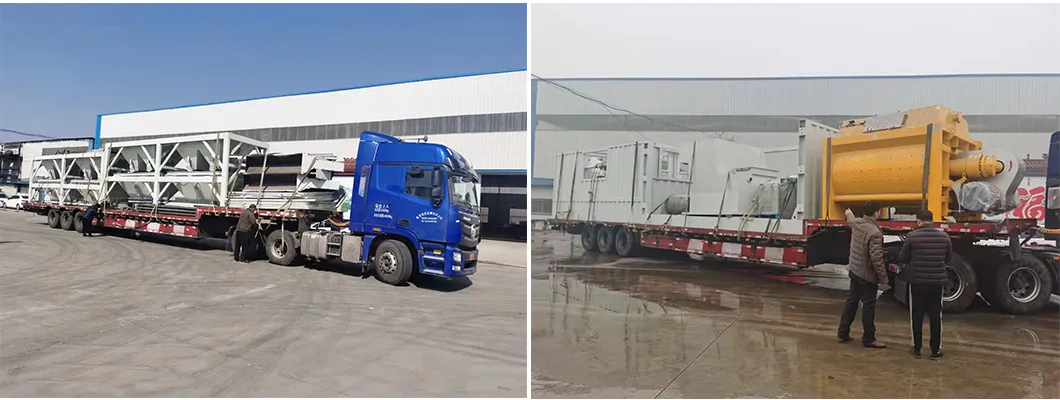

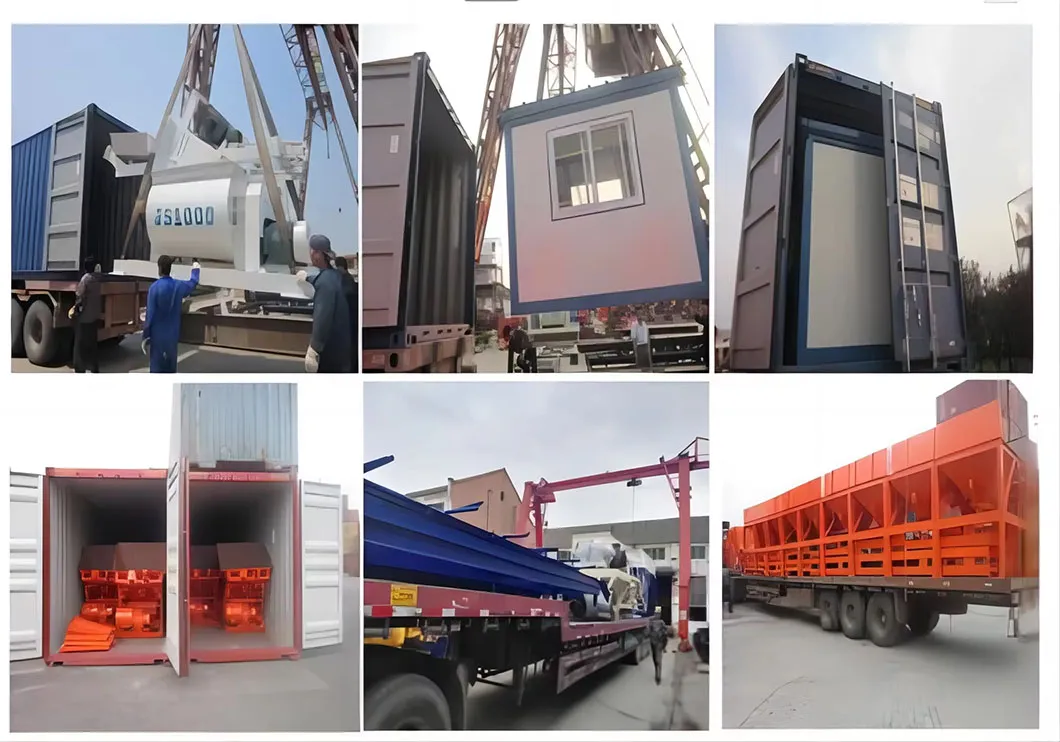

A: Due to its modular and compact design, the entire plant is designed to fit into standard shipping containers for easy international transport.
