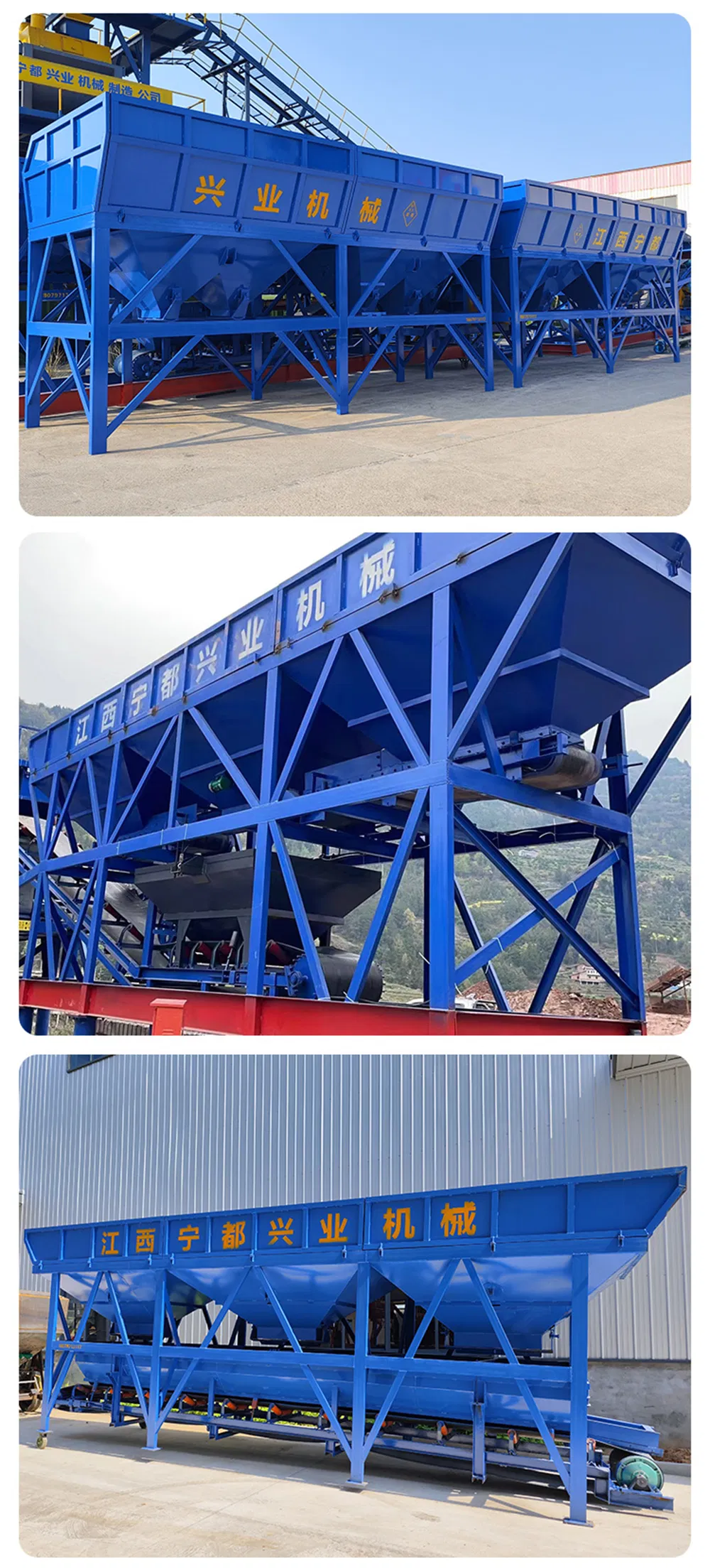

The concrete batching machine is a kind of equipment used for precise batching in concrete production.
Working Principle

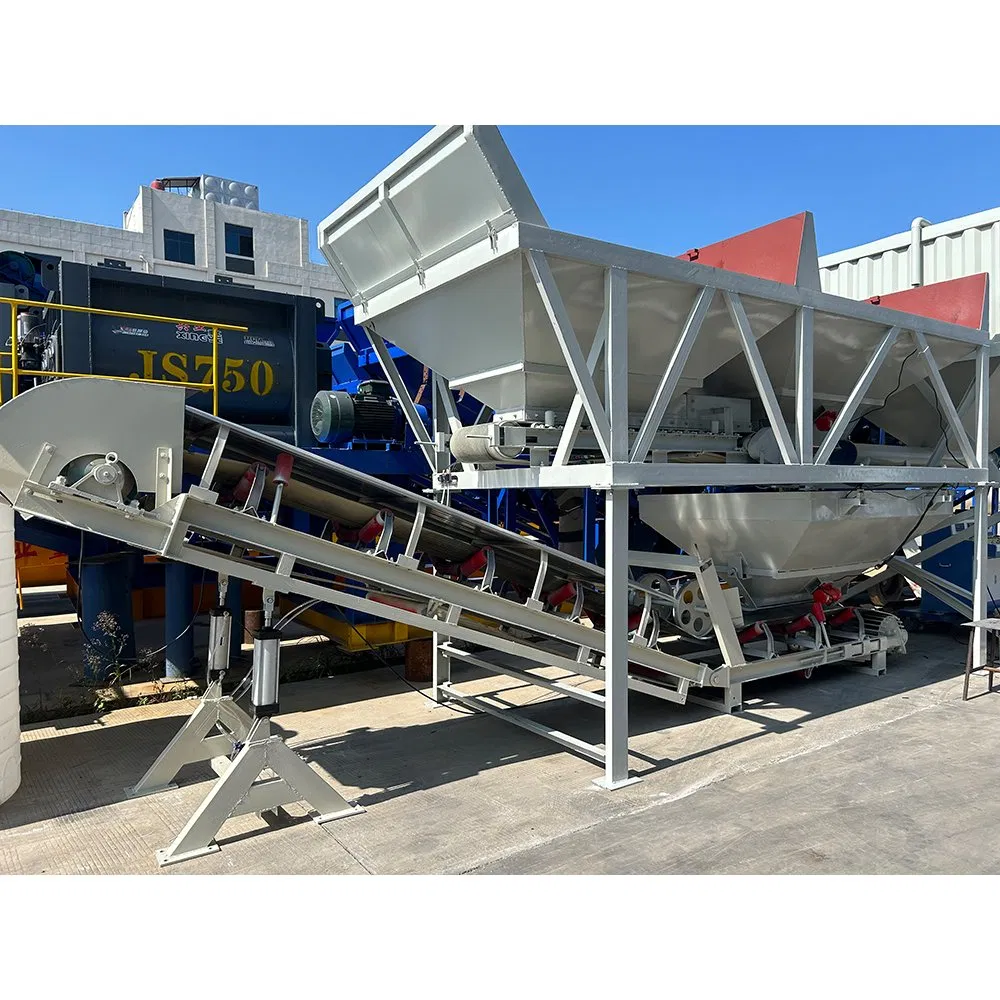

According to the set concrete mix proportion, the control system controls the opening time and speed of the discharge doors of each batching bin, so that various aggregates (such as stones, sand, etc.) are accurately discharged onto the conveyor belt or the aggregate hopper in proportion to complete the batching process. The electronic weighing system monitors the weight of the materials in real time and feeds it back to the control system for precise adjustment.
Types
Role in Concrete Production

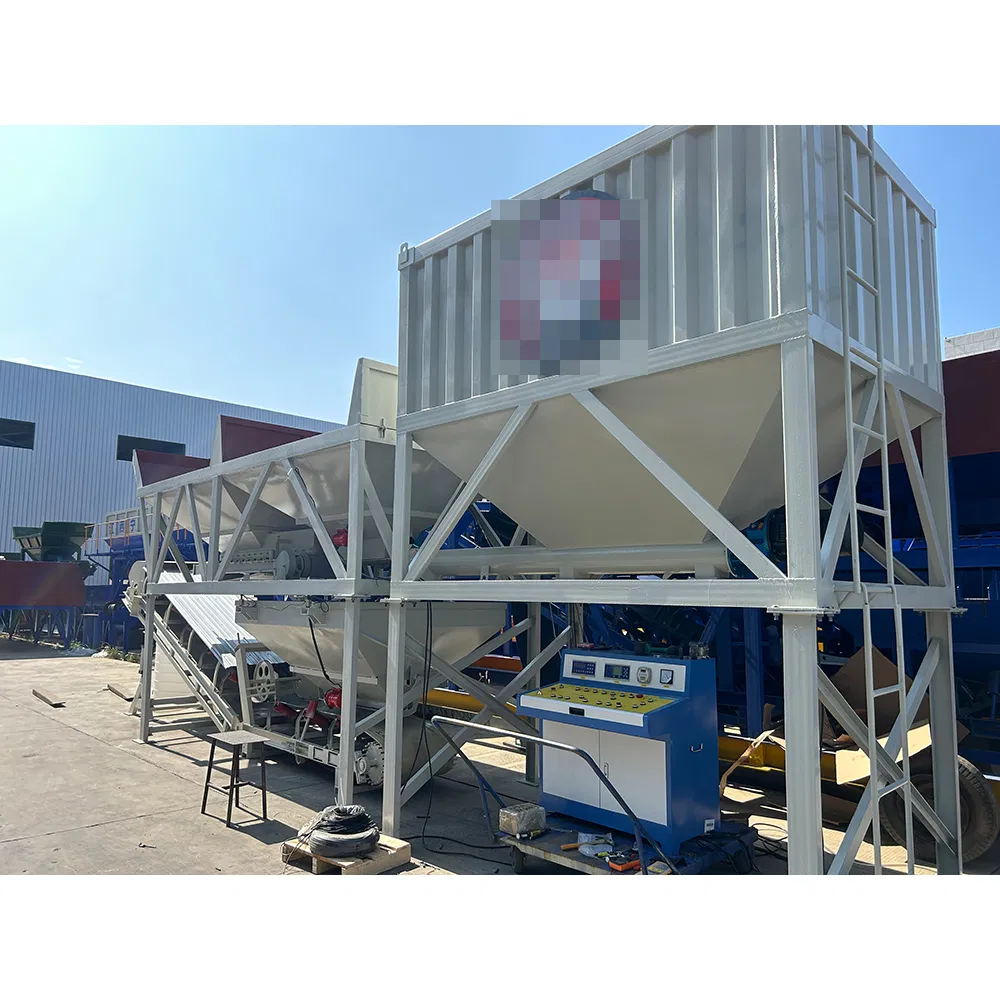

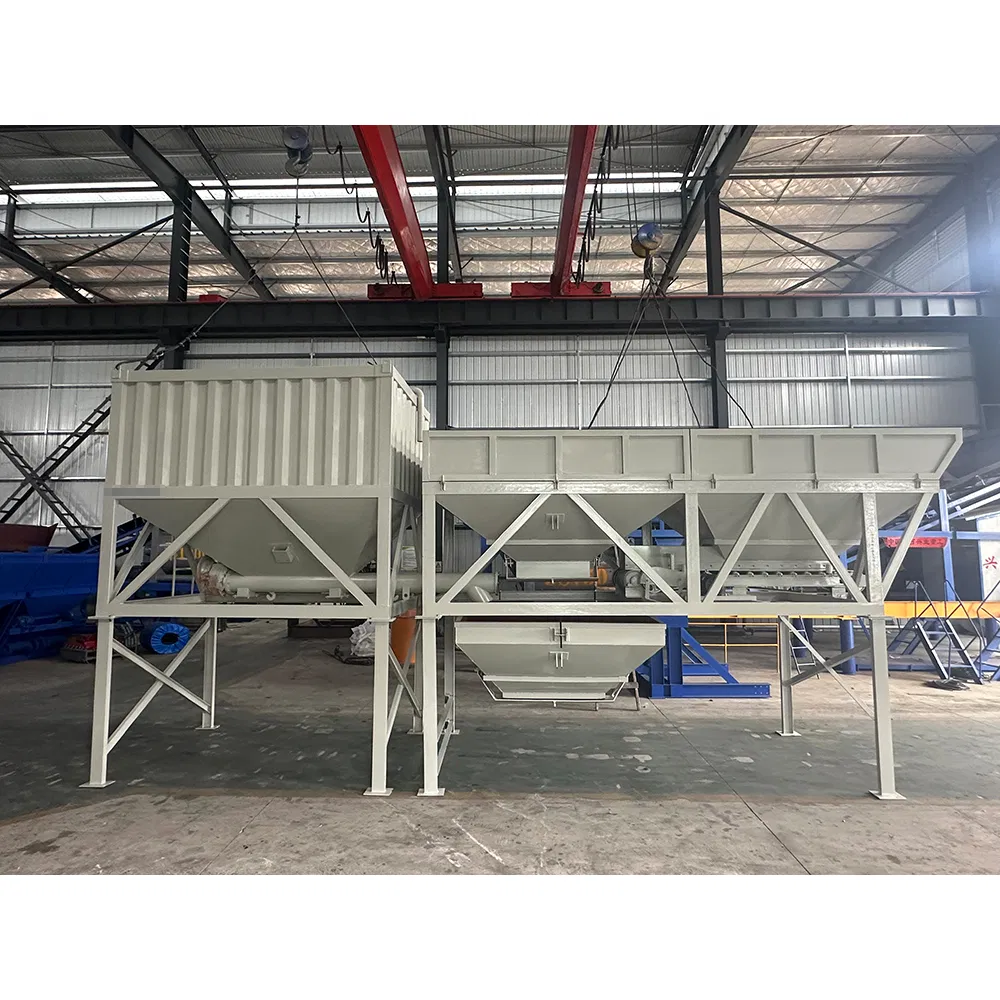

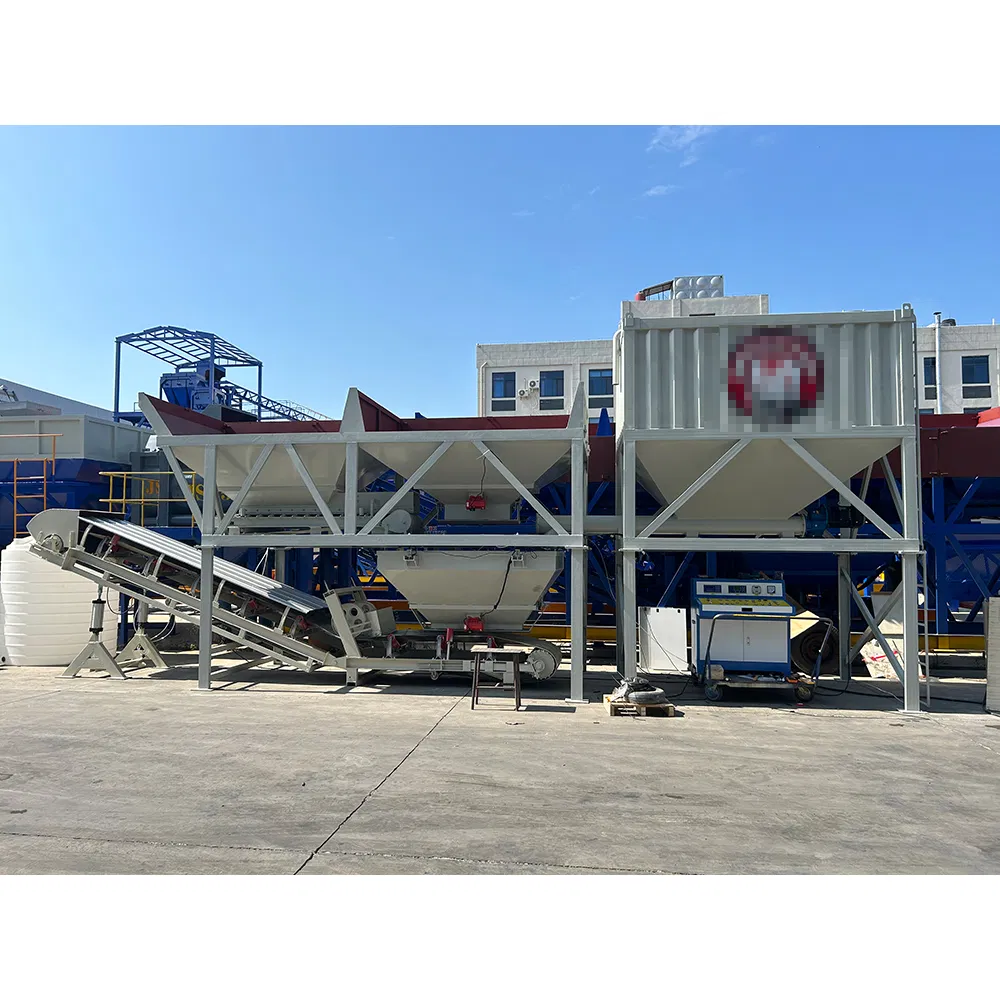

The system comprises storage bins, feeding devices, weighing systems, conveying devices, and a centralized control system.
| Item Model | Weighing hopper volume (m3) | Storage hopper volume (m3) | Maximum weighing value (kg) | Total power (kw) | Total weight (kg) | Dimension (L*W*H) mm |
|---|---|---|---|---|---|---|
| PL800 (2 hoppers) | 0.8 | 3 | 1500 | 6.6 | 2350 | 5600*1560*2760 |
| PL800 (3 hoppers) | 0.8 | 3 | 1500 | 4 | 3600 | 8400*1560*2810 |
| PL1200 (3 hoppers) | 1.2 | 4 | 2000 | 4 | 4200 | 9270*2060*2900 |
| PL1200 (4 hoppers) | 1.2 | 4 | 2000 | 5.5 | 5700 | 11200*2000*2800 |
| PL1600 (3 hoppers) | 1.6 | 6 | 3000 | 4 | 5500 | 9700*2115*5360 |
| PL1600 (4 hoppers) | 1.6 | 6 | 3000 | 5.5 | 6000 | 12900*2115*3360 |
| PL2400 (4 hoppers) | 2.4 | 8 | 4000 | 7.5 | 8100 | 12900*2115*3360 |
| PL3200 (4 hoppers) | 3.2 | 16 | 5000 | 11 | 10500 | 14000*2325*3800 |

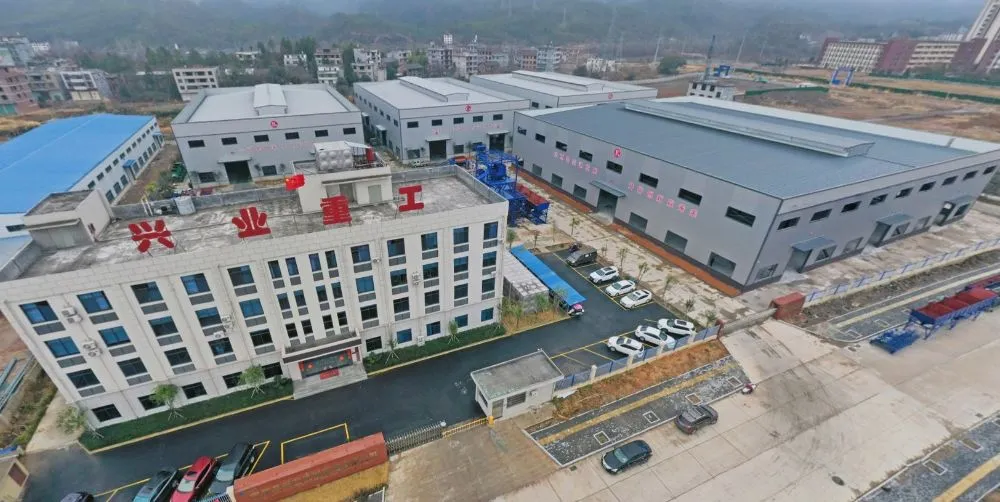

As a leading concrete batching plant manufacturer with over 15 years of professional production experience, the company operates a massive 20,000 square meter production facility. We specialize in construction machinery, mineral mining, municipal engineering, and tunnel equipment.
