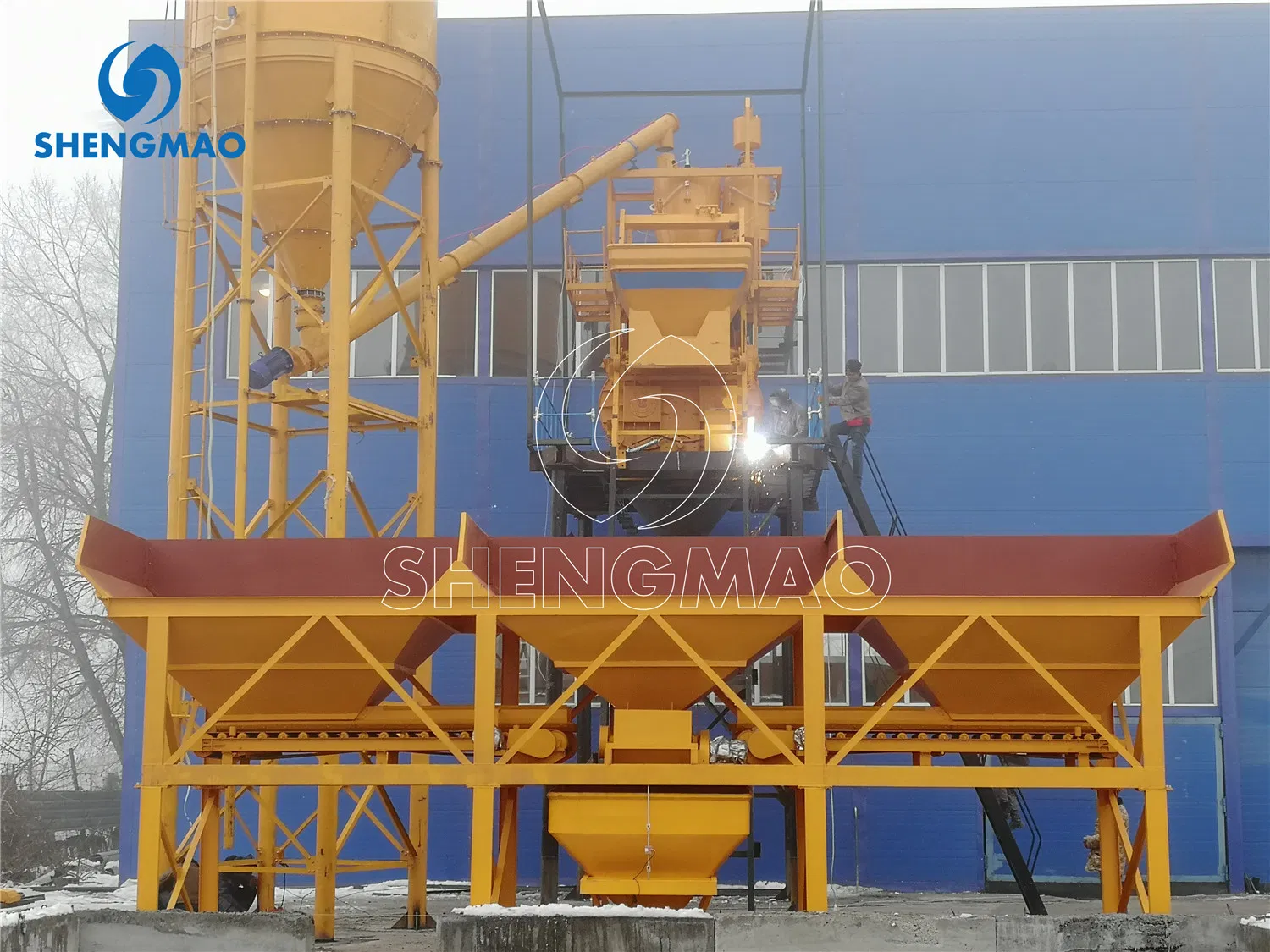

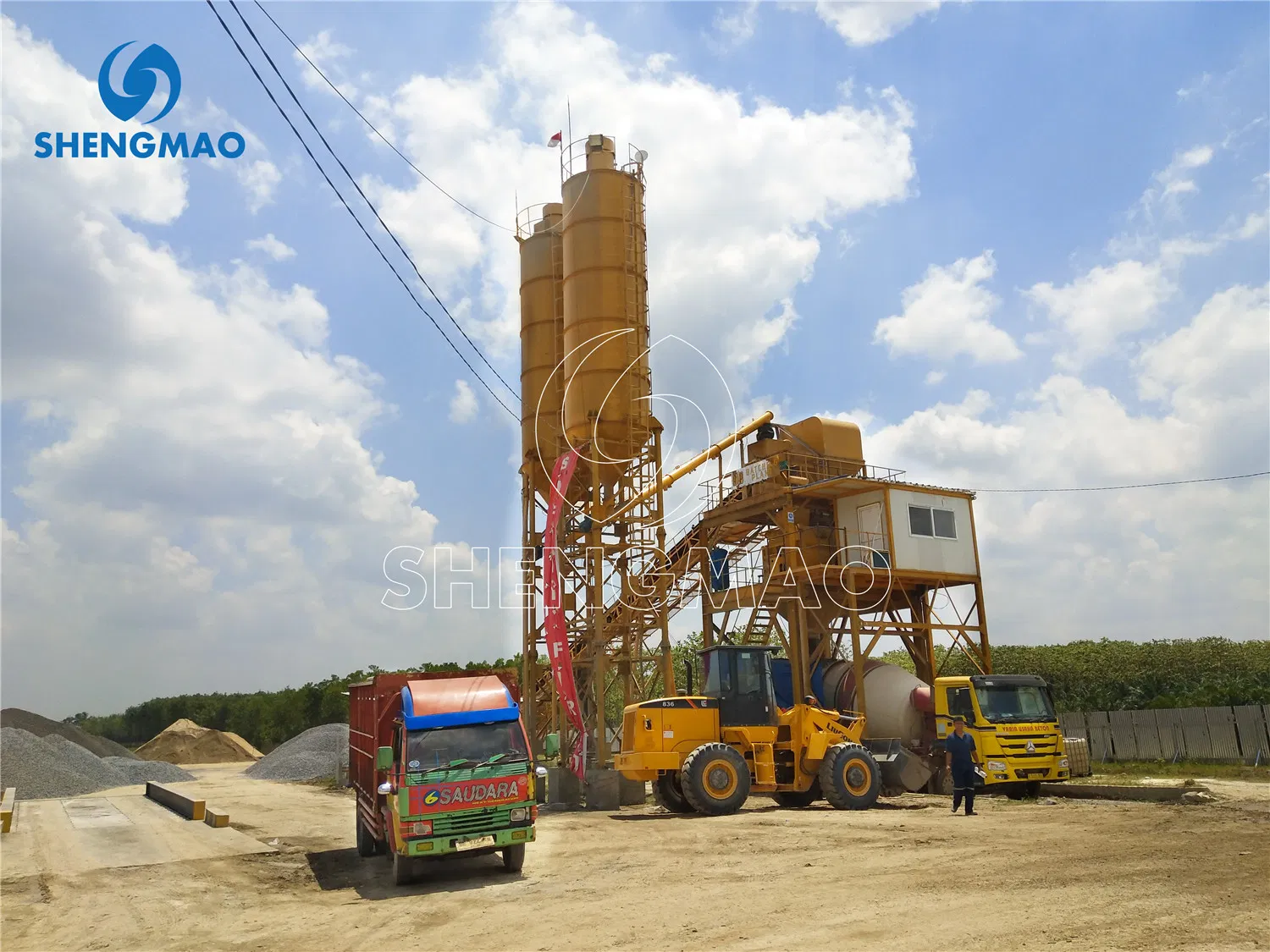

Stationary concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply etc. It is an ideal choice for the production of high-quality concrete with large amount demand.
According to the aggregate feeding method, stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plan can be 60/90/120/180/240 m3/h.

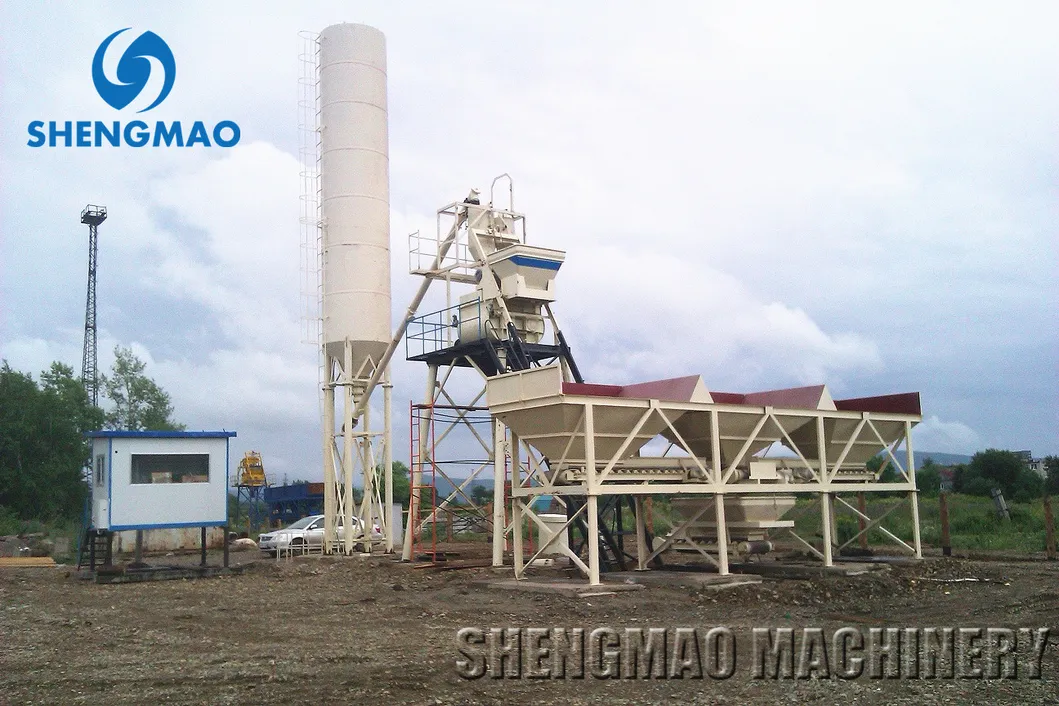

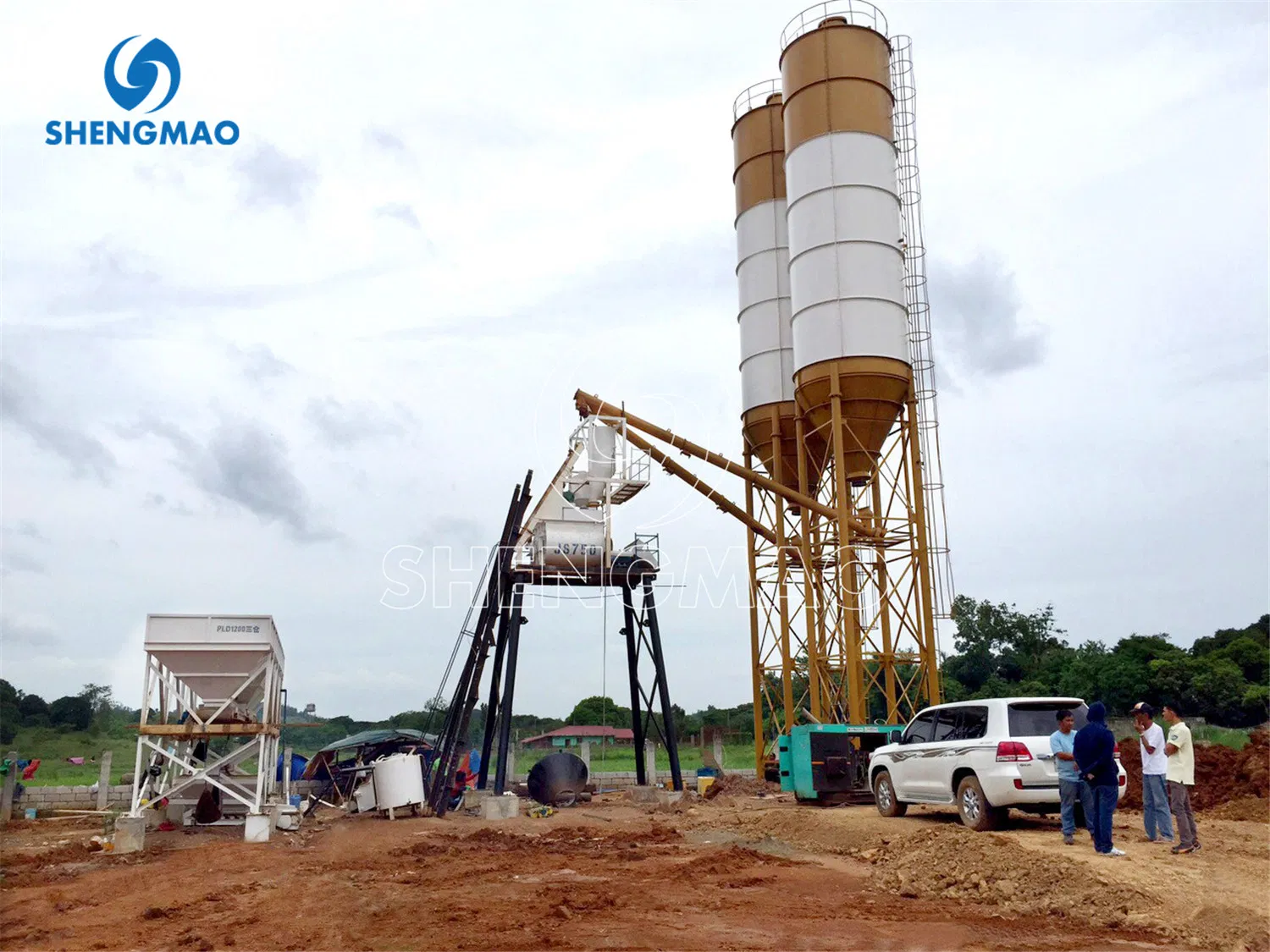

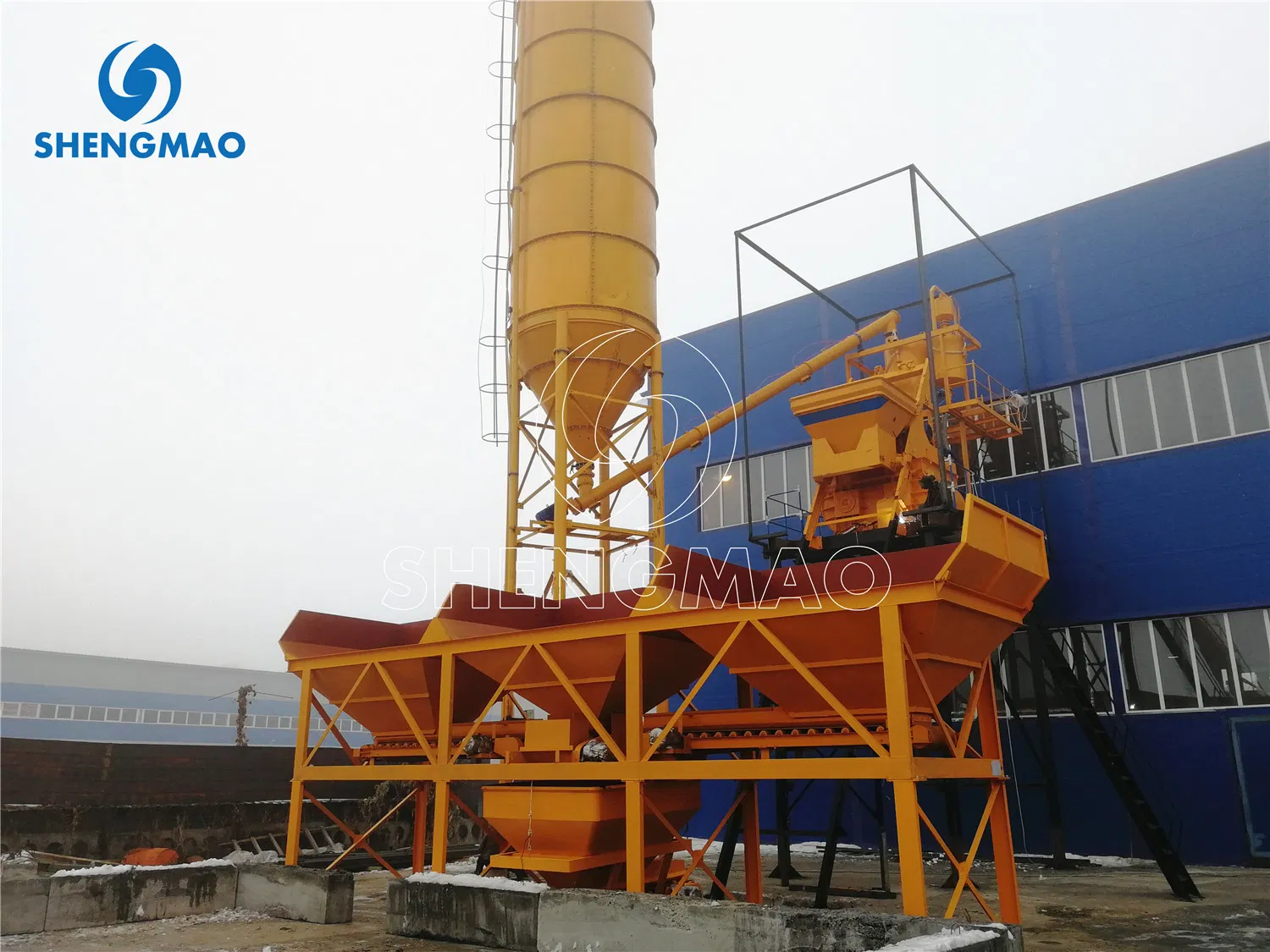

| Skip hoist type concrete batching plant | ||||
|---|---|---|---|---|
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Feeding mode | Skip hoist | Skip hoist | Skip hoist | Skip hoist |
| Discharging height(m) | 3.8 | 3.8 | 4.1 | 4.1 |
| Total weight (T) | 10 | 13.5 | 18.5 | 25 |
| Total power (Kw) | 65 | 75 | 100 | 110 |
| Control system | Panel | Computer | Computer | Computer |

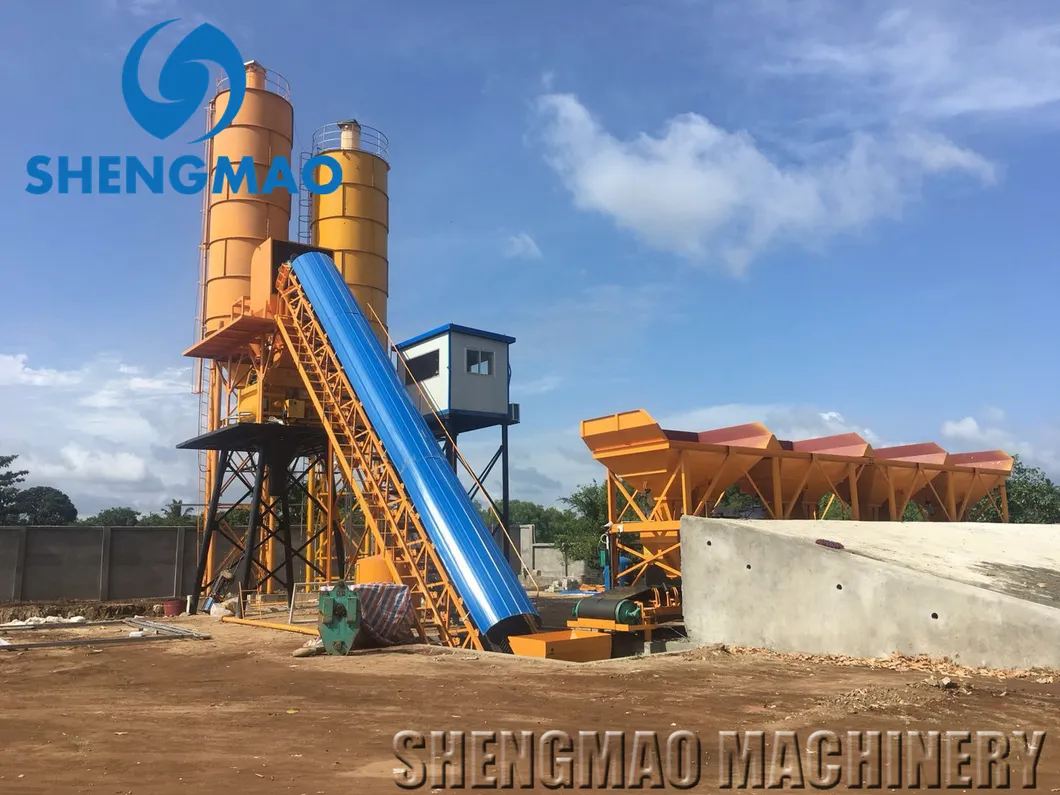

| Belt conveyor type concrete batching plant | ||||
|---|---|---|---|---|
| Model | HZS60 | HZS90 | HZS120 | HZS180 |
| Production capacity (m3/h) | 60 | 90 | 120 | 180 |
| Concrete mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Total weight (T) | 28 | 40 | 65 | 88 |
| Total power(Kw) | 110 | 156 | 200 | 260 |
| Control system | Computer | Computer | Computer | Computer |
A1: Skip hoist types are more compact, cost-saving, and easier to install, making them ideal for smaller sites. Belt conveyor types offer higher production efficiency, better environmental protection, and higher quality concrete for large-scale projects.
Q2: What capacity ranges do you offer for stationary plants?A2: For skip hoist types, we offer 25 to 75 m3/h. For belt conveyor types, the capacity ranges from 60 up to 240 m3/h.
Q3: Do you provide installation support for international customers?A3: Yes, we dispatch professional after-sales engineers to install and commission the equipment on-site and provide training for your operators.

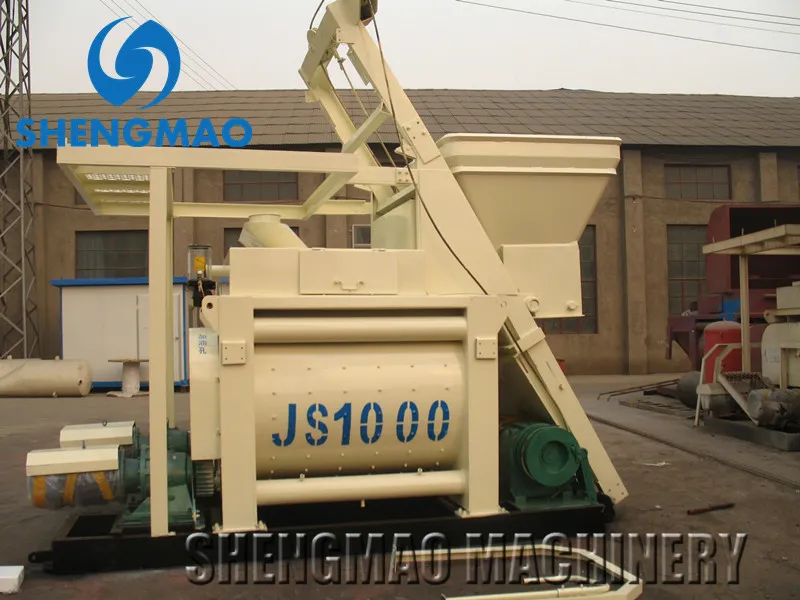

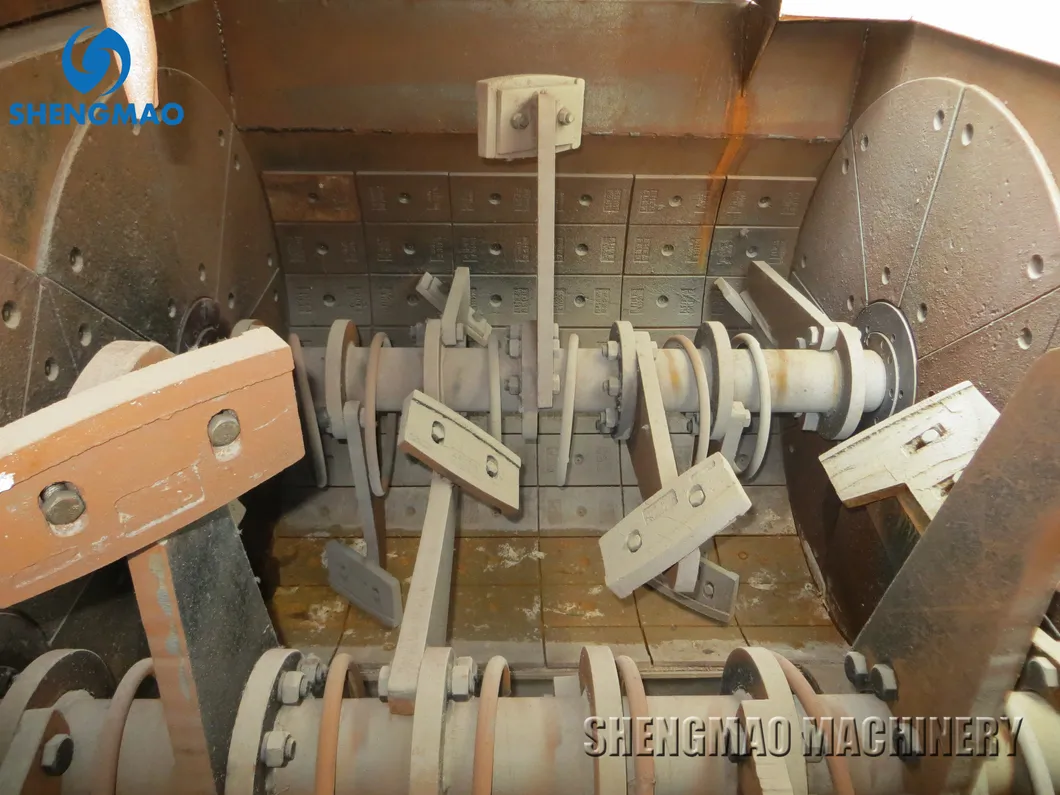

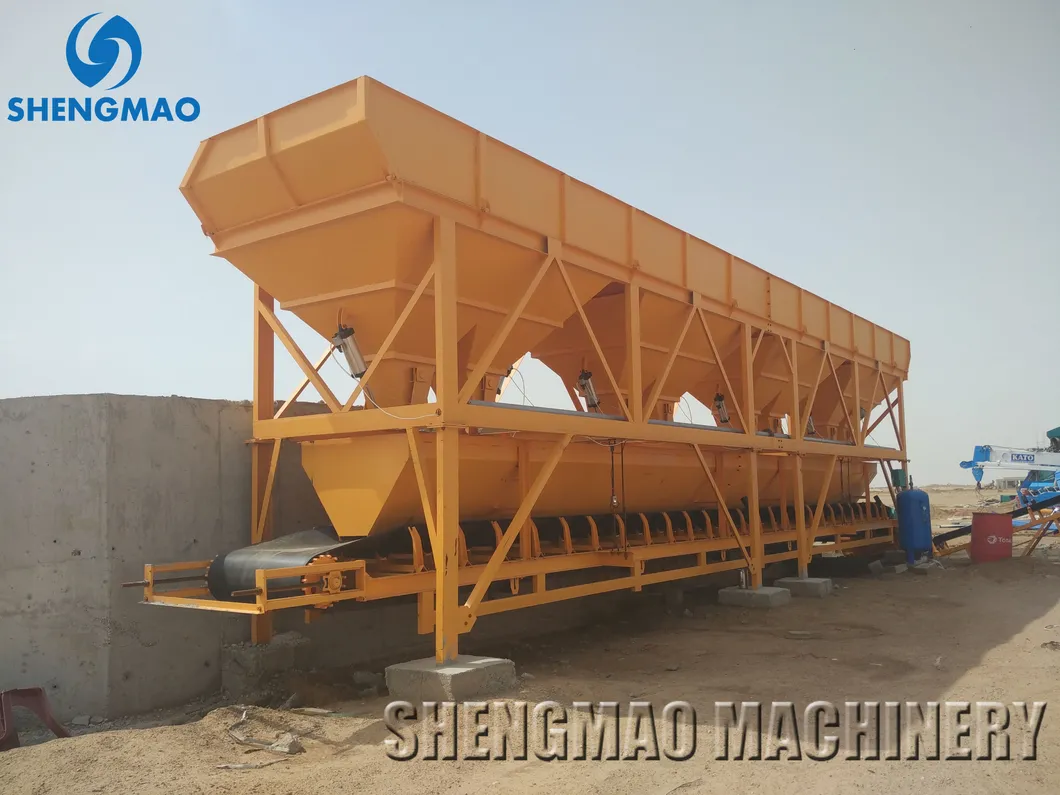

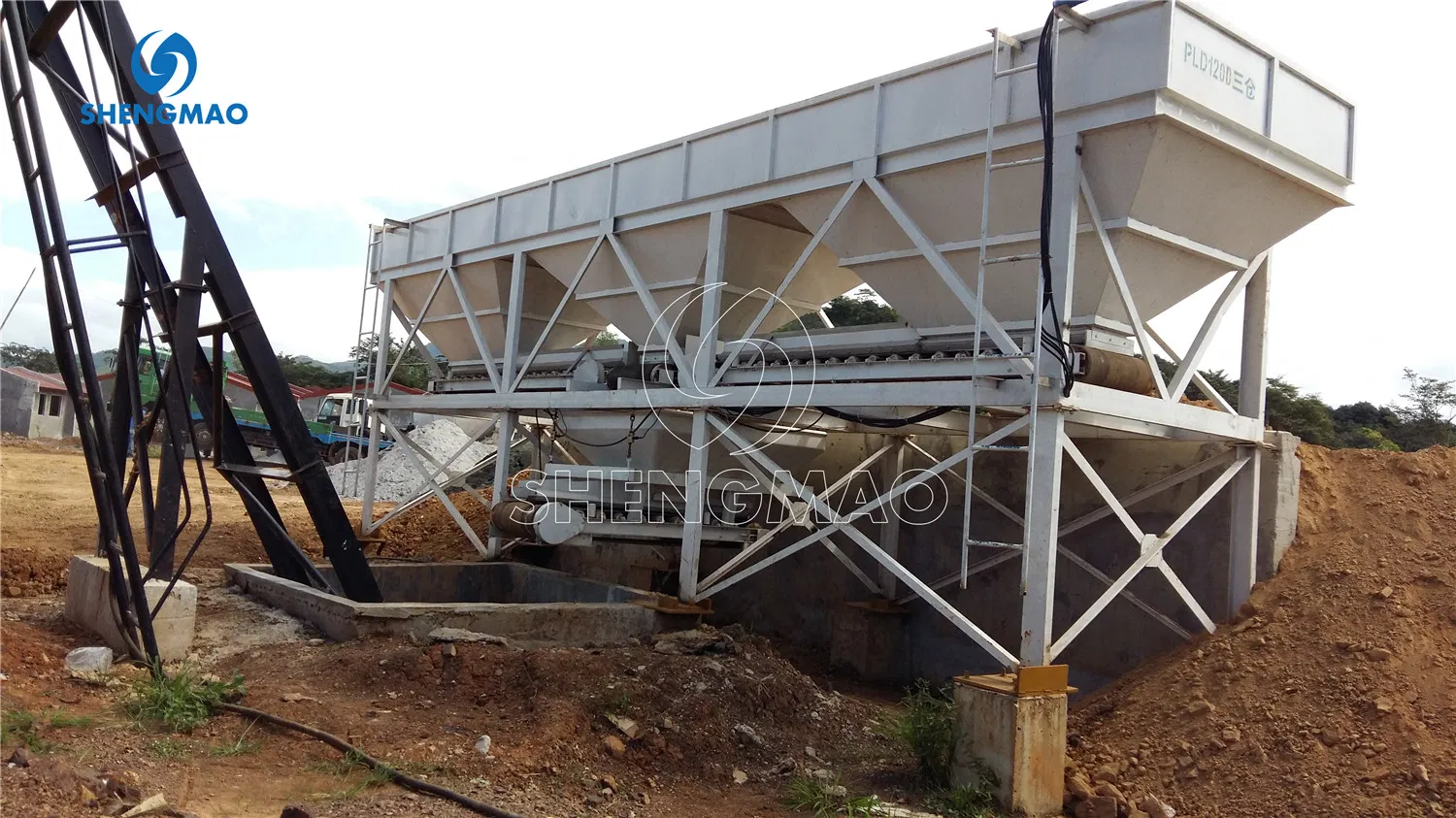

Q4: What are the core components of the batching plant?A4: The core components include the twin-shaft mixer (JS series), PLC control system, aggregate batcher (PLD series), and electric motors.

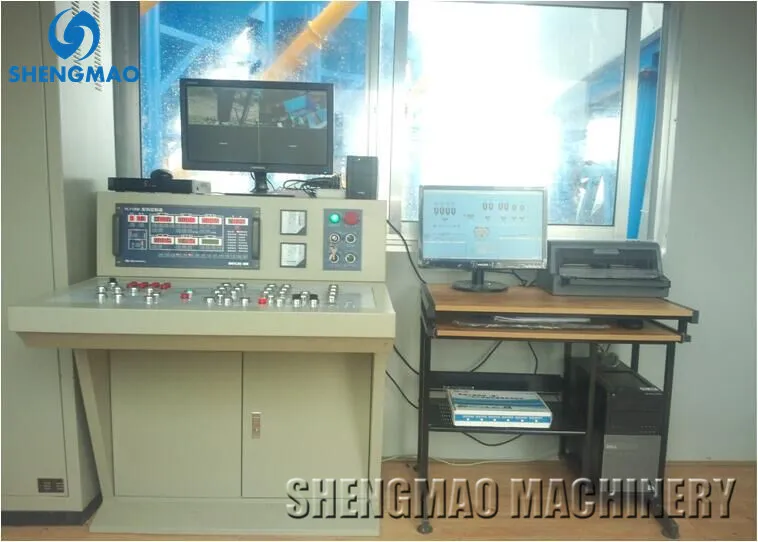

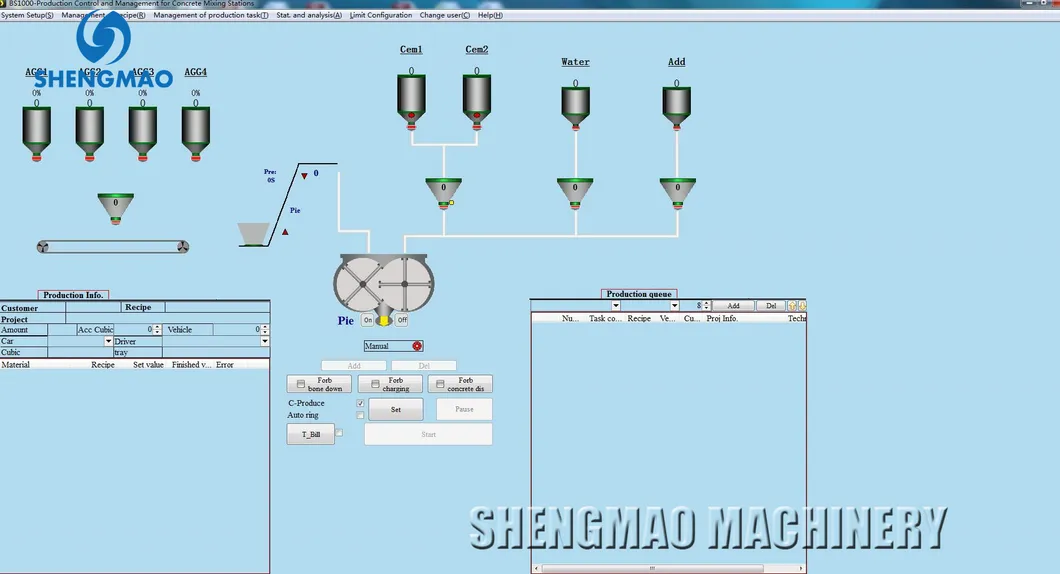

Q5: Is the control system fully automated?A5: We offer both panel control and fully computerized control systems, depending on the model and customer requirements, ensuring high precision in weighing and mixing.

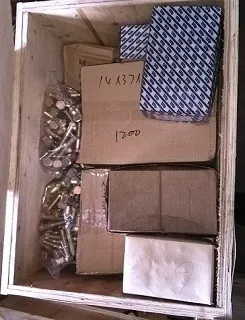

Q6: How do you handle spare parts supply during the warranty period?A6: We maintain a dedicated spare parts warehouse. During the warranty period, any parts required due to equipment damage are provided free of charge to the customer.
