Basic Specifications
Model NO.
YHZS25; YHZS35; YHZS50; YHZS75
Type
Concrete Mixing Plant
Machining Process
Concrete Wet Mix
Certification
ISO9001: 2000, CE
Feeding Mode
Belt Conveyor

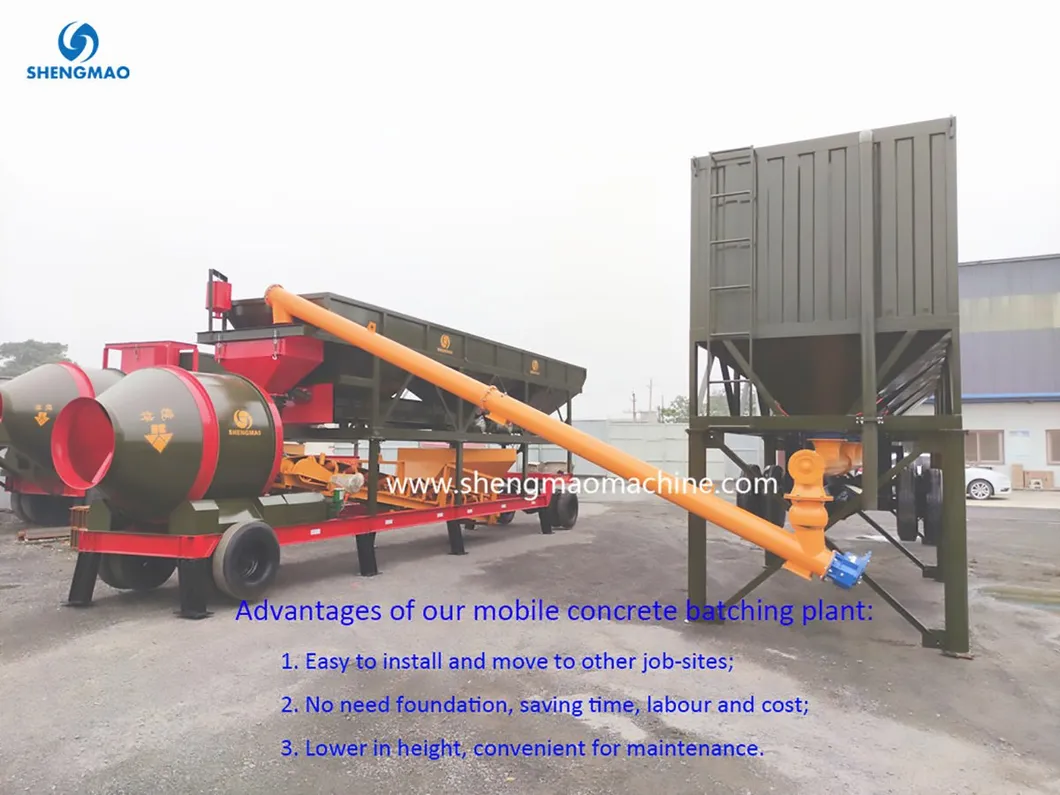

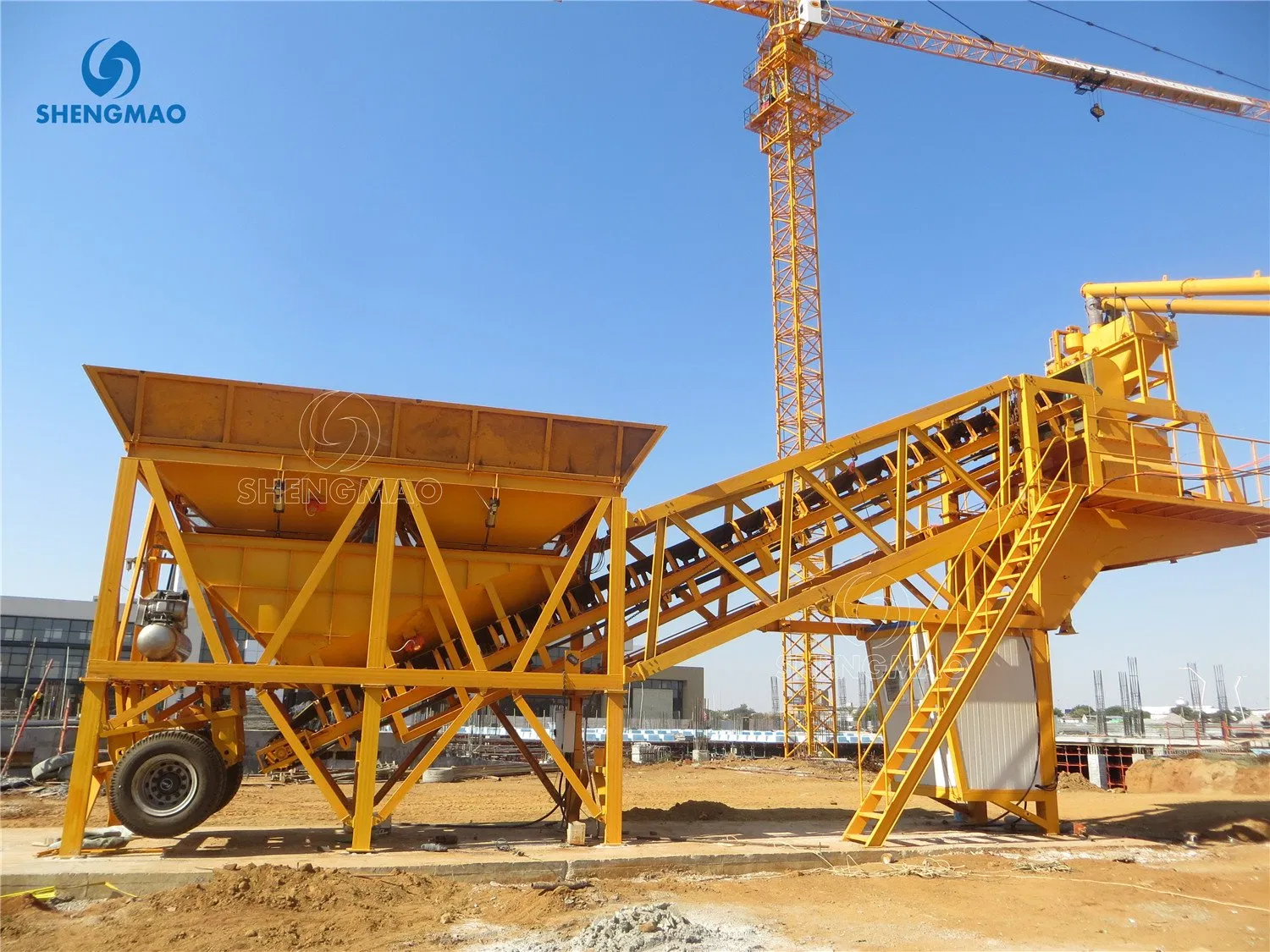

Mobile Concrete Batching Plant Overview
Mobile concrete batching plant is specially designed for projects that need to change job sites from time to time. It is very easy to disassemble and move to another job site, and the installation is quite simple. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a vehicle to tow it to the new job site, place the machine in the right position and connect the cables to begin operation.
Like stationary batching plants, the mobile version is equipped with water, cement, and additive scales to ensure concrete quality. Capacities range from 20m³/h to 120m³/h.

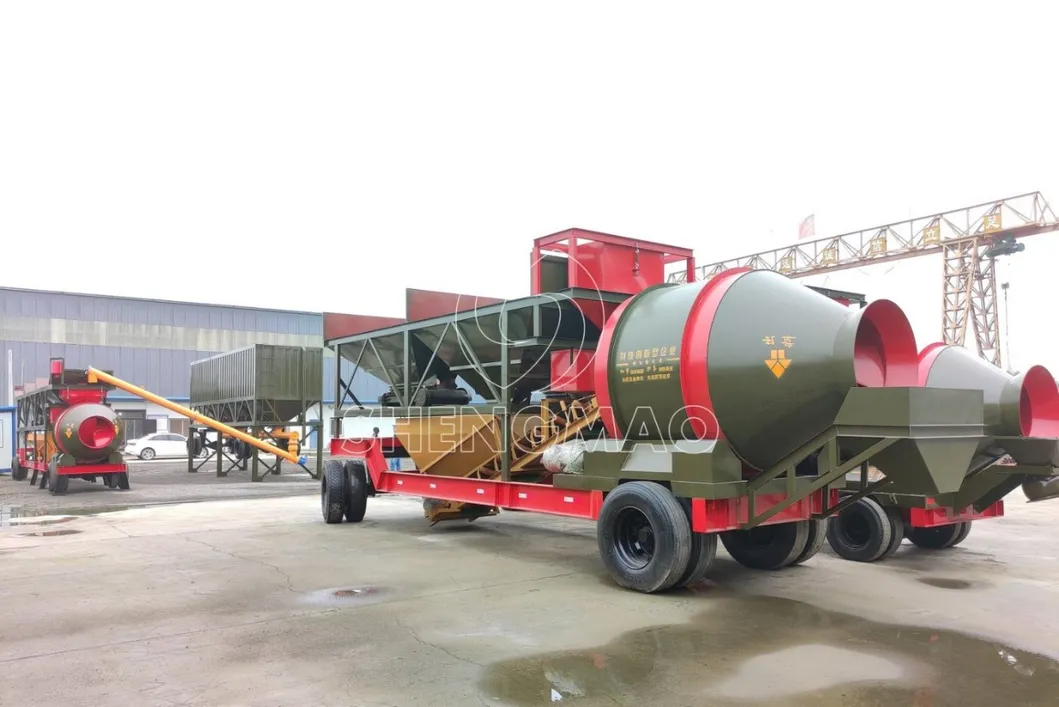

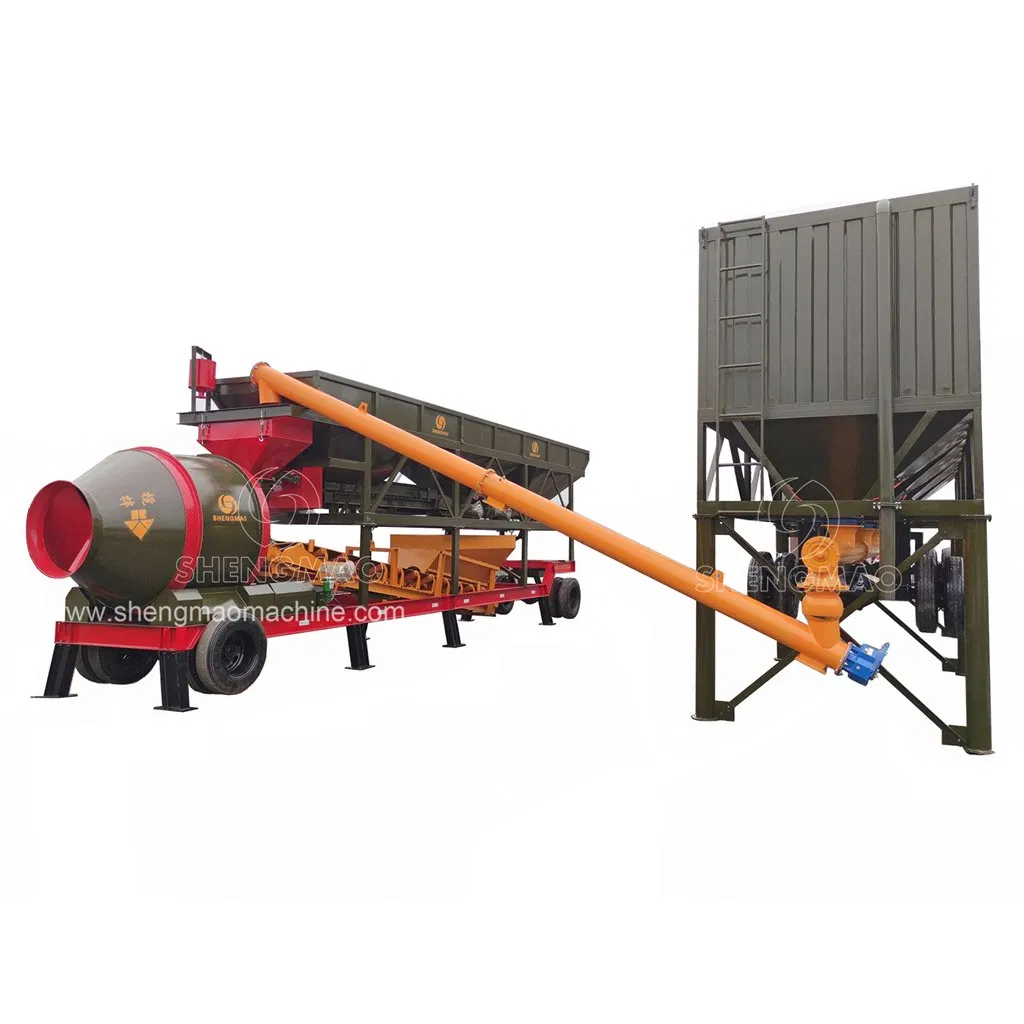

YHZM Series Mobile Plant
Key Features:
- No concrete foundation required; easy to install and relocate.
- Equipped with a high-efficiency drum mixer.
- Mobile cement silo for maximum portability.
- Discharging height of 1.3m (can be increased via belt conveyor or ramp).
| Model |
YHZM20 |
YHZM30 |
YHZM60 |
YHZM100 |
| Production capacity (m3/h) | 20 | 30 | 60 | 100 |
| Concrete mixer | JZM500 | JZM750 | JZM1500 | JZM2000 |
| Aggregate Batcher | PLD800 | PLD1200 | PLD2400 | PLD3200 |
| Total power (kw) | 42 | 46 | 67.5 | 77.5 |
| Total weight (T) | 12 | 13 | 16 | 26 |

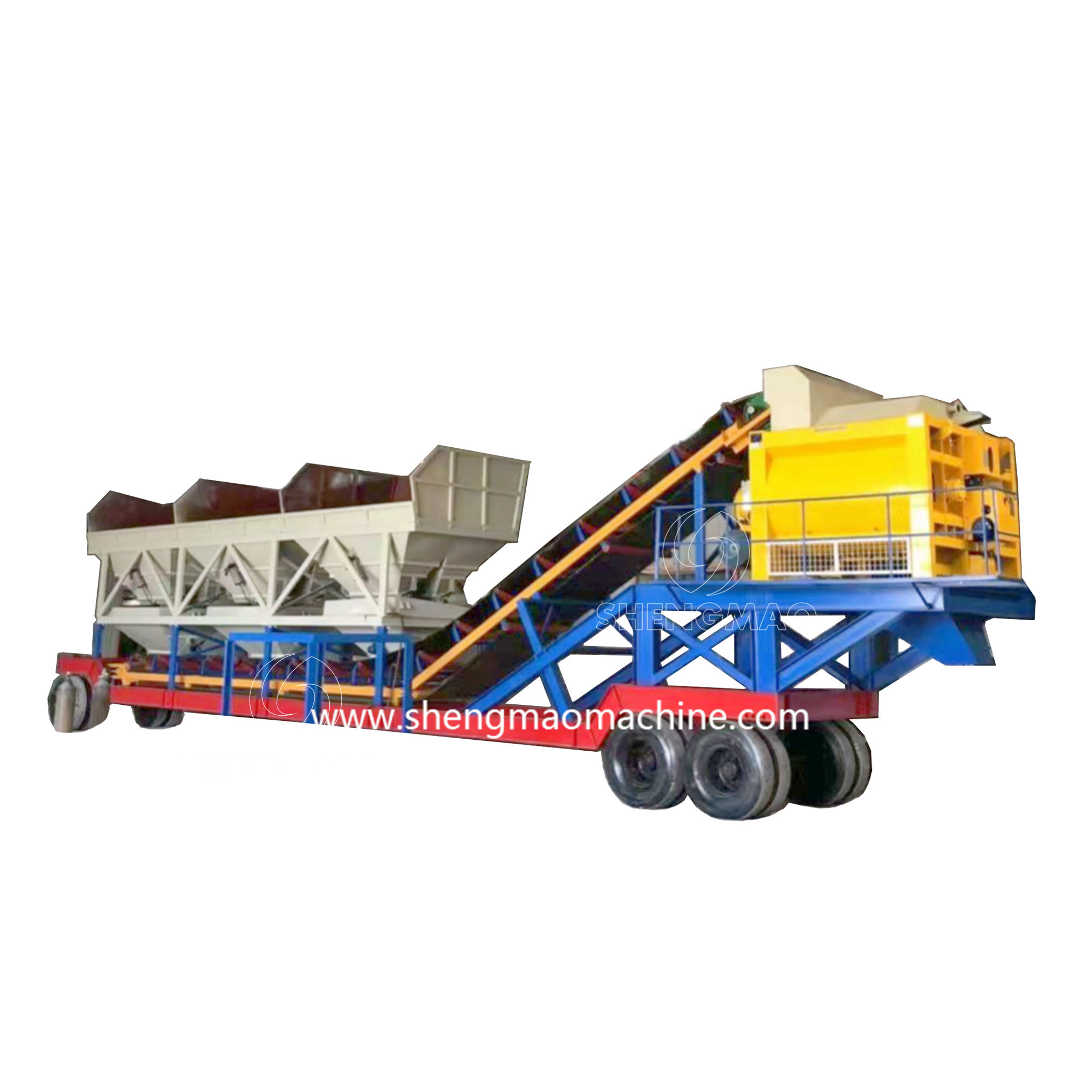

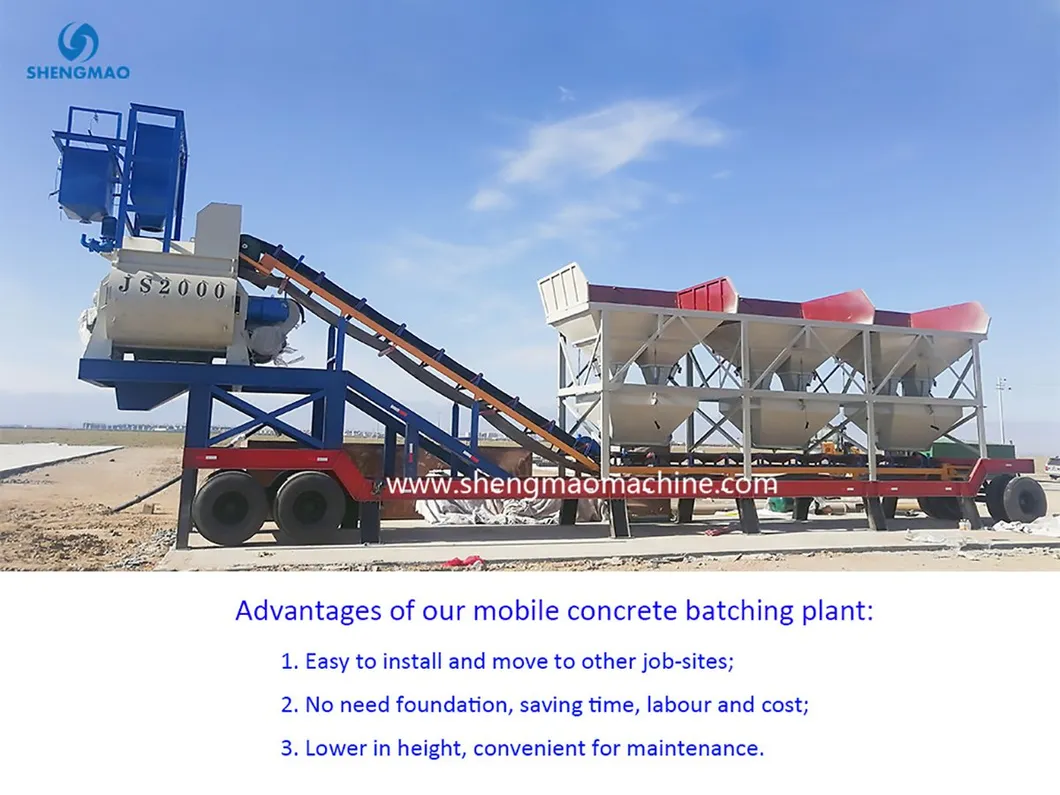

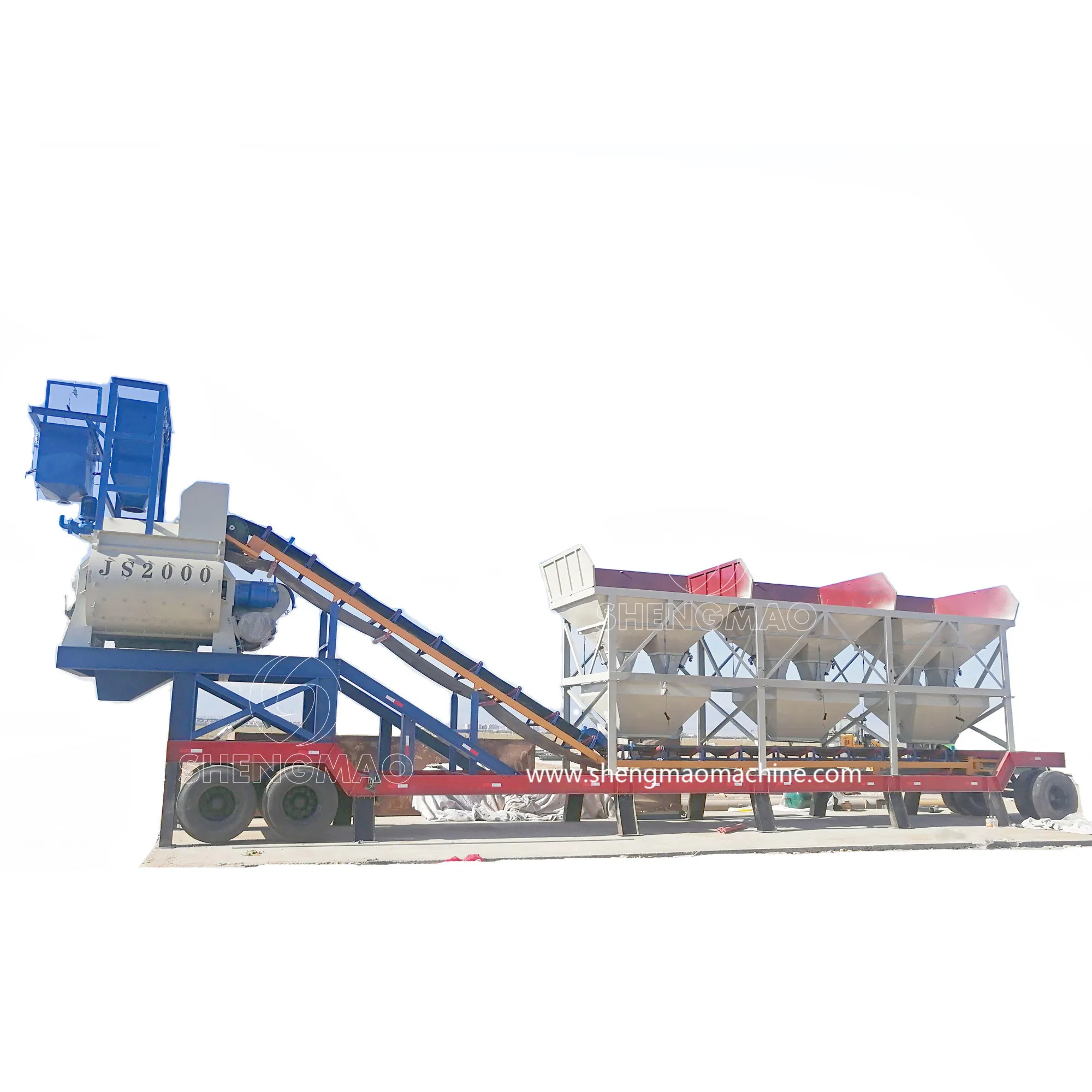

NYHZS Series Mobile Plant
Key Features:
- No concrete foundation needed for quick setup.
- Uses a twin-shaft concrete mixer (planetary mixer option available).
- Mobile cement silo included.
- Standard discharging height of 1m.
| Model |
NYHZS25 |
NYHZS35 |
NYHZS50 |
NYHZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Total power (kw) | 61 | 76 | 85 | 95 |
| Total weight (T) | 13 | 15 | 19 | 22 |

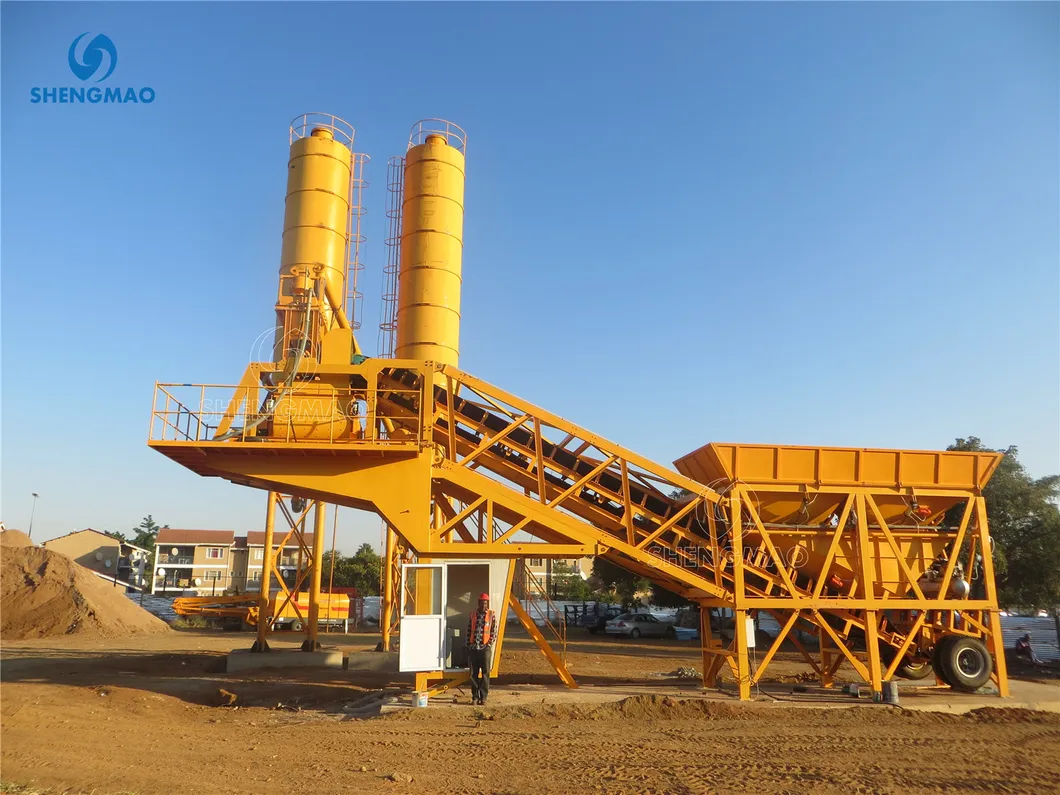

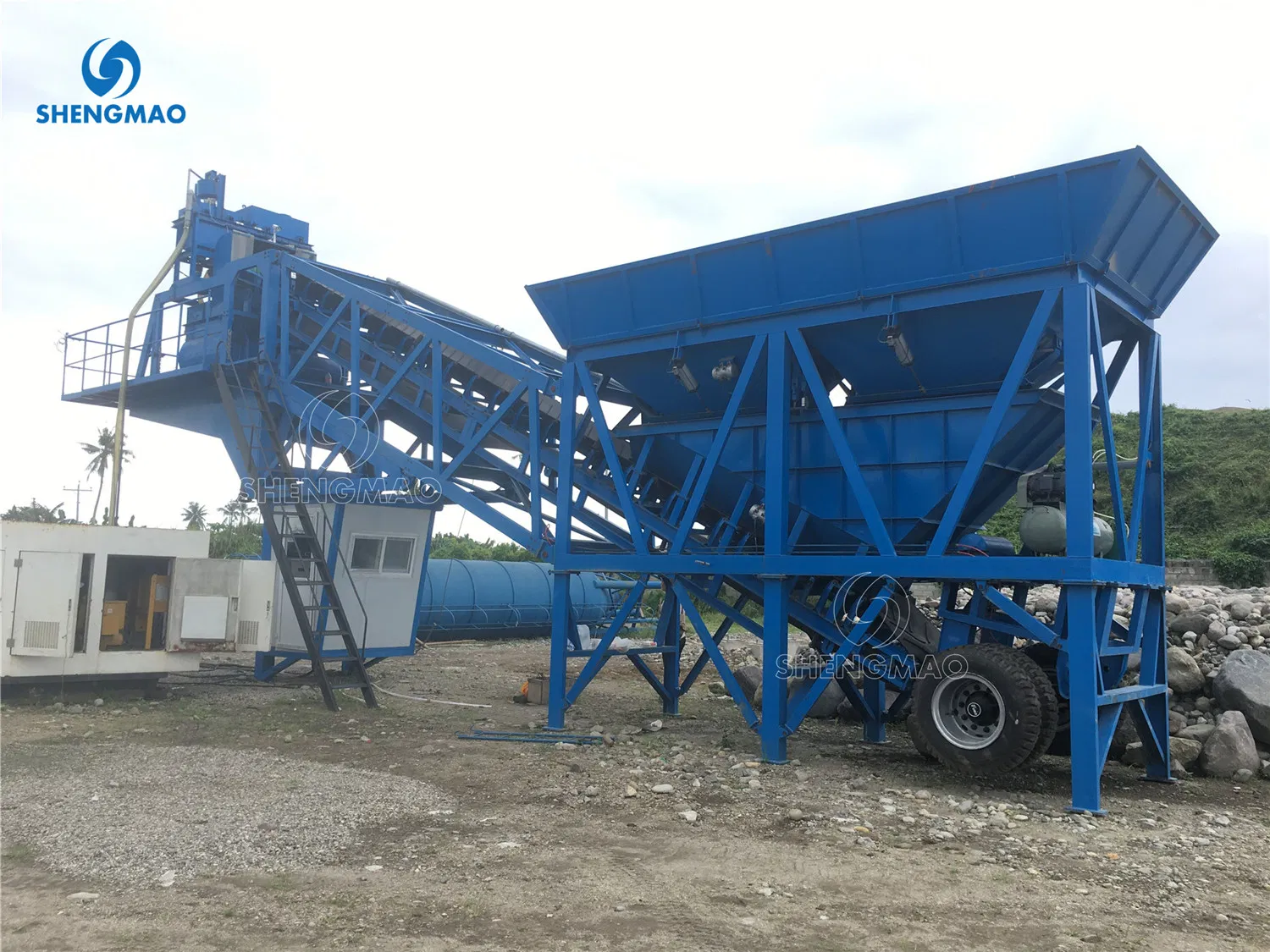

YHZS Series Specifications
Key Features:
- Requires a concrete foundation for stability.
- Twin-shaft concrete mixer for heavy-duty mixing.
- Stationary cement silo design.
- High discharging height of 4.1m for direct transit mixer access.
| Model |
YHZS25 |
YHZS35 |
YHZS50 |
YHZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Discharging height (m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Total power (kw) | 60 | 72 | 92 | 102 |
| Total weight (T) | 14 | 22 | 26 | 29 |

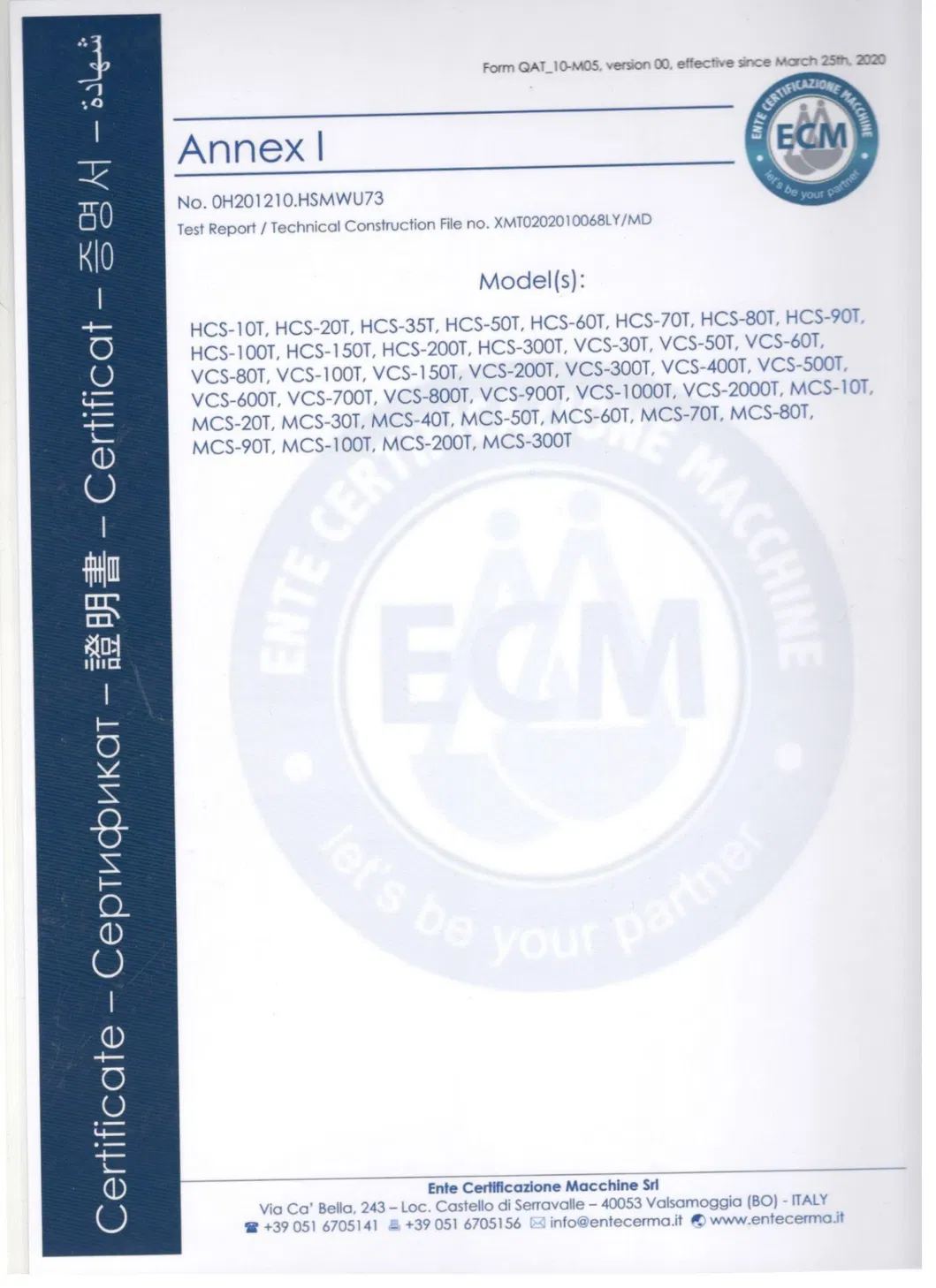

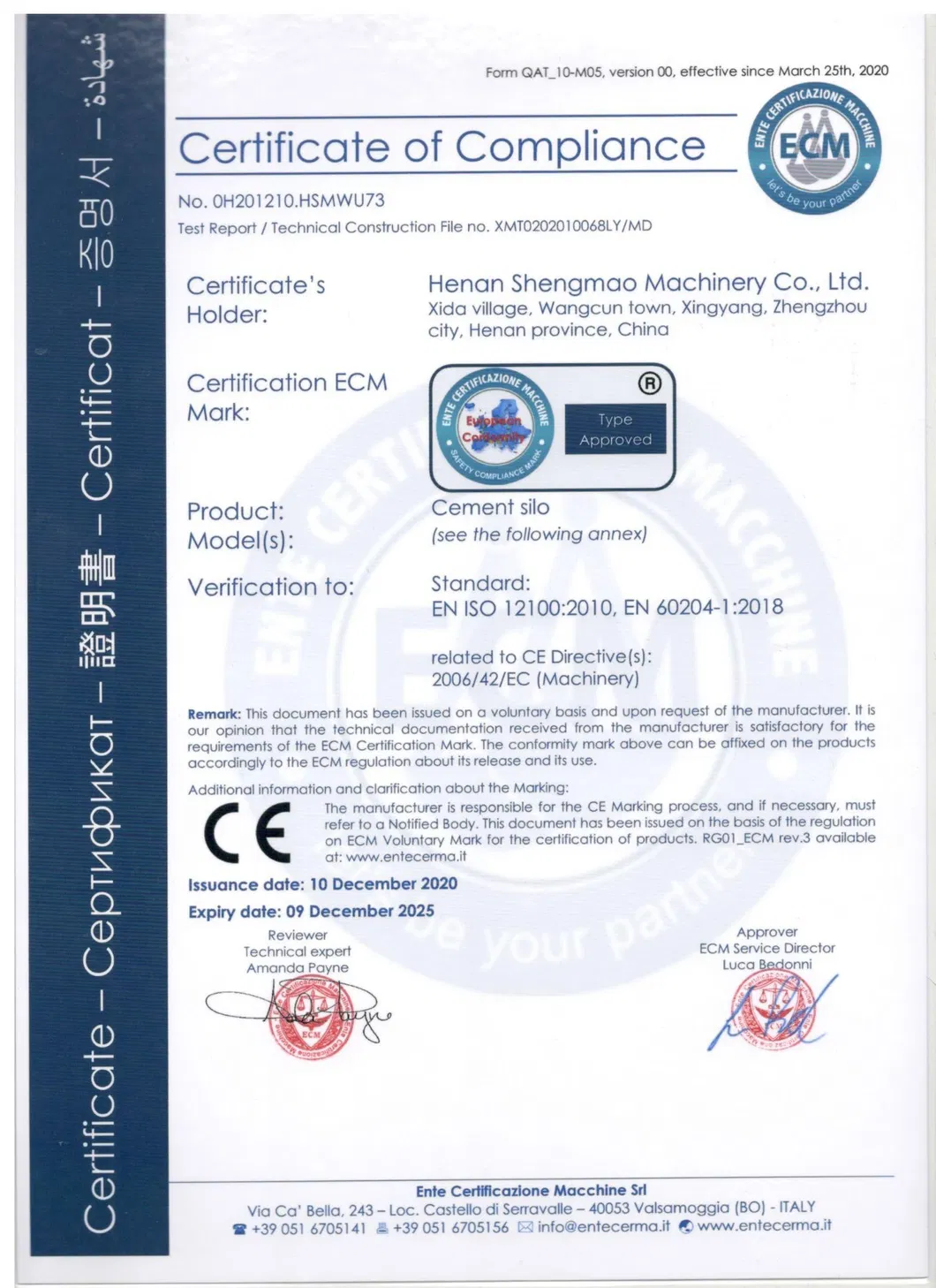

Certifications & Quality Assurance

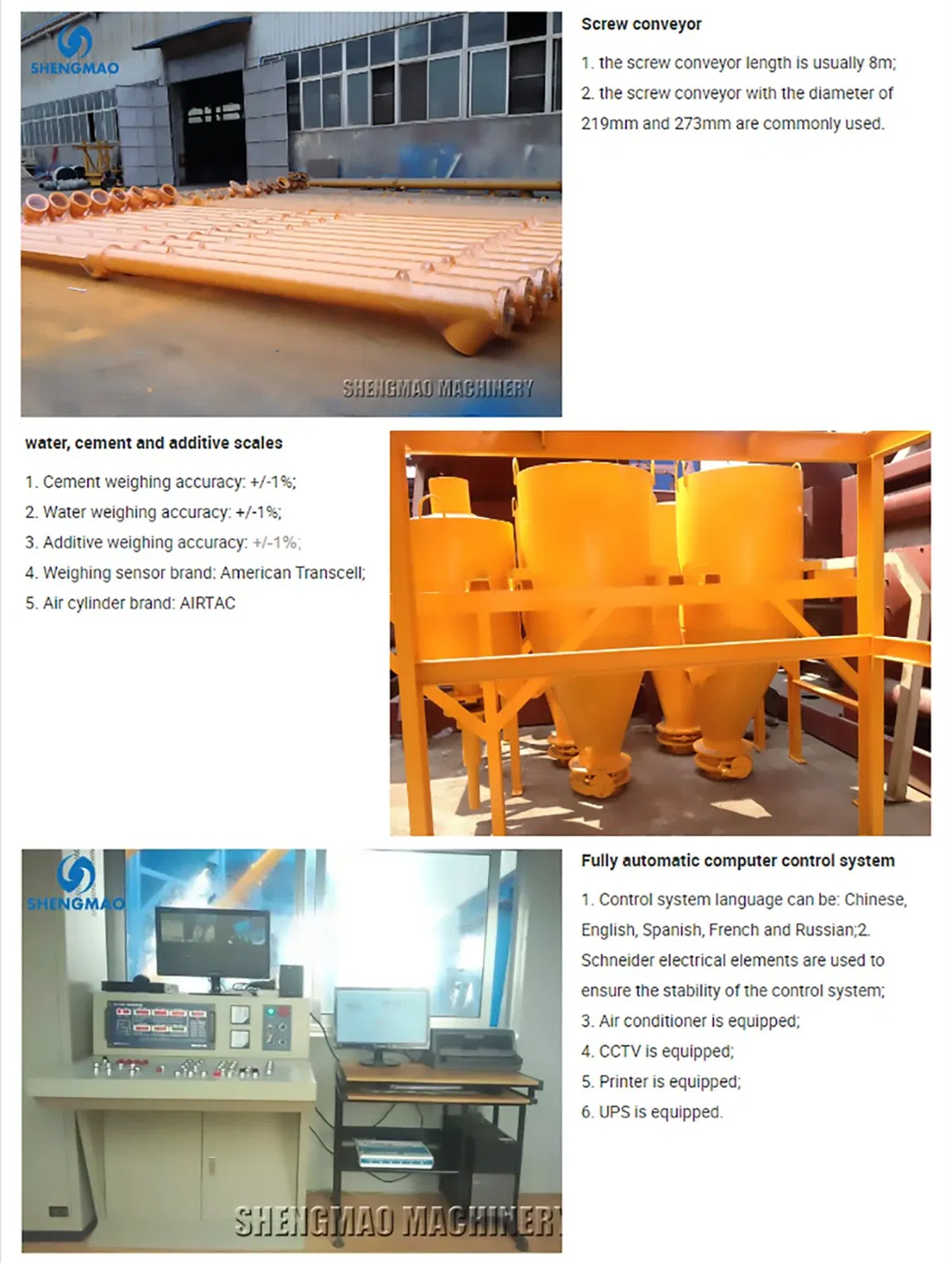

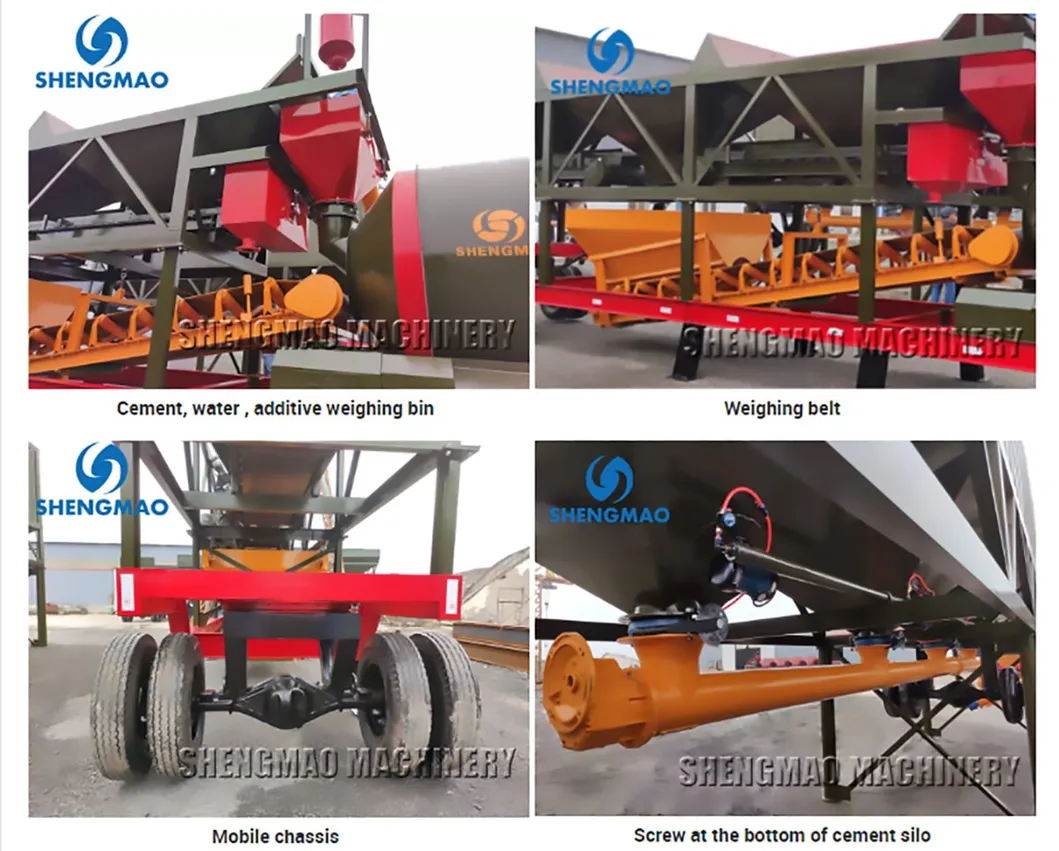

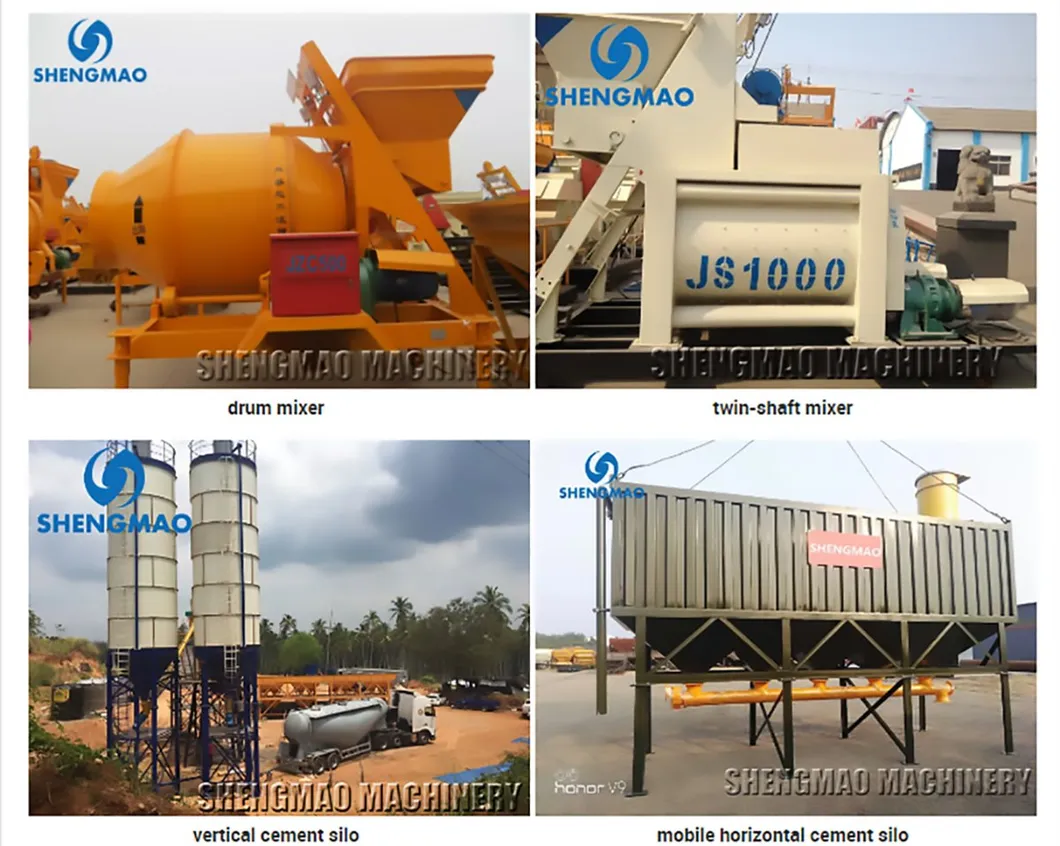

Detailed Components

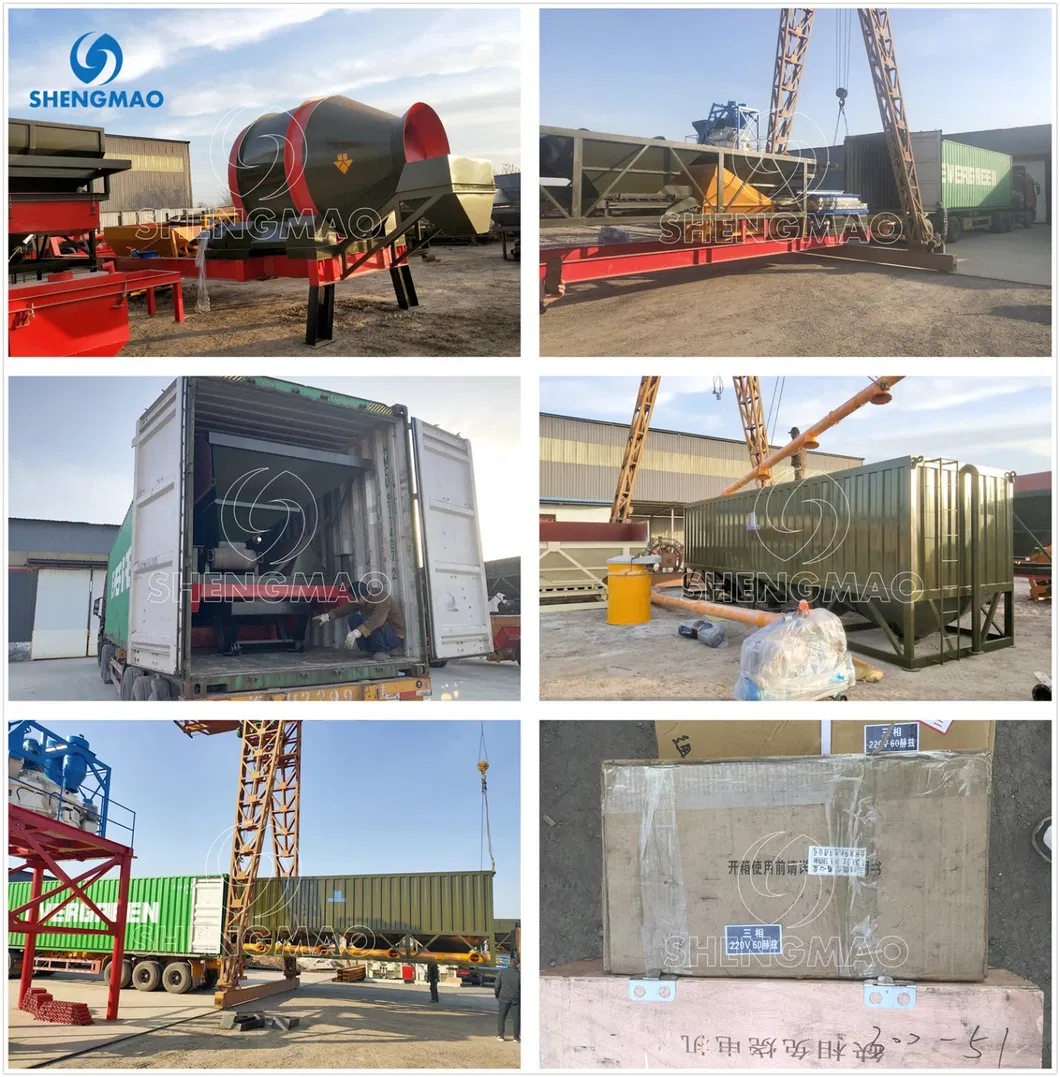

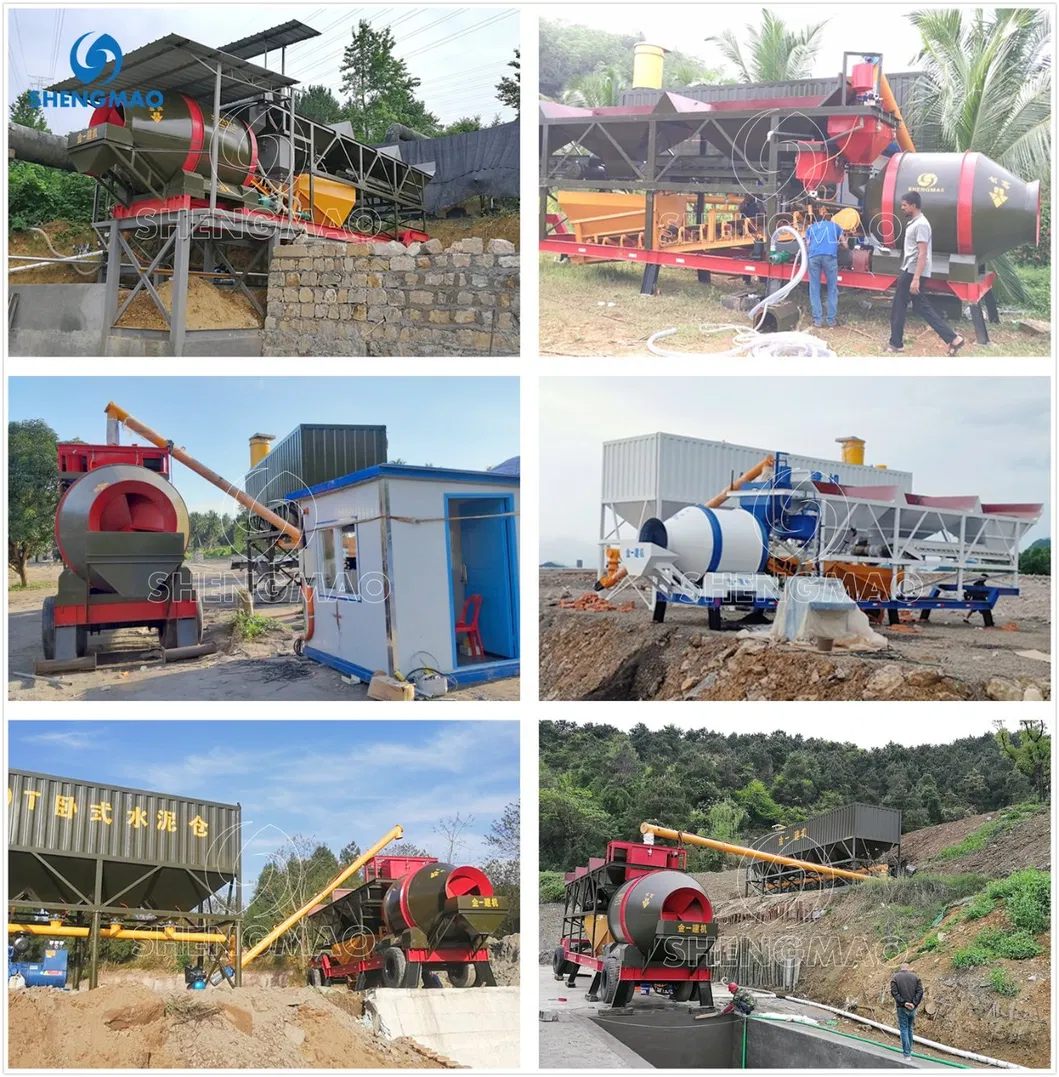

Global Projects & Logistics
Main parts are typically secured in containers using steel wire, while accessories are packed in sturdy carton or wooden boxes to ensure safe transit.
Professional Services
Pre-sale Service
- Expert consultation for machine selection.
- Customized design drawings.
- Detailed quotations.
In-sale Service
- Strict quality control and pre-assembly.
- Regular production updates.
- Test running before shipment.
- Foundation drawings provided in advance.
After-sale Service
- 7*24 online technical support.
- Installation and maintenance manuals/videos.
- On-site engineer support for training.
- Reliable spare parts supply.

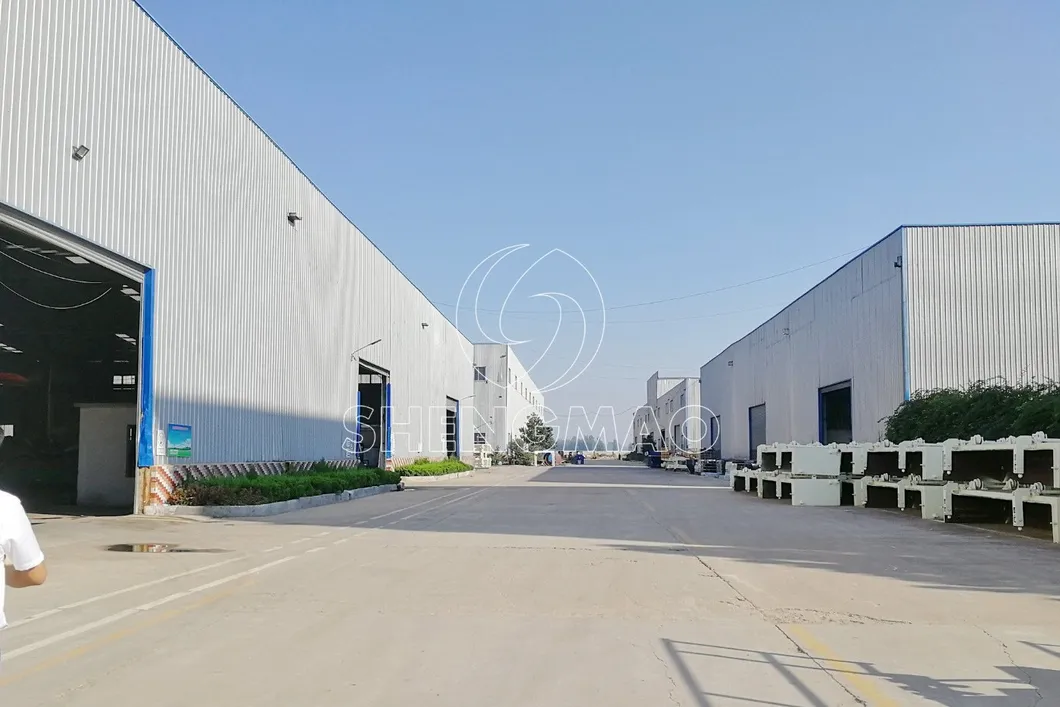

Manufacturing Excellence
Founded in 2001, the production facility covers 80,000 m2 and employs over 700 staff, including 45 engineers and 500+ technicians. The product range includes concrete mixers, batching plants, asphalt plants, and more, exported to over 90 countries including Russia, USA, Australia, and Southeast Asia.
Frequently Asked Questions
What are the main advantages of a mobile concrete batching plant?
The main advantages are portability and ease of installation. It is designed for projects that require frequent relocation, and most models do not require a concrete foundation, saving time and costs.
What is the production capacity range available?
We offer a wide range of capacities from 20m³/h for small projects up to 120m³/h for large-scale construction needs.
Do I need to build a foundation for the mobile plant?
For the YHZM and NYHZS mobile series, no reinforced concrete foundation is required. However, for the stationary YHZS series, a foundation is necessary for stability.
What types of mixers are used in these plants?
Depending on the model, we use high-quality drum mixers (JZM series) or powerful twin-shaft mixers (JS series) to ensure thorough and efficient mixing.
How is the equipment transported and installed?
The plant is designed for container transportation. Once on-site, it can be towed into position, unfolded, and connected to power and water for rapid deployment.
What after-sales support do you provide?
We provide 7*24 online support, installation videos, operation manuals, and can arrange for engineers to visit your job site for installation and operator training.
