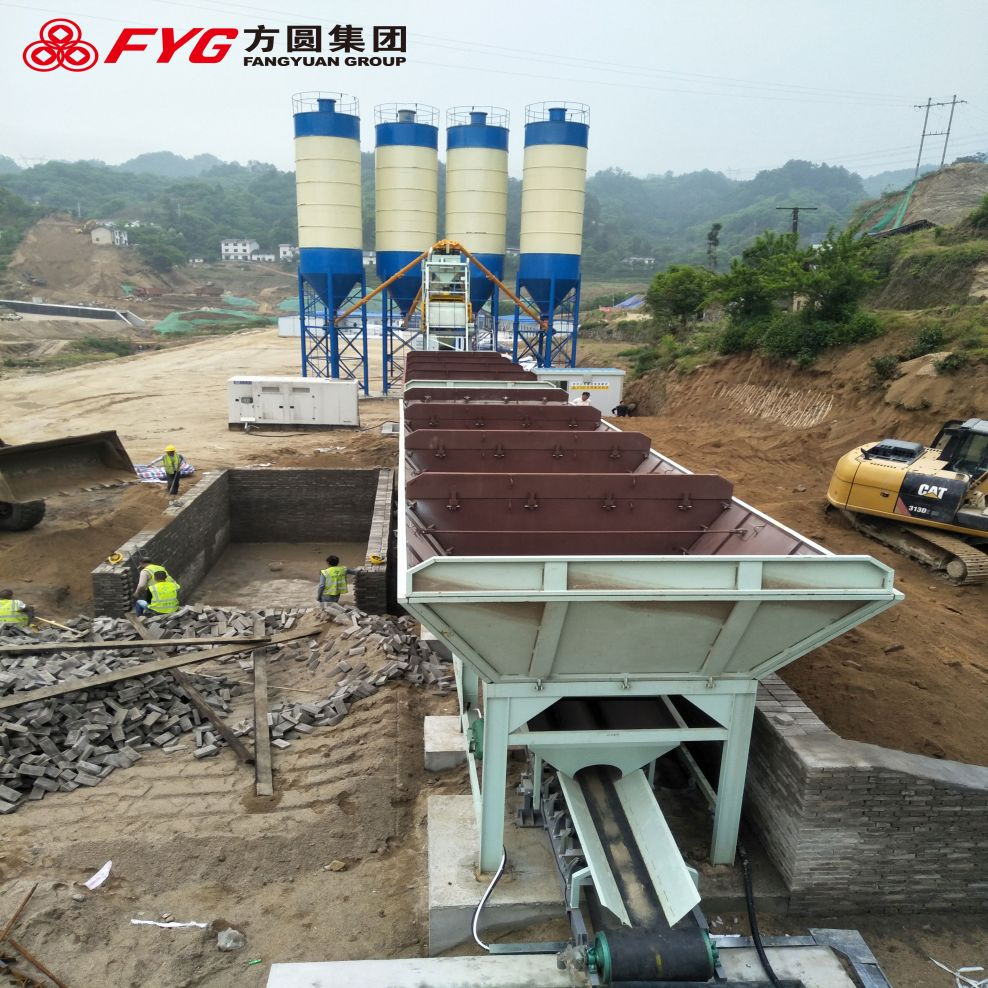

Skip Type Modular 50cbm/H Concrete Batching Plant

1 / 5

Skip Type Modular 50cbm/H Concrete Batching Plant

Customization:	Available
After-sales Service:	Provided
Warranty:	1year

Send Inquiry

Product Description

!Basic Information

Model NO.

HZS50D

Type

Concrete Mixing Plant

Machining Process

Welded Molding Machine

Productivity

50m³/h

Certification

ISO9001: 2000, CE, Eac

Condition

New

Color

According to Requirements

Mixer Charging

1cbm

Batching Machine

PLD1600-III

Storage Bins

3 Bins (7cbm each)

Discharge Height

3.8m

HS Code

8474310000

✓Product Description

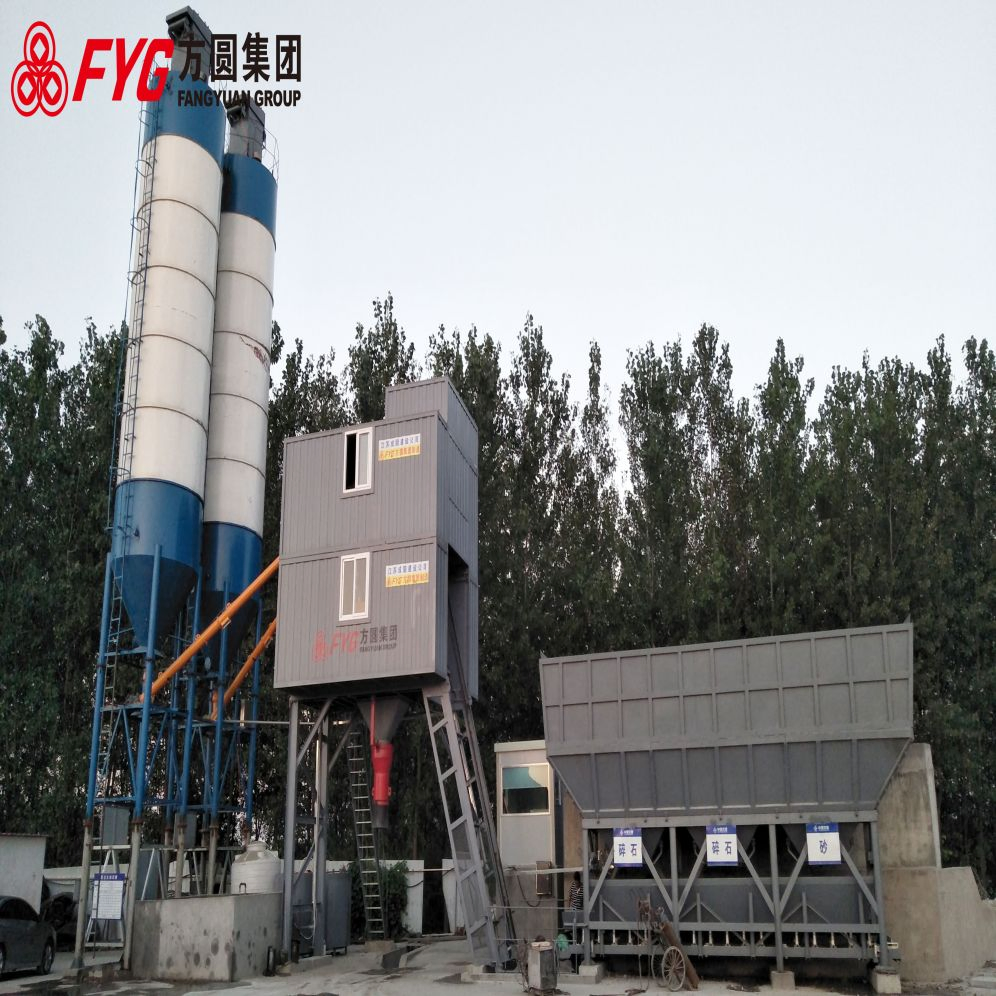

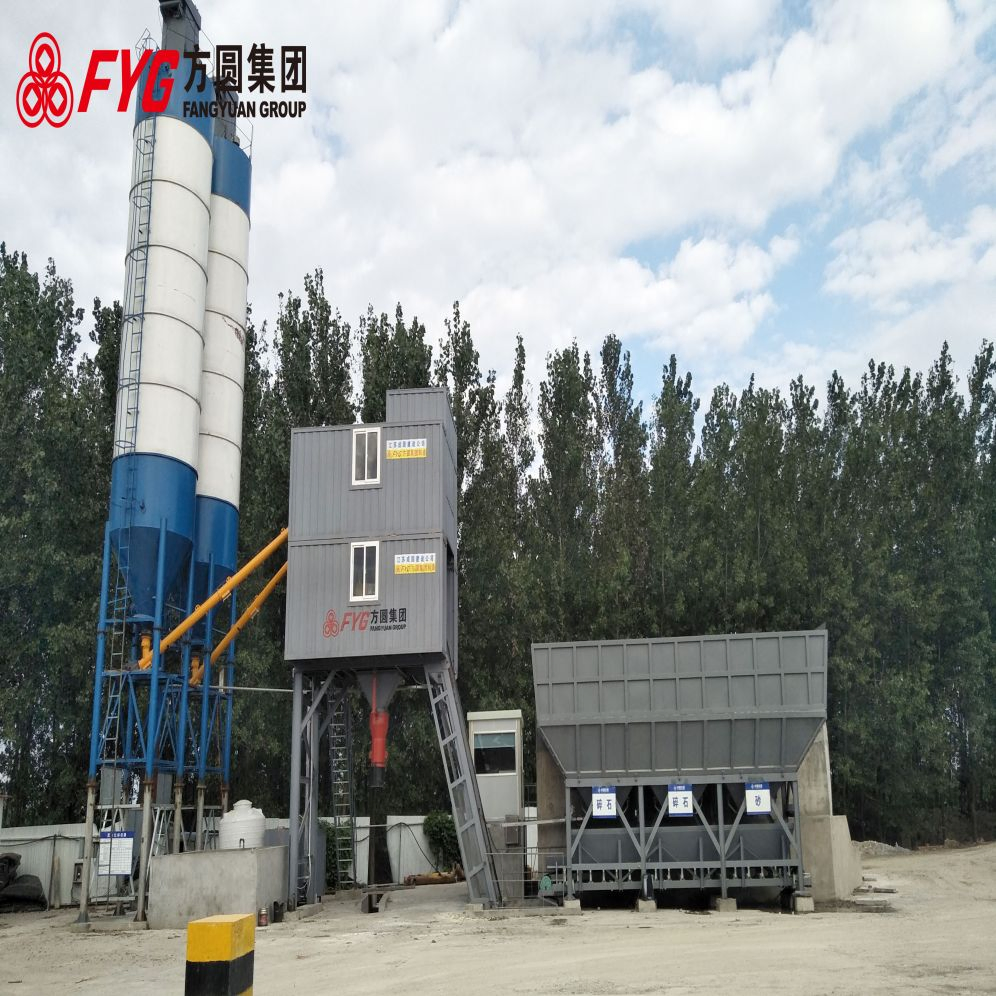

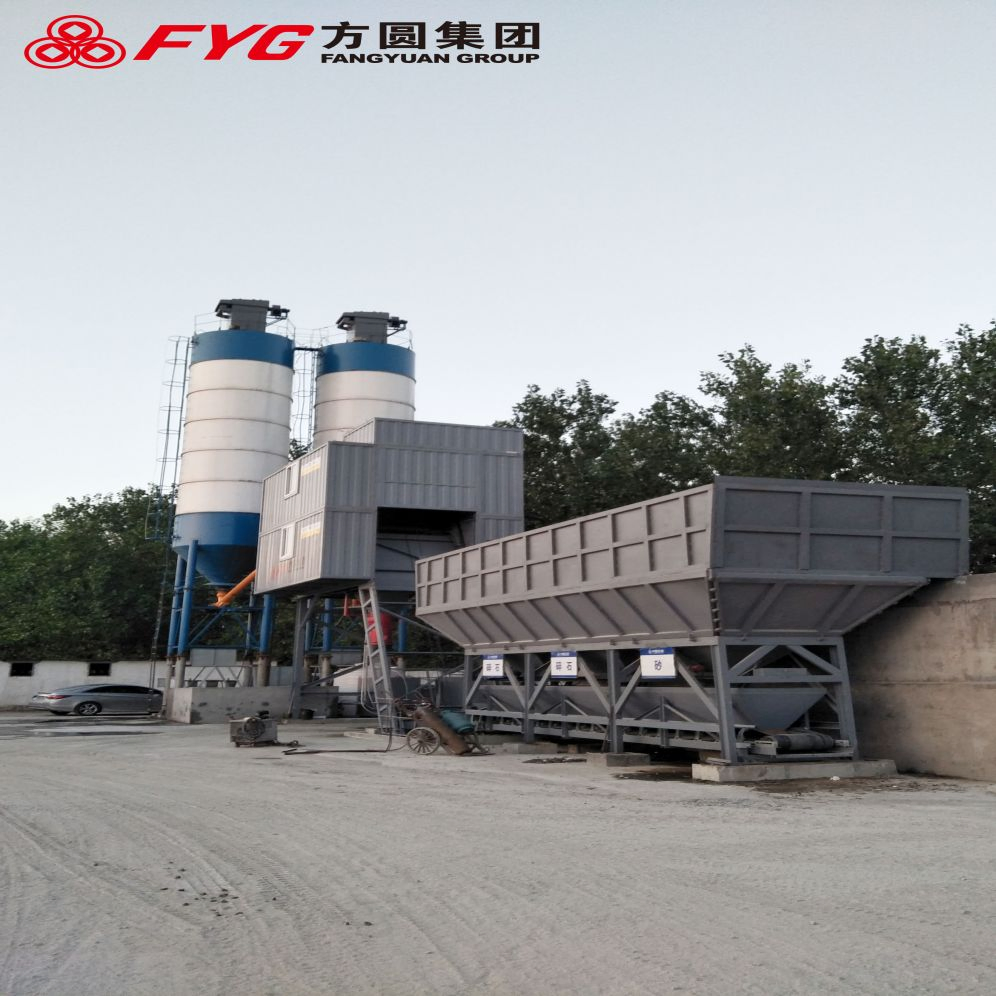

Modular Container-design Mixing Plants with Skip Loading

Designed for minimum space requirement and large quantities of concrete production performance, durable container modules enable economical transportation, minimum time and operations of erection and disassembling. The robust structure reduces the requirement of foundation, leading to economical plant relocations. The plant is fully enclosed and protected from harsh environments, ensuring low noise and dust emission.

📊Technical Parameters

Item	Unit	HZS50D	HZS90D	HZS120D	HZS180D
Nominal output/h	m³/h	50	90	120	180
Mixer charging	m³	1	1.5	2	3
Batching machine	-	PLD1600-III	PLD2400Q-IV	PLD3200QD-IV	PLD4800QD-IV
Aggregate storage bins	m³	7	15	20	20
Bins quantity	pc	3	4	4	4
Cement weighing	kg	600	1000	1200	1600
Water weighing	kg	250	400	500	800
Mixer power	kw	37	2*30	2*37	2*55
Total power	kw	80	120	150	190
Discharge height	m	3.8	3.8	3.8	3.8
Loading Type	-	Skip Hoist

★Key Features

▶ Space Efficiency: Modular container design optimized for minimum site space requirements.

▶ Rapid Deployment: Durable modules allow for rapid erection and disassembling, saving operation time.

▶ Cost-Effective Foundation: Robust structure reduces the complexity and cost of foundation work.

▶ Environmental Protection: Fully enclosed design minimizes noise and dust emissions.

▶ Economical Transport: Specifically designed for standard container transportation to reduce shipping costs.

?Frequently Asked Questions

1. What is the hourly productivity of the HZS50D model?

The HZS50D model has a nominal output of 50m³/h, making it suitable for medium-sized construction projects.

2. How is the aggregate loaded into the mixer?

This series utilizes a skip hoist loading system, which is designed for space efficiency and reliable performance.

3. Is the plant suitable for environmentally sensitive areas?

Yes, the plant is fully enclosed to protect it from harsh environments and to ensure low noise and dust emissions, meeting environmental standards.

4. What are the transportation advantages of the modular design?

The durable container modules are specifically designed for economical transportation and easy relocation between different job sites.

5. What is the standard discharge height for this mixing plant?

The HZS50D model features a standard mixer discharge height of 3.8 meters, compatible with most concrete transport trucks.

6. What certifications does the equipment hold?

The plant is certified under ISO9001:2000, CE, and EAC, ensuring high-quality manufacturing and safety standards.
