| Model NO. | QDRO | Application | Industry, Domestic, Household |
|---|---|---|---|
| Capacity | 1-1000m³/Day | Raw Water TDS | 3000-45000ppm |
| Output Water TDS | Less Than 500ppm | Recovery Rate | 35-40% |
| Operation | Automatic | Control | PLC |
| Material | SS316 | Operating Temp | 25~35℃ |
| Voltage | 220V/ 380V/ Customized | Lifetime | Above 10 Years |
| Warranty | 1 Year | HS Code | 8421219990 |

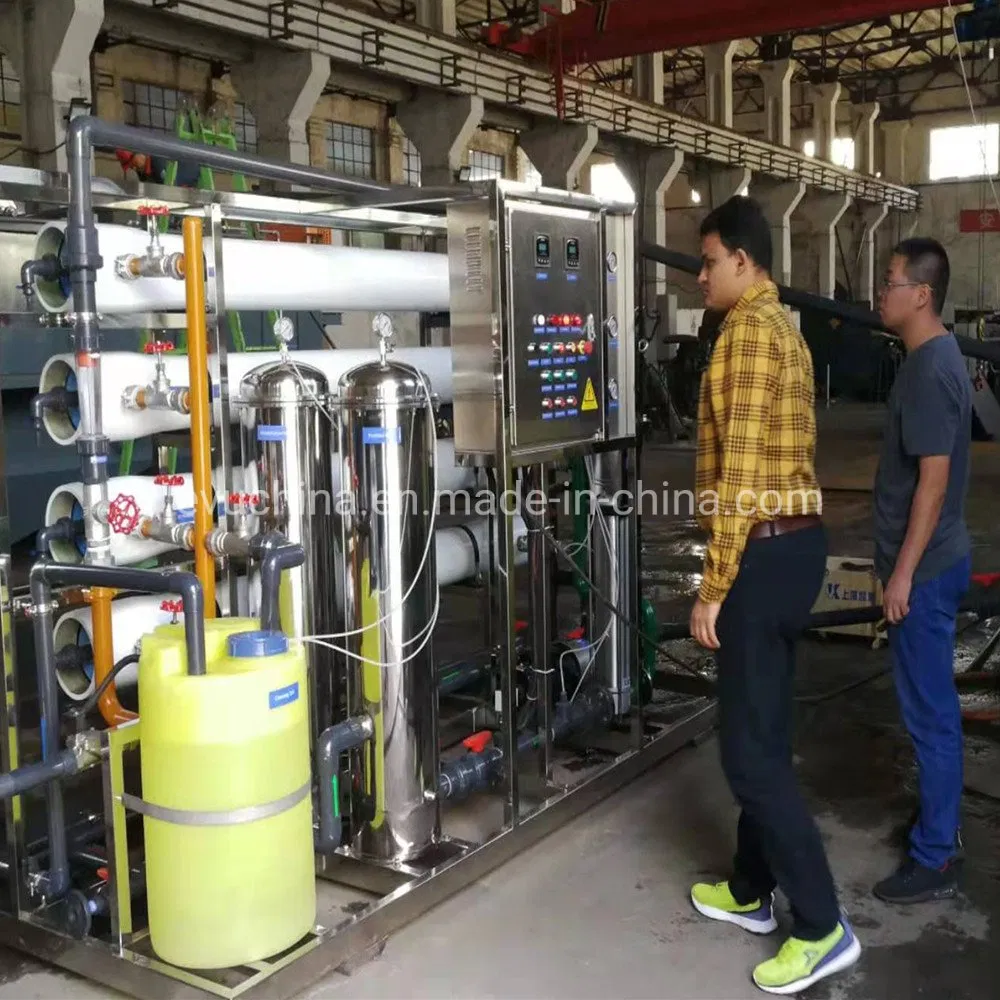

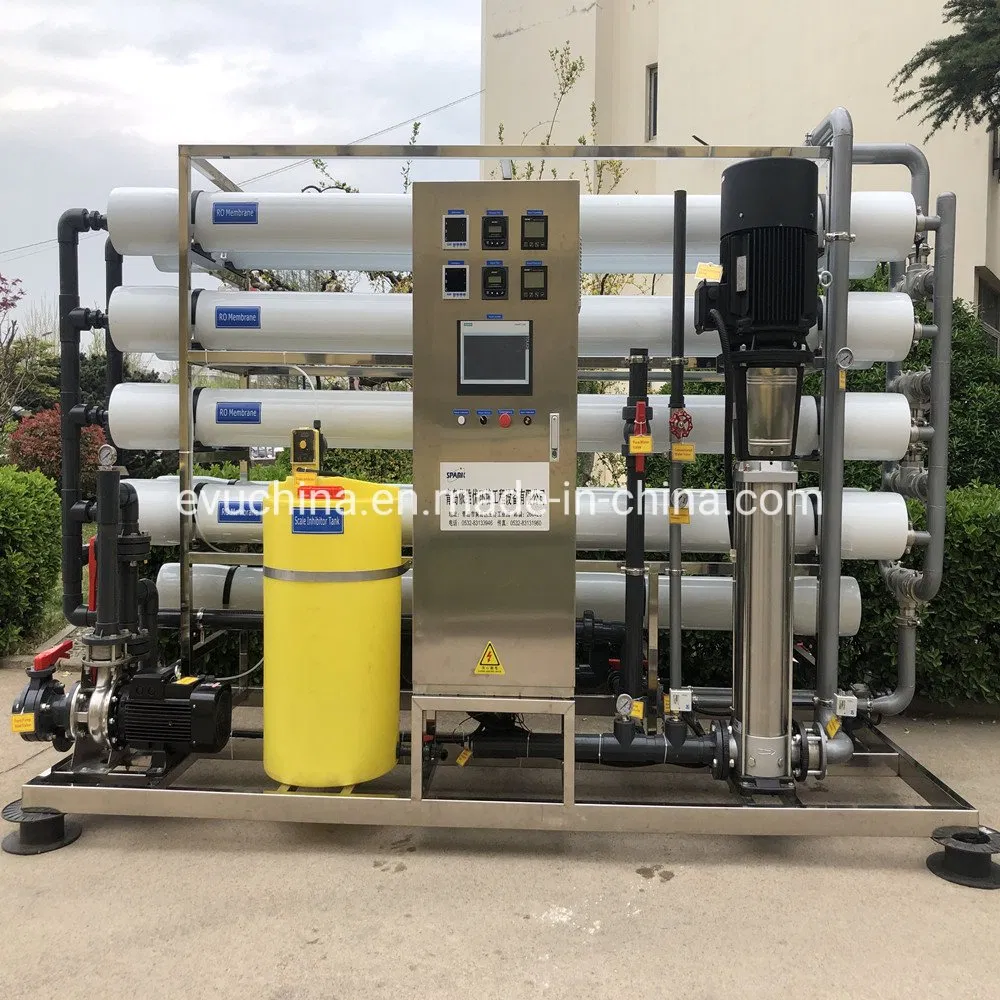

Reverse Osmosis (RO) technology is a premier membrane separation method driven by pressure. It effectively separates solutes from solvents using semi-permeable membranes. In water treatment, it removes inorganic ions, bacteria, viruses, organic substances, and colloids to produce high-quality pure water. It is widely recognized as the most energy-saving and efficient technology for Sea Water Desalination (SWRO) and Brackish Water Desalination (BWRO).
| Model | Water Flow (m³/h) | Desalination Rate (%) | Recovery Rate (%) | Power (kw/ton) | Size (L*W*H/cm) |
|---|---|---|---|---|---|
| QD-S1 | 0.05 | 99.2 | 30 | 15 | 75*60*175 |
| QD-S3 | 0.10 | 99.2 | 30 | 11 | 95*60*175 |
| QD-S5 | 0.20 | 99.2 | 30 | 8 | 115*85*175 |
| QD-S10 | 0.40 | 99.2 | 30 | 7.5 | 160*85*175 |
| Model | Water Flow (m³/h) | Desalination Rate (%) | Recovery Rate (%) | Power (kw/ton) | Size (L*W*H/cm) |
|---|---|---|---|---|---|
| QD-L10 | 0.4 | 99.5 | 30 | 7.5 | 110*65*165 |
| QD-L50 | 2.0 | 99.5 | 40 | 6 | 130*65*170 |
| QD-L100 | 4.0 | 99.5 | 40 | 4 | 190*70*175 |
| QD-L200 | 8.0 | 99.5 | 40 | 3.5 | 410*90*185 |
| QD-L500 | 20.0 | 99.5 | 40 | 3 | 650*130*230 |

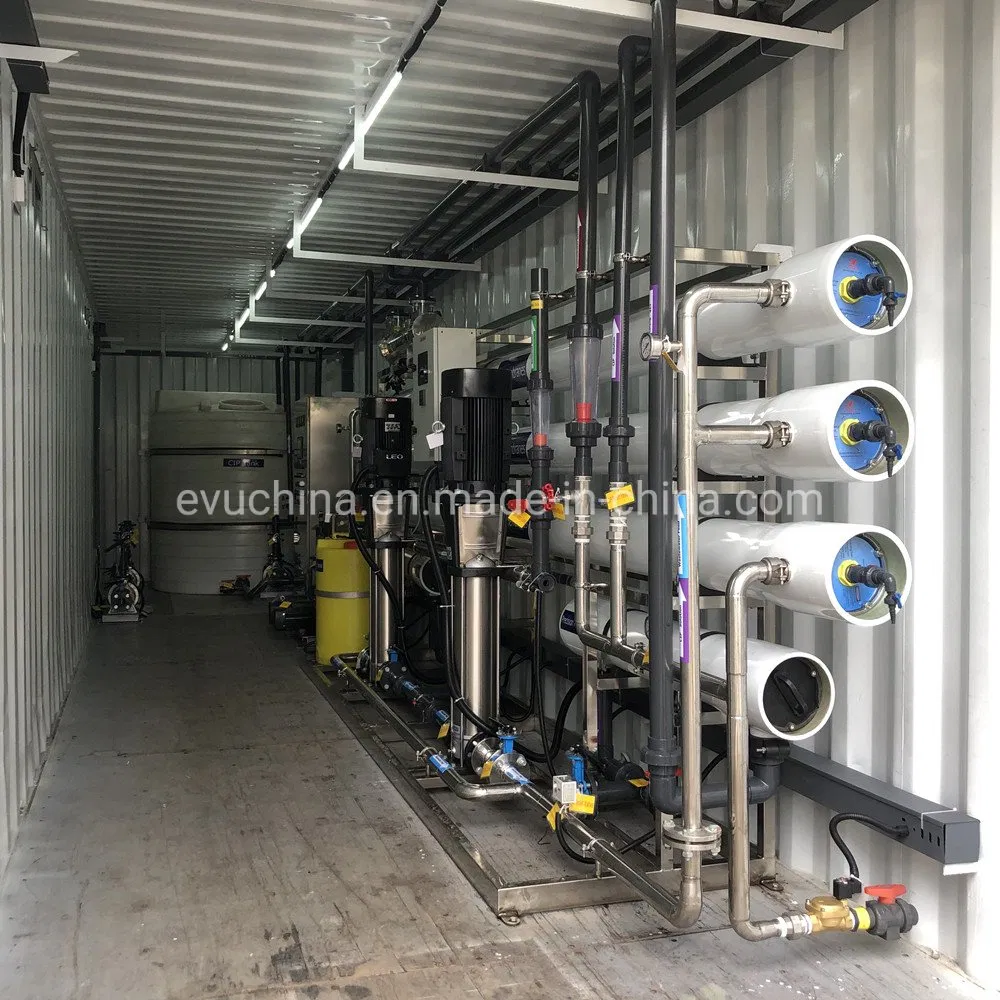

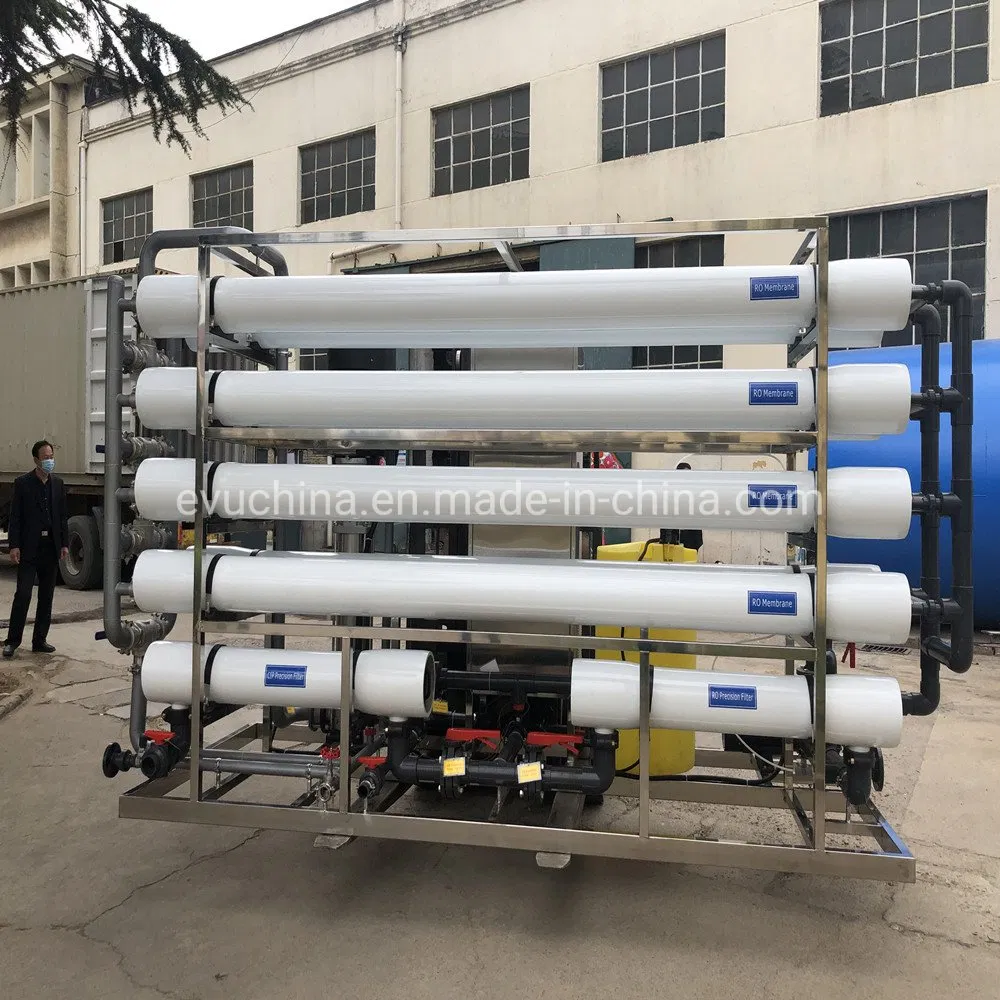

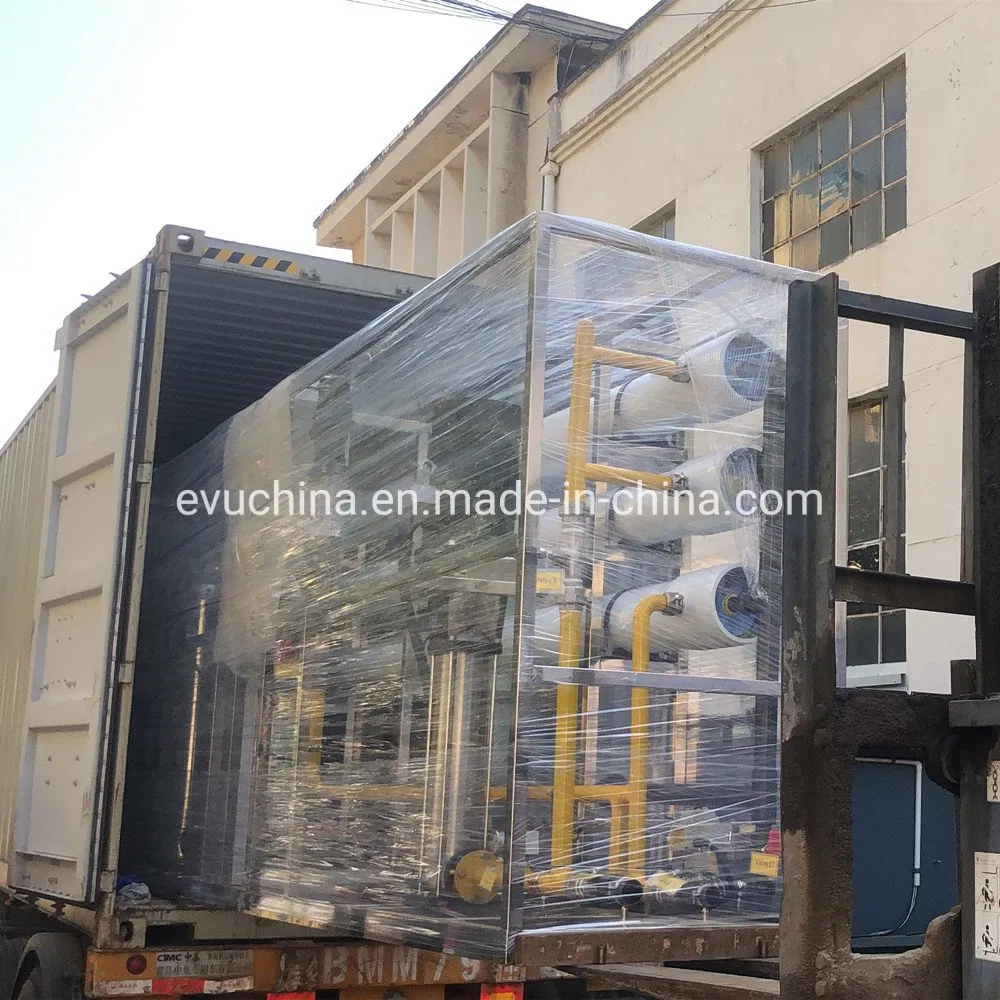

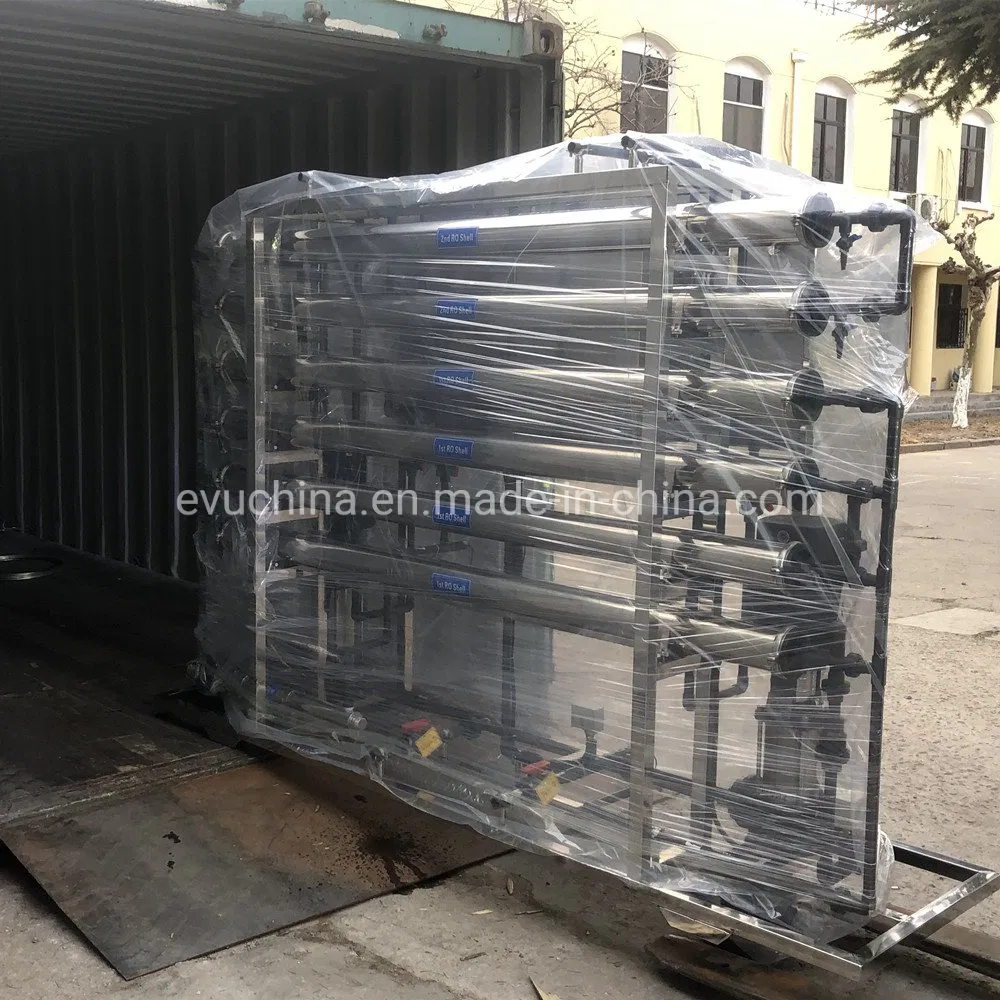

Our systems are suitable for water use during island development, offshore platform supply, and replenishment ship water supply. We ensure standard export packaging for long-distance transport.
We provide scientific research design, equipment manufacture, installation, and commissioning services. Our expertise covers Integrated Sewage Treatment, MBR, Electrocoagulation (EC), and advanced Reverse Osmosis (RO) systems.
We utilize advanced global technology to provide solutions like Dissolved Air Flotation (DAF), Sludge Dewatering, and Anaerobic Reactors for customers in over 40 countries, including Europe, Southeast Asia, and the Middle East.
