20m3/H 30m3/H 60m3/H 100m3/H Ready Wet Mix Mini Small Portable Mobile Concrete Batching Mixing Plant

Customization:	Available
After-sales Service:	Installation, Operators Training, Spare Parts
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

YHZM20; YHZM30; YHZM60; YHZM100

Type

Concrete Mixing Plant

Shotcrete Type

Wet

Machining Process

Concrete Wet Mix

Structure

Rotor Type

Productivity

20m³/H

Certification

ISO9001: 2000, CE

Condition

New

Aggregate Batcher

PLD800

Control System

Computer

Total Power

42 Kw

Origin

China

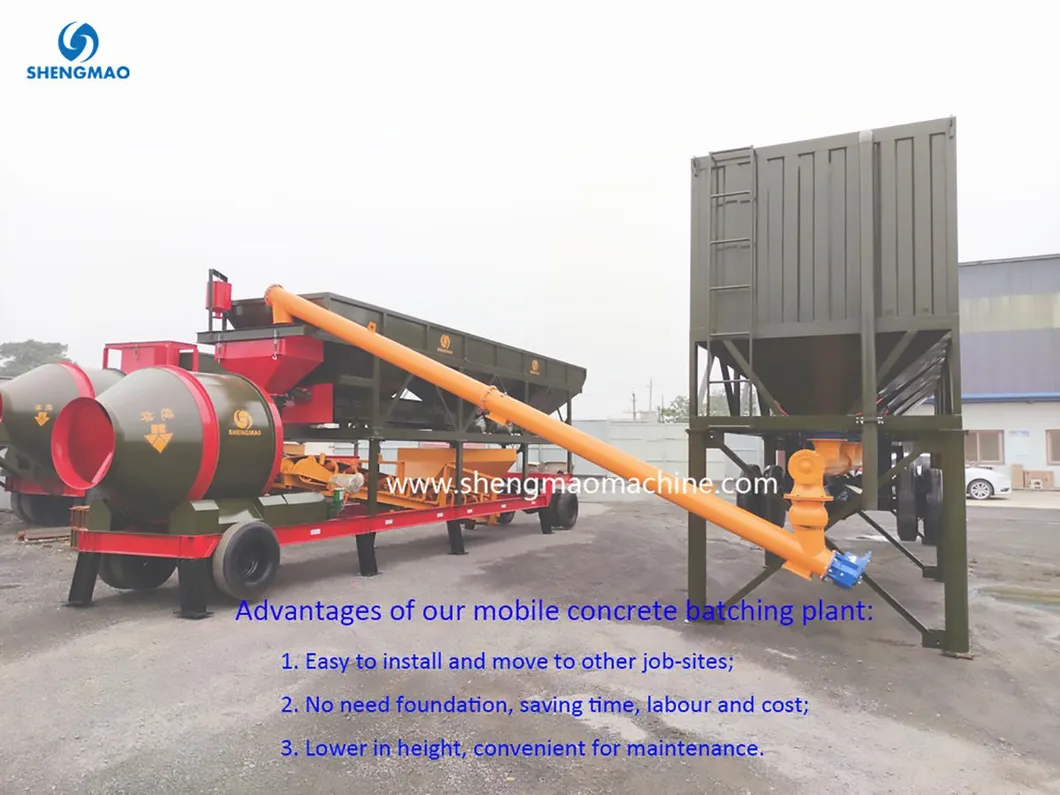

Mobile Concrete Batching Plant

Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.

Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have is from 20m³/h to 120m³/h.

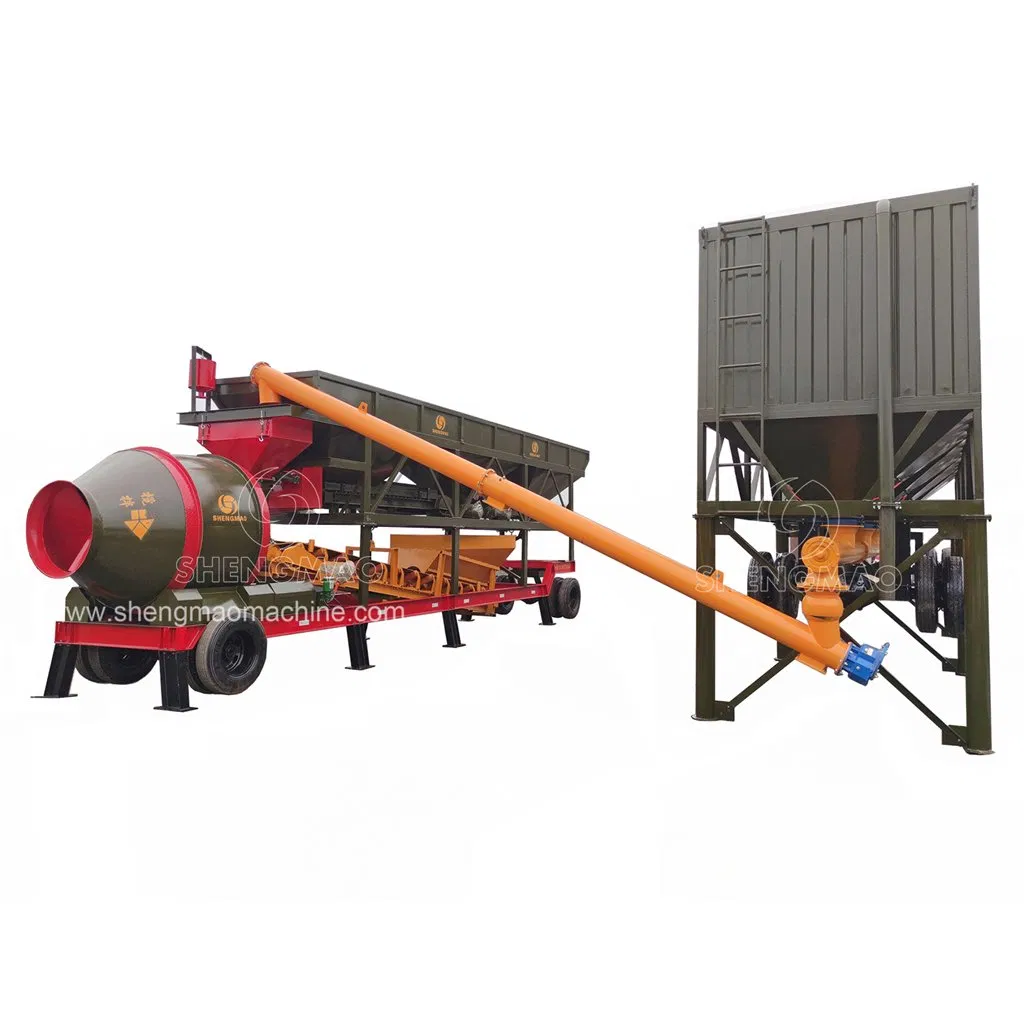

YHZM Series (Drum Mixer)

No need to make concrete foundation, easy to install and move to other job sites
Equipped with a high-performance drum mixer
Mobile cement silo for maximum portability
Standard discharging height is 1.3m (adjustable with belt conveyor or ramp)

Model	YHZM20	YHZM30	YHZM60	YHZM100
Production capacity (m³/h)	20	30	60	100
Concrete mixer	JZM500	JZM750	JZM1500	JZM2000
Aggregate Feeding Mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size (mm)	80/60	80/60	80/60	80/60
Total power (kw)	42	46	67.5	77.5
Total weight (T)	12	13	16	26

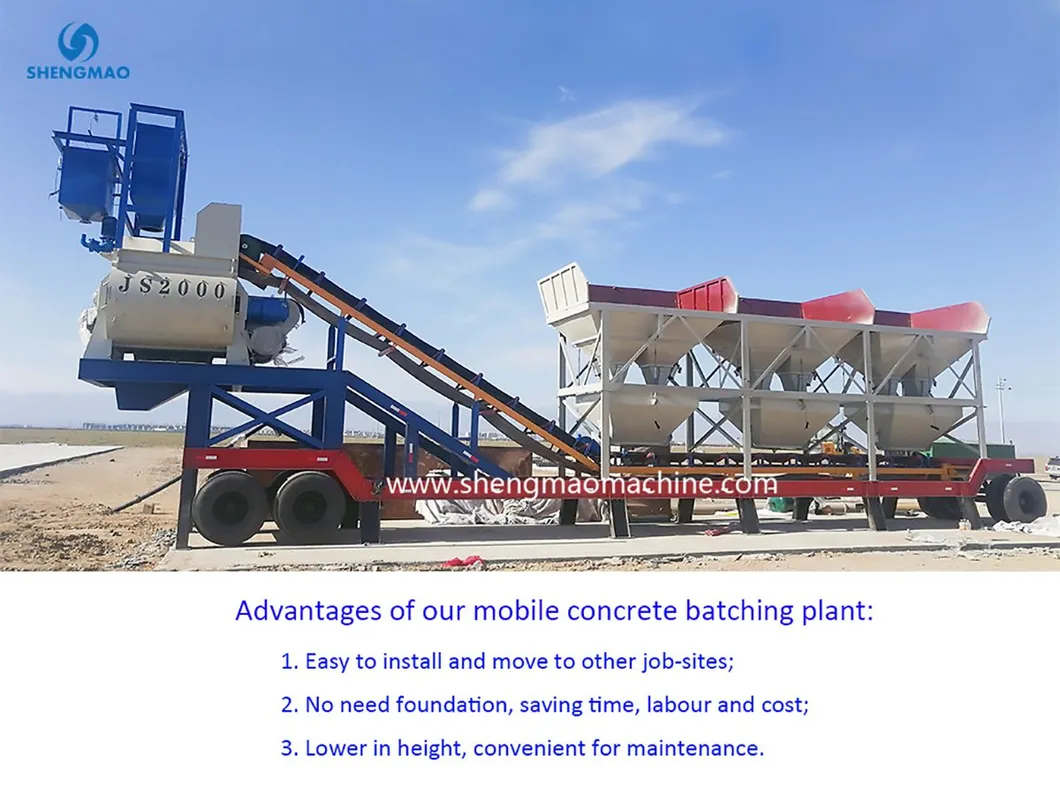

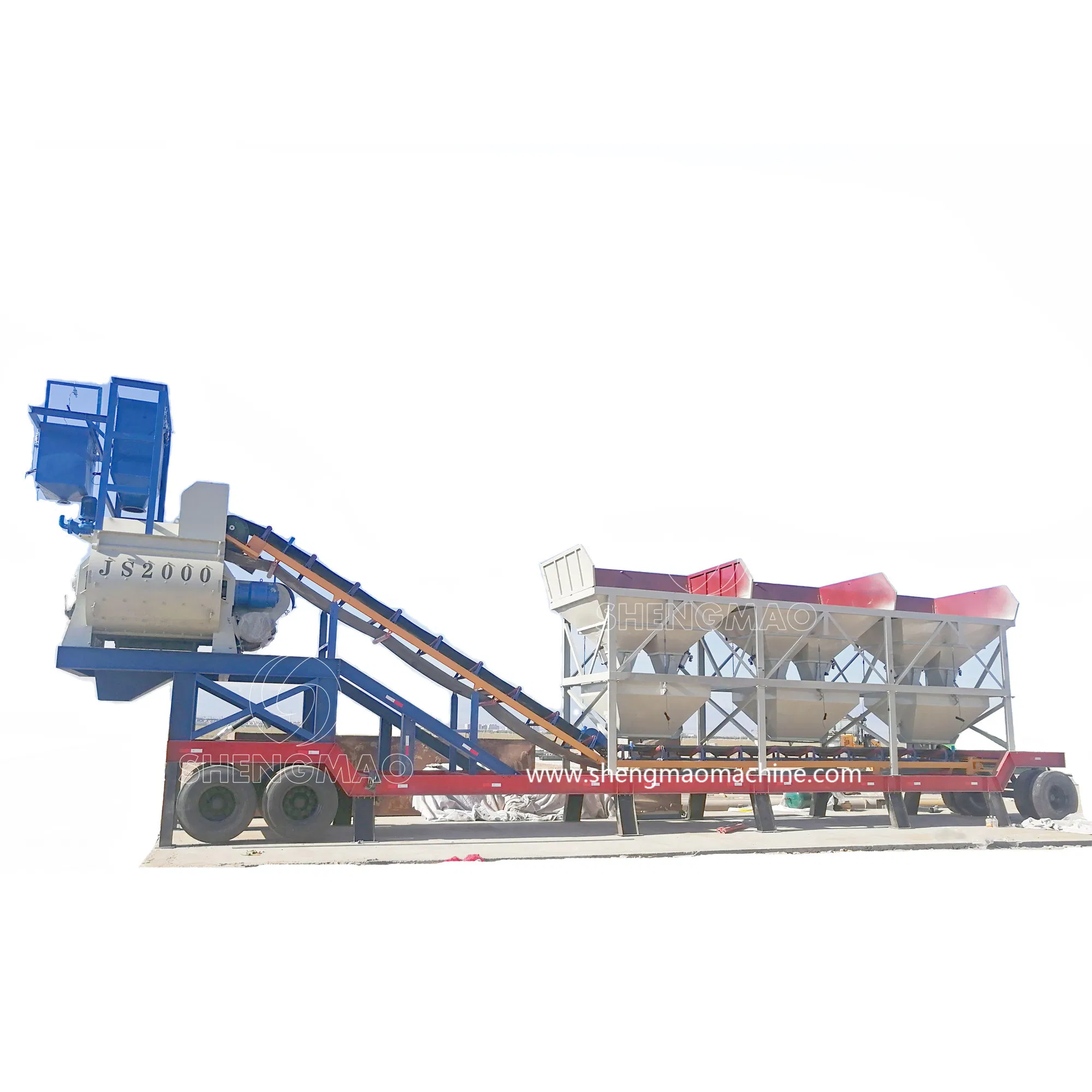

NYHZS Series (Twin-Shaft Mixer)

Twin-shaft concrete mixer (planetary mixer option available)
No concrete foundation required for quick setup
Fully mobile cement silo system
Discharging height of 1m, compatible with transit mixers via conveyor

Model	NYHZS25	NYHZS35	NYHZS50	NYHZS75
Production capacity (m³/h)	25	35	50	75
Concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Control system	Panel	Computer	Computer	Computer
Total power (kw)	61	76	85	95
Total weight (T)	13	15	19	22

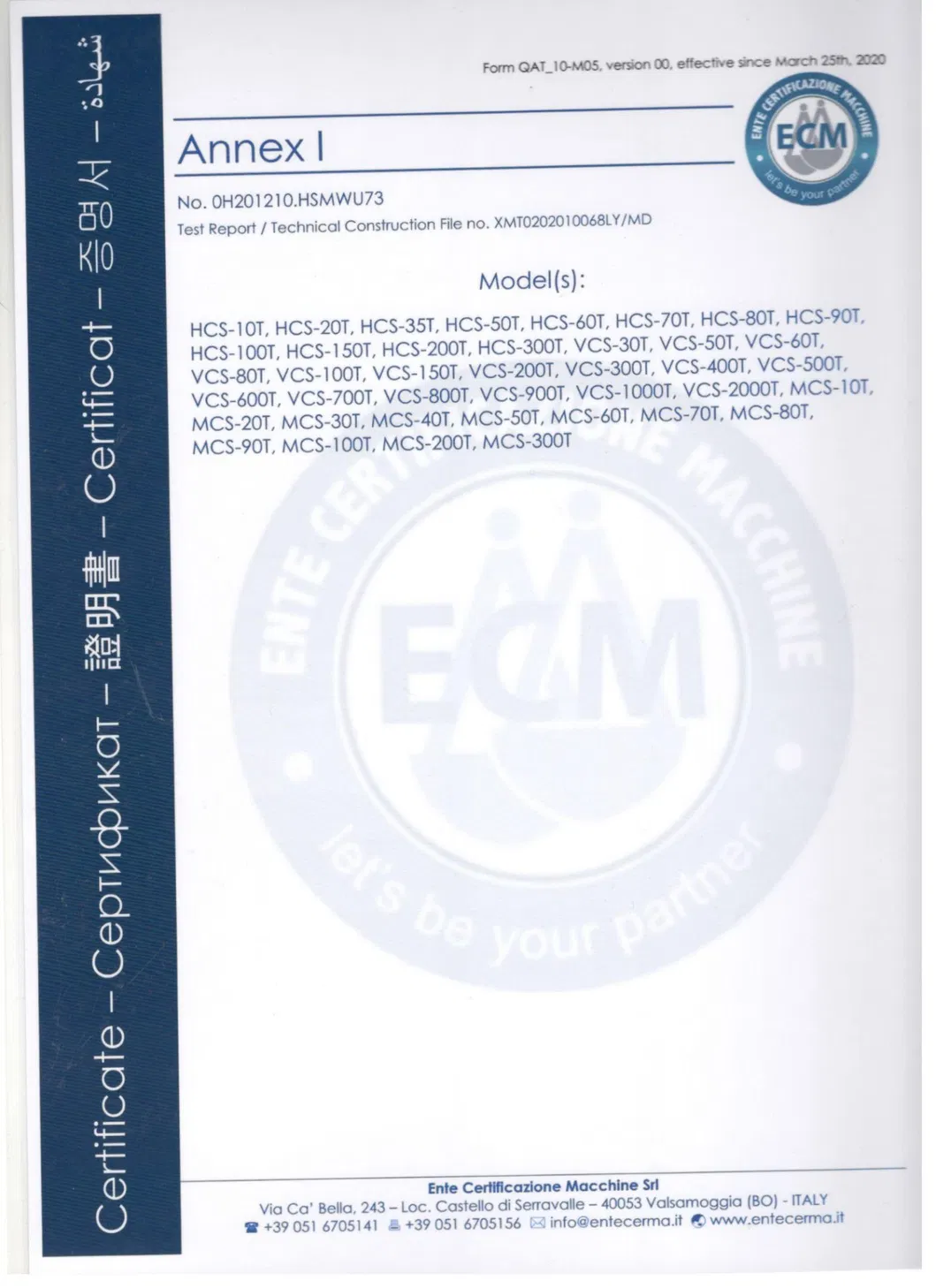

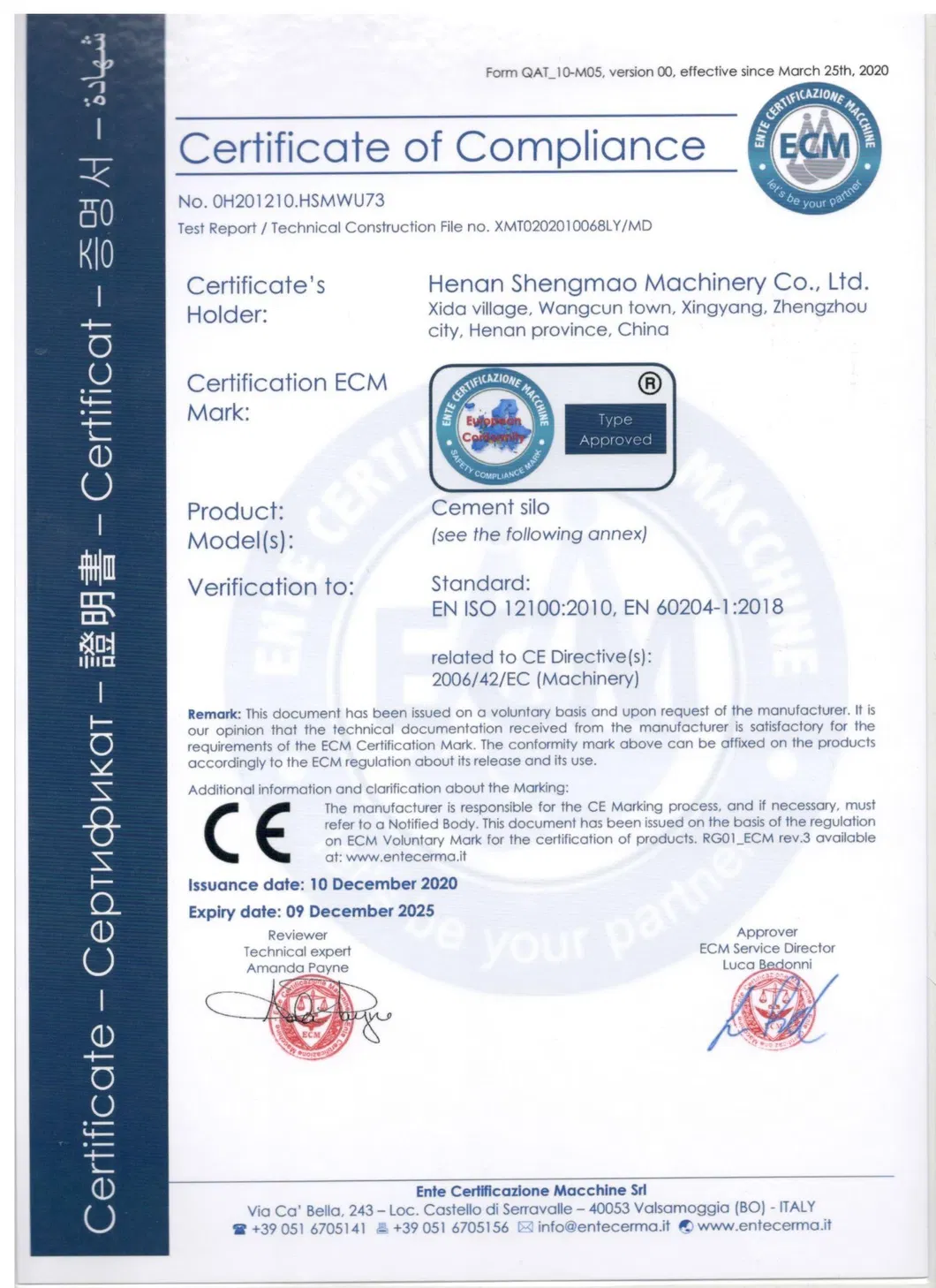

Quality Certifications

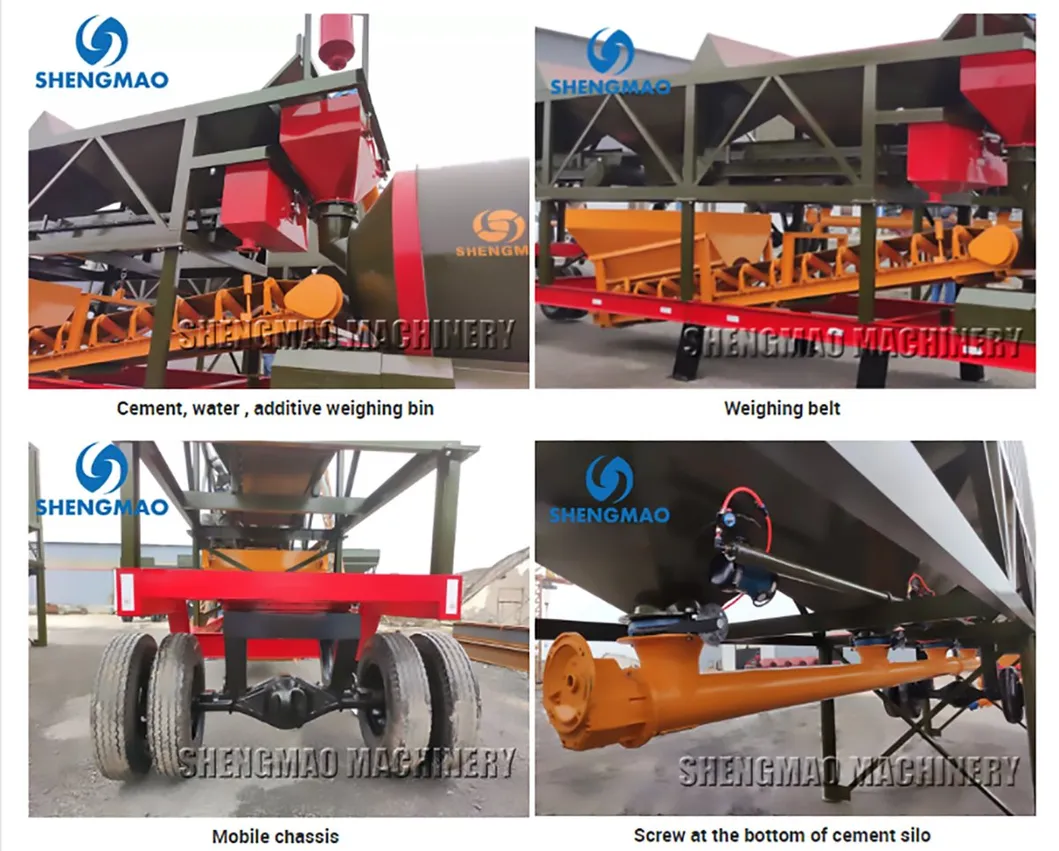

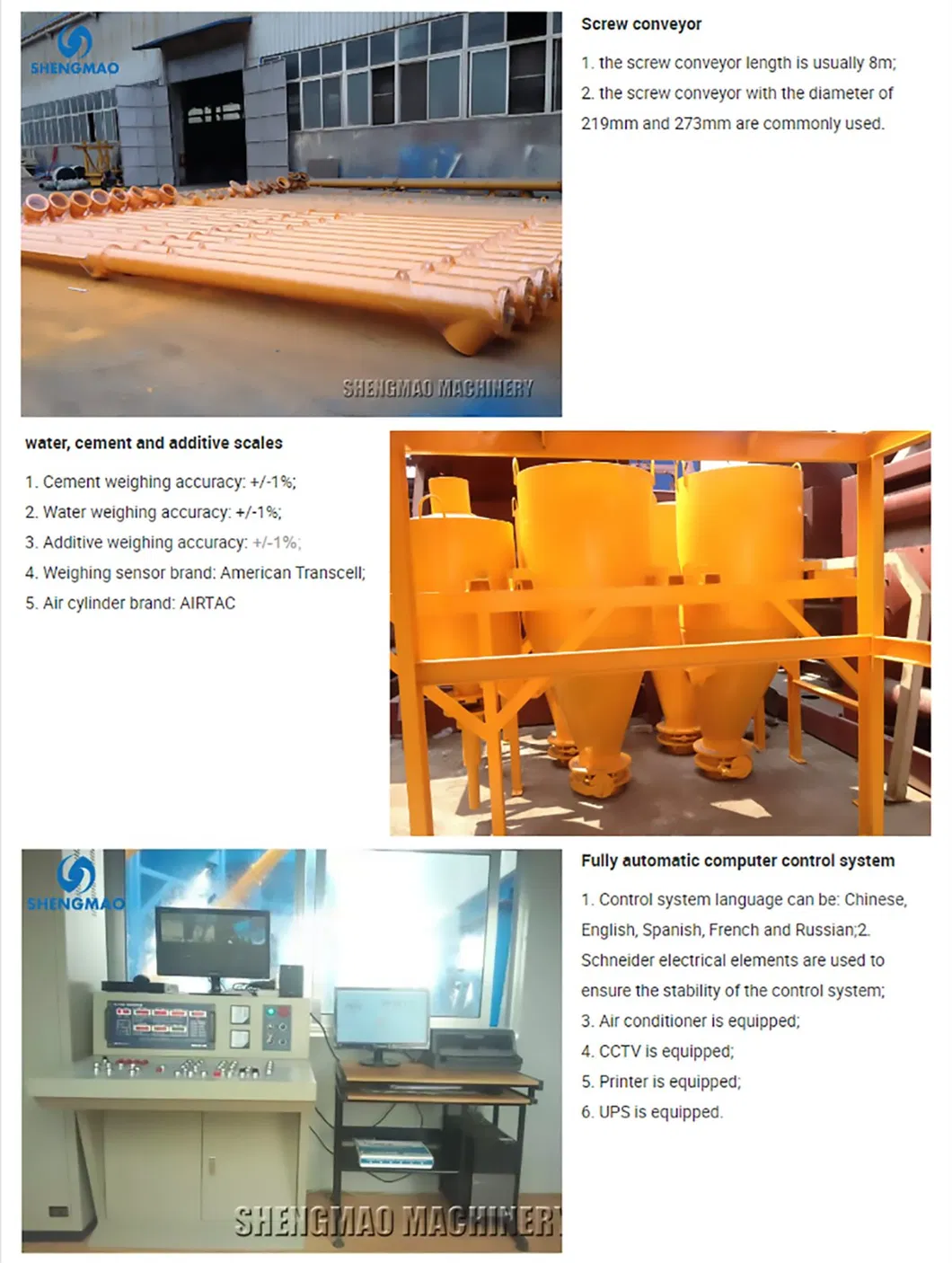

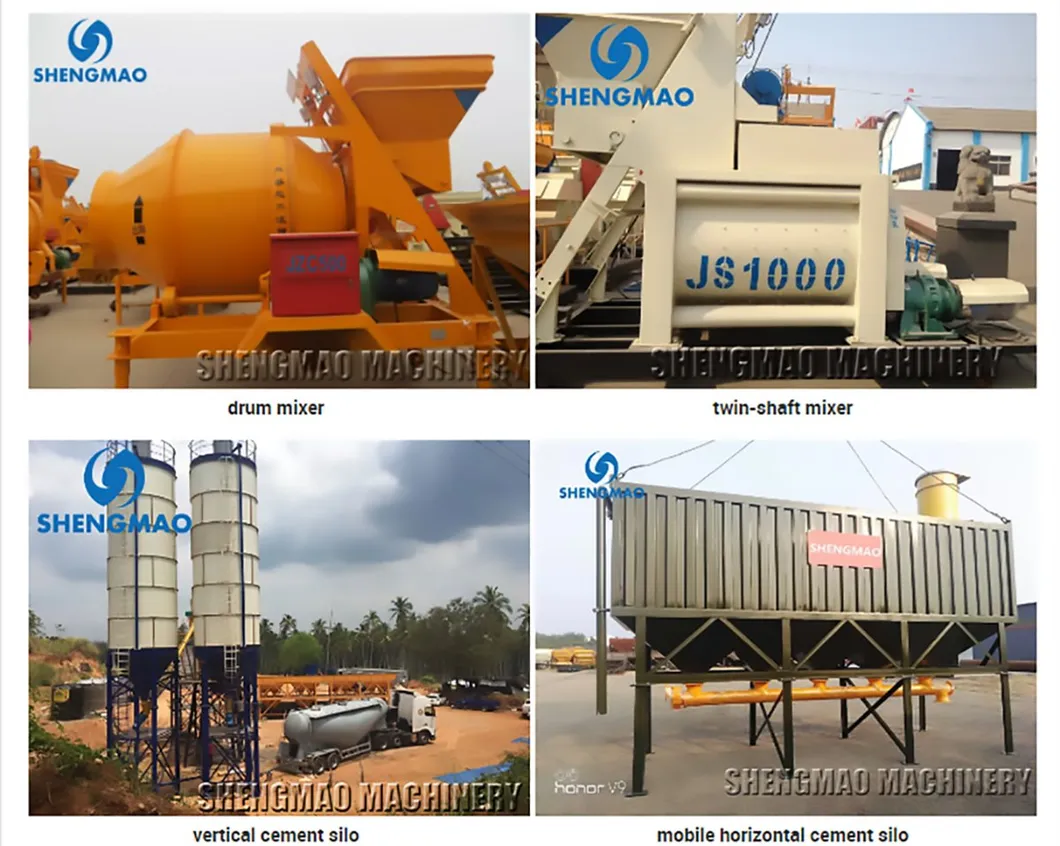

Detailed Components

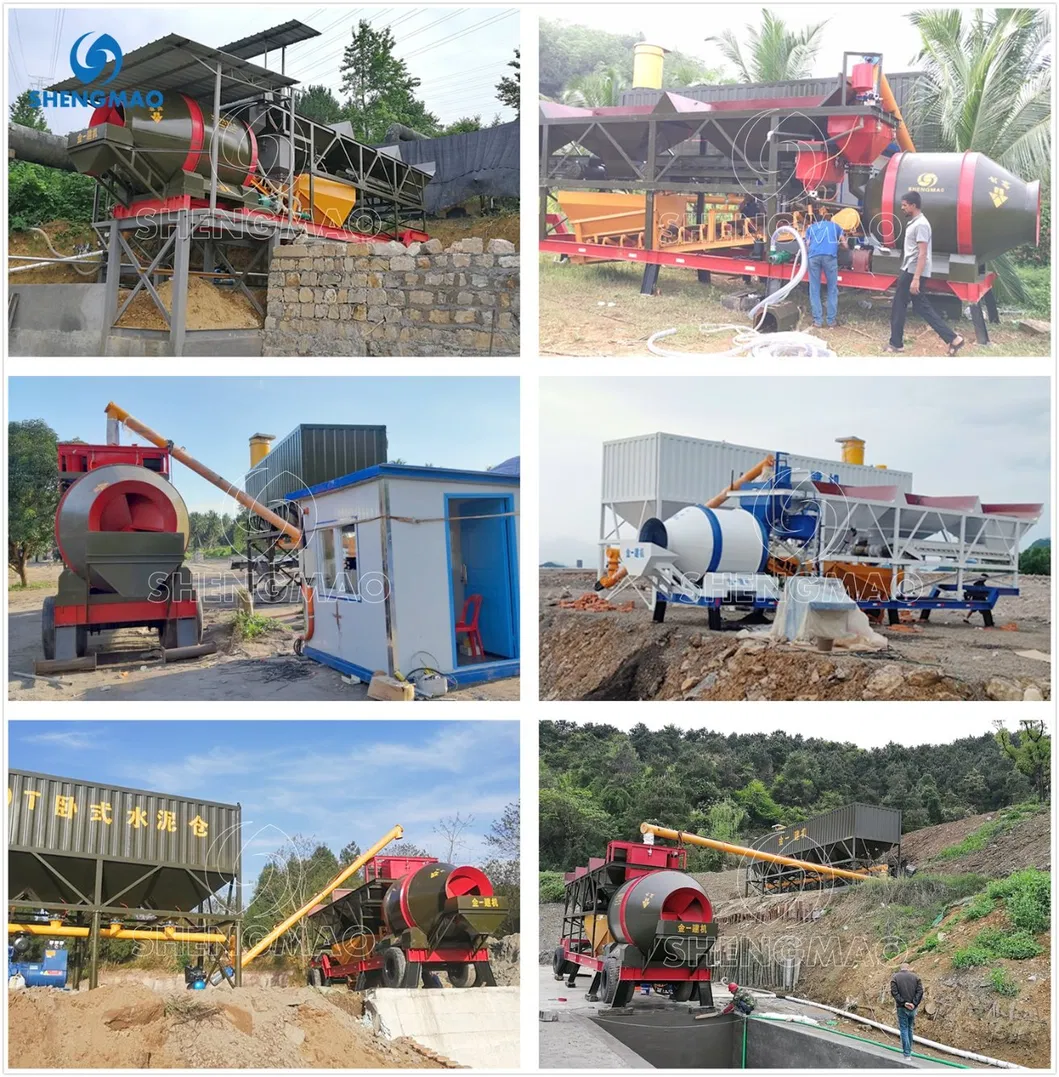

Global Projects & Logistics

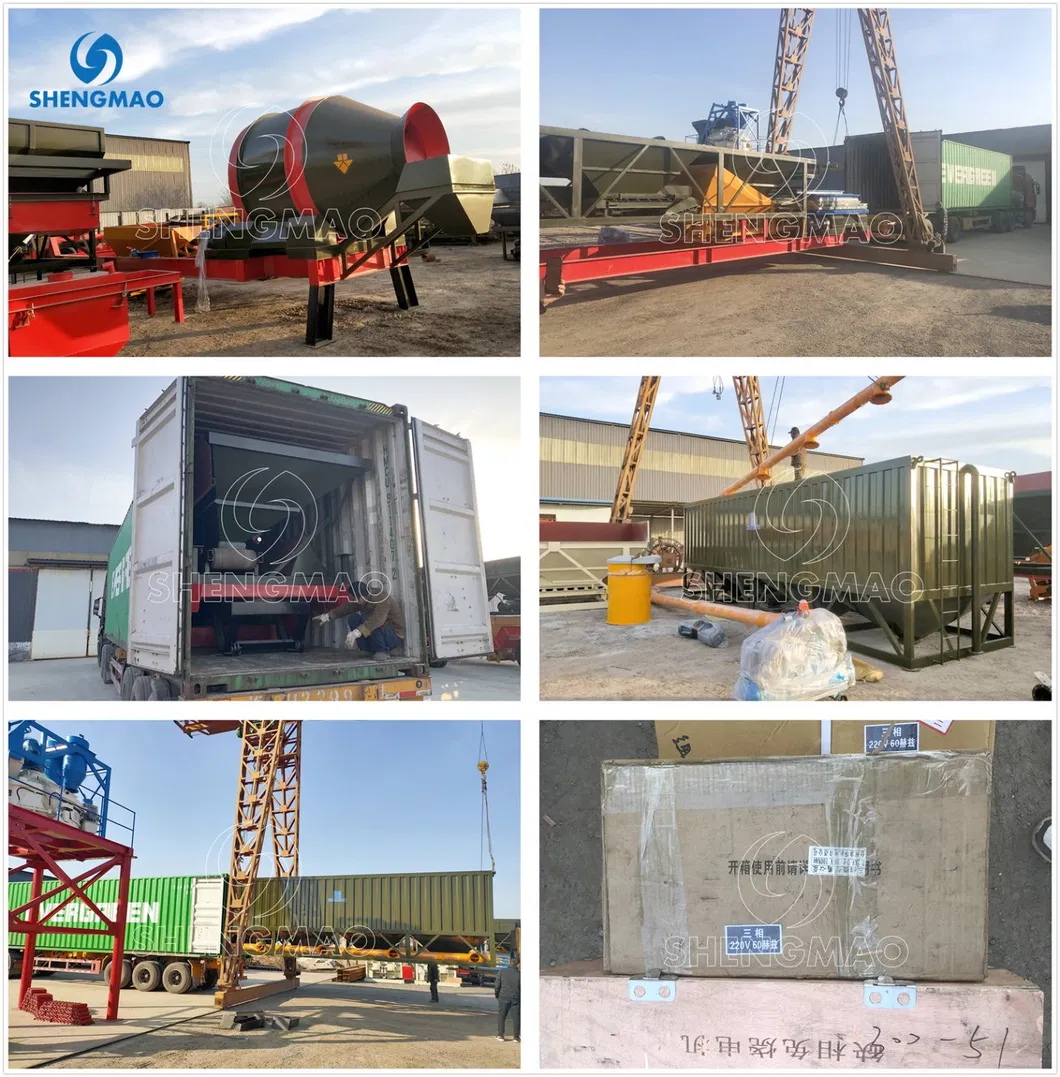

Main parts are securely fastened in containers using steel wire. Accessories are packed in reinforced carton or wooden boxes to ensure safe transit.

Professional Services

Pre-sale

Answering technical questions, helping choose suitable models, and providing customized design drawings and quotations.

In-sale

Strict quality control from sourcing to assembly. Regular progress updates and pre-delivery test runs included.

After-sale

7*24 online support, engineer dispatch for installation/training, and consistent supply of spare parts.

Frequently Asked Questions

Do I need a concrete foundation for the mobile plant?

No, our new type of mobile batching plant is designed to operate without a reinforced concrete foundation, including the cement silo.

How is the mobile concrete plant transported?

The plant is highly portable; all parts are mobile. You simply need a car or truck to tow it to the new job site.

What is the production capacity range?

We offer mobile batching plants with capacities ranging from 20m³/h to 100m³/h to suit various project scales.

What is the difference between YHZM and NYHZS series?

The YHZM series utilizes a drum mixer, while the NYHZS series is equipped with a high-efficiency twin-shaft mixer (or planetary mixer).

Is technical support available for installation?

Yes, we provide 7*24 online support, installation videos, and can arrange engineers to visit your job site for setup and operator training.
