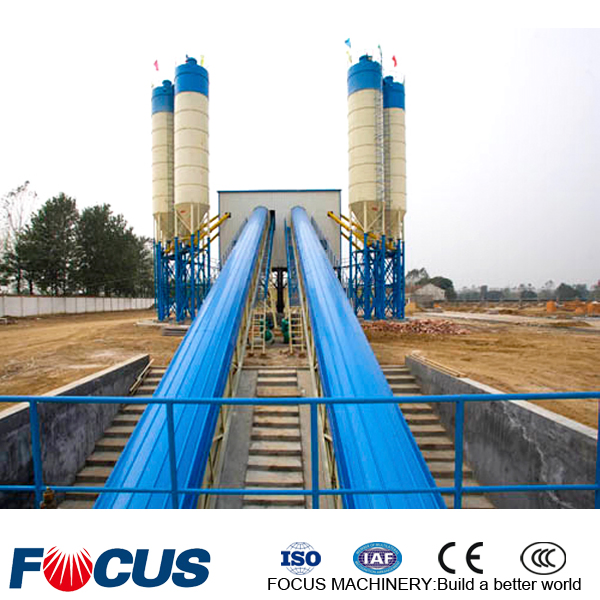

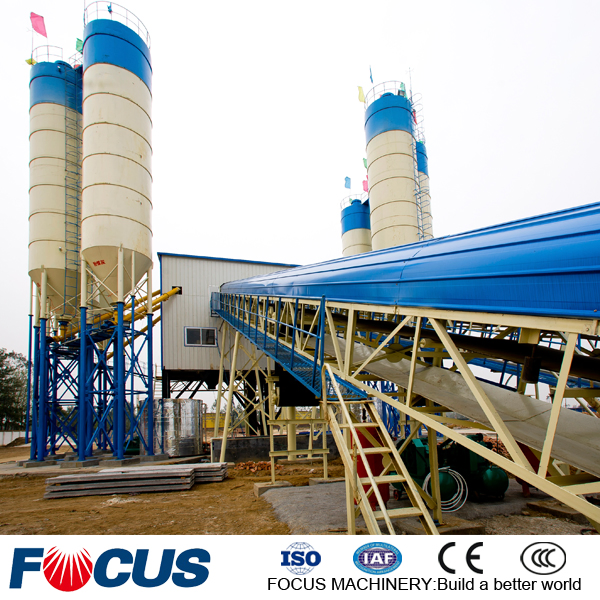

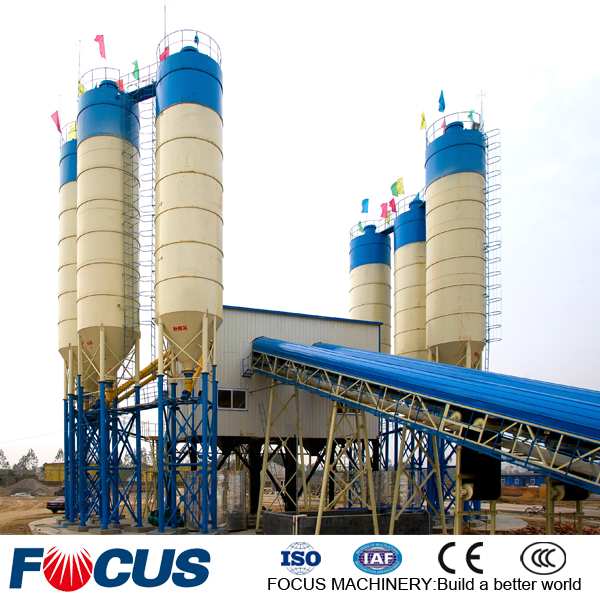

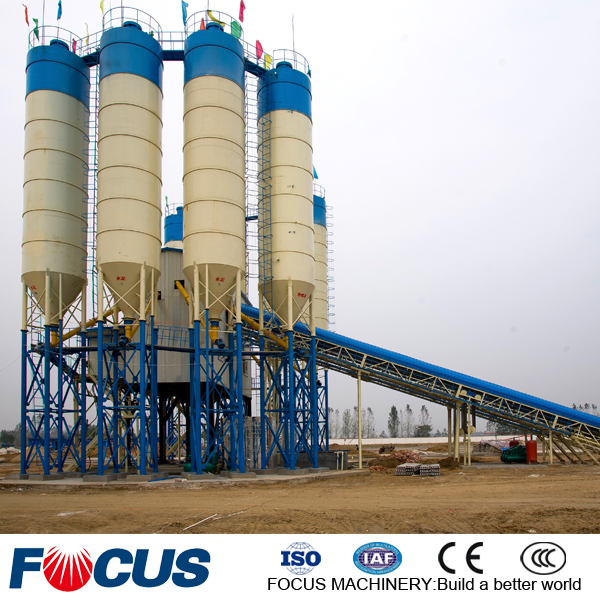

Ready Mixed Concrete Batching Plant 25-240m3/H Stationary Concrete Batching and Mixing Plant

1 / 5

Ready Mixed Concrete Batching Plant 25-240m3/H Stationary Concrete Batching and Mixing Plant

Customization:	Available
Warranty:	1 Year
Type:	Concrete Mixing Plant

Send Inquiry

Product Description

📊

Technical Specifications

Model NO.

HZS120 Ready Mixed Concrete Batching Plant

Productivity

120m3/H

Condition

New

Control System

Full Automatic Computer Control

Mixer Model

Js2000 Twin-shaft

Aggregate Batcher

PLD3200

Cement Silo

100t

Power Source

380V, 50Hz, 3 Phase

Scale Accuracy

2% Aggregate / 1% Liquid&Powder

Feeding Height

1400mm

Certification

ISO9001: 2000, CE

Transport Package

2-10 Sets of 40hq Container

🏗️

Product Description

Ready Mixed Concrete Batching Plant (25-240m3/h) is a high-performance stationary mixing solution. Based on combining advantages of various advanced technologies, the HZS series adopts a modular structure design, ensuring convenient installation, removal, and safe operation with exceptional mixing efficiency.

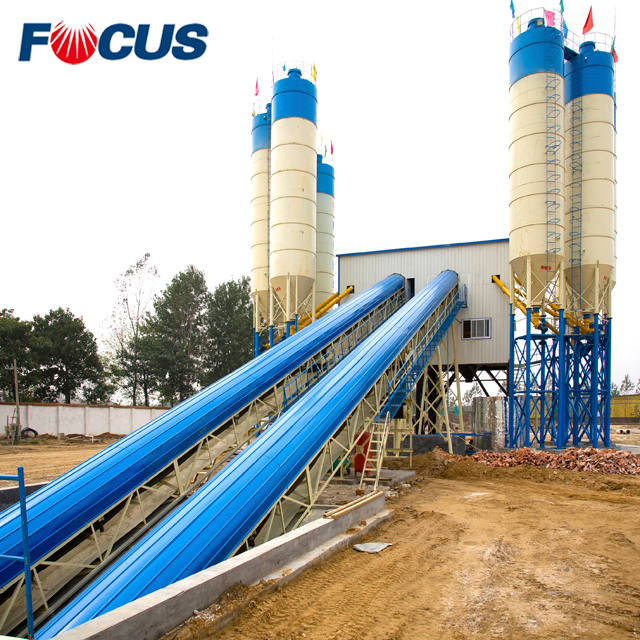

Ready Mixed Concrete Batching Plant Overview

💡

Main Features

Twin-Shaft Mixer: Adopts compulsory twin-shaft concrete mixer for rapid and even mixing of dry, semi-dry, and plastic concrete.
Advanced Transmission: Compact-structured planetary gear ensures smooth, speedy, and efficient transmission.

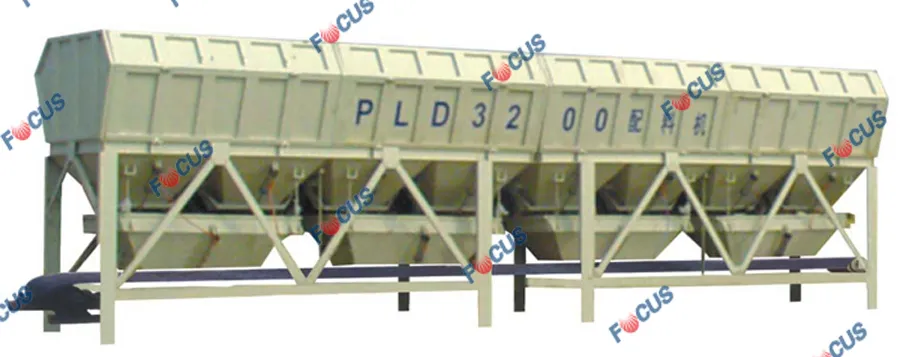

Flexible Batching: Concrete batcher can be designed as underground or above-ground with 3-6 hoppers controlled pneumatically by computer.
Efficient Conveying: Truss-framed aggregate belt conveyor for easy assembly; supports inclination up to 45° for limited ground areas.
High Precision: Three-point suspension sensors guarantee accurate and fast weighing for powder and liquids.
Environmental Protection: Fully closed dust collection system deals with dust during mixer loading and powder pumping.
Intelligent Control: Siemens PLC with high-precision weighing modules provides full automatic production and monitoring.

📋

Technical Parameters

Model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical output(m³/h)	60	90	120	180	240
Mixer model	JS1000	JS1500	JS2000	JS3000	JS4000
Output per batch(m³)	1	1.5	2	3	4
Aggregate batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total power(KW)	110	145	160	205	340
Discharge height(m)	3.8 - 4.2
Max. aggregate dia.(mm)	80 - 100

❓

Frequently Asked Questions

What is the production capacity of the HZS120 plant?

The HZS120 Ready Mixed Concrete Batching Plant has a theoretical productivity of 120m³/h, making it ideal for large-scale construction projects.

What type of concrete mixer is used in this plant?

The plant utilizes a JS2000 twin-shaft compulsory concrete mixer, which provides rapid and uniform mixing for various concrete types.

Is the control system manual or automatic?

It features a full automatic computer control system with a Siemens PLC, allowing for precise measurement, transfer, and mixing.

How accurate is the weighing system?

The aggregate weighing accuracy is within 2%, while cement, water, fly ash, and additives have a weighing accuracy within 1%.

Can the plant operate in extreme weather conditions?

Yes, heating systems for cold environments and ice plants for hot environments can be integrated into the concrete batching plant on request.

Is there a warranty for the batching plant?

Yes, the equipment comes with ISO and CE certification and typically includes a 12-month warranty for quality assurance.
