Ready Mix Concrete Mixing Plant 90m3/H Fixed Concrete Bathing Plant

Customization:	Available
Warranty:	1 Year
Type:	Concrete Mixing Plant

Send Inquiry

Product Description

Basic Information

Model NO.

HZS90 Ready Mix Concrete Mixing Plant

Shotcrete Type

Dry, Semi-Dry and Plastic

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

90m³/h

Feeding Height

4200mm Fixed Plant

Certification

ISO9001: 2000, CE

Condition

New

Matched Mixer

Js1500

Aggregate Batcher

PLD2400

Output Per Batch

1.5m³

Control System

Full Automatic Computer Control

Electrical System

Schneider Brand

PLC

Omron or Siemens

Product Description

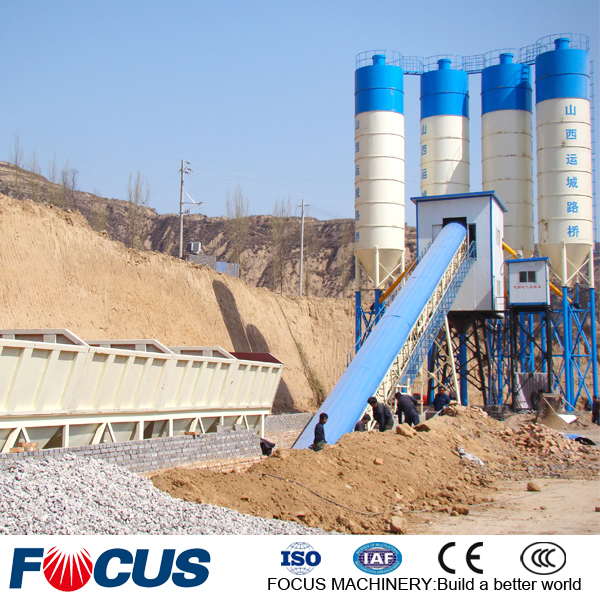

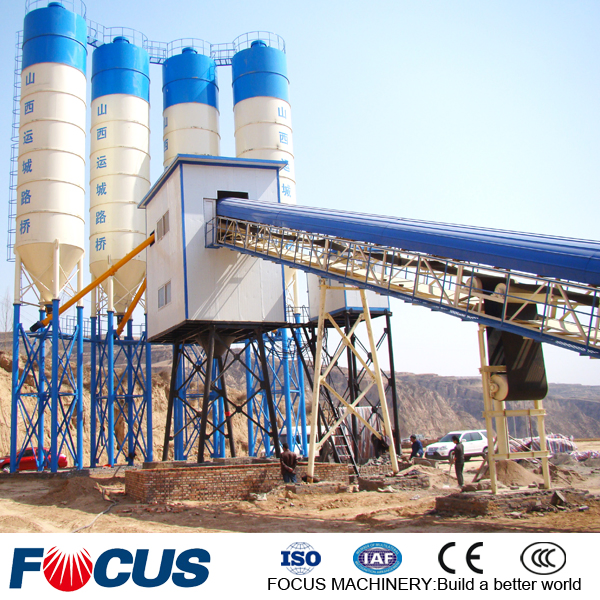

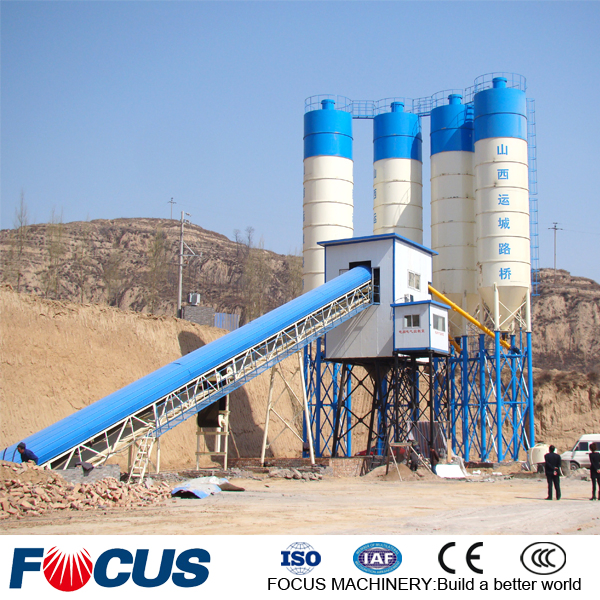

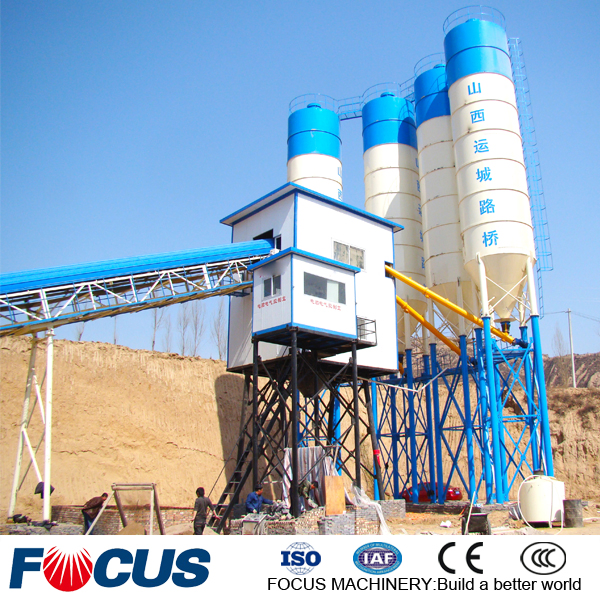

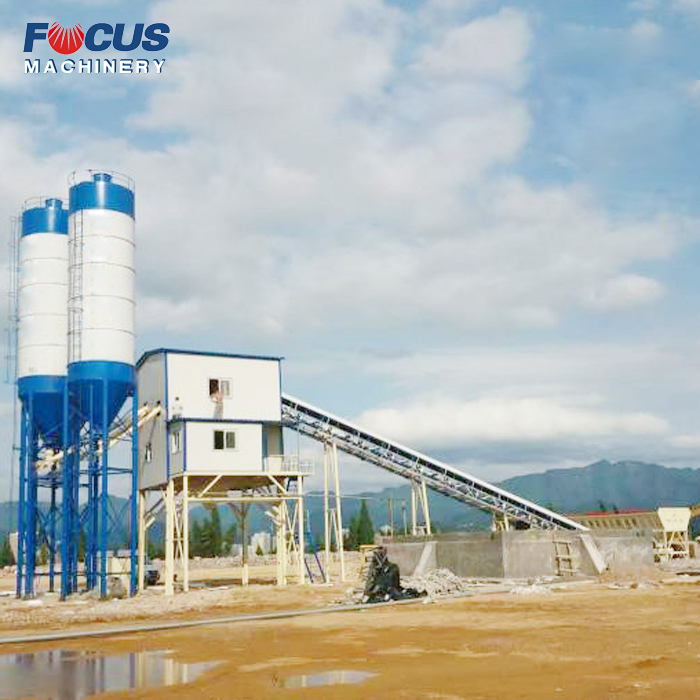

Ready Mix Concrete Mixing Plant 90m³/h Fixed Concrete Batching Plant

On the basis of combining advantages of various foreign ready mixed concrete batching plants and advanced technology, this HZS series adopts modular structure design, which ensures convenient installation, removal, and safe, comfortable operation with excellent mixing effect and high efficiency. It utilizes PLC automatic logical program control and host computer all-time tracking management for reliable operation and easy maintenance.

⚙️

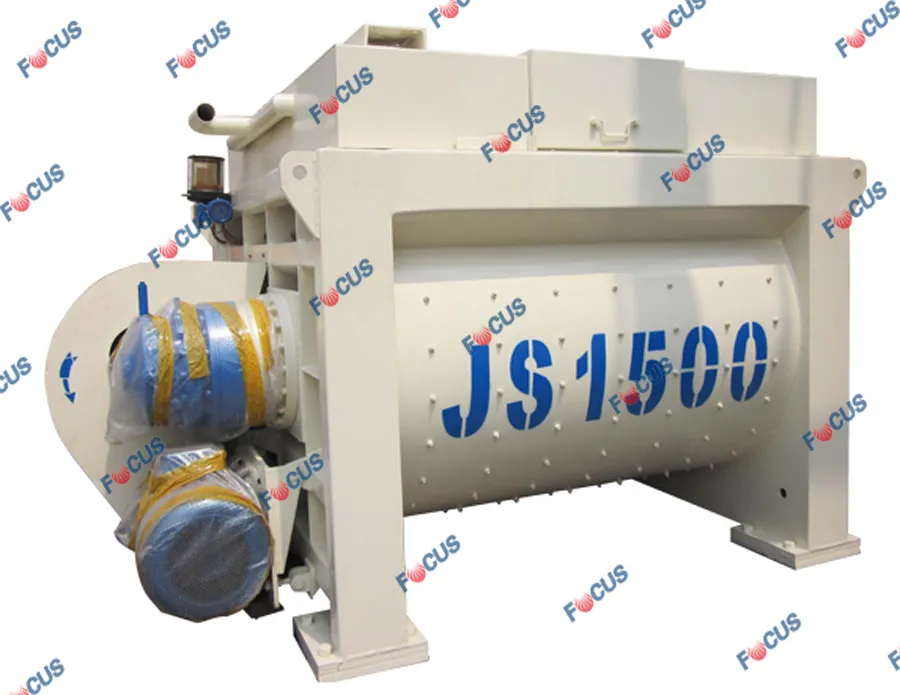

Twin-Shaft Compulsory Mixer: Mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete.

🚀

Planetary Gear: Compact-structured planetary gear ensures smooth, speedy and efficient transmission.

📊

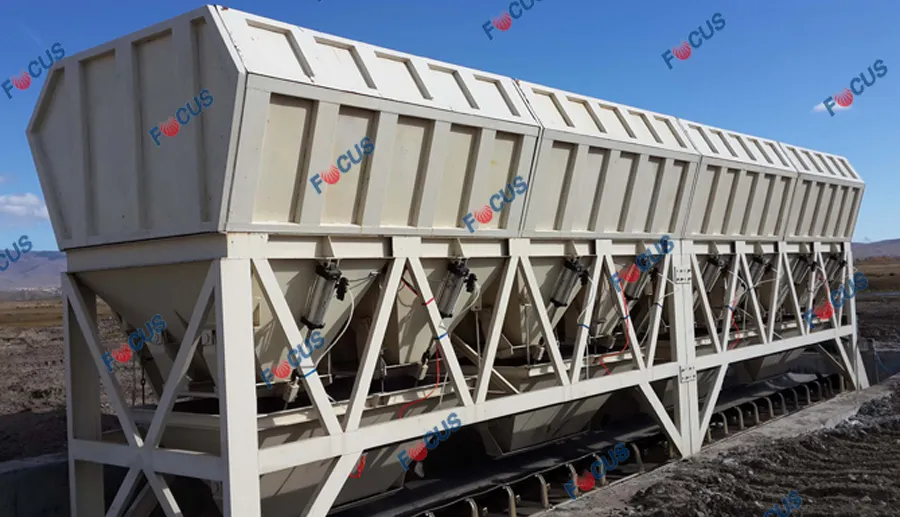

Concrete Batcher: Designed as underground, partially underground or fully-above ground. 3-6 hoppers are pneumatically controlled by computer with fast and accurate instructions.

🏗️

Aggregate Belt Conveyor: Truss-framed for easy assembly. Inclination angle is normally less than 20 degrees, but can be up to 45° by adopting groovy belts.

⚖️

Accurate Weighing: Three-point suspension sensors guarantee accurate and fast powder and liquid weighing.

🍃

Dust Collection: Deals with dust generated during loading and pumping. The whole plant operates in a closed state.

📦

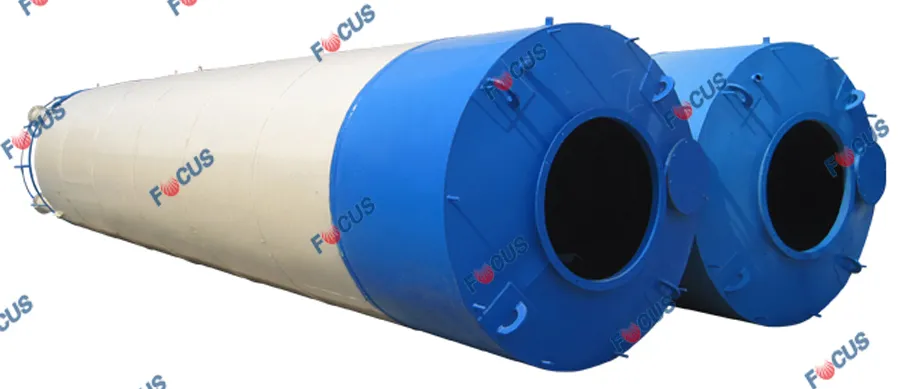

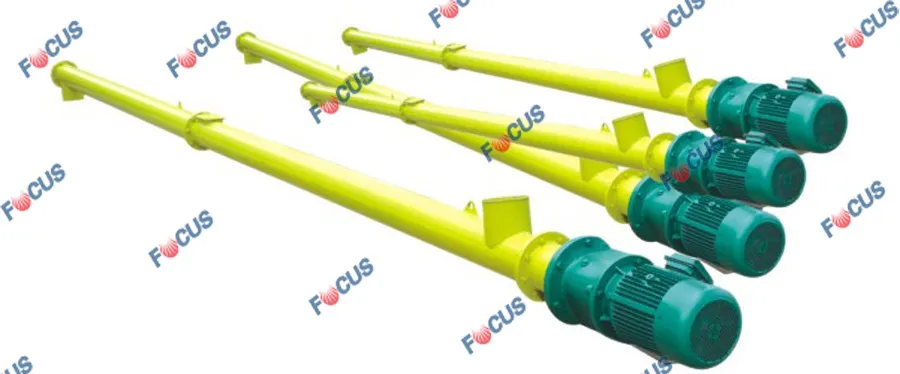

Cement Silo & Screw Conveyor: Closed column-shape tanks with material level systems. Screw conveyors feature compact structure and high conveying efficiency.

💻

Advanced Control: Features UPS, Siemens PLC, and high-speed precision weighing modules combined with professional monitoring software.

Technical Parameters

Model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical Output (m³/h)	60	90	120	180	240
Mixer Model	JS1000	JS1500	JS2000	JS3000	JS4000
Output Per Batch (m³)	1	1.5	2	3	4
Aggregate Batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total Power (KW)	110	145	160	205	340
Discharge Height (m)	3.8 - 4.2
Max. Aggregate Dia. (mm)	80 - 100

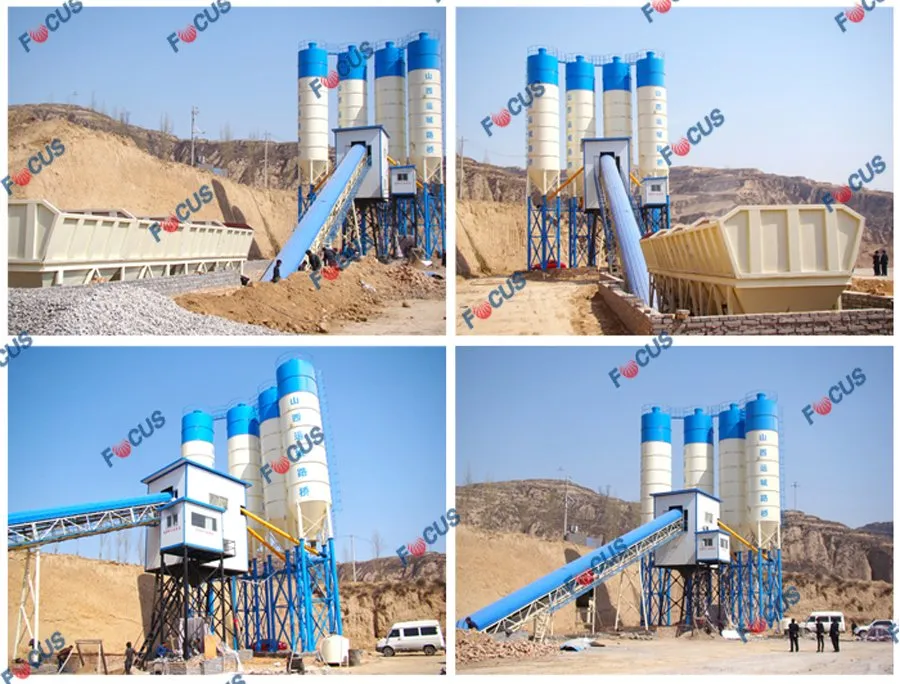

Global Presence

Core Advantages:

High quality and competitive pricing
Great after-sale service support
ISO and CE certified with 12 months warranty

Frequently Asked Questions

Q1: What is the theoretical productivity of the HZS90 plant? A: The HZS90 model has a theoretical output capacity of 90m³/h, with an output of 1.5m³ per batch.

Q2: What type of concrete mixer is used in this plant? A: It adopts a twin-shaft compulsory concrete mixer (Model JS1500), which is suitable for dry, semi-dry, and plastic concrete.

Q3: How is the batching process controlled? A: The plant uses a full automatic computer control system with PLC (Omron or Siemens) for high precision and reliable operation.

Q4: What is the maximum aggregate diameter the plant can handle? A: The system is designed to handle a maximum aggregate diameter of 80mm to 100mm.

Q5: Can the plant operate in extreme weather conditions? A: Yes, heating systems and ice plants can be integrated into the concrete plant for operation in severely cold or hot environments.

Q6: What certifications do these concrete plants hold? A: All plants are ISO9001:2000 and CE certified, ensuring international quality and safety standards.
