60cbm/H Ready Mix Concrete Batching Mixing Plant with Belt Conveyor

1 / 5

60cbm/H Ready Mix Concrete Batching Mixing Plant with Belt Conveyor

Customization:	Available
Warranty:	1 Year
Type:	Concrete Mixing Plant

Send Inquiry

Product Description

Basic Specifications

Model NO.

HZS60

Shotcrete Type

Dry, Semi-Dry and Plastic

Machining Process

Hydraulic

Structure

Spiral Type

Productivity

60m3/H

Feeding Height

4200mm

Certification

ISO9001: 2000, CE

Condition

New

Matched Mixer

Js1000

Aggregate Batcher

PLD2400

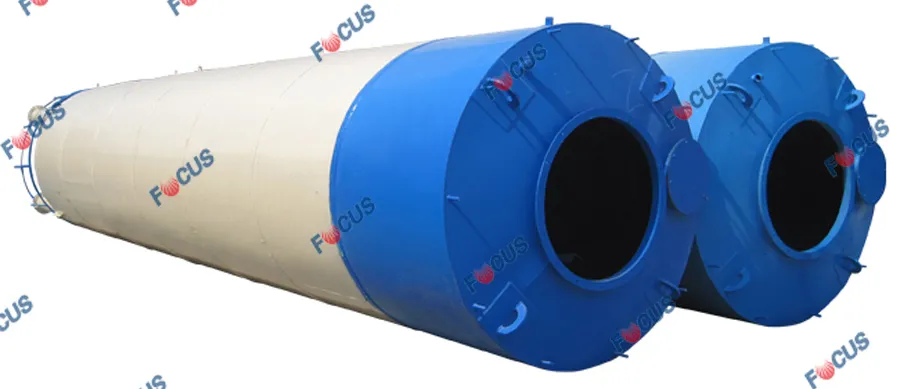

Cement Silo

50t or 100t

Control System

Full Automatic Computer

Weighing

Separate Accurate Scale

Power Source

380V, 50Hz, 3 Phase

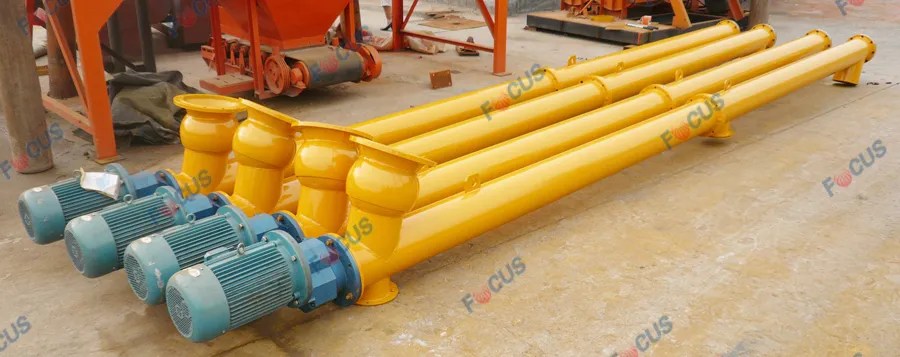

Screw Conveyor

219mm

PLC

Omron or Siemens

Discharge Height

3.8m

HS Code

8474310000

Product Description

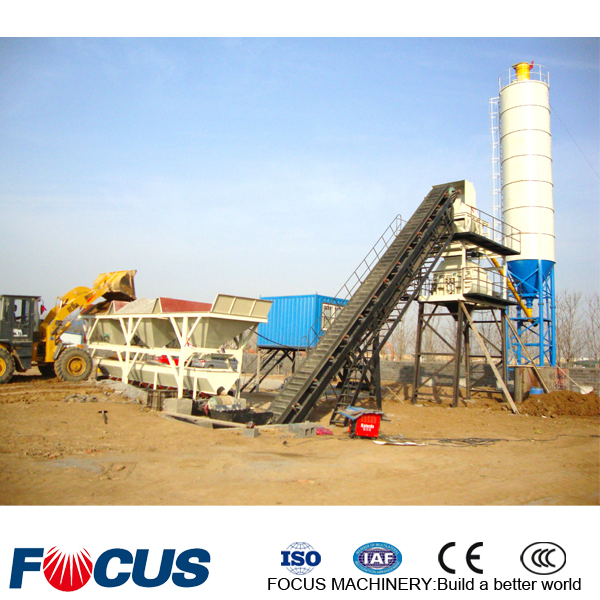

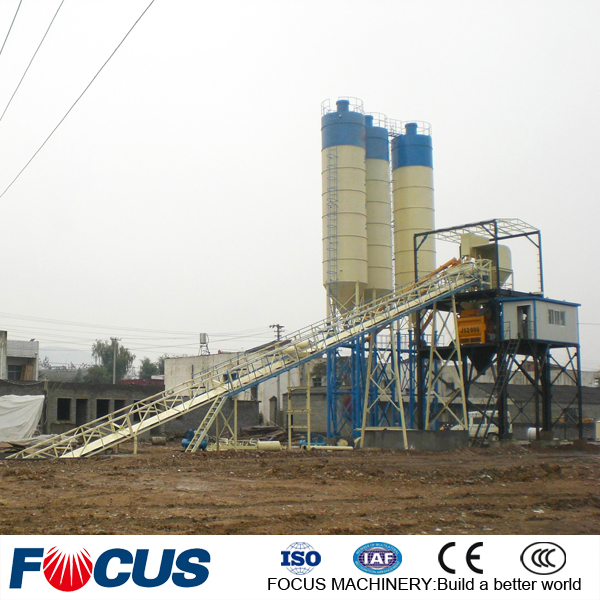

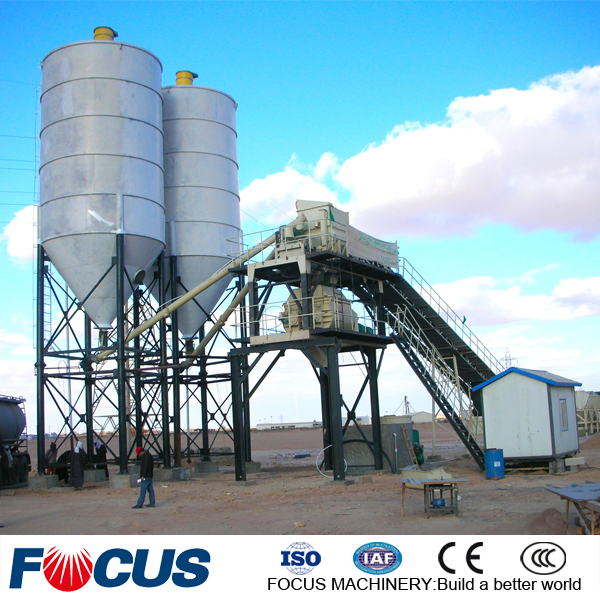

60cbm/H Ready Mix Concrete Batching Mixing Plant with Belt Conveyor

This concrete mixing plant adopts a modular structure design, ensuring convenient installation, removal, and safe operation. It delivers high mixing efficiency and excellent results through advanced PLC automatic logical program control and real-time tracking management.

⚙️

Twin-Shaft Mixer: Compulsory mixing system for even and rapid results across all concrete types.

🏗️

Planetary Gear: Compact structure ensuring smooth, speedy, and efficient transmission.

📊

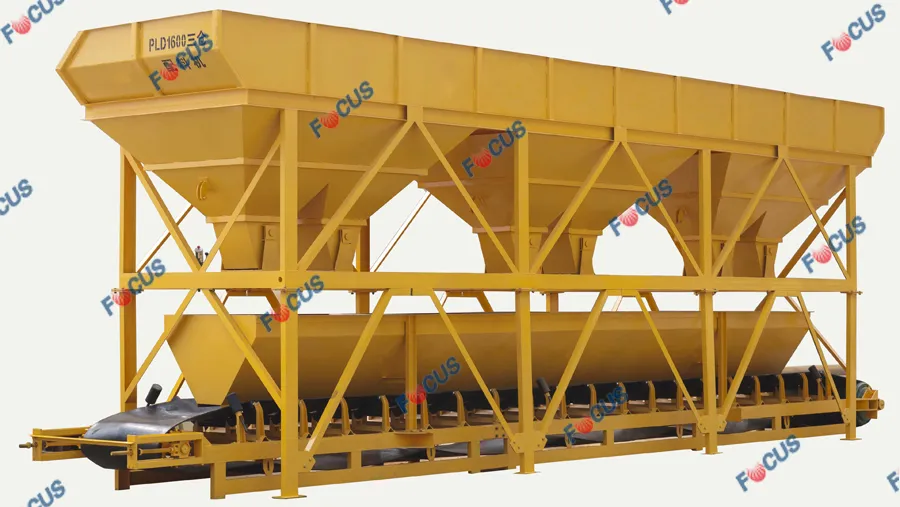

Flexible Batcher: 3-6 hoppers with pneumatic computer control for accurate accumulative or separate weighing.

🛤️

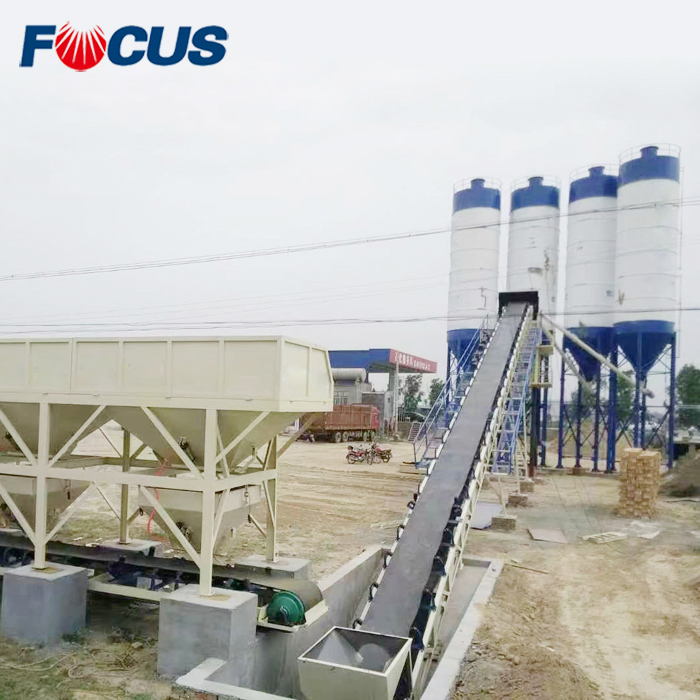

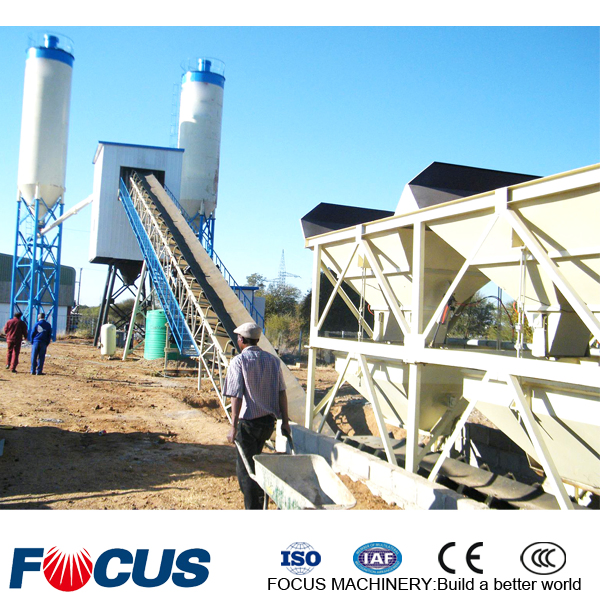

Belt Conveyor: Truss-framed for easy assembly, supporting inclination angles up to 45° for limited space.

⚖️

Precision Sensors: Three-point suspension sensors guarantee fast and accurate powder and liquid weighing.

🍃

Dust Collection: Fully closed state system dealing with dust during loading and pumping processes.

Technical Parameters

Model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical output(m³/h)	60	90	120	180	240
Mixer model	JS1000	JS1500	JS2000	JS3000	JS4000
Output per batch(m³)	1	1.5	2	3	4
Aggregate batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total power(KW)	110	145	160	205	340
Discharge height(m)	3.8-4.2

Advanced Control & Customization

Siemens PLC: High-speed and precision weighing unit module combined with professional monitoring software.
Full Automation: Easy operated process for material measurement, transfer, mixing, and discharging.
Climate Adaptation: Optional heating systems and ice plants for extreme cold or hot environments.
Reliable Performance: ISO & CE certified with high-quality components for long-term durability.

Frequently Asked Questions

What is the production capacity of the HZS60 model?

The HZS60 model has a theoretical output capacity of 60 cubic meters per hour (60m³/h).

What type of mixer is used in this plant?

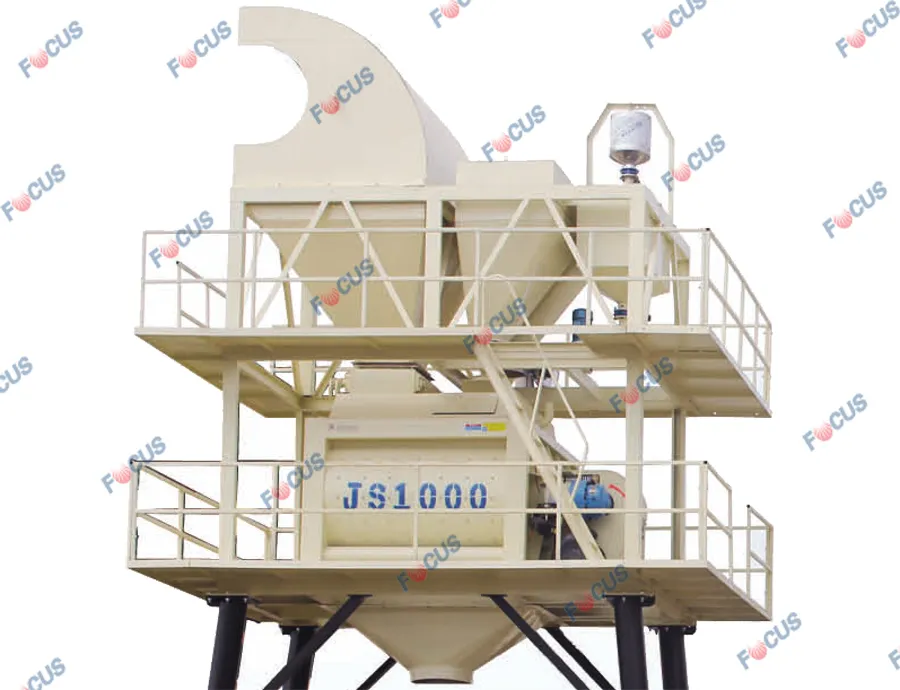

It uses a JS1000 twin-shaft compulsory concrete mixer, which is known for high efficiency and uniform mixing.

How is the weighing accuracy ensured?

The plant is equipped with three-point suspension sensors and separate accurate scales for water, cement, and aggregates to ensure high precision.

Can the plant be operated automatically?

Yes, it features a full automatic computer control system with a Siemens PLC for stable and easy operation.

What is the standard discharge height for the concrete?

The standard discharge height is between 3.8 meters and 4.2 meters, suitable for most concrete truck mixers.

Is the plant suitable for extreme weather conditions?

Yes, the plant can be customized with heating systems for cold climates or ice plants for hot environments.
