Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
1 / 5
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment
Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment

Hzs25 35 50 60 75 90 120 Capacity Precast Concrete Dry Wet Batching Mixing Plant Station Equipment

Customization: Available
Warranty: 1 Year
Type: Concrete Mixing Plant
Send Inquiry

Product Description

Basic Specifications
Model NO.
HZS 90
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
50-240m³/H
Feeding Height
4100mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Customizable Colors
Theoretical Capacity
50-240 M³/H
Mixer Model
0.5-4.0 M3
Discharging Height
4100 mm
Max Aggregates Size
60(80) mm
Weighing Precision
±2% (Aggregate)
Production Capacity
10 Pieces/Month
HS Code
84743100
Product Overview
Concrete Batching Plant divider
Concrete Batching Plant For Sale is a complete production line to produce ready mixed concrete. The aggregates, sand, cement, fly ash, additive, water reducing admixtures in concrete will be weighed by the weighing system, and then are fed into the concrete mixer machine to be mixed to concrete for sale. The whole procedure is controlled by software in the computer. It can be transferred to working sites by concrete transit mixer trucks or discharged to concrete pump machines directly for building construction.

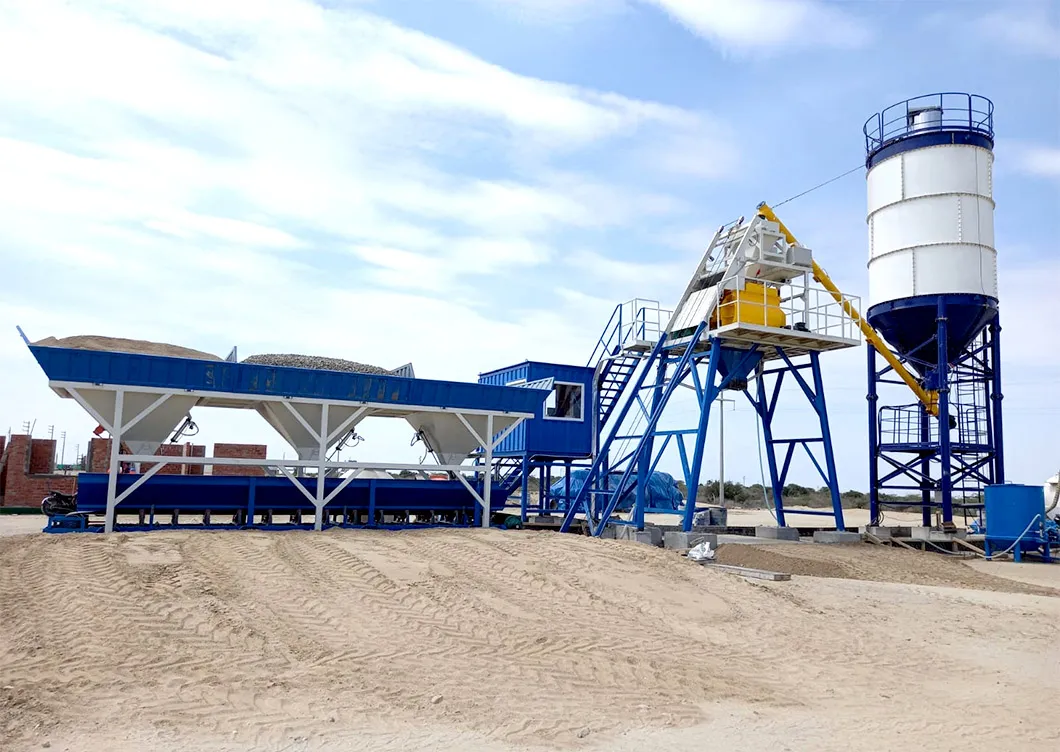

Belt Conveyor Type Skip Hoist Type

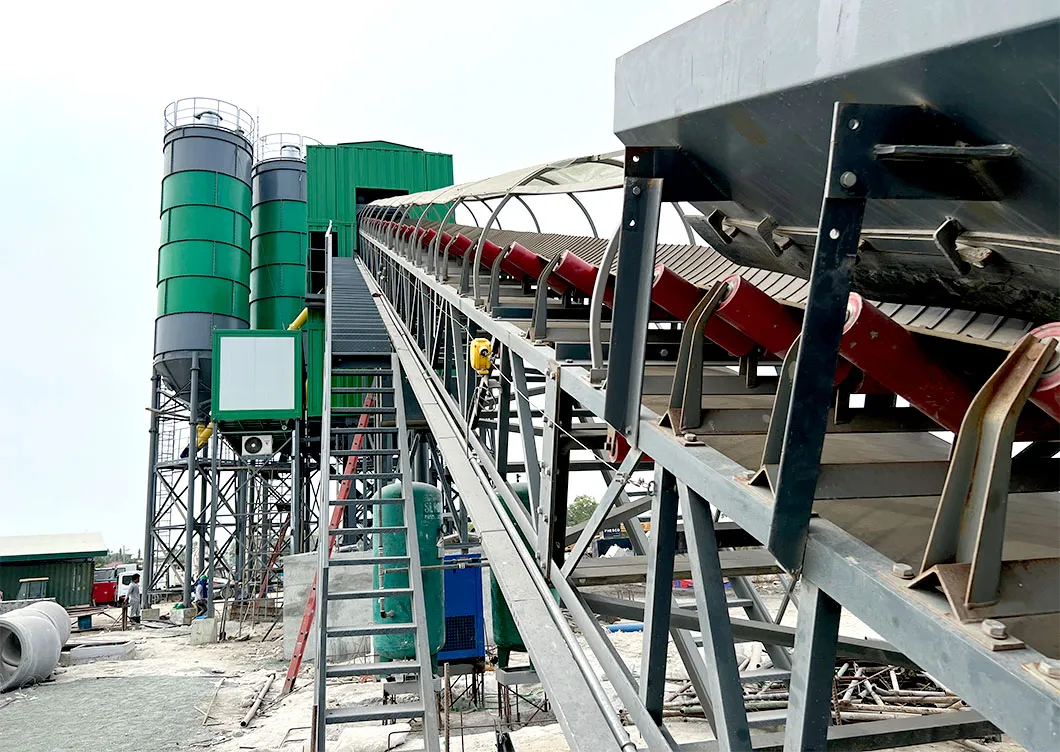

Belt Conveyor Type Concrete Batching Plant   |   Skip Hoist Type Concrete Batching Plant

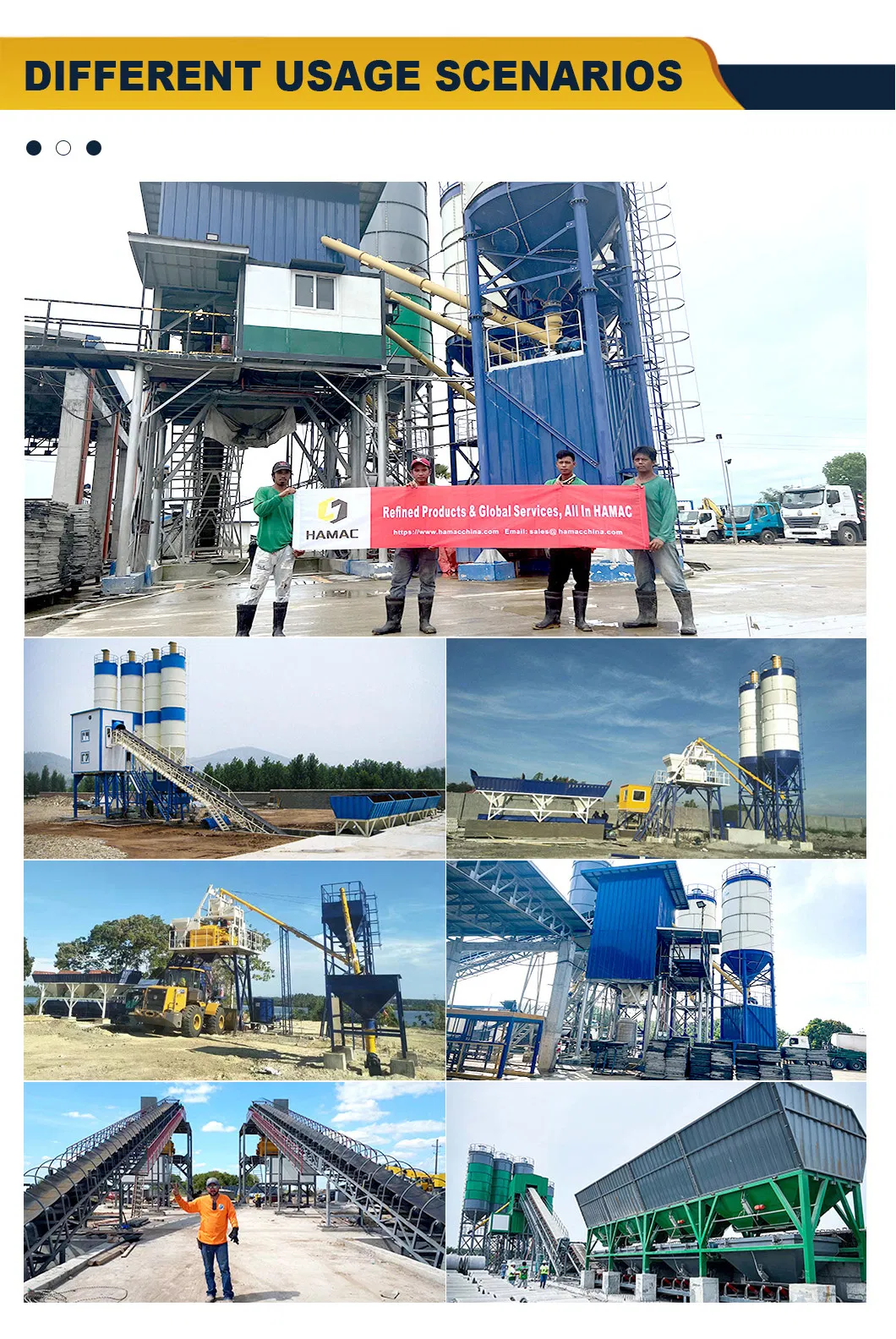

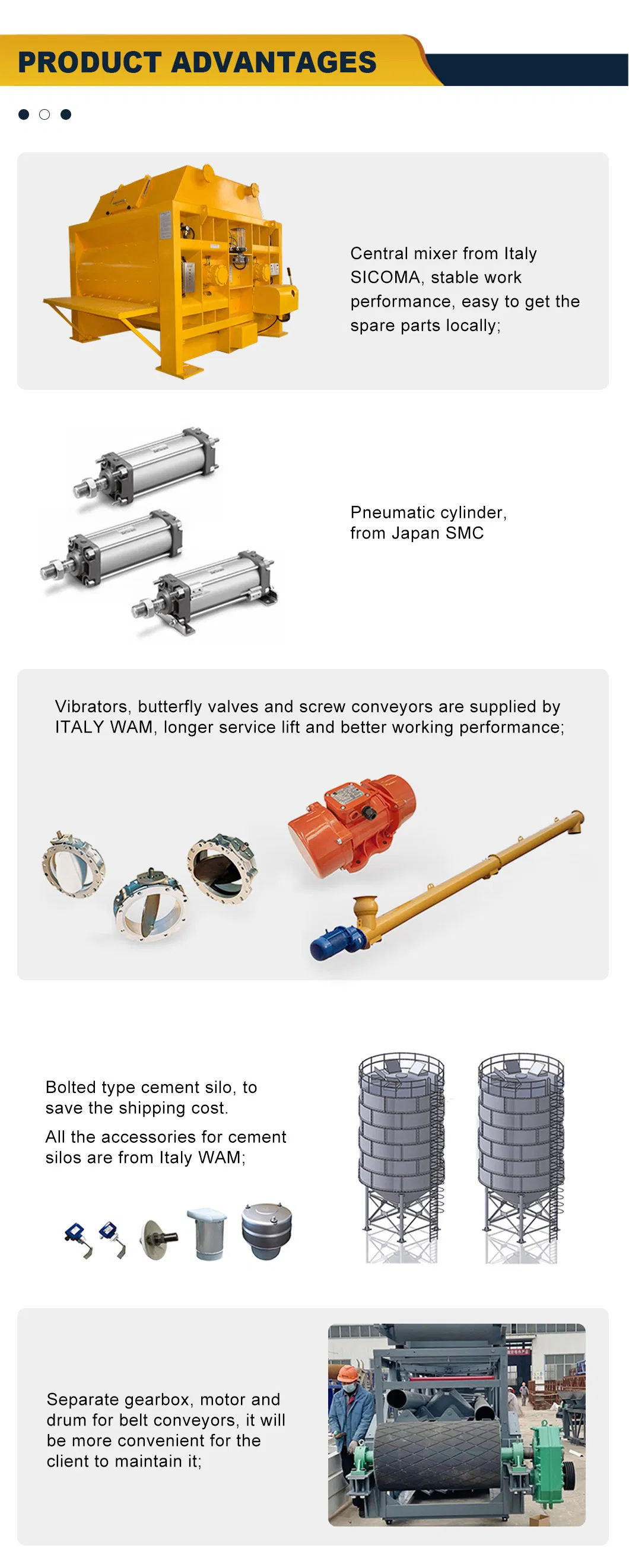

Process Detail 1 Process Detail 2
Technical Data & Models
Header
Technical Data HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS120 HZS180
Theoretical capacity(m³/h) 505050607590120180
Mixer model 0.5m30.75m31.0m31.0m31.5m31.5m32.0m33.0m3
Batching system PLD1600PLD1600PLD1600PLD1600PLD2400PLD2400PLD3200PLD4800
Discharging height (mm) 41004100410041004100410041004100
Max aggregate size(mm) 60(80)60(80)60(80)60(80)60(80)60(80)60(80)60(80)
Cycle time(s) 7272726072606060
Equipment Workflow

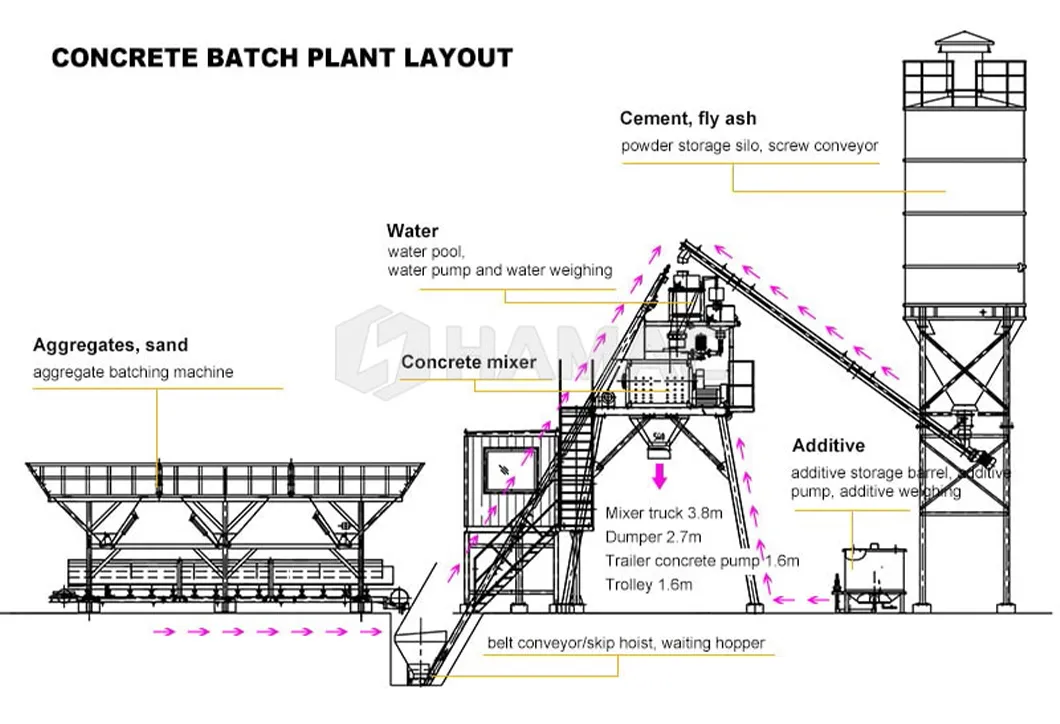

Batch Plant Layout Detailed View 1 Detailed View 2
Frequently Asked Questions
How does the concrete batching plant work?
The system weighs aggregates, cement, water, and additives independently through a precise weighing system. These materials are then fed into a central mixer (either via belt or skip hoist) and mixed thoroughly according to software-controlled parameters to produce high-quality concrete.
What are the main components of a standard plant?
A complete plant typically includes an aggregate batching machine, inclined belt conveyor or hoisting bucket, central concrete mixer, weighing systems for all materials, pneumatic system, automatic control system, control room, cement silos, and screw conveyors.
How many types of batching plants are available?
There are three main designs: Stationary concrete batching plants for long-term projects, Mobile plants for easy relocation, and Dry batch plants which operate without a central mixer.
What is the productivity range of these plants?
The theoretical capacity ranges from 50m³/h (for models like HZS25/35/50) up to 240m³/h for large-scale industrial HZS240 models.
What certifications do the equipment hold?
All our concrete batching plant equipment is compliant with international standards, holding ISO9001:2000 and CE certifications to ensure safety and quality.
Can the color of the equipment be customized?
Yes, the exterior color of the batching plant components and silos can be customized according to your company's branding or specific project requirements.
