| Basic Information | |
| Type | Concrete Mixing Plant |
| Machining Process | Concrete Production Line |
| Productivity | 25m³/h |
| Feeding Height | 2.5m (Customizable) |

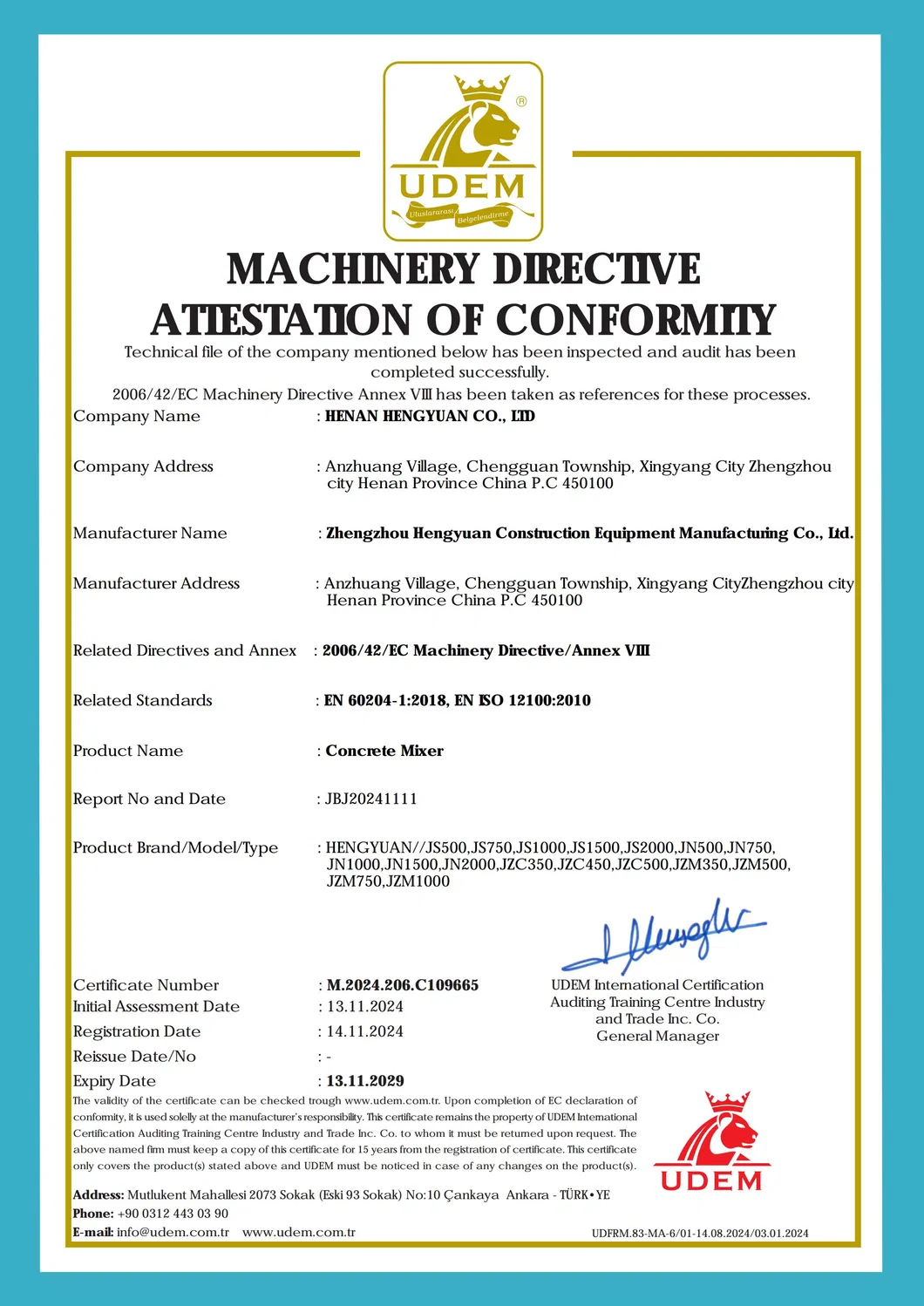

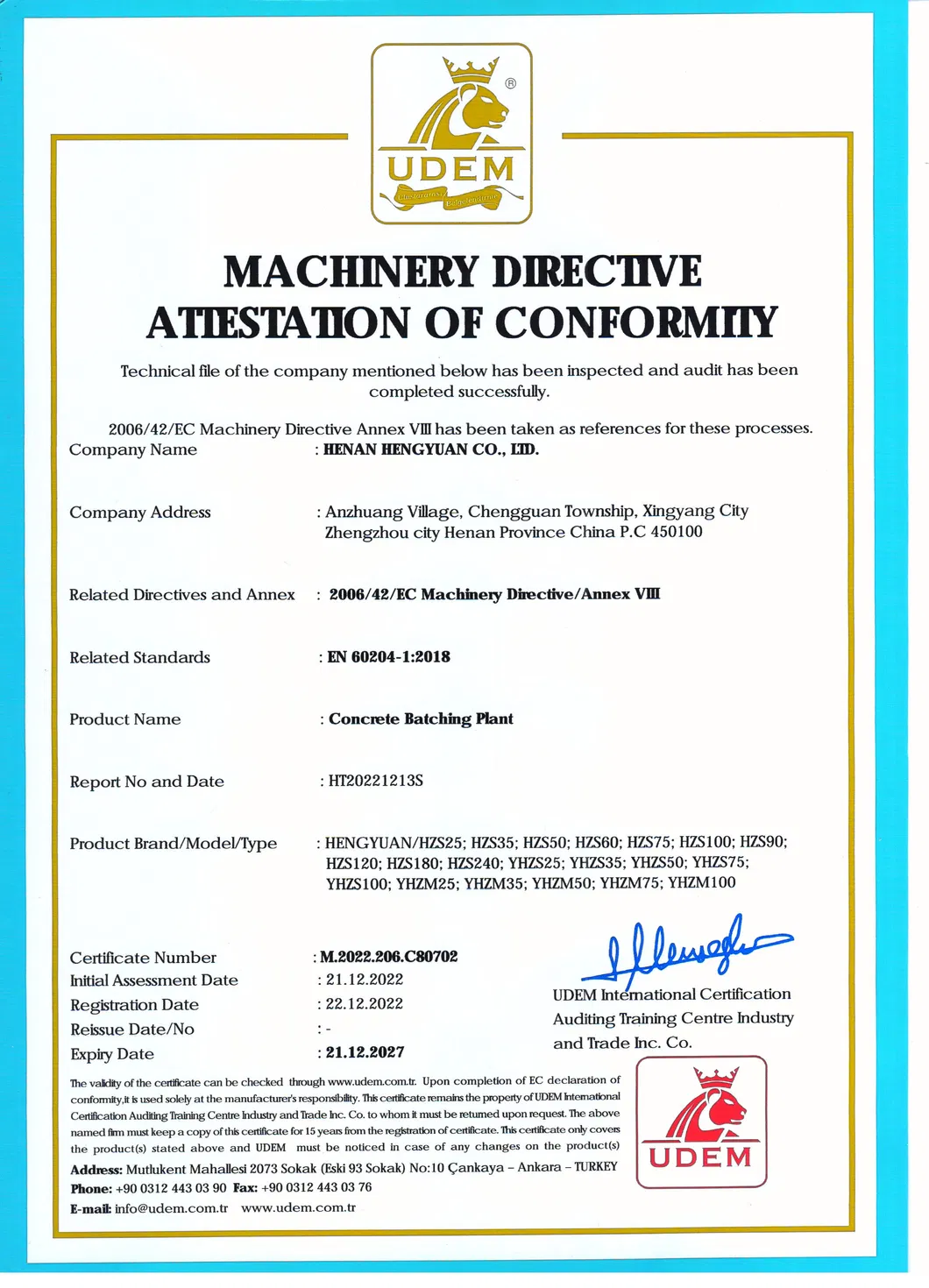

| Certification | ISO9001: 2000, CE |
| Condition | New |
| Power Type | Electric |
| Control System | Full-Automatic |

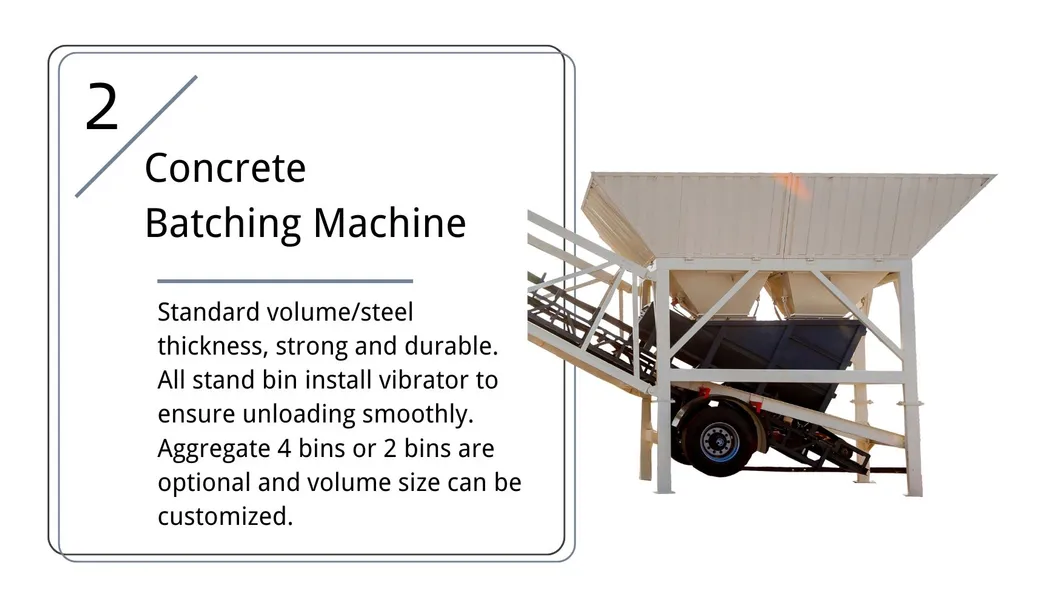

| Batching Machine | 4 Bins Aggregate Batching Machine |
| Discharging Height | 3.8m (Customizable) |
| Core Components | PLC, Engine, Gearbox, Motor |
| After-Sales Service | On-site or Online Support |

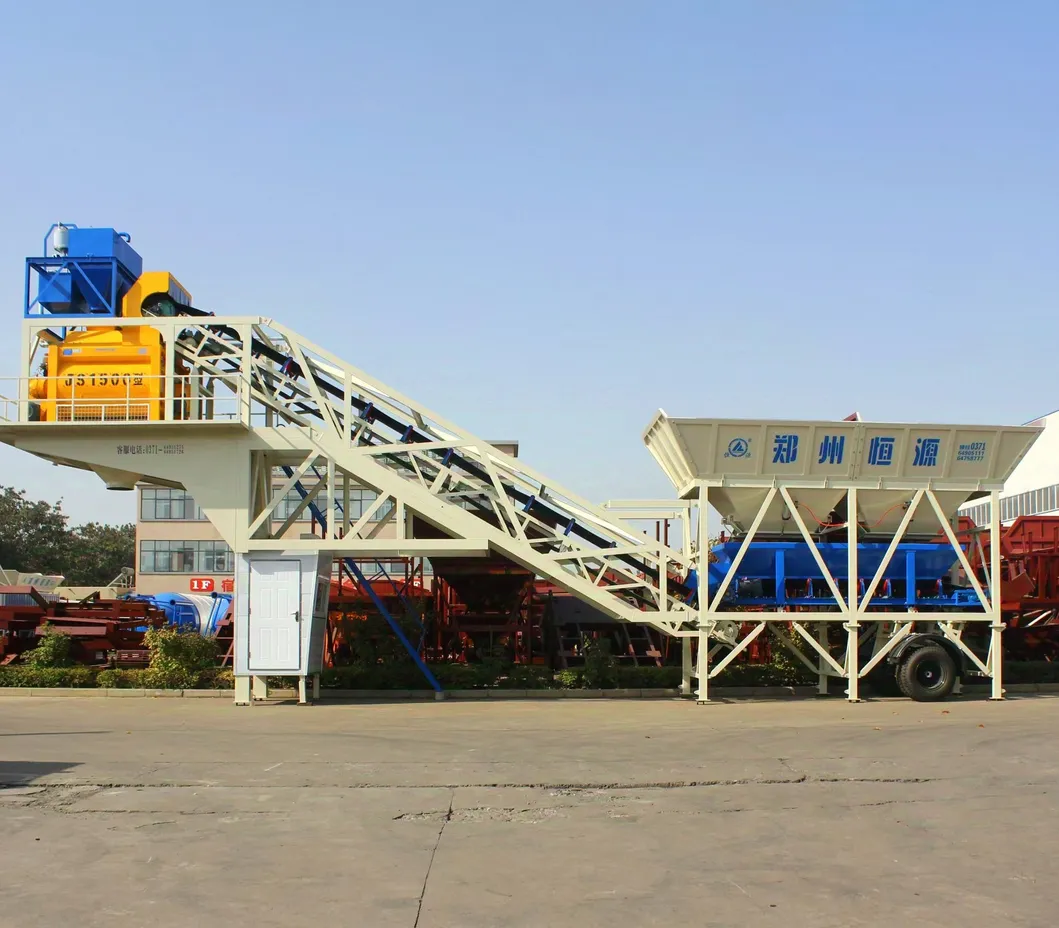

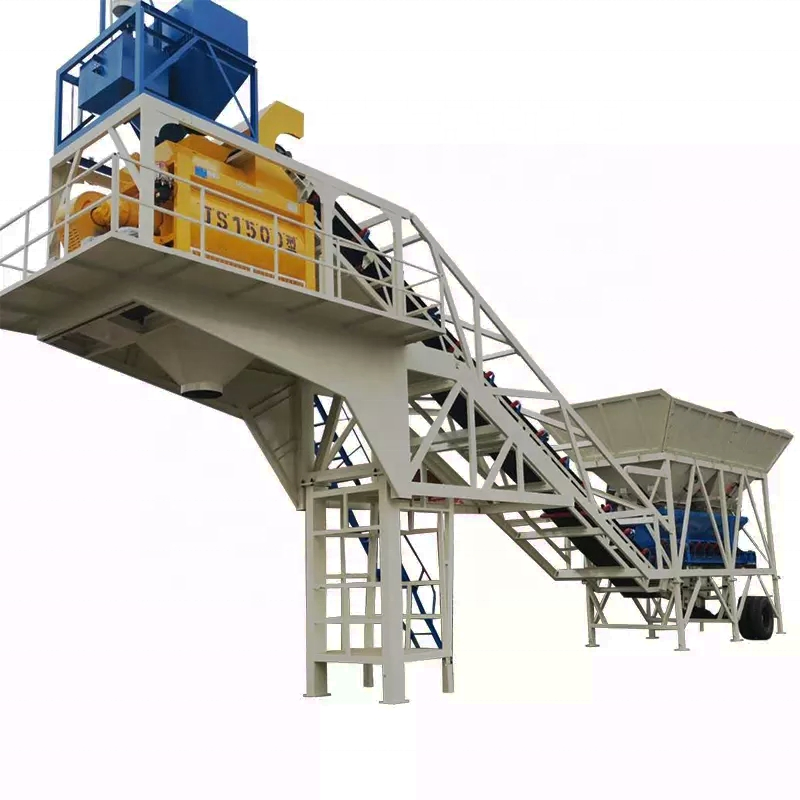

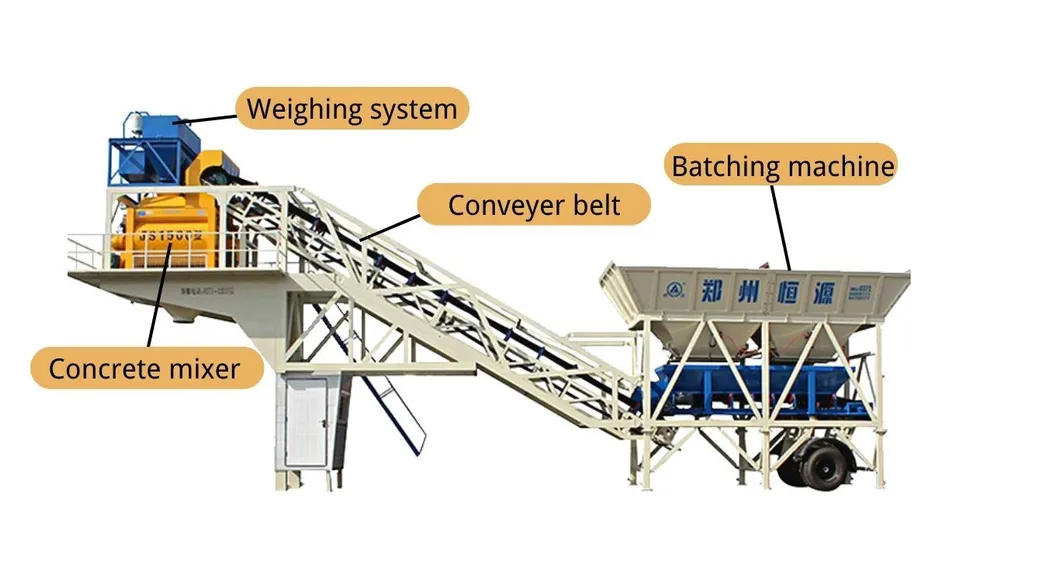

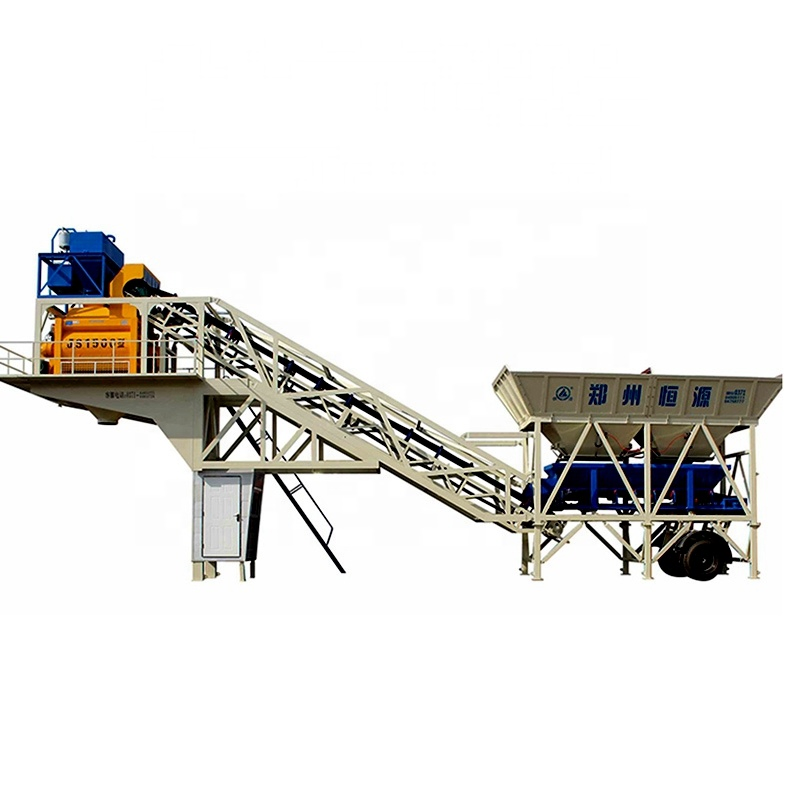

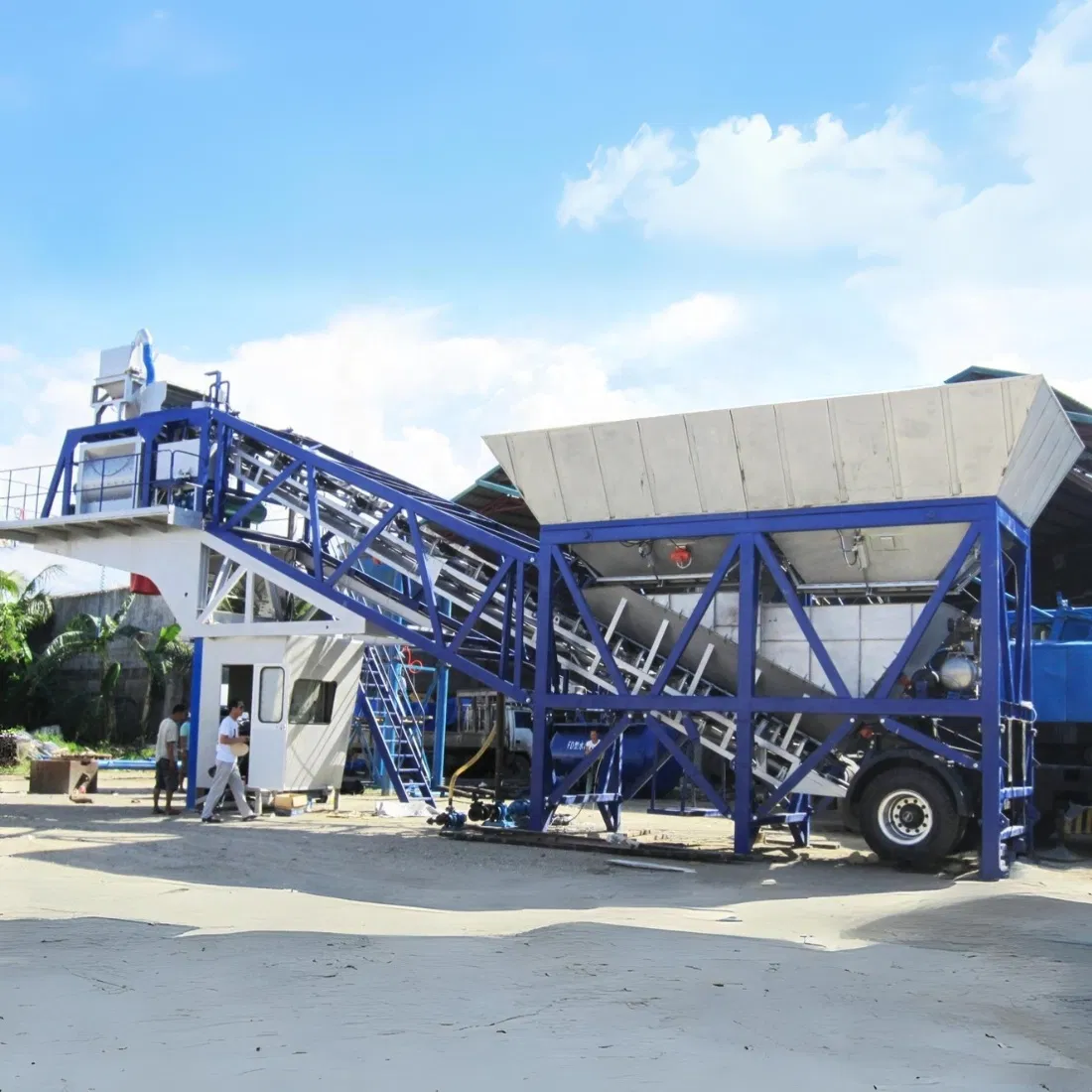

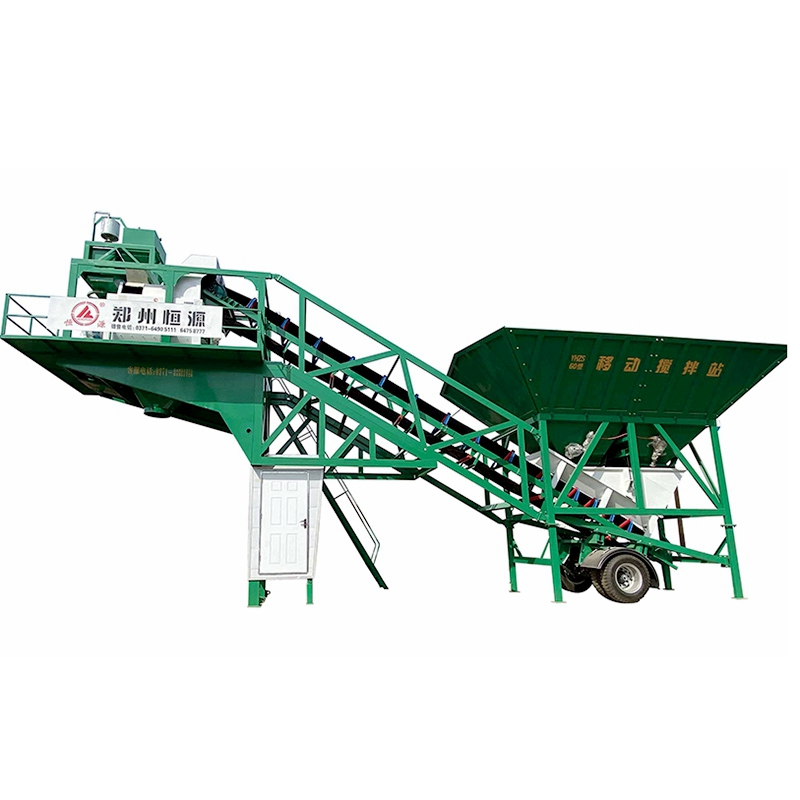

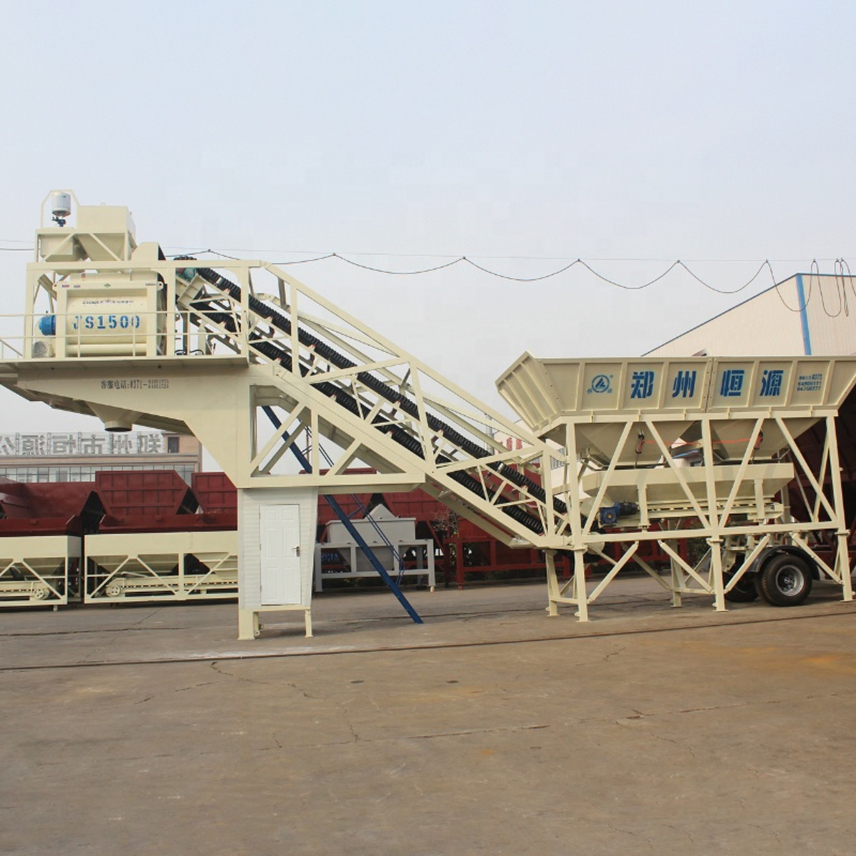

The YHZS mobile concrete batching plant features a new and unique structure that is compact and simple. It covers a small area, offers simple installation, and high degrees of automation, incorporating advanced domestic and foreign experience.
Designed for rapid and easy assembly/disassembly, making it extremely convenient to transport between project sites.

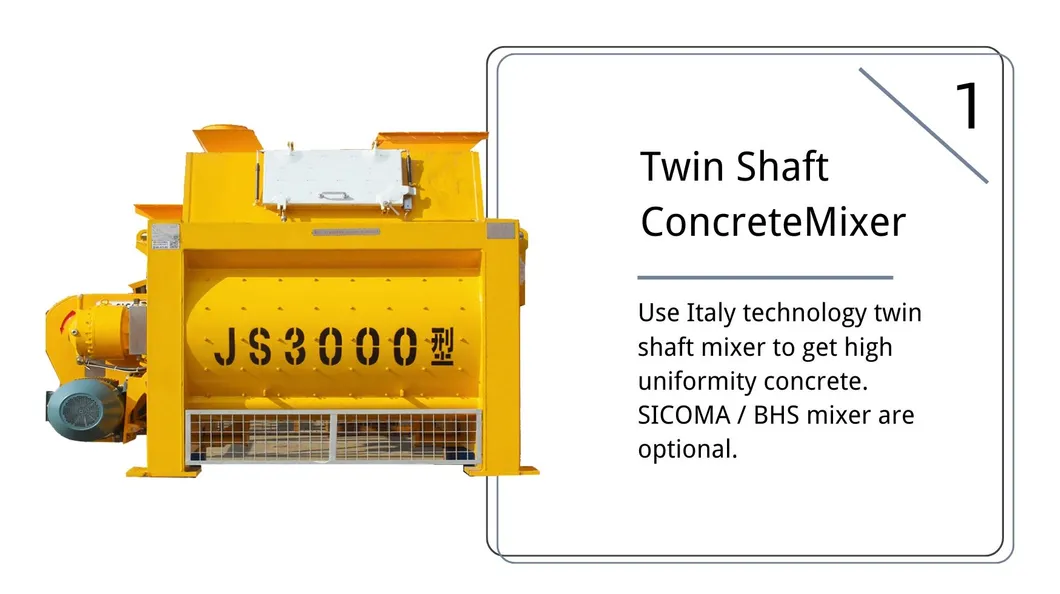

Adopts a twin-shaft concrete mixer to ensure equal mixing in the shortest possible time.

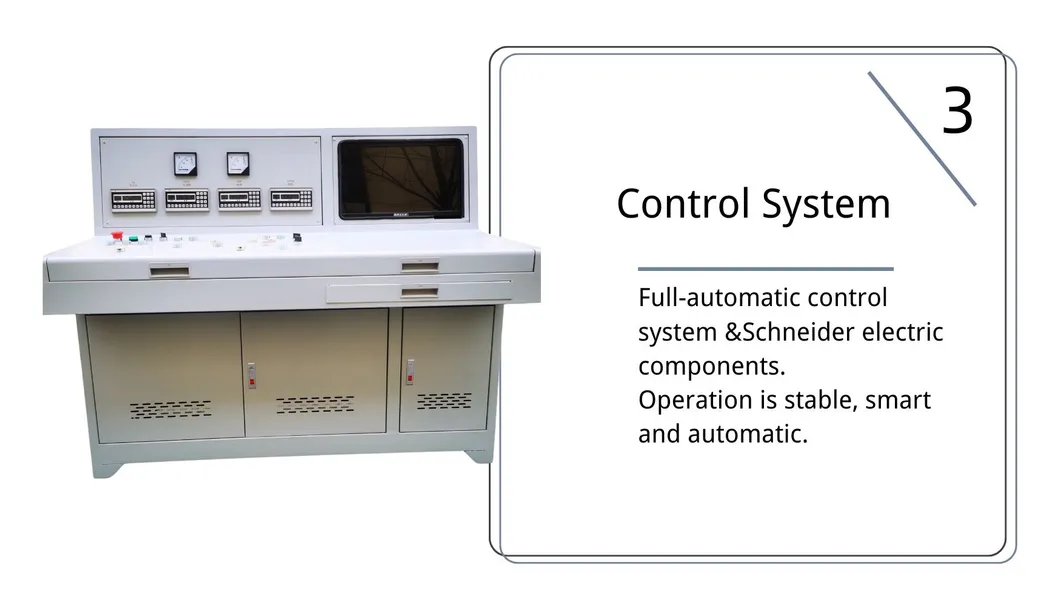

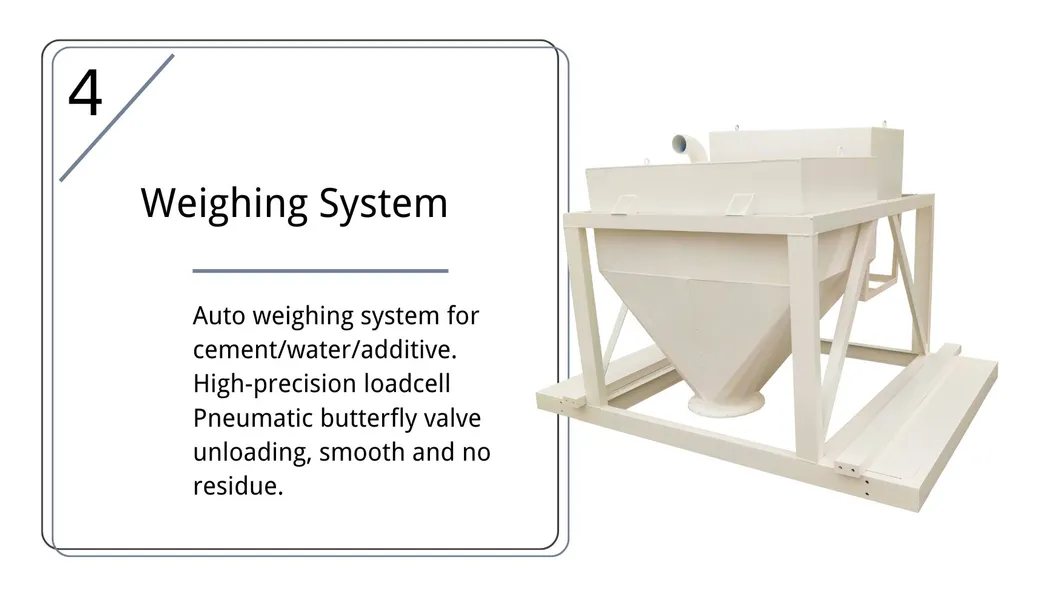

Features top-quality configurations including imported scale load cells and control systems to reduce failure rates and increase accuracy.
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
| Capacity | 25m³/h | 35m³/h | 50m³/h | 75m³/h |
| Mixing System | Twin-shaft concrete mixer | |||
| Discharging Height | 3800mm | |||
| Max. Dragging Speed | 40km/h | |||
| Concrete Mixer | JS500 | JS750 | JS1000 | JS1500 |
| Batching Machine | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Feeding Way | Belt conveyor | |||
| Weighing Precision | ±1% | |||
A professional enterprise engaged in the research, development, sale, and service of construction machinery including concrete batching plants, concrete pumps, and cement silos. With a long history of 25 years since its establishment in 1999, our products have passed ISO9001 and CE certification.

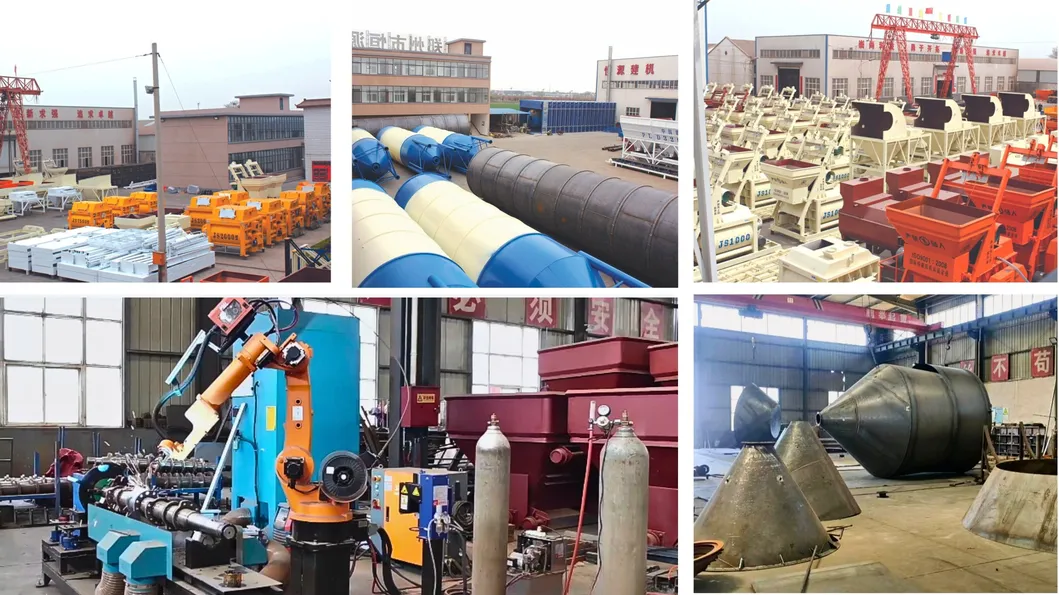

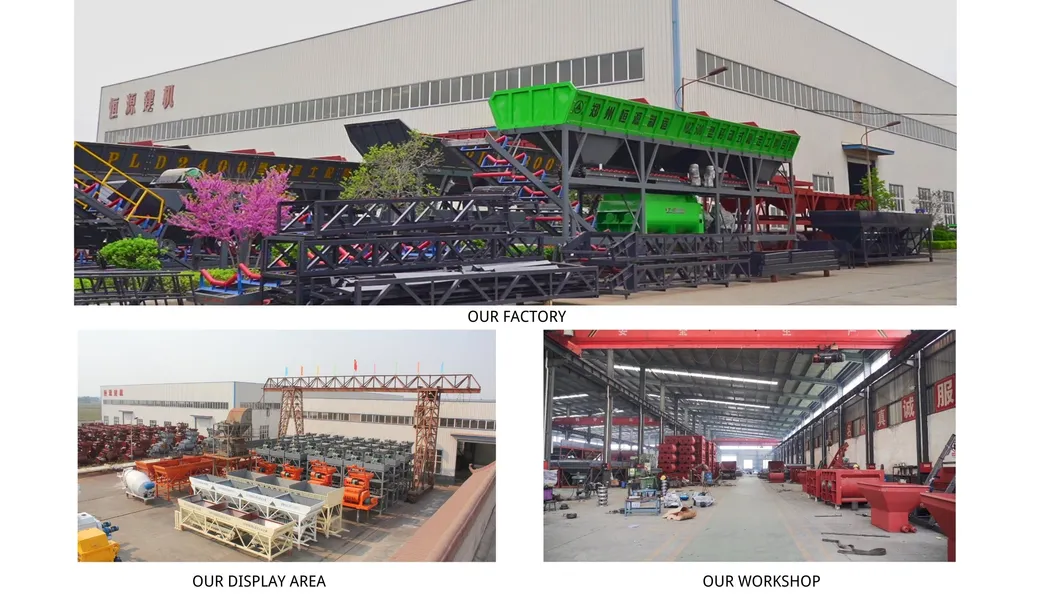

Equipped with CNC cutting machines and robot welding technology, we ensure the highest machine quality. Our R&D department provides strong technical support for OEM and ODM projects, offering a reliable 18-month warranty on construction machinery.
