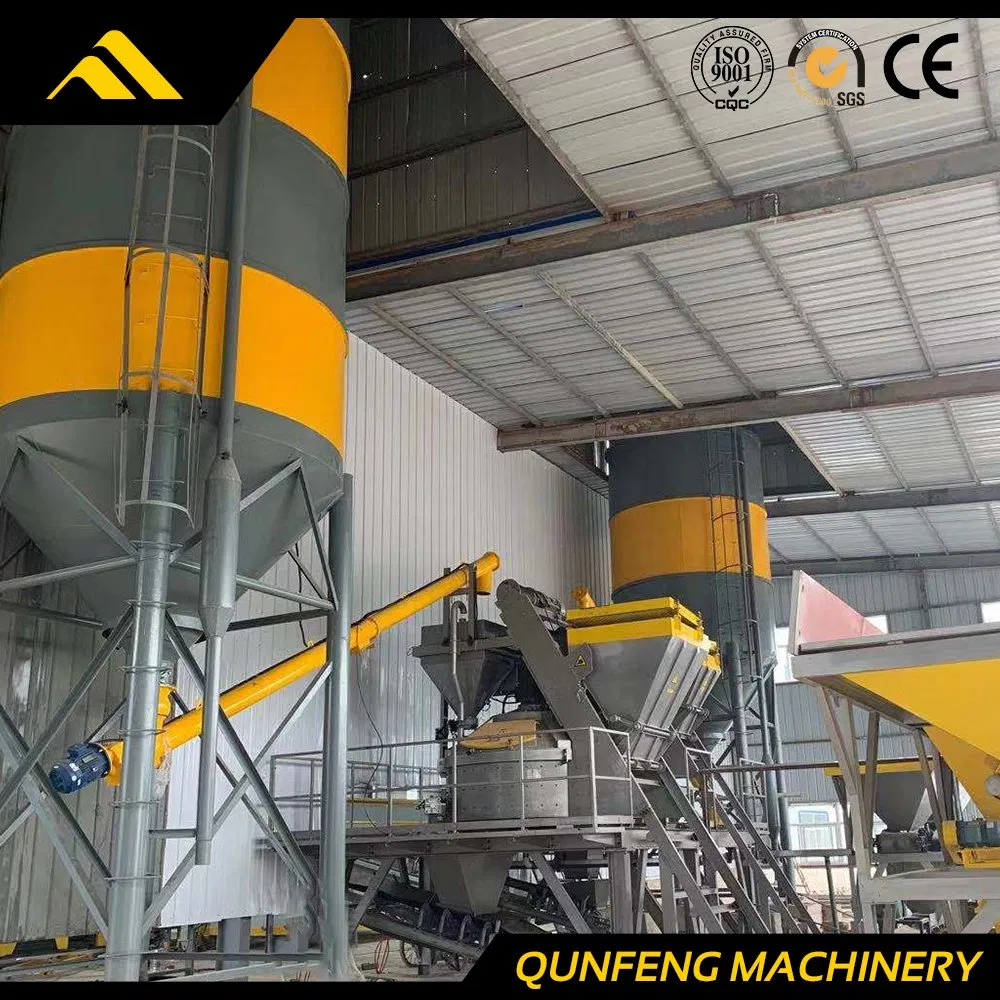

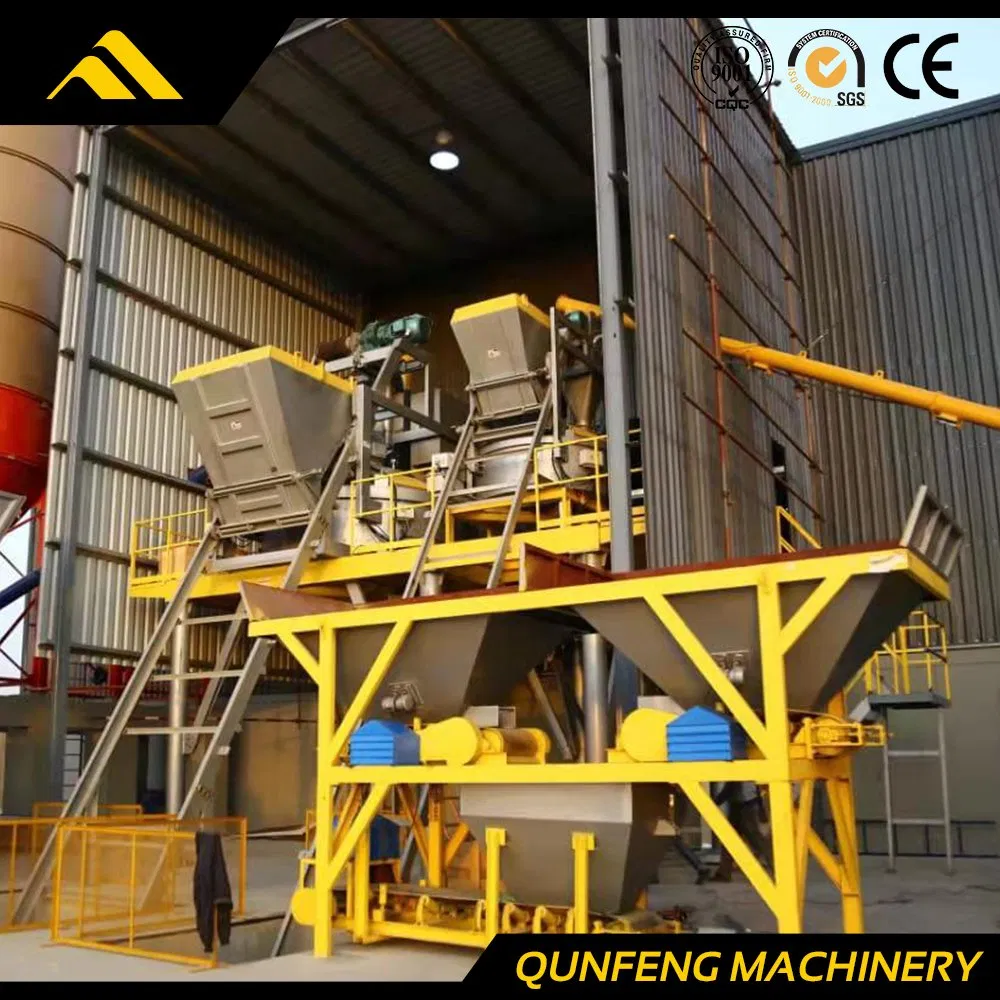

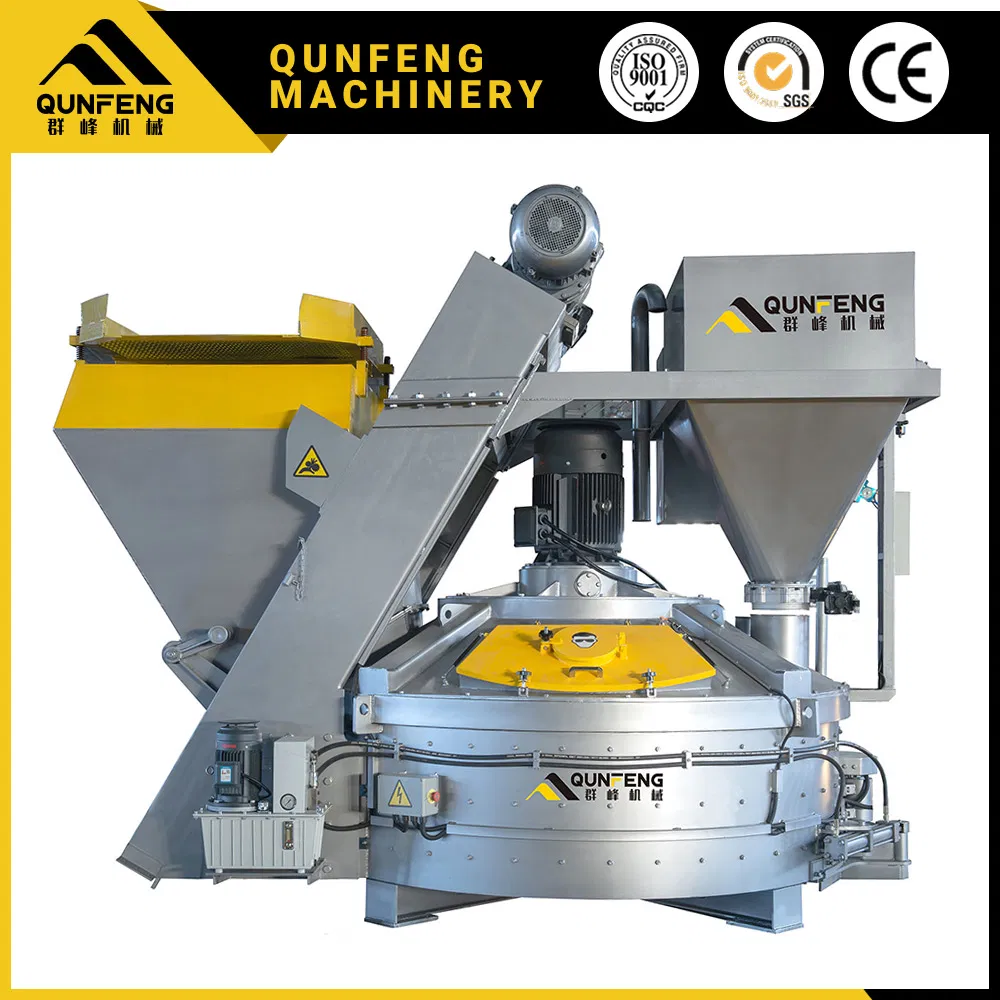

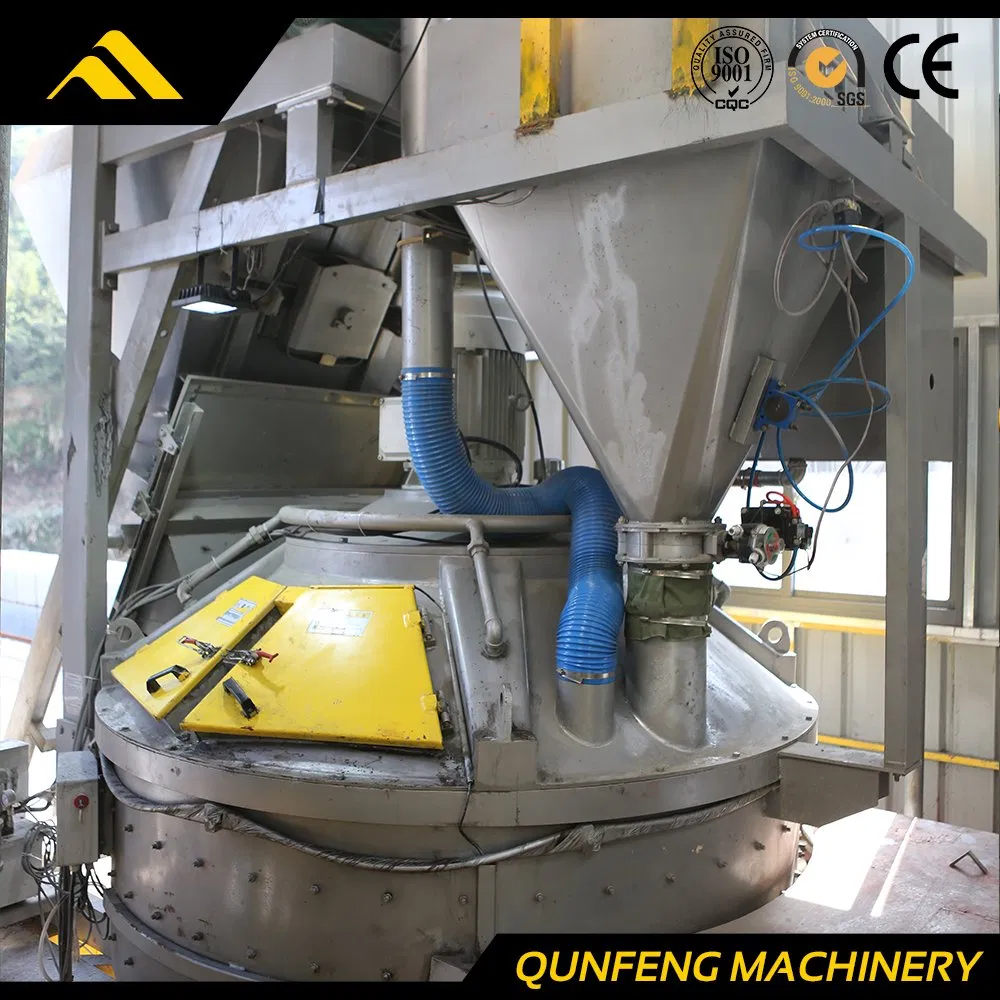

Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
1 / 5
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs
Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs

Superior Planetary Concrete Mixing Plant Concrete Mixer for Large-Scale Construction Needs

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Technical Specifications

Model NO.
QMP250
Type
Concrete Mixing Plant
Shotcrete Type
Wet
Machining Process
Construction Machinery
Certification
ISO9001: 2000, CE
Condition
New
Filling Volume (L)
375
Feeding Capacity (Kg)
600
Compacted Concrete (L)
250
Mixing Power (Kw)
11
Discharging Power
Pneumatic Discharging
Weight (Kg)
1500

Product Description

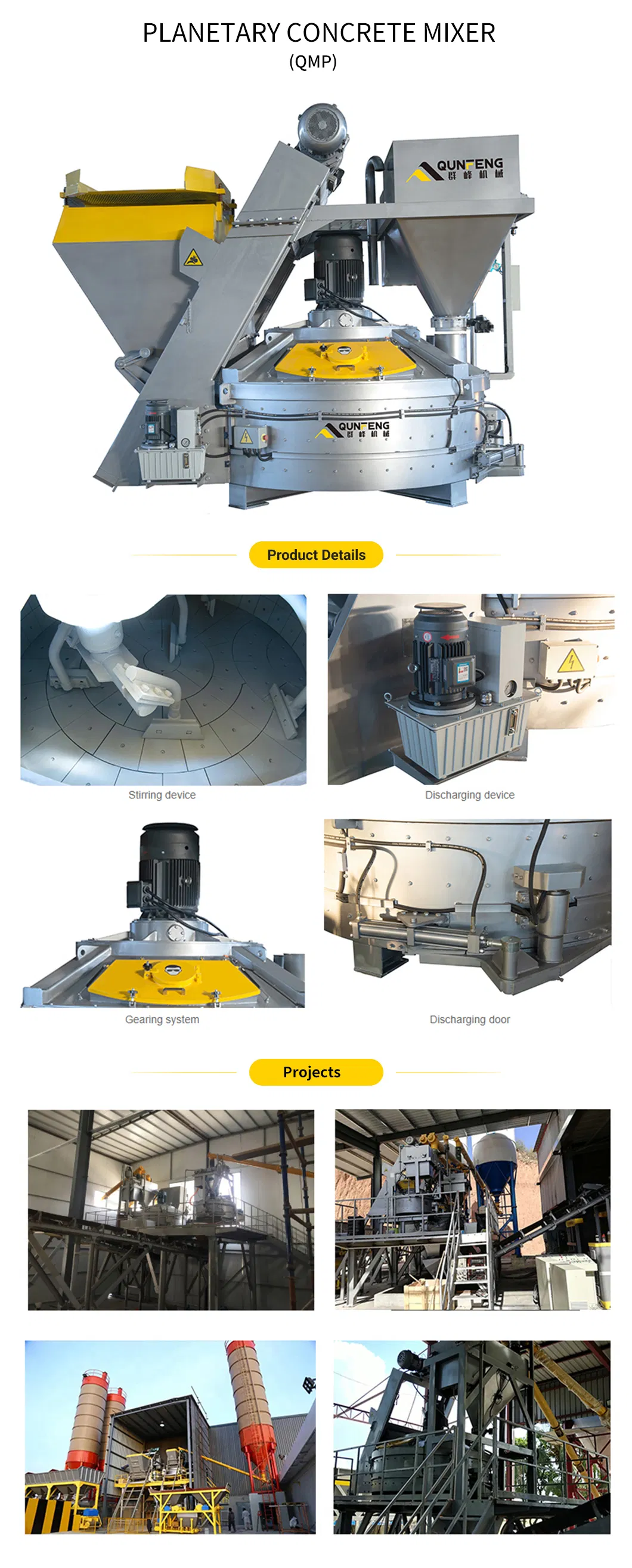

Concrete Mixer Overview

The QMP Series Planetary Concrete Mixer is engineered to deliver exceptional performance in all types of high-quality concrete mixing, including hard, semi-hard, and plastic concrete. Beyond concrete, this versatile mixer is perfect for blending glass, ceramics, refractory materials, and much more, making it an indispensable tool for a variety of industries.

  • Specially designed mixing device ensures faster and more uniform mixing with enhanced wear resistance.
  • Flexible couplings and optional fluid coupler safeguard the drive system against overload shocks.
  • Innovative gearbox design optimally distributes power with minimal noise in demanding environments.
  • Large-size access door simplifies maintenance and cleaning of interior components.
  • Optional high-pressure cleaning devices and water content testers for precision.
  • Full-spectrum technical support from model selection to customization and maintenance.
ItemsQMP25033050075010001500200025003000
Filling Volume (L)375500750112515002250300037504500
Feeding Capacity (Kg)6007901200180024003600480060007200
Compacted Concrete (L)25033050075010001500200025003000
Mixing Power (kW)111518.53037557590110
Mixing Star/Blade (Qty)1×21×21×21×32×22×23×23×23×3
Discharging Power (kW)Pneumatic2.22.22.22.22.2333
Weight (Kg)15002200250035005500650085001050011000

Factory and Team

Factory View

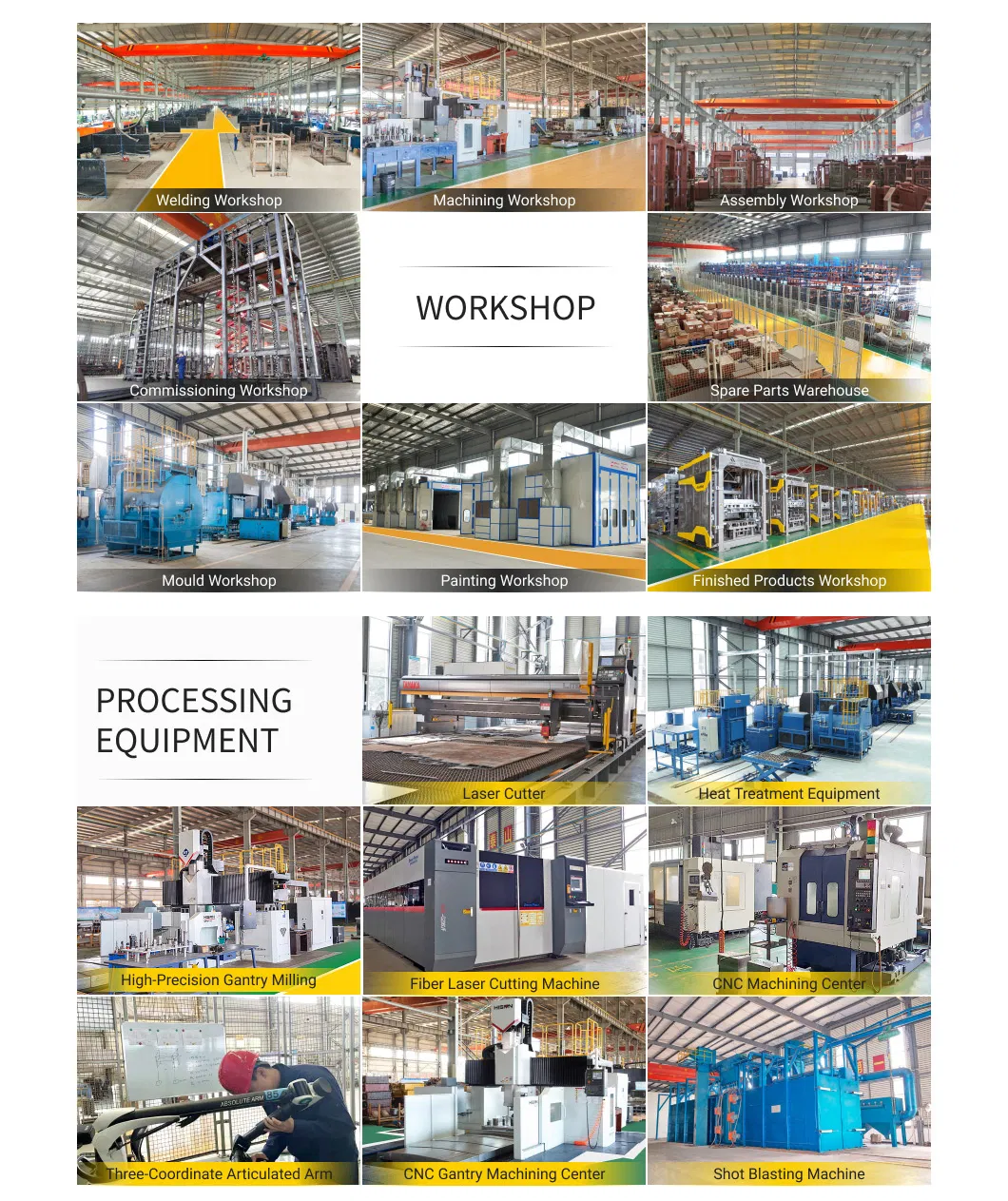

Production Line
Sales Team

Main Products Portfolio

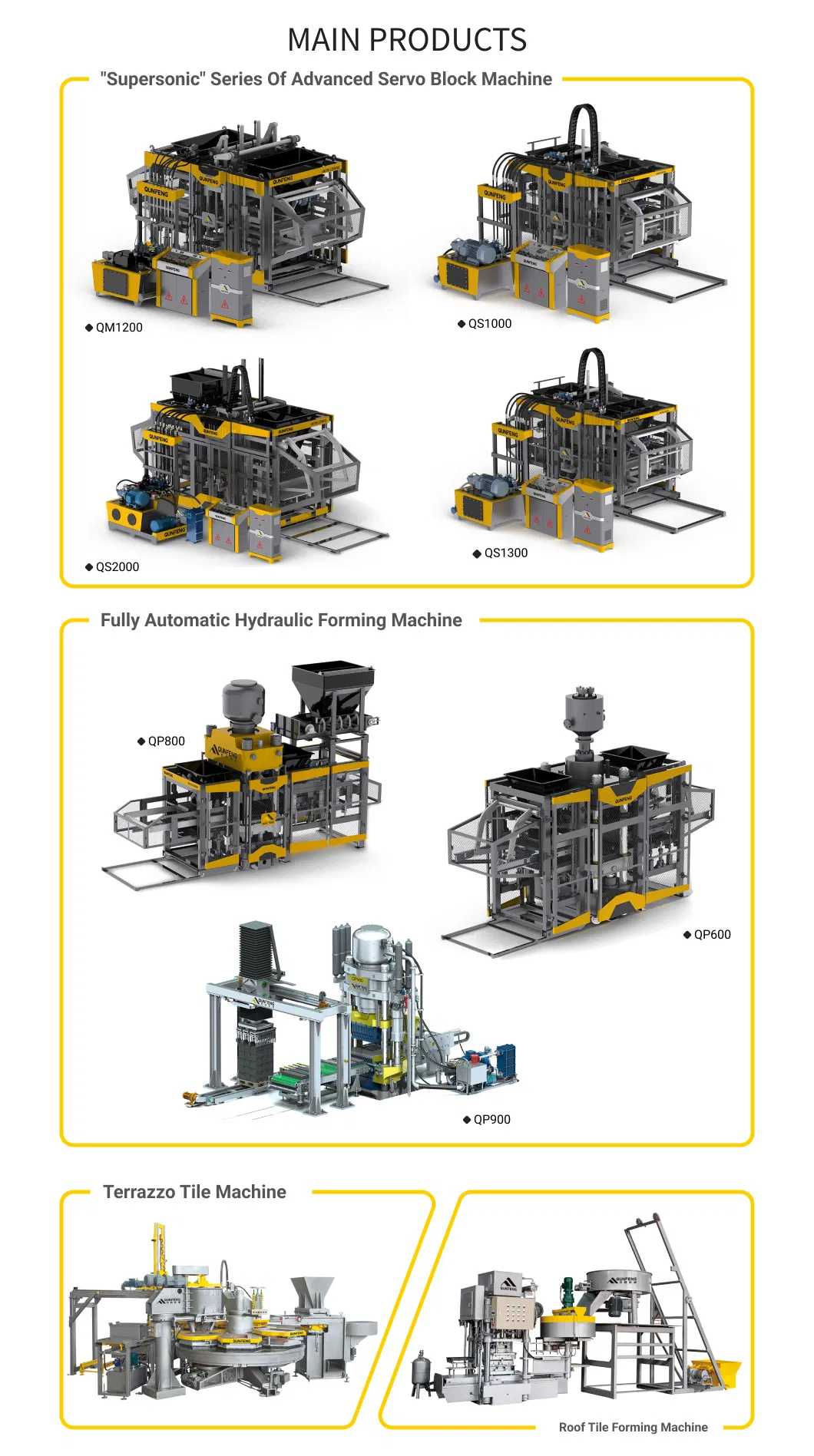

Product Range

Application Cases

Application Case 1

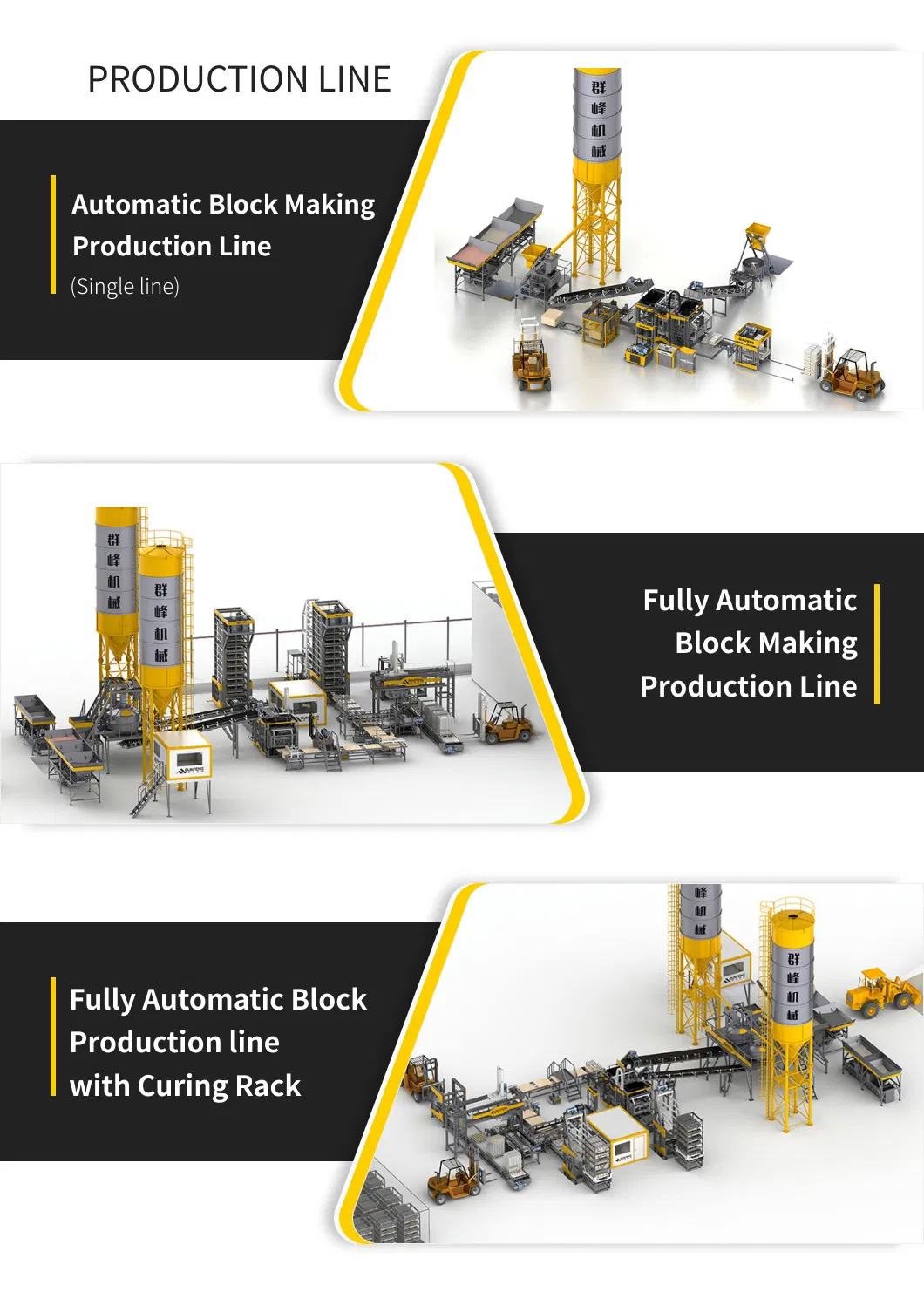

Application Case 2

Certificates & Quality Assurance

Certificates

Packaging & Transportation

Packaging
Shipping

Frequently Asked Questions

What types of concrete can the QMP series mixer handle?
The QMP Series is designed for high-quality mixing of hard, semi-hard, and plastic concrete, as well as refractory materials, glass, and ceramics.
How does the planetary mixing system improve efficiency?
The planetary motion ensures the mixing blades cover every part of the drum, resulting in faster homogenization and more uniform results compared to traditional mixers.
Is the drive system protected against overloads?
Yes, the integration of flexible couplings and optional fluid couplers protects the gearbox and motor from sudden shocks and overload situations.
How is maintenance performed on the mixer?
The unit features a large-size access door that provides easy entry for cleaning, inspection, and replacement of wear parts like blades and scrapers.
What discharging options are available?
Standard models like the QMP250 use pneumatic discharging, providing a quick and efficient way to empty the drum for the next cycle.
Can I monitor the water content during mixing?
Yes, we offer optional water content testers and high-pressure cleaning devices to ensure precision and ease of operation.
