Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
1 / 5
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant
Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant

Modular Concrete Mixing Plant, Hzs35 Lift Hopper Concrete Batching Plant

Customization: Available
Type: Concrete Mixing Plant
Shotcrete Type: Dry, Semi-Dry and Plastic
Send Inquiry

Product Description

Basic Information
Model NO.
HZS35 Lift Hopper Concrete Batching Plant
Machining Process
Concrete Production Line
Structure
Spiral Type
Productivity
35 M3/H

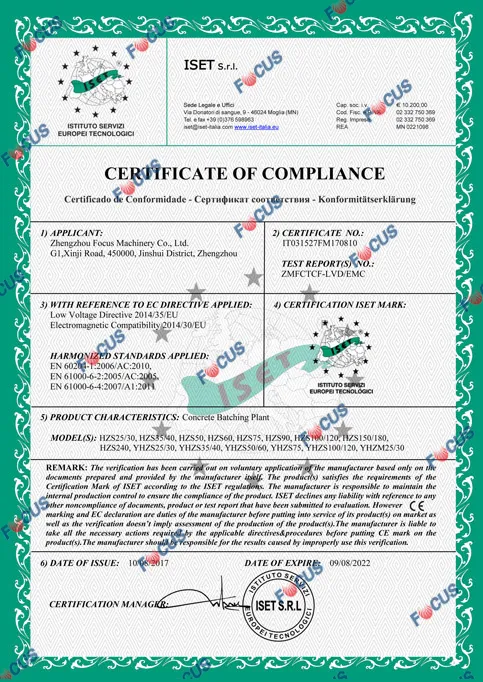

Certification
ISO9001: 2000, CE
Condition
New
Matched Mixer
JS750
Aggregate Batcher
PLD1200
Control System
Full Automatic Computer Control
Electrical System
Schneider Brand
PLC
Omron or Siemens
Discharge Height
3.8m
Product Description
Modular Small Concrete Mixing Plant, HZS35 Lift Hopper Concrete Batching Plant

The HZS series concrete mixing plant features advanced global technology. It is perfectly suited for commodity concrete and construction in various architectural projects including water conservancy, electric power, railroads, roads, tunnels, bridges, harbors, and national defense projects.

This versatile plant can mix hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concretes. It offers multiple operational modes: fully automatic, semi-automatic, and manual, ensuring a high degree of automation for any site requirement.

Technical Parameters
Model HZS25 HZS35 HZS50 HZS75
Theoretical output (m³/h)25355075
Mixer modelJS500JS750JS1000JS1500
Output per batch (m³)0.50.7511.5
Aggregate batcherPLD800PLD1200PLD1600PLD2400
Total power (KW)273580110
Max. aggregate dia. (mm)60608080
Discharge height (m)3.8 - 4.1
Product Display

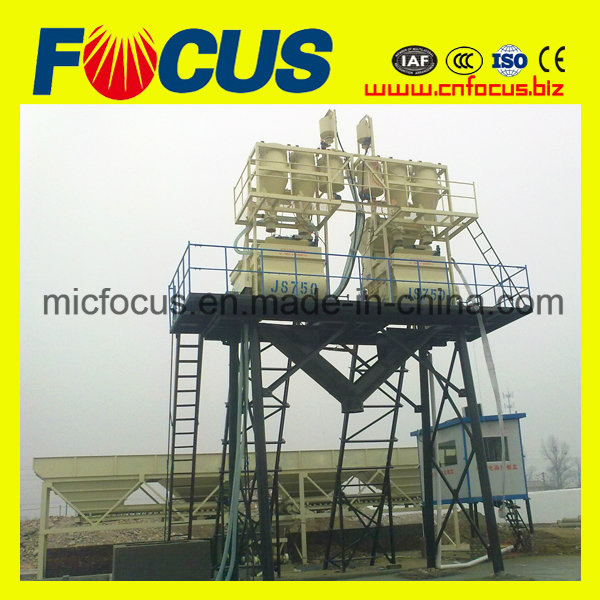

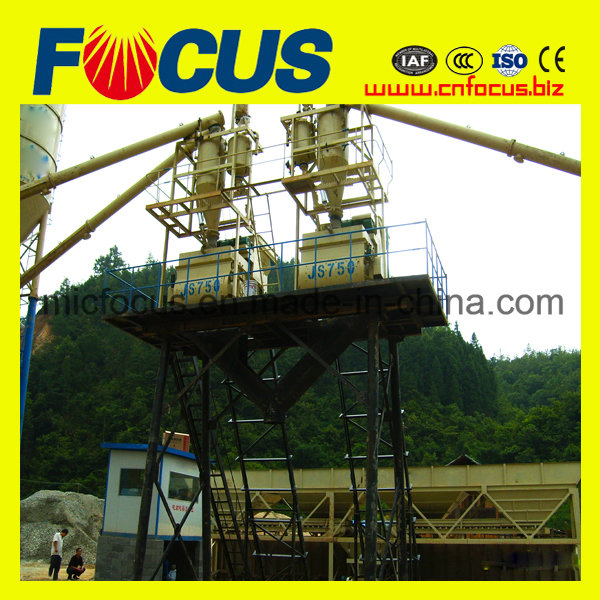

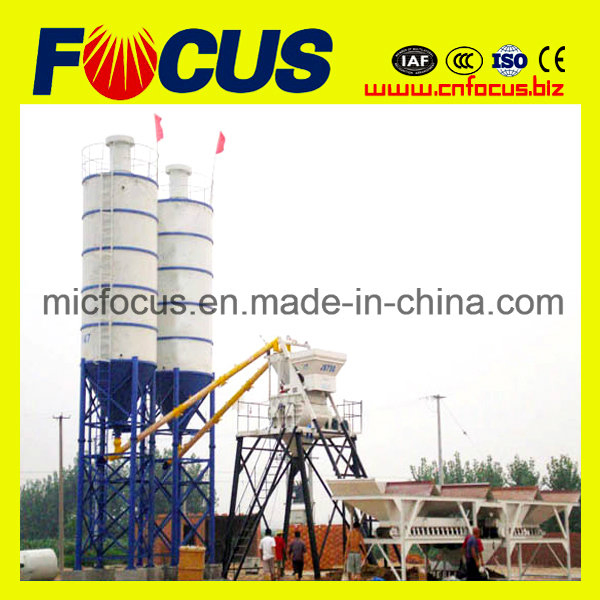

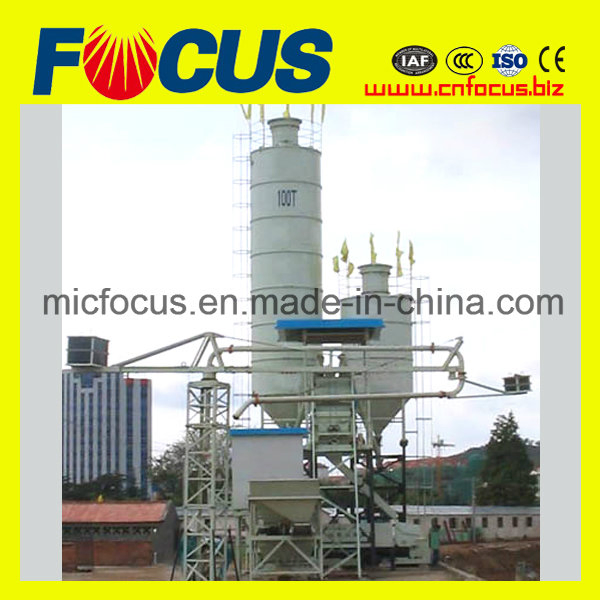

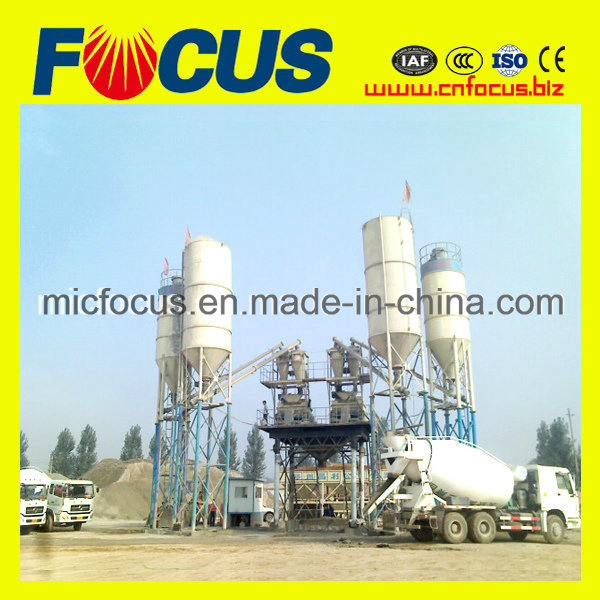

HZS35 Lift Hopper Concrete Batching Plant

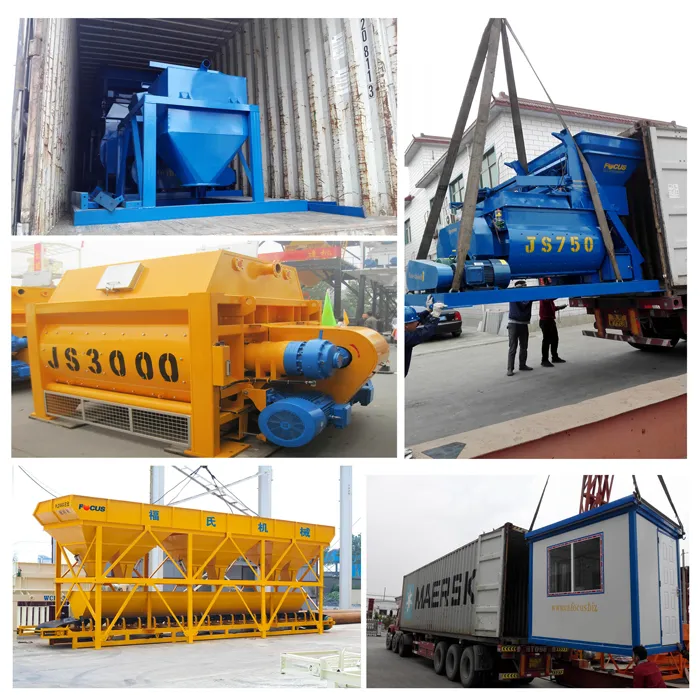

Modular Concrete Mixing Plant
Concrete Batching Plant Construction
Lift Hopper Details
Key Features & Advantages
1
Driving system adopts planetary gear; the gimbals transmission shaft ensures circumgyrate at the same speed.
2
Modularization structure makes it easy to transport, install, and debug quickly.
3
Spiral mixing system with high-rigidity and wearable case alloy steel blades for prolonged working life.
4
Aggregate lifting appliance adopts frequency control for smooth and reliable operation.
5
Advanced centralized oil lubricating system equipped with overvoltage and low oil level warnings.
6
PC+PLC control system ensures high reliability and precise computation for high-performance concrete.
Frequently Asked Questions (FAQ)
What is the production capacity of the HZS35 model?
The HZS35 Concrete Batching Plant has a theoretical productivity of 35 cubic meters per hour (m³/h).
Which concrete mixer is used in this plant?
The HZS35 is equipped with the JS750 twin-shaft compulsory concrete mixer, which provides efficient and uniform mixing.
Is the control system fully automated?
Yes, the plant features a full automatic computer control system using world-famous brands like Schneider, Omron, or Siemens for high reliability.
What types of projects is this plant suitable for?
It is ideal for water conservancy, electric power, railroads, roads, tunnels, bridge arches, and harbor-wharf construction projects.
How high can the HZS35 discharge concrete?
The standard discharge height is between 3.8m and 4.1m, depending on the specific requirements of the project.
How is the aggregate transported to the mixer?
The HZS35 uses a lift hopper (climb bucket) system to transport aggregates, which is space-saving and efficient for small to medium sites.
