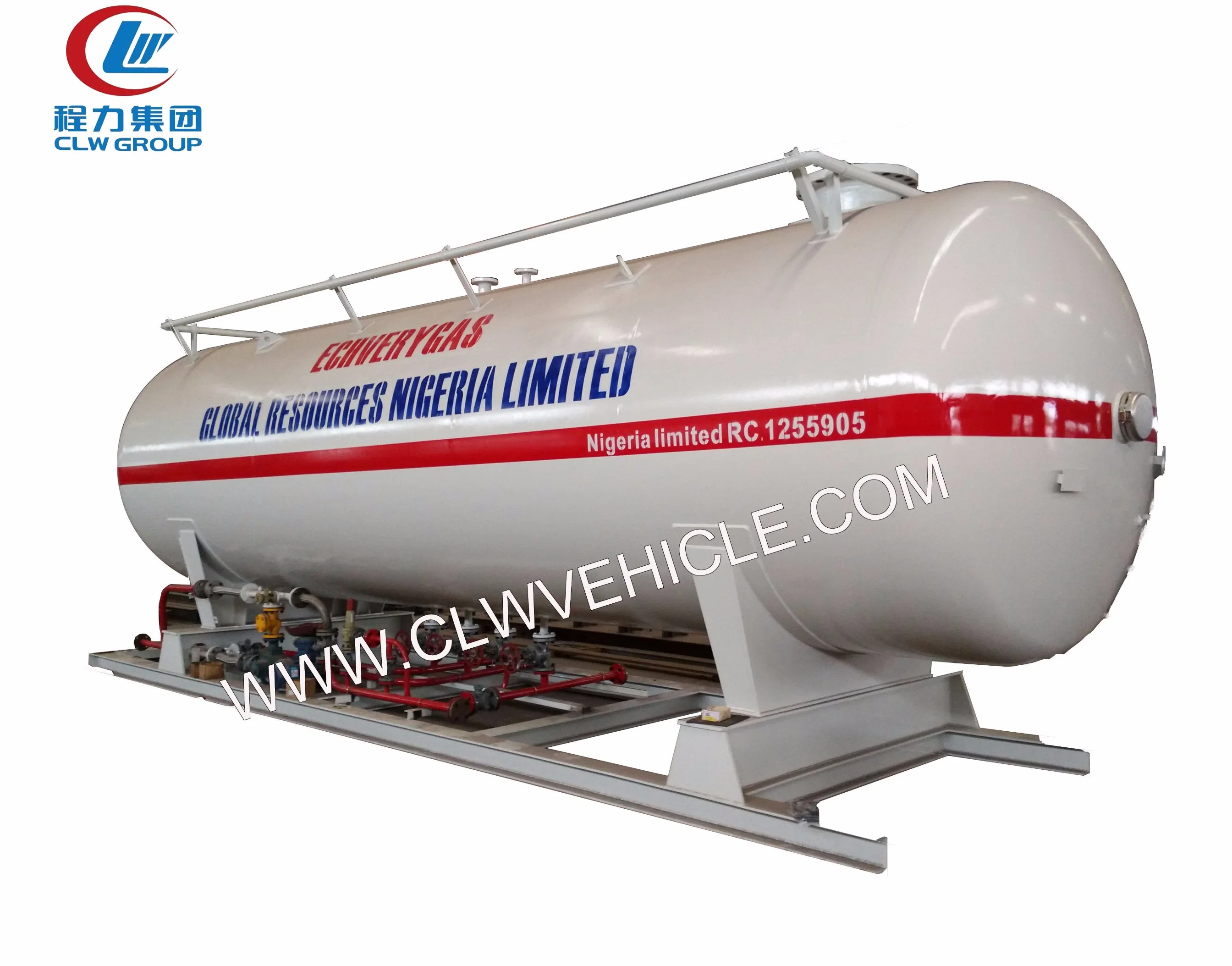

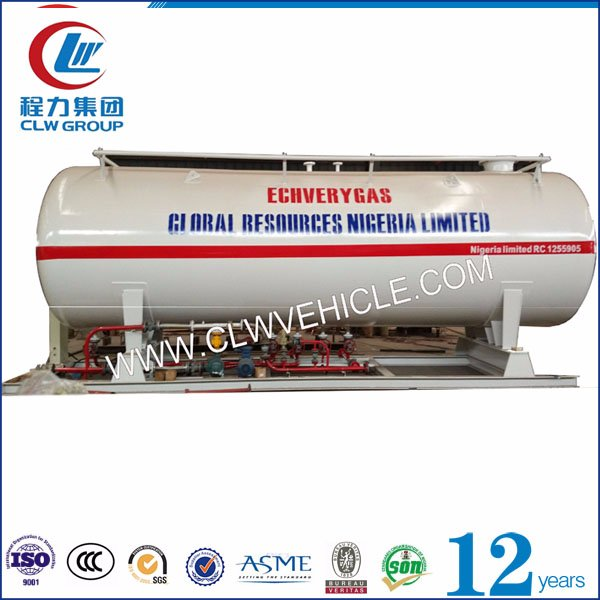

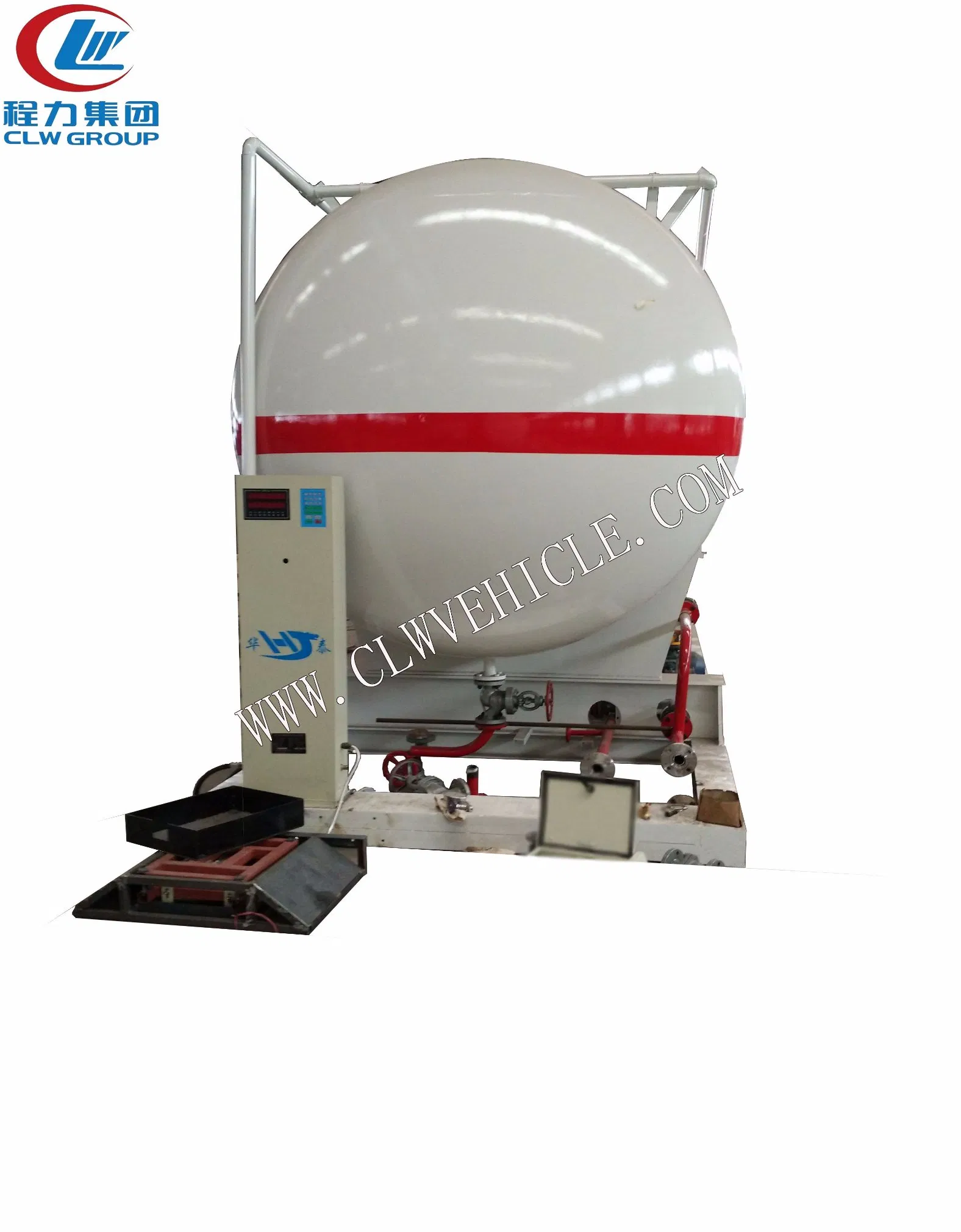

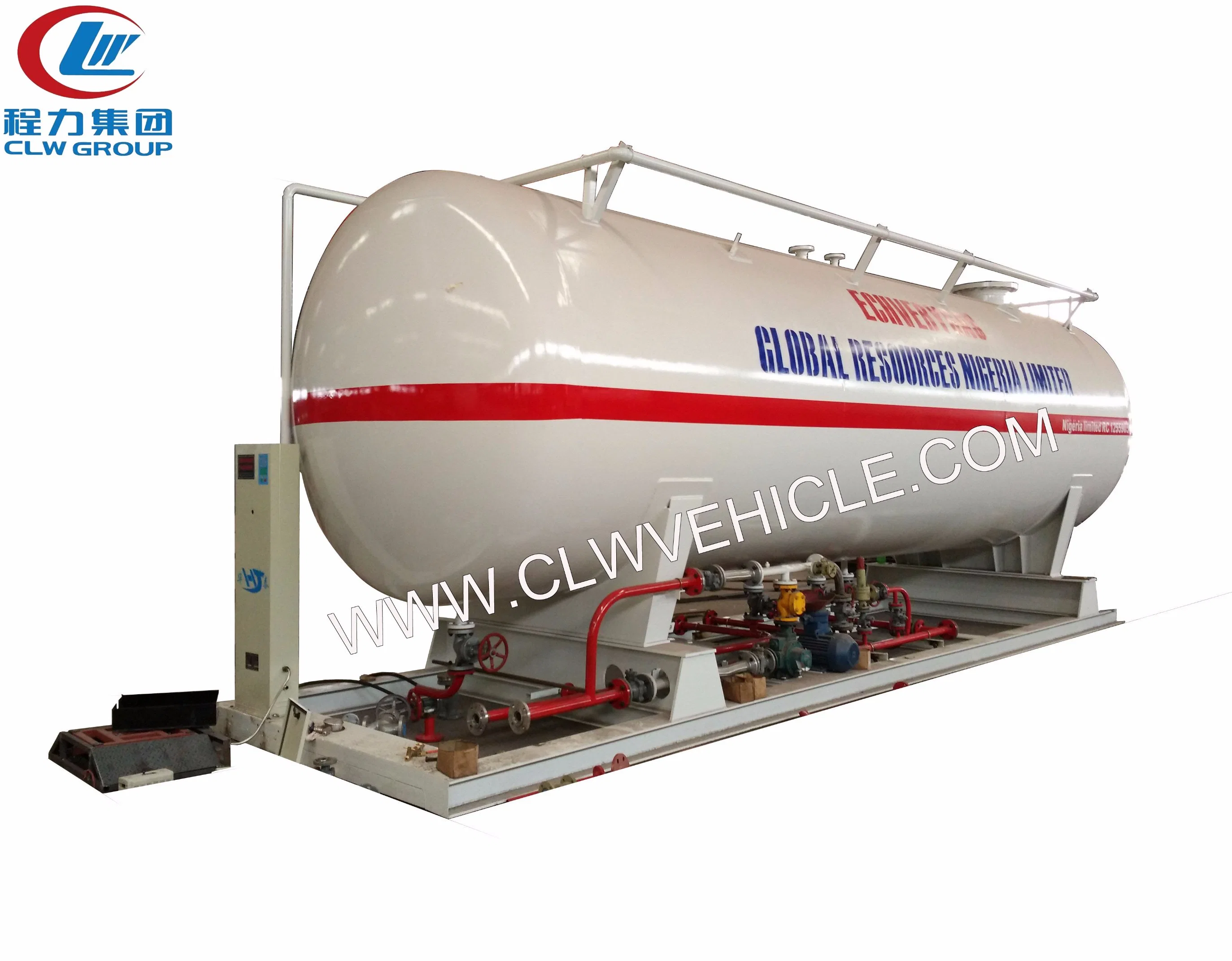

Mini 10m3 Mobile LPG Gas Plant for Sale
Mini 10m3 Mobile LPG Gas Plant for Sale
Mini 10m3 Mobile LPG Gas Plant for Sale
Mini 10m3 Mobile LPG Gas Plant for Sale
1 / 4
Mini 10m3 Mobile LPG Gas Plant for Sale
Mini 10m3 Mobile LPG Gas Plant for Sale
Mini 10m3 Mobile LPG Gas Plant for Sale
Mini 10m3 Mobile LPG Gas Plant for Sale

Mini 10m3 Mobile LPG Gas Plant for Sale

Customization: Available
Function: Storage Pressure Vessel
Application: Liquefied Gas
Send Inquiry

Product Description

Basic Specifications
Model NO.
CLW
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
High Pressure
Tank Volume
5000L-120000L
Tank Material
Q345r/Q370r High Tensile Steel
Tank Thickness
10-20 mm
Filling Pump Machine
Yqb15-5
Key Parts
Blackmer Pump, ABB Motor
Safety Accessories
Cut-off Valve, Safety Valve, Level Meter
Production Capacity
1000unit/Month
Technical Data - Mini 10m3 Mobile LPG Gas Plant
Tank Specifications
Overall dimensions(mm)3070*1620*2210
Volume5CBM
Nominal diameter(mm)1600
Thickness (Shell/Head)10 mm / 10 mm
Net weight(kg)2030
Design Pressure1.77Mpa
Design Temperature-19~50°
Filling MediumPropane
Service Time20 years
Safety & Control Components
Liquid Indicator ModelUZFAL-2.5RF2640-0.50 (Magnetic)
Safety Valve ModelA42F-2.5-80 (Built-in)
Opening Pressure1.68-1.76Mpa
Handing System Pip SizeDN80 / DN50
Product Visuals

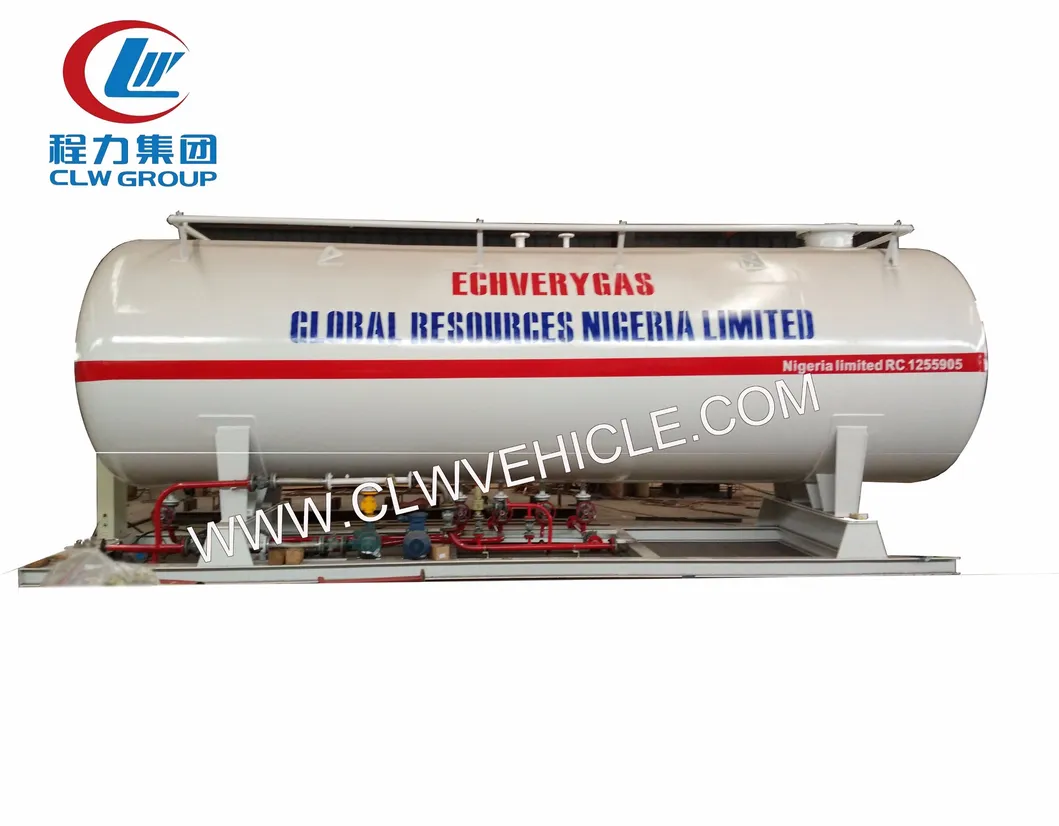

LPG Gas Plant View 1
LPG Gas Plant View 2
LPG Gas Plant View 3
Technical Layout
Customization Options
Product Logistics
Product Overview

Our liquefied gases tanks are professional-grade equipment designed to work efficiently in low pressure at room temperature. We offer versatile volumes ranging from 5 cubic meters to 100 cubic meters. With high-grade production equipment and a strict quality control system, our tanks are engineered for a service life of 10-20 years.

Main Product Categories
  • LPG Tank Truck Trailers / Oil Tank Trucks / Fuel Tanker Trucks
  • Fire Fighting Trucks / Fire Engines
  • Truck Mounted Cranes / High-altitude Operation Trucks
  • Water Sprinkler Trucks / Water Tank Trucks
  • Dump Trucks / Tipper Trucks / Side Tippers
  • Concrete Mixer Trucks / Cement Powder Tank Trucks
  • Van Trucks / Refrigerator Trucks / Insulated Trucks
  • Garbage Compactor Trucks / Sealed Garbage Trucks
  • Semi Trailers (Flatbed, Skeleton, Lowbed, Warehouse, etc.)
Frequently Asked Questions
What materials are used for the LPG tank construction?
The tanks are constructed using Q345R or Q370R high tensile strength carbon steel, specifically designed for pressure vessels to ensure maximum safety and durability.
What is the expected service life of these gas plants?
With our high-grade production standards and strict quality control, the tanks are designed for a reliable service life of 10 to 20 years.
What safety accessories are included with the mobile plant?
Each unit is equipped with essential safety components including a cut-off valve, safety valve, magnetic liquid level meter, pressure gauge, and thermometer.
Can the tank volume be customized for specific needs?
Yes, while our standard volumes range from 5,000L to 120,000L (5cbm to 100cbm), we can provide customization based on your specific technical requirements.
Which international standards do your products comply with?
Our production processes and products comply with ISO9001, 3C, and ASME specifications to ensure international quality and safety compliance.
What is the design pressure and temperature range?
The standard design pressure is 1.77Mpa with a working pressure of 1.61Mpa. The design temperature range is from -19°C to 50°C, suitable for various climates.
