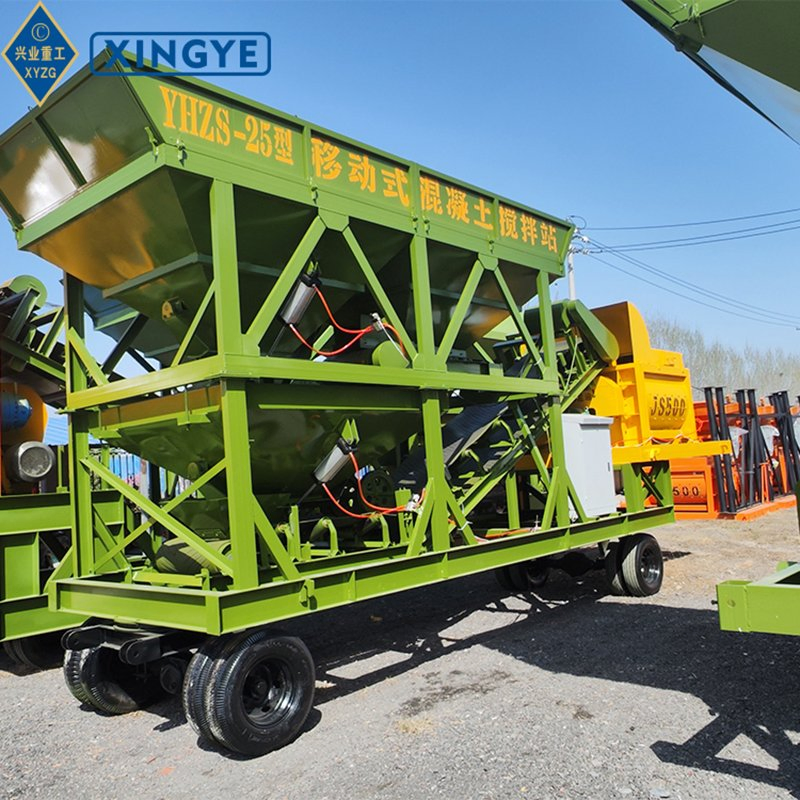

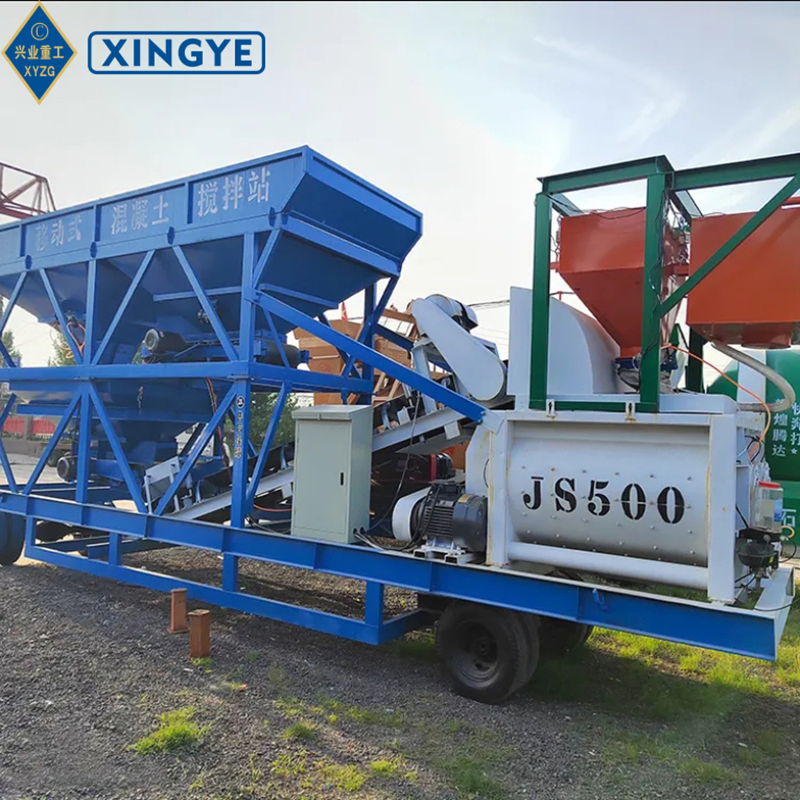

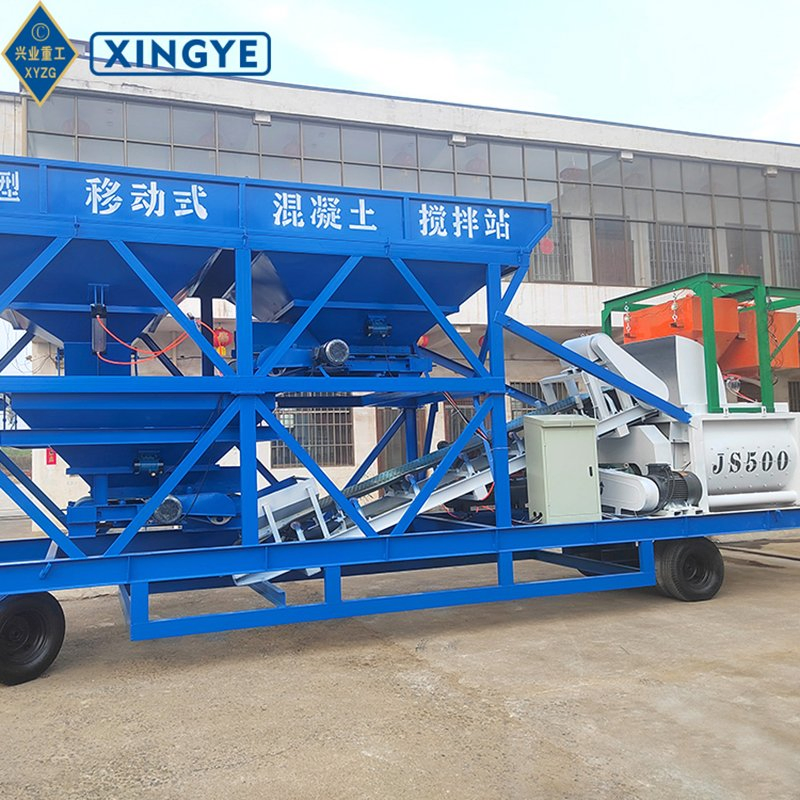

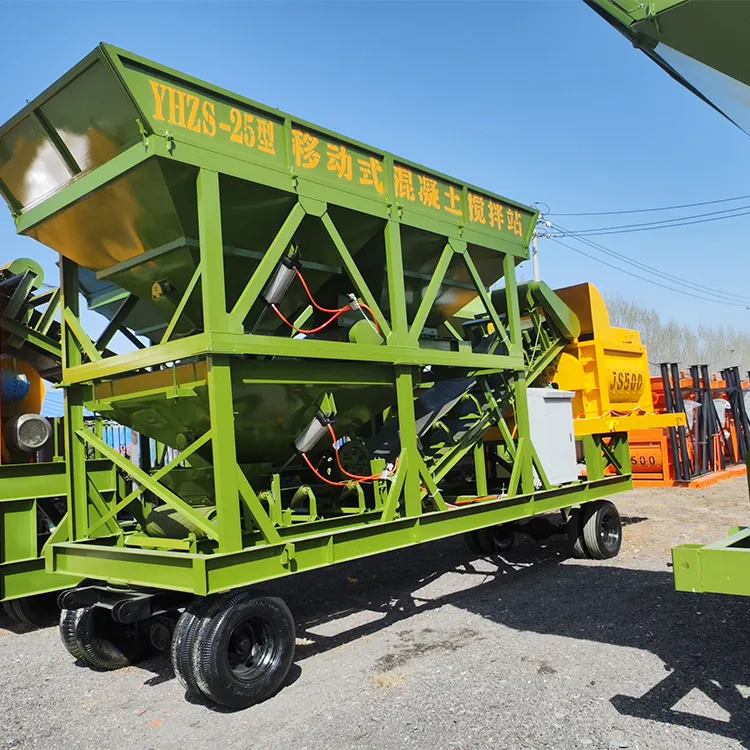

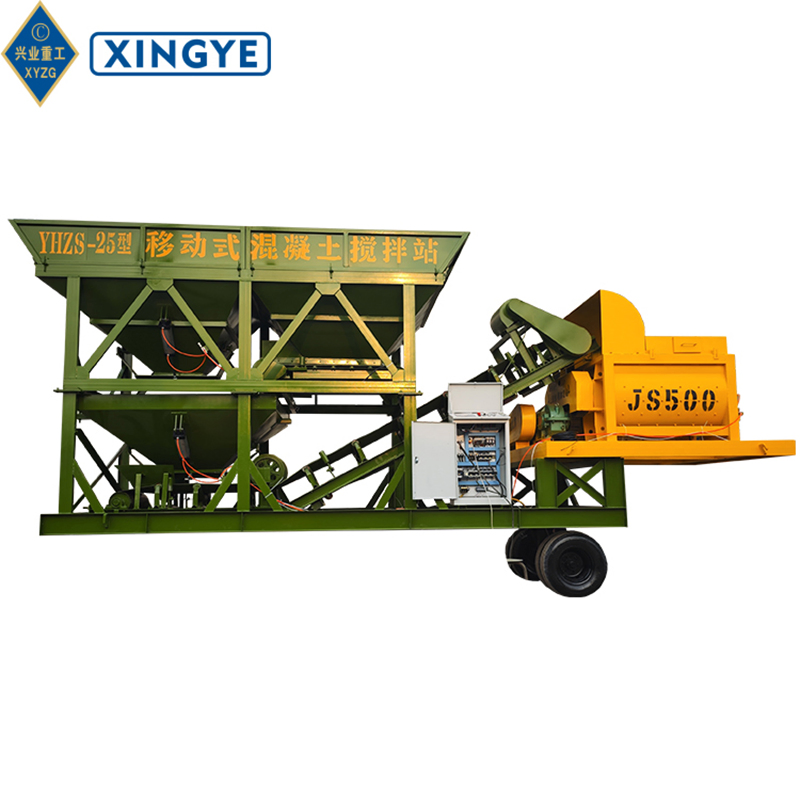

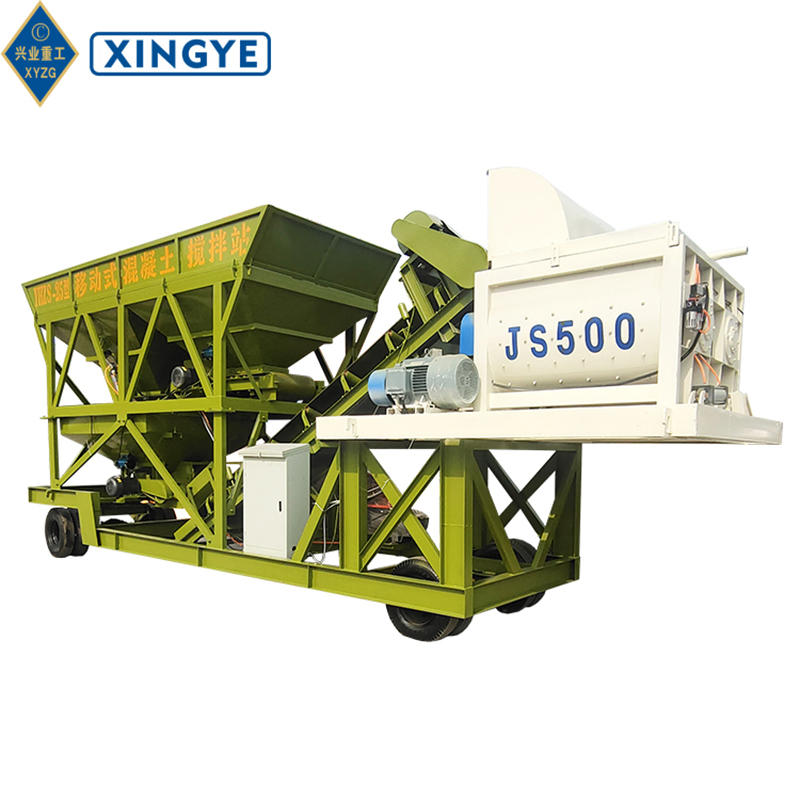

Mobile concrete batching plant is a towable mixing equipment that integrates aggregate, weighing, mixing, and transportation in one centralized towing unit. It is suitable for mobile construction of projects such as roads and bridges that require a relatively small amount of concrete.
This station integrates the material storage, weighing, conveying, mixing, unloading and automatic control system into a trailer unit. It features flexible mobility, quick disassembly, and easy storage. It is an ideal model for highway, railway, bridge, and port construction.

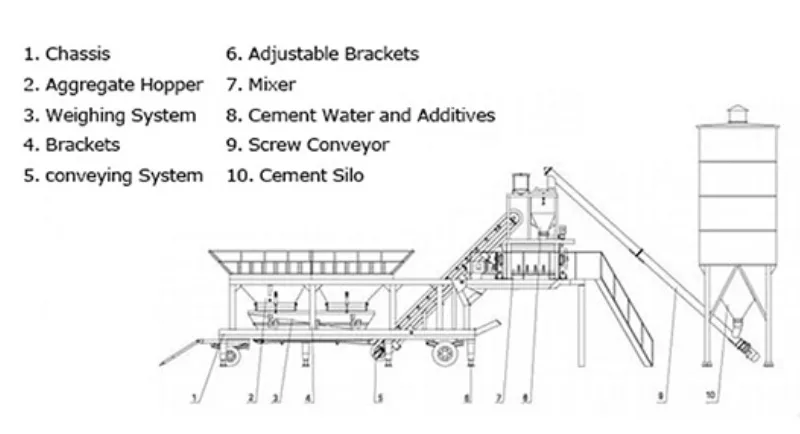

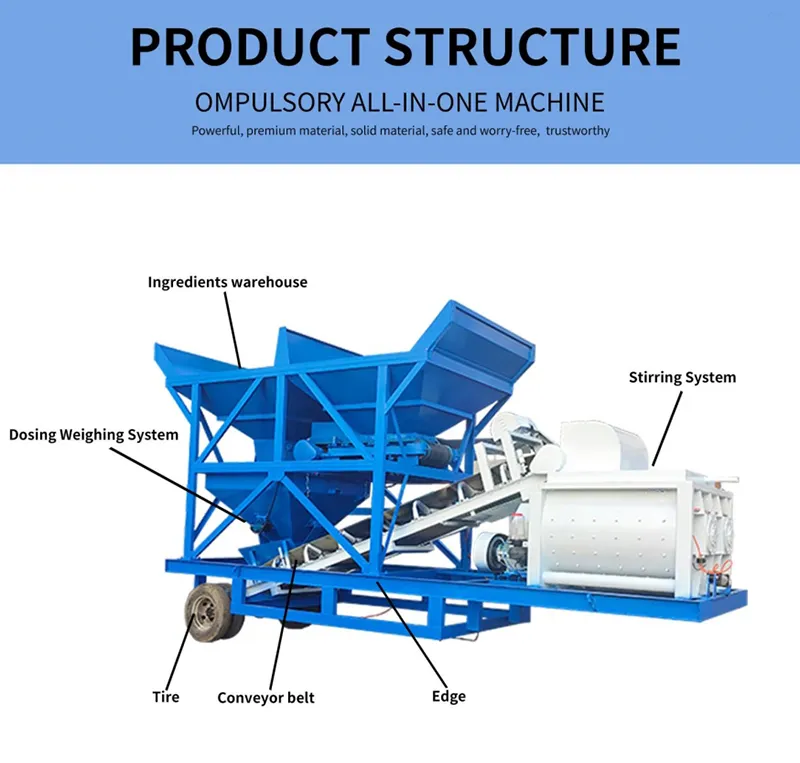

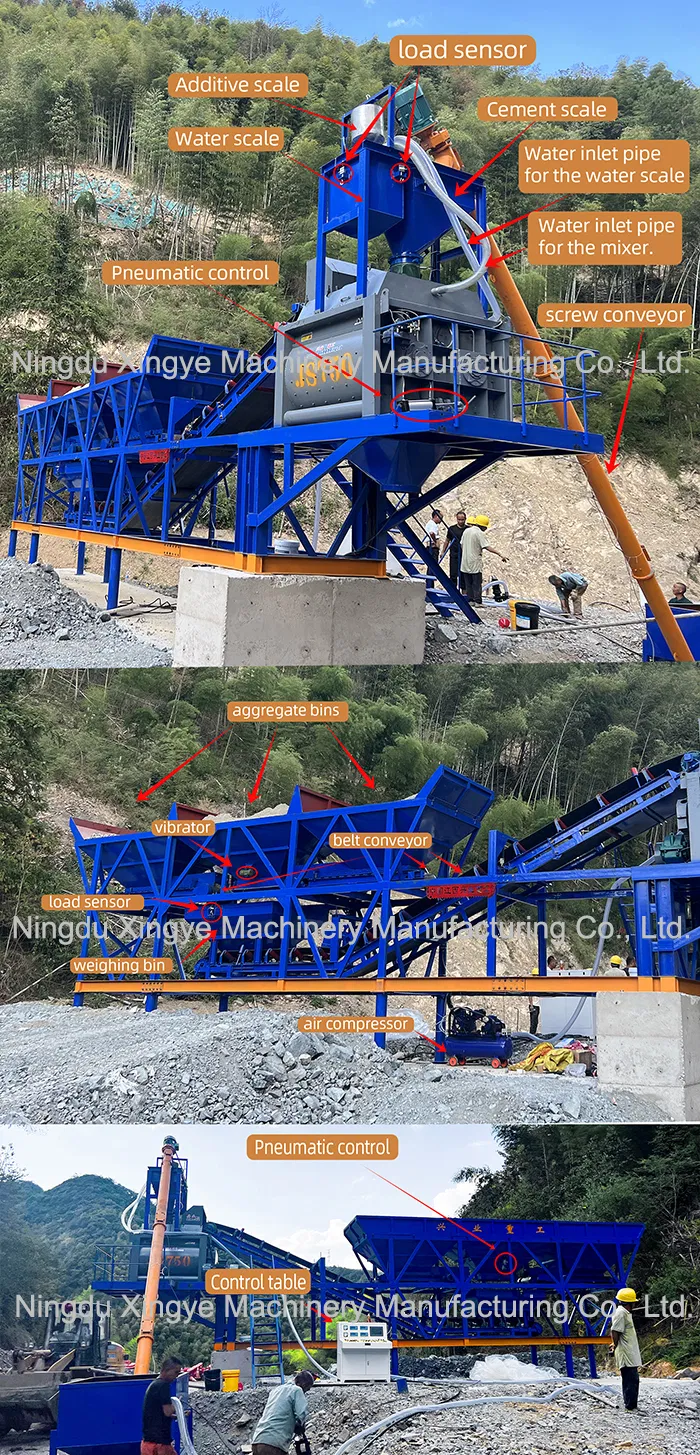

The system is primarily composed of five systems: mixing host, material weighing, material conveying, material storage, and the automatic control system.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 |
|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 |
| Max Productivity (m³/h) | 25 | 35 | 50 | 60 | 90 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | Belt | Belt |
| Max Aggregate Size (mm) | ≤60 | ≤80 | ≤80 | ≤80 | ≤80 |
| Total Power (kw) | 60 | 78.5 | 111 | 145 | 210 |

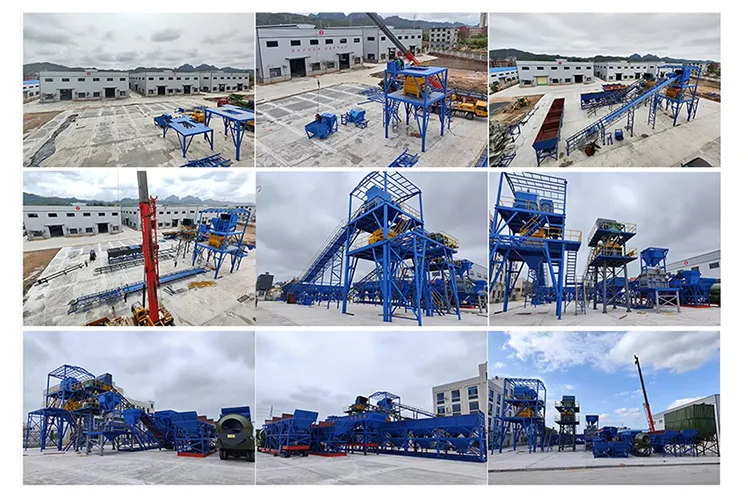

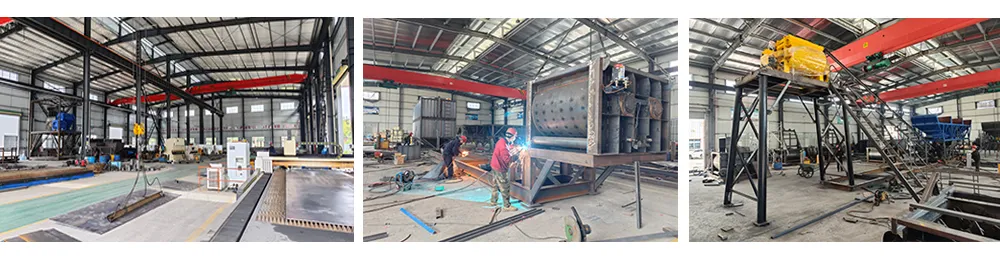

We are a professional concrete batching plant manufacturer with over 15 years of production experience. Our facility covers a total area of 20,000 square meters, equipped with advanced production lines put into operation recently.
Our professional design team creates customized concrete mixing equipment tailored to specific client needs. We implement strict quality inspections and provide excellent after-sales installation support globally. Our products are exported to more than ten countries including the United States, Singapore, Malaysia, and Indonesia.
