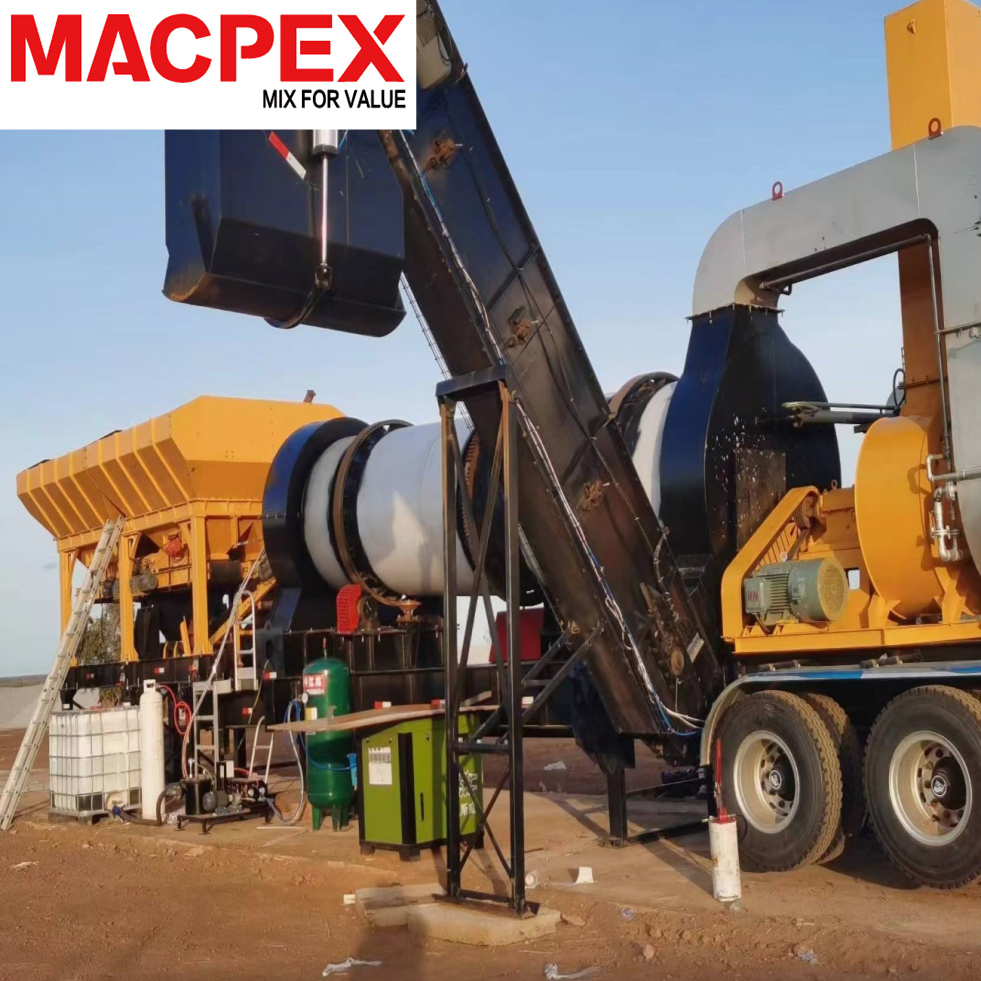

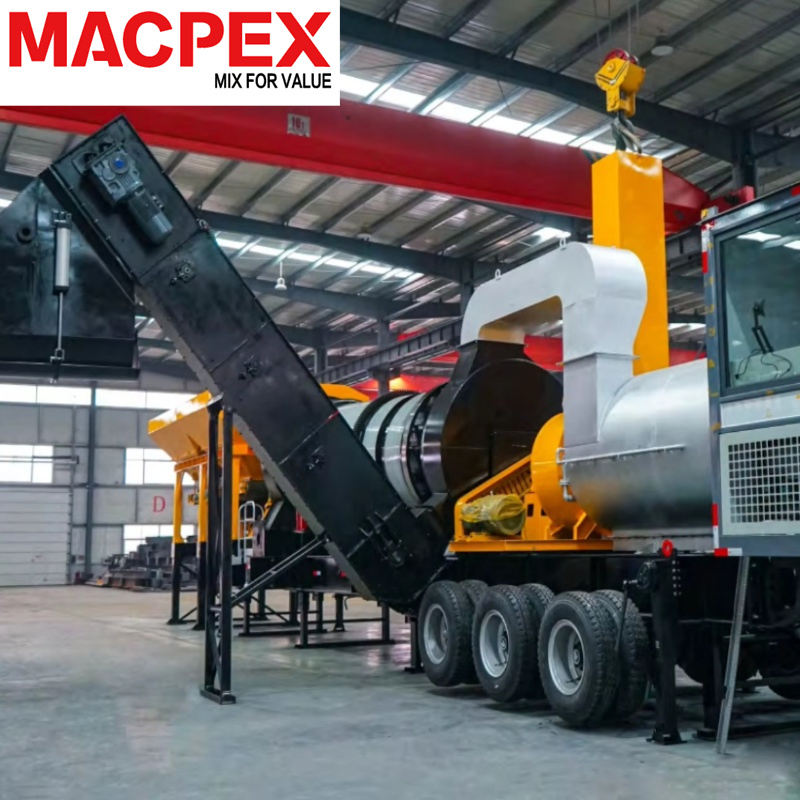

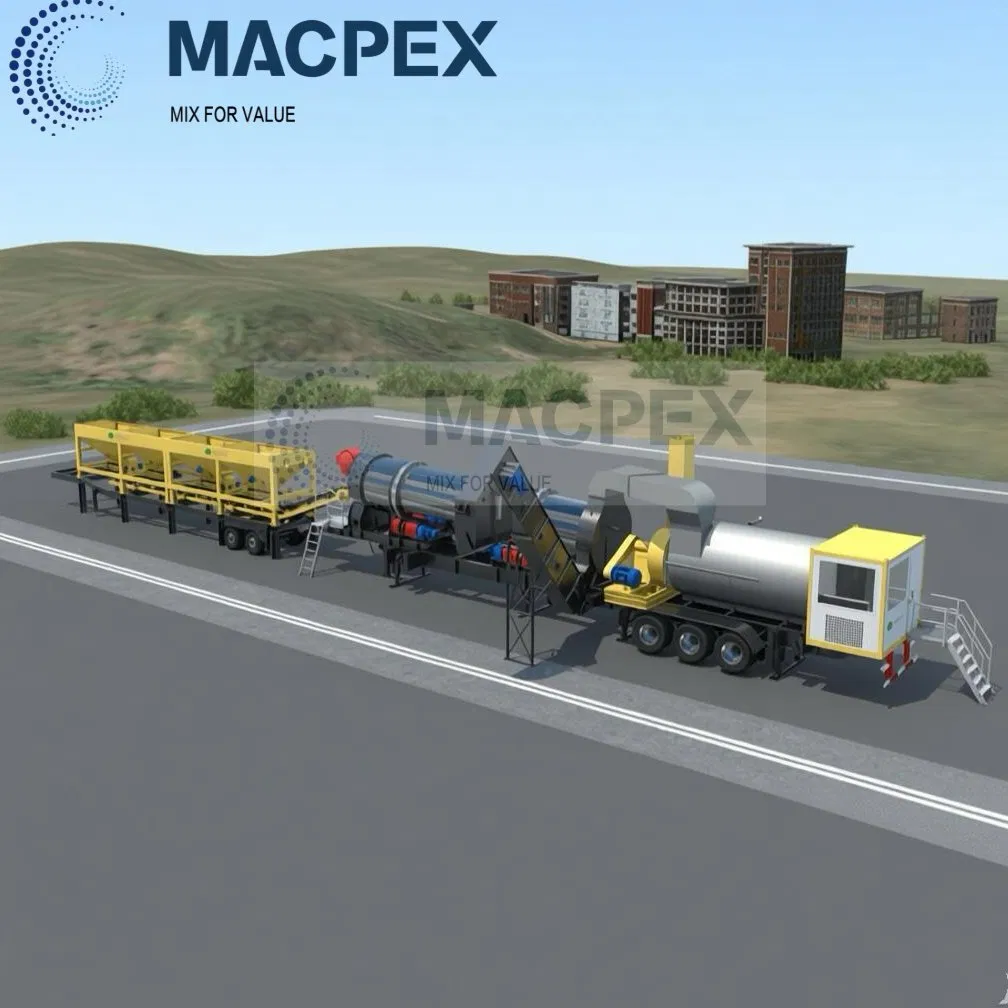

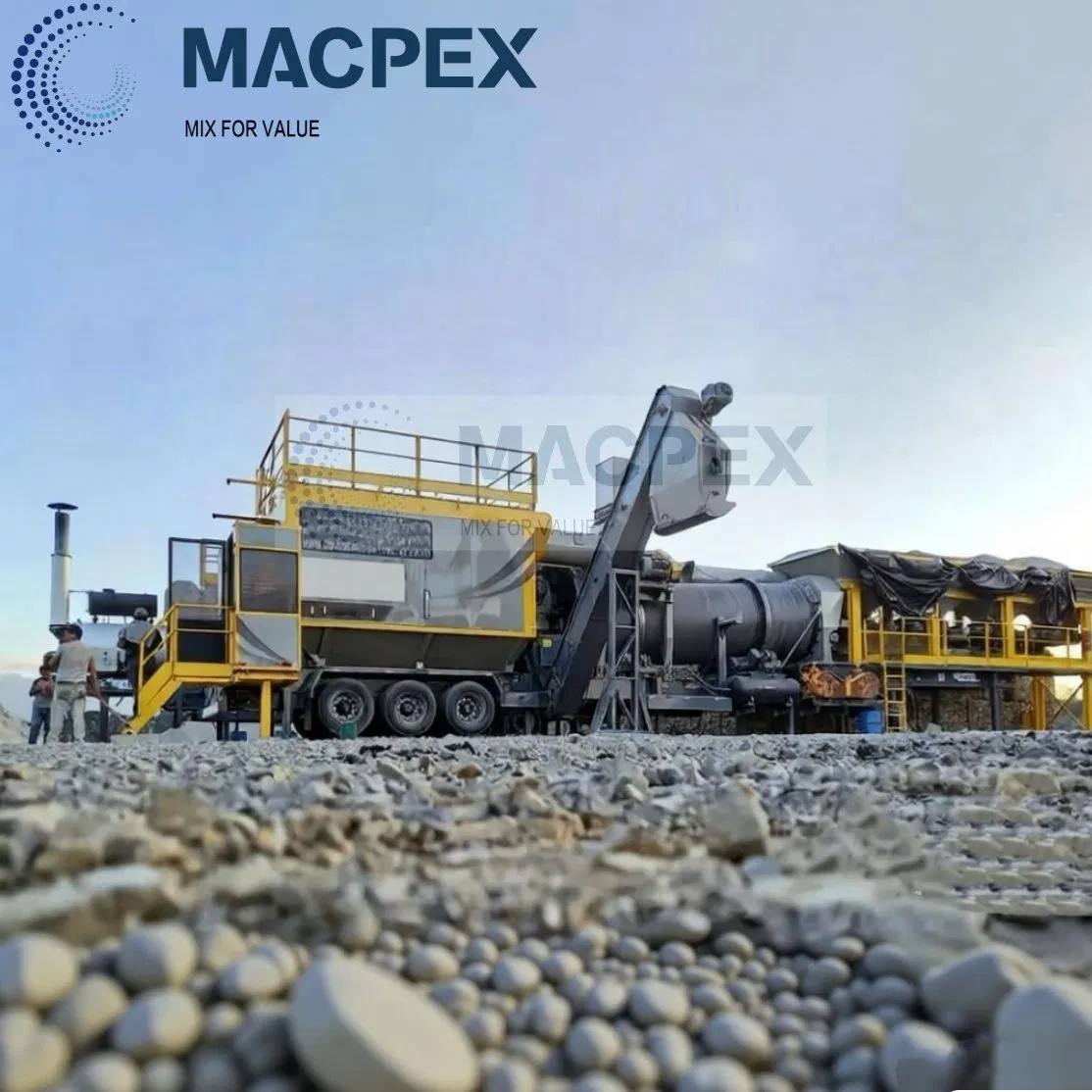

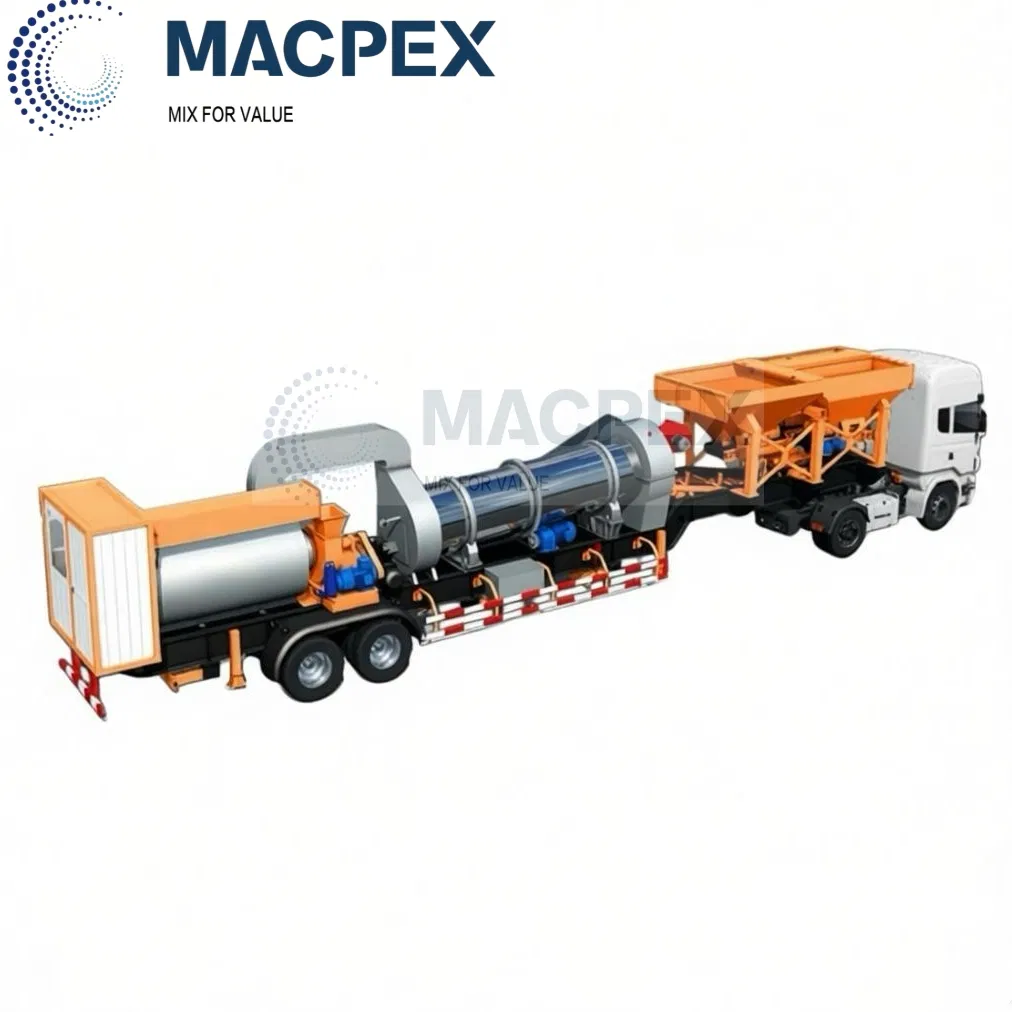

Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
1 / 5
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale
Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale

Mobile Asphalt Continuous Mixing Station Plant with 60ton Capacity Hot Sale

Customization: Available
After-sales Service: Available
Warranty: 1 Years
Send Inquiry

Product Description

ℹBasic Information
Model NO.
MA60
Type
Mobile Asphalt Station
Object
Asphalt Concrete Pavement
Moving Type
Mobile
Mixing Method
Intermittent Compulsory
Automatic Grade
Automatic
Product Capacity
60~100t
Certification
ISO9001: 2000, CE
Fuel
Gas or Diesel
Package Size
180.00cm * 130.00cm * 140.00cm
Gross Weight
40000.000kg
★Product Description
  • Modular design, easy to install and transport.
  • The cold aggregate feeder is equipped with frequency conversion speed control.
  • Synchronous proportional automatic control and adjustment, safe and reliable.
  • The hopper is equipped with a screen; fine hoppers automatically vibrate when material is blocked.
  • Material lack alarm system and adjustable discharge door.
  • Belt conveyor equipped with correction and cleaning devices.
  • Optimized lifting blade and stainless steel insulation reduce heat loss and fuel consumption.
  • Drying drum burning zone adopts wear-resistant and heat-resistant materials.
  • Gas secondary ignition for high reliability.
  • Unique purge pipeline to prevent oil circuit blockage.

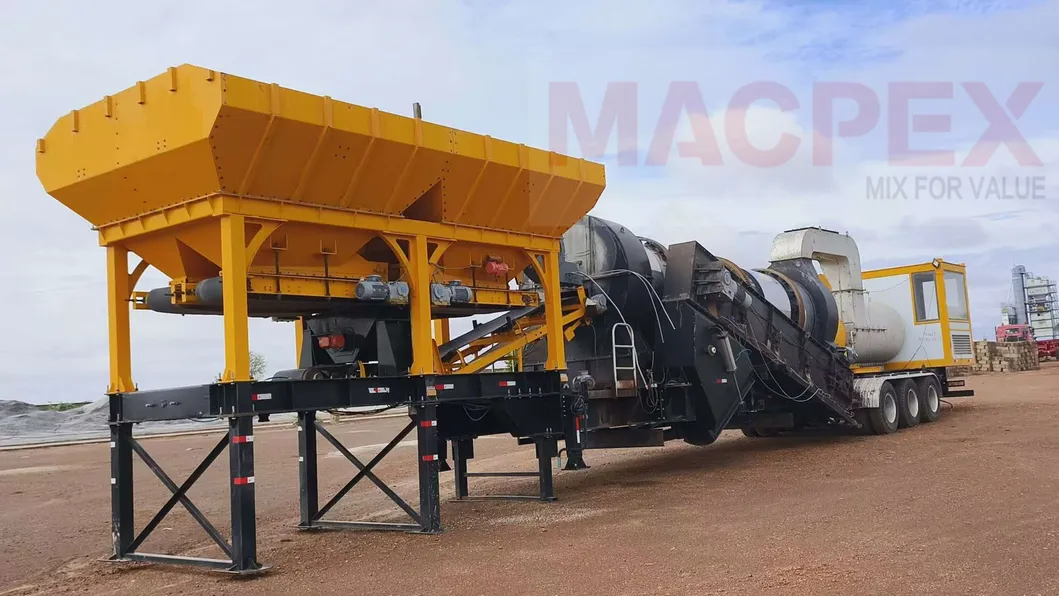

Mobile Asphalt Continuous Mixing Station
⚙Technical Parameters
ParameterSpecifications
Capacity60 ~ 120 Tons Per Hour
Drying DrumΦ1500 * 6500mm
Fuel ConsumptionDiesel: 6.5kg / ton
Hot Asphalt Temp130ºC - 165ºC (adjustable)
Air Emissions≤100mg/Nm³
Working Noise≤70db(A)
OperationManual, automatic, and semi-automatic
Installation Power135kw
Electrical Design220V/380V-50Hz

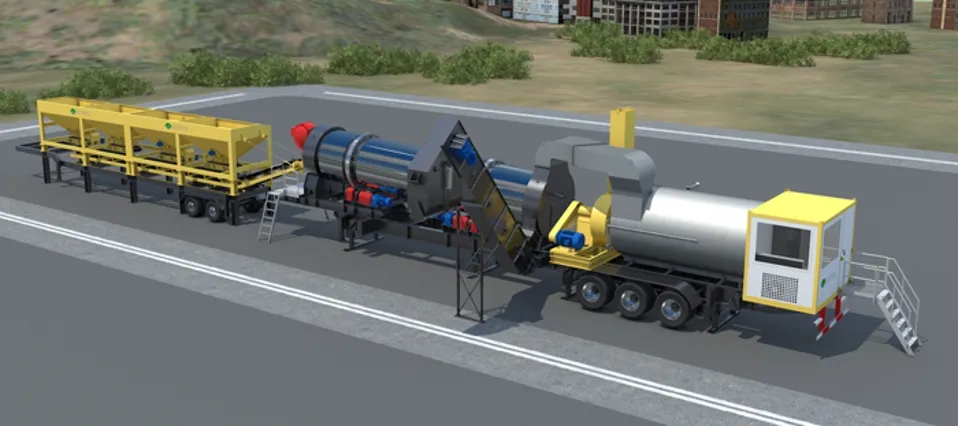

Technical Layout
📷Detailed Photos

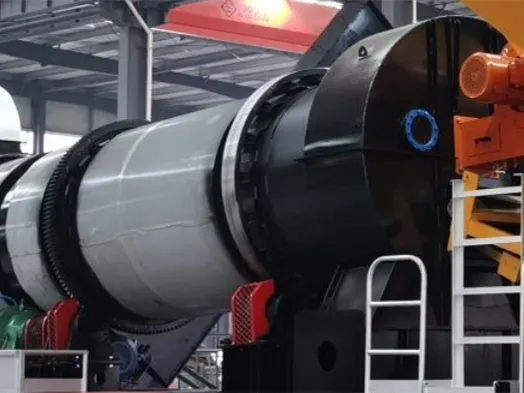

Drying Drum
Drying Drum

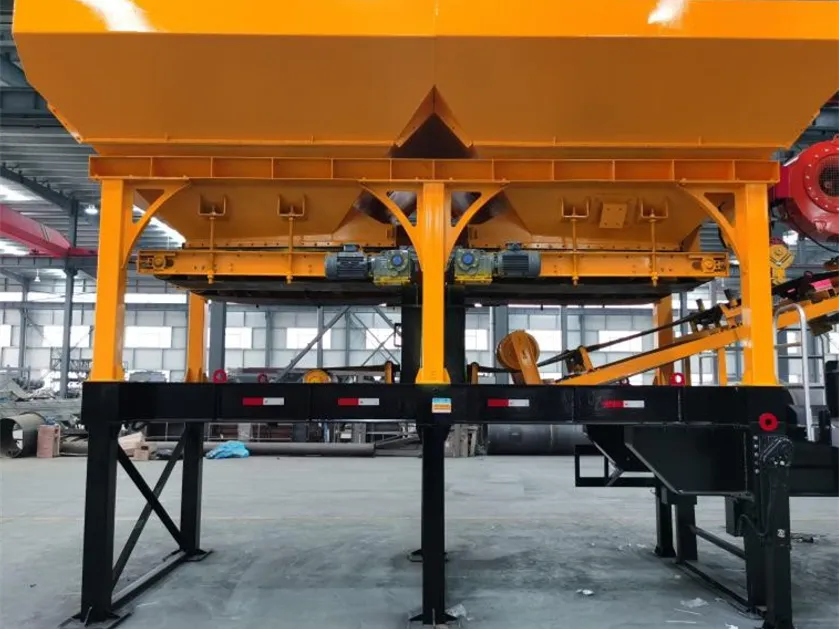

Cold Feeder
Cold Feeder

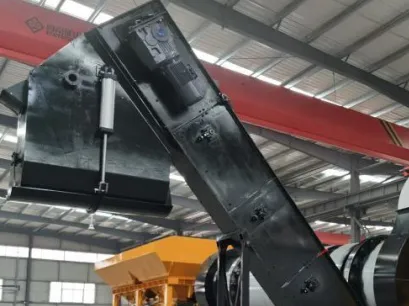

Scraper Conveyor
Scraper Conveyor

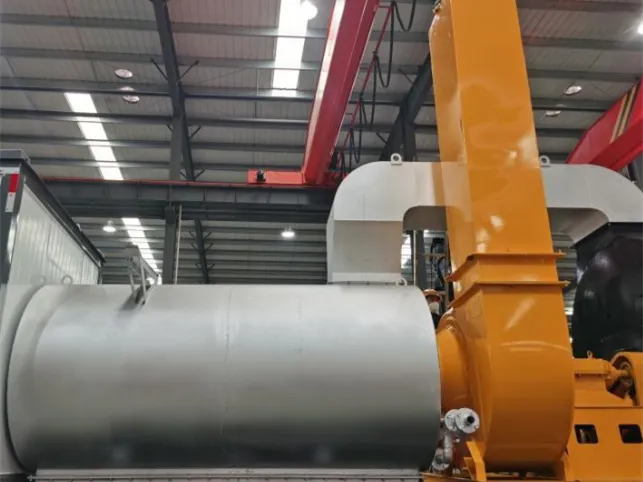

Dust Collection System
Dust Collection System
Control Room
Control Room

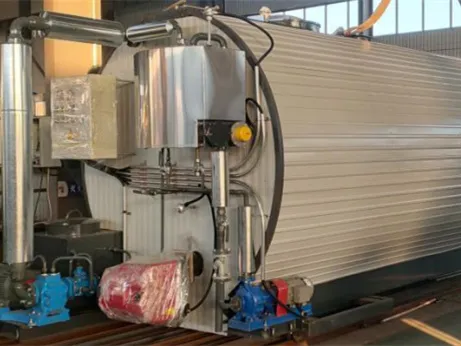

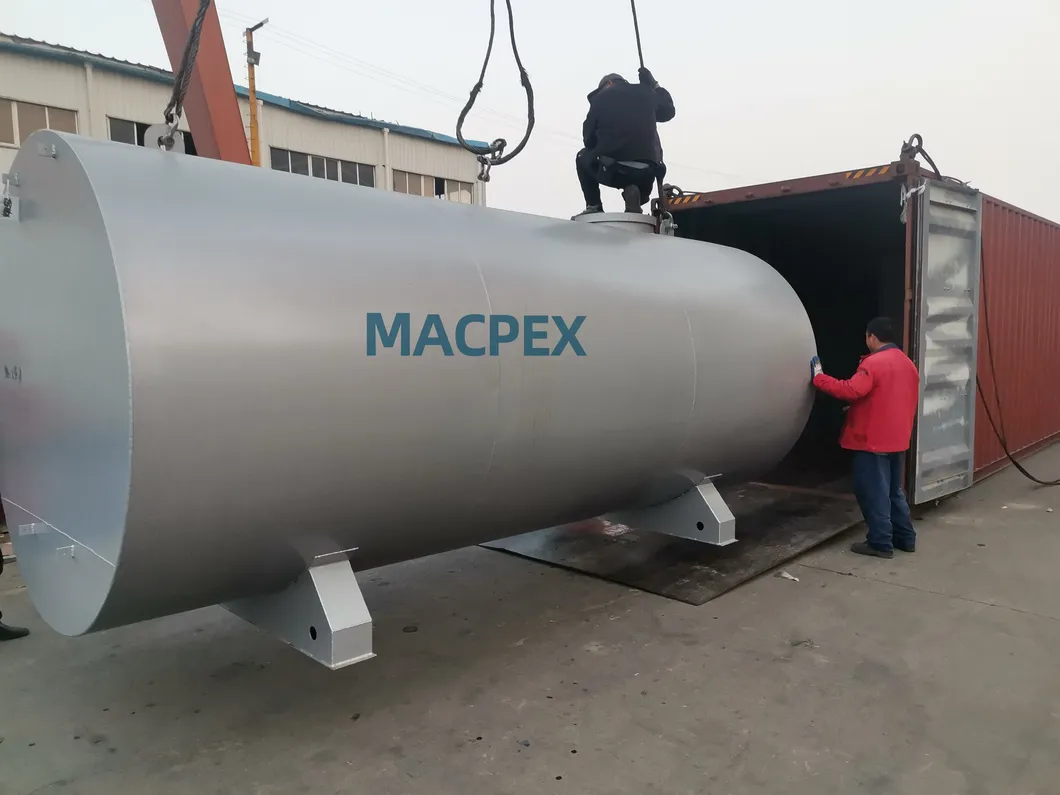

Bitumen Tank
Bitumen Tank
📜Certifications
Certificates
🌍Global Project Cases

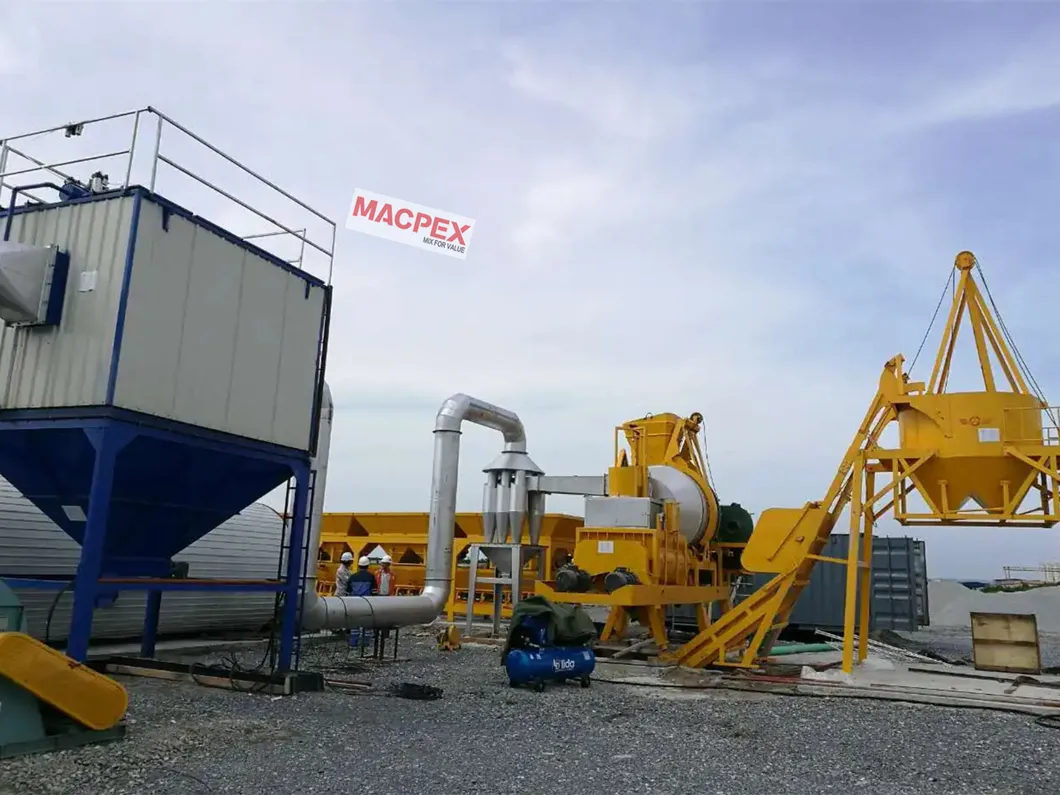

Peru Case
Peru

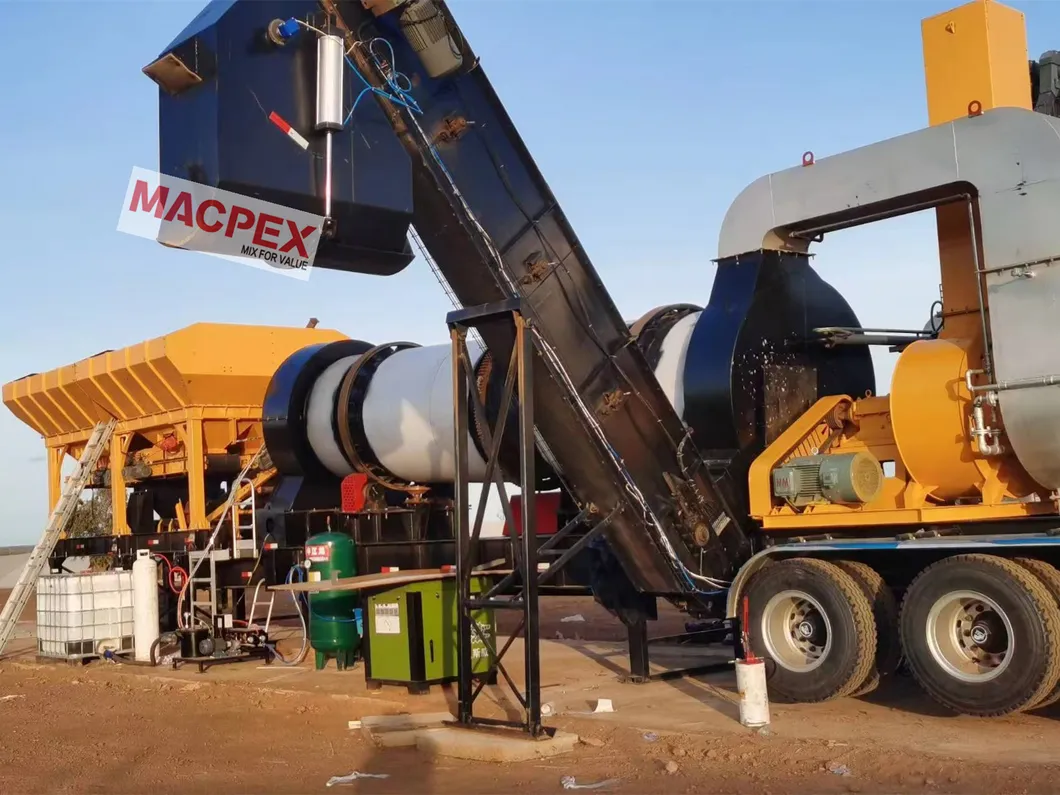

Chile Case
Chile

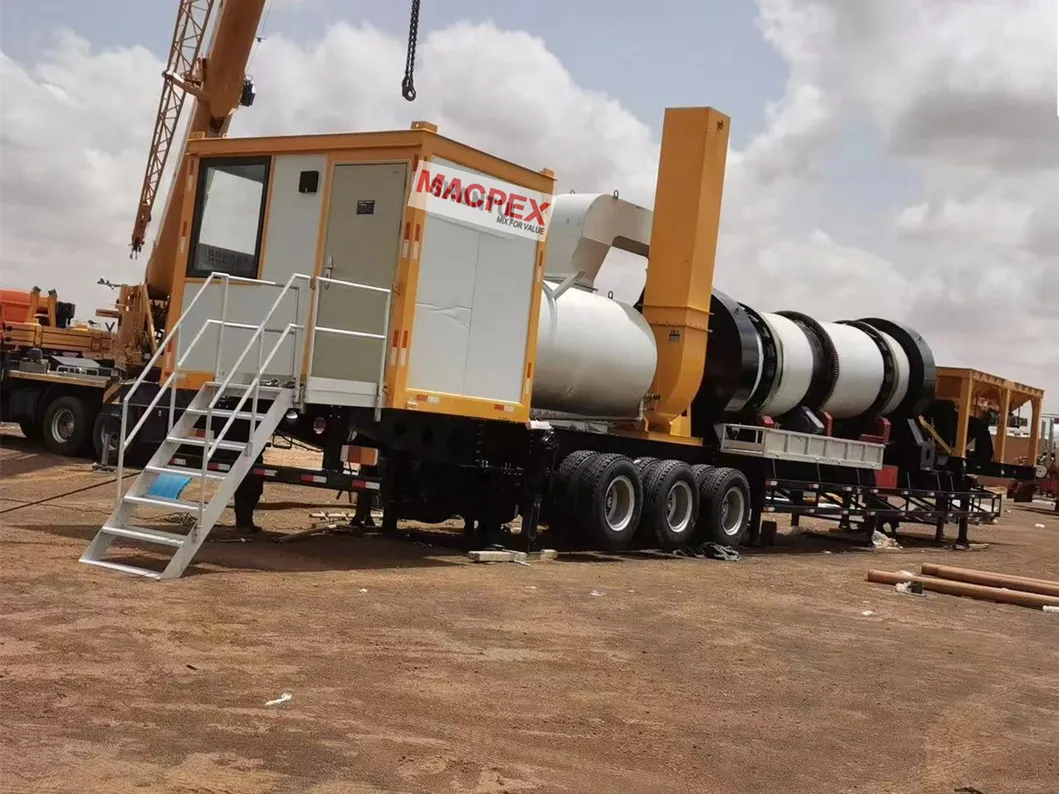

Guinea Case
Guinea

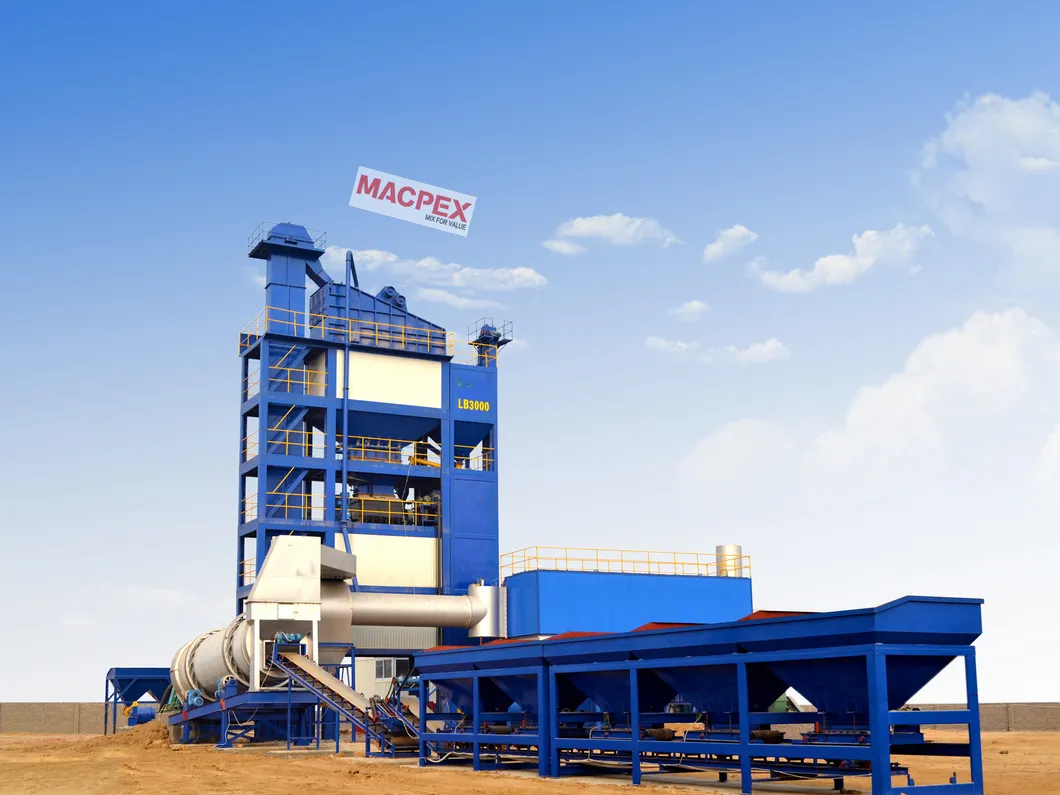

Russia Case
Russia

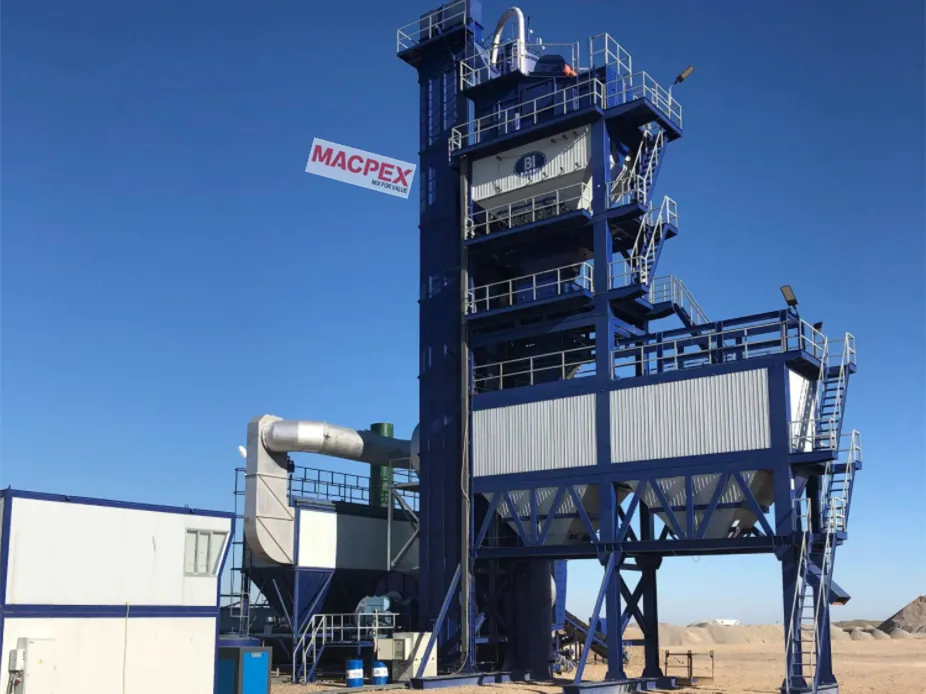

Thailand Case
Thailand

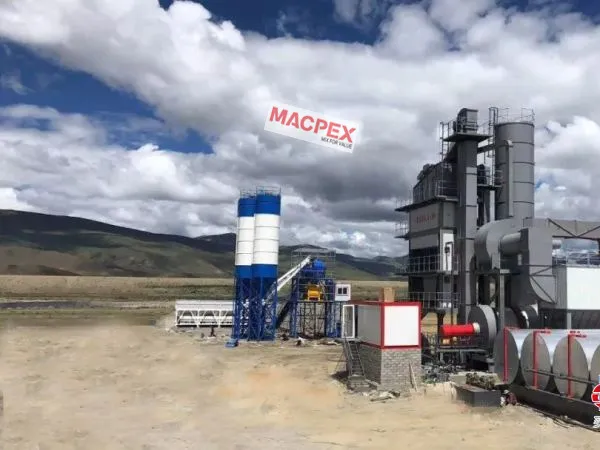

Peru Case 2
Peru

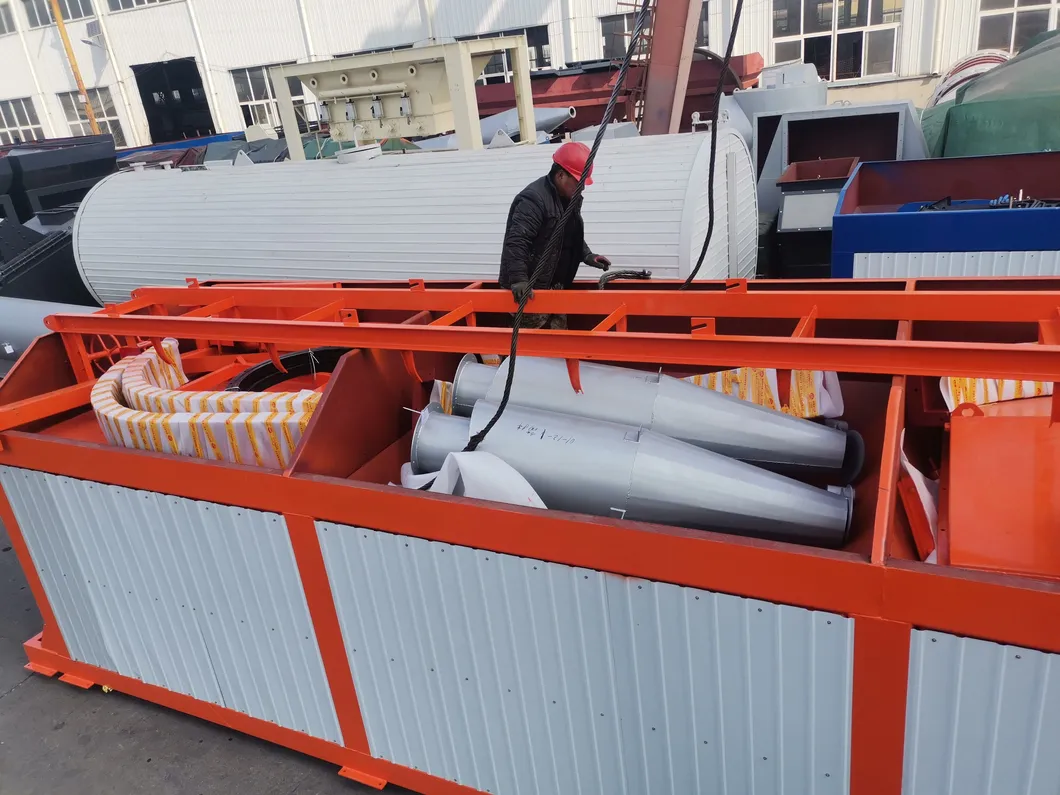

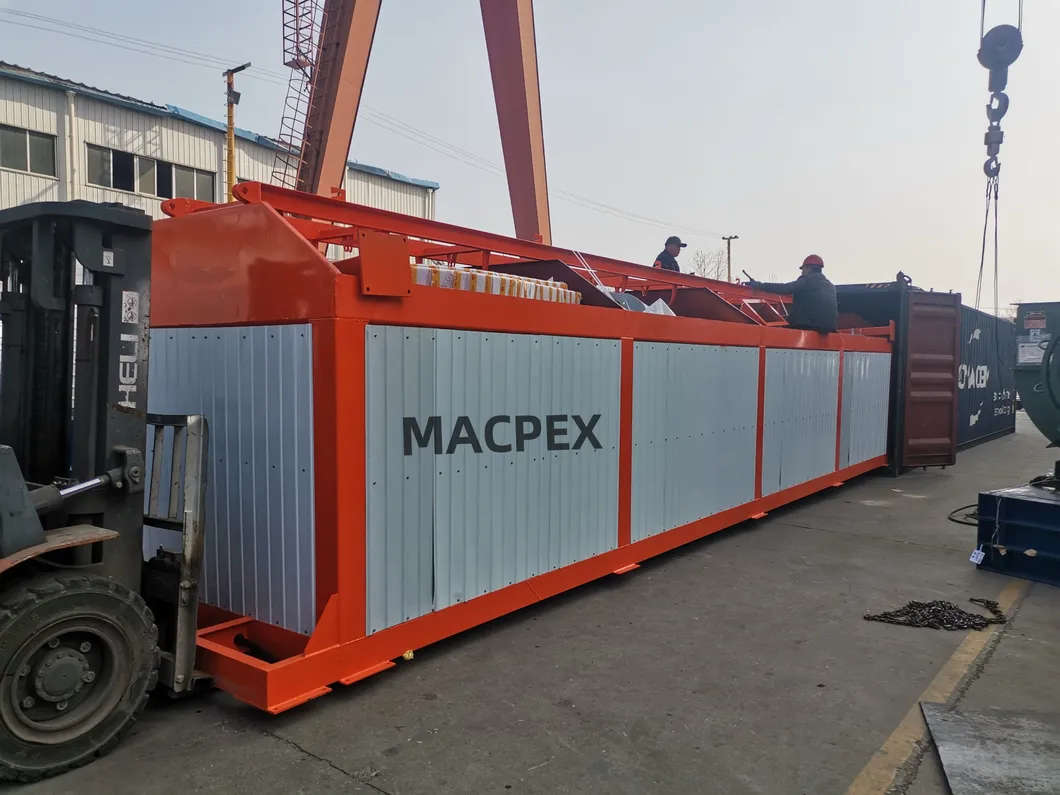

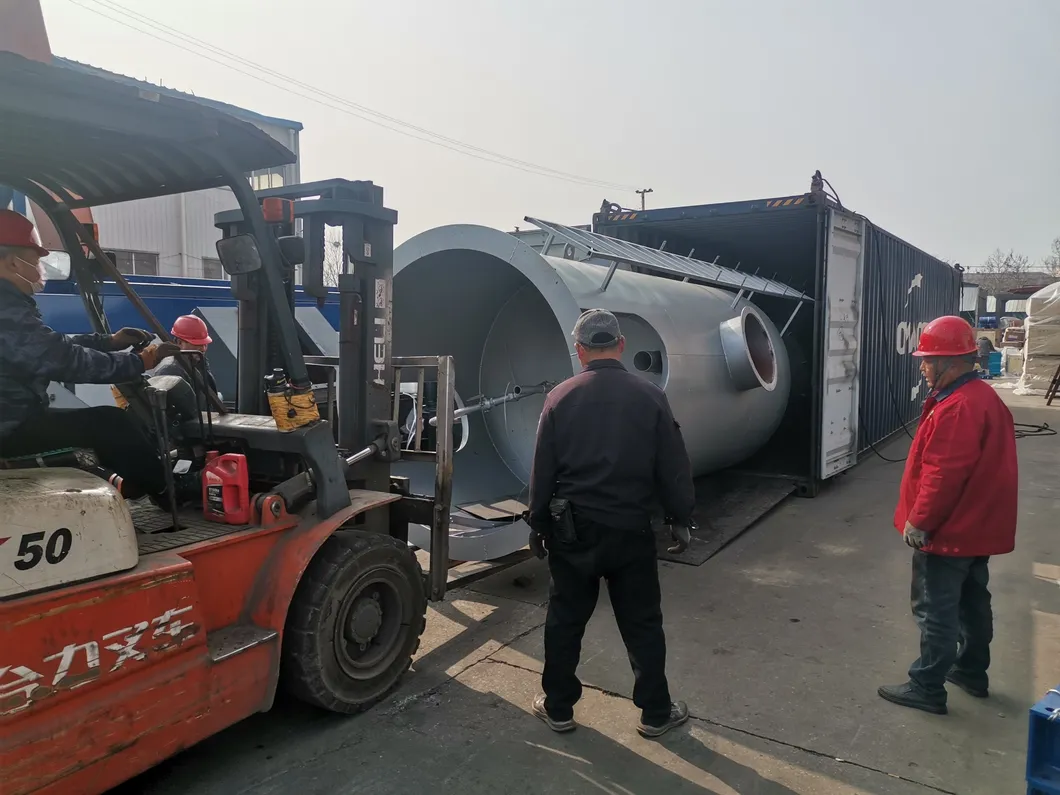

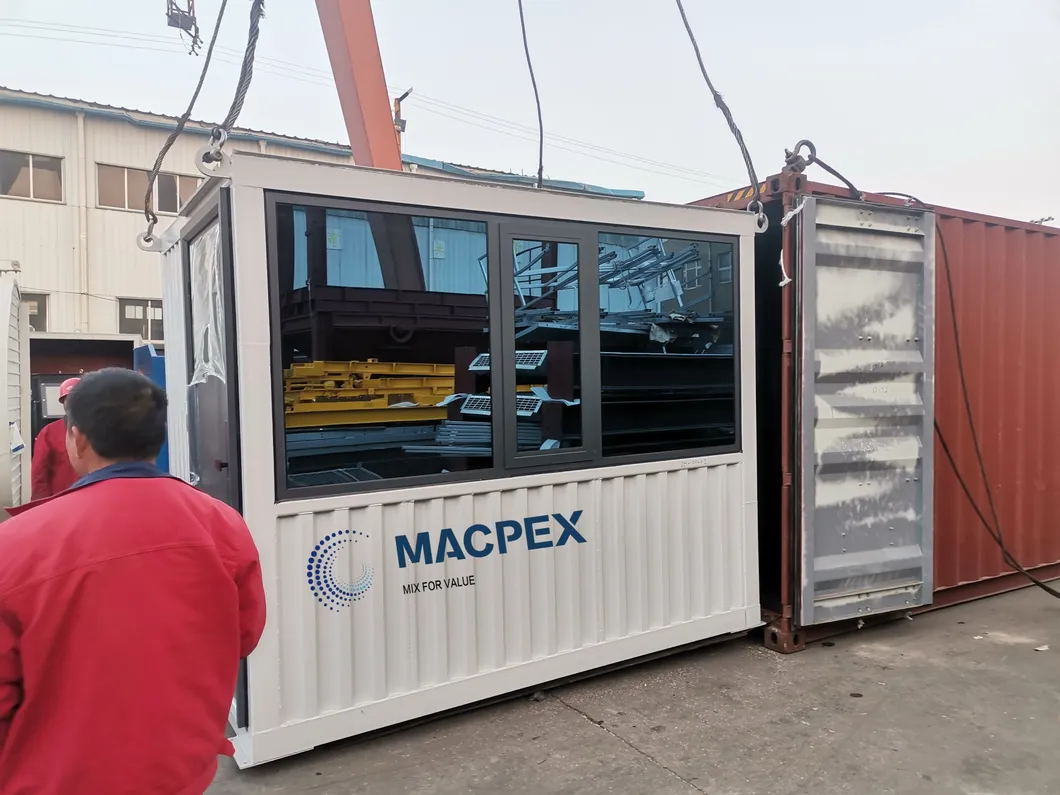

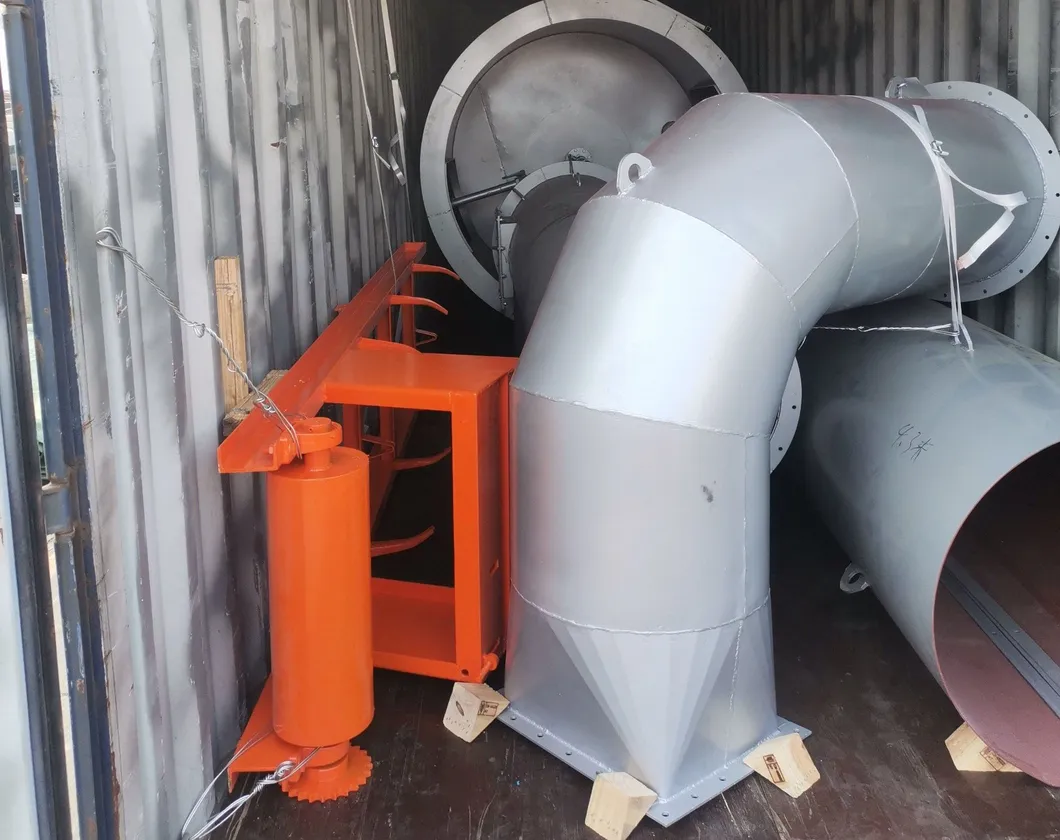

📦Packaging & Shipping
🏛Exhibitions
Exhibition Presence
FAQ
What is the production capacity of the MA60 station?
The station has a production capacity ranging from 60 to 120 tons per hour, depending on specific operational settings.
What types of fuel can be used for the burner?
The system is versatile and can be powered by either Diesel or Gas, with high-quality burners imported from Italy.
How portable is this asphalt mixing plant?
The plant features a modular and mobile design, making it exceptionally easy to transport between different job sites and quick to install.
Does the system include environmental protection features?
Yes, it includes an efficient dust collection system and ensures air emissions are kept below ≤100mg/Nm³ with working noise under 70db.
What kind of operation modes are available?
The control system supports fully automatic, semi-automatic, and manual operation modes for maximum flexibility.
