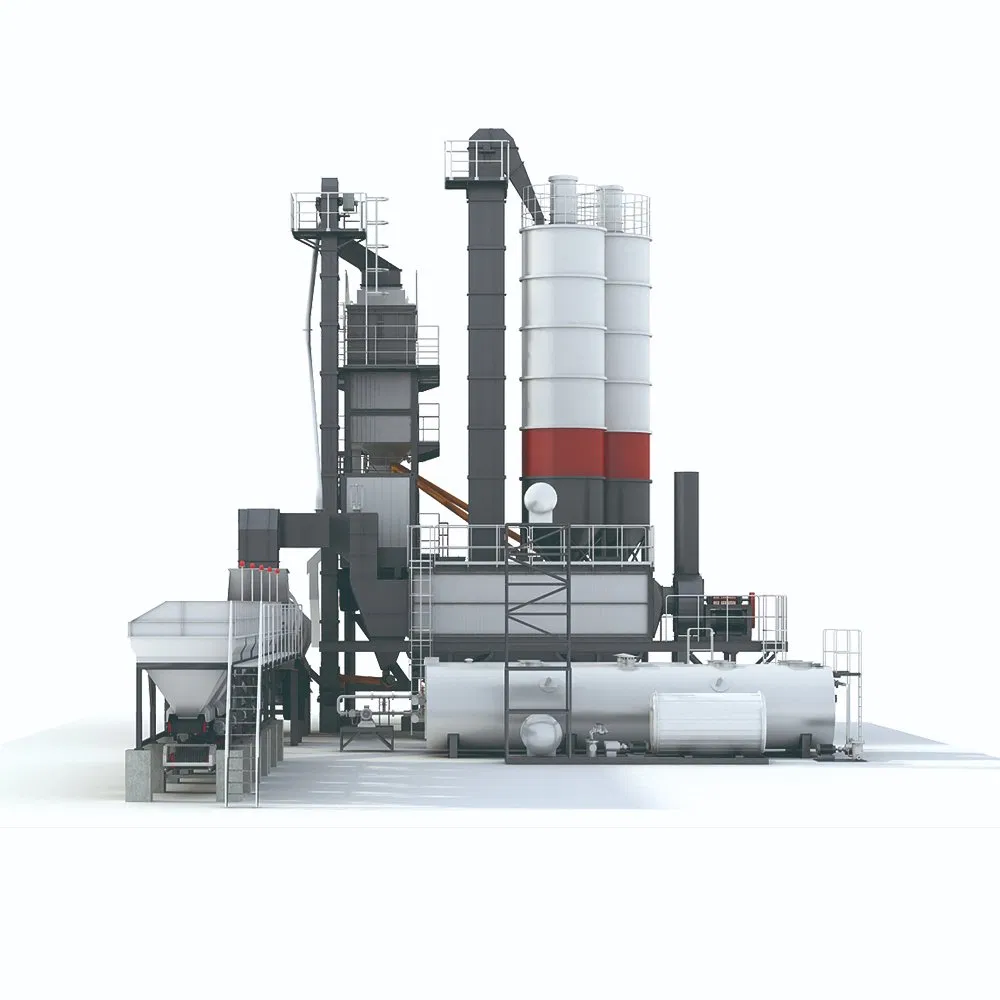

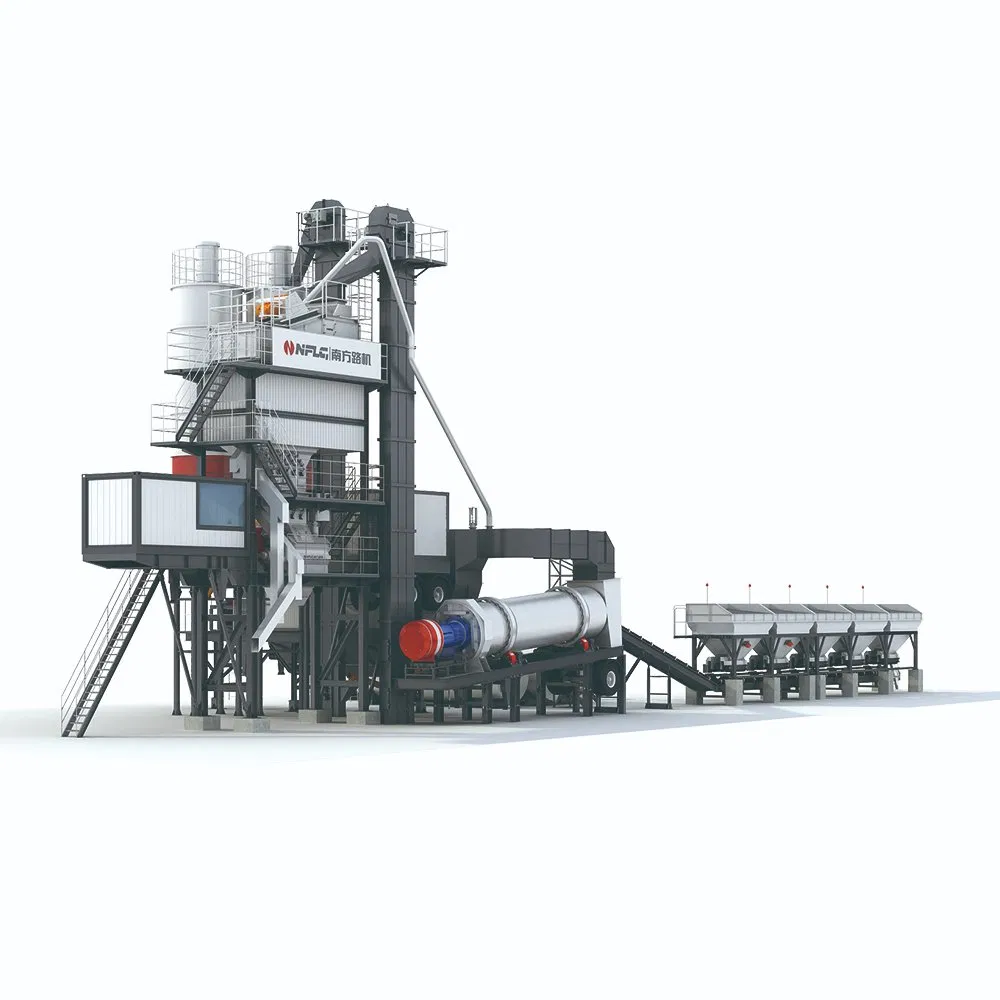

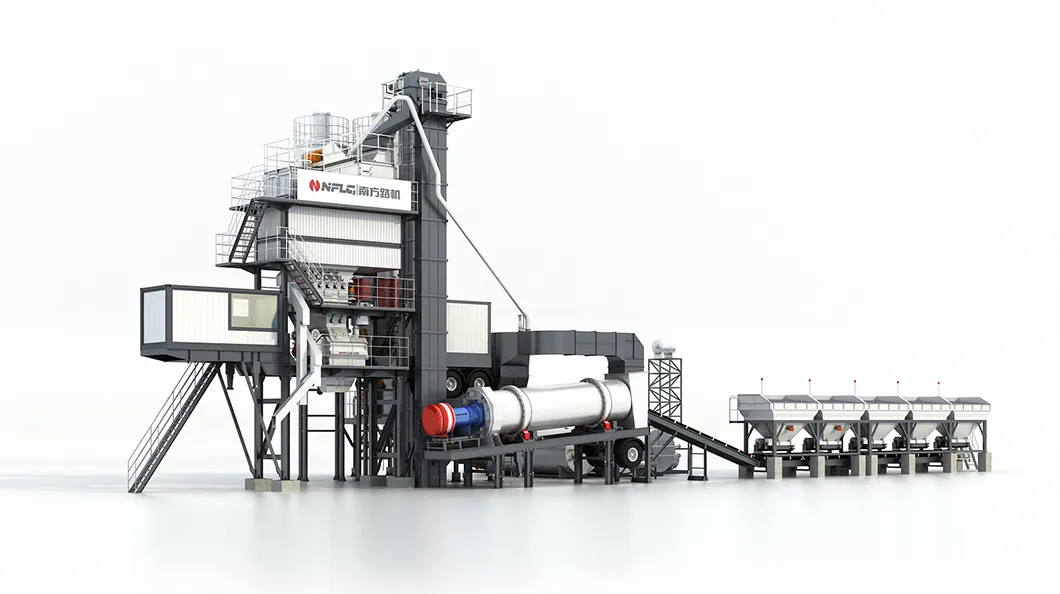

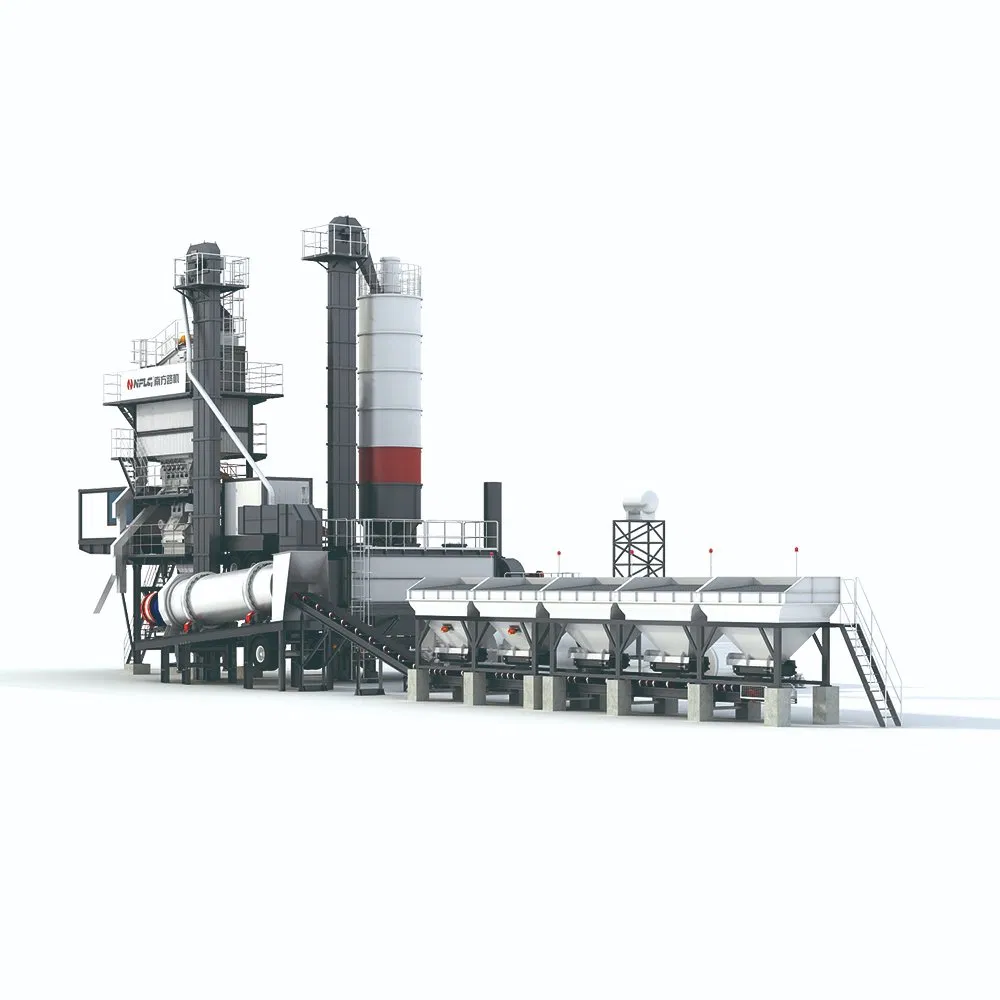

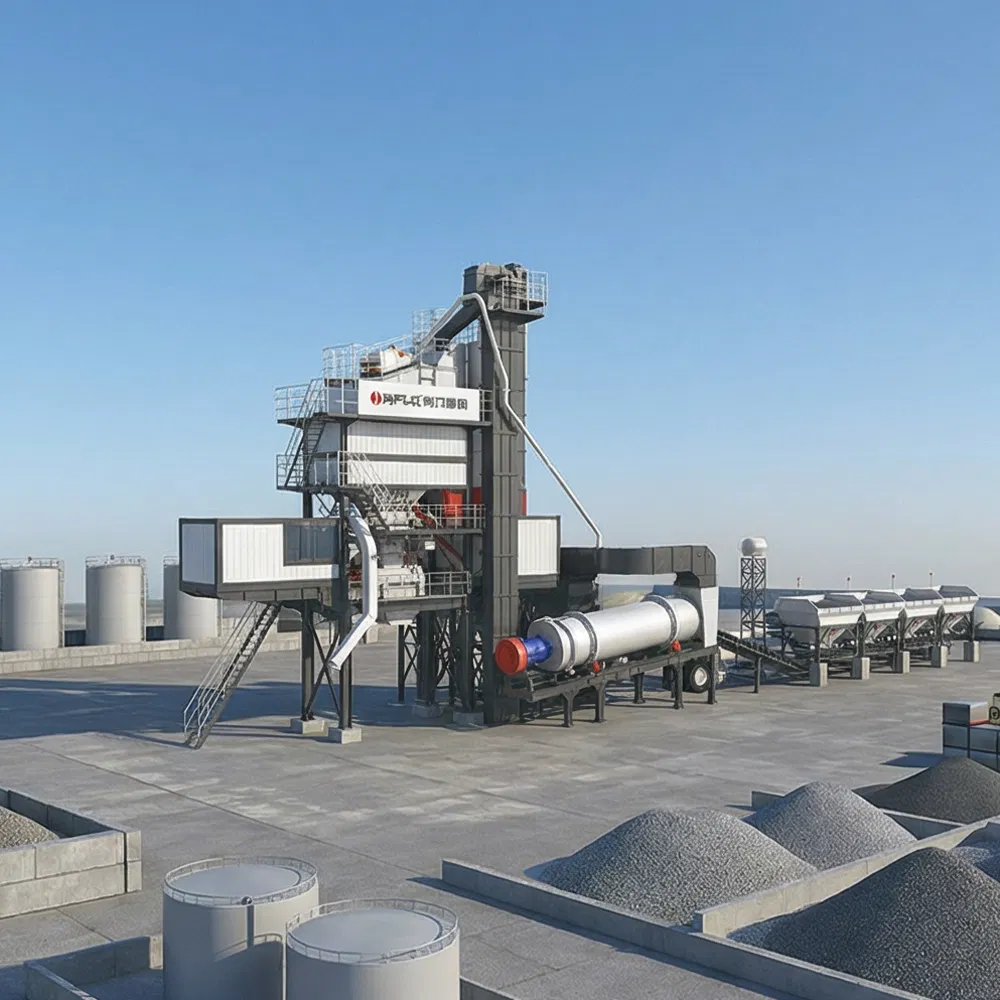

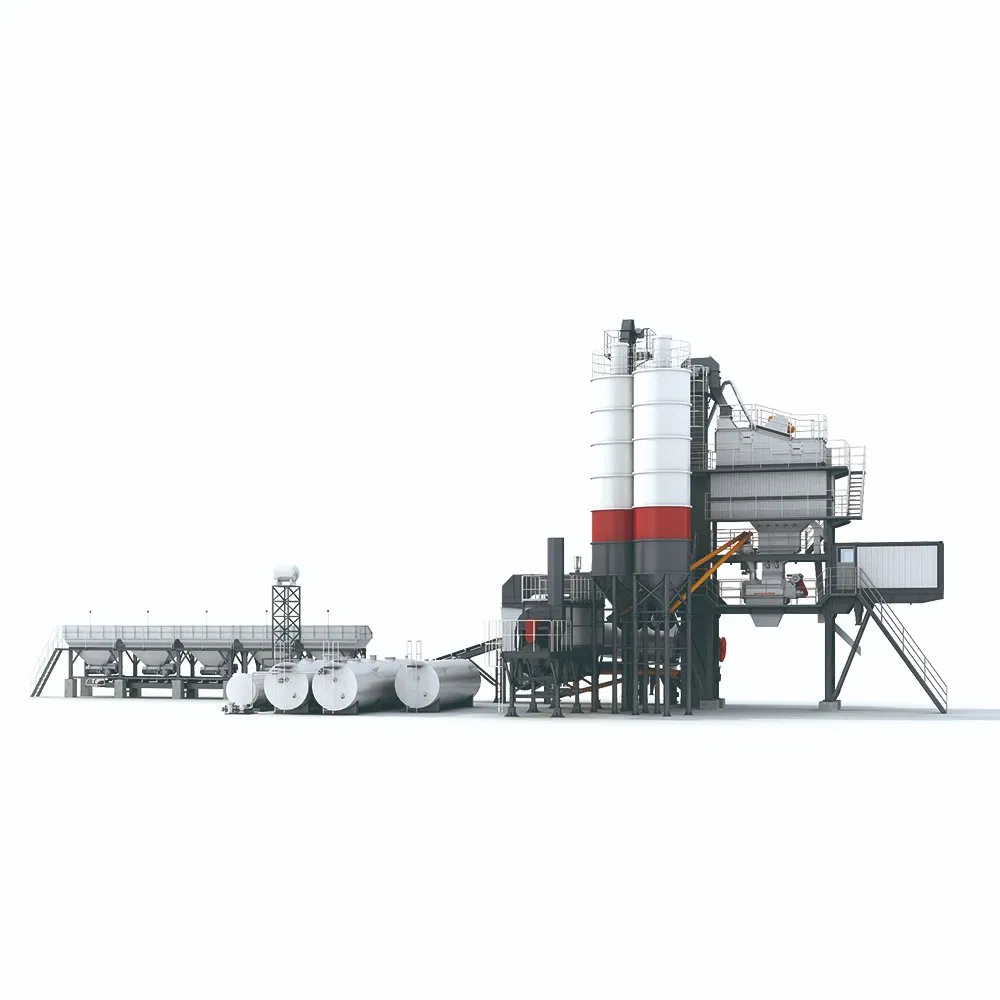

LBY Series Mobile Asphalt Mixing Plant
| Model | LBY1500 |
| Rated capacity | 120t/h |
| Cold material bin: quantity x capacity | 4 * 9 / 5 * 9 |
| Fuel | Light oil/ Heavy oil gas (optional) |
| Dust remover | Gravity dust removal + bag filter dust removal |
| Mixer capacity | 1.5t |
| Trailer speed | 40km/h |

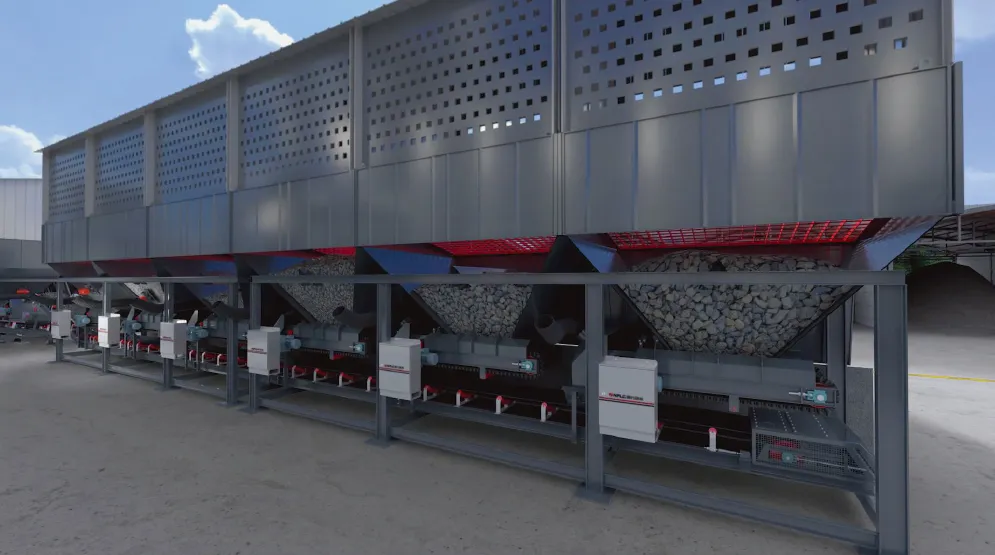

1. Frequency conversion control for belt feeder based on output setting.
2. Internal vibration and gas cannon arch breaking devices to prevent material retention.
3. Integrated sound and light alarm for material shortage.
4. Grid protection to prevent entry of oversized aggregates.

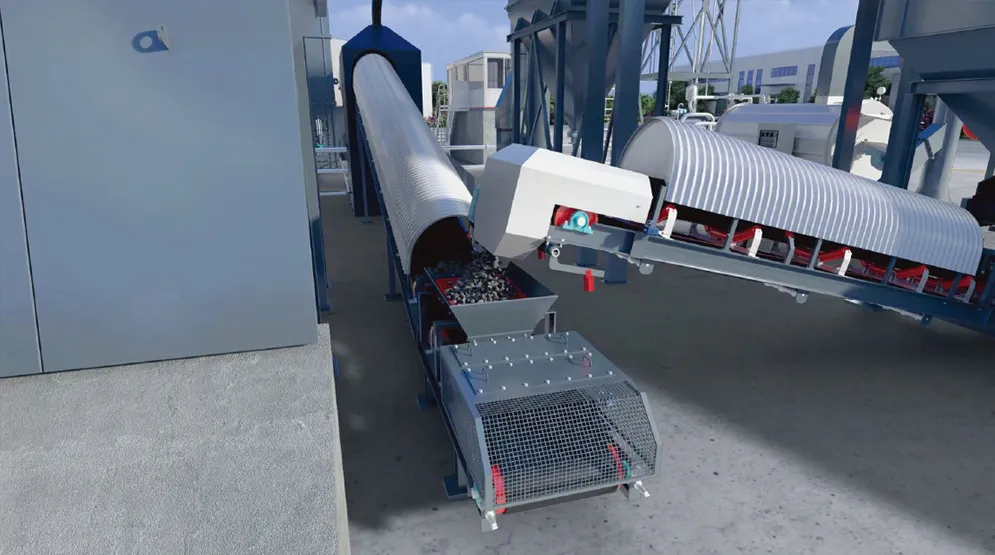

1. Patented interchangeable friction plate rubber-coated drum for instant replacement.
2. Polyurethane wear-resistant belt cleaner, modular and belt-friendly.
3. Equipped with manual emergency pull switches and alarm devices.
4. Inclined conveyor includes a screen for oversized material filtration.

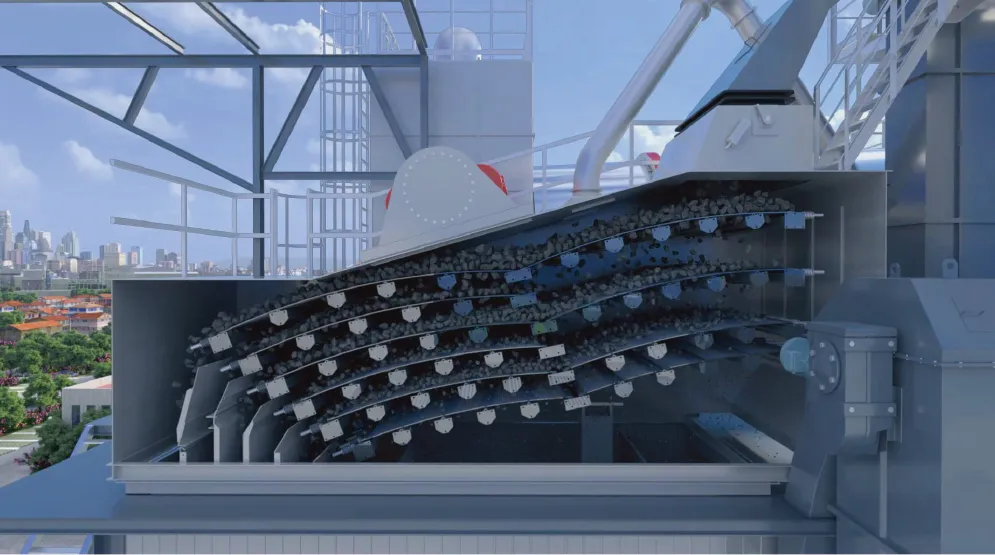

1. Thermal insulation rock wool covering for noise reduction.
2. Direct drive vibration motor for high efficiency and zero maintenance.
3. Screening efficiency ≥95% with easily adjustable screen mesh tension.

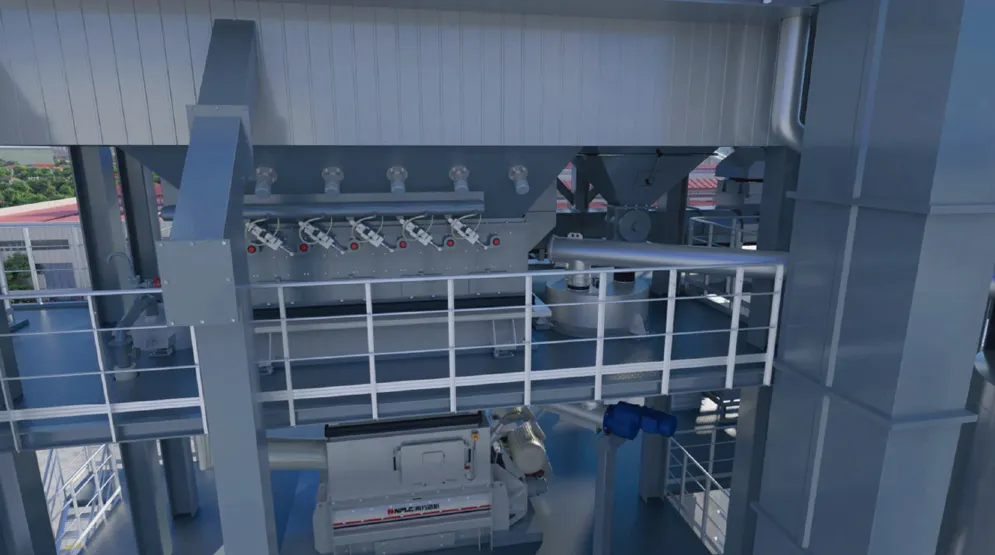

1. Anti-wear structure with reasonable bin arrangement.
2. Continuous level meters and temperature sensors in each bin.
3. Real-time safe sampling ports.
4. Double-door discharge (coarse and fine) for accurate feeding.

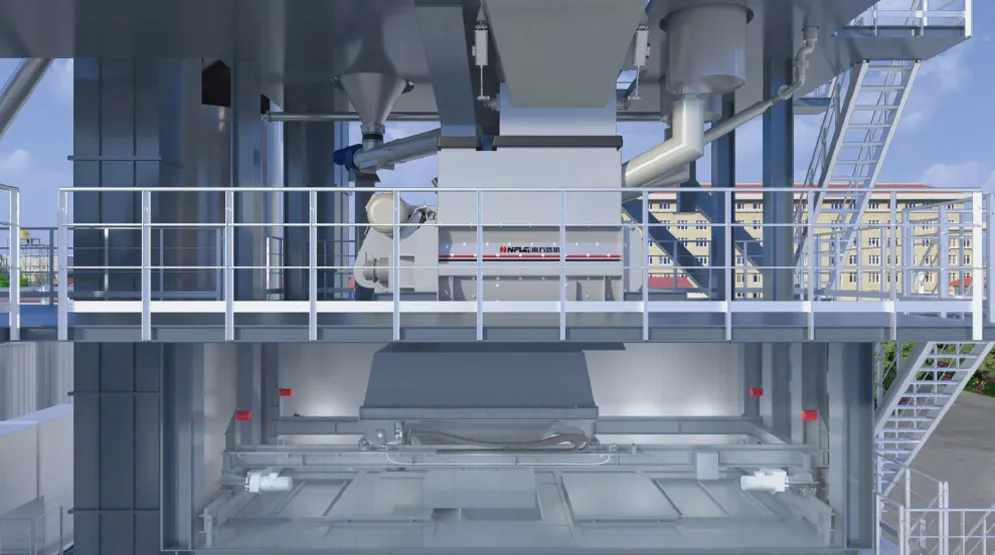

1. High-speed flexible synchronous drive system.
2. Intermittent screw arrangement for strong 3D mixing and high efficiency.
3. Super wear-resistant paddles and liners.
4. Reserved ports for RAP, wood fiber, and foamed bitumen additions.

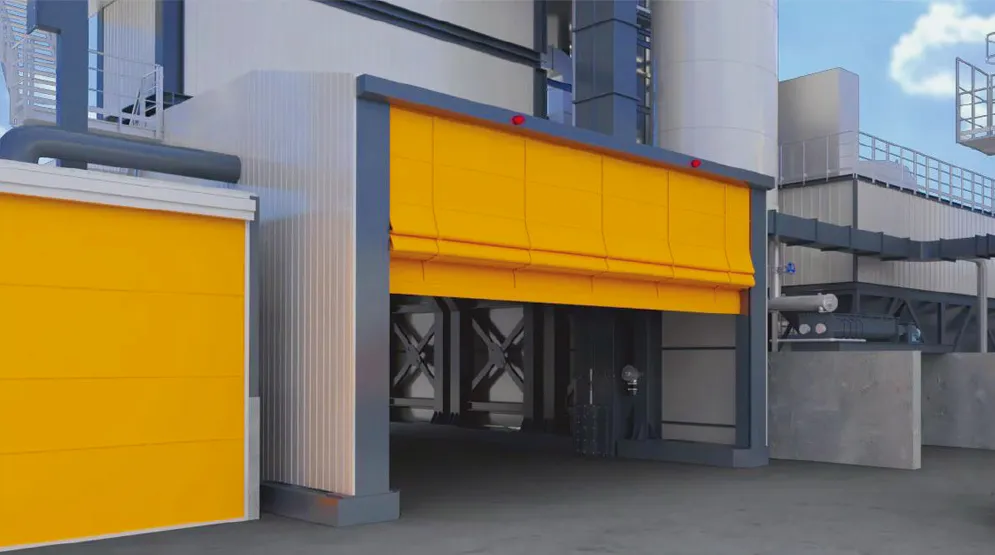

1. Options for bottom-mounted or side-mounted configurations.
2. Fully sealed design with dust collecting covers for environmental protection.
3. Electrically heated discharge doors to prevent material sticking.
4. Intelligent indicator lights for precise truck positioning.

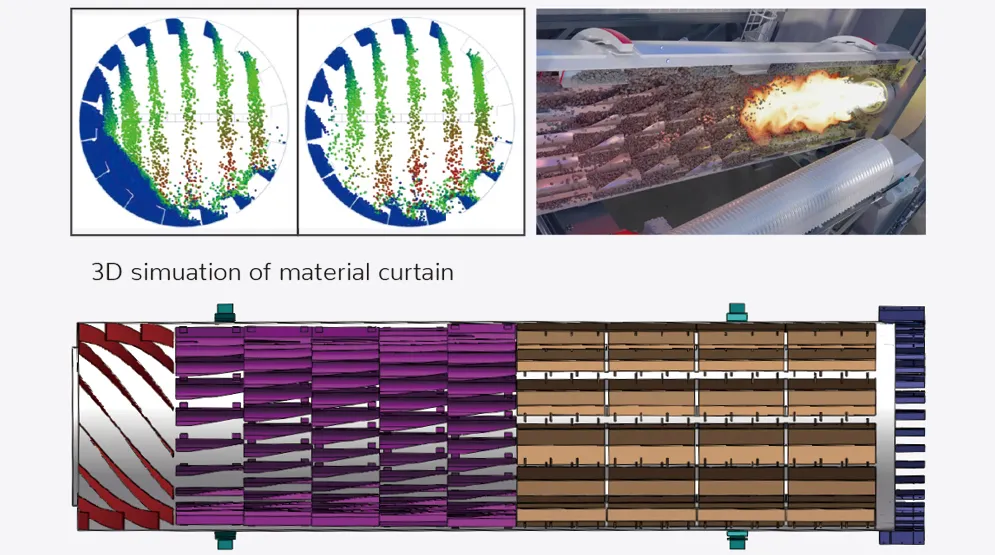

1. Four internationally famous shaft-mounted motor reducers for reliable drive.
2. Optimized lifting blades for uniform heating and high energy utilization.
3. Thermal insulation with stainless steel cladding to minimize heat loss.
4. Patented design saving 10% more energy than standard dryers.

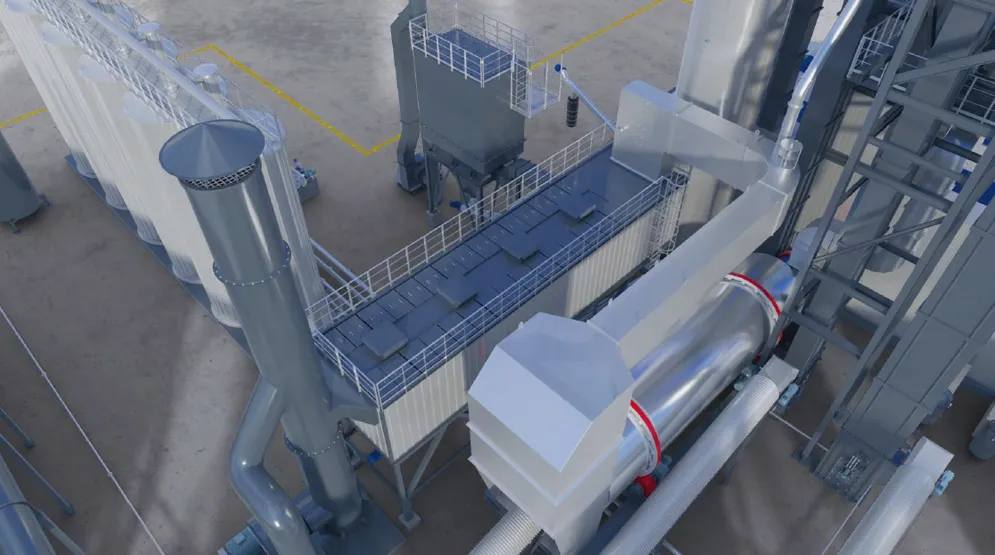

1. Two-stage dust removal system meeting strict emission standards.
2. Energy-saving rotary air blowing technology.
3. Durable key accessories with intelligent safety inspection features.

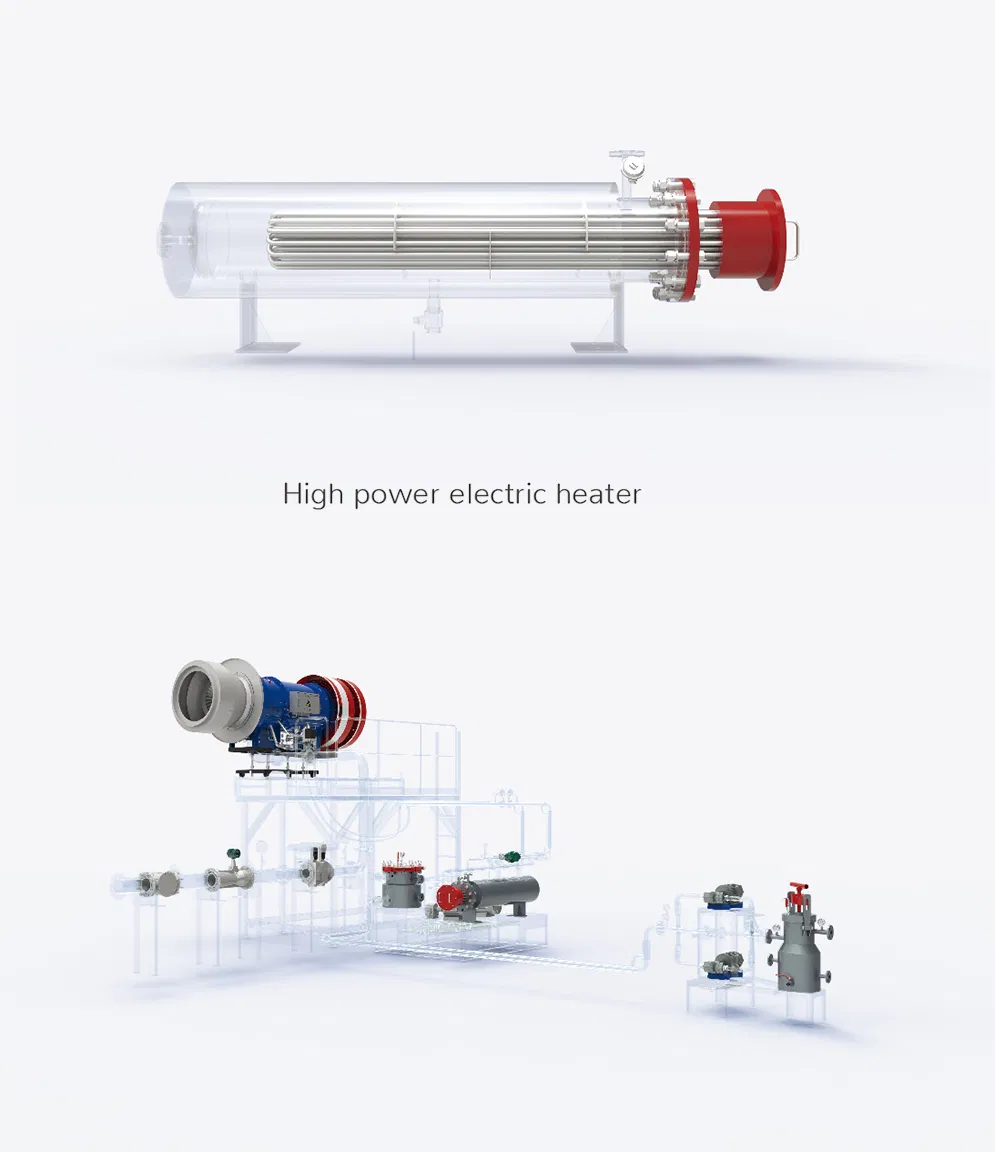

1. Intelligent adjustment for different working conditions and oil products.
2. One-button patented aggregate temperature control technology.
3. Multi-closed-loop control for accurate temperature and low emissions.
4. Safety interlocking mechanisms for worry-free production.
