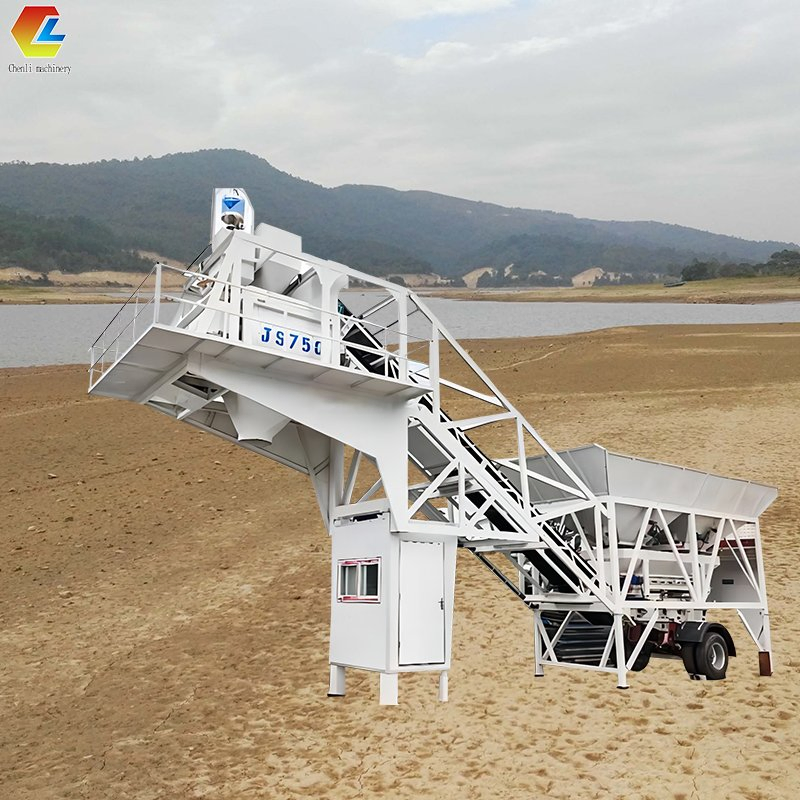

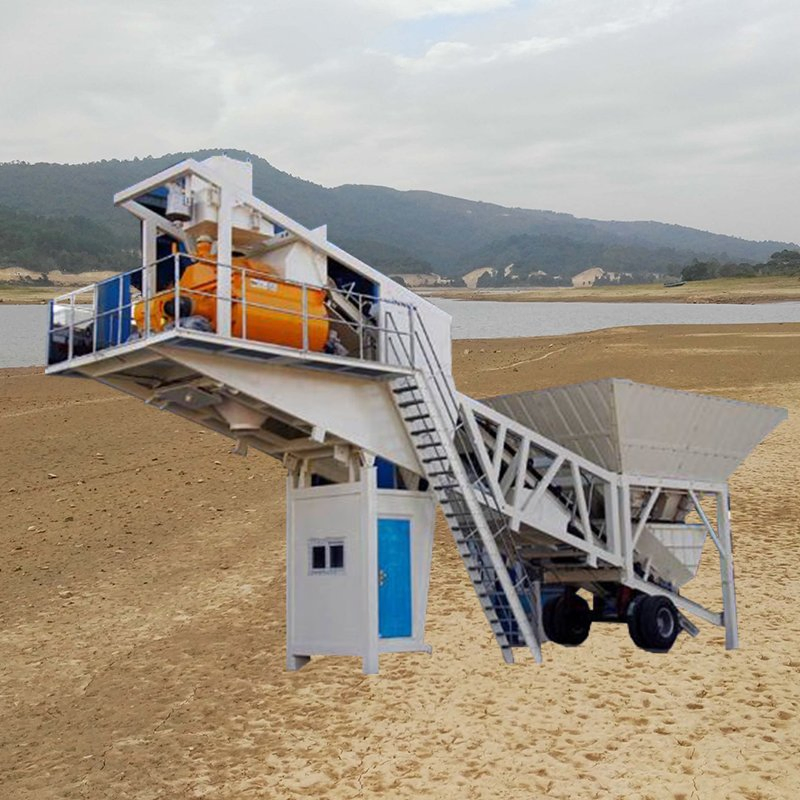

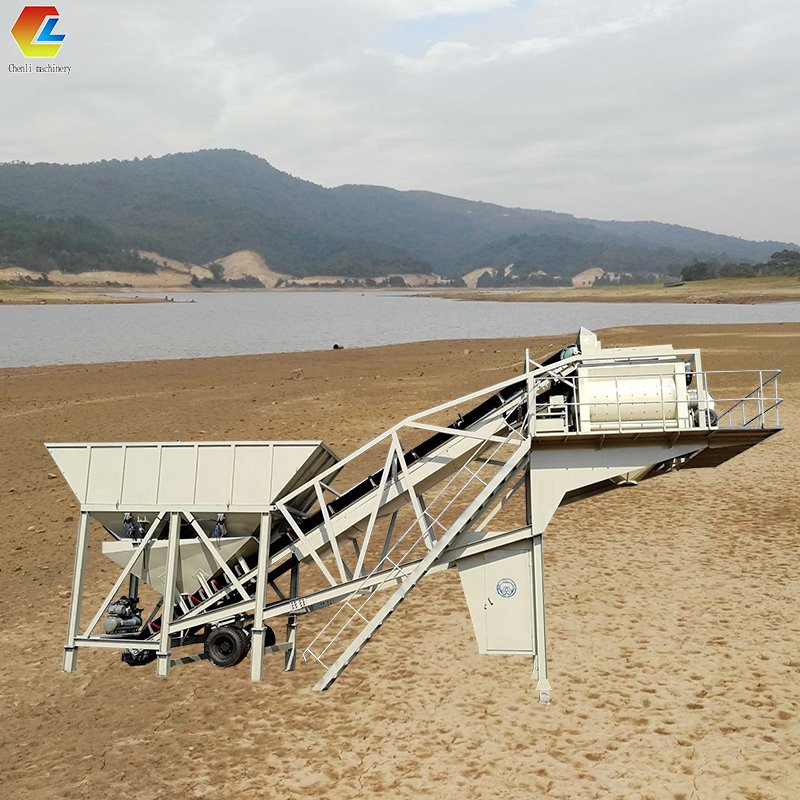

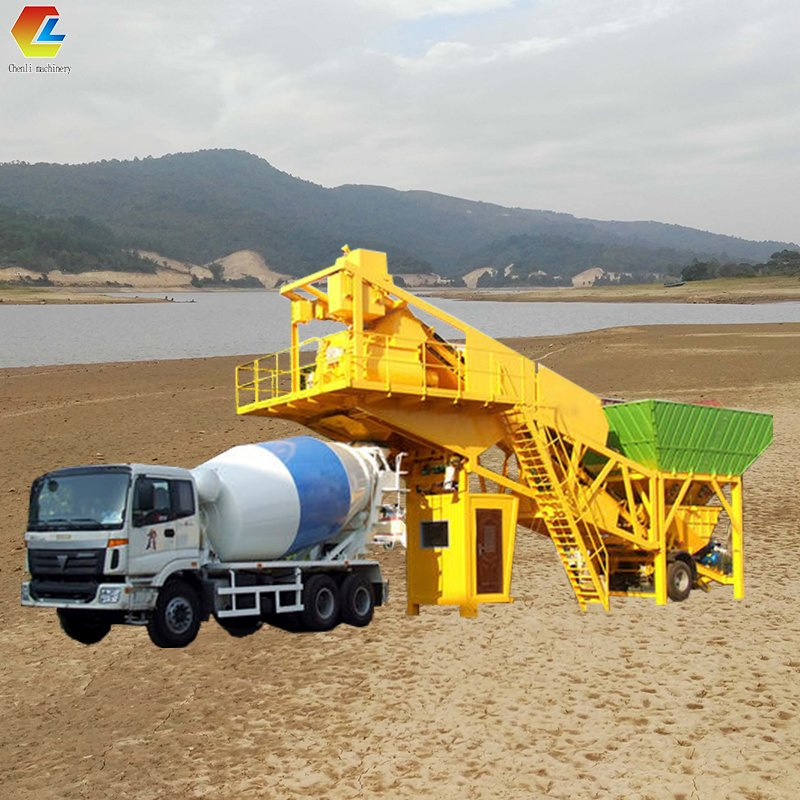

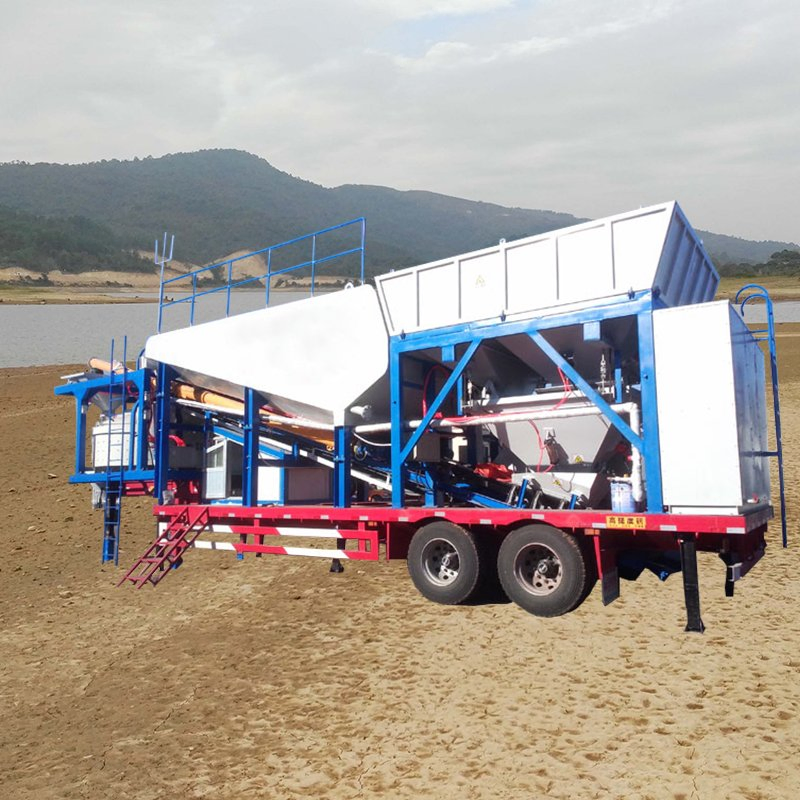

Concrete Batch Plant 60m3/h Mini Mobile Wet Concrete Batching Plant

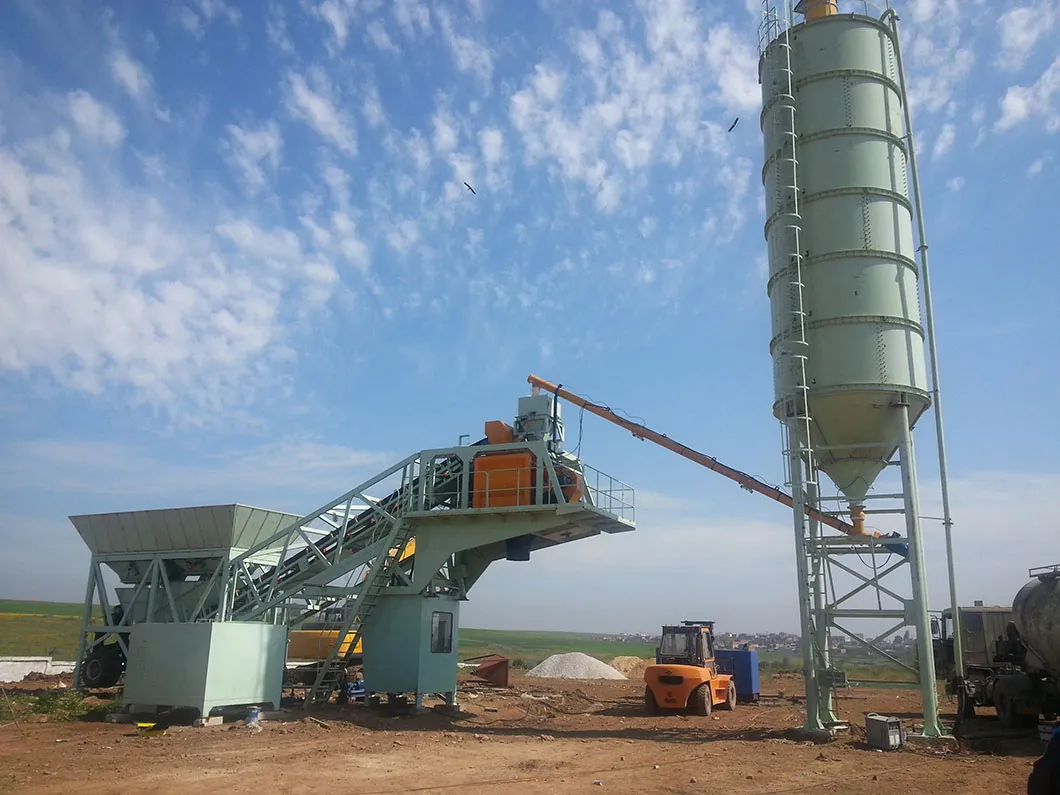

Concrete batch plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and fully automatic control system into a trailer unit. It is exactly the same as the stationary concrete batch plant in all its action processes, operation methods and maintenance. At the same time, it has unique characteristics such as flexible movement, quick disassembly, and simple storage management.
Currently, these plants are mainly divided into two types: tractor type and trailer type. The tractor type chassis contains complete front and rear axles. The trailer type chassis only has the rear axle, and the front end is placed on the tractor saddle bridge.

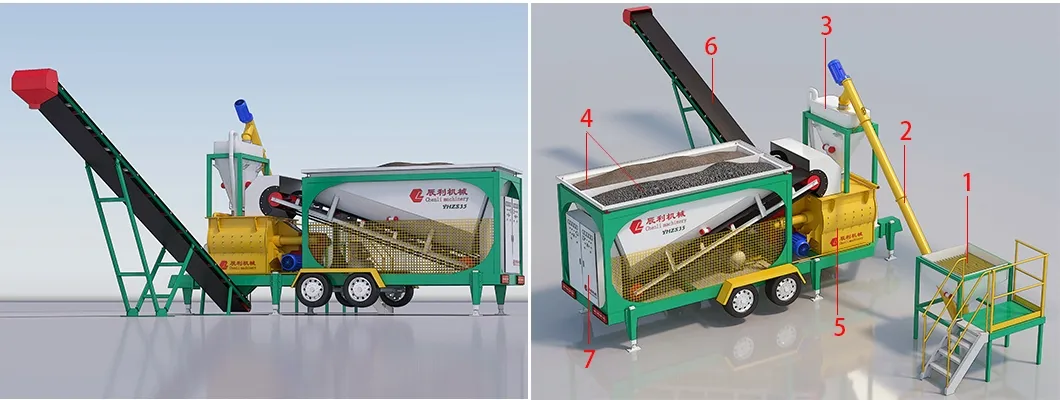

Solution 1

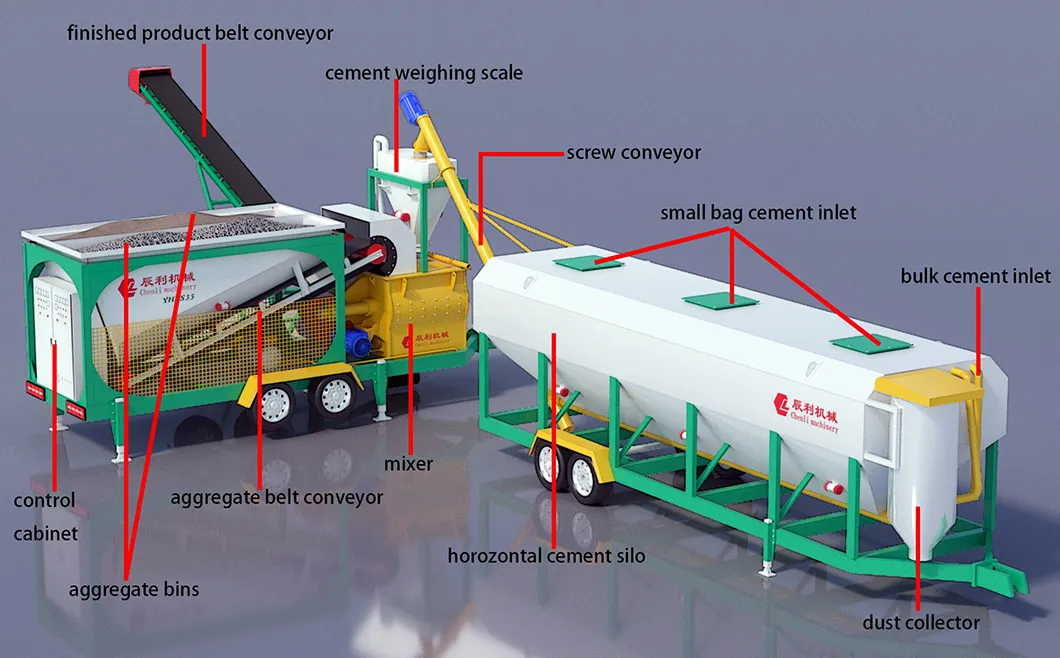

Solution 2

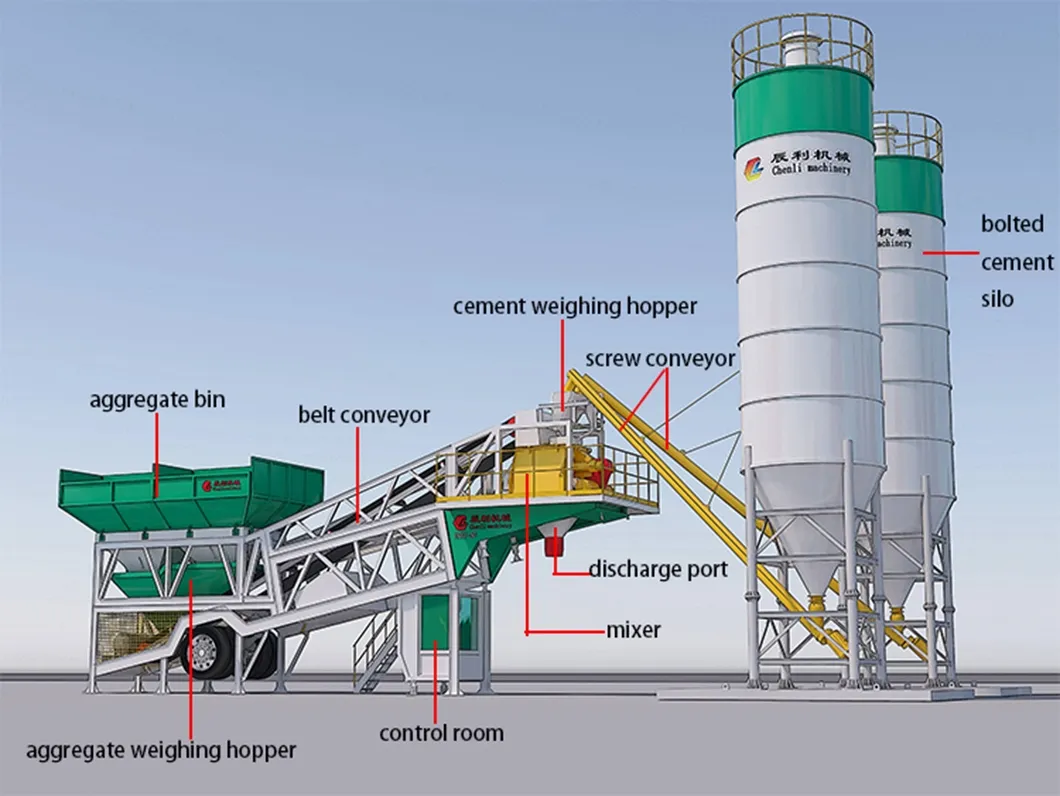

Solution 3

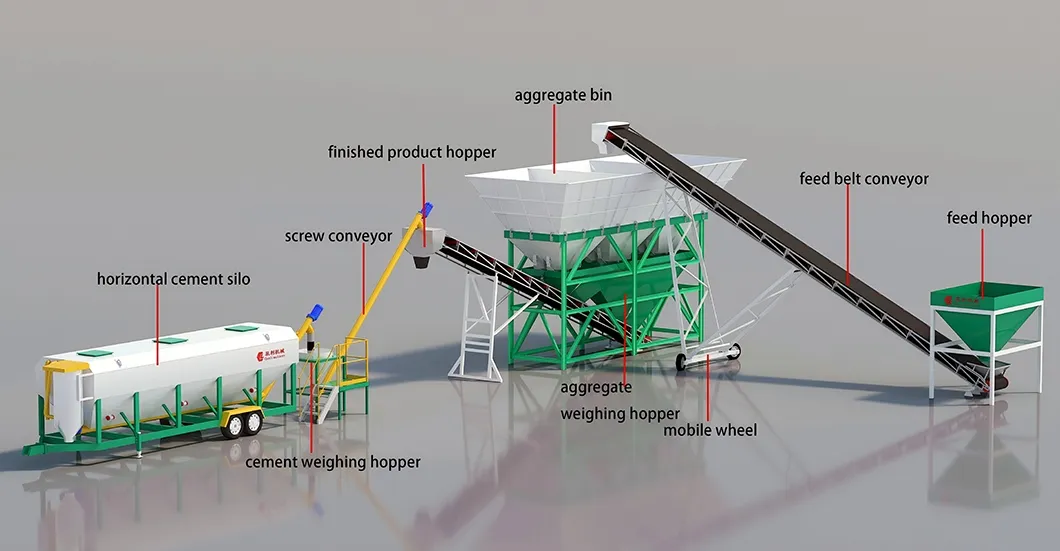

Solution 4 (Dry mix concrete plant)
| Model | Productivity (m3/h) | Mixer | Batching System | Discharge Height |
|---|---|---|---|---|

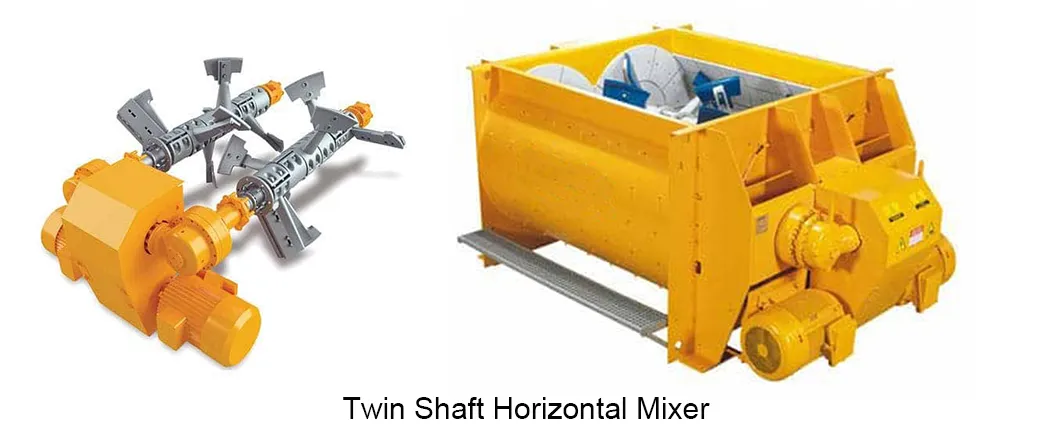

| YHZS35 | 35 | JS1250/750 | PLD1200 | 3.8m |
| YHZS50 | 50 | JS1500/1000 | PLD1600 | 3.8m |
| YHZS75 | 75 | JS2250/1500 | PLD2400 | 3.8m |
| YHZS100 | 100 | JS3000/2000 | PLD3200 | 3.8m |
| Model | JYHZS25 | JYHZS35 | JYHZS50 |
|---|---|---|---|
| Configuration | PL800-1, JS500, Pneumatic discharge, Simple control | PL1200-2, JS750, Pneumatic discharge, Simple control | PL1600-3, JS1000, 3.8m height, Manual discharge |

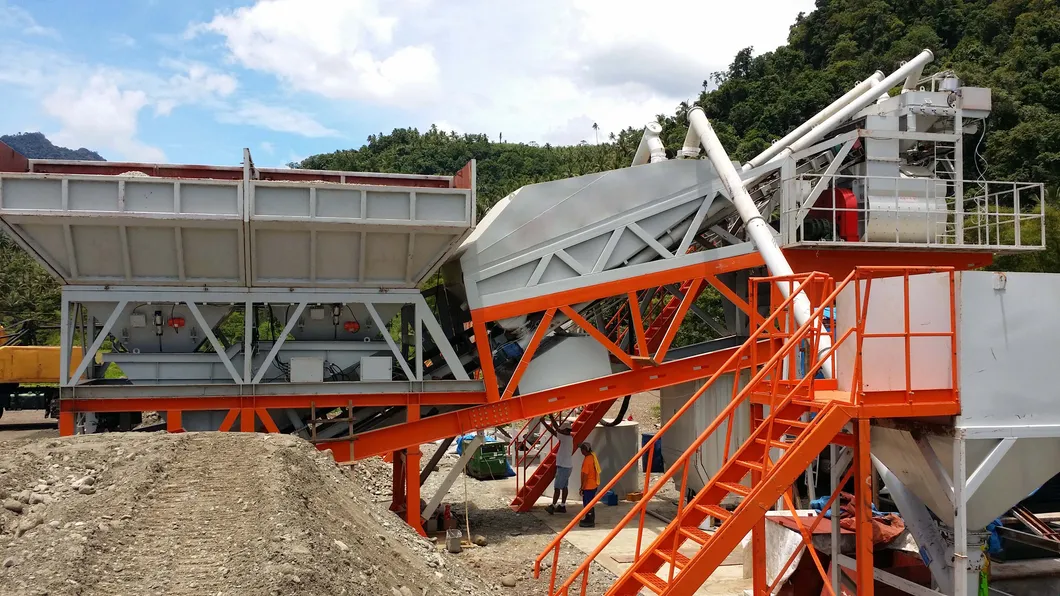

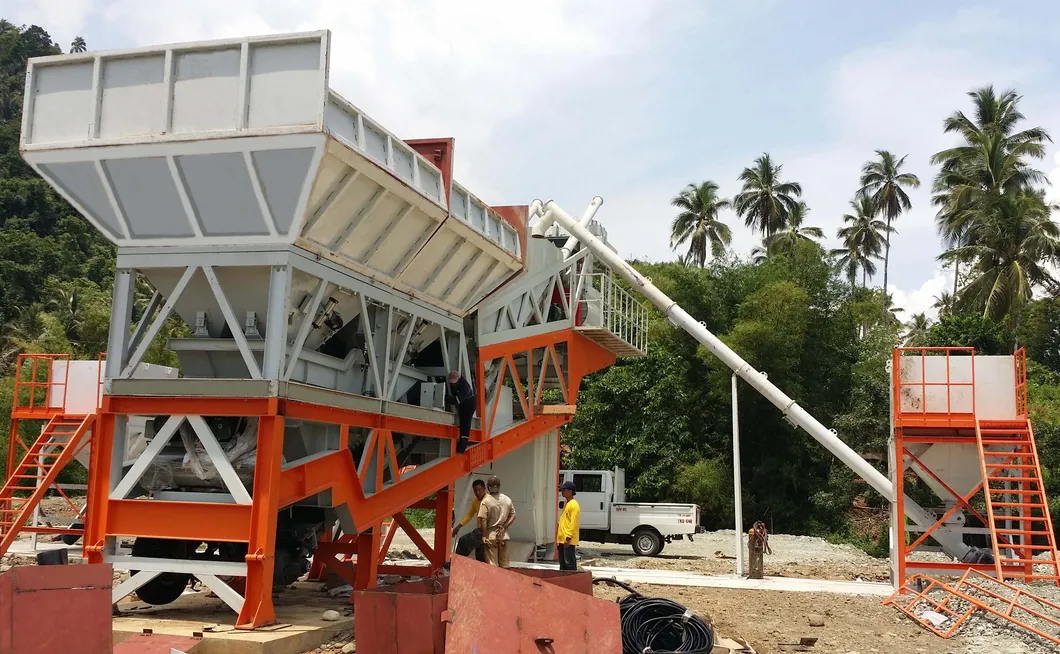

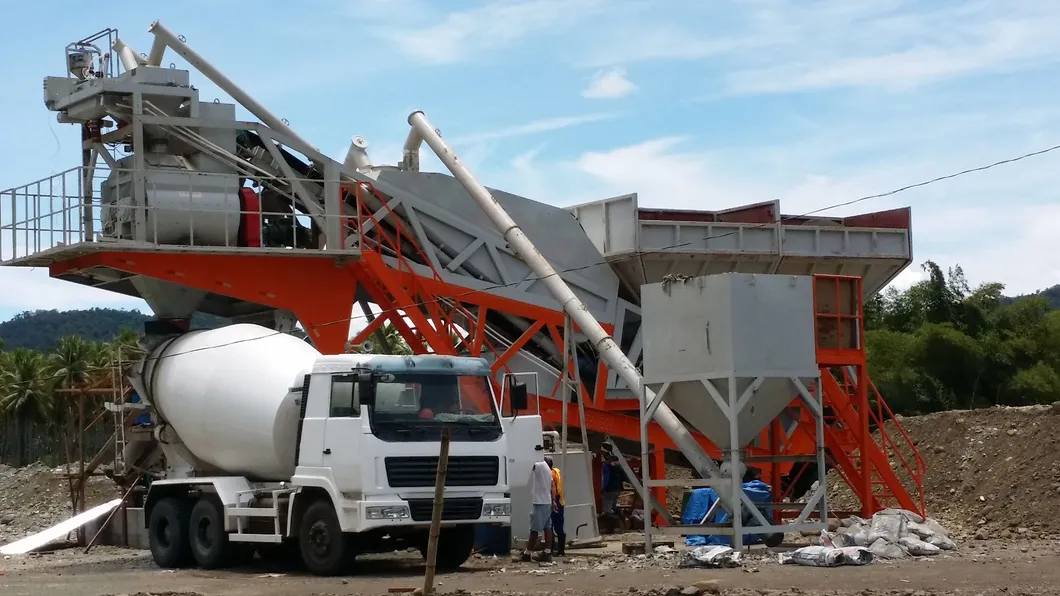

The mobile concrete batch plant is highly suitable for construction projects that require frequent relocation, such as highways, railways, bridges, ports, and hydropower projects. It offers the same precision and efficiency as stationary plants but with superior mobility and ease of setup.

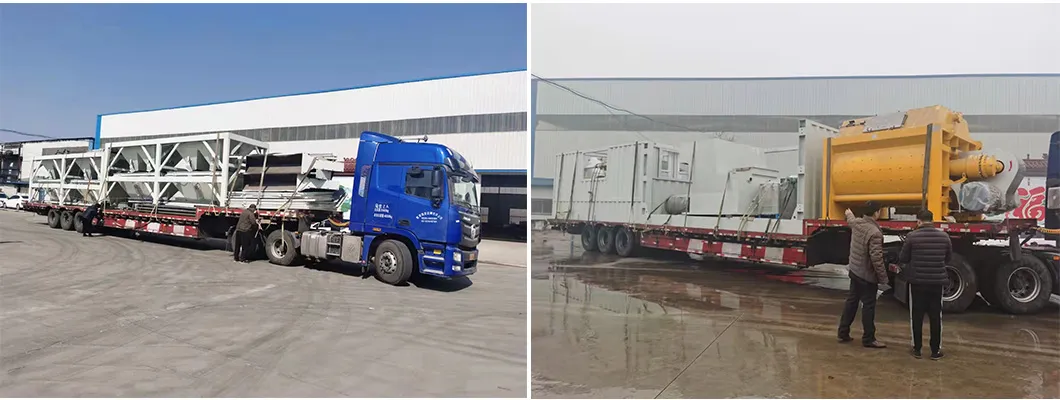

The plant features an overall modular design with a simple and compact structure, making it perfectly suitable for standard container transportation.

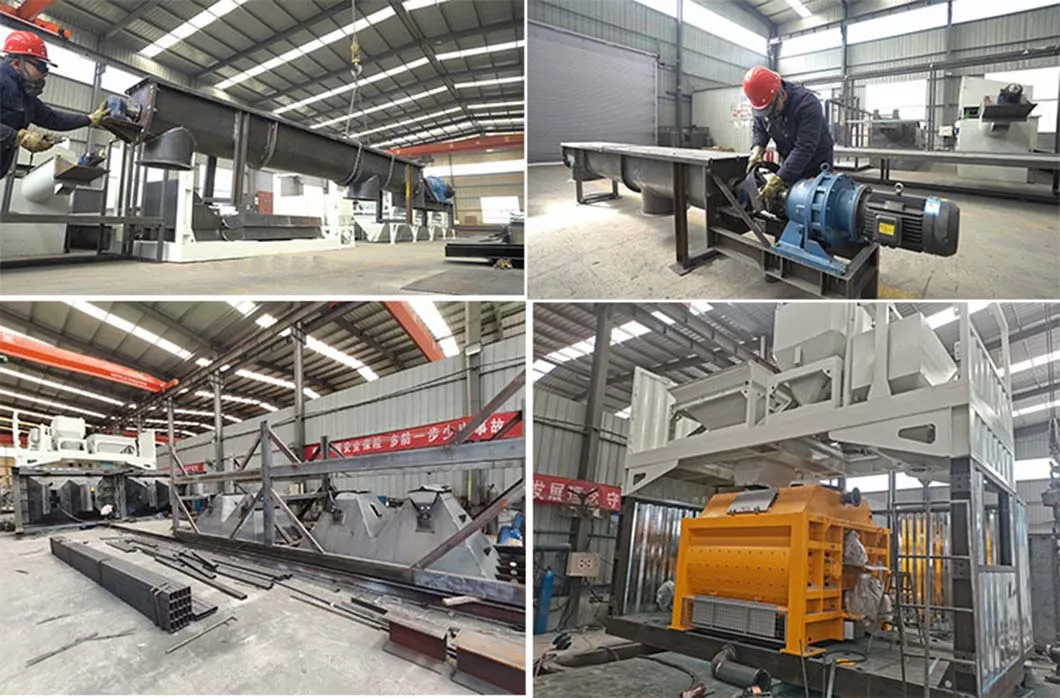

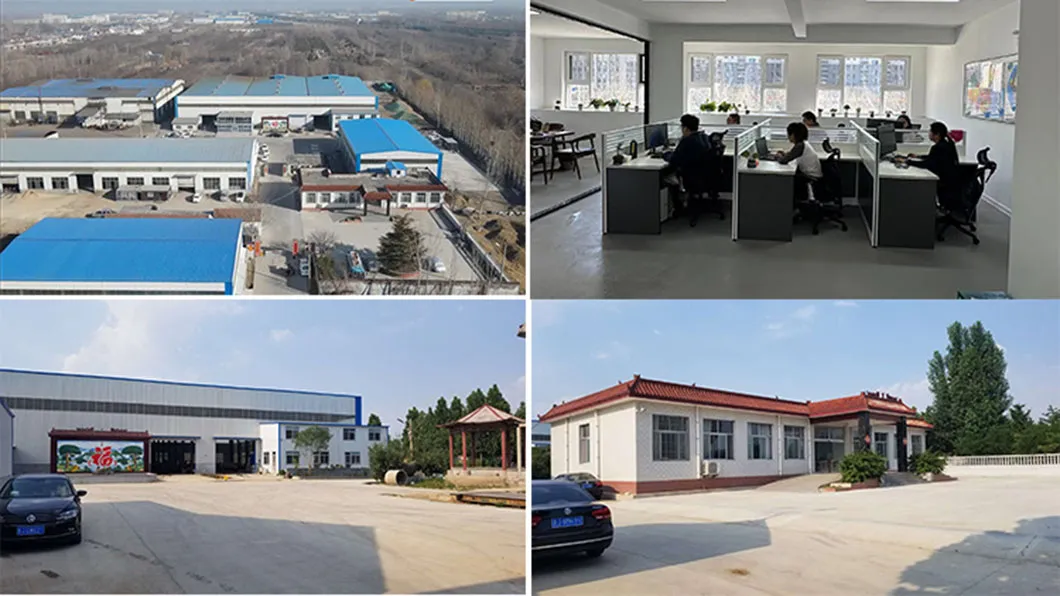

Our workshop is a technology-based facility focusing on the development, design, and manufacturing of intelligent building material equipment. We provide practical, efficient, and environmentally friendly solutions including cement batching plants, mortar production lines, and sand making machines.
