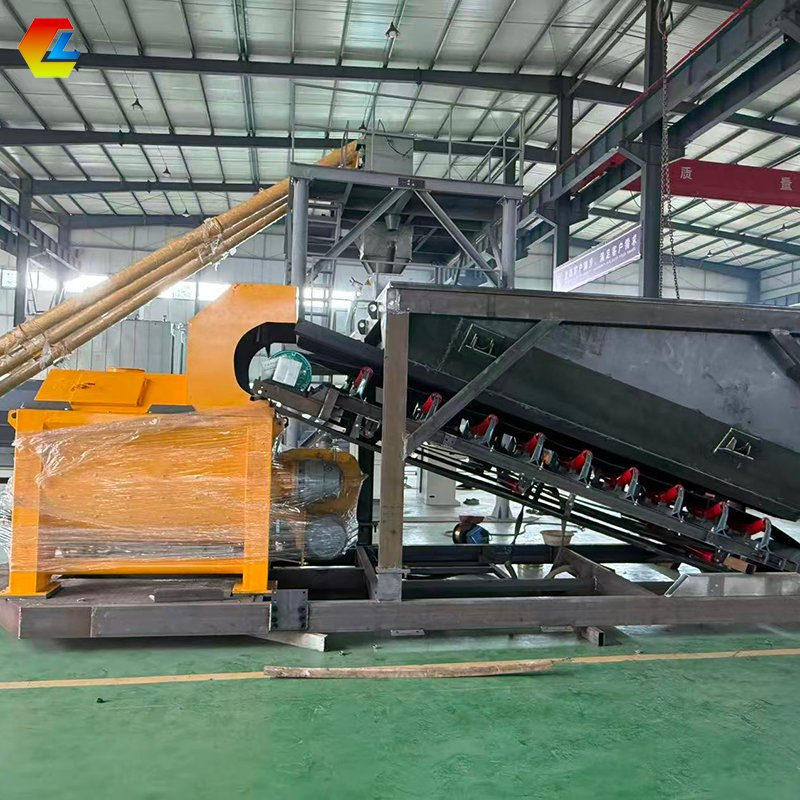

Small Mini Concrete Mixer Machine Mobile Concrete Batching Plant

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.	YHZ35
Type	Concrete Mixing Plant
Productivity	25m³/h
Structure	Spiral Type
Shotcrete Type	Semi-Dry
Condition	New
Certification	ISO9001: 2000, CE
Discharge Volume	1500L
Control	Central Computer Control
HS Code	8474310000

Product Presentation

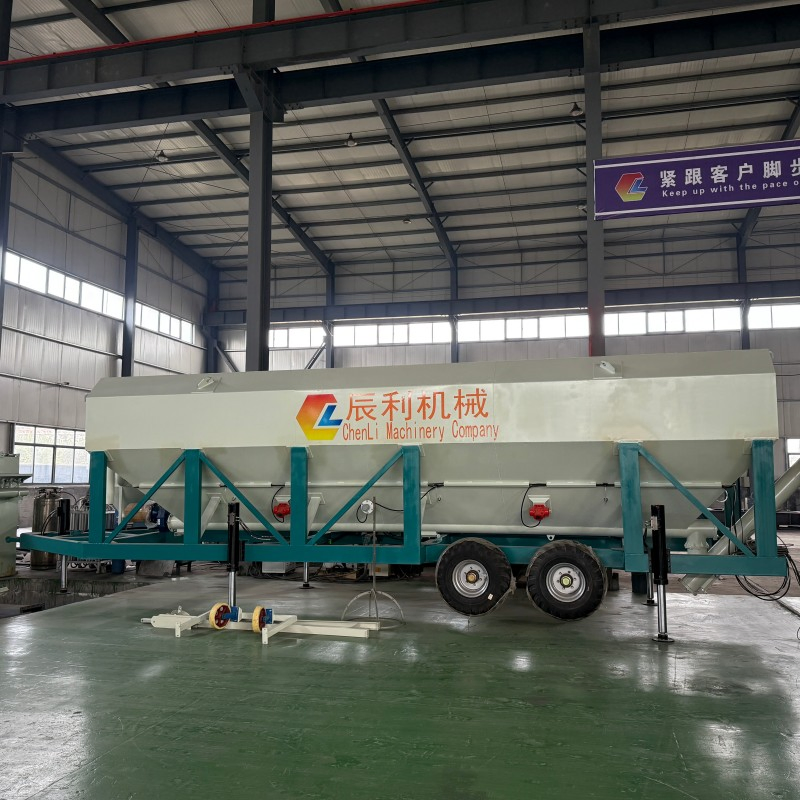

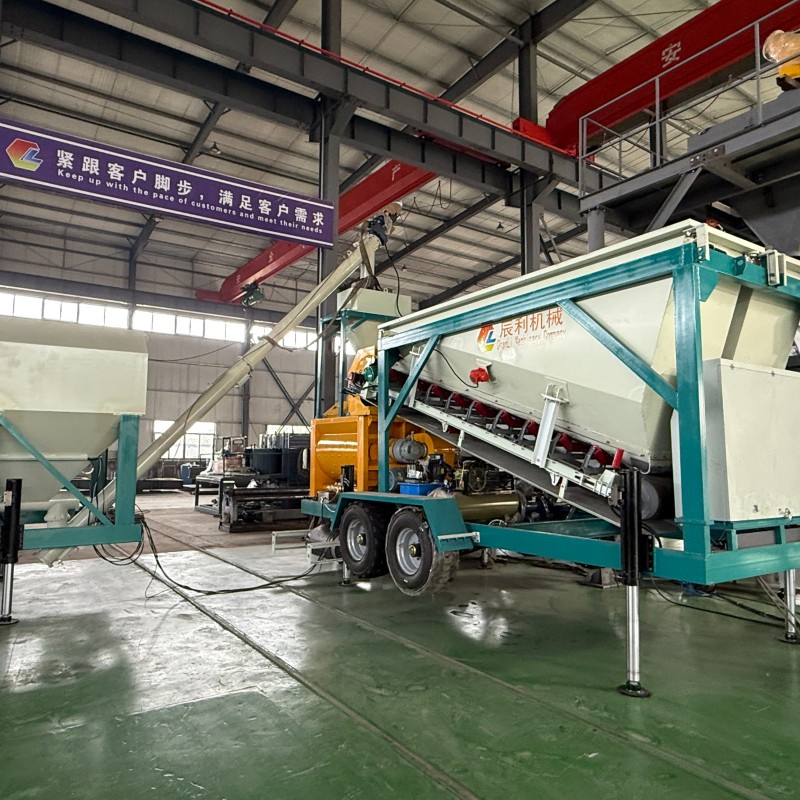

Small Simple Type Concrete Batching Plant

🚚

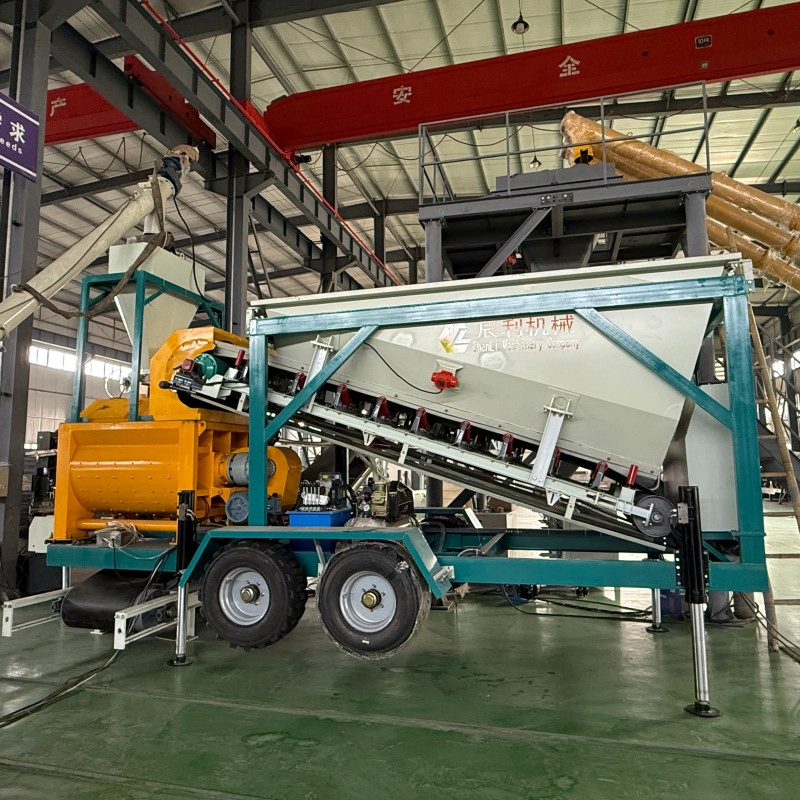

High Mobility

Equipped with wheels for flexible site transfers. Ideal for scattered projects and evolving construction sites.

🏗️

Compact Structure

Small footprint reduces site requirements and installation time. Optimized for limited spaces.

⚙️

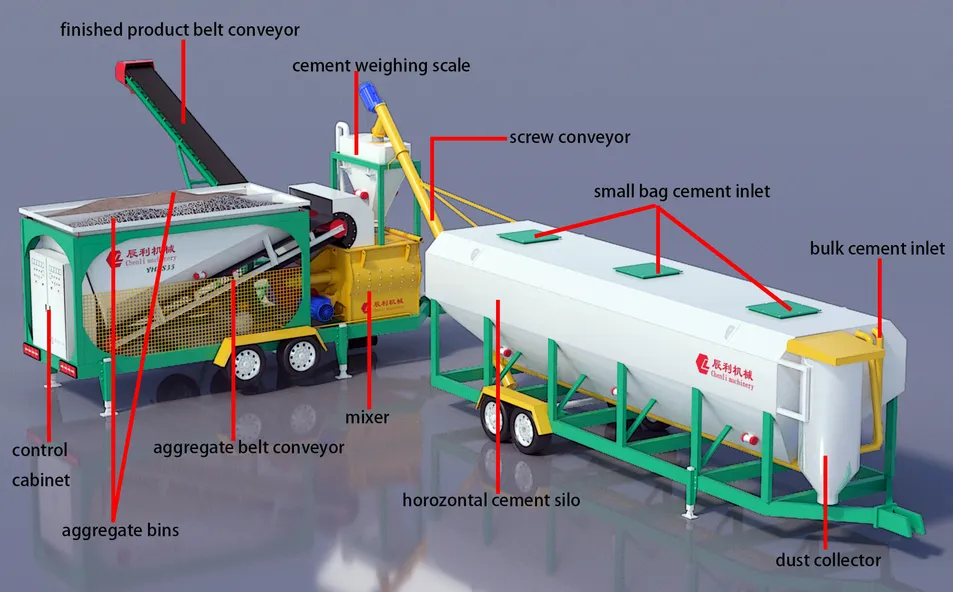

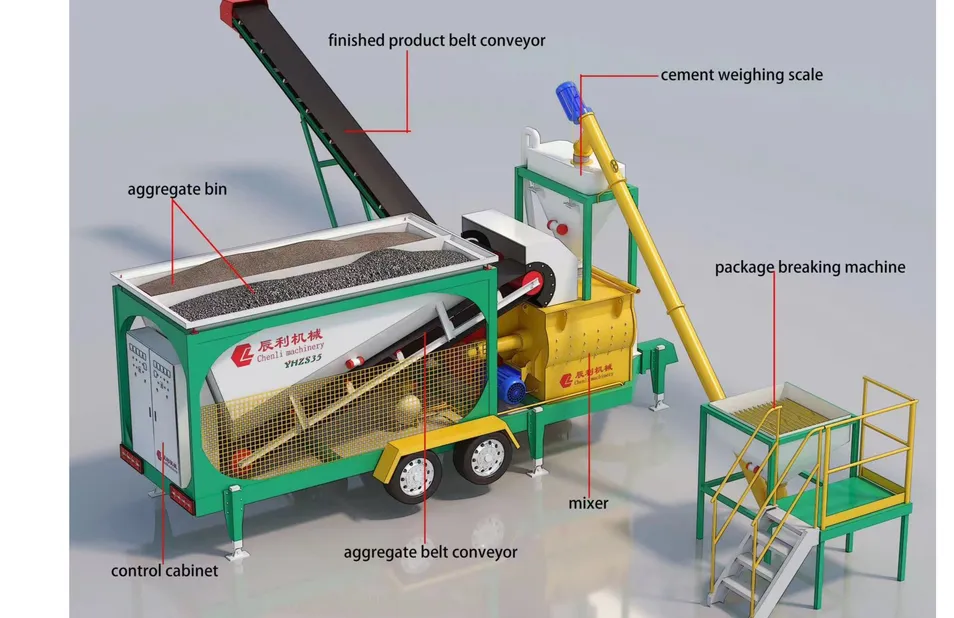

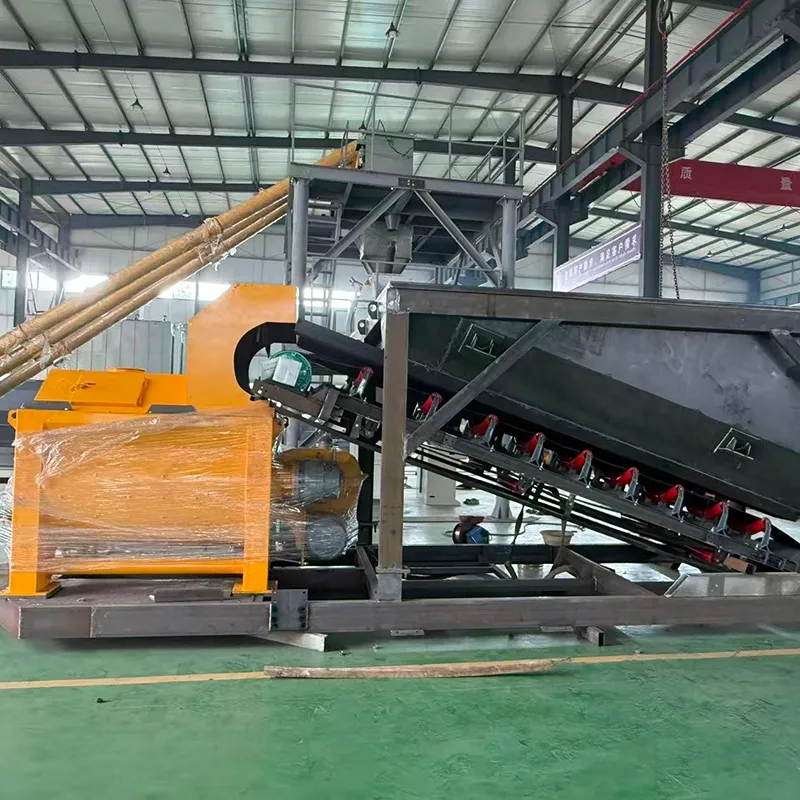

Integrated Functions

Combines storage, conveying, and mixing in one unit to improve on-site construction efficiency.

Project Versatility: Suitable for small-scale construction like rural houses and large-scale auxiliary stations. Its strong mobility allows rapid deployment for road, bridge, and water conservancy maintenance.

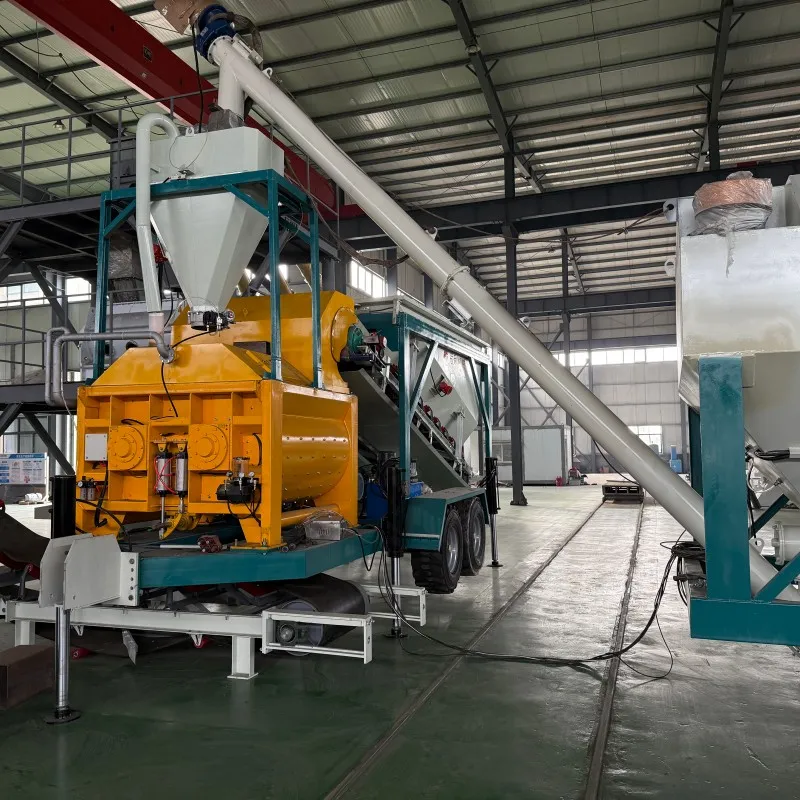

Storage Options: Can be used with horizontal cement silos (bulk pumping) or bag cement breakers (manual loading), adapting to local material supply conditions.

Technical Specifications

Specification Item	YHZS25 Parameters
Theoretical Production (m³/h)	25
Mixer Model	JS500
Mixer Power (kw)	2 * 11
Aggregate Maximum Particle (mm)	60 / 40
Feeding Capacity (L)	750
Discharge Capacity (L)	500
Aggregate Bin Capacity	2 * 3m³ / 4 * 5m³
Screw Conveyor Capacity (t/h)	40
Installed Capacity (kw)	≈58

Frequently Asked Questions

What projects is the YHZS35 mobile plant best suited for?

It is ideal for small-scale rural construction, road and bridge maintenance, and as an auxiliary station for large projects where the main plant cannot reach specific construction points.

How is the concrete quality ensured in this compact plant?

The plant uses the JS500 twin-shaft mixer and a central computer control system to ensure precise weighing and high-quality, uniform concrete mixing.

Is the plant truly mobile?

Yes, the plant is designed with a mobile chassis and wheels, allowing it to be towed and moved as construction site requirements change.

What are the cement storage options?

You can use a horizontal cement silo for large volumes via pump trucks, or a bag cement breaker for smaller projects using bagged cement.

What is the productivity of the YHZS series?

The theoretical production capacity is 25 cubic meters per hour, making it efficient for medium-sized daily concrete requirements.

How difficult is the installation process?

Due to its compact and integrated design, the installation is much faster than traditional stationary plants, allowing for rapid deployment in emergency or temporary projects.
