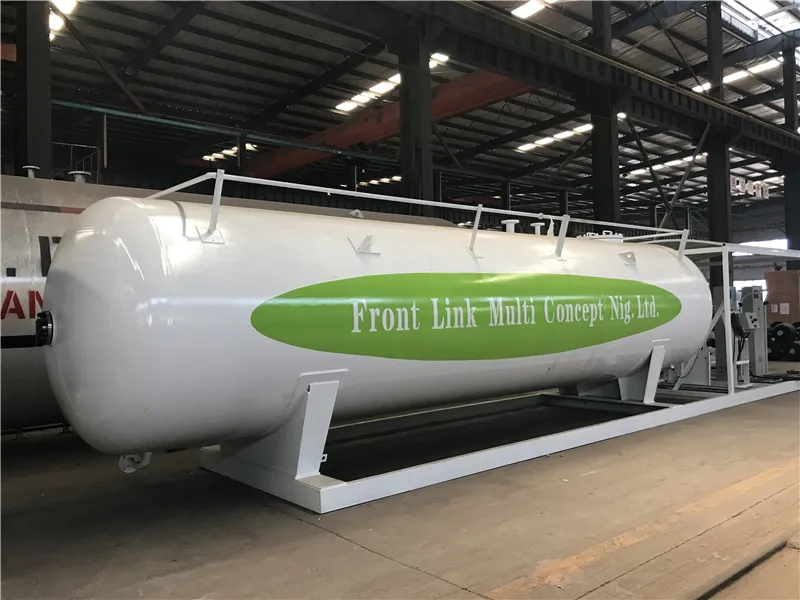

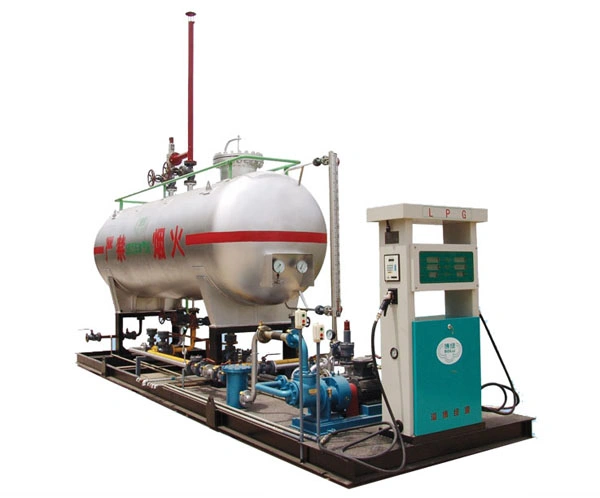

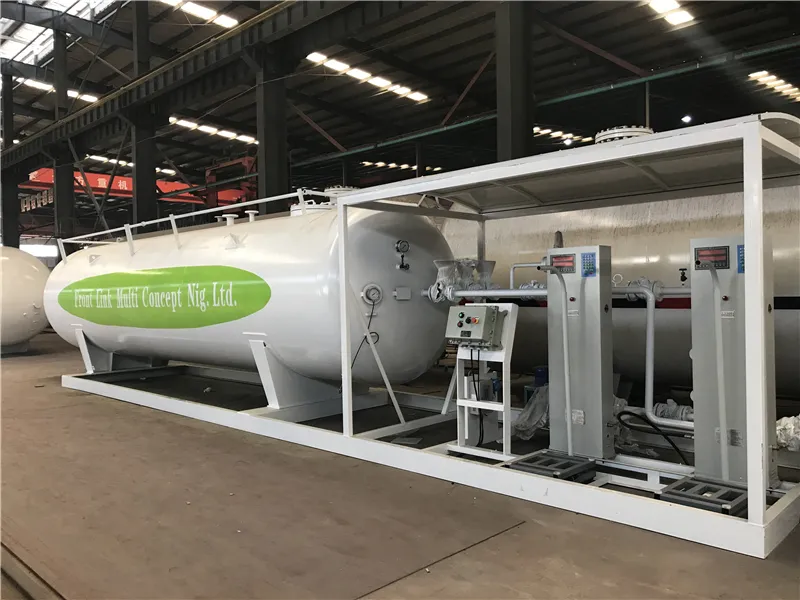

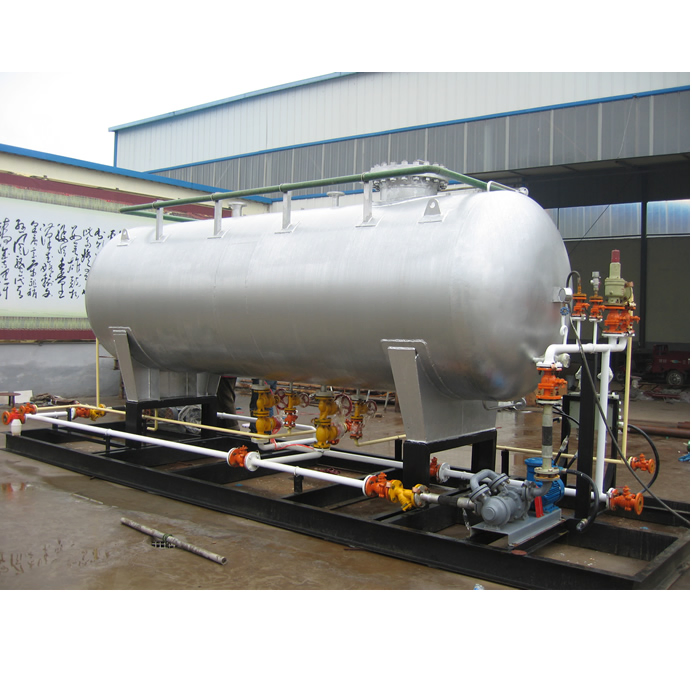

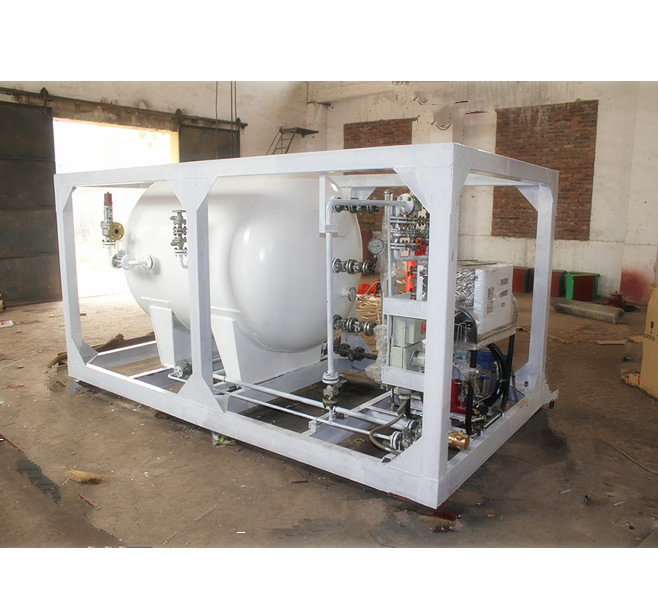

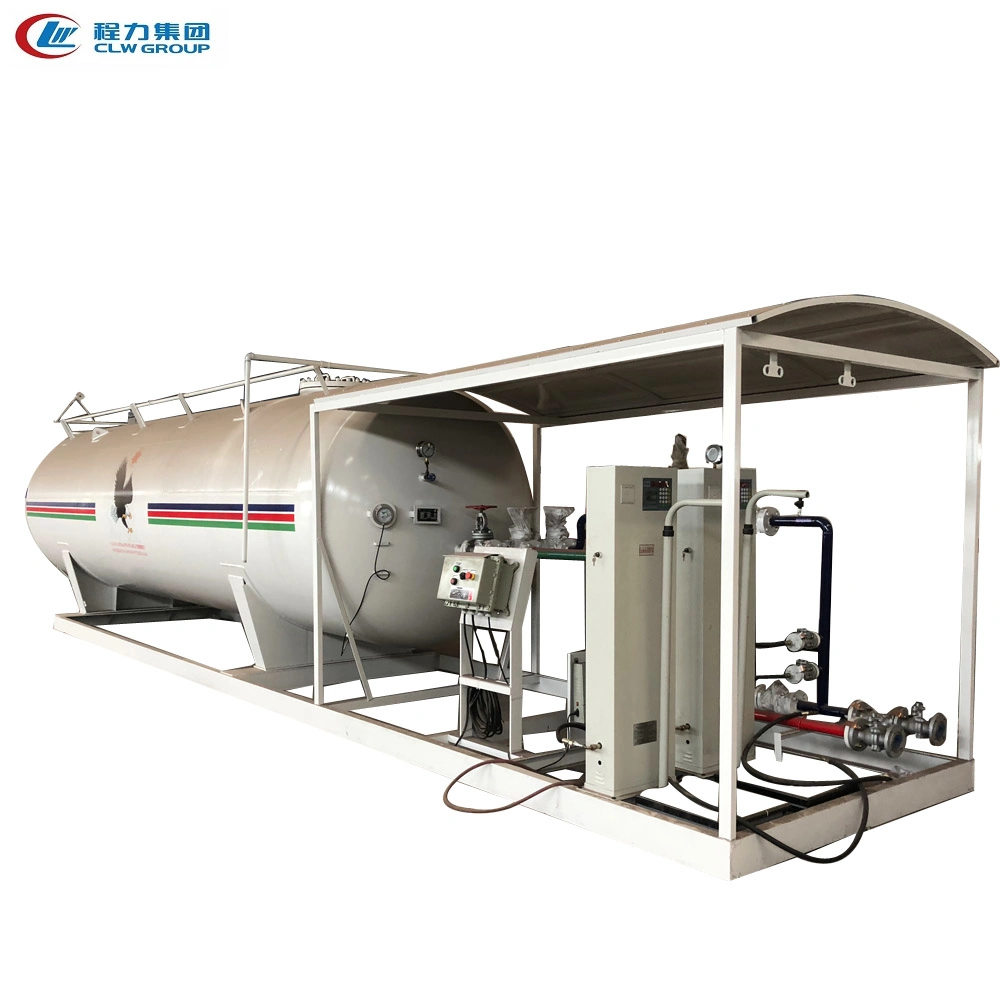

5000 - 20000 Liters LPG Skid Station Mobile Cylinder Filling Plant

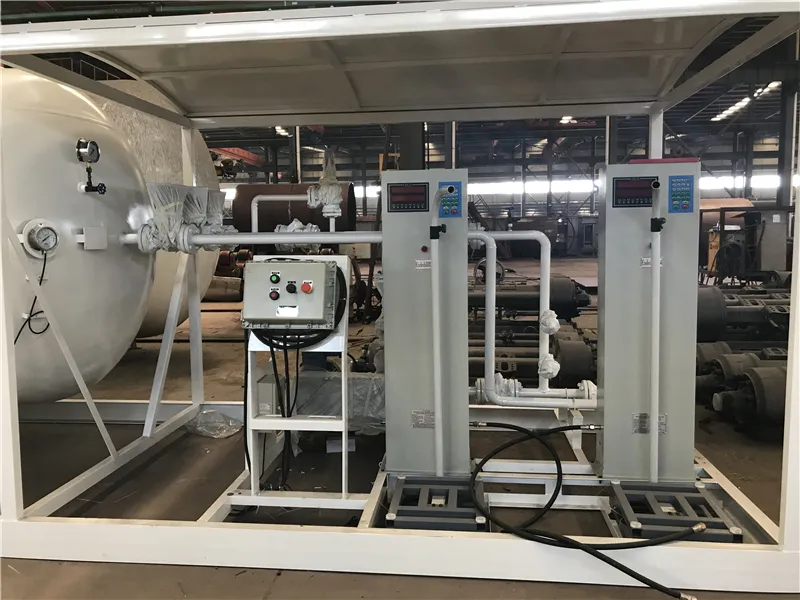

Our LPG skid filling stations are designed for efficiency and safety in liquefied petroleum gas distribution. These mobile units offer a complete solution for cylinder filling and storage.
Below are the specifications for the 20m3 (10 Ton) LPG Tank unit:
| 20 CBM LPG Tank Dimensions | Details | ||
|---|---|---|---|
| Filling Weight | 7980 kg | ||
| Tank Weight | 5050 kg | ||
| Shell / Endplate Thickness | 12 mm | ||
| Material | High Strength Carbon Steel Q345R | ||
| Design Pressure | 1.77 MPa | ||
| Manufacturing Standard | Safety Technology for Stationary Pressure Vessels of China |
| Item | Model/Specification | Quantity |
|---|---|---|
| LPG Pump | 2" inlet & 2" outlet | 1 Set |
| Motor | Explosive Proof, 5.5KW | 1 Set |
| Filling Scale | 3-150 kg capacity | 1 Set |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Level Gauge | UQZ-2.5P Ball floating | 1 Piece |

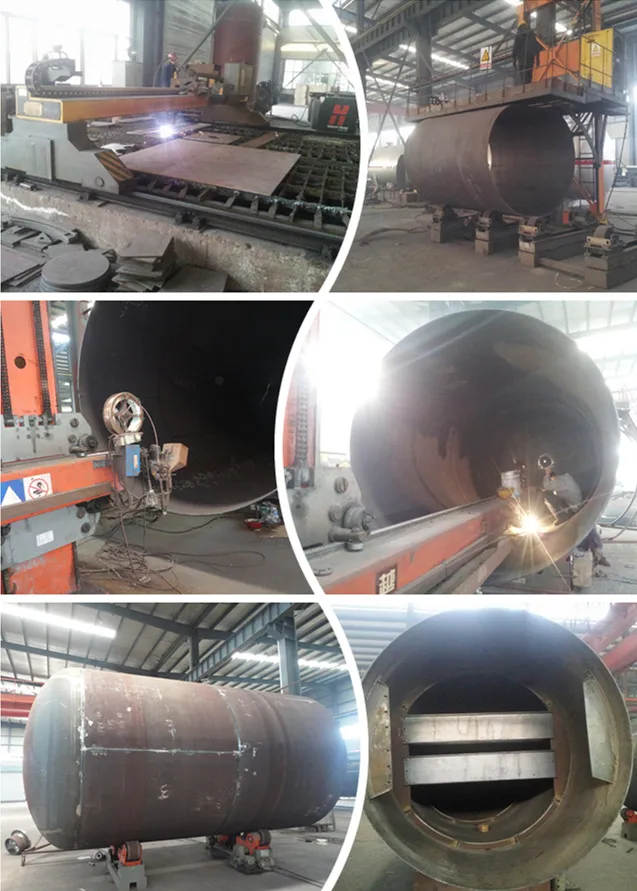

As a leading manufacturer of special automobiles, we provide robust technology and reliable quality inspection for all pressure vessels.
