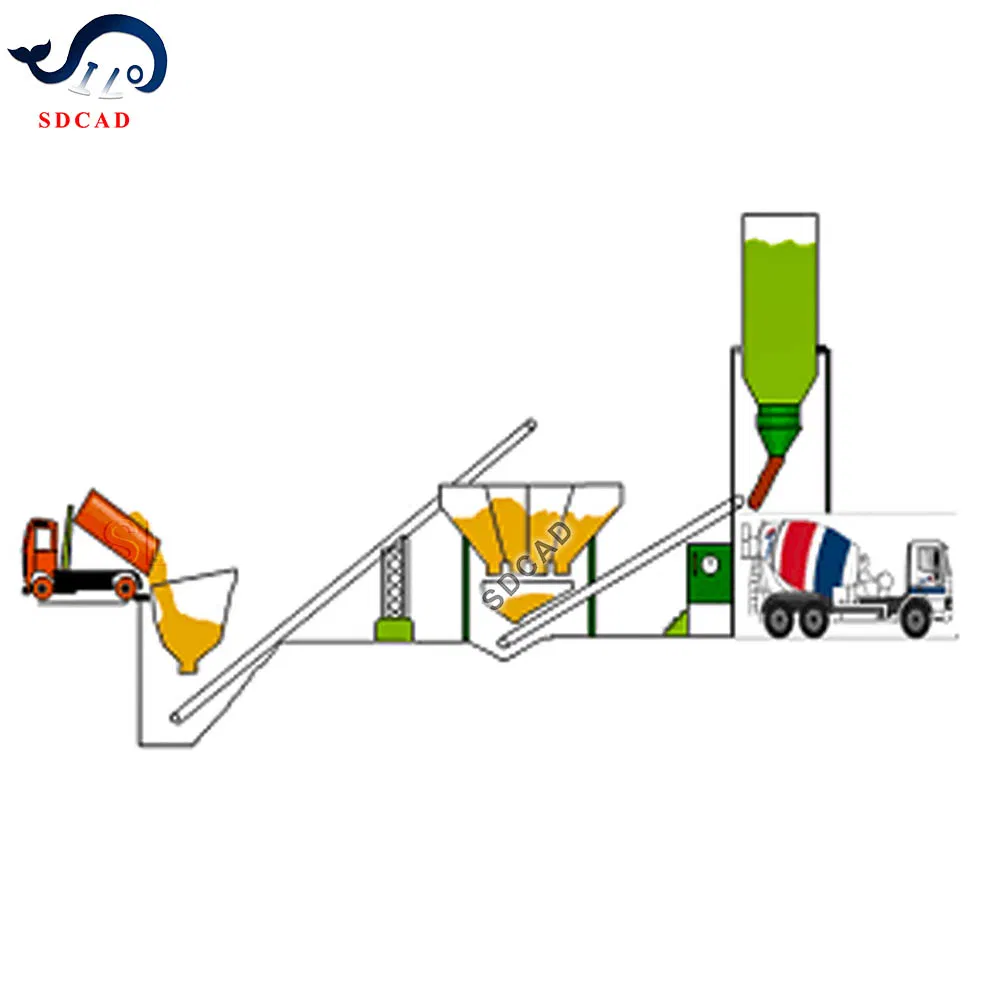

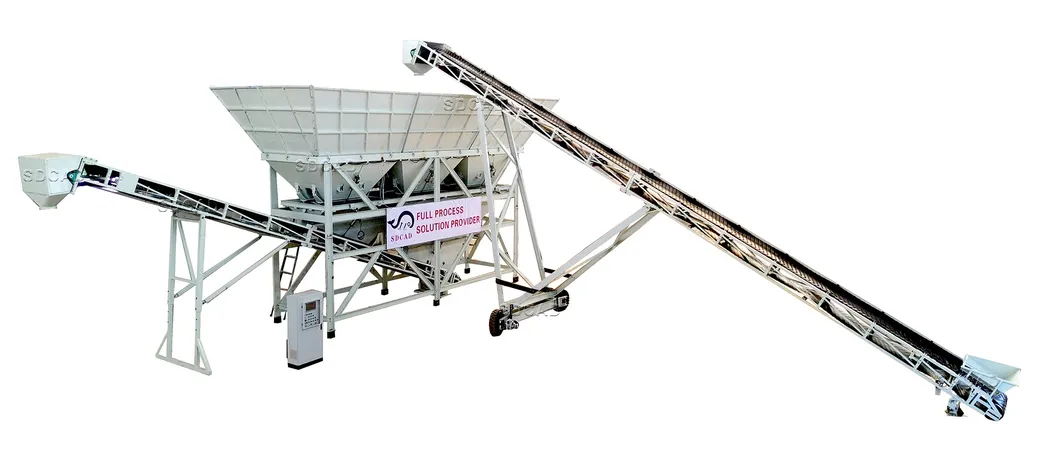

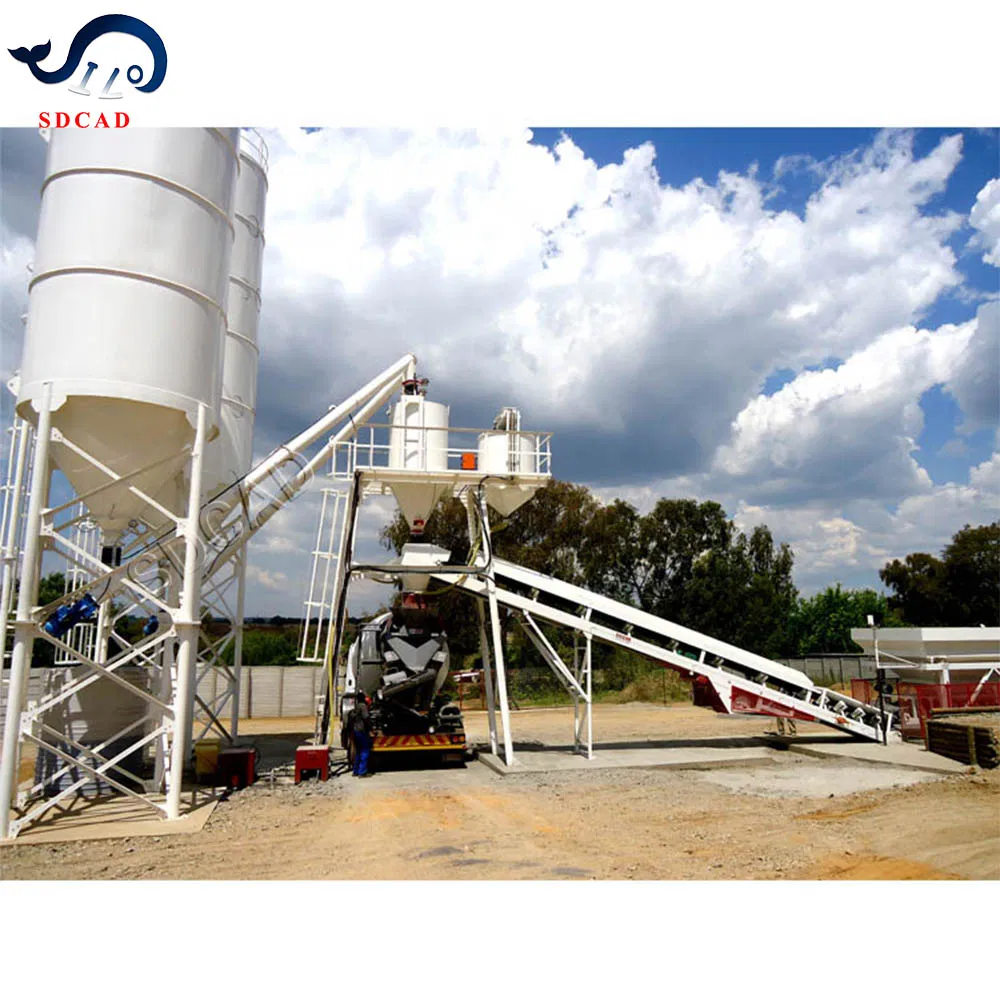

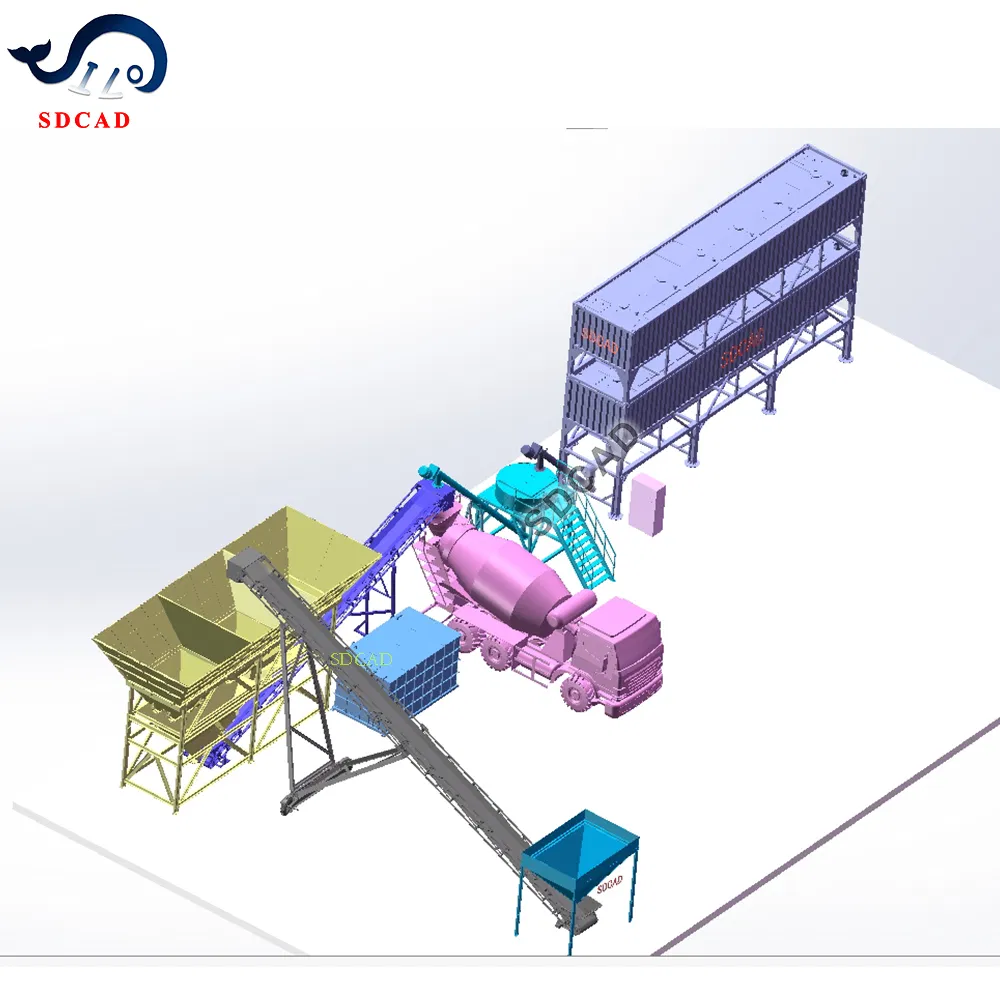

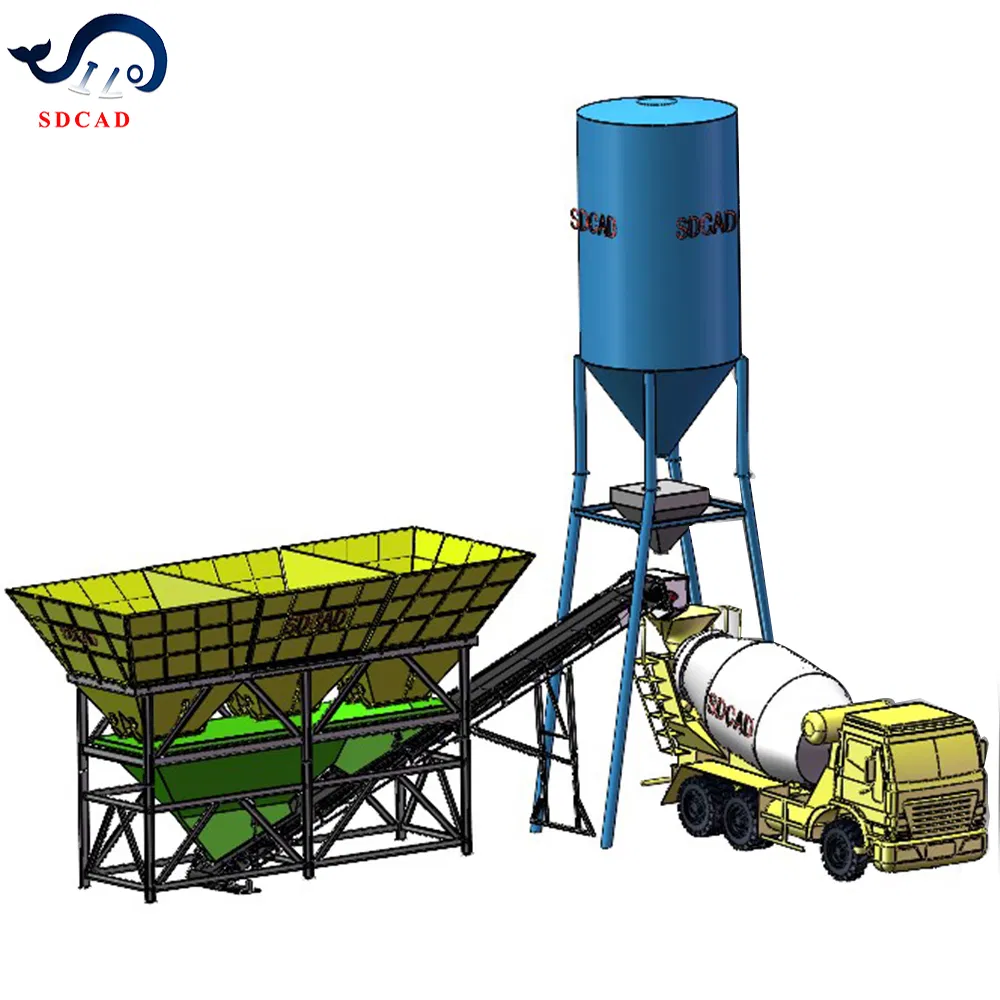

This equipment combines various ingredients to form concrete, including water, air, admixtures, sand, aggregate, fly ash, silica fume, slag, and cement. It consists of a batching machine, cement silo, auger, weighing system, and an advanced Auto control system, making it professional equipment for ready-mix concrete production. This dry mixing plant is widely used in small and medium construction projects, roads, bridges, and concrete prefabrication factories.
Features at a Glance
Delivery Capacity
100m3/h
Volume
3*20m3
Weighing Way
Accumulation weighing
Weighing Hopper
15m3 (±2% accuracy)
Air Compressor
5.5KW
Belt Conveyor
Herringbone belt, 12m Length, 800mm Width
Cement Weighing Hopper
Volume 1m3, Pneumatic butterfly valve DN300
Control System
PLC and touch screen

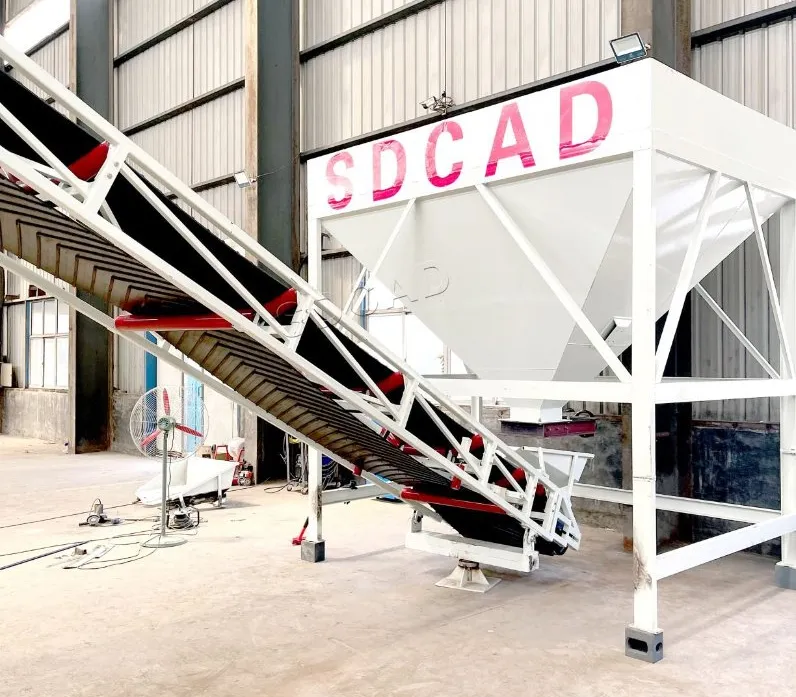

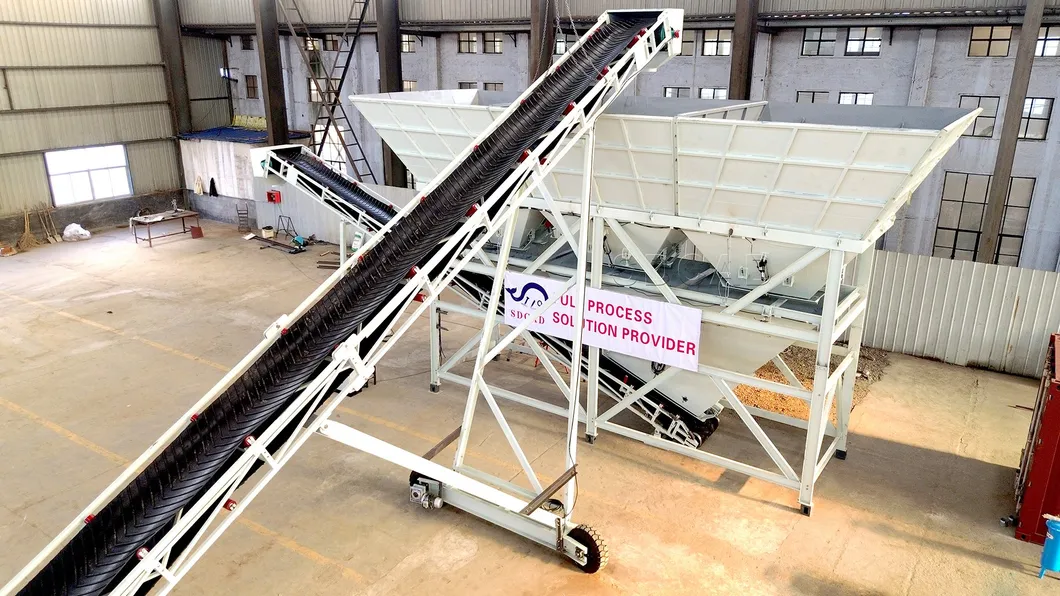

Belt Conveyor Technical Data
Model
CS-800 Herringbone belt conveyor with wheels
Width
800mm
Length
16.5m
Discharging Height
6.7m
Hopper Volume
Around 5m3
Angle
27 Degree
Motor Power
7.5 KW

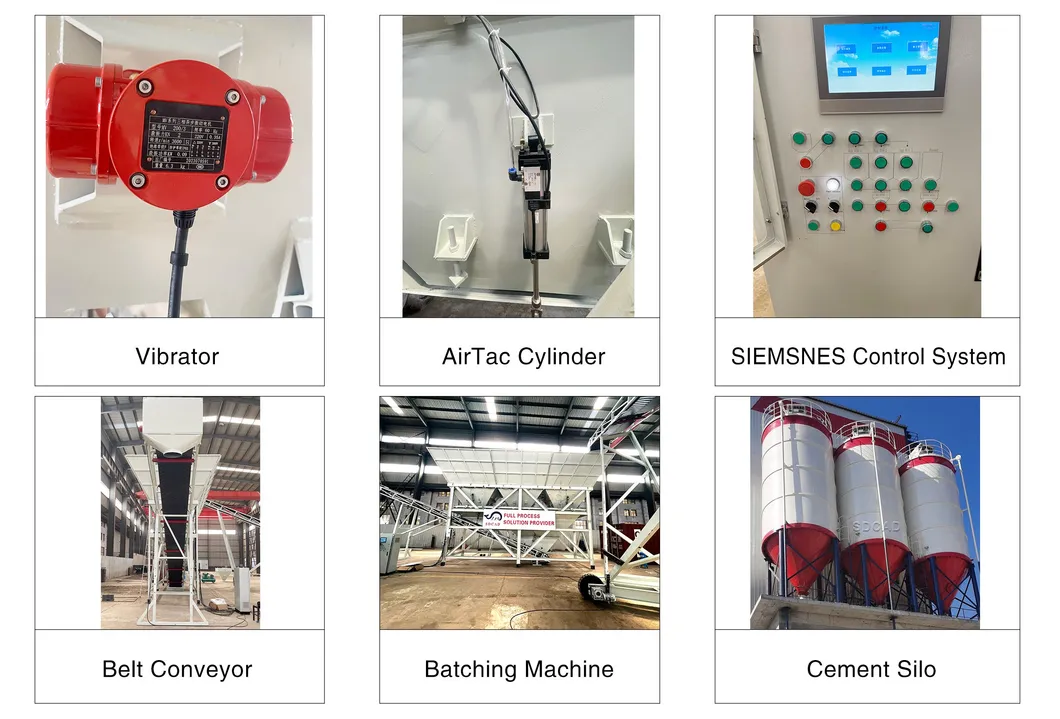

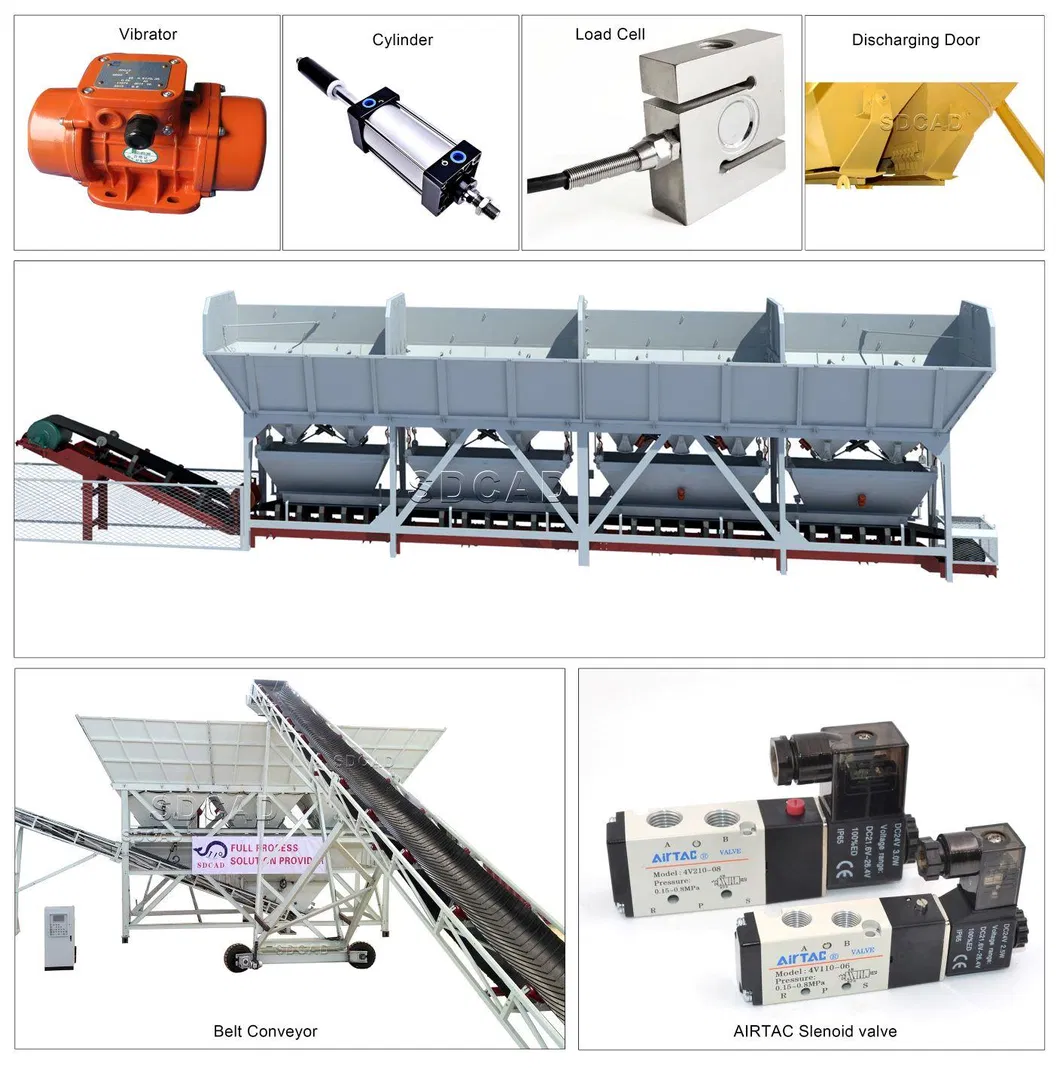

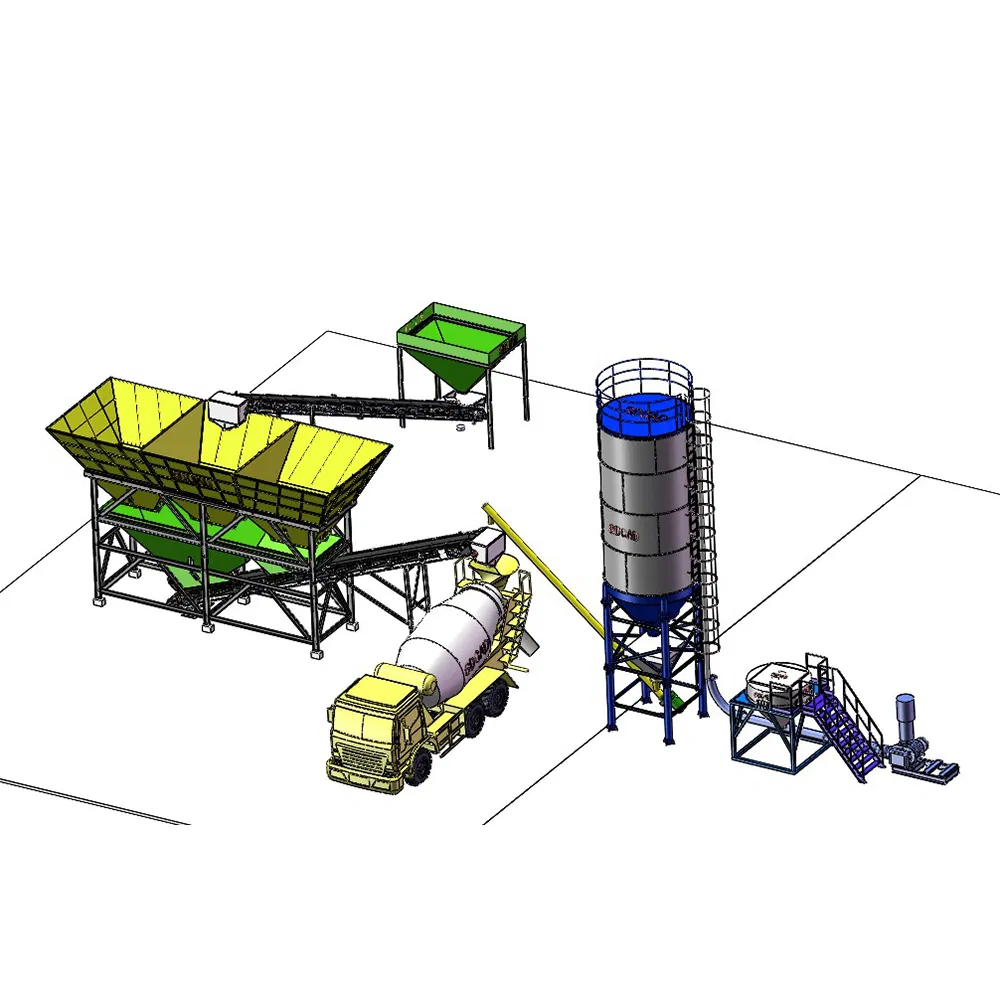

Core Components

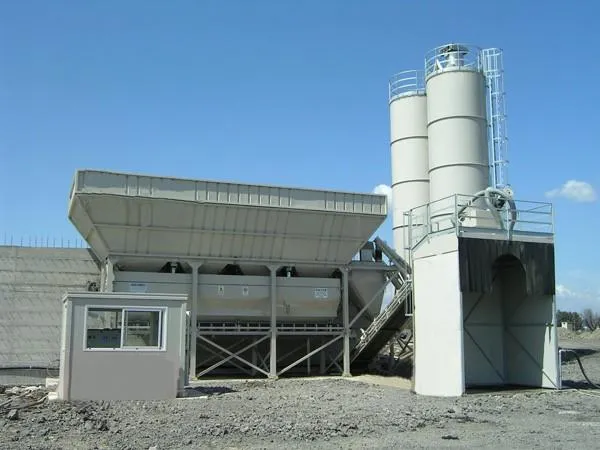

Powder Silo: Storage for bulk materials like cement and fly ash. Available in 100t/200t/300t or customized sizes.

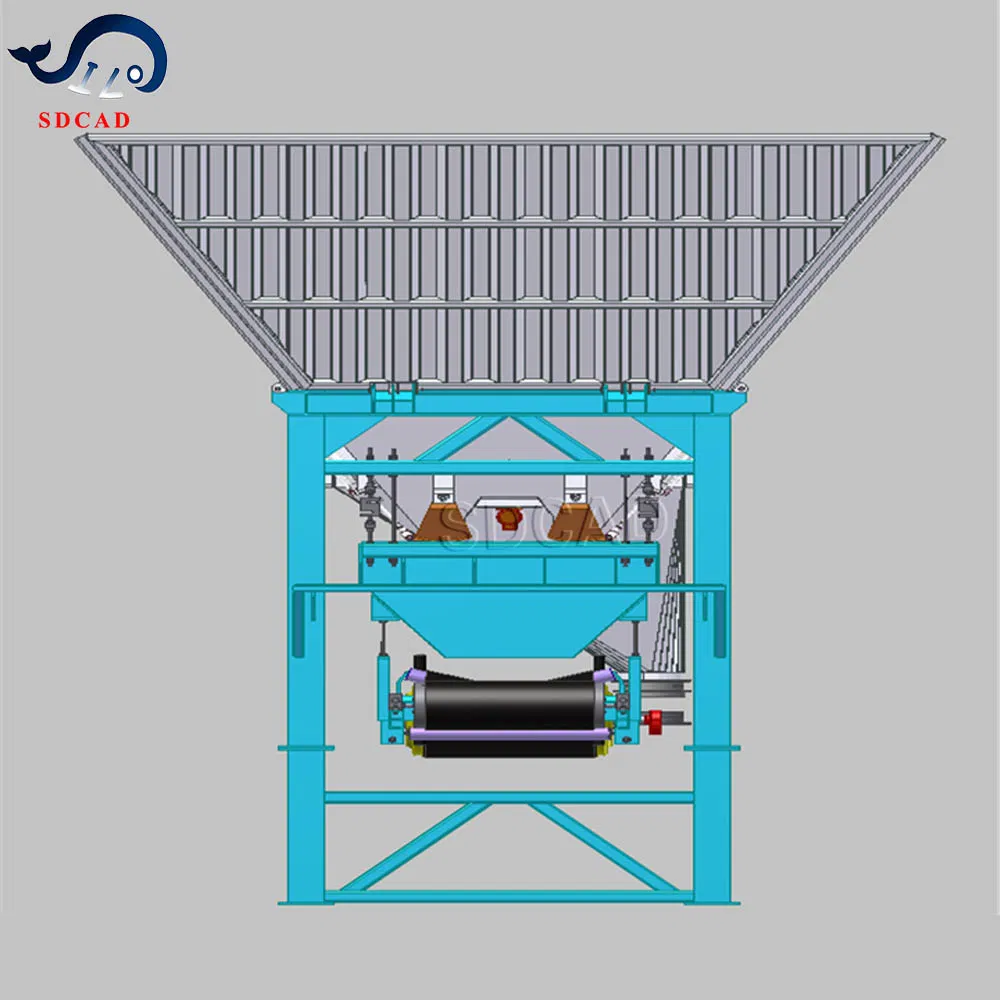

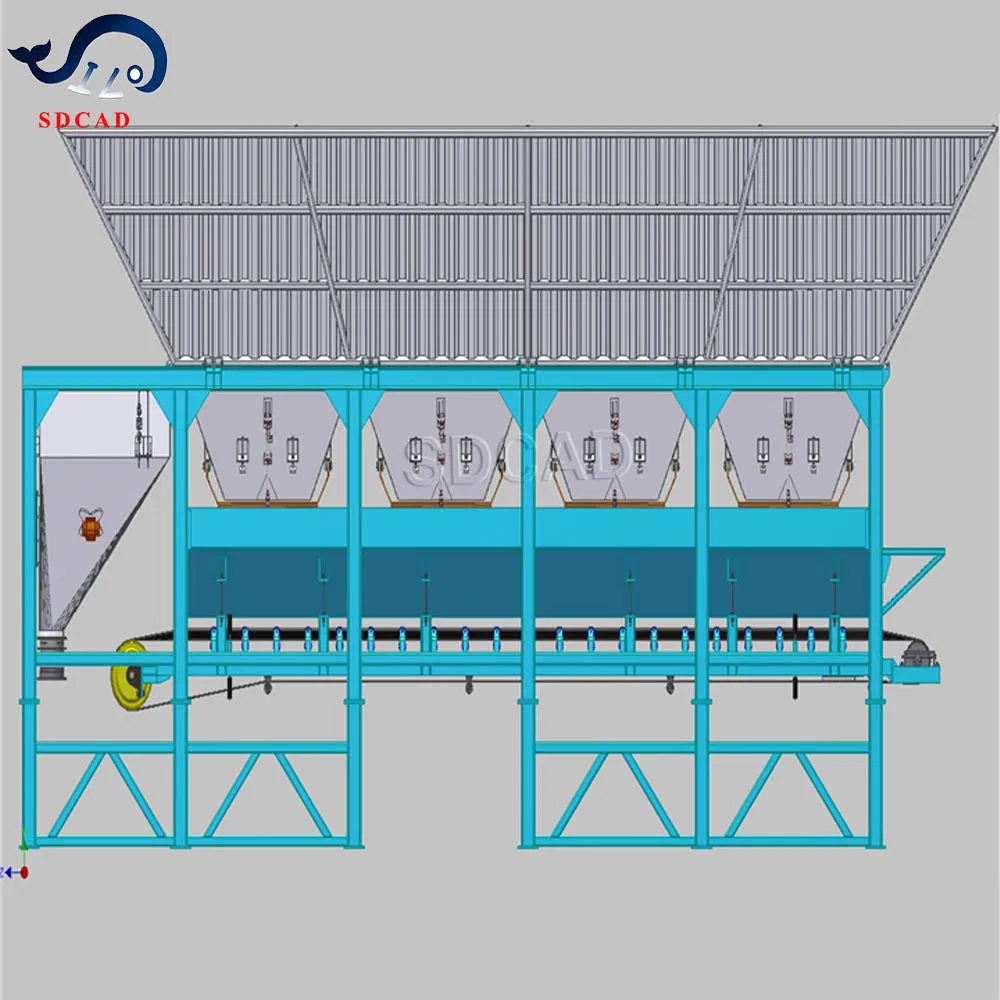

Batching Plant: Automatic equipment for sand, stone, and cement batching processes.
Control System: High-precision systems (Siemens/Toledo) to monitor and control the entire operation.
Belt Conveyor: Energy-saving, low-noise conveying for dry particles with accurate measurement.
Service & Support
Advanced technology ensuring 100% stable and reliable product quality.
Quality assurance for one year after installation or 20 months after port departure.
24/7 service with technical response within 8 hours.
