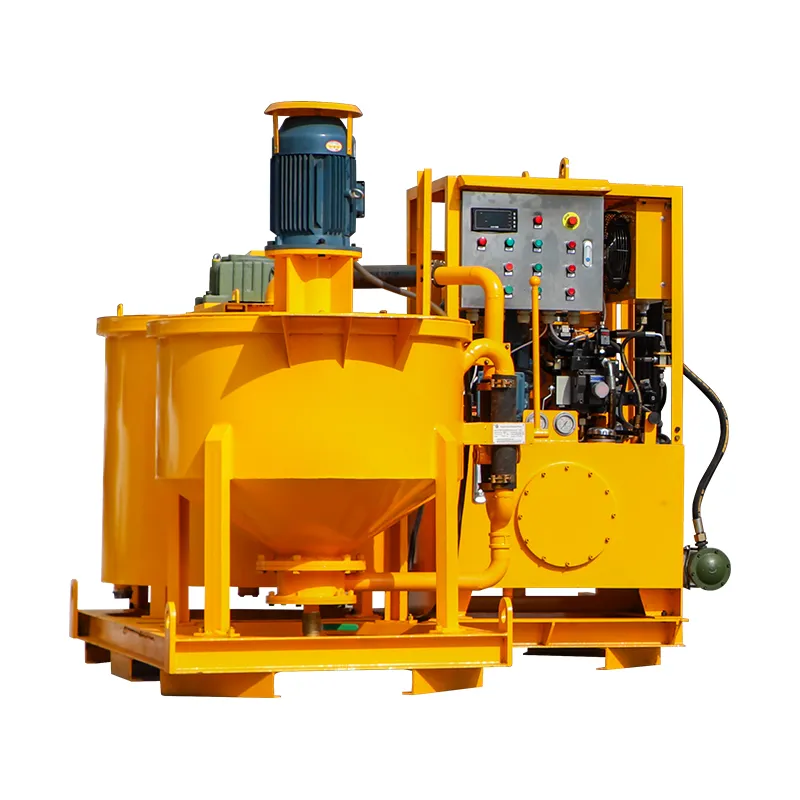

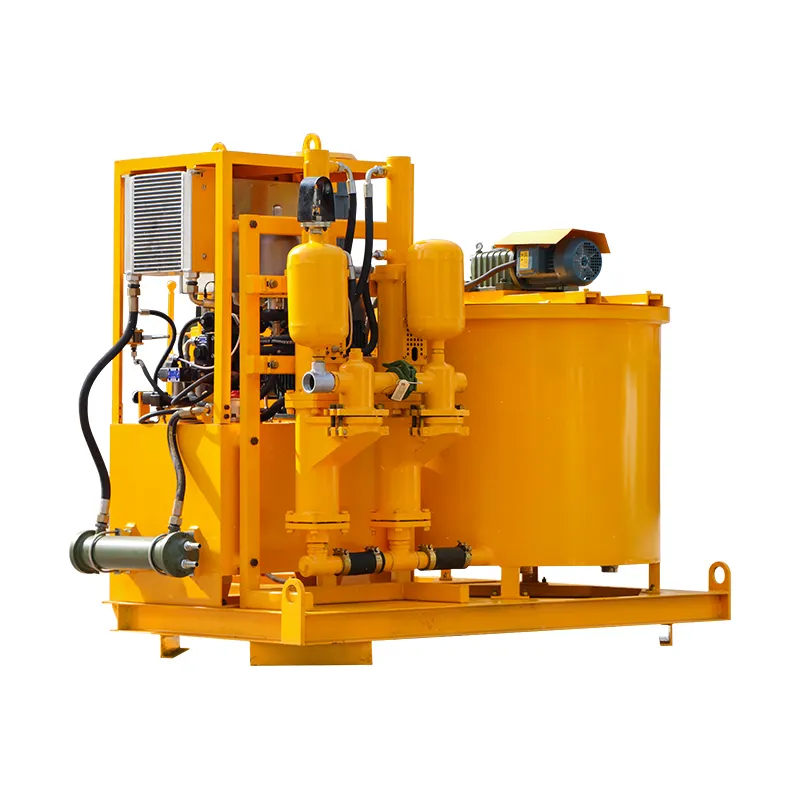

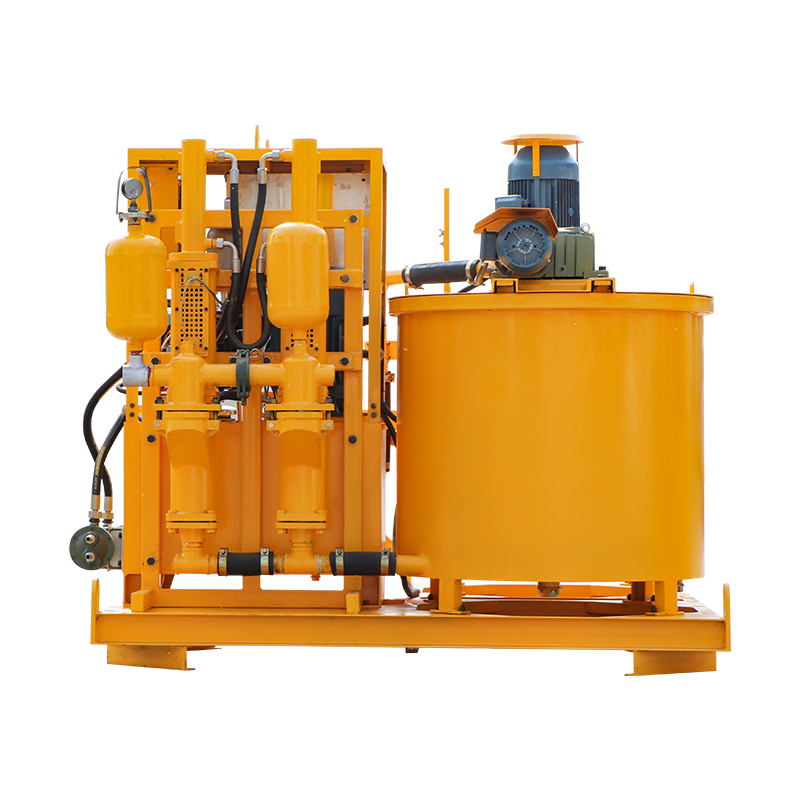

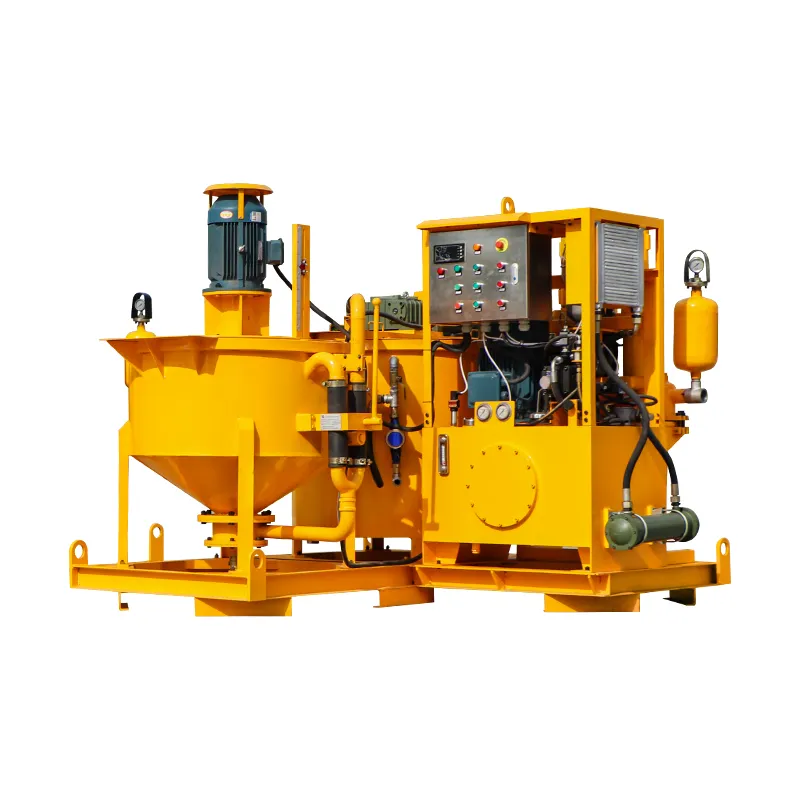

LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
1 / 5
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale
LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale

LGP400/700/80dpl-E Skid Mounted Grout Plant for Sale

Customization: Available
Type: Grouting
Machining Process: Hydraulic
Send Inquiry

Product Description

Basic Specifications

Model NO.
LGP400/700/80DPL-E
Productivity
1100L/Min
Mixer Volume
400L
Mixer Power
7.5kw
Agitator Volume
700L
Agitator Rated Rev.
36rpm
Weight
1530kg
Dimension
2350*2100*1830mm
W/C Ratio
>=0.5:1
Certification
ISO9001: 2000, CE, SGS

Product Overview

LGP400/700/80DPL-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The double-cylinder pump together with the pressure-holding system is used, ensuring that the grouting hole is completely filled with minimal pressure impulse.

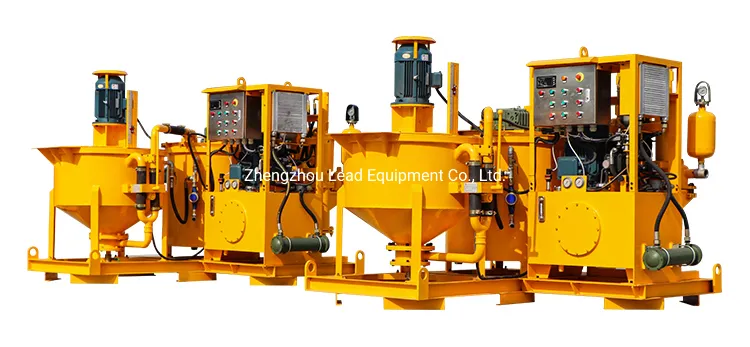

Grout Plant Overview

Key Features

01High-speed colloidal grout mixer
02Integrated liquid level monitoring
03Double plunger vertical type pump
04Hydraulic drive with safety release
05High temperature protection system
06Advanced pressure holding system
07Low flow pressure surge control
08Air & water dual cooling system

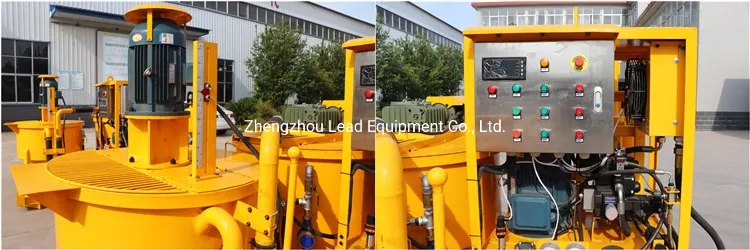

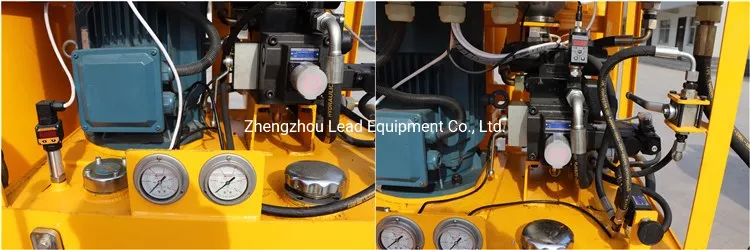

Feature Image 1 Feature Image 2

Technical Data Sheet

Description Technical Data
Grout Station ModelLGP400/700/80DPL-E
Dimensions / Weight2350*2100*1830mm / 1530kg
Mixer Performance
Capacity400L
Recycling Discharge1100L/min
Motor Power / Speed7.5Kw / 1450rpm
Agitator Performance
Capacity700L
Motor Power / Speed1.5Kw / 36rpm
Pump Performance (Vertical Hydraulic)
Low Pressure Output0-80L/min @ 0-25bar
High Pressure Output0-58L/min @ 0-40bar
Pump Power11Kw

Detailed Component Images

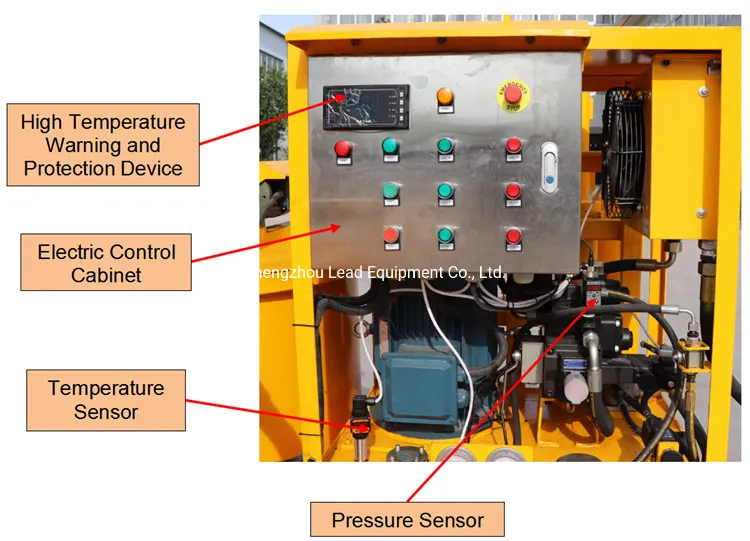

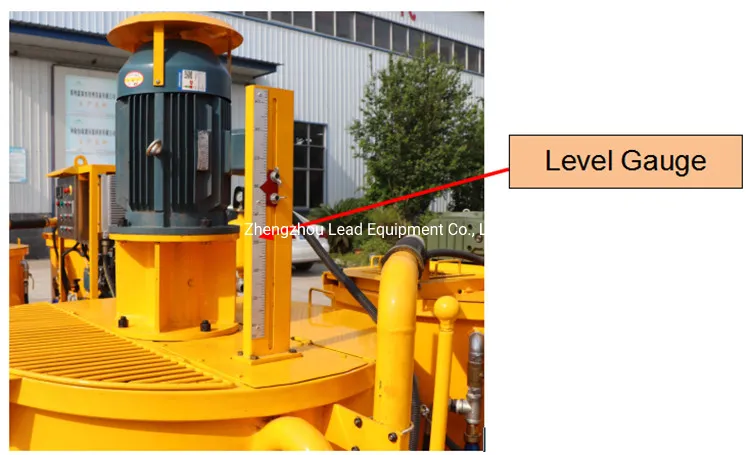

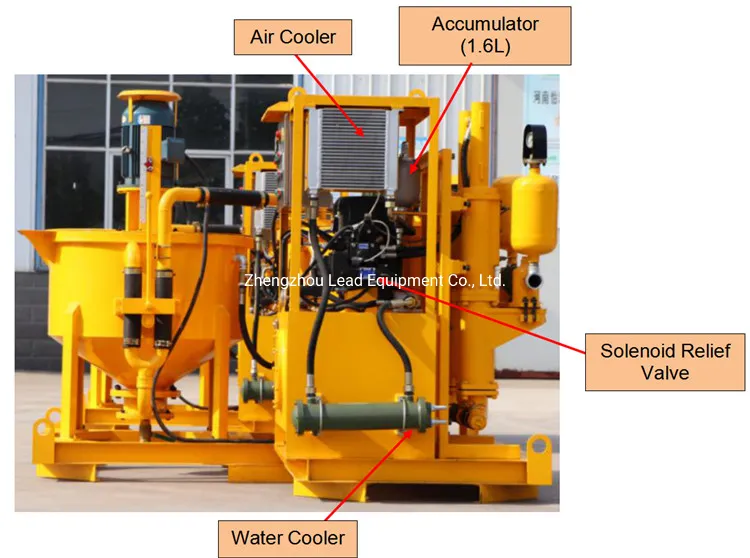

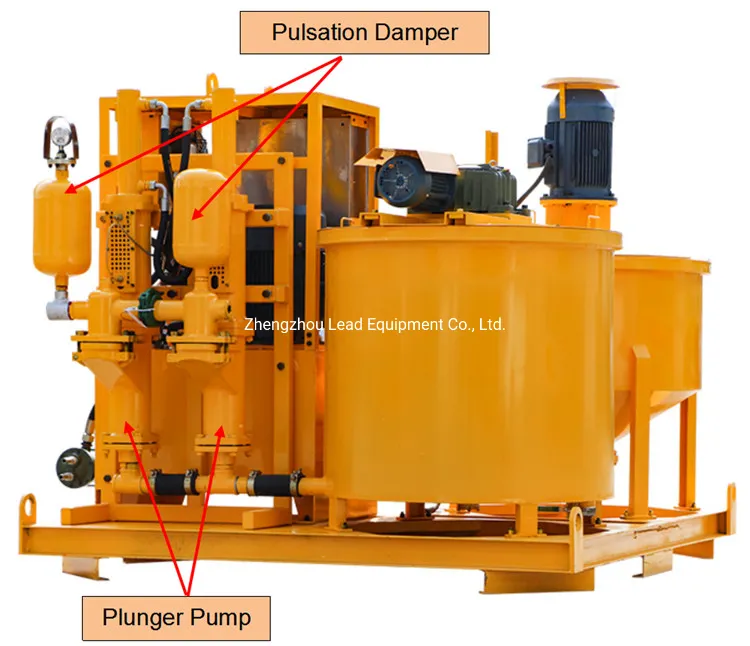

Detail 1 Detail 2 Detail 3 Detail 4

Field Applications

Civil EngineeringDam, tunnel, subway, mine, soil nailing wall, curtain, anchor, and cable trench grouting.
Building StructuresBridge repair, foundation reinforcement, slope support, and soil compaction.
Offshore EngineeringUnderwater foundation reinforcement and offshore platform stabilization.
MiningRoadway reinforcement, backfilling, and waterproof grouting operations.

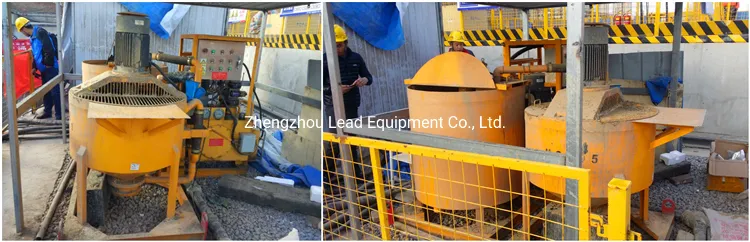

Pipe Jacking Application

Selection Guide

To provide the most suitable grouting equipment, please consider the following requirements:
  • Project type (Dam, micropile, foundation treatment, etc.)?
  • Required pump output and pressure?
  • Design Water/Cement ratio?
  • Preferred engine type (Electric motor or Diesel engine)?

Frequently Asked Questions

What components are included in this grout plant?
The LGP400/700/80DPL-E is a comprehensive station that integrates a high-speed mixer, an agitator, and a vertical grout pump into a single skid-mounted frame.
Is the grouting pressure adjustable?
Yes, both the grouting pressure and the displacement are fully adjustable to meet specific project requirements.
Can this equipment operate in high-temperature environments?
Absolutely. It is equipped with both an air cooler and a water cooler, making it suitable for operation in tropical and sub-hot areas.
What is the maximum particle size the pump can handle?
The pump is designed to handle slurry with a particle size of up to 5mm.
How does the pressure-holding system benefit the grouting process?
The system automatically maintains a slight pressure impulse to ensure that the grouting hole is completely and uniformly filled.
What is the suitable water-to-cement (W/C) ratio?
The equipment is optimized for a water-to-cement ratio of greater than or equal to 0.5:1.
