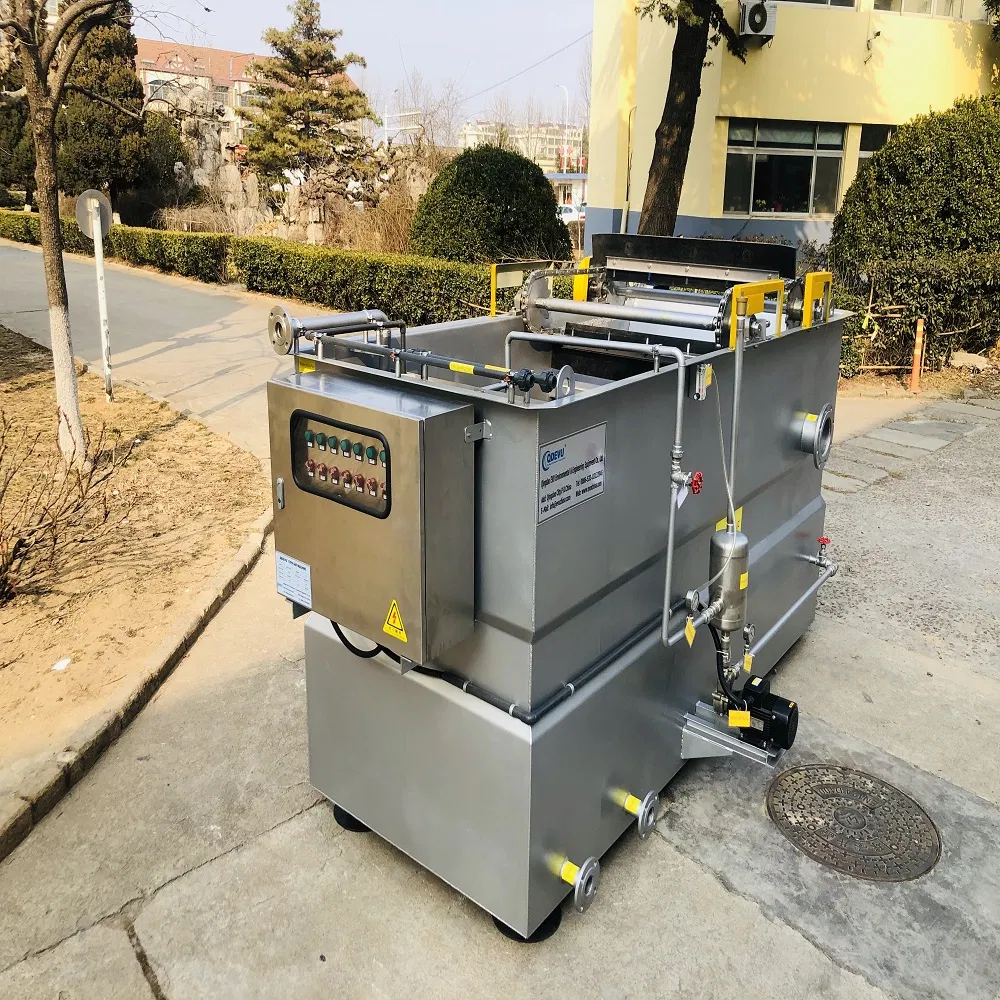

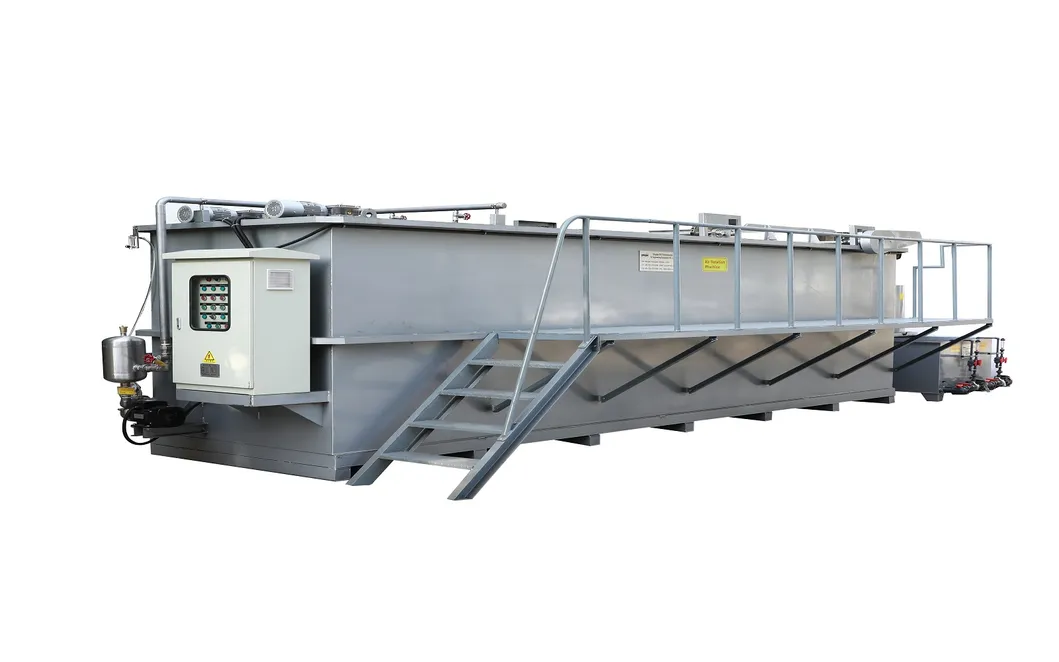

Dissolved Air Flotation (DAF) is recognized as one of the most effective and robust methods for removing total suspended solids (TSS), biochemical oxygen demand (BOD5), fats, oils, and grease (FOG), phosphorus (P), and other nutrients from industrial wastewater. Our engineered systems are designed to be intelligent and reliable, responding to variations in water streams and demanding industrial requirements.
With over 3000 systems provided worldwide, these solutions serve various industries including food and beverage production, dairy processing, meat processing, agricultural, oil and gas, and municipal markets.

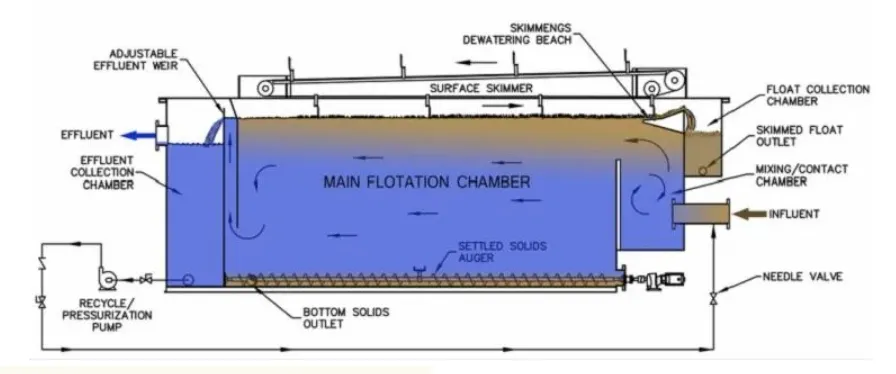

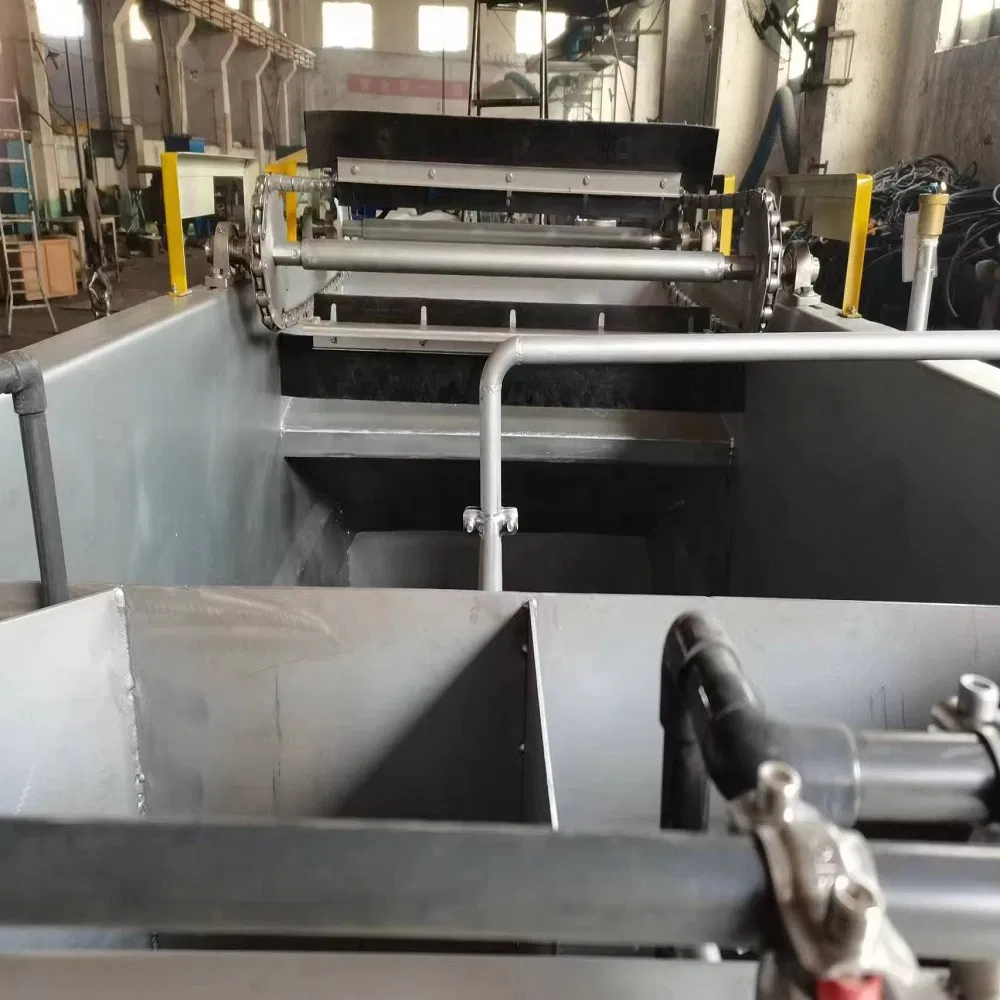

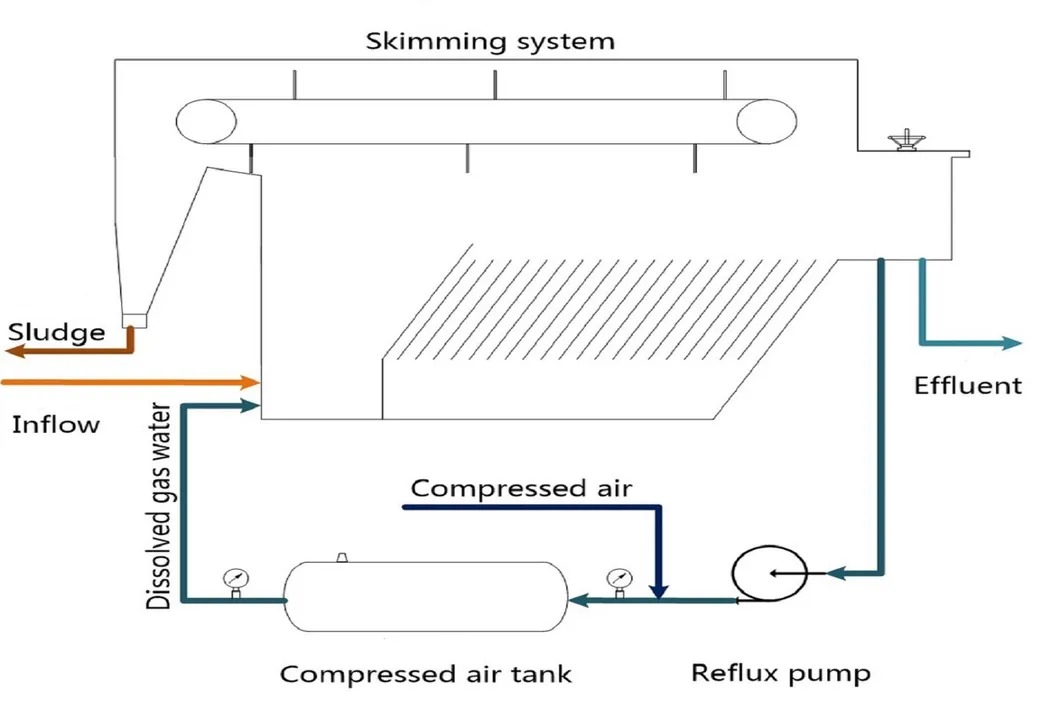

Dissolved Air Flotation is based on a physical/chemical process where air is injected into the water stream. With chemical assistance, particles and flocks float to the surface. This floating sludge layer is then automatically and continuously removed by a scraper mechanism, producing treated effluent virtually free of TSS and FOG.
| MODEL | CAPACITY (M3/H) | DIMENSION (M) | PUMP POWER (KW) | AIR COMPRESSOR (KW) | TOTAL POWER (KW) |
|---|---|---|---|---|---|
| Model-5 | 5 | 3.0*1.0*1.2 | 1.1 | ---- | 1.5 |
| Model-10 | 10 | 3.5*1.2*1.5 | 1.5 | ---- | 1.9 |
| Model-20 | 20 | 5.0*1.5*1.5 | 3 | ---- | 3.4 |
| Model-30 | 30 | 6.0*1.8*2.0 | 4 | ---- | 4.4 |
| Model-50 | 50 | 7.0*2.0*2.0 | 7.5 | 3 | 11.12 |
| Model-70 | 70 | 9.0*2.0*2.0 | 7.5 | 3 | 11.5 |
| Model-80 | 80 | 9.5*2.5*2.0 | 7.5 | 4 | 14.1 |
| Model-100 | 100 | 12.0*2.5*2.0 | 11 | 4 | 17.6 |
| Model-150 | 150 | 14.0*3.0*2.5 | 15 | 5.5 | 23.8 |
| Model-200 | 200 | 16.0×3.0×2.5 | 18 | 5.5 | 27.1 |
