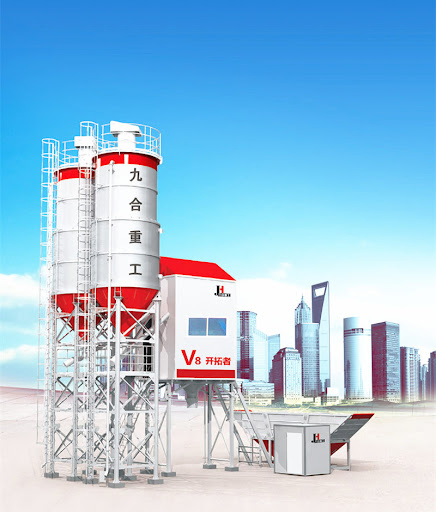

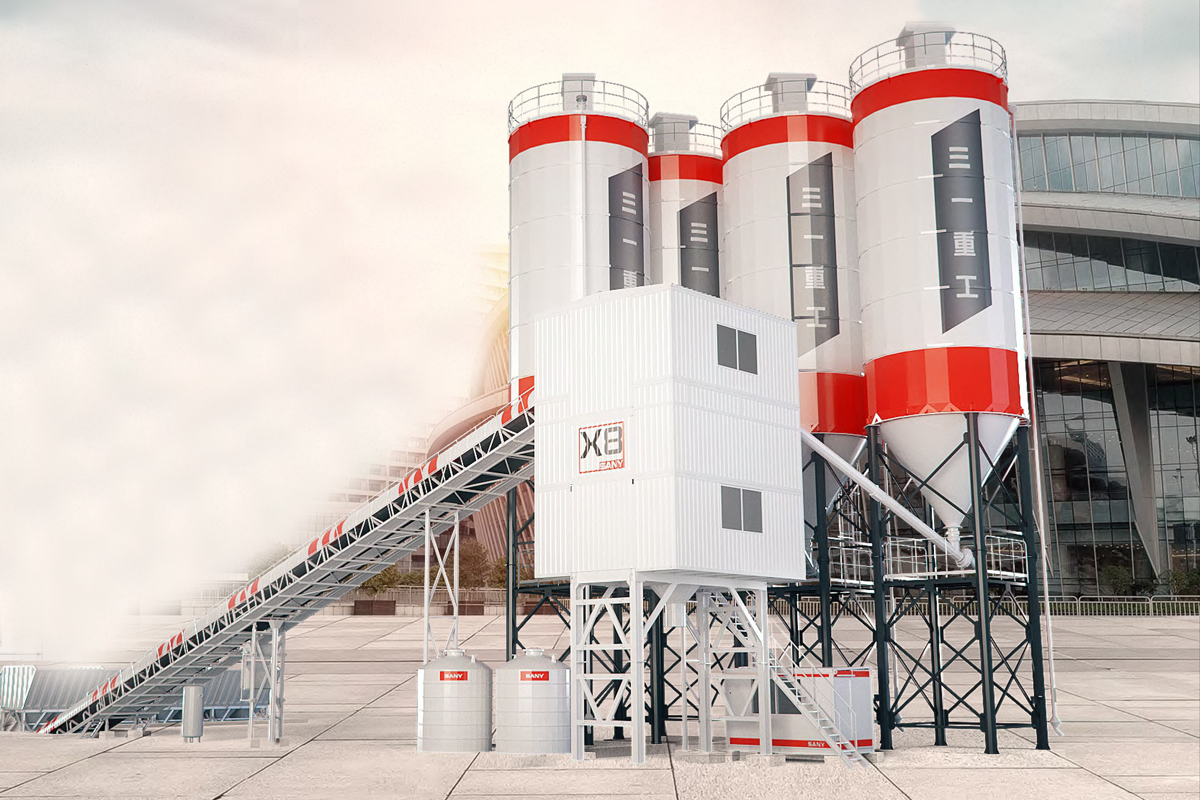

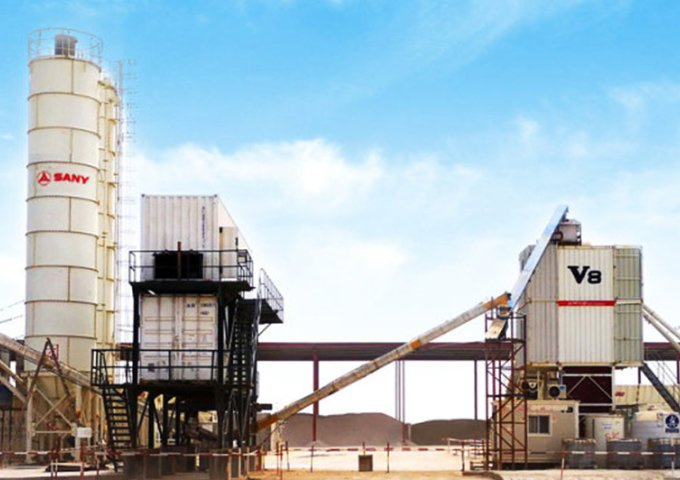

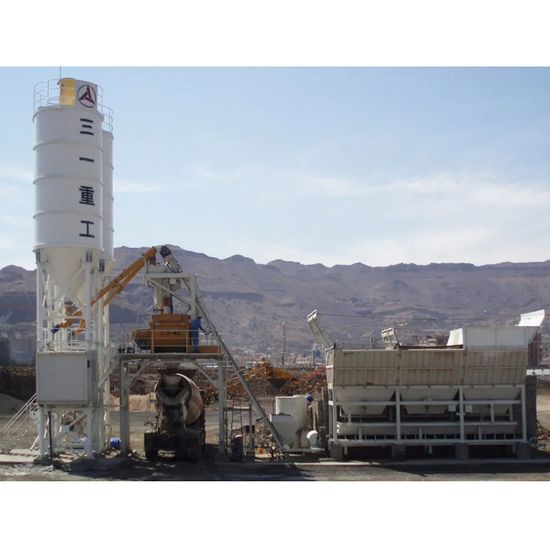

Computer-Controlled Weighing System for Ready Mix Concrete

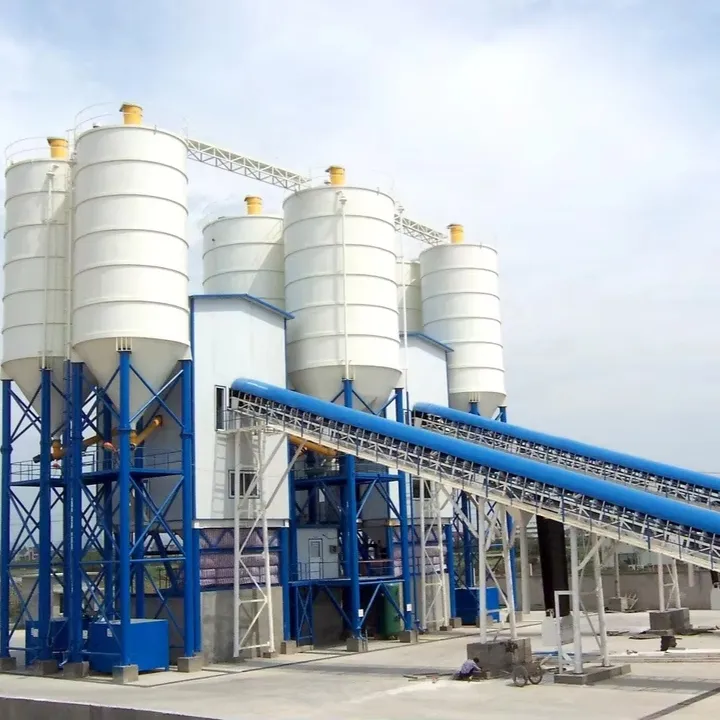

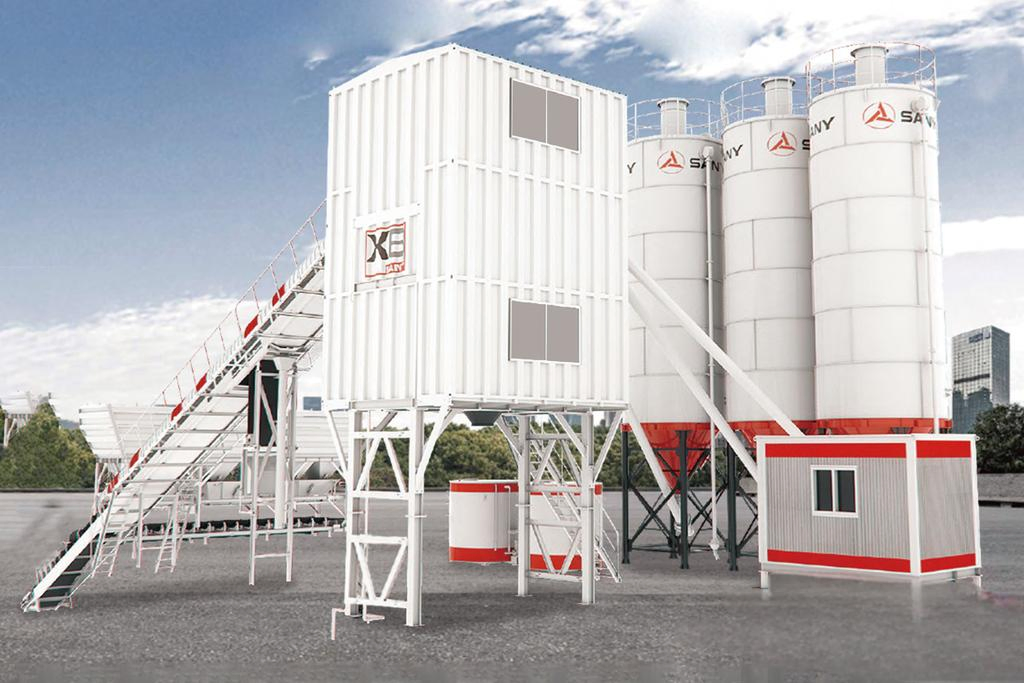

According to the size of the customer's site, the inclined belt can be 20°, 28°, or 45°, the silo can be high or low frame, and the batching station can be arranged as "-" or "L" type, the loading ramp or flat loading is optional.
Inclined belt batching plant has high efficiency and stability and low failure rate. It can be used as a commercial batching plant and a project batching plant.
Core patented shaft end sealing technology, automatic compensation, reliable sealing, easy maintenance with lower cost. Interrupted spiral arrangement of stirrer increases efficiency by 20%.
Multi-language operation interface. Distributed network architecture or the entire control system with full digital transmission via Ethernet at 100,000kbps.
Multi-gear and multi-speed aggregates, adaptive adjustment of each weighing mode. Self-learning algorithm for weighing parameters with automatic correction of dropout.
Pre-installation of all electrical elements and pipelines, reducing the installation workload on site. Designed according to standard container size for optimized shipping.
| Aggregate Capacity | 3*10 m³ |
| Category of Aggregate | 3 |
| Feeding Mode | Skip |
| Material Discharging Height | 3.8 m |
| Max. Aggregate Size | 80 mm |
| Motor Power | 2*30 kW |
| Nominal Capacity of Mixer | 1500 L |
| Rated Power | 135 kW |
| Reference Weight | 43.5 T |
| Theoretical Productivity | 90 m³/h |
