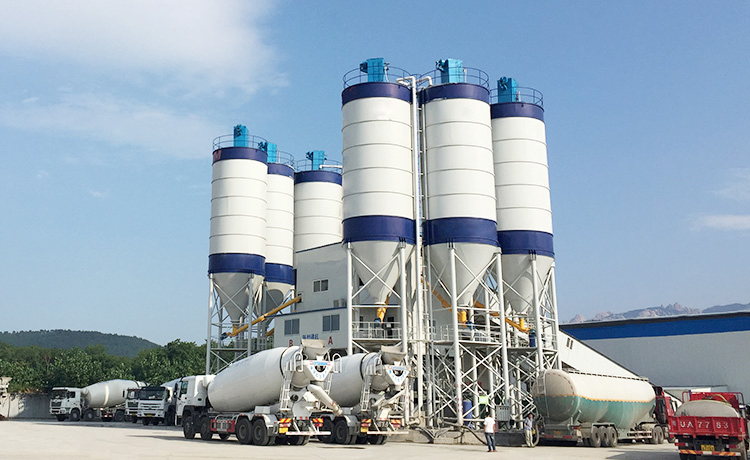

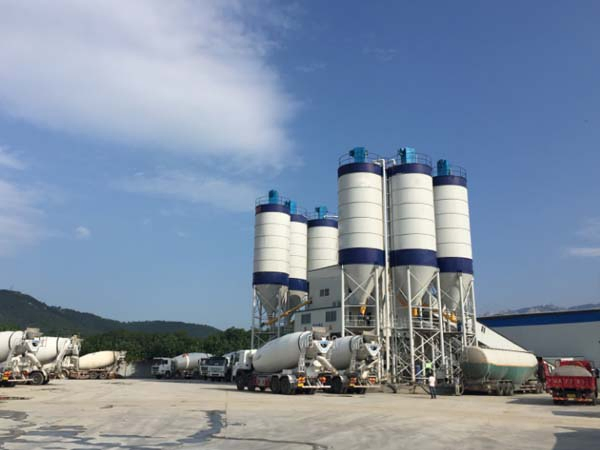

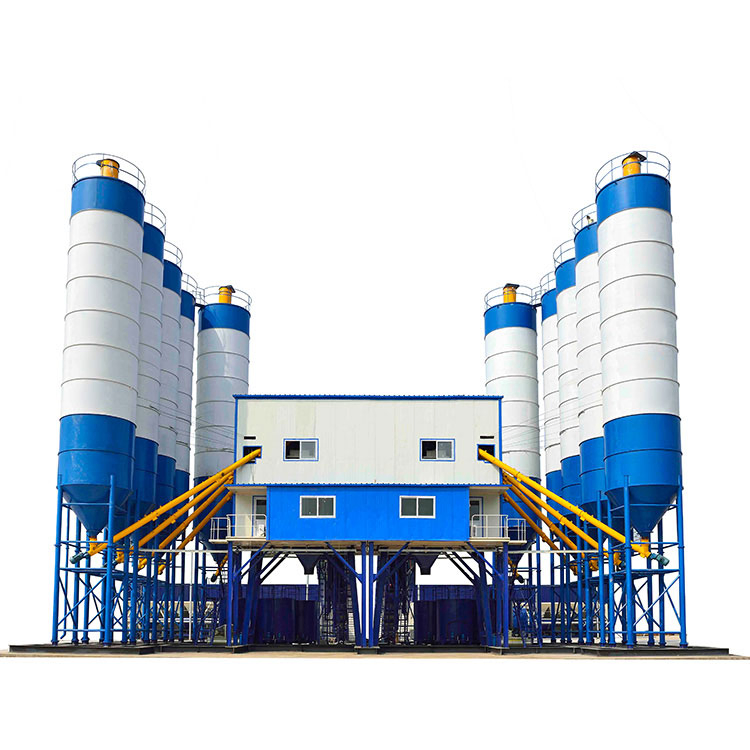

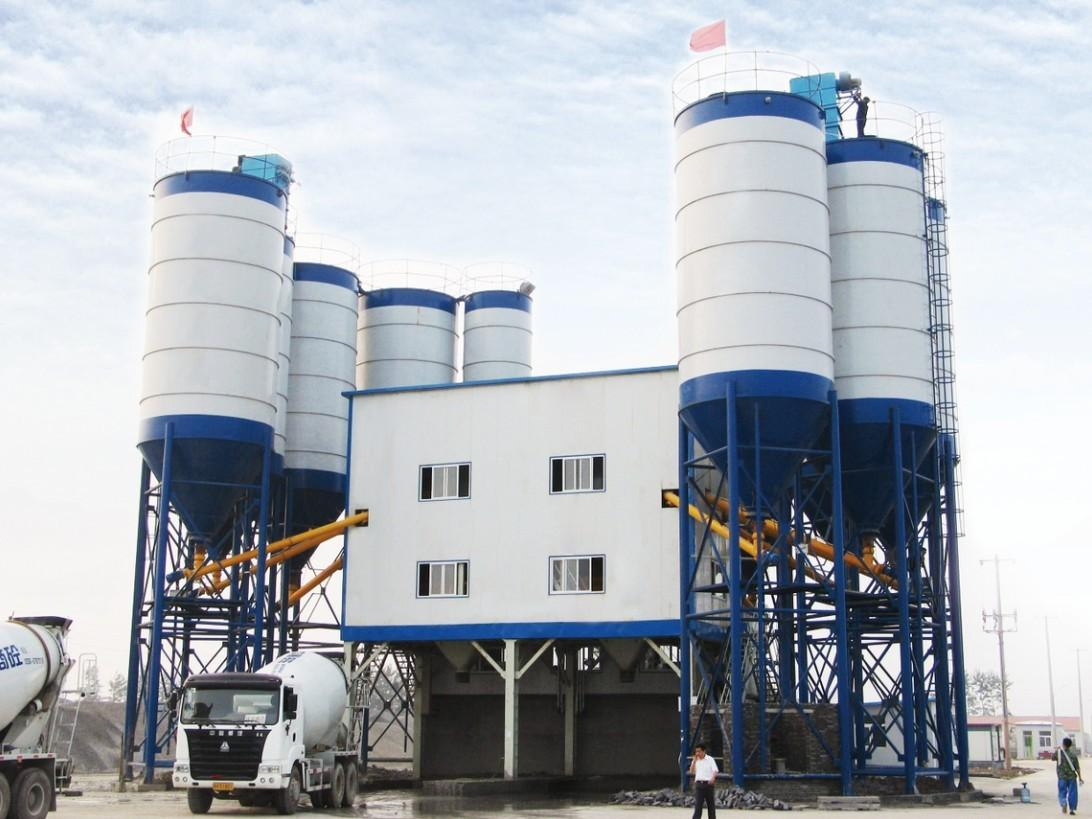

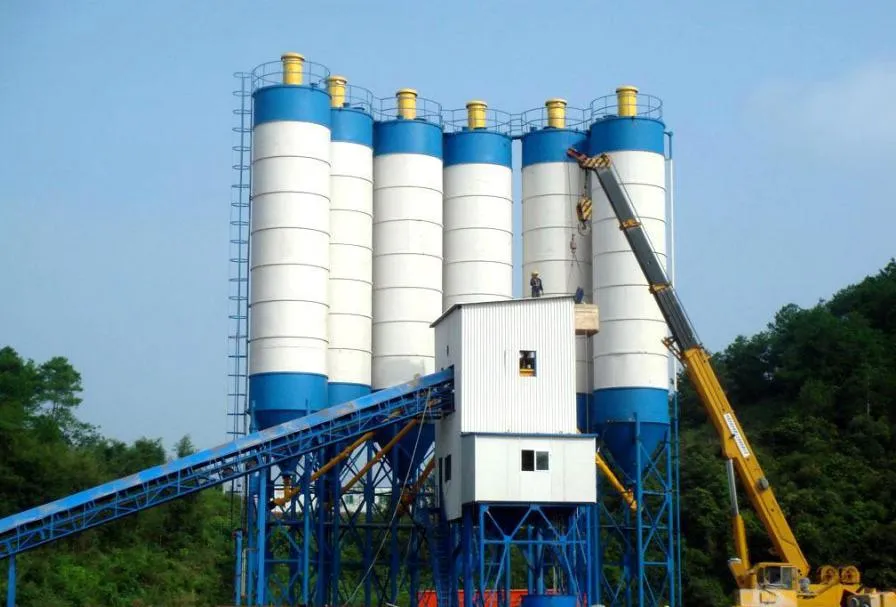

HZS90 90m³/h Coating Concrete Mixer Batching Plant

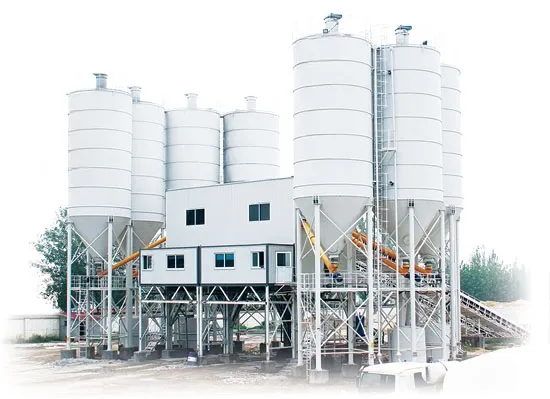

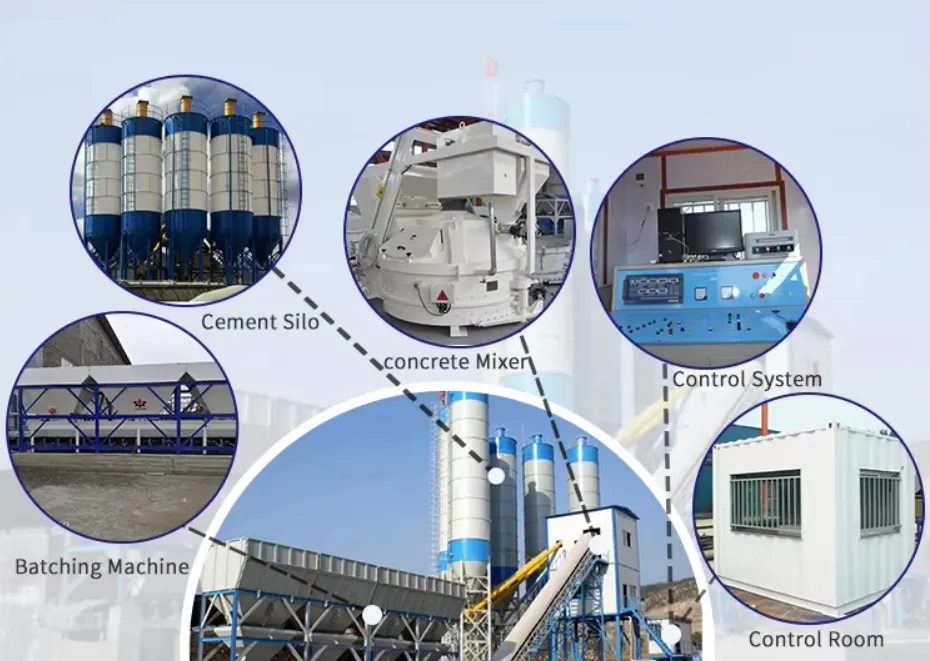

HZS90 concrete mixing plant is a complete set of special equipment for the production of concrete. The equipment adopts the model MAO2250/1500 double horizontal shaft mixing main machine. The productivity is 90m3/h, the concrete unloading height can be customized, can mix various types of concrete, especially suitable for mixing dry and hard concrete.
It is highly suitable for construction projects above medium scale, including hydropower, roads, ports, docks, bridges, and other engineering construction, as well as large and medium-sized prefabricated parts factories and concrete production plants.
| Model | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|
| Discharging Capacity (L) | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity (L) | 2400 | 2400 | 3200 | 4000 | 4800 |
| Max Productivity (m³/h) | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor |
| Discharging Height (m) | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Aggregate Species | 3~4 | 4 | 4 | 4 | 4 |
| Max Aggregate Size (mm) | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Silo Capacity (set) | 3×100T | 3×100T | 4×100T/200T | 4×200T | 4×200T |
| Mixing Cycle (s) | 60 | 60 | 60 | 30 | 30 |
| Total Capacity (kw) | 110 | 198.06 | 210 | 230 | 288 |
