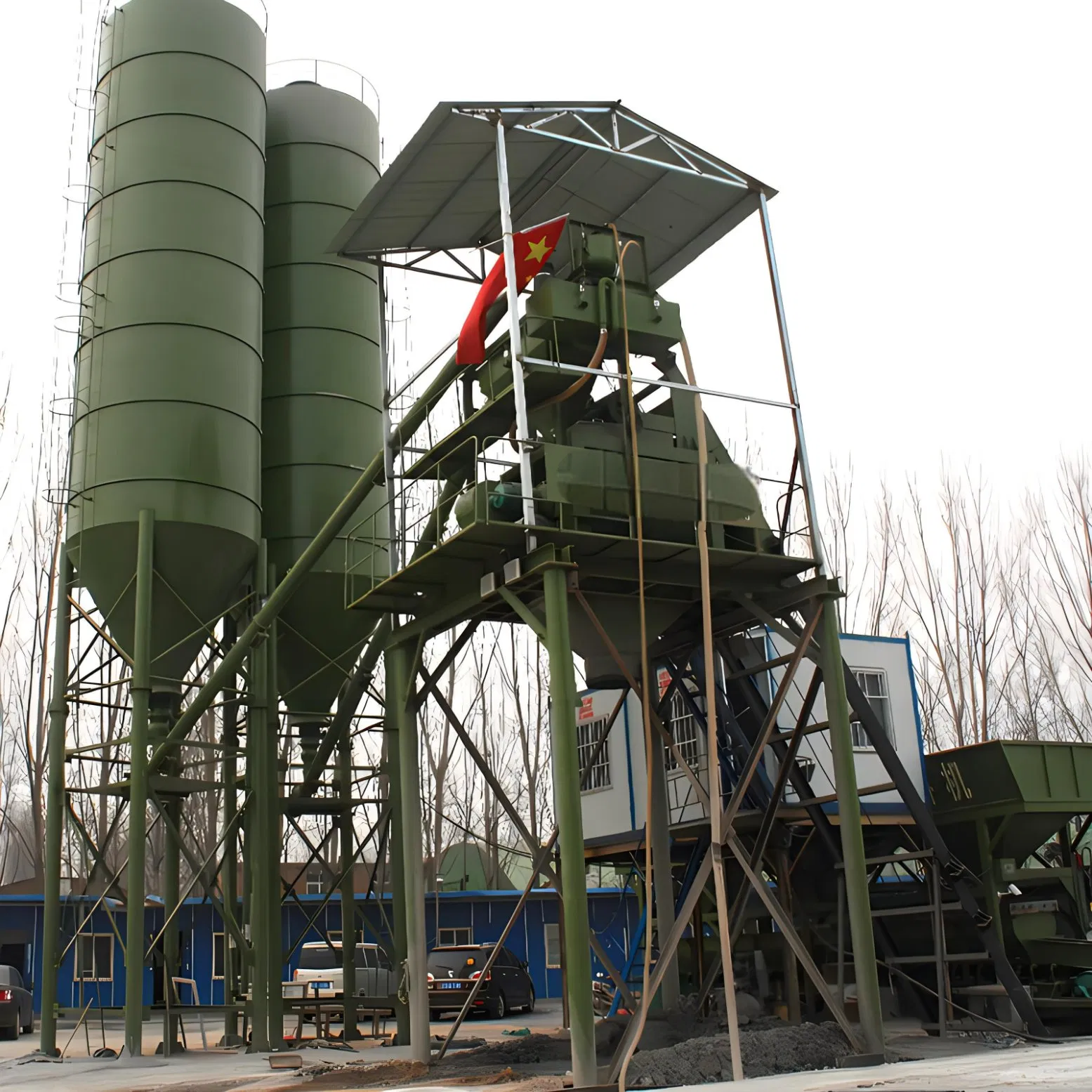

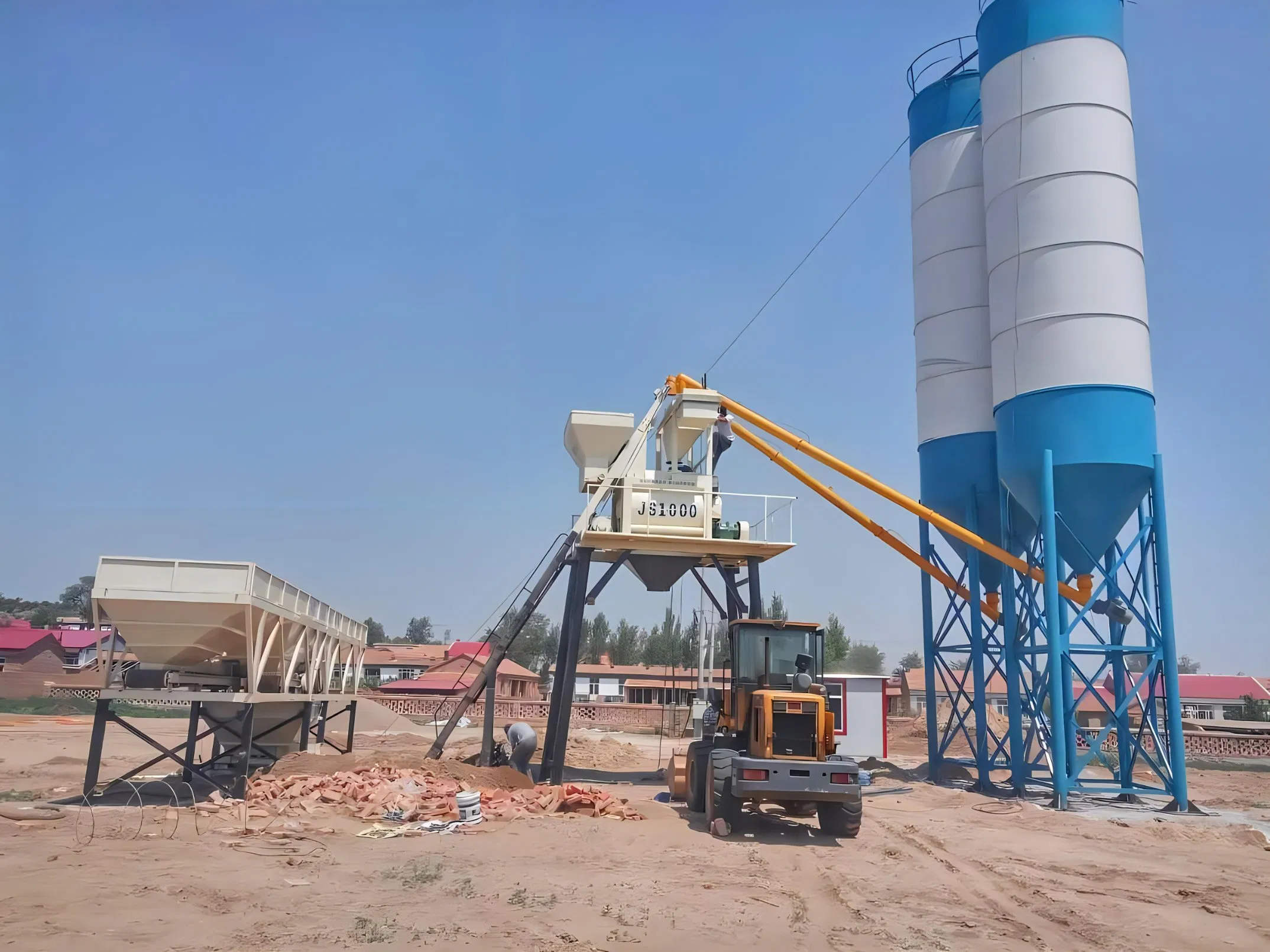

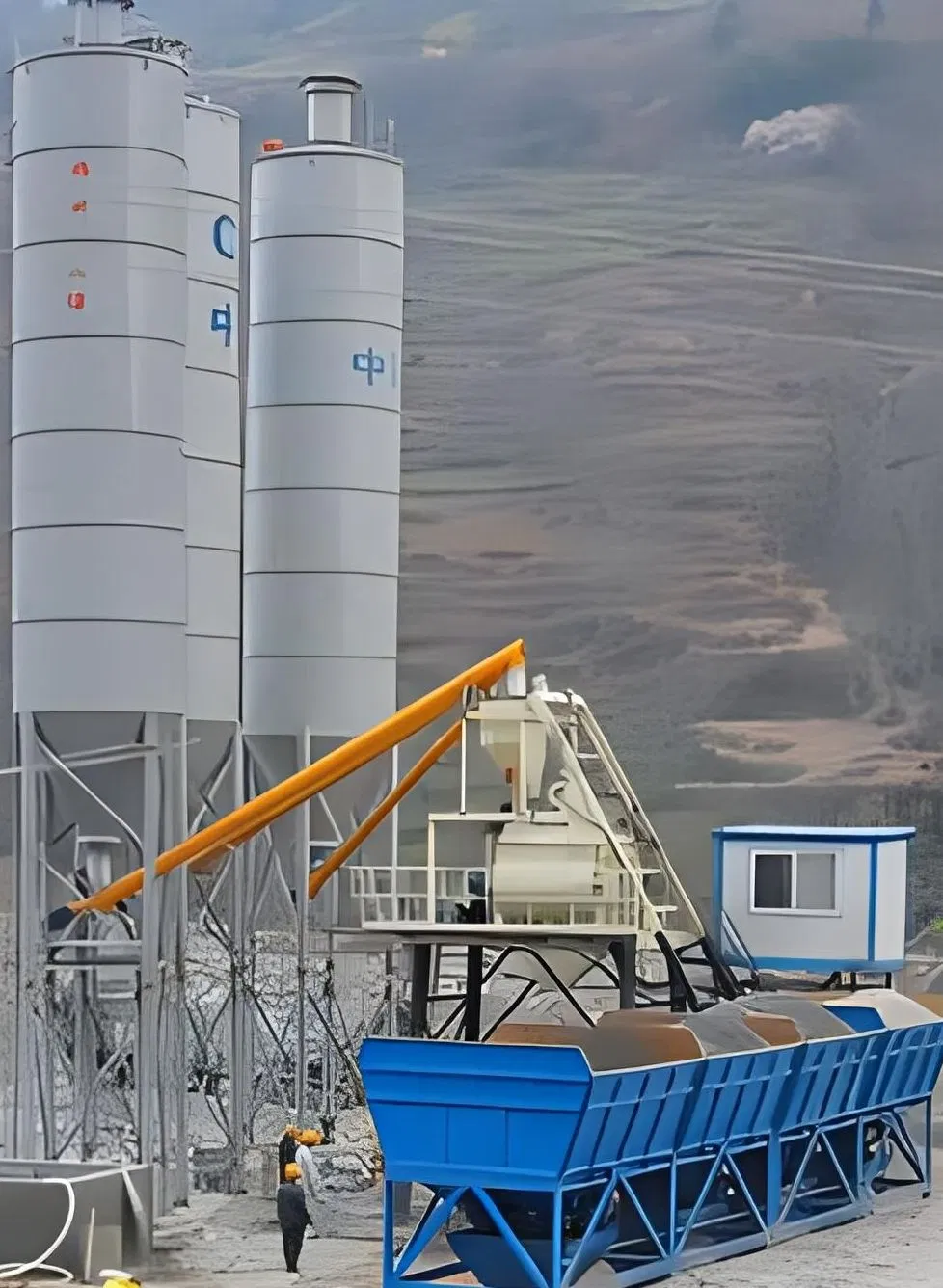

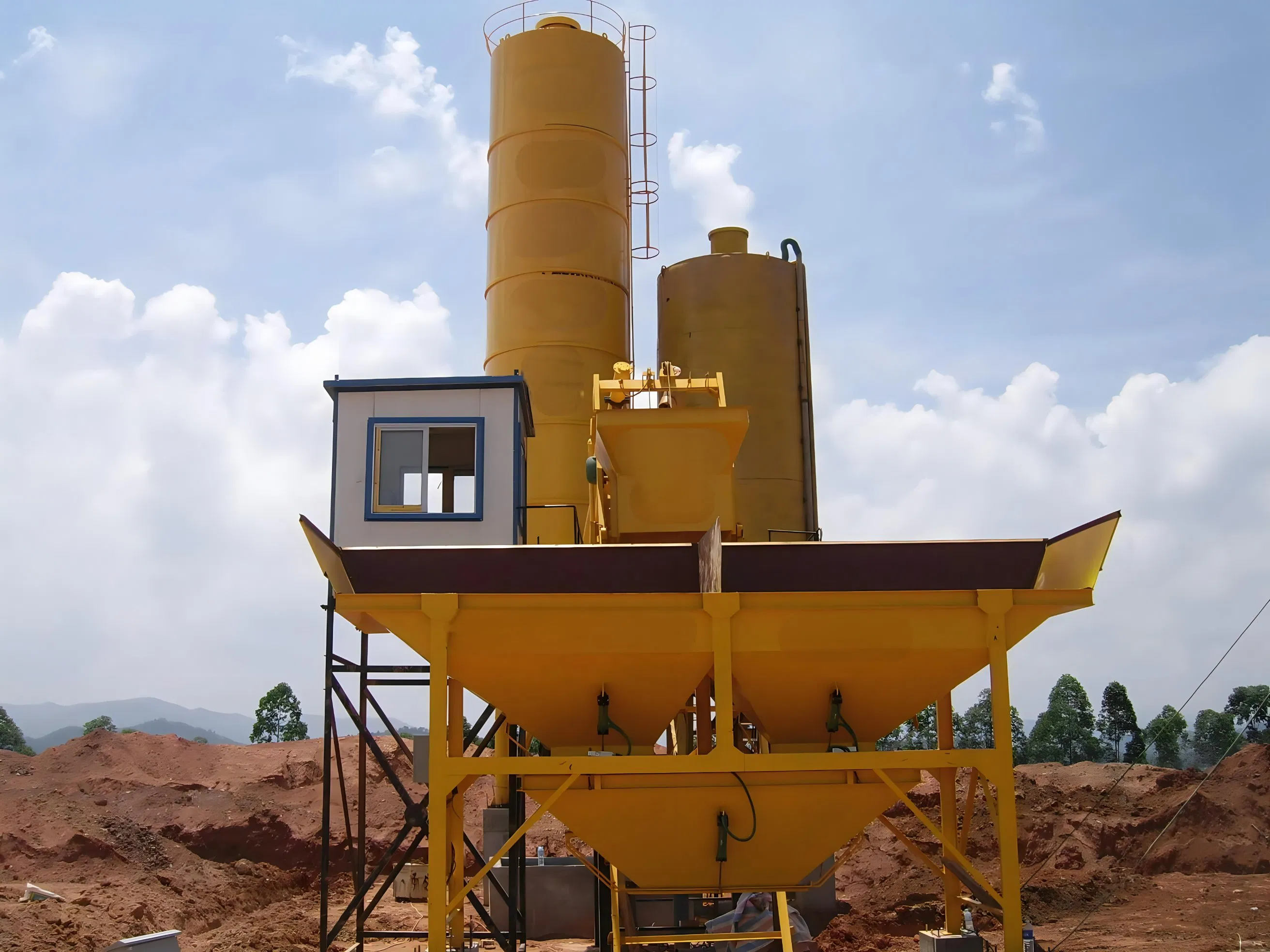

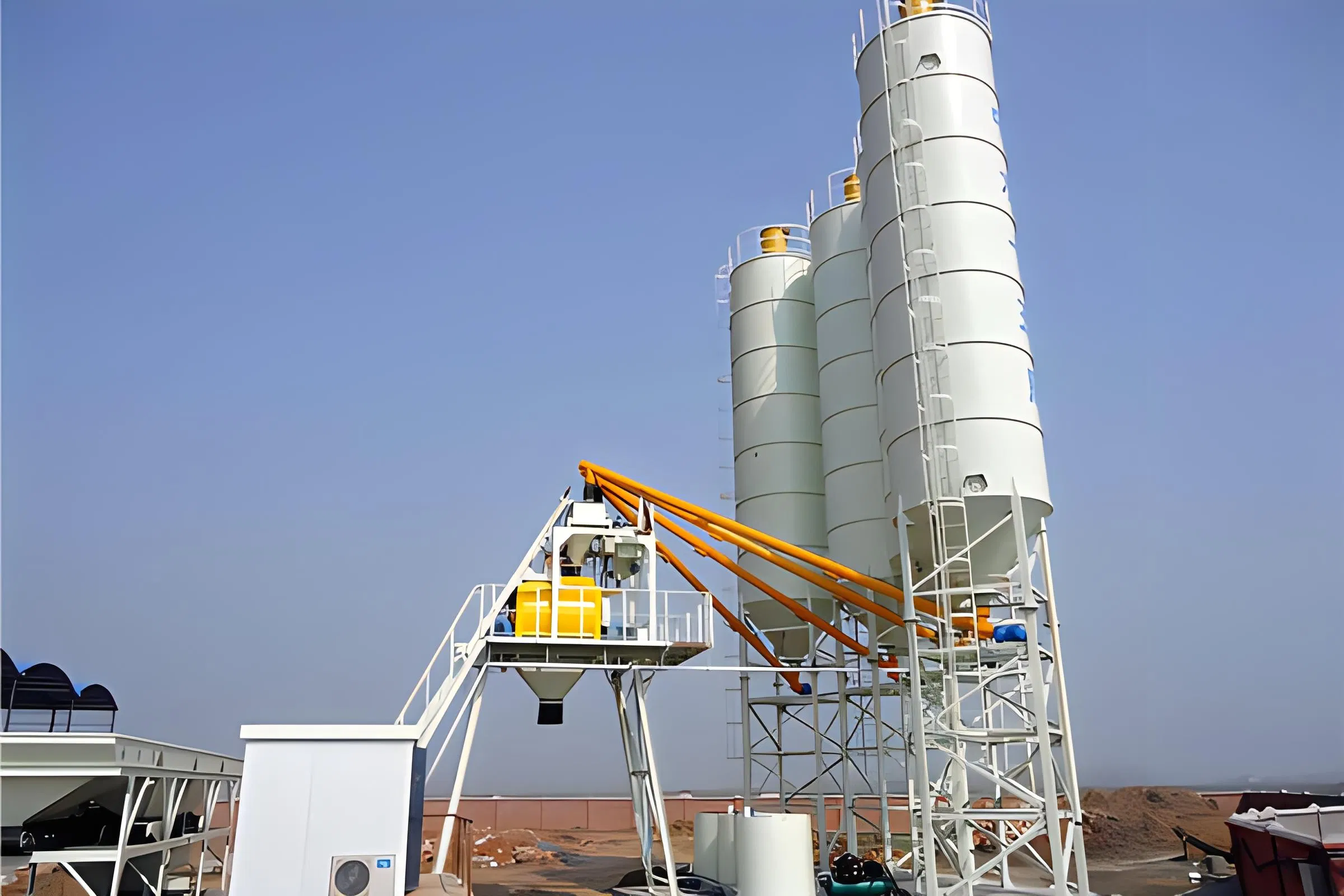

Hzs75 M3/H Modular Concrete Batching Plant: Flexible Configuration Options

1 / 5

Hzs75 M3/H Modular Concrete Batching Plant: Flexible Configuration Options

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

HZS75

Type

Concrete Mixing Plant

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Spiral Type

Productivity

75 M3/H

Vibrating Amplitude

2.0mm

Certification

ISO9001: 2000, CE

Condition

New

Color

White

Hopper Loading

Transport Package

Container Transportation

HS Code

84743100

Production Capacity

5000 Pieces/Year

Product Description

Specifications	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS100	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	3200	4000	4800
Max Productivity(m³/h)	25	35	50	60	75	90	100	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	Belt	Skip Hopper	Belt	Belt	Belt	Skip Hopper	Belt
Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	3.8~4.5	4.5	4.5
Aggregate Species	2~3	2~3	3~4	3~4	3~4	4	4	4	4	4
Max Aggregate Size(mm)	≤60	≤80	≤80	≤80	≤80	≤80	≤120	≤120	≤150	≤180
Mixing Cycle Time(s)	72	60	60	60	60	60	60	60	30	30
Installed Capacity(kw)	60	65.5	85	100	145	164	188	210	230	288

Trend Of Future Concrete Mixing Plants
Leveraging decades of profound understanding of concrete mixing technology, the new R series electric concrete mixing stations have been independently developed, specifically designed for concrete mixing. A comprehensive study of the world's most advanced mixing technologies was conducted, identifying key features that optimize mixing performance in an industrial environment. Based on these insights, this information was synthesized to lay the foundational principles of the product design.
