Hzs50 50m3/H Automatic Small Concrete Batching Plant for Sale

Customization:	Available
After-sales Service:	Guidance on Erecting, Commissioning and Operator T
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

HZS50 automatic small concrete batching plant

Type

Concrete Mixing Plant

Shotcrete Type

Semi-Dry

Machining Process

Automatic Concrete Production Line

Structure

Spiral Type

Productivity

50m³/h

Feeding Height

1800mm

Certification

ISO9001: 2000

PLC

Omron or Siemens

Concrete Mixer Volume

1000L

Cement Silo

50/100t Bolted Type

Scale Accuracy

99% Accuracy

Product Overview

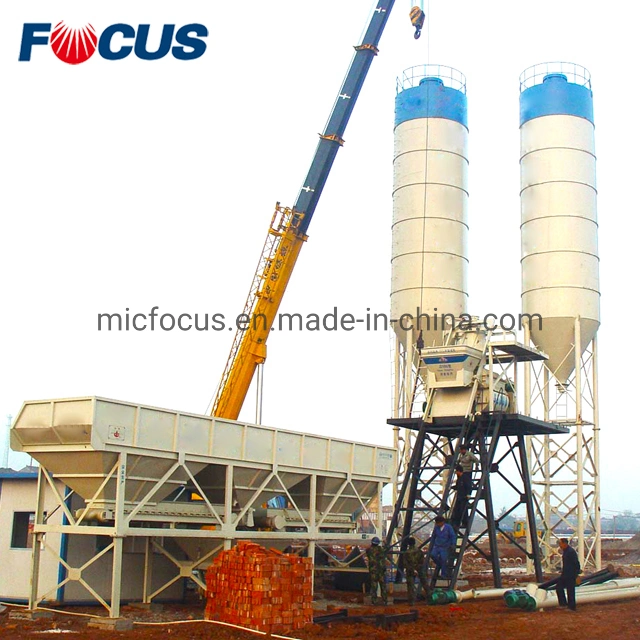

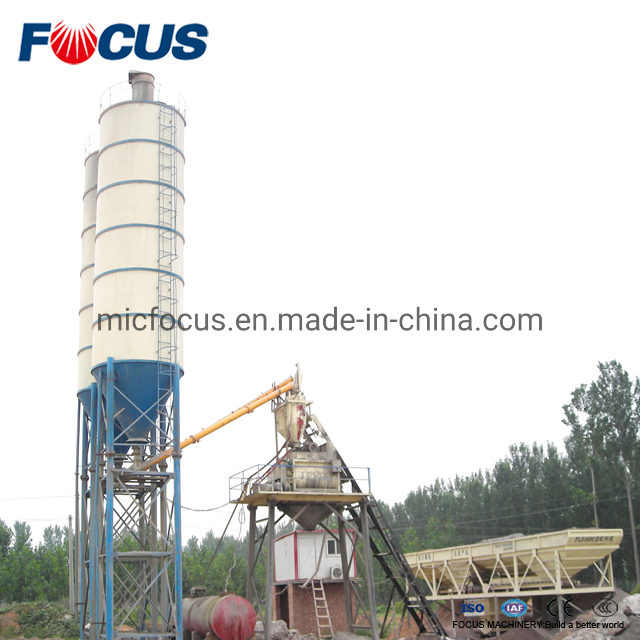

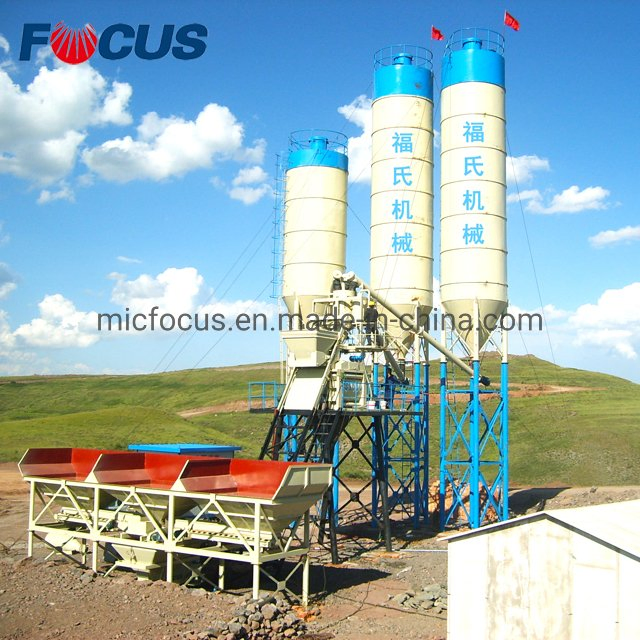

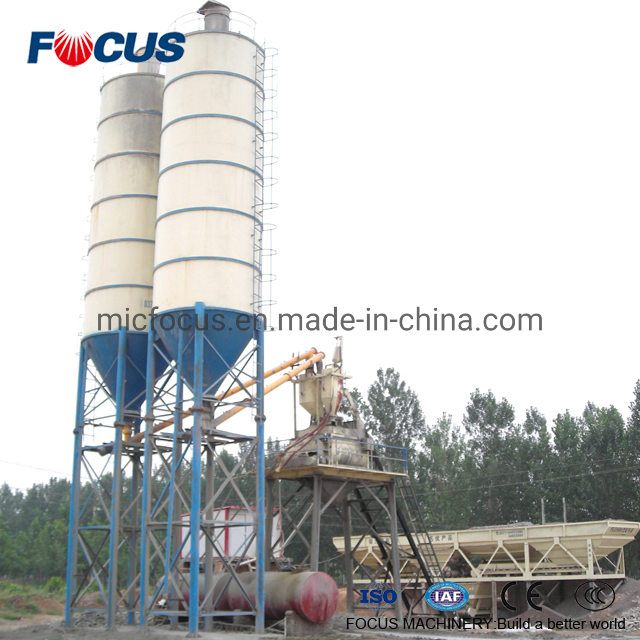

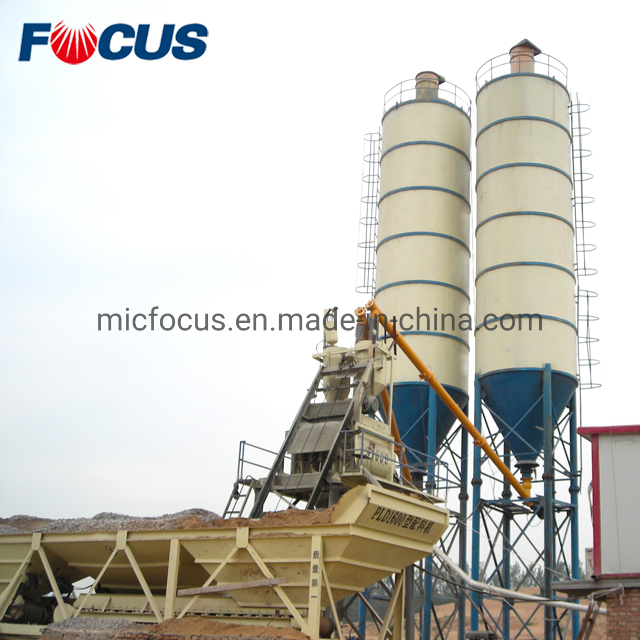

Hzs50 50m3/H Automatic Small Concrete Batching Plant

Combining advantages of various technologies, this concrete batching plant adopts a modular structure design, ensuring convenient installation, removal, and safe operation with exceptional mixing effect and high efficiency. It features PLC automatic logical program control and host computer tracking management for reliable performance.

Main Features

✓

Twin-Shaft Compulsory Mixer: Mixes evenly and rapidly, achieving good results for dry, semi-dry, and plastic concrete.

✓

Planetary Gear System: Compact-structured gear ensures smooth, speedy, and efficient transmission.

✓

Flexible Aggregate Batcher: Hoppers are pneumatically controlled by computer with fast and accurate instructions.

✓

Precision Weighing: Three-point suspension sensors guarantee accurate powder and liquid measurement (99% accuracy).

✓

Environmental Protection: Dust collection system ensures the entire batching plant remains in a closed state to handle dust generated during loading.

✓

Advanced Control System: Stable performance with Siemens/Omron PLC and high-precision weighing modules.

✓

Adaptability: Heating systems and ice plants can be integrated for operations in severely cold or hot environments.

Technical Parameters

Model	HZS25	HZS35	HZS50	HZS75
Theoretical output(m³/h)	25	35	50	75
Mixer model	JS500	JS750	JS1000	JS1500
Output per batch(m³)	0.5	0.75	1	1.5
Aggregate batcher	PLD800	PLD1200	PLD1600	PLD2400
Total power(KW)	27	35	80	110
Discharge height(m)	3.8 - 4.1
Total weight (ton)	20	25	35	45

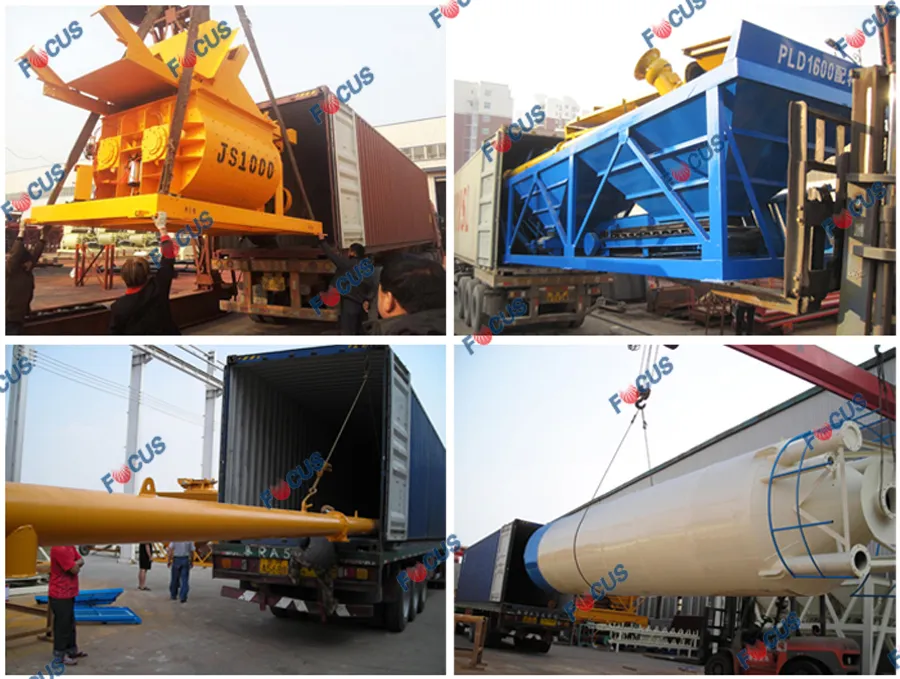

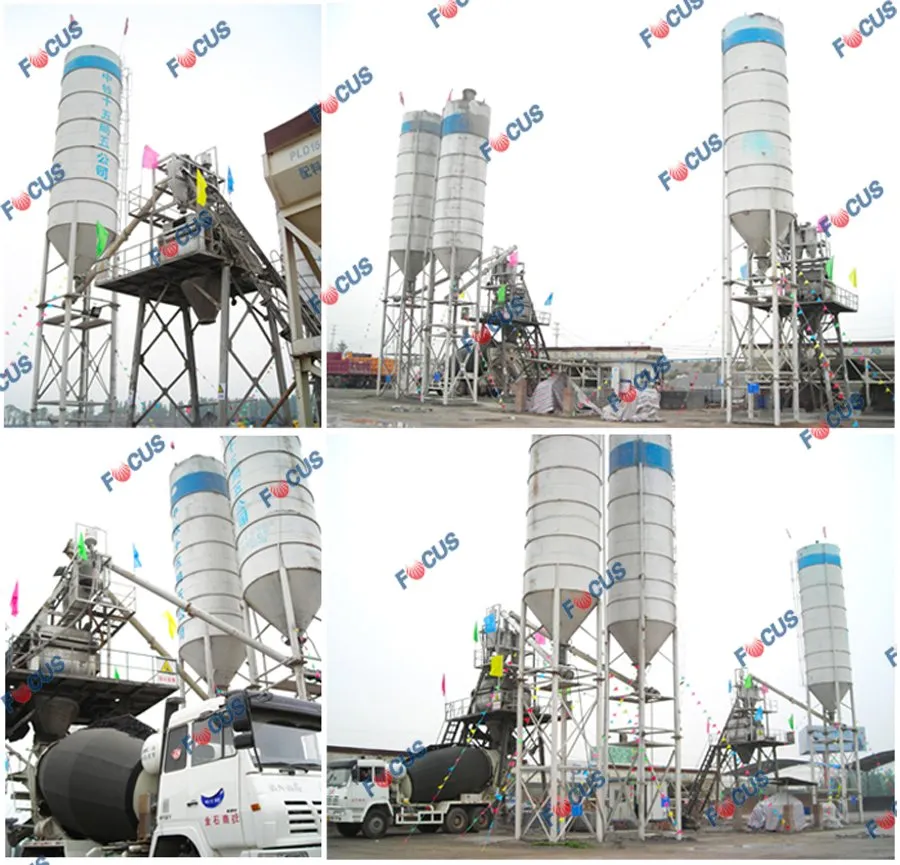

Global Installation & Distribution

Frequently Asked Questions

What is the production capacity of the HZS50 model?

The HZS50 model has a theoretical productivity of 50m³/h, making it ideal for small to medium-sized construction projects.

What type of control system is used in this batching plant?

It uses a fully automatic PLC system (usually Siemens or Omron) with high-speed precision weighing modules for material measurement and transfer.

Is the weighing system accurate enough for high-grade concrete?

Yes, the plant is equipped with three-point suspension sensors for liquid and powder weighing, achieving an accuracy of approximately 99%.

Can this concrete plant operate in extreme weather conditions?

Absolutely. The system can be integrated with heating units for cold climates or ice plants for hot environments to ensure stable production.

How is dust managed during the production process?

The entire plant operates in a closed state, featuring a specialized dust collection system that handles particles generated during mixing and pumping.

What kind of mixer is integrated into the HZS50?

It utilizes a JS1000 twin-shaft compulsory concrete mixer, which provides a 1000L volume per batch and ensures rapid, even mixing.
