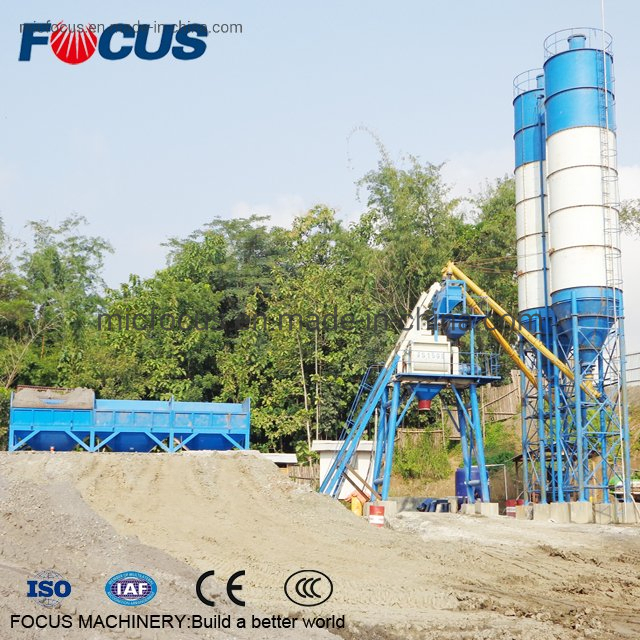

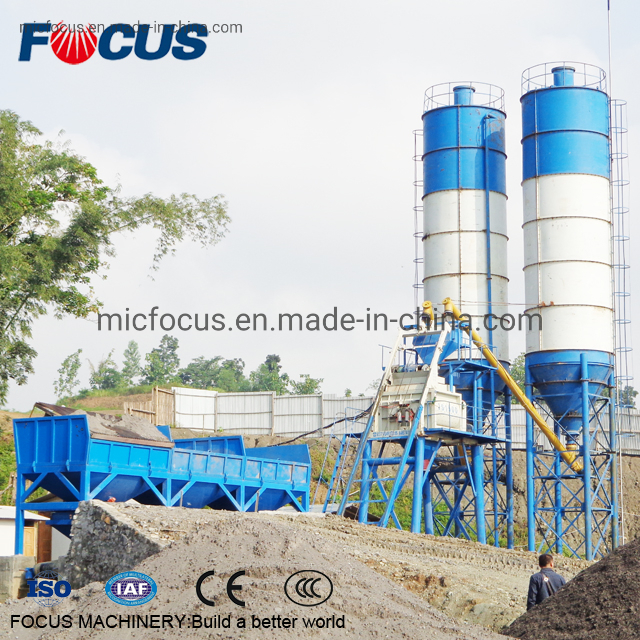

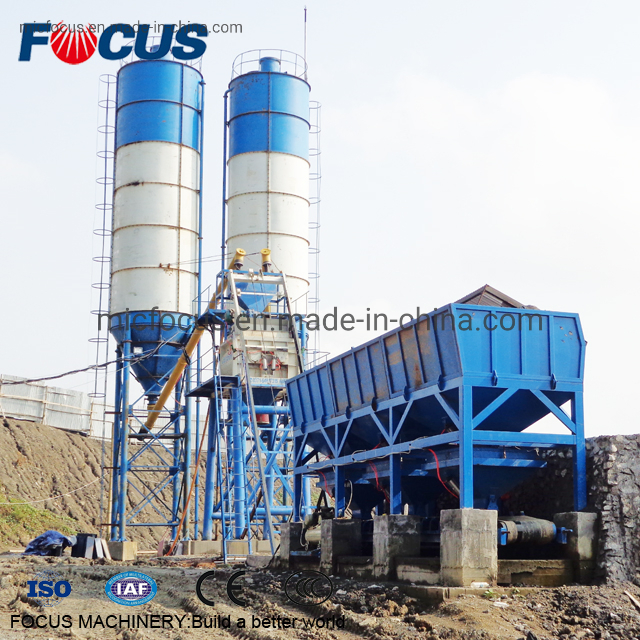

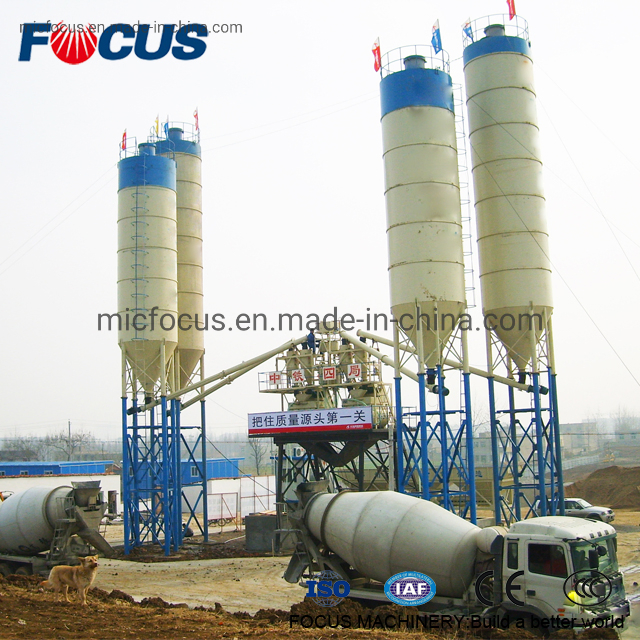

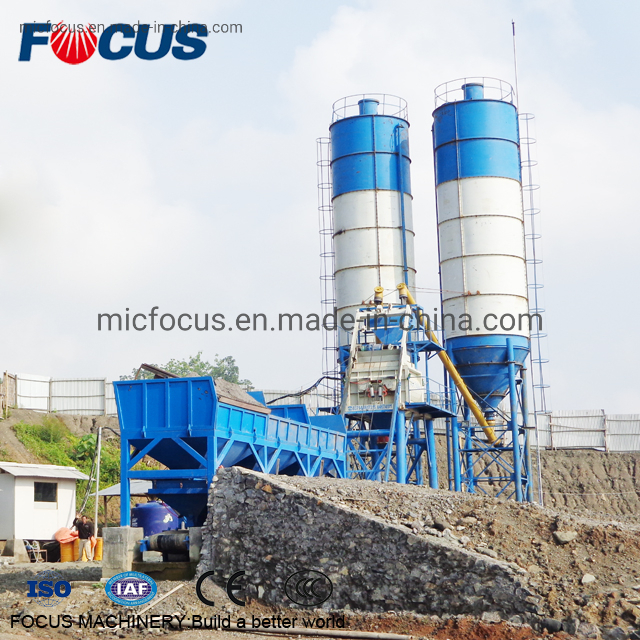

Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
1 / 5
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale
Hzs25 25m3/H Small Concrete Batching Plant for Sale

Hzs25 25m3/H Small Concrete Batching Plant for Sale

Customization: Available
After-sales Service: Guidance on Erecting, Commissioning and Operator T
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
HZS25
Type
Concrete Mixing Plant
Shotcrete Type
Semi-Dry
Process
Automatic Production Line
Structure
Spiral Type
Productivity
25m³/h
Certification
ISO9001: 2000
Condition
New
PLC
Omron or Siemens
Mixer Volume
500L
Cement Silo
50/100t Bolted Type
Scale Accuracy
99%
★

Product Description

HZS25 25m3/H Small Concrete Batching Plant for Sale

On the basis of combining advantages of various foreign ready mixed concrete batching plant and advanced technology, this HZS ready mixed concrete batching plant adopts modular structure design, which maintains convenient installation & removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.

Concrete Batching Plant Mixer
Concrete Batching Plant Structure
01
Adopting twin-shaft compulsory concrete mixer, it mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete.
02
Compact-structured planetary gear ensures smooth, speedy and efficient transmission.
03
Concrete batcher can be designed as underground, partially underground or fully-above ground, with 3-6 hoppers pneumatically controlled by computer.
04
Aggregate belt conveyor is truss-framed for easy assembly; inclination angle can be up to 45° by adopting groovy belt for limited ground areas.

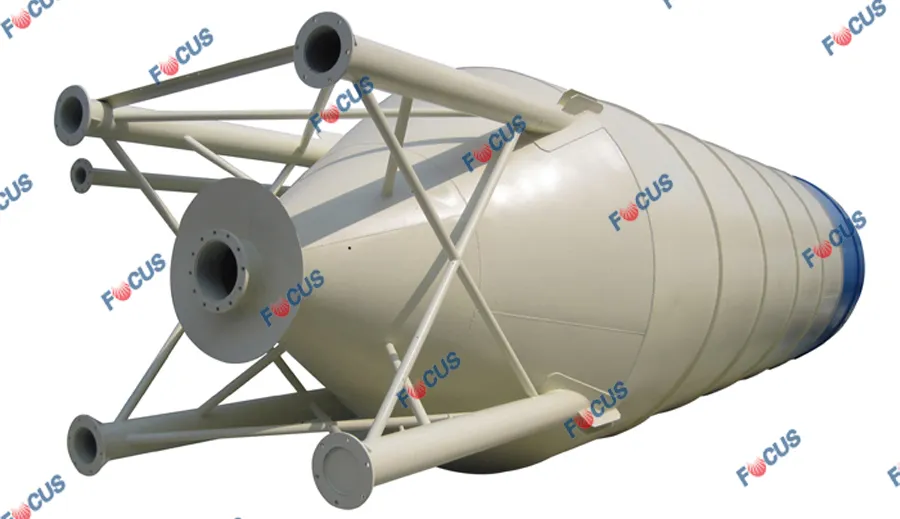

Cement Silo System

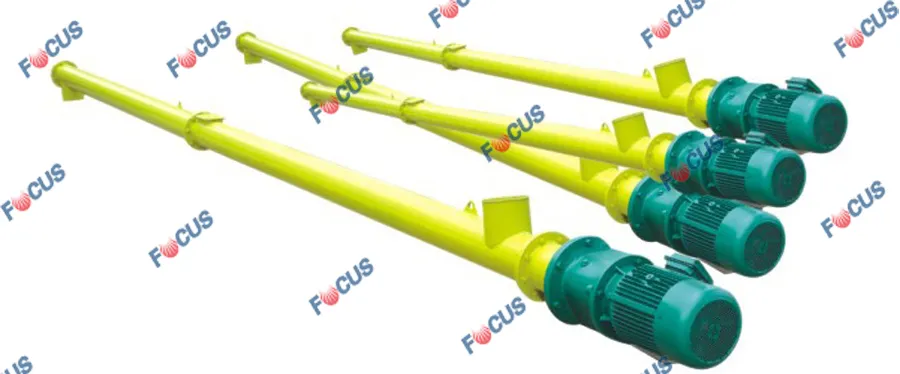

Screw Conveyor
05
Three-point suspension sensors guarantee accurate and fast powder and liquid weighing.
06
Dust collection system deals with dust generated during loading and pumping; the whole plant is in a closed state.
07
Siemens PLC with high speed and precision weighing unit module combined with professional control software.
⚙

Technical Parameters

Model HZS25 HZS35 HZS50 HZS75
Theoretical output(m³/h) 25 35 50 75
Mixer model JS500 JS750 JS1000 JS1500
Output per batch(m³) 0.5 0.75 1 1.5
Aggregate batcher PLD800 PLD1200 PLD1600 PLD2400
Total power(KW) 27 35 80 110
Discharge height(m) 3.8 - 4.1
Total weight (ton) 20 25 35 45
🌍

Global Operations

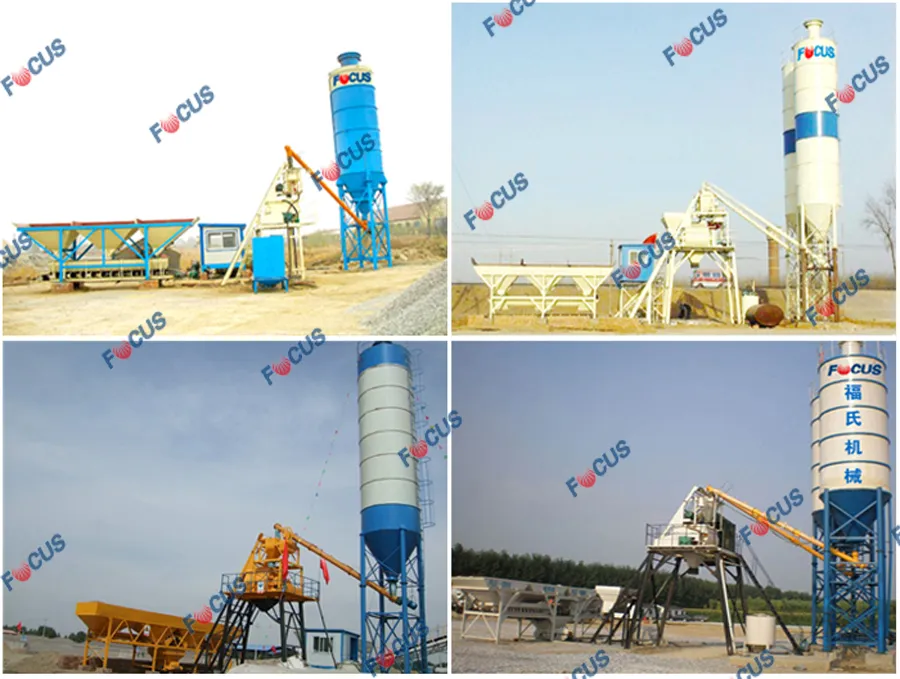

Global Installation

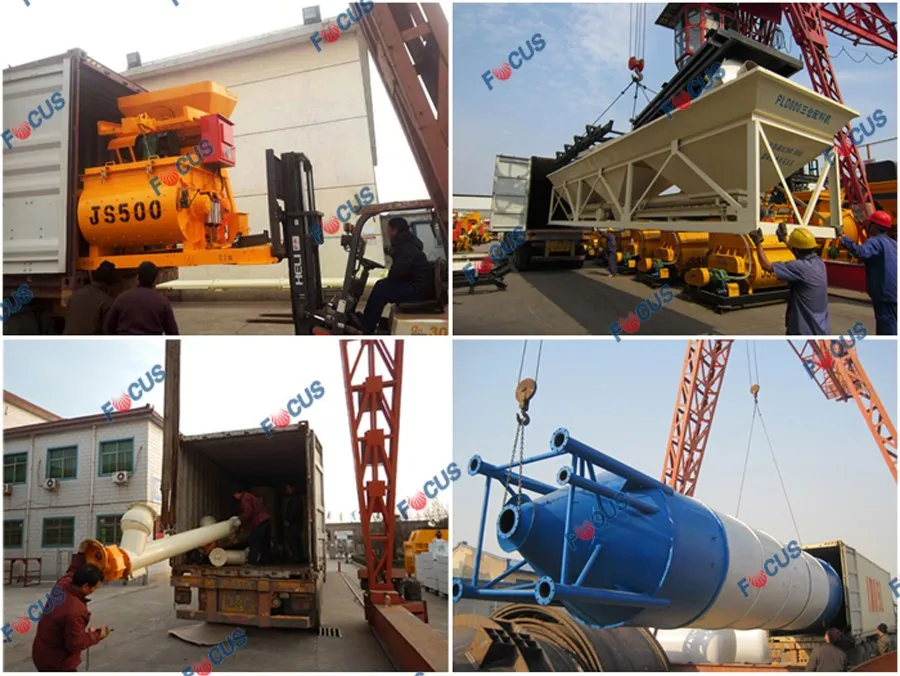

Distribution Network
Quality Certification
?

Frequently Asked Questions

What is the productivity of the HZS25 concrete plant?
The HZS25 model has a theoretical productivity of 25m³/h, making it ideal for small to medium-sized construction projects.
What type of mixer is used in this batching plant?
It utilizes a twin-shaft compulsory concrete mixer (Model JS500), which ensures even and rapid mixing for dry, semi-dry, and plastic concrete.
Does the plant support automatic operation?
Yes, it features a full automatic production process controlled by high-performance Siemens or Omron PLC systems for material measurement, mixing, and discharging.
How accurate is the weighing system?
The plant is equipped with three-point suspension sensors, achieving a scale accuracy of approximately 99% for aggregates, cement, water, and additives.
Can this plant be used in extreme weather conditions?
Yes, heating systems and ice plants can be integrated into the configuration to ensure stable operation in severely cold or hot environments.
What certifications does the equipment have?
The concrete batching plant is ISO9001: 2000 and CE certified, and typically comes with a 12-month warranty.
