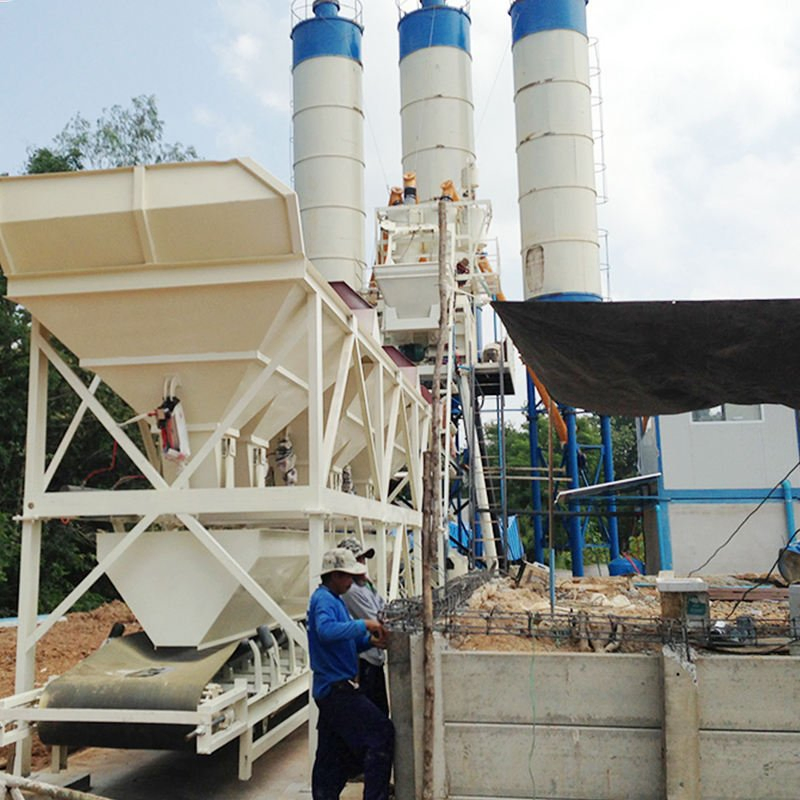

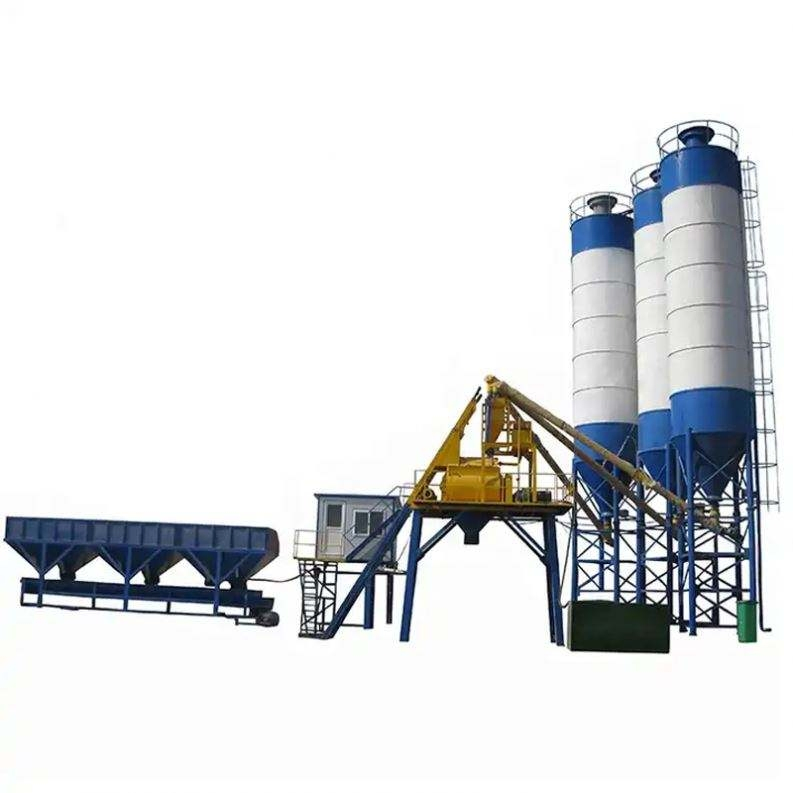

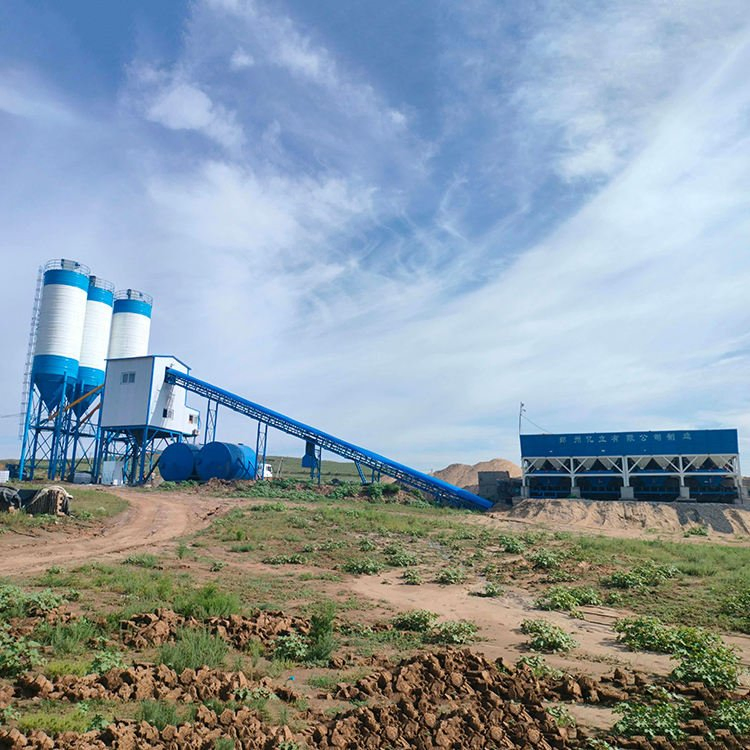

Brand New HZS25 HZS60 Concrete Batching Plant High Efficient of Compact Stationary
Commercial concrete mixing stations serve as the "central kitchens" of modern construction. Through centralized automated production, they ensure project quality, enhance efficiency, and reduce pollution. Widely used in building and infrastructure projects, they are evolving toward green zero-emission operations, smart unmanned factories, and high-end customization, driving sustainable transformation in the construction industry.

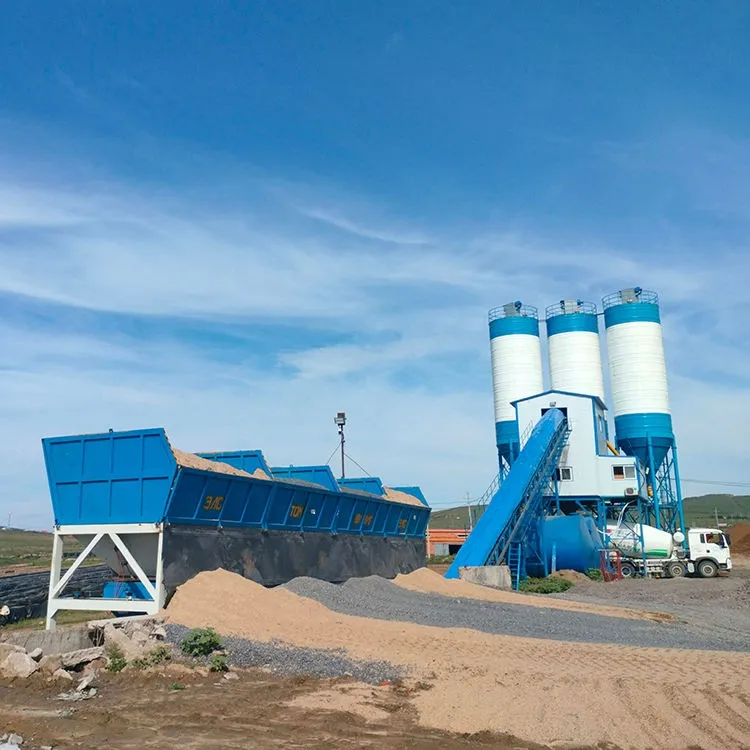

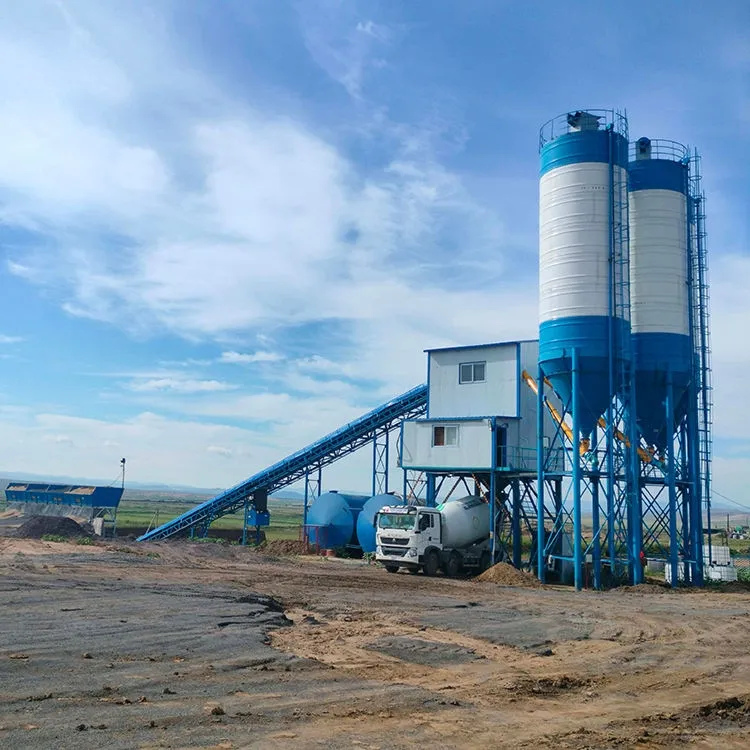

Concrete batching plant is a complete production line to produce ready mixed concrete. The aggregates, sand, cement, fly ash, additive, water reducing admixtures in concrete will be weighed by the weighing system, and then are feed into the concrete mixer machine to be mixed to concrete.
The whole procedure is controlled by software in the computer. And then it will be transit to the working sites by concrete transit mixer truck. Sometimes it will be discharged to the concrete pump machine directly to be pumped to the building.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Loading Capacity (L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Max. Productivity (m3/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Transport Type | Lifting hopper | Lifting hopper | Lifting hopper | Belt conveyor | Lifting hopper | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Total Power (kw) | 60 | 78.5 | 111 | 145 | 110 | 198 | 210 | 230 | 288 |
