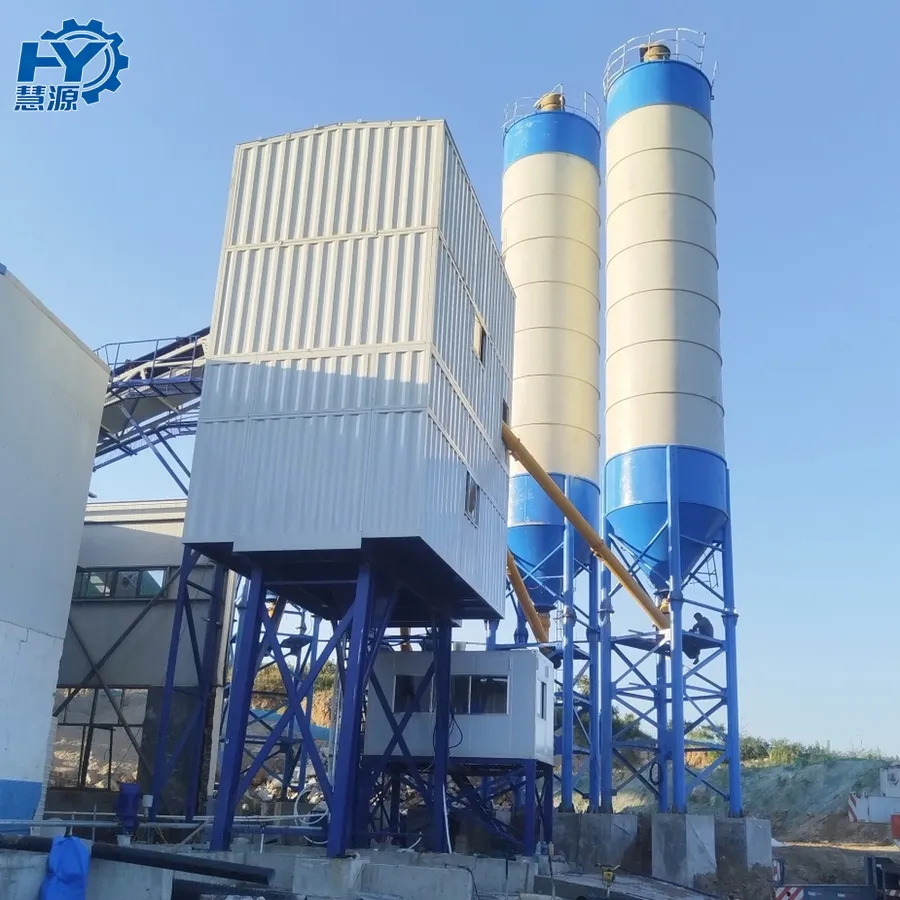

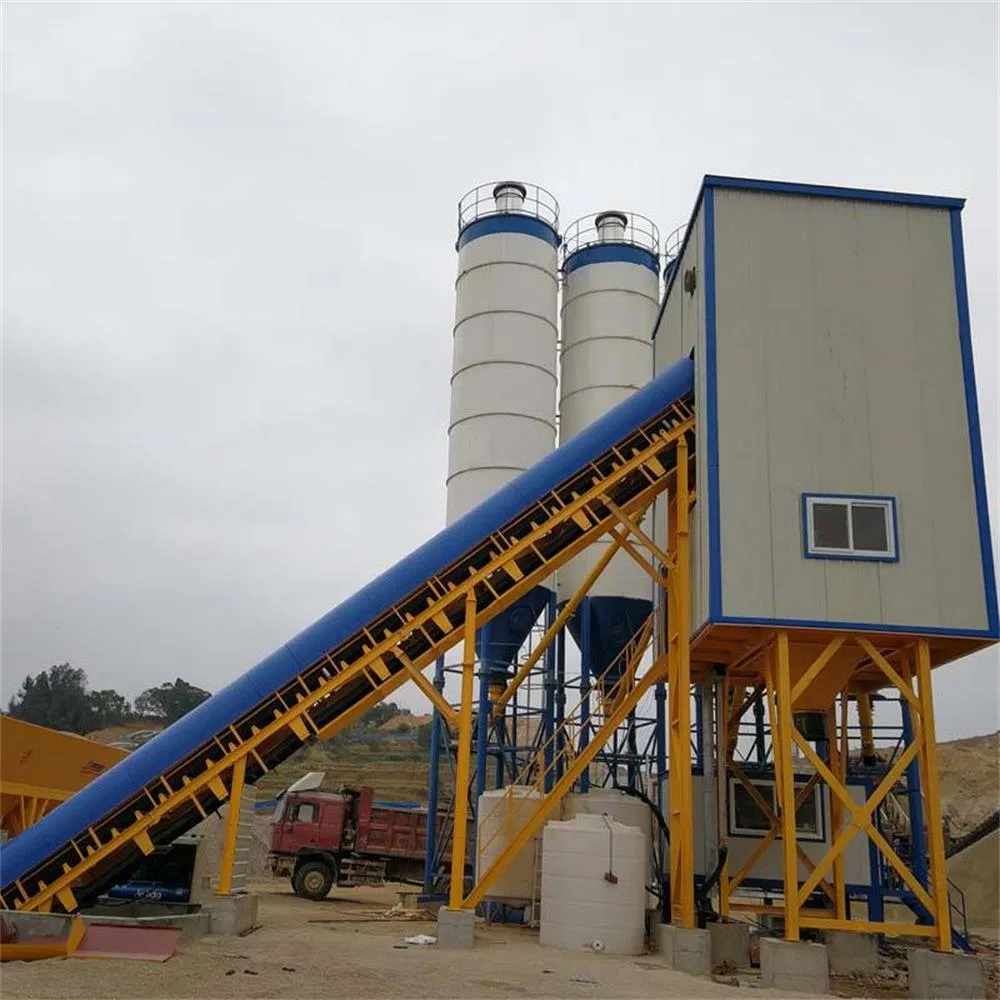

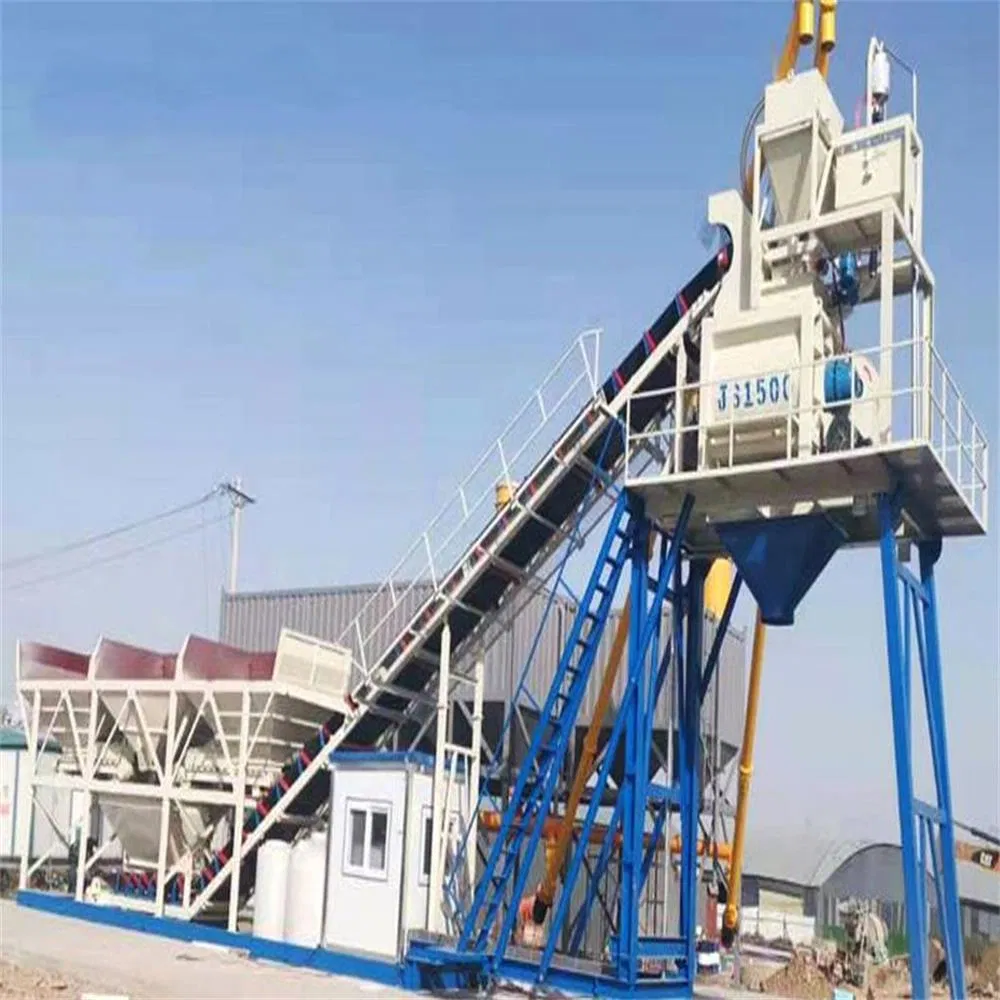

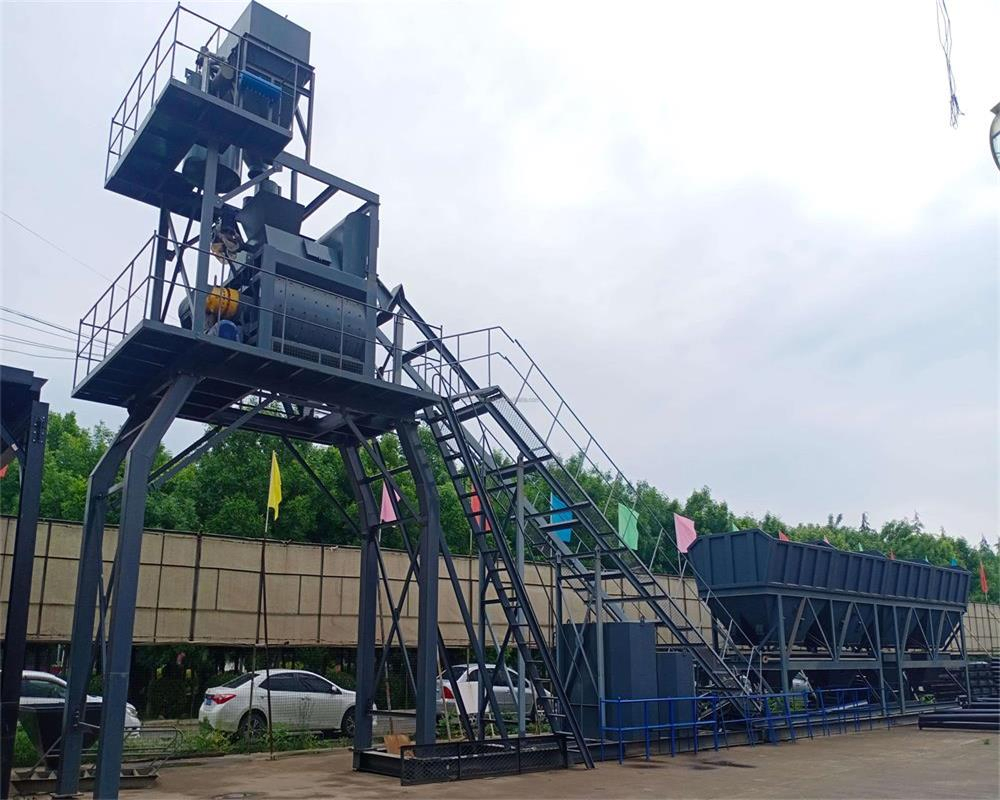

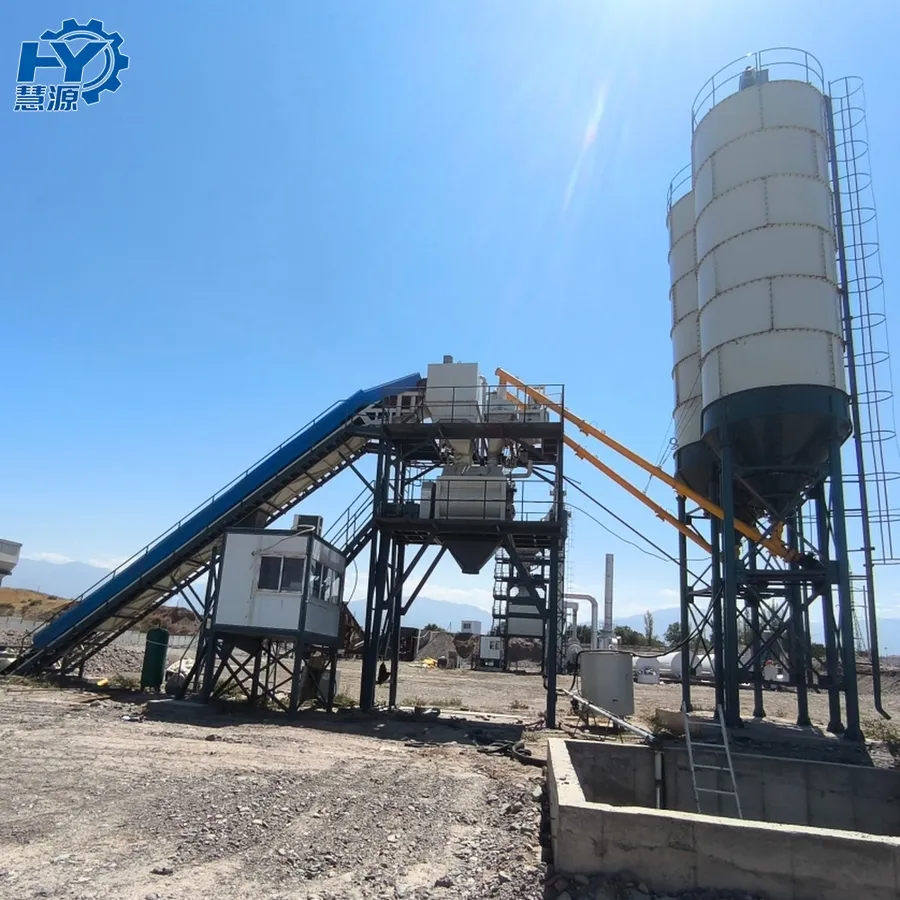

Our Concrete Batch Plant, also known as a concrete batching station or ready mix concrete plant, is a sophisticated, stationary concrete mixing plant designed for large-scale, long-term concrete production.
This industrial concrete batching equipment expertly combines cement, aggregates (sand, gravel, stones), water, fly ash, silica fume, slag, and admixtures in precise proportions to produce high-quality concrete that meets stringent engineering requirements.

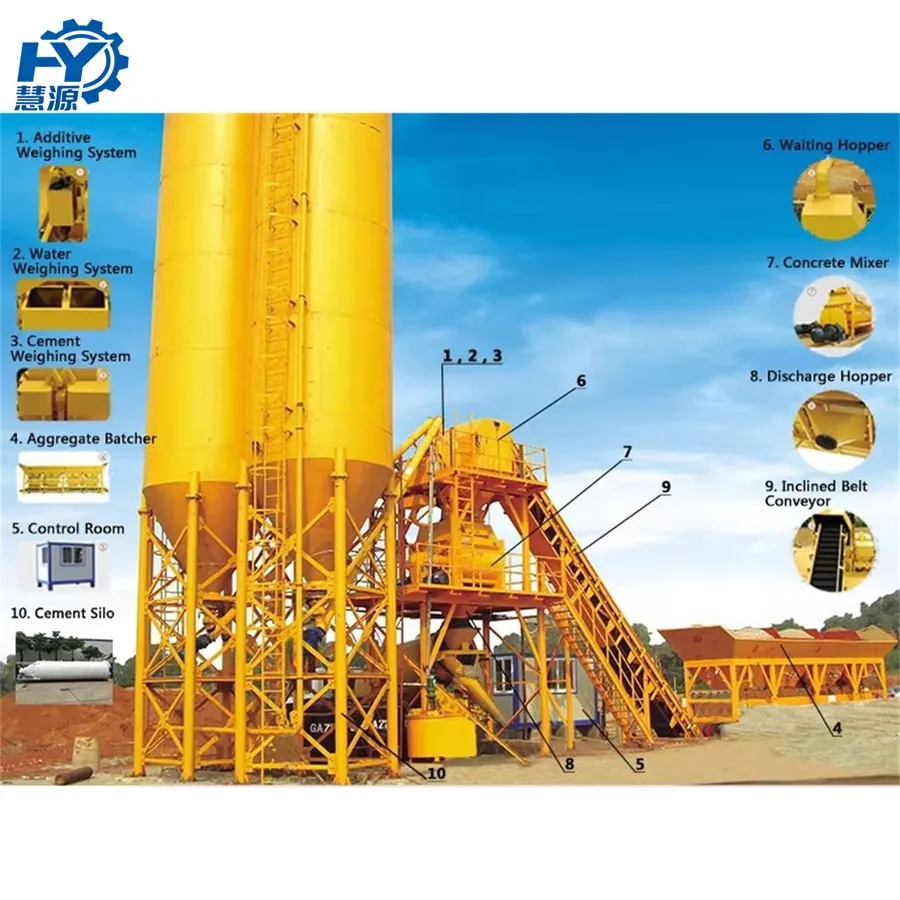

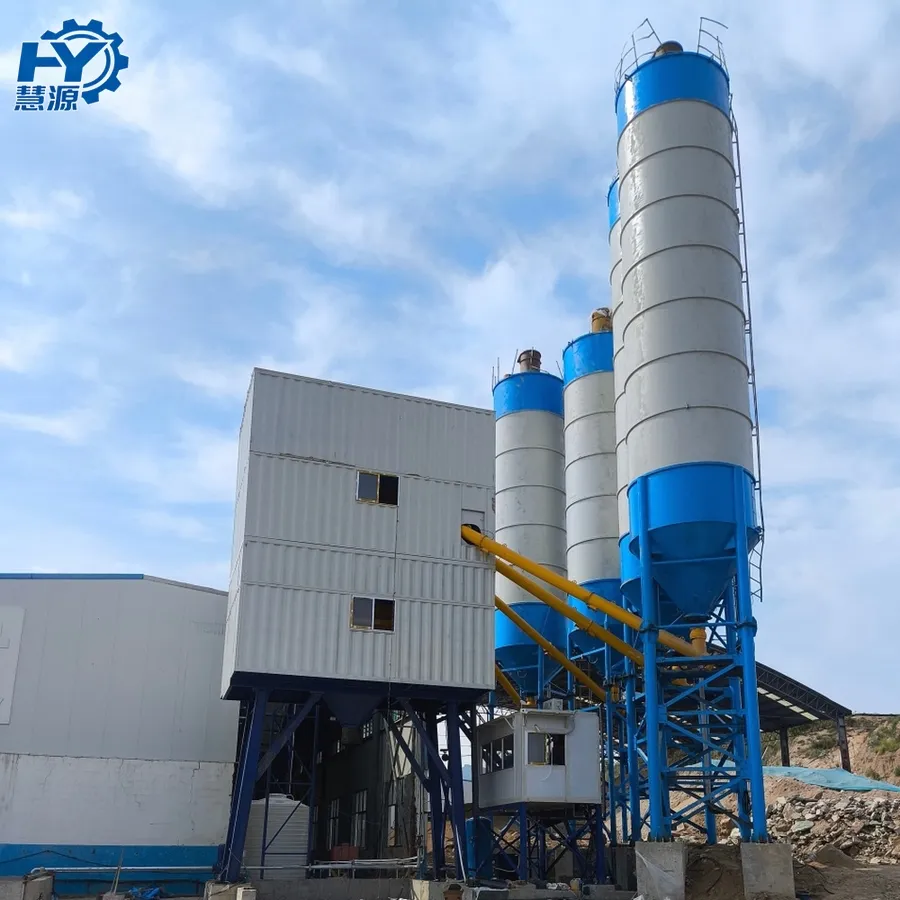

Featuring advanced concrete plant machinery with five integrated systems - mixing host, material weighing, conveying, storage, and intelligent control - our fixed concrete mixing plant delivers exceptional production efficiency, superior mixing quality, and high automation levels.
| Model | HZS25 | HZS35 | HZS50 | HZS75 | HZS90 | HZS120 | HZS180 |
|---|---|---|---|---|---|---|---|
| Theoretical Productivity (m3/h) | 25 | 35 | 50 | 75 | 90 | 120 | 180 |

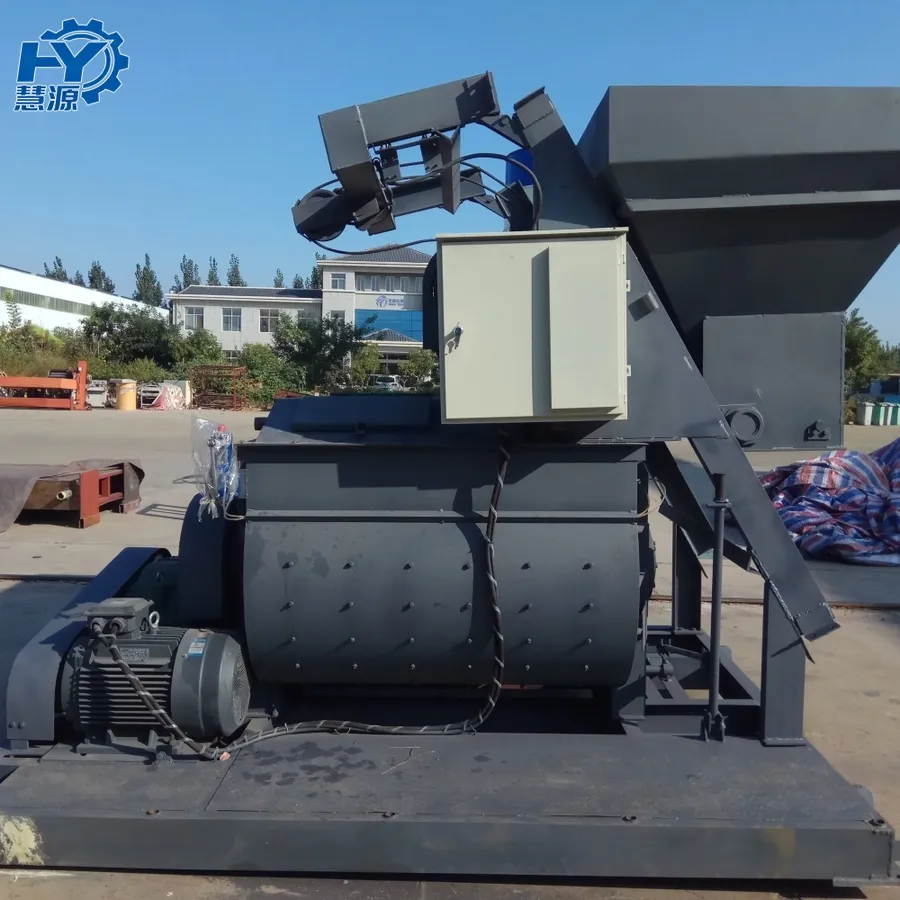

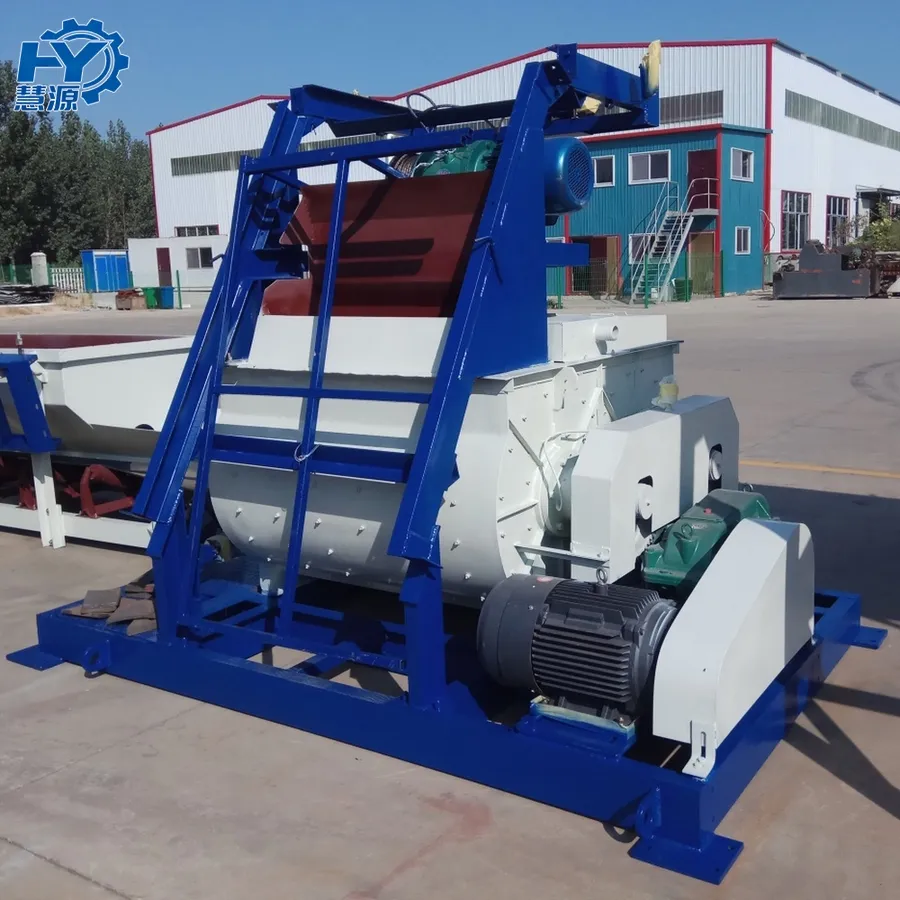

| Mixer Model | JS500 | JS750 | JS1000 | JS1500 | JS1500 | JS2000 | JS3000 |
| Drive Power (kw) | 18.5 | 30 | 2x18.5 | 2x30 | 2x30 | 2x37 | 2x55 |
| Max. Feeding Size (mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Discharge Height (mm) | 3800 | 3800 | 3800 | 3800 | 4000 | 4200 | 4200 |
| Total Power (kw) | 35 | 55 | 75 | 110 | 110 | 145 | 190 |

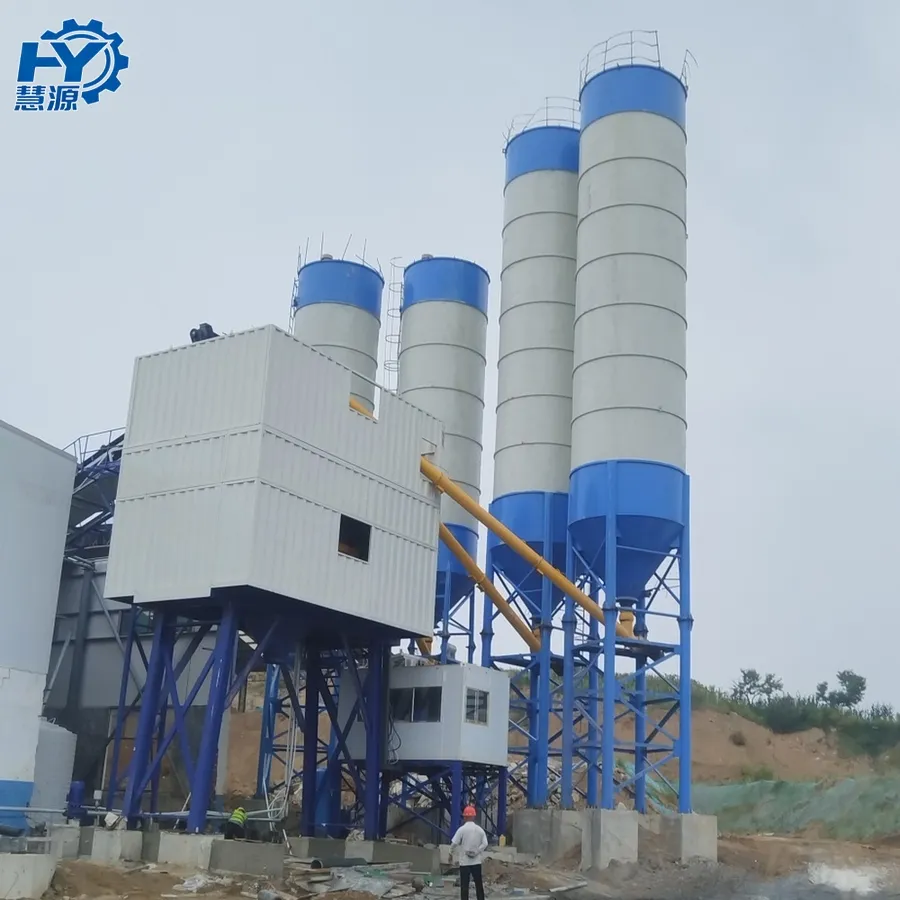

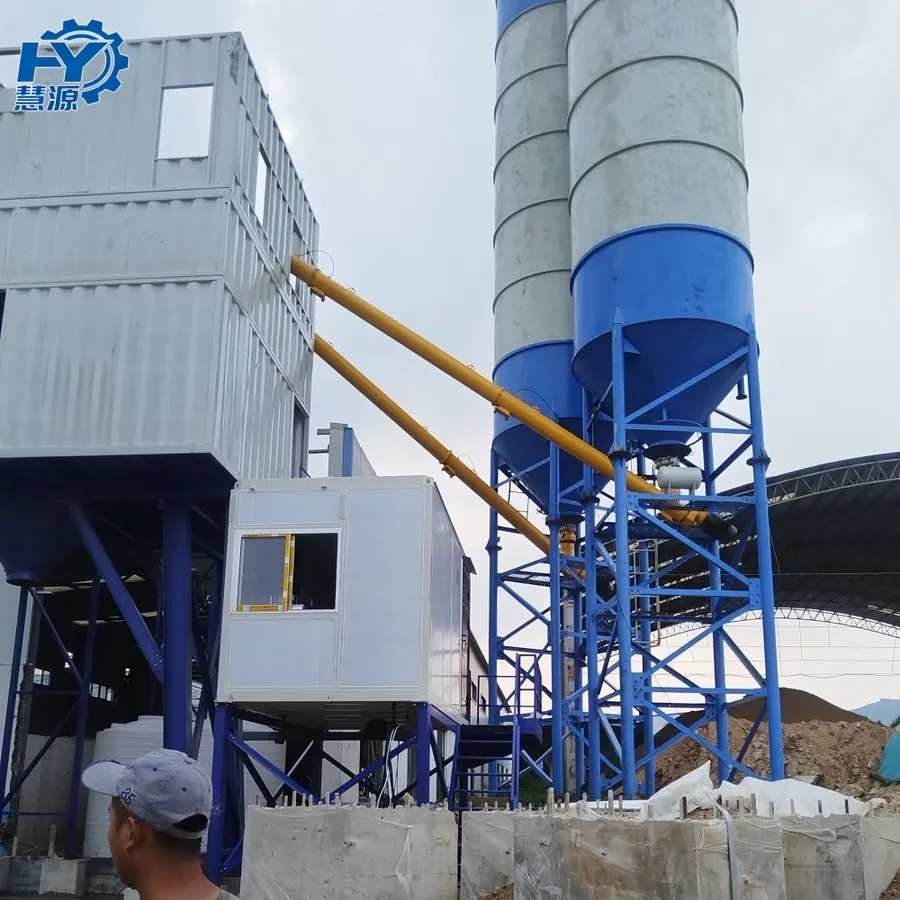

Integrated aggregate bins, cement silos, and storage facilities for seamless material management and continuous production flow.
Advanced batching plant control system with high automation capabilities for enhanced operational efficiency and reduced labor requirements.

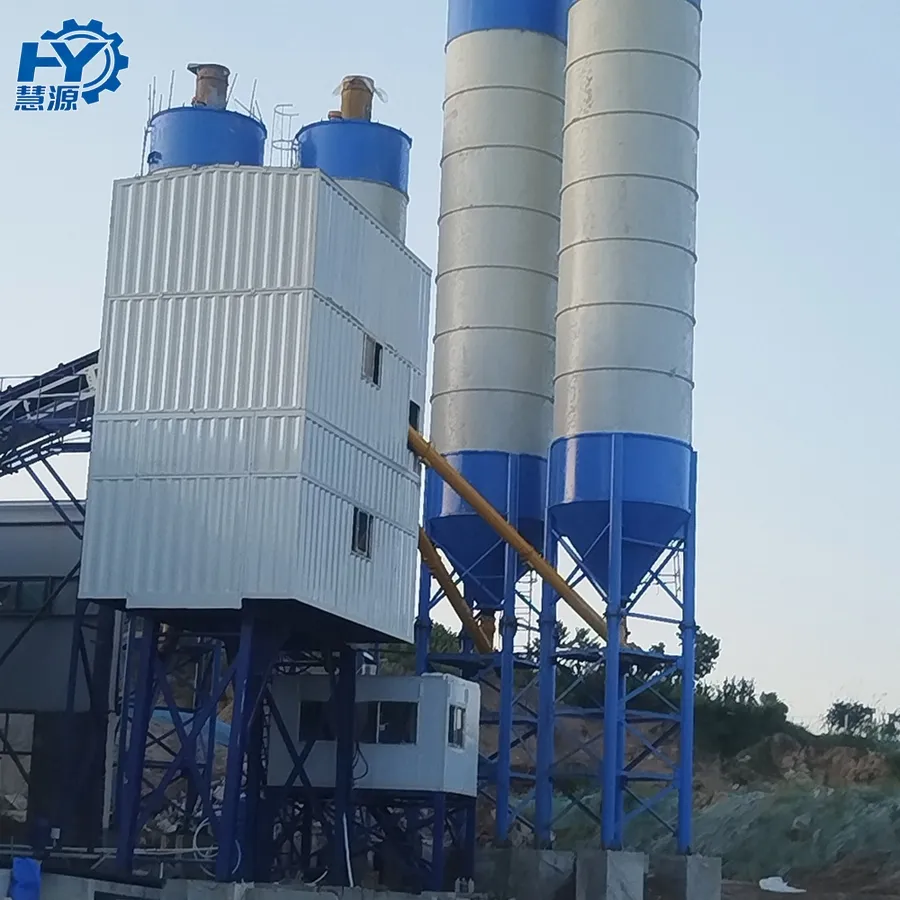

Built-in dust collector and environmental protection systems ensure compliance with safety and environmental standards.

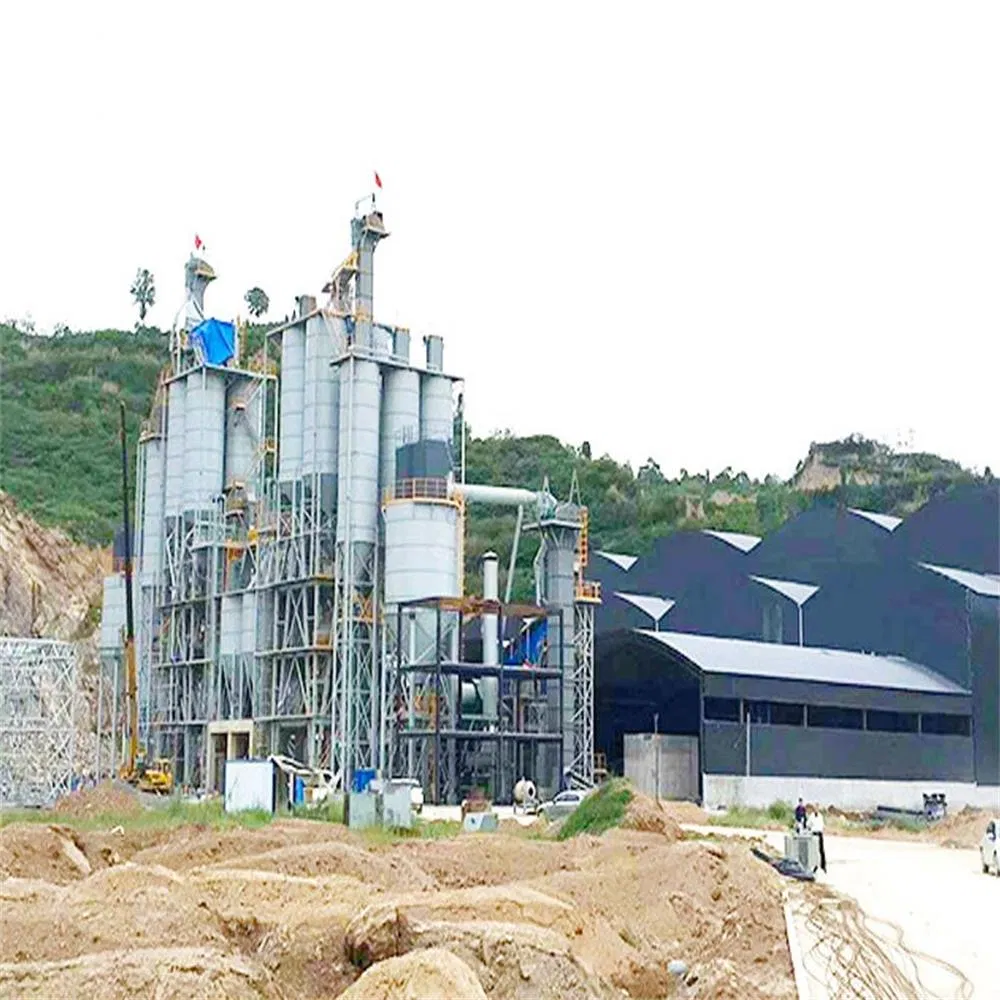

Designed for large-scale, continuous concrete production with minimal downtime and maximum output capacity.
